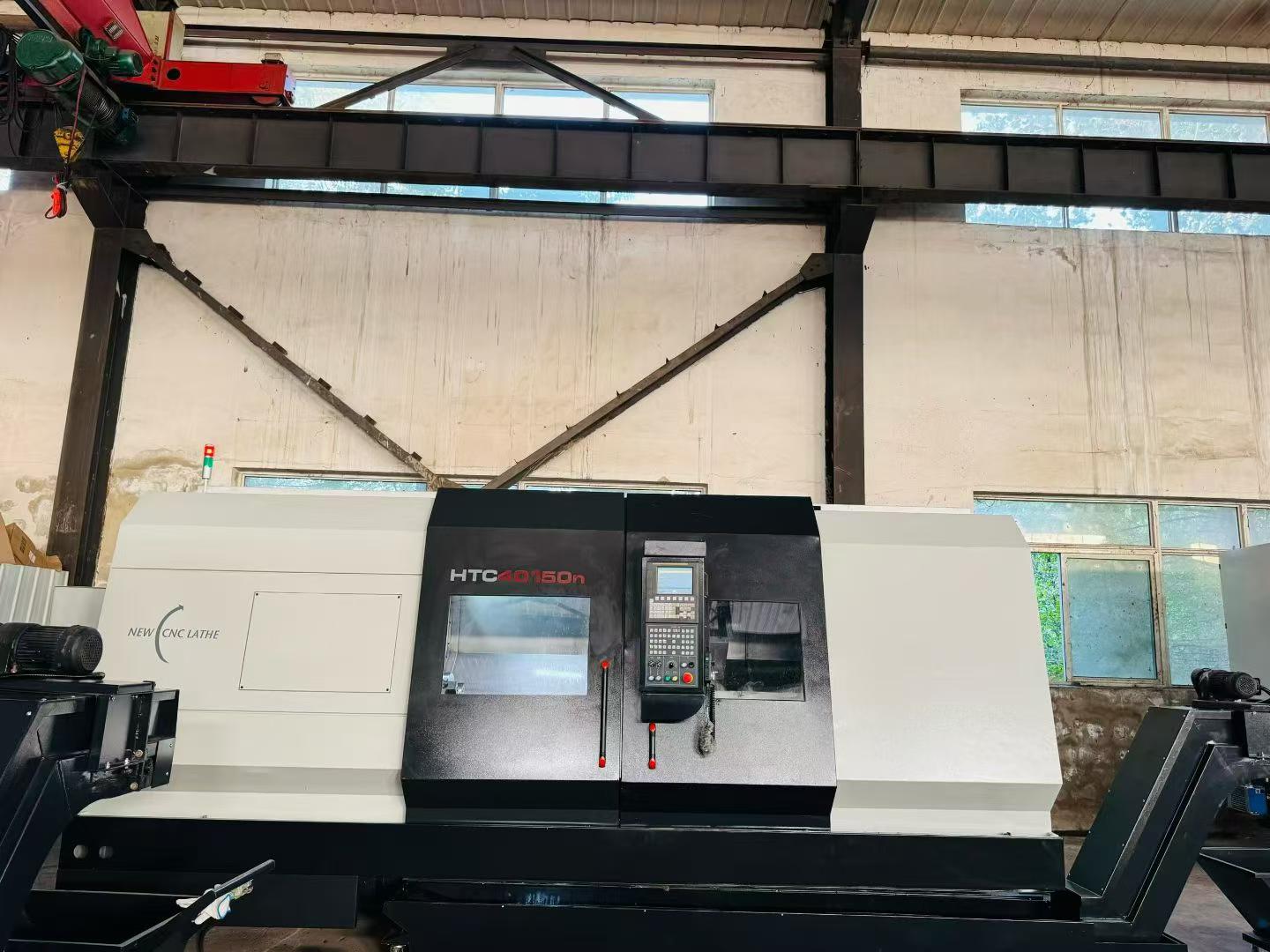

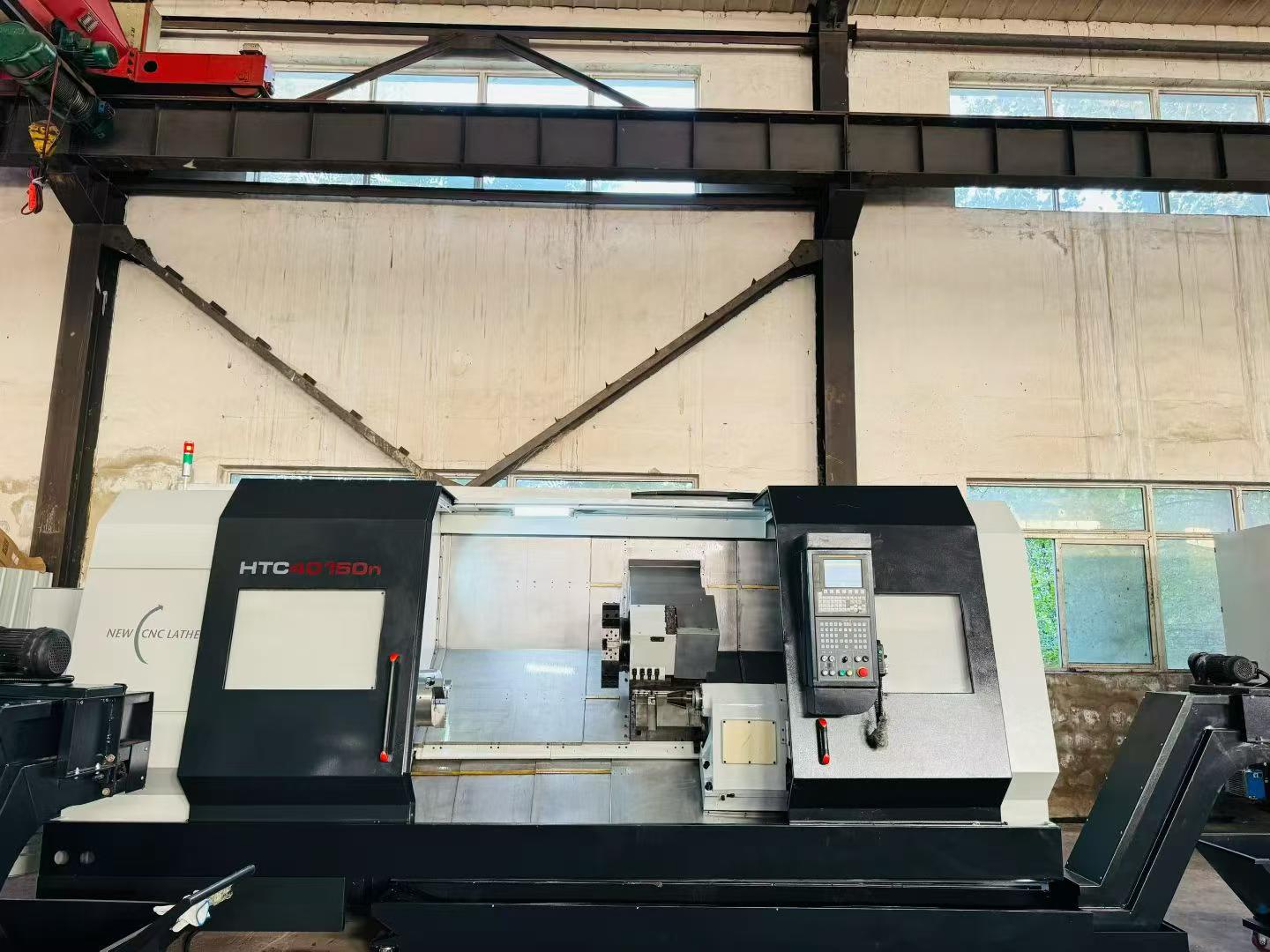

Used Shenyang HTC 40150 N Large Slant-Bed CNC Lathe with FANUC TD

Used Shenyang HTC 40150 N slant-bed CNC lathe available from China. This listing includes three units just acquired from a Shenyang factory: two with 12-station servo turrets and one with an 8-station servo turret. The machines feature a 700 mm swing over bed, 1500 mm machining length, 12-inch hollow hydraulic chuck, 22 kW servo main motor, two-axis high-rigidity rectangular box guideways, fully automatic programmable heavy-duty servo tailstock, FANUC TD control, high-configuration alpha drive motors, factory maintenance paint, and chain chip conveyor. Machines can be inspected on-site or verified by video.

Machine Code: CL2608238
Year: On request
Location: Shenyang, China
Usage Hours: On request

Accessories

Chain chip conveyor

Email Inquiry

Main Specifications

Swing over bed	∅700 mm
Maximum machining length	1500 mm

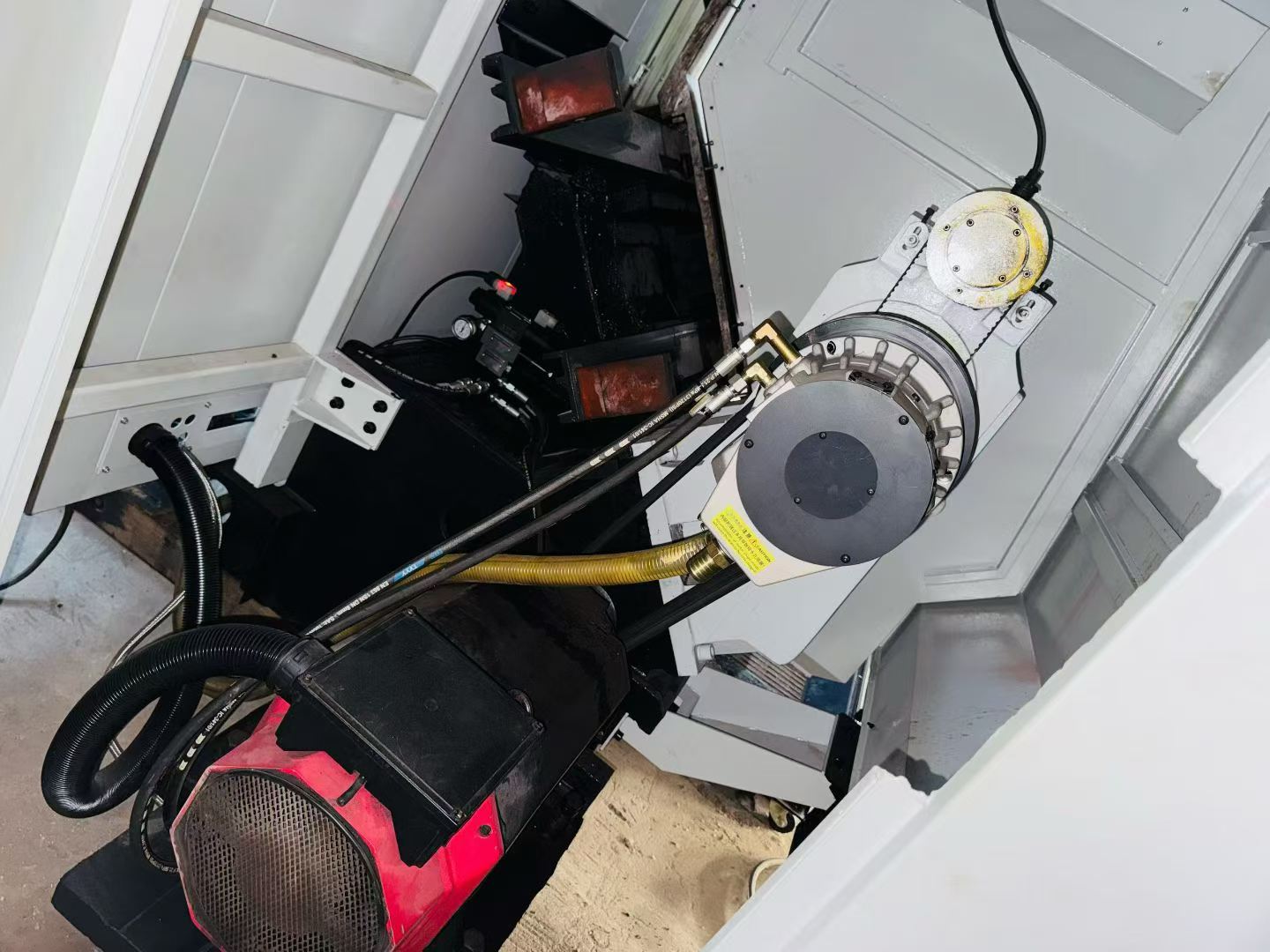

Chuck size	12-inch hollow hydraulic chuck

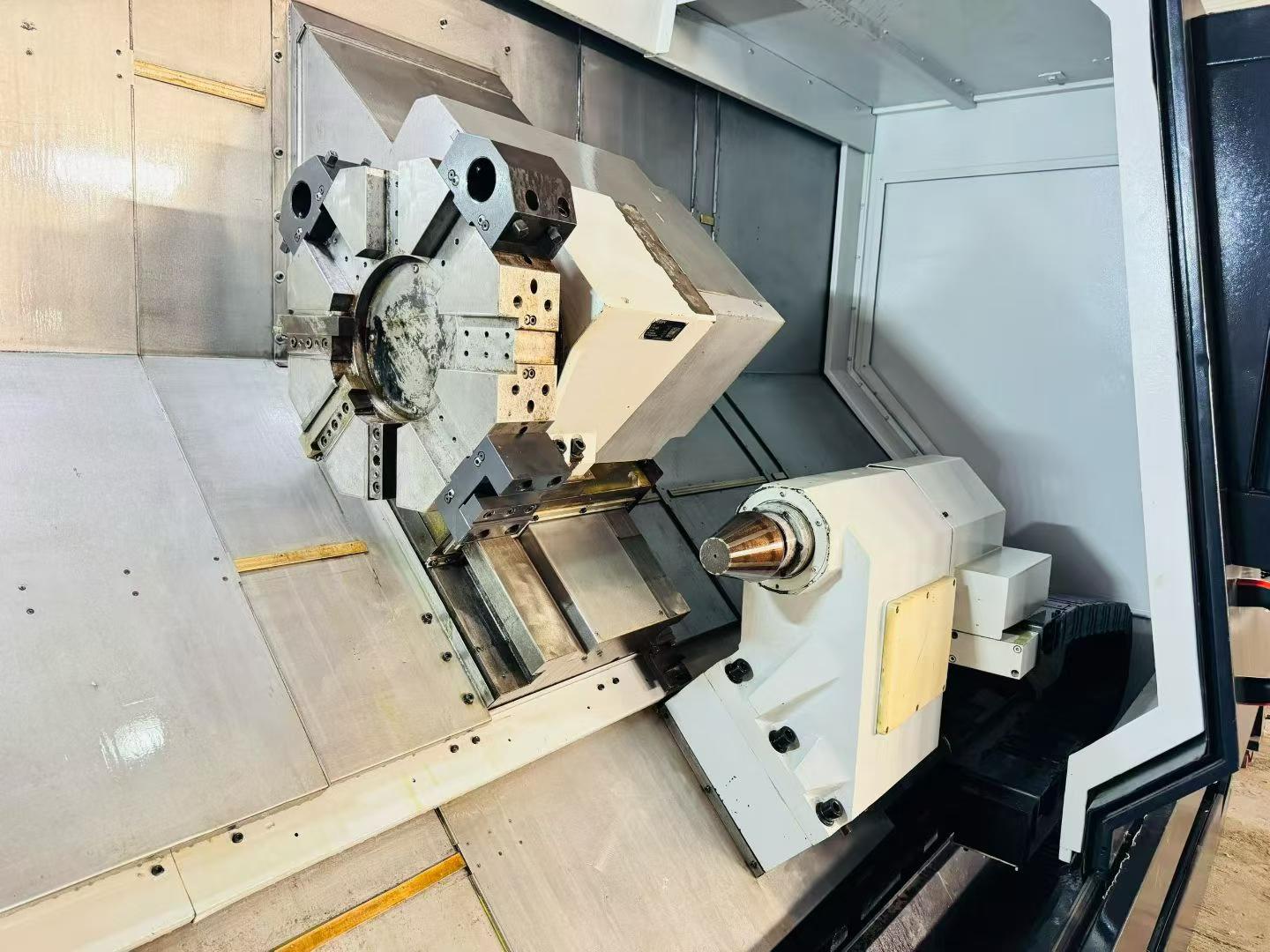

Turret configuration	2 units: 12-station servo turret; 1 unit: 8-station servo turret
Spindle motor power	22 kW servo main motor
Guideway type	Two-axis high-rigidity rectangular box guideways
Tailstock type	Fully automatic programmable heavy-duty servo tailstock

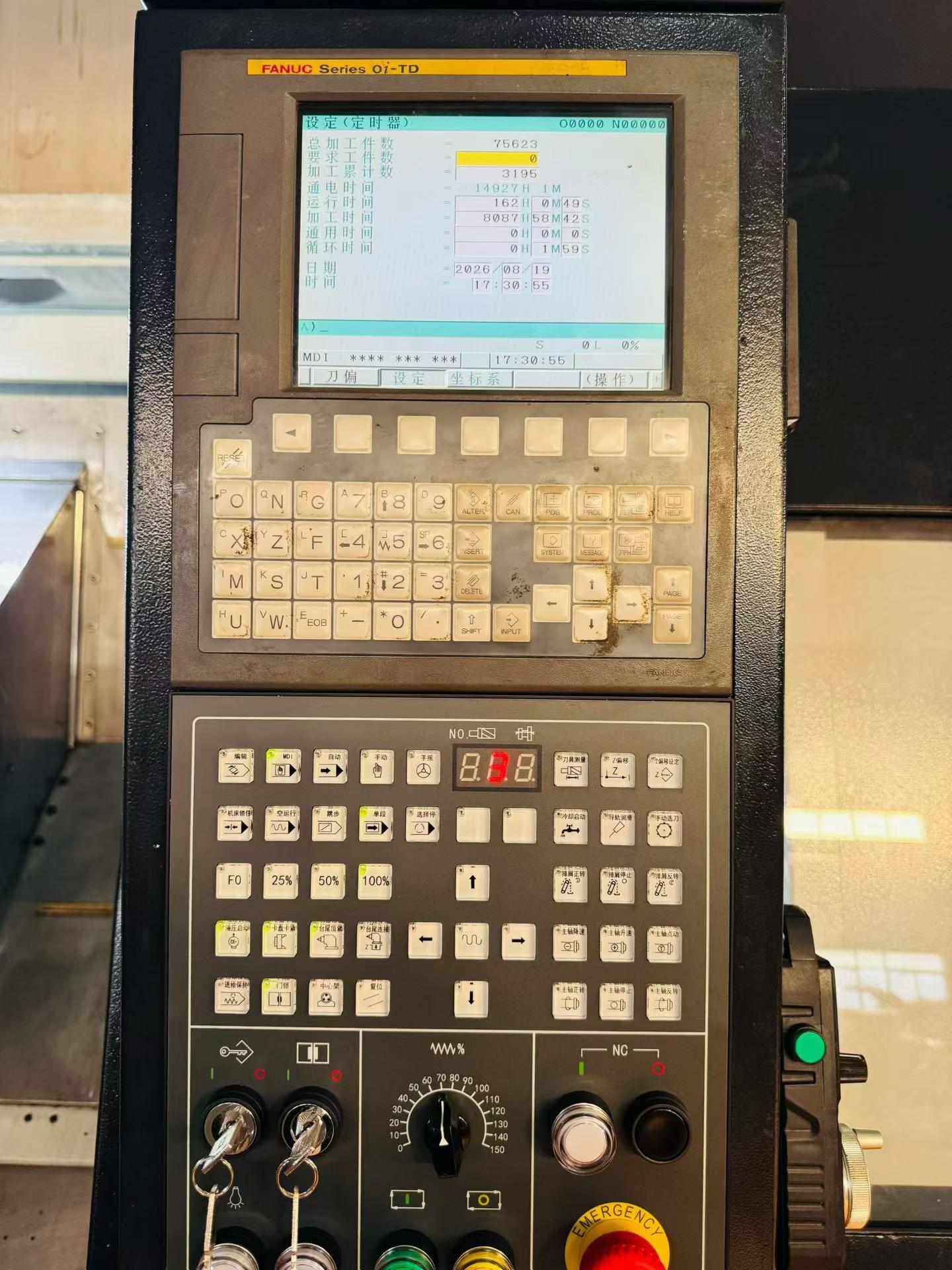

Control system	FANUC TD
Chip conveyor	Chain type chip conveyor
Brand	Shenyang Machine Tool
Model	HTC 40150 n
Machine Type	Slant-Bed CNC Lathe
Guideway Configuration	Two-axis high-rigidity rectangular box guideways
Chuck	12-inch hollow hydraulic chuck
Drive Motors	High-configuration α drive motors
