Sunshine GV 1580 L Vertical Machining Center with Mitsubishi M 80 Control

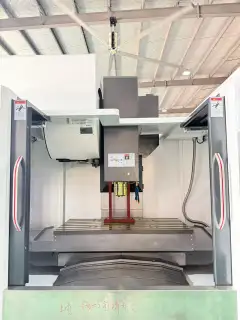

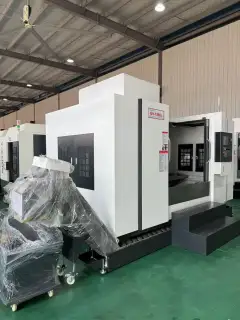

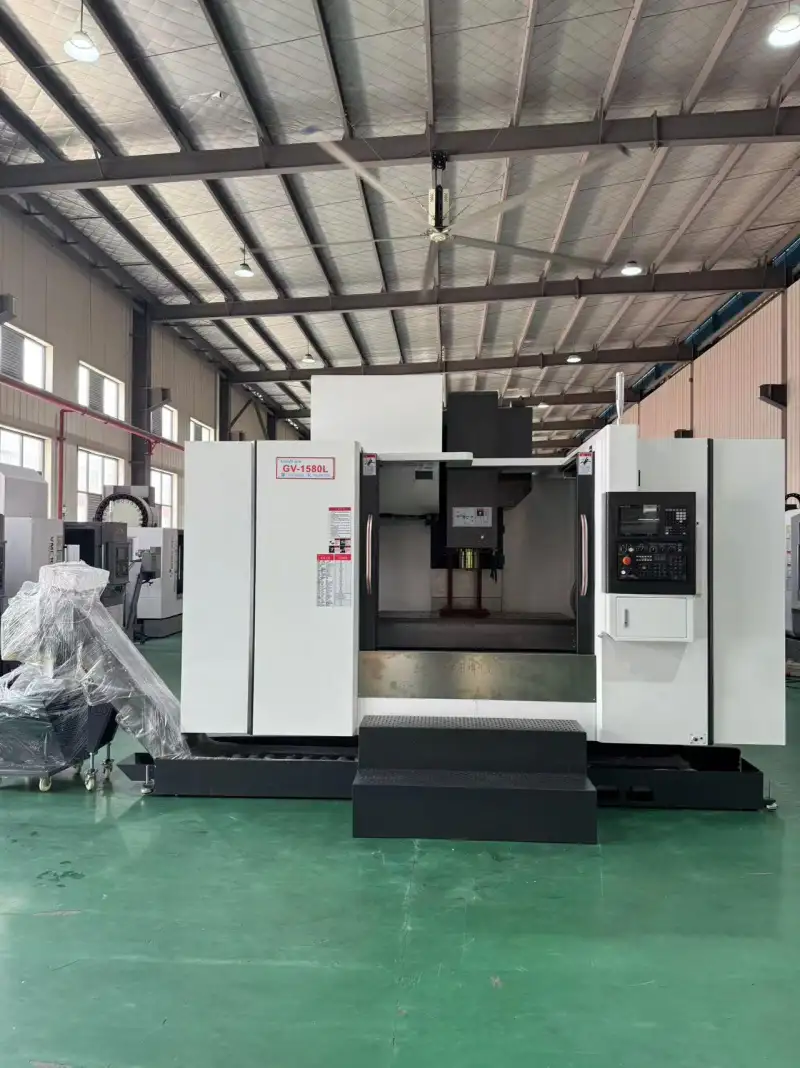

Sunshine GV 1580 L Vertical Machining Center This GV 1580 L is a vertical machining center built on a Yunnan Mingde cast iron machine bed and equipped with the Mitsubishi M 80 CNC control system. The spindle is an Okada BT50 unit running at a belt-driven 8000 rpm with 18.5 kW of spindle power. Travels are 1500 mm x 800 mm x 700 mm on the X, Y and Z axes, with a 1700 mm x 810 mm worktable. All three axes run on Taiwan HIWIN roller linear guideways: the Y axis carries four guideways, the Z axis uses a widened 55 roller linear guideway, and the X axis uses two 45-wide guideways. Tool changing is handled by a DeSu 24-tool arm-type automatic tool changer. The machine is fitted with a spindle oil cooler and a Z-axis nitrogen counterbalance cylinder, and an automatic chip conveyor is available as an option. Model: GV 1580 L Year: 2026
- Machine Code
- VMC261018
- Year
- 2026
- Location
- China
- Usage Hours
- On request
Accessories

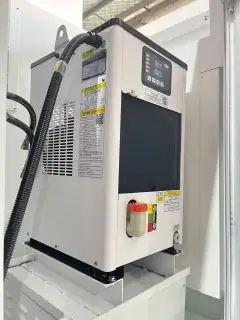

Spindle oil cooler; Z-axis nitrogen counterbalance cylinder; optional automatic chip conveyor; Yunnan Mingde cast iron machine bed.
Main Specifications
| Machine type | Vertical Machining Center |
|---|---|
| Model | GV 1580 L |
| Year | 2026 |

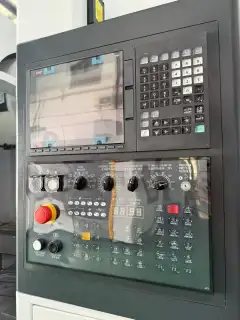

| Control system | Mitsubishi M 80 |

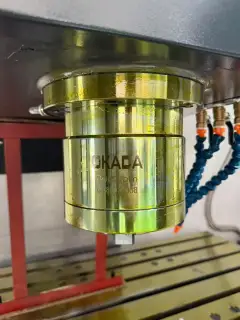

| Spindle taper | BT50 |
| Spindle speed | 8000 rpm (belt-driven) |
| Spindle power | 18.5 kW |
| X/Y/Z travel | 1500 mm x 800 mm x 700 mm |

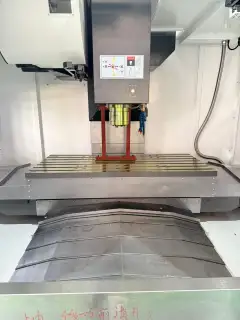

| Worktable size | 1700 mm x 810 mm |
| Guideway type | Roller linear guideways (Y axis: 4 guideways; Z axis: widened 55 roller; X axis: 2 x 45-wide) |

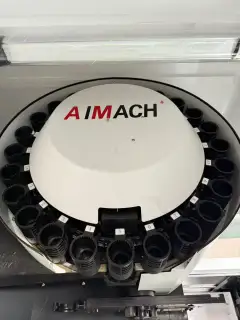

| Tool magazine capacity | 24 tools (arm-type ATC) |
| Machine bed | Yunnan Mingde cast iron |
| Brand | Sunshine Machinery |
| Year of manufacture | 2026 |
