AvailableVertical Machining Center

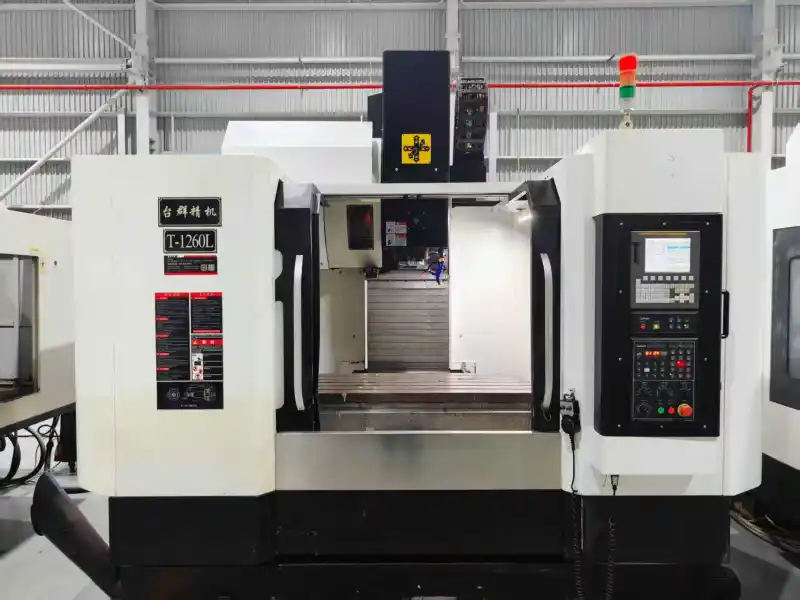

Used Taikan T-1260 L Vertical Machining Center with FANUC 0i-MF Control

Heavy-duty Taikan T-1260 L vertical machining center with an oversized machine bed and a two-linear, one-box guideway configuration for rigid heavy cutting. It is equipped with the FANUC 0i-MF CNC control system, a belt-driven BT40 spindle running to 10,000 rpm, and a 24-station tool magazine with dual inverters and hydraulic magazine drive. The 1300 x 600 mm worktable covers X/Y/Z travels of 1200 / 600 / 560 mm. The X and Y axes ride on 45-size linear guideways, while the Z axis uses a box guideway with a counterweight. Three spiral chip conveyors handle chip evacuation.

Machine Code: VMC2610137
Year: On request
Location: China
Usage Hours: On request

Accessories

Three spiral chip conveyors; Z-axis counterweight; hydraulically driven 24-station tool magazine with dual inverters

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Spindle taper	BT40
Spindle drive	Belt type
Spindle speed	10,000 rpm
Tool magazine capacity	24 stations
Tool magazine drive	Dual inverter, hydraulic
Worktable size	1300 x 600 mm
X/Y/Z travel	1200 / 600 / 560 mm
X/Y axis guideway	45-size linear guideway
Z axis guideway	Box guideway with counterweight
Chip removal	Three spiral chip conveyors

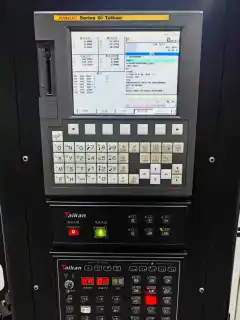

Control system	FANUC 0i-MF
Brand	Taikan
