Used WELE SB-316 Gantry Machining Center with FANUC 0i-MB
WELE · SB-316
Year on request · FANUC 0i-MB · China

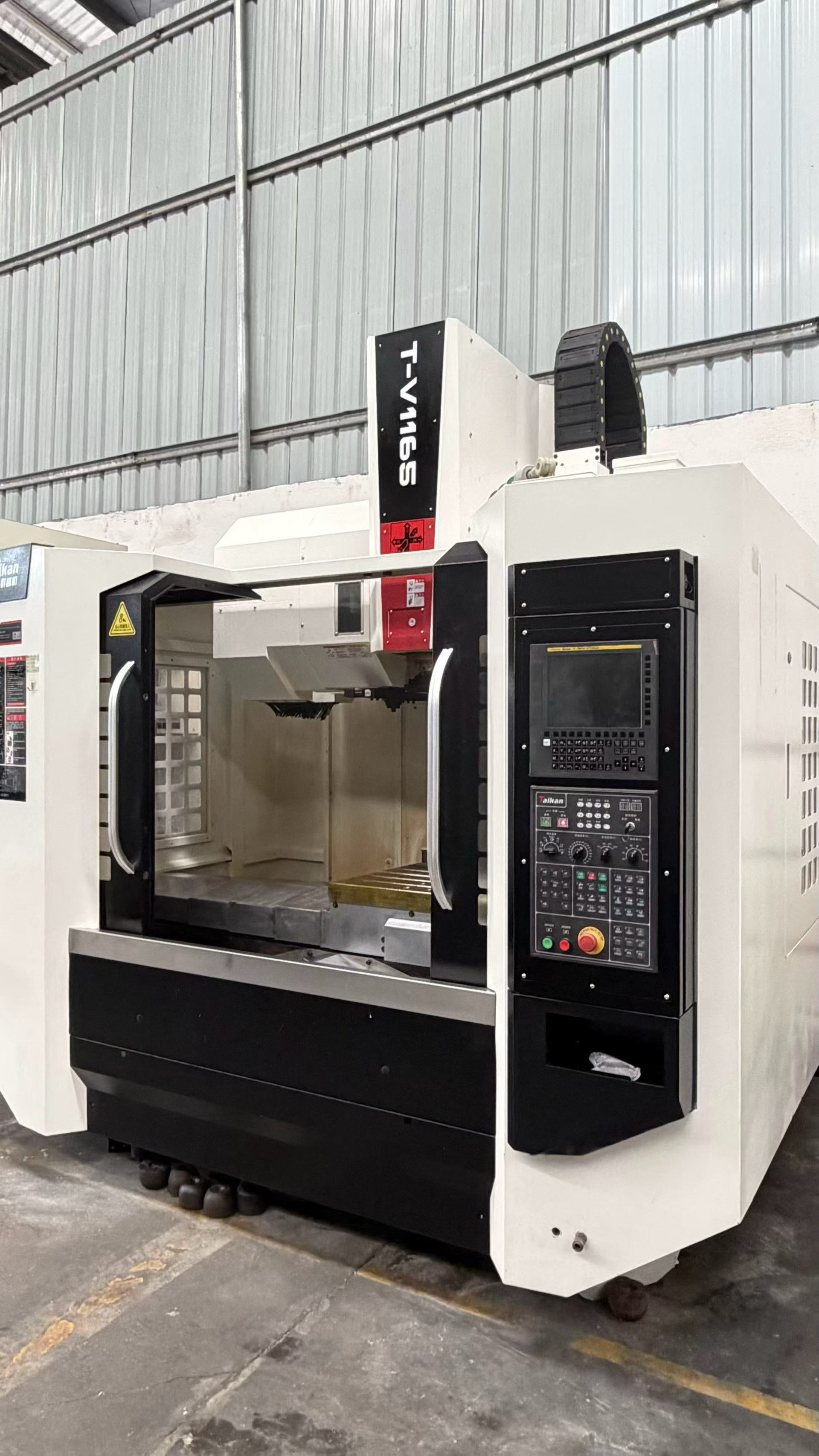

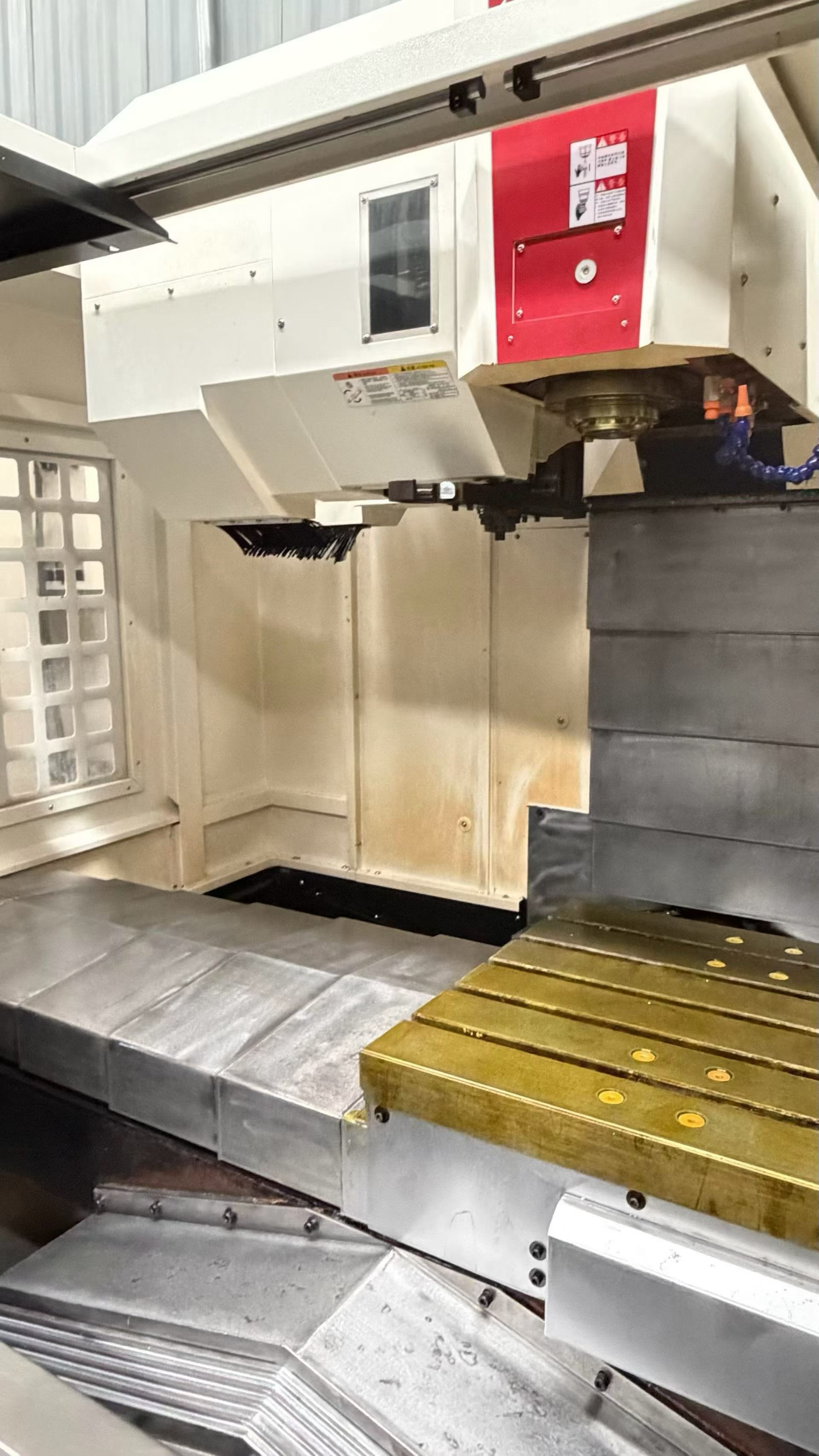

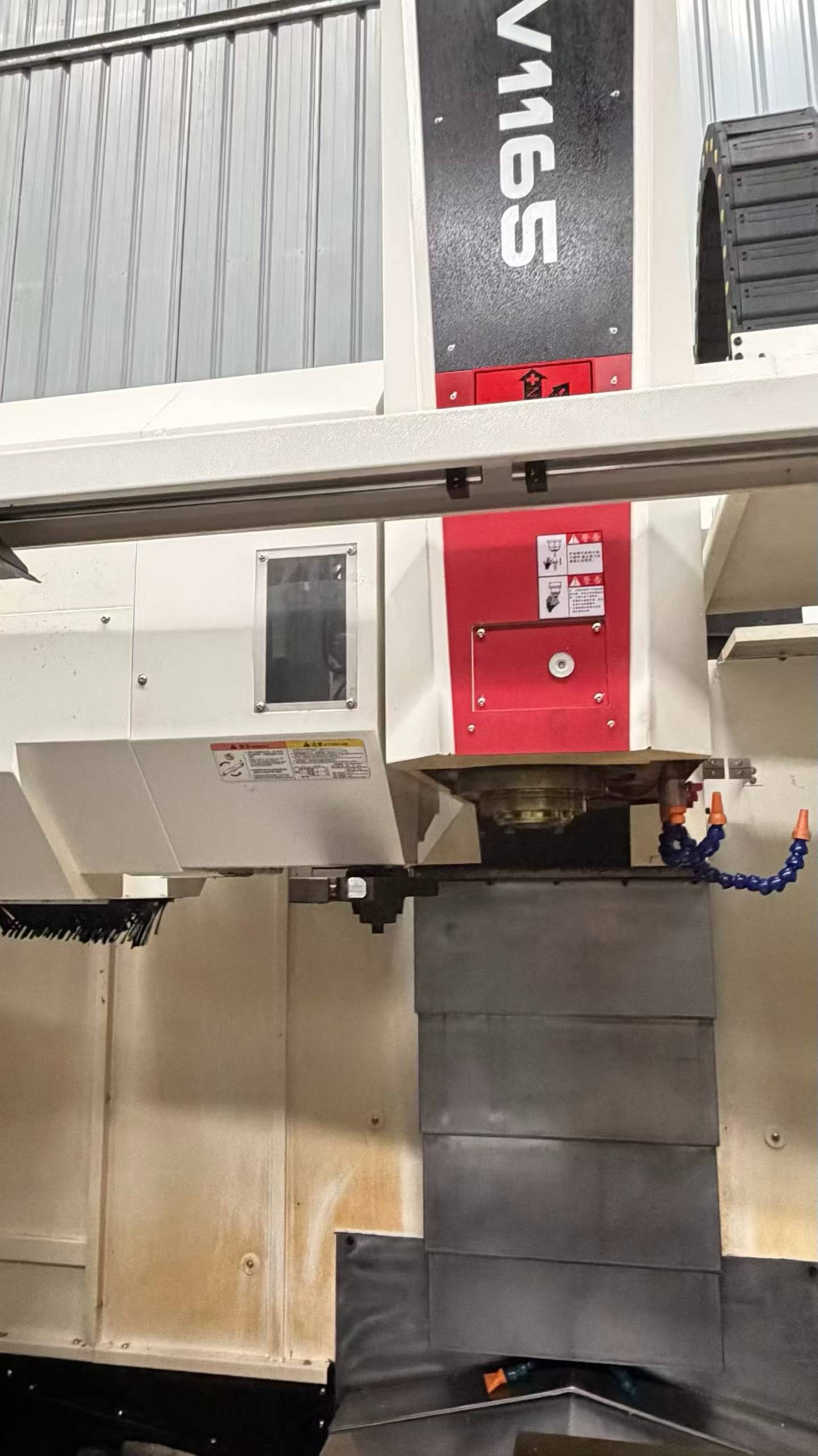

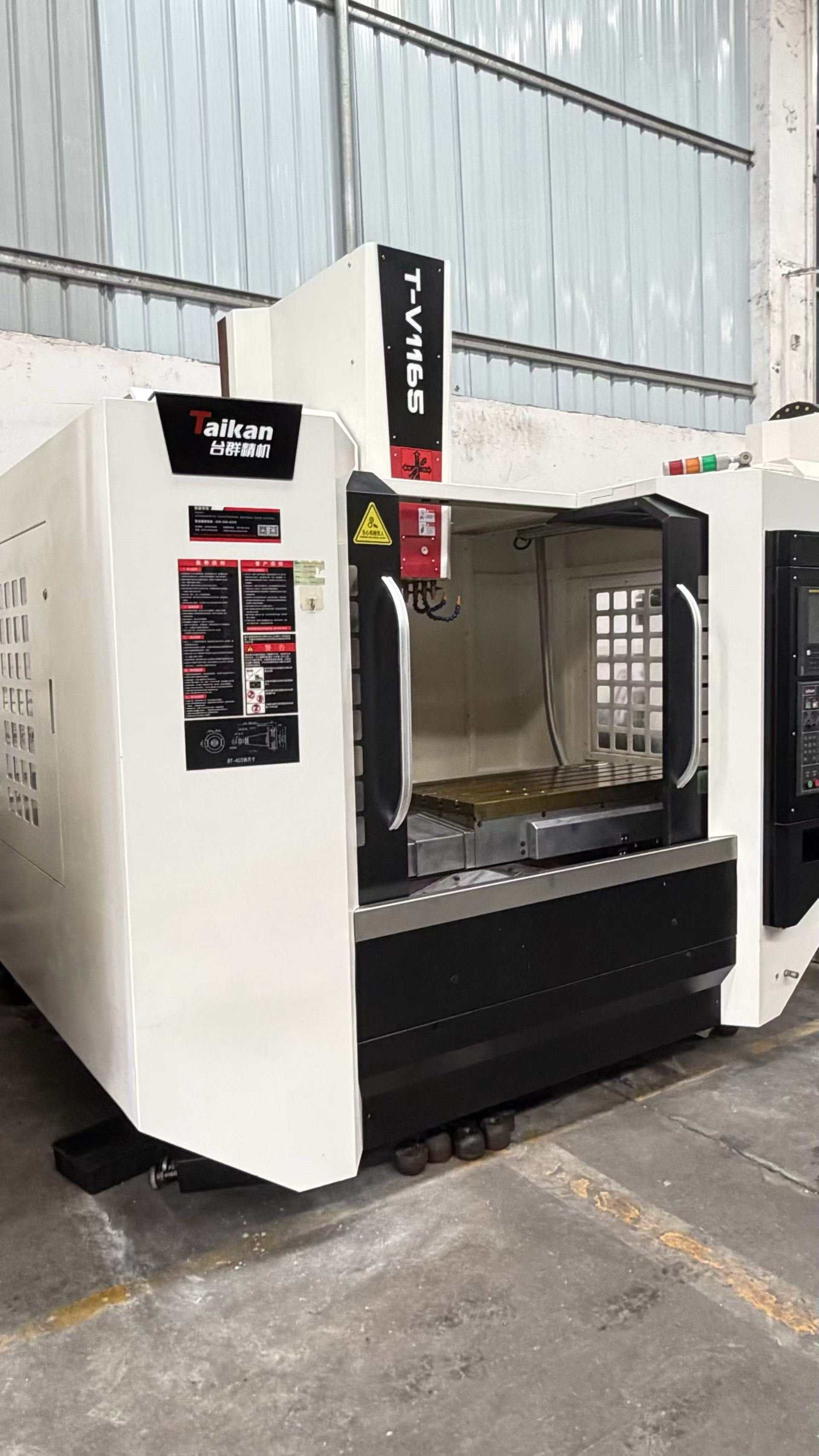

Used Taikan T-V 1165 S machining center with FANUC control. Equipped with BT40 direct-drive spindle at 12000 rpm and 24-tool variable frequency arm-type automatic tool changer. All three axes use linear guideways, with travels of X: 1100 mm, Y: 650 mm, Z: 580 mm. Includes spindle oil cooler and rear coolant tank. Machine is in good cosmetic condition.
Spindle oil cooler, rear coolant tank
Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.
Loading…
| Spindle taper | BT40 |
|---|---|
| Spindle speed | 12000 rpm |
| Tool magazine capacity | 24 tools |
| Tool magazine type | Variable frequency arm-type |
| X travel | 1100 mm |
| Y travel | 650 mm |
| Z travel | 580 mm |
| Guideway type | Linear guideways on X/Y/Z axes |
| Brand | Taikan |

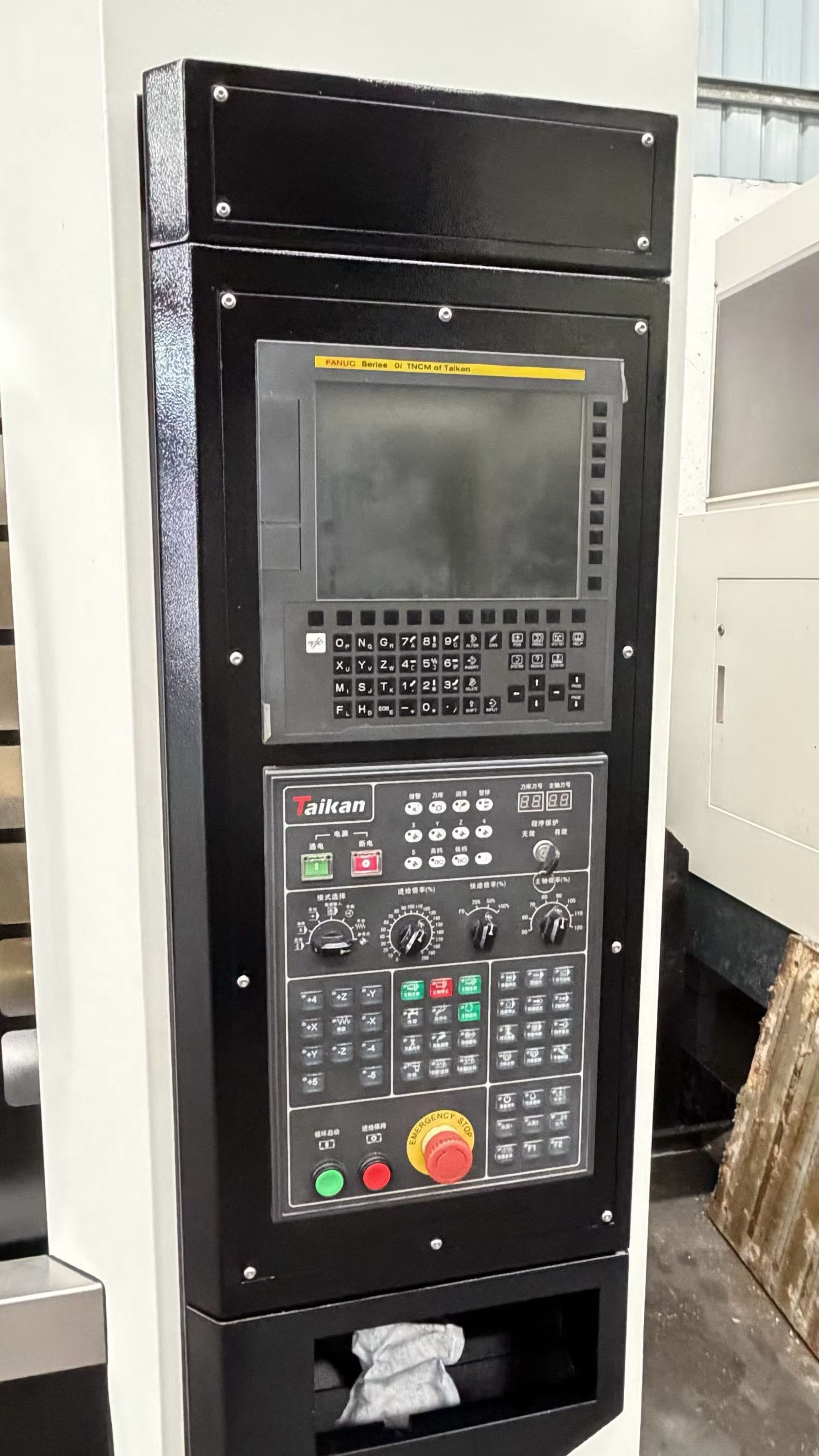

| Control system | FANUC |
| Year of manufacture | 2000 |
