AvailableVertical Machining Center

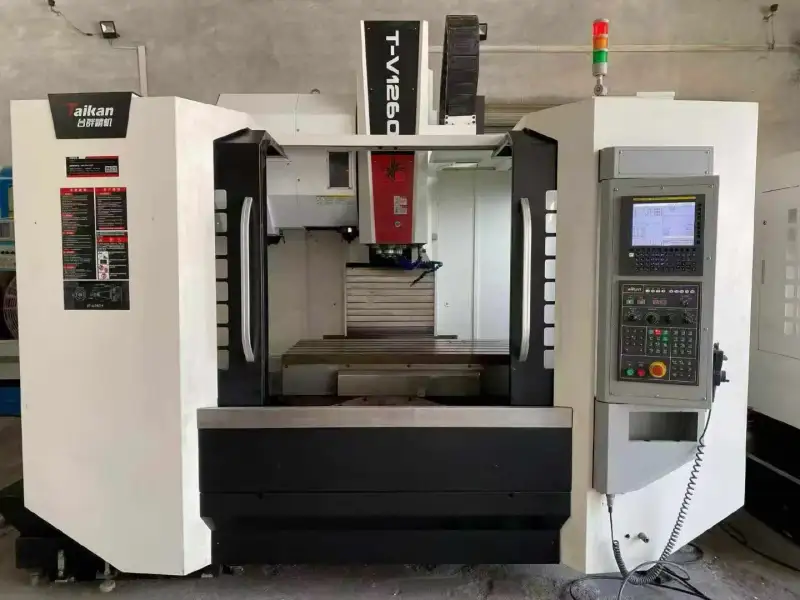

Used Taikan T-V 1260 Heavy-Duty Vertical Machining Center with FANUC MF Control

Heavy-duty Taikan T-V 1260 vertical machining center equipped with the FANUC MF control system. The machine runs on three-axis linear guideways with travels of 1200 mm on X, 600 mm on Y and 580 mm on Z, and uses 12 mm pitch ball screws on all axes. The spindle is a Ruiying BT40 direct-drive unit rated to 10,000 rpm. Chip removal is handled by a built-in dual-screw chip conveyor together with a supplementary chip conveyor. Machining accuracy is held within 0.01 mm.

Machine Code: VMC2610146
Year: On request
Location: China
Usage Hours: On request

Accessories

FANUC MF control system; Ruiying BT40 direct-drive spindle, 10,000 rpm; three-axis linear guideways; 12 mm pitch ball screws; built-in dual-screw chip conveyor; additional chip conveyor

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Machine type	Vertical machining center (heavy-duty)

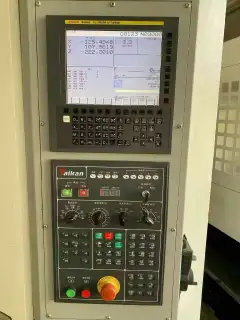

Controller	FANUC MF
Guideway type	Linear guideway (X/Y/Z)
X/Y/Z travel	1200/600/580 mm
Ball screw pitch	12 mm
Spindle taper	BT40
Spindle type	Direct-drive spindle (Ruiying)
Spindle speed	10,000 rpm
Chip conveyor	Built-in dual-screw chip conveyor plus supplementary chip conveyor
Accuracy	Within 0.01 mm
Brand	Taikan
Control system	FANUC MF
