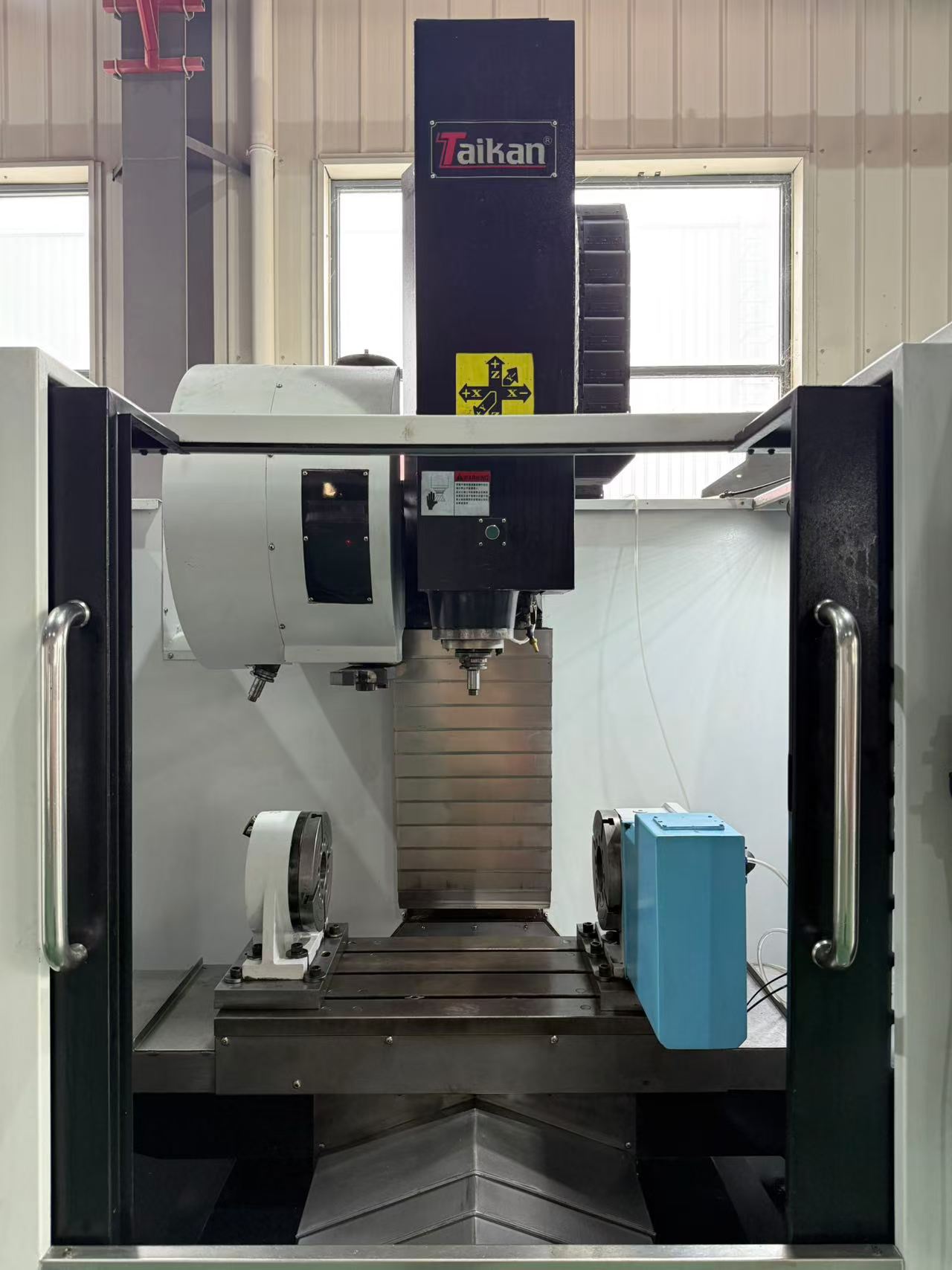

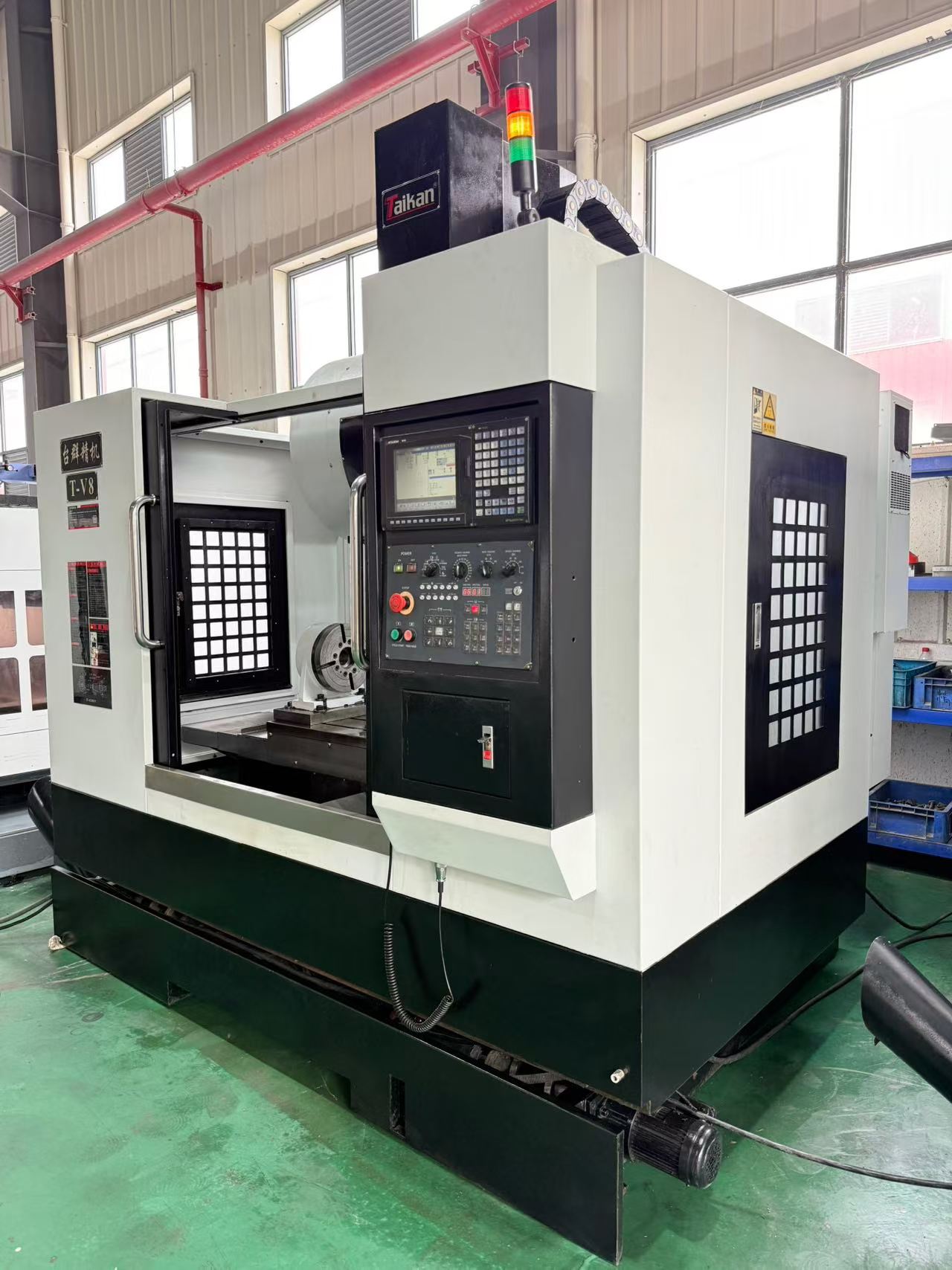

Used Taikan TV 8 Vertical Machining Center with Mitsubishi M 70 A Control

Used Taikan TV 8 vertical machining center. Spindle: BT40, direct-drive 12,000 rpm. Tool magazine: 24 tools, arm-type. Guideways: 45 roller linear guideways for all three axes. Mitsubishi M 70 A control system with A-package mold control function. Year: 2017. X/Y/Z travel: 800 mm x 500 mm x 550 mm. Worktable size: 1000 mm x 450 mm. Fitted with a 255 fourth axis. Automatic chip conveyor optional. All parameters are for reference only; the actual machine on site prevails.

Machine Code: VMC2609125
Year: 2017
Location: China
Usage Hours: On request

Accessories

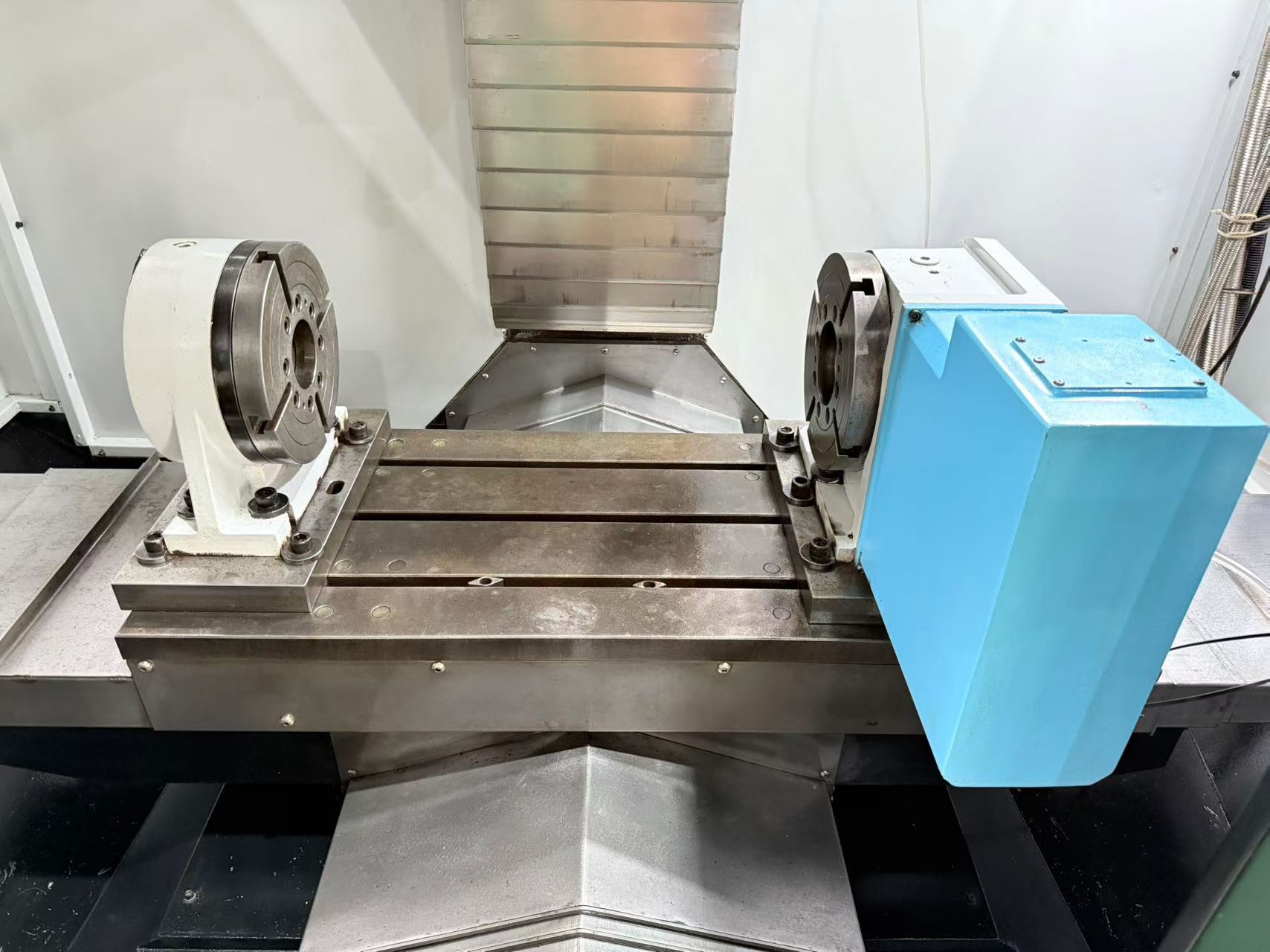

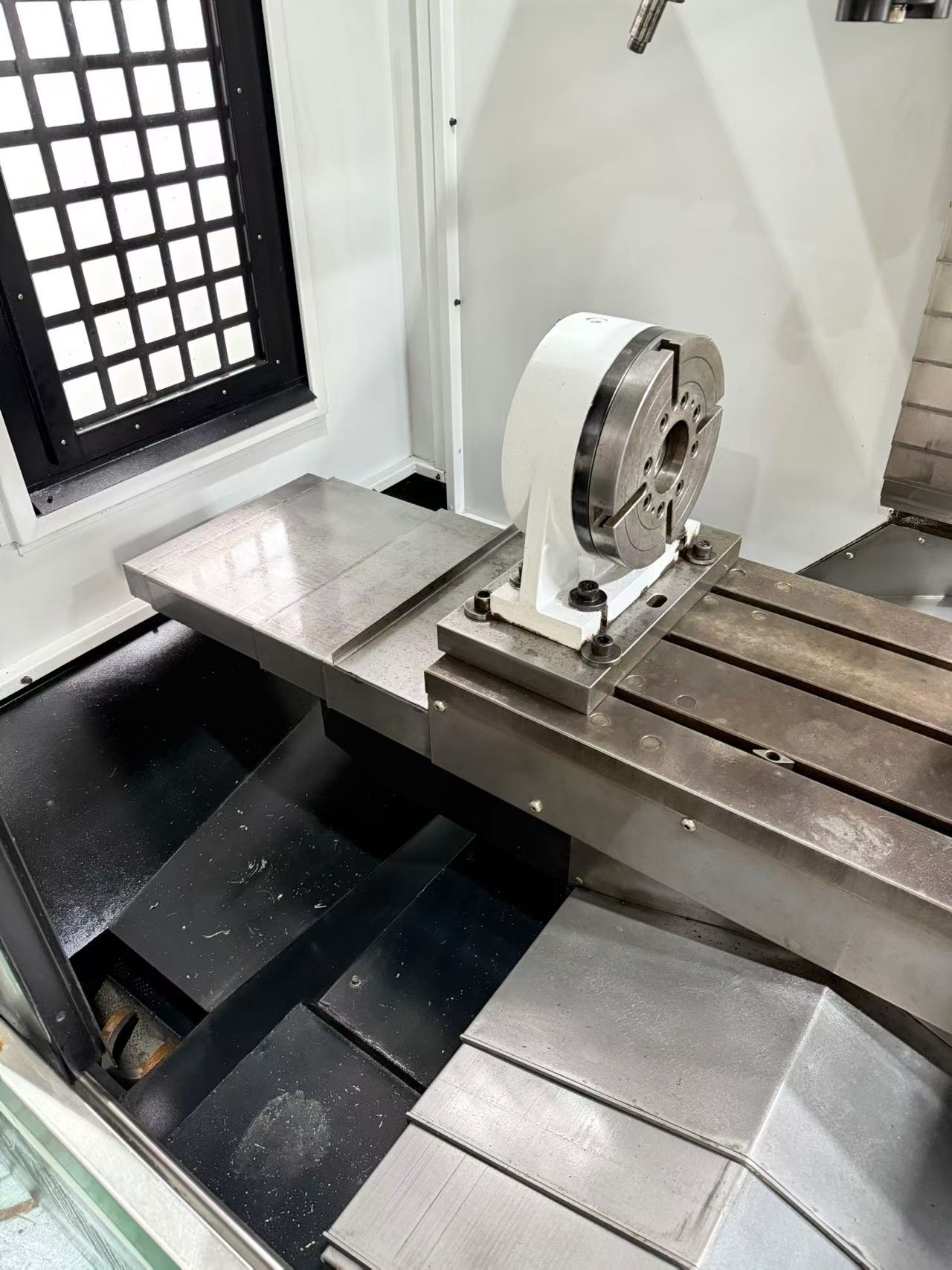

Mitsubishi A-package mold control system; 255 fourth axis; automatic chip conveyor (optional)

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

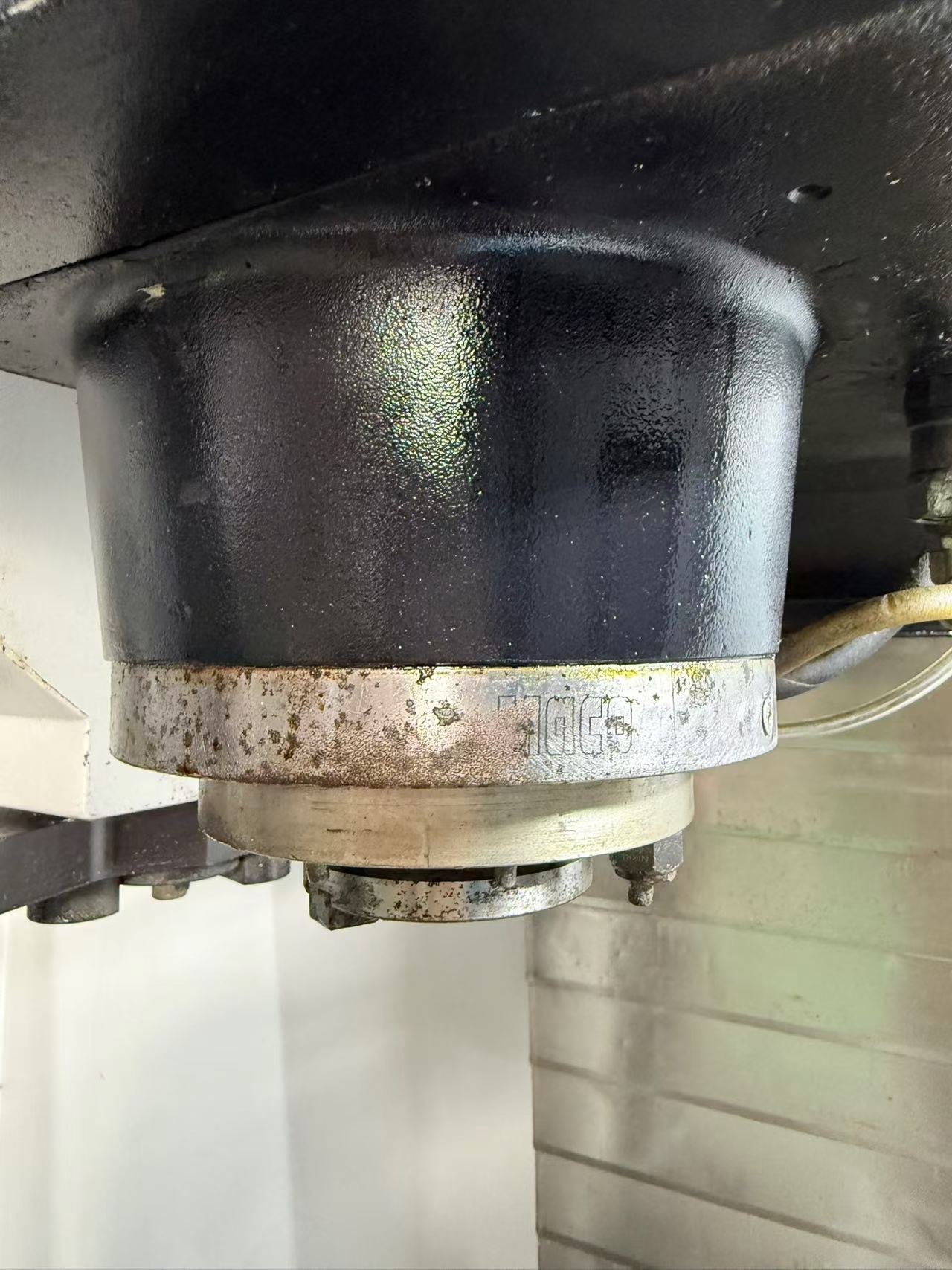

Spindle taper	BT40
Spindle speed	12,000 rpm (direct drive)

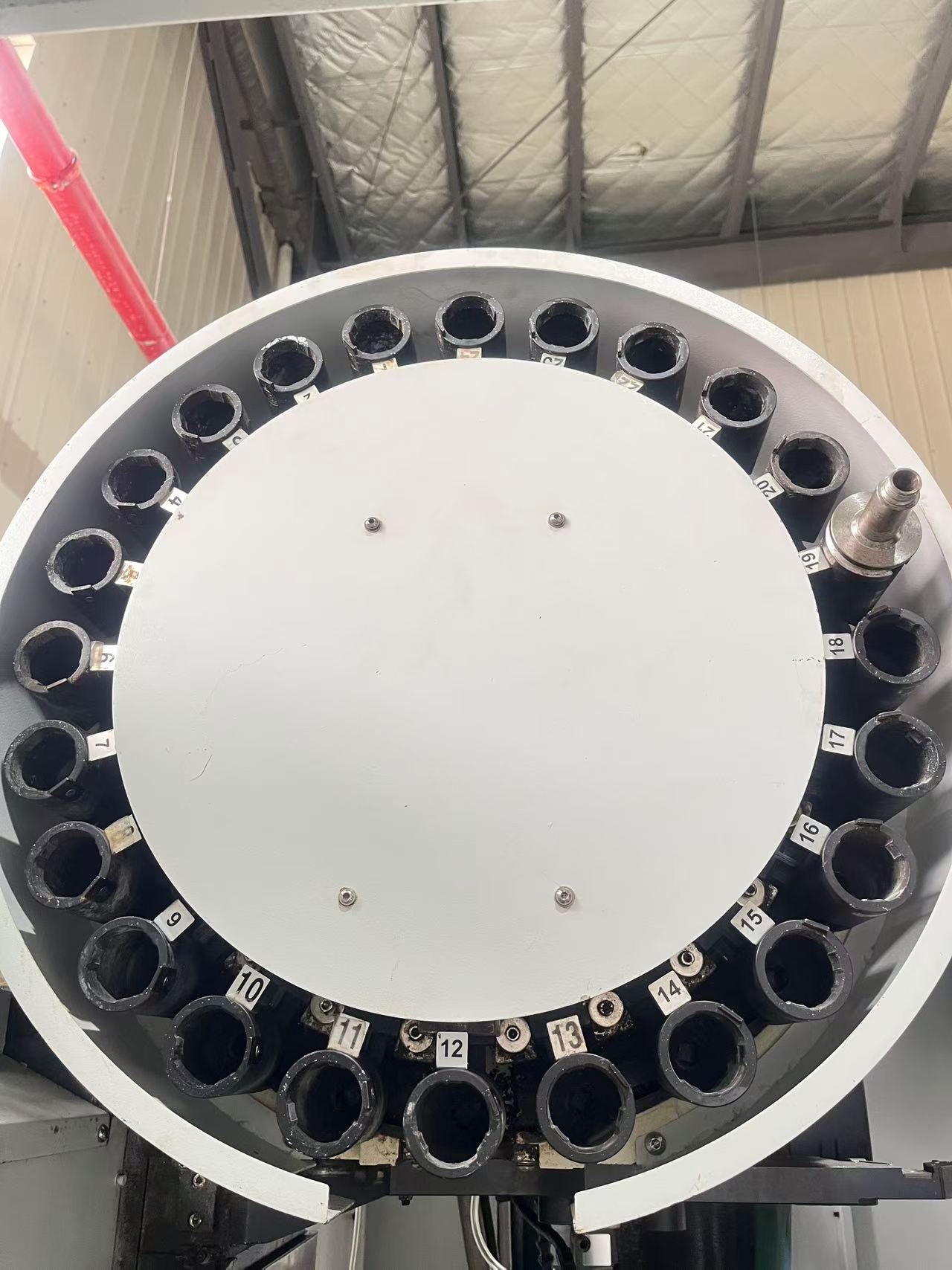

Tool magazine capacity	24 tools, arm type
Guideway	45 roller linear guideways on three axes
X/Y/Z travel	800 mm x 500 mm x 550 mm
Worktable size	1000 mm x 450 mm

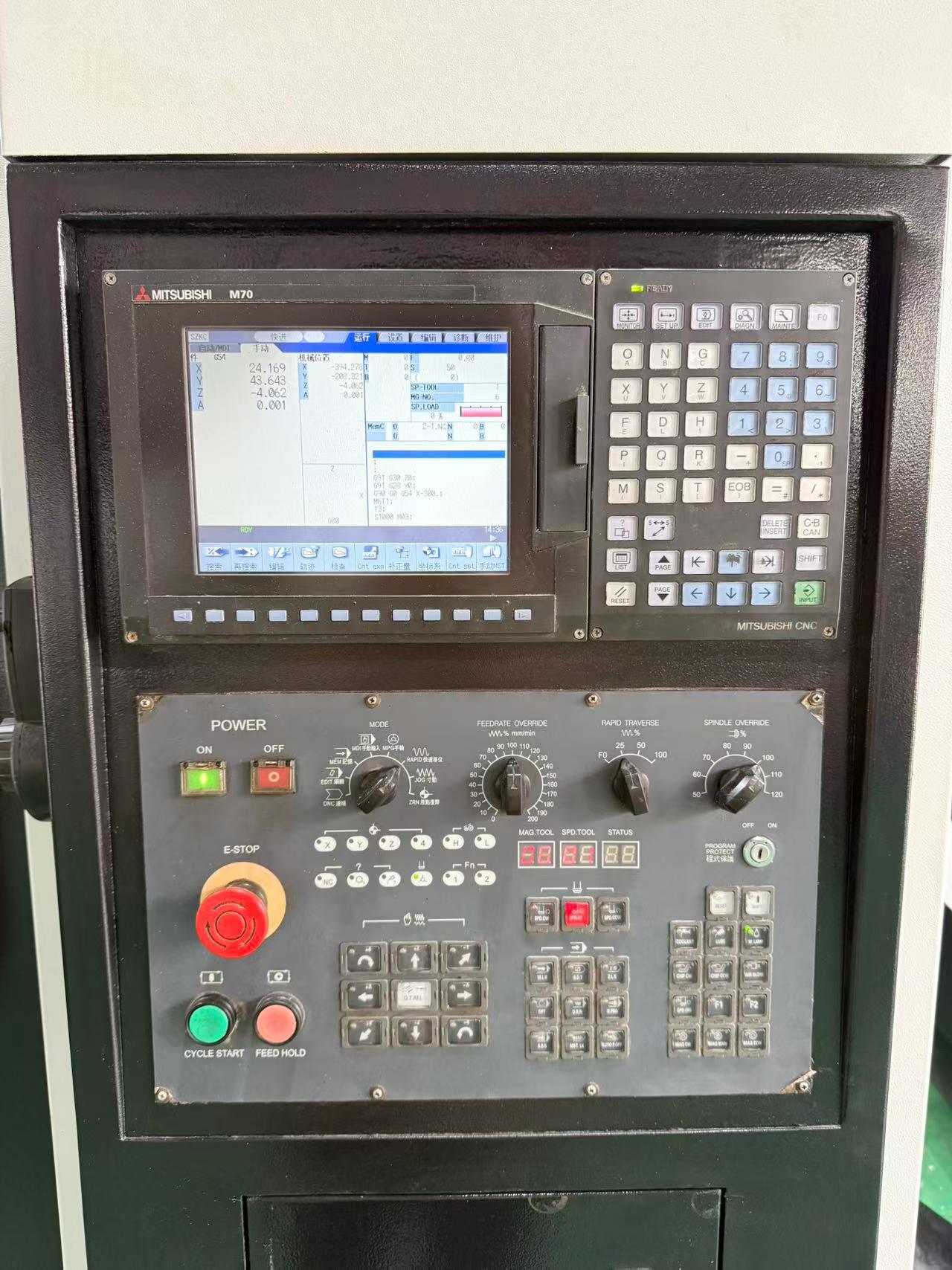

Controller	Mitsubishi M 70 A
Year of manufacture	2017
Brand	Taikan
Control system	Mitsubishi M 70 A
