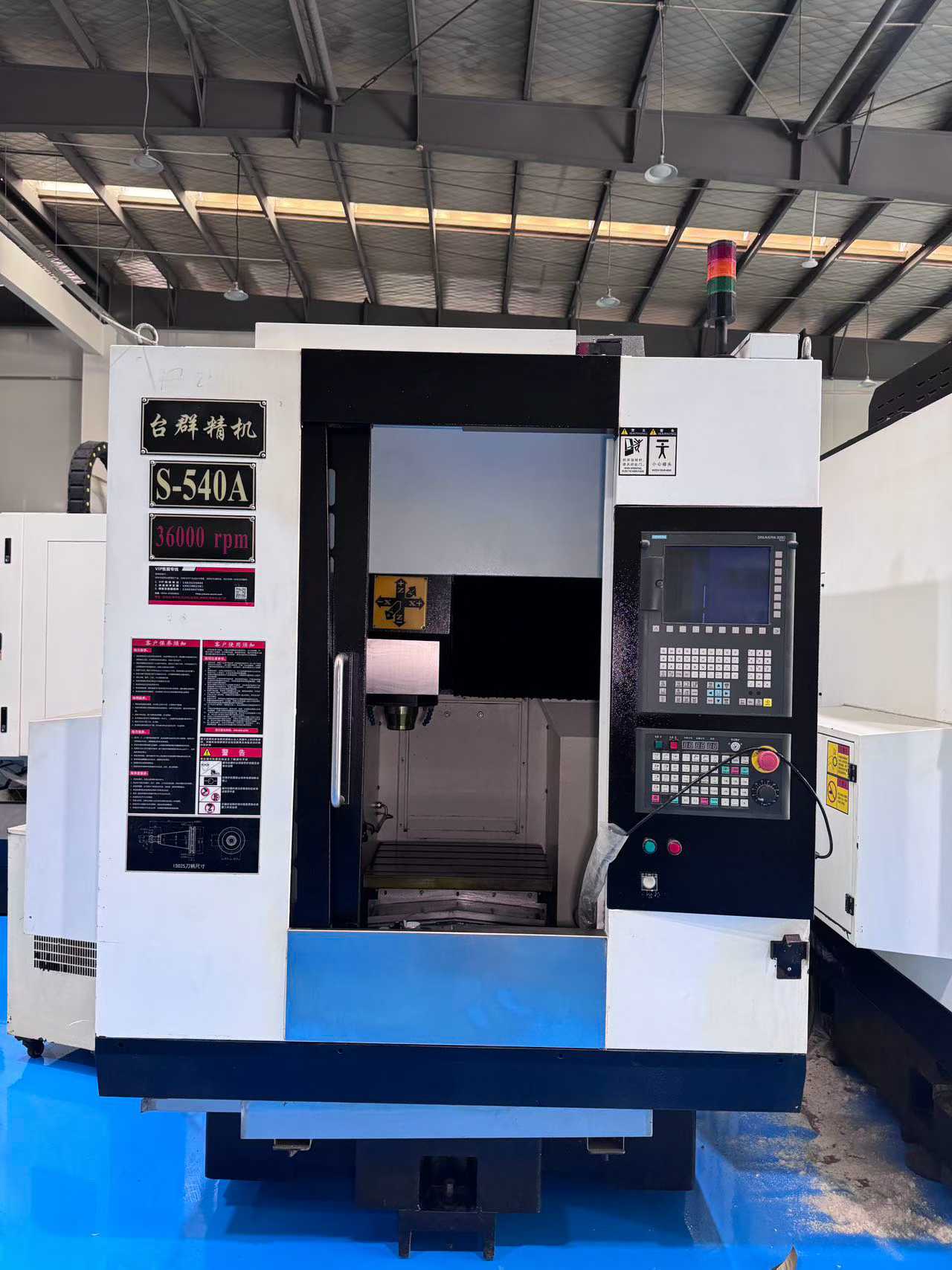

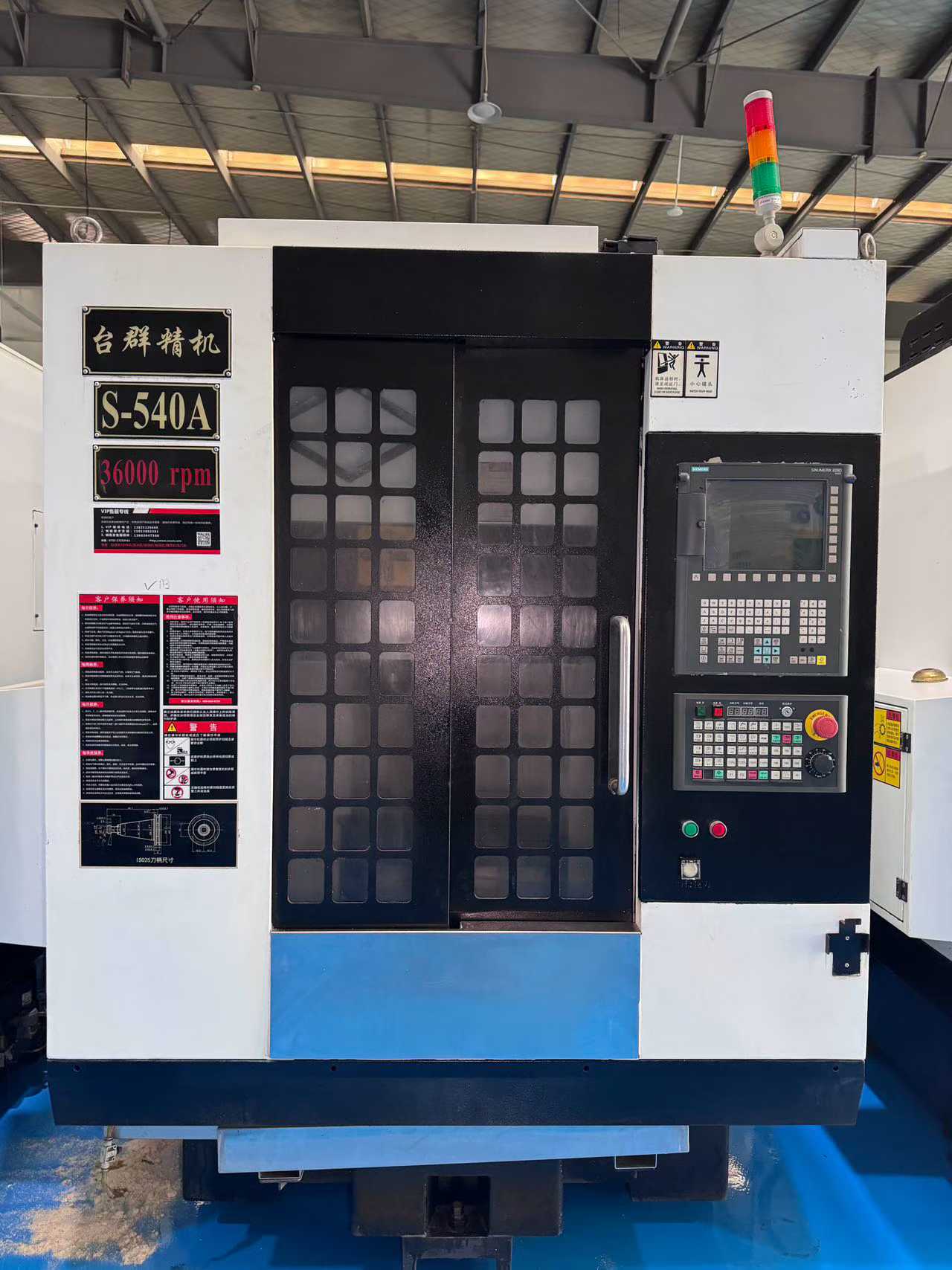

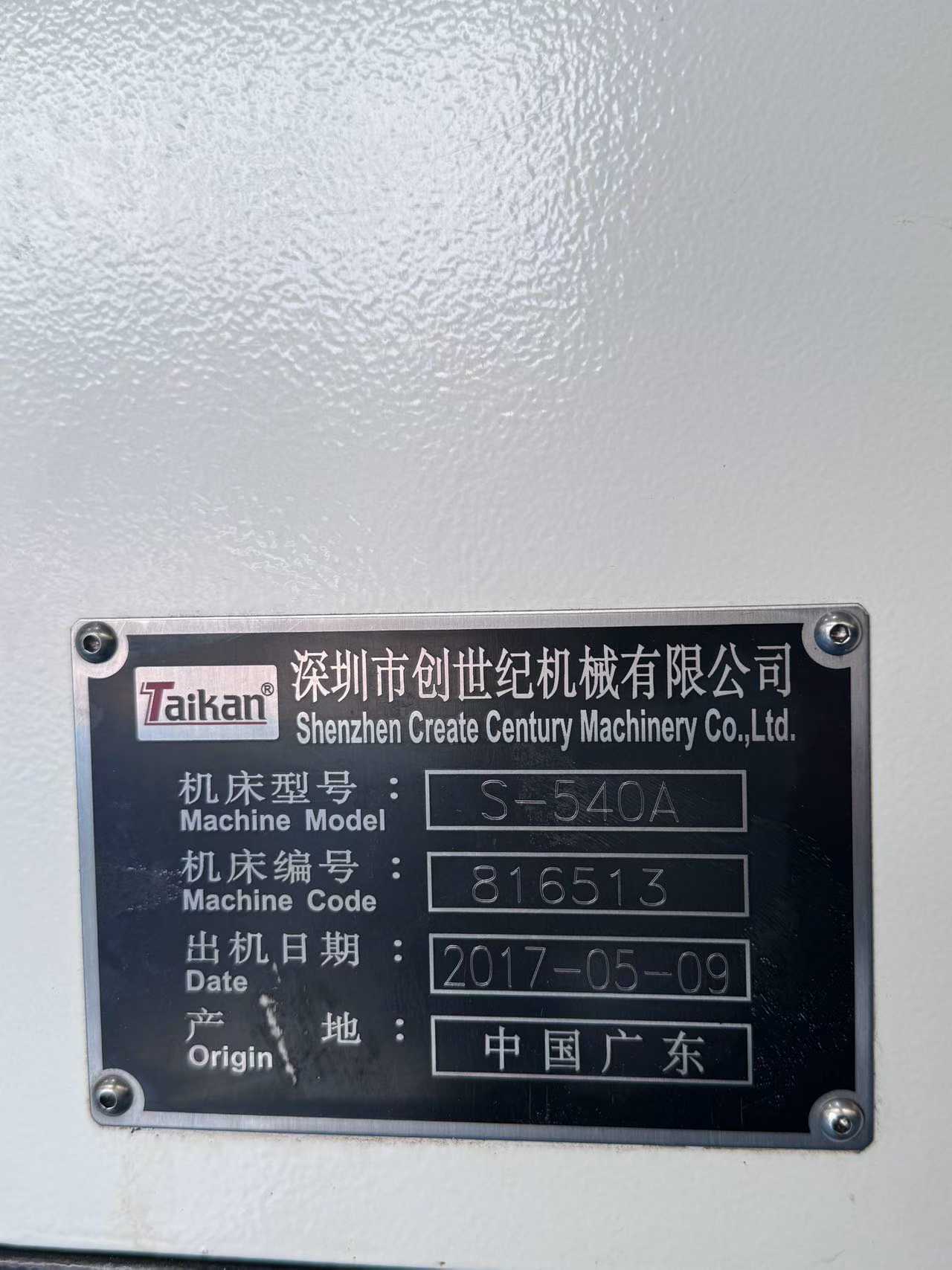

Taiqun S-540 A High-Speed Engraving and Milling Machine for Sale

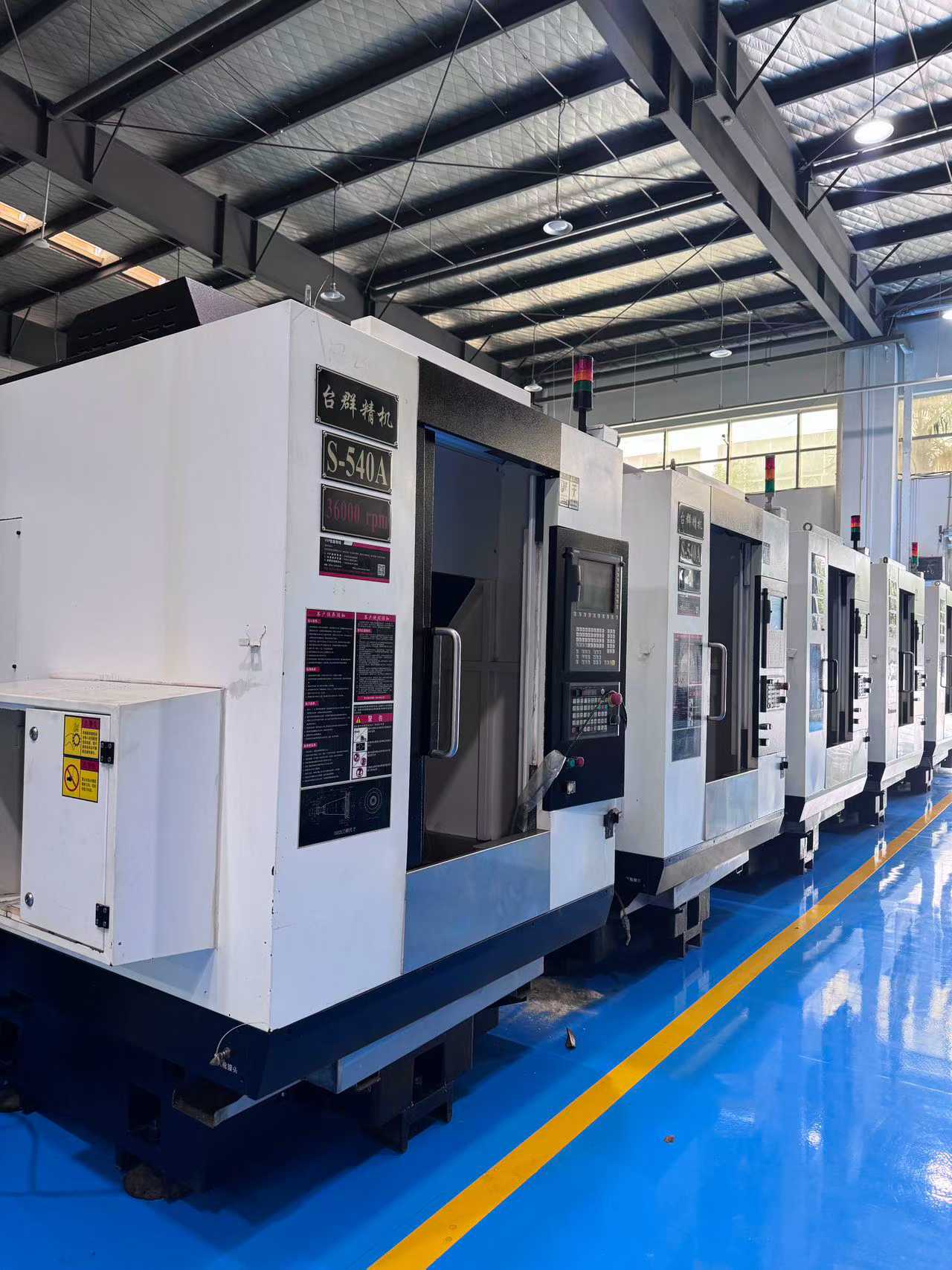

We have 10 units of Taiqun S-540 A high-speed engraving and milling machines in stock. These machines are equipped with a 36,000 rpm motorized spindle, ISO 25 interface, 13-station servo tool magazine, and Siemens 828 D control system. Year of manufacture: 2017. Contact us for inspection and quotation.
- Machine Code
- MIL260803
- Year
- 2017
- Location
- China
- Usage Hours
- On request
Main Specifications
| X/Y/Z travel | 500 x 400 x 238 mm |
|---|---|

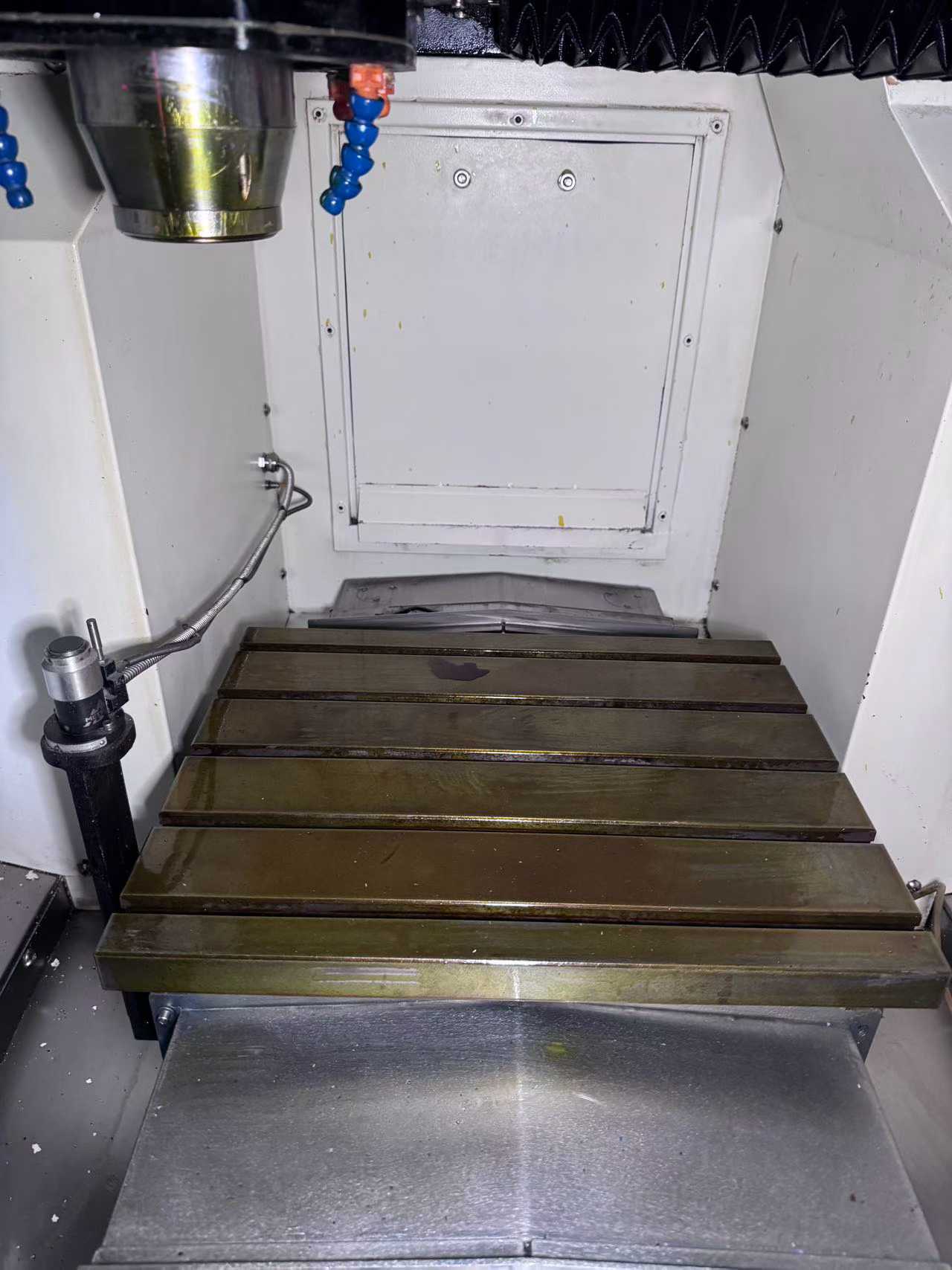

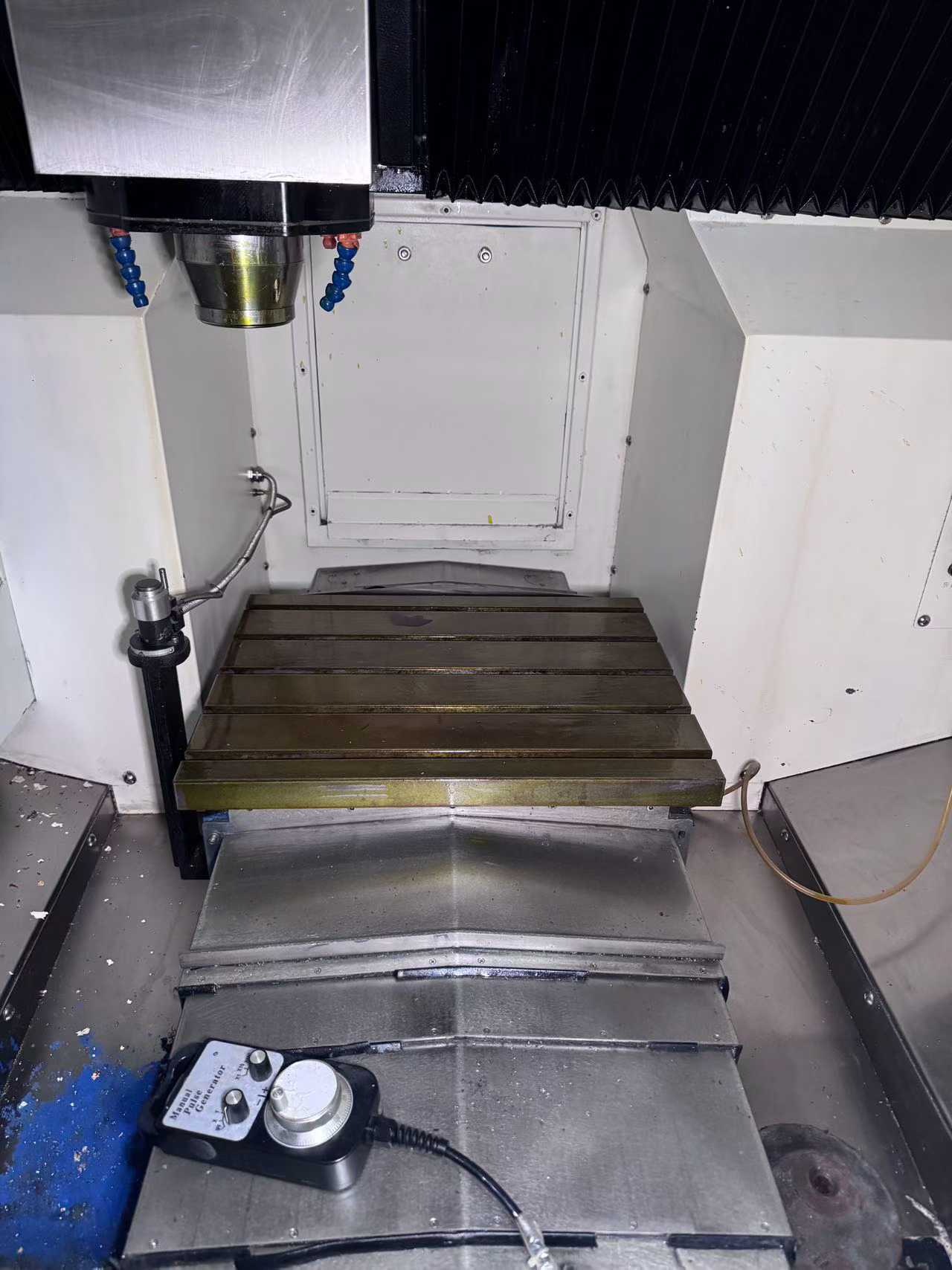

| Worktable size | 520 x 400 mm |
| Max workpiece weight | 200 kg |
| Repeatability (X/Y/Z) | 0.005 mm |
| Max spindle speed | 36,000 rpm |
| Spindle taper | ISO 25 |

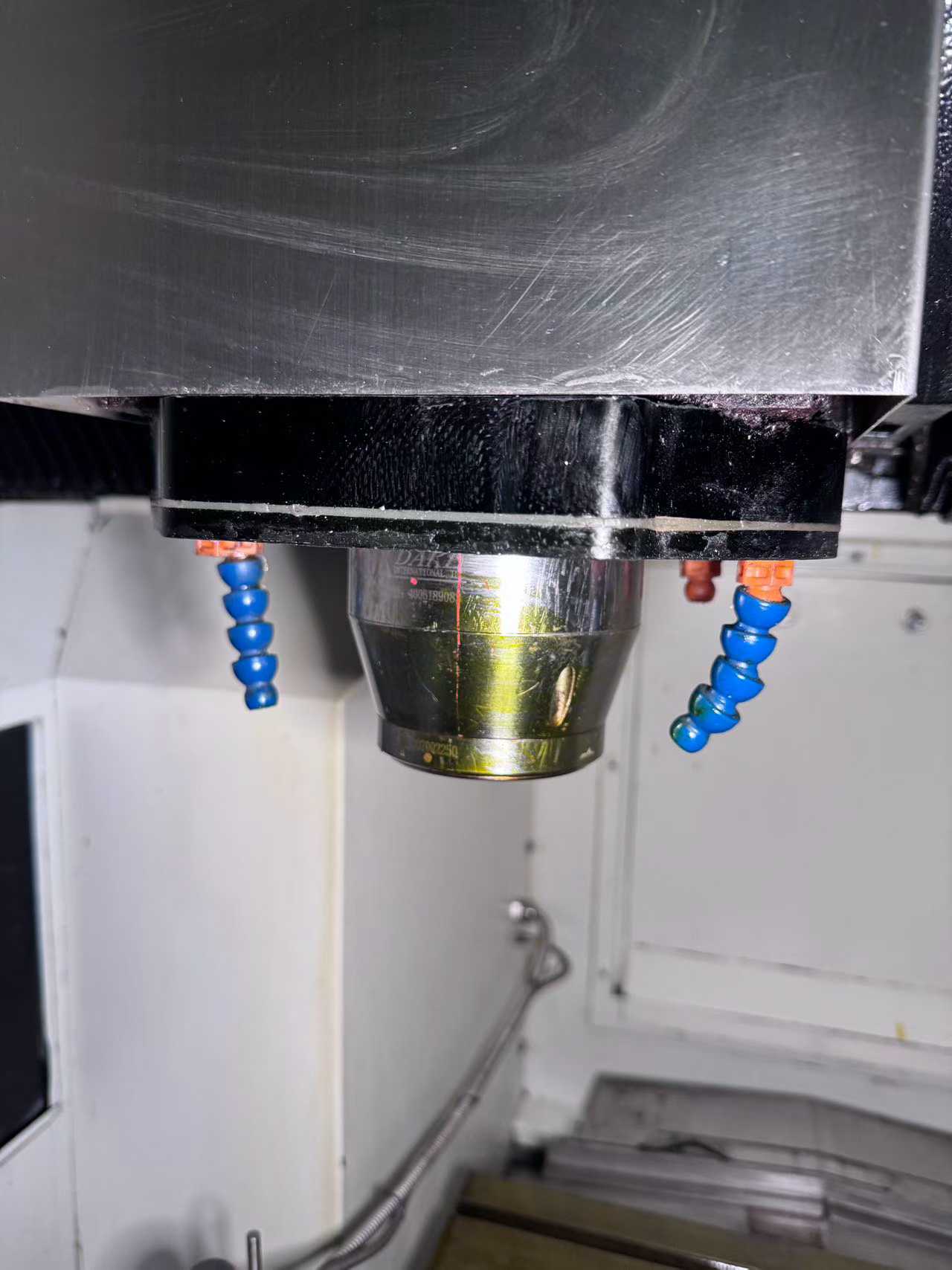

| Spindle type | Motorized spindle |
| Tool magazine type | Straight line |
| Tool magazine capacity | 13 tools (servo) |

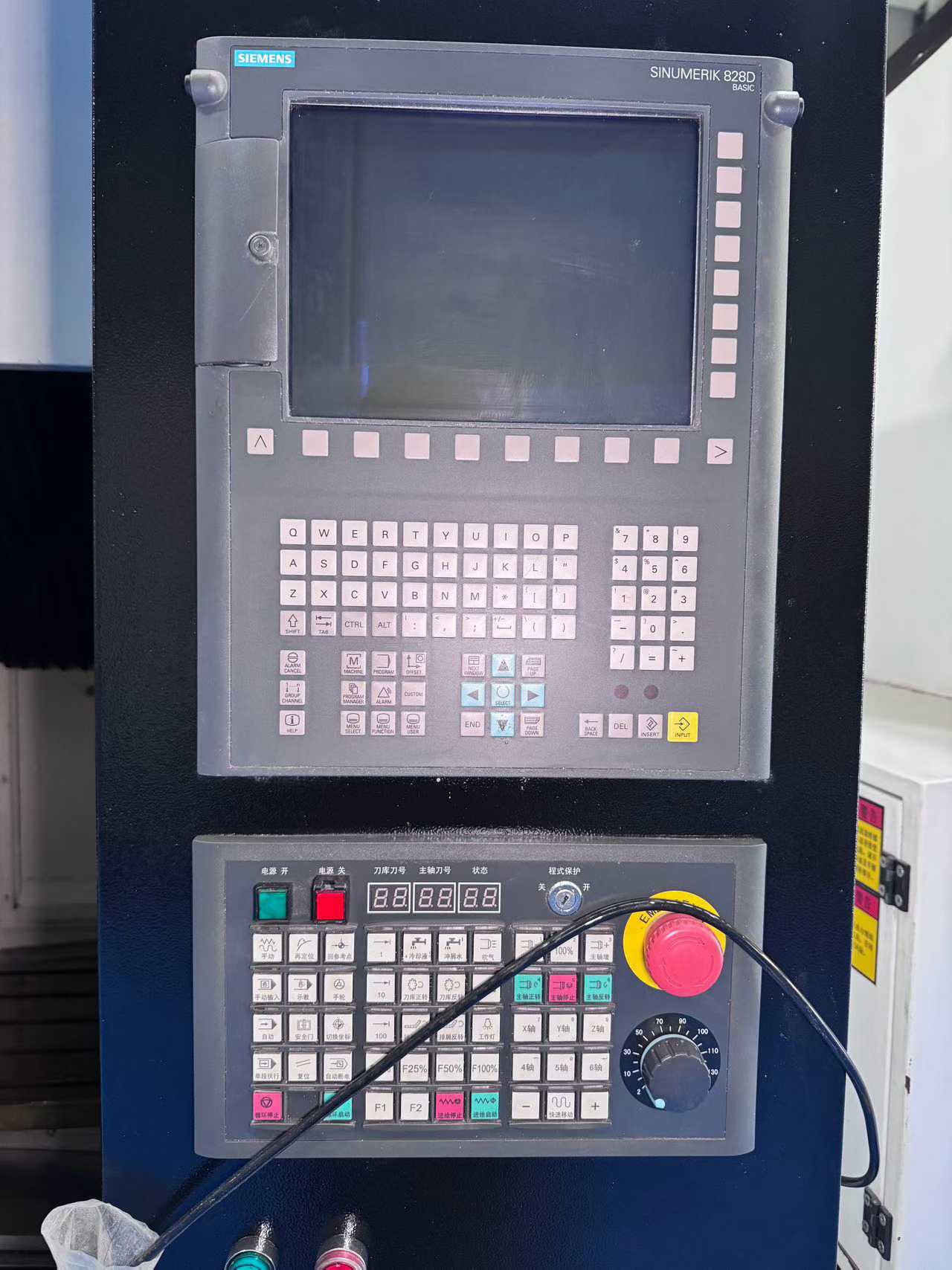

| Control system | Siemens 828 D |
| Machine dimensions (L x W x H) | 1800 x 1500 x 2200 mm |
| Machine weight | 2800 kg |
