SoldCNC Grinding Machine

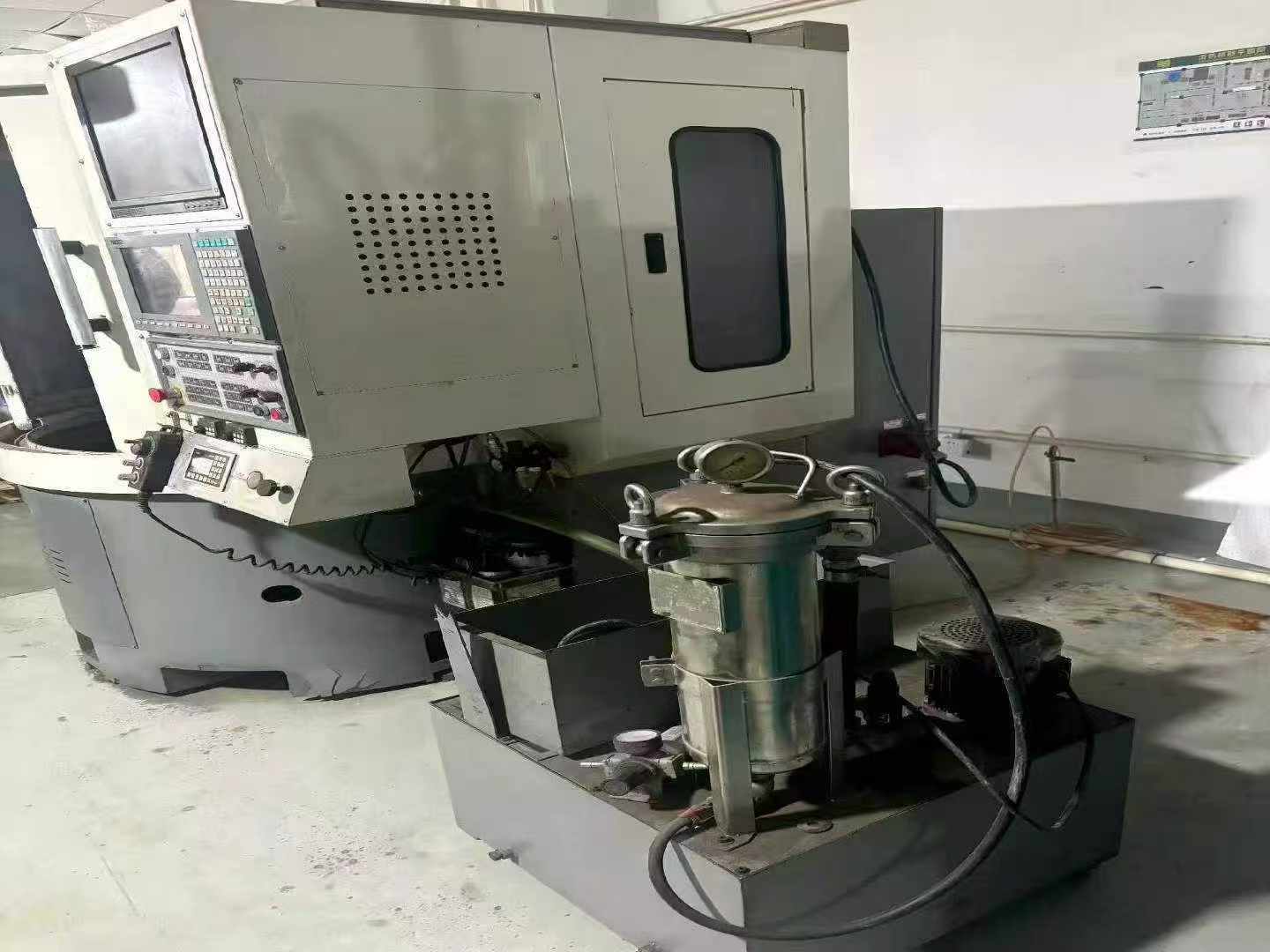

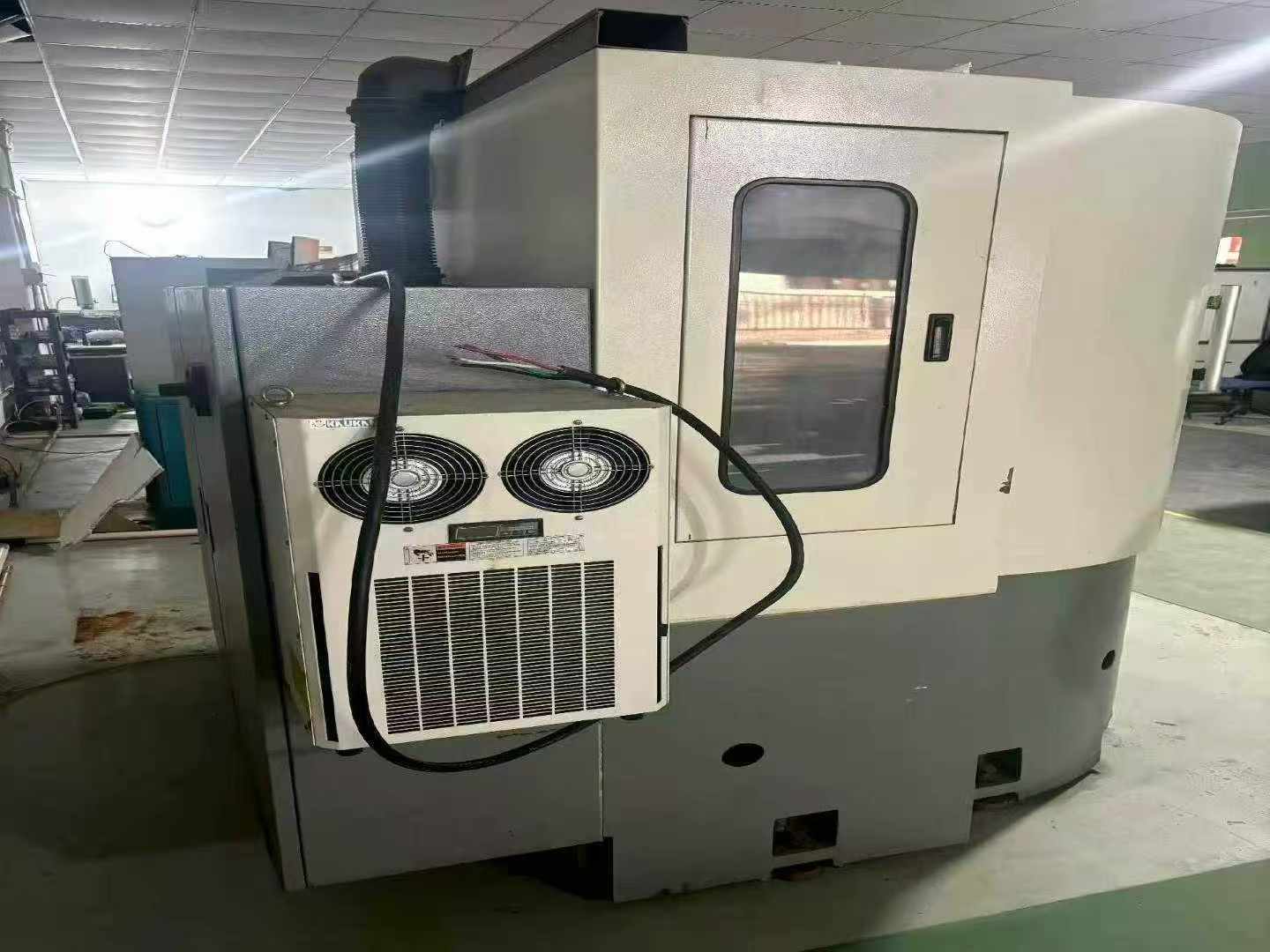

Taiwan Yuanshan FC-200 CNC Tool Grinder

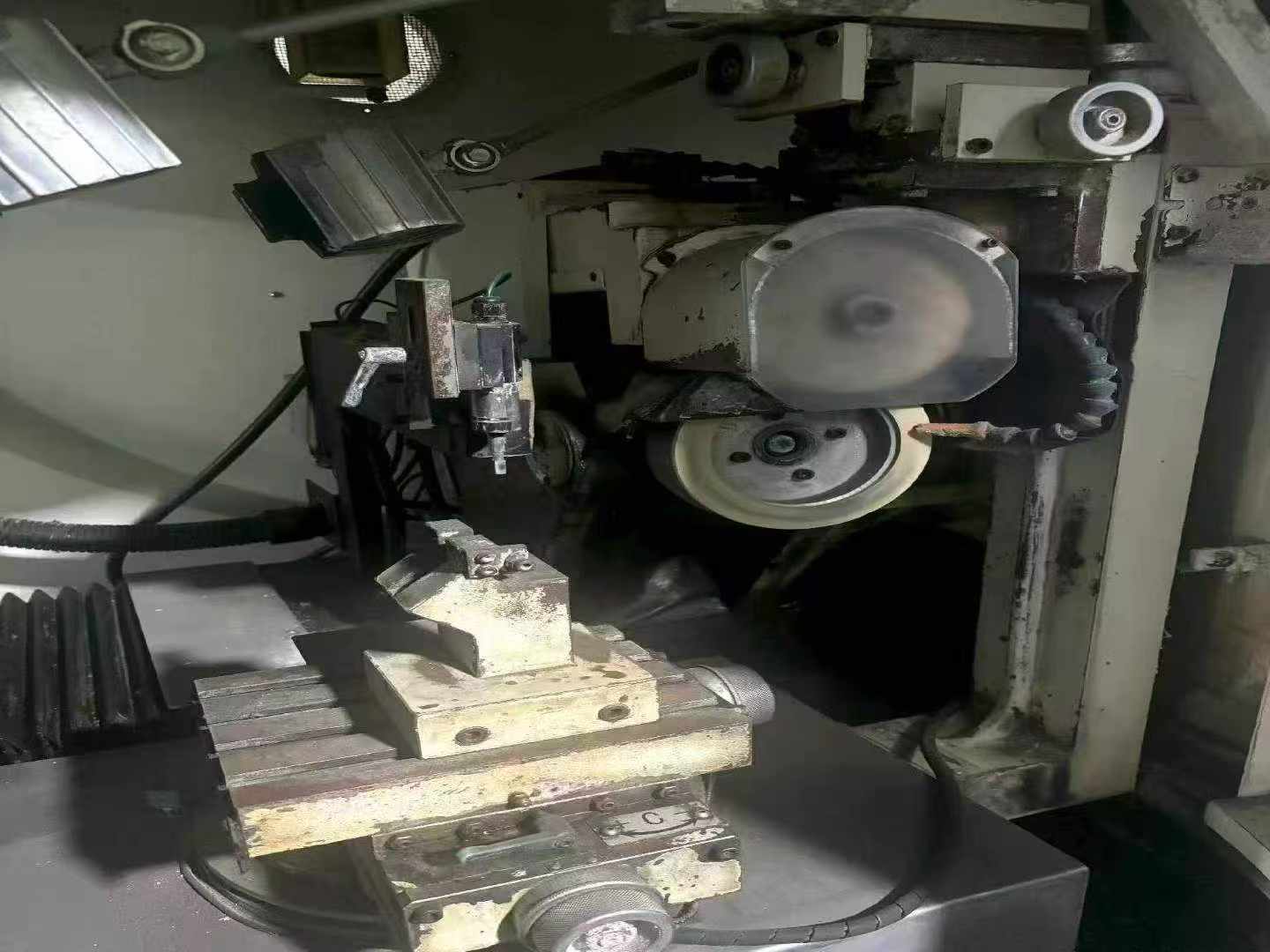

This is a used Taiwan Yuanshan FC-200 CNC Tool Grinder. It features a common Fanuc or Siemens dedicated grinding CNC system with special tool grinding programming modules. The machine has full-axis servo motor drive with closed-loop control, ensuring no step loss or jitter. Suitable for grinding PCD tools such as drills, end mills, and reamers.

Machine Code
GR260703
Year
2000
Location
China
Usage Hours
On request
Email Inquiry

Main Specifications

Spindle speed12000 rpm
X/Y/Z travel200 mm x 150 mm x 150 mm
Positioning accuracy≤0.002 mm
Repeatability≤0.001 mm
Machine weight2800-3200 kg
Machine TypeCNC Tool Grinder (Yuanshan FC-200)
Grinding Wheel Diameter Capacityφ100 mm max
Spindle Radial Runout≤0.002 mm
Machining AccuracyPCD tool dimension deviation ≤0.003 mm
Edge Roughness Ra≤0.02 μm

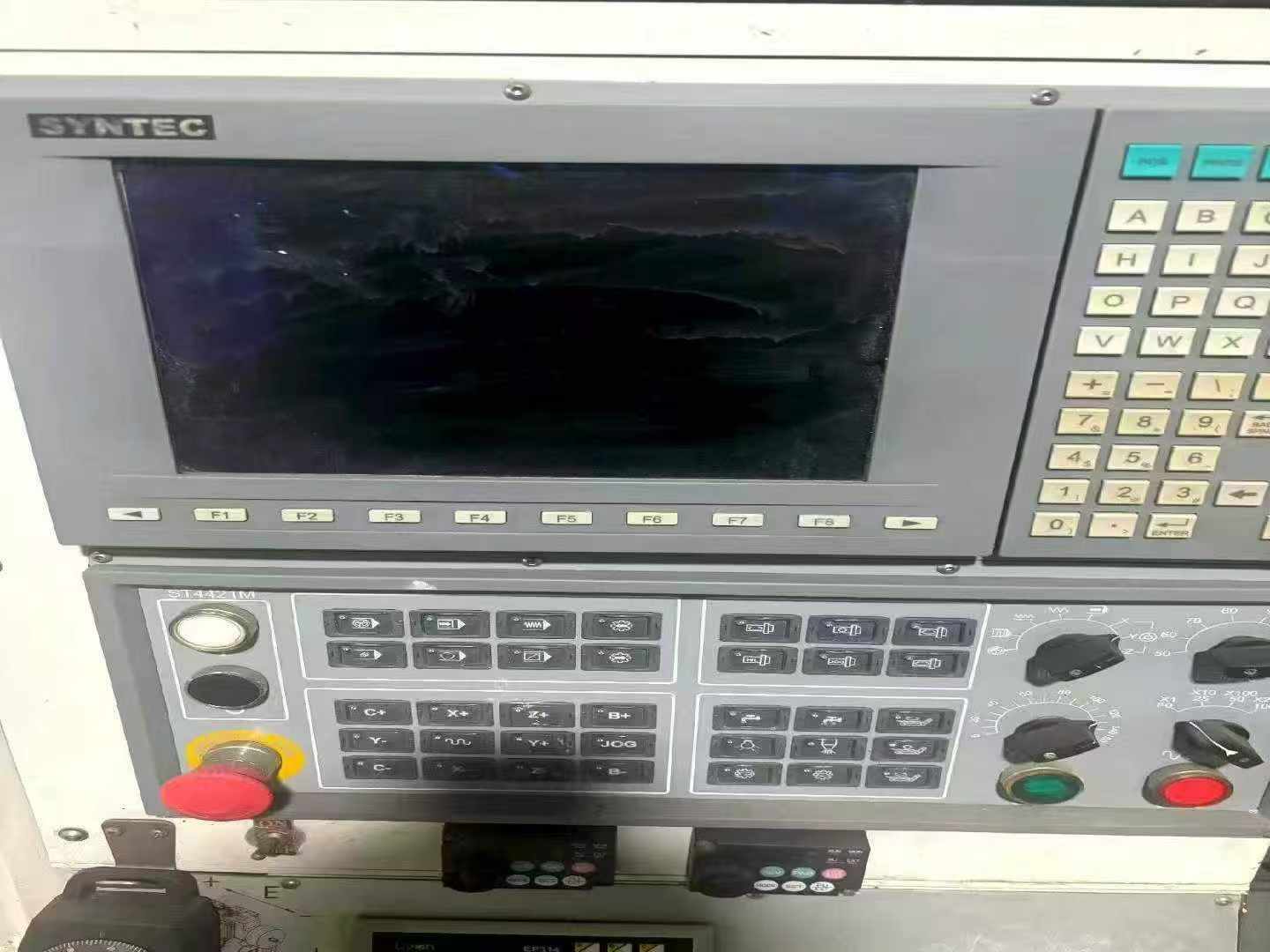

ControllerFanuc/Siemens dedicated grinding CNC system
Controller FeaturesTool grinding dedicated programming module
Servo DriveAll axes servo motor drive
Control SystemClosed-loop control
Power Supply VoltageThree-phase 380 V
Total Power15 kW
Machining Accuracy (dimension Deviation)≤0.003 mm
