Used Takumi H 16 M High-Speed Vertical Machining Center

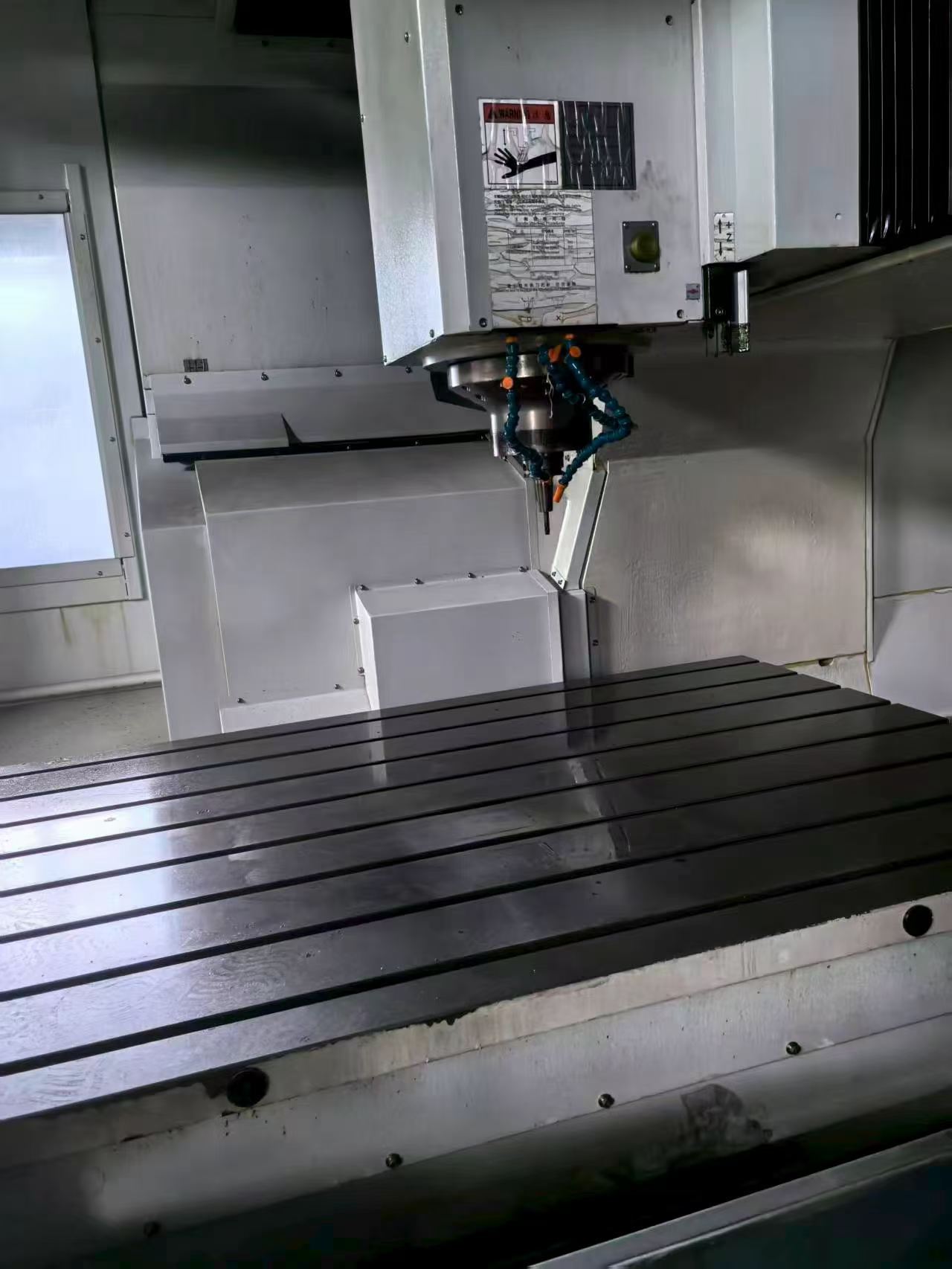

Takumi H 16 M high-speed vertical machining center, a near-new unit that remains installed in place and available for inspection. The machine is equipped with a HEIDENHAIN CNC control system and carries TAKUMI branding on the machine body. The worktable measures 1900 x 1300 mm and is a T-slot table for clamping fixtures and workpieces. Axis travels are 1600 mm on X, 1300 mm on Y and 700 mm on Z, with rapid traverse of 48,000 mm/min across all three axes. Motion is supported by three linear guideways. The spindle is an IBAG Swiss-made spindle with an HSK63 A taper, running up to 24,000 rpm and driven by a 17.5 kW spindle motor. Tooling is handled by a built-in 20-tool magazine. This H 16 M is offered as a single unit and is ready for inspection.

Machine Code: VMC2609212
Year: 1900
Location: China
Usage Hours: On request

Accessories

Built-in 20-tool magazine

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Machine type	Vertical Machining Center
Brand	Takumi
Model	H 16 M

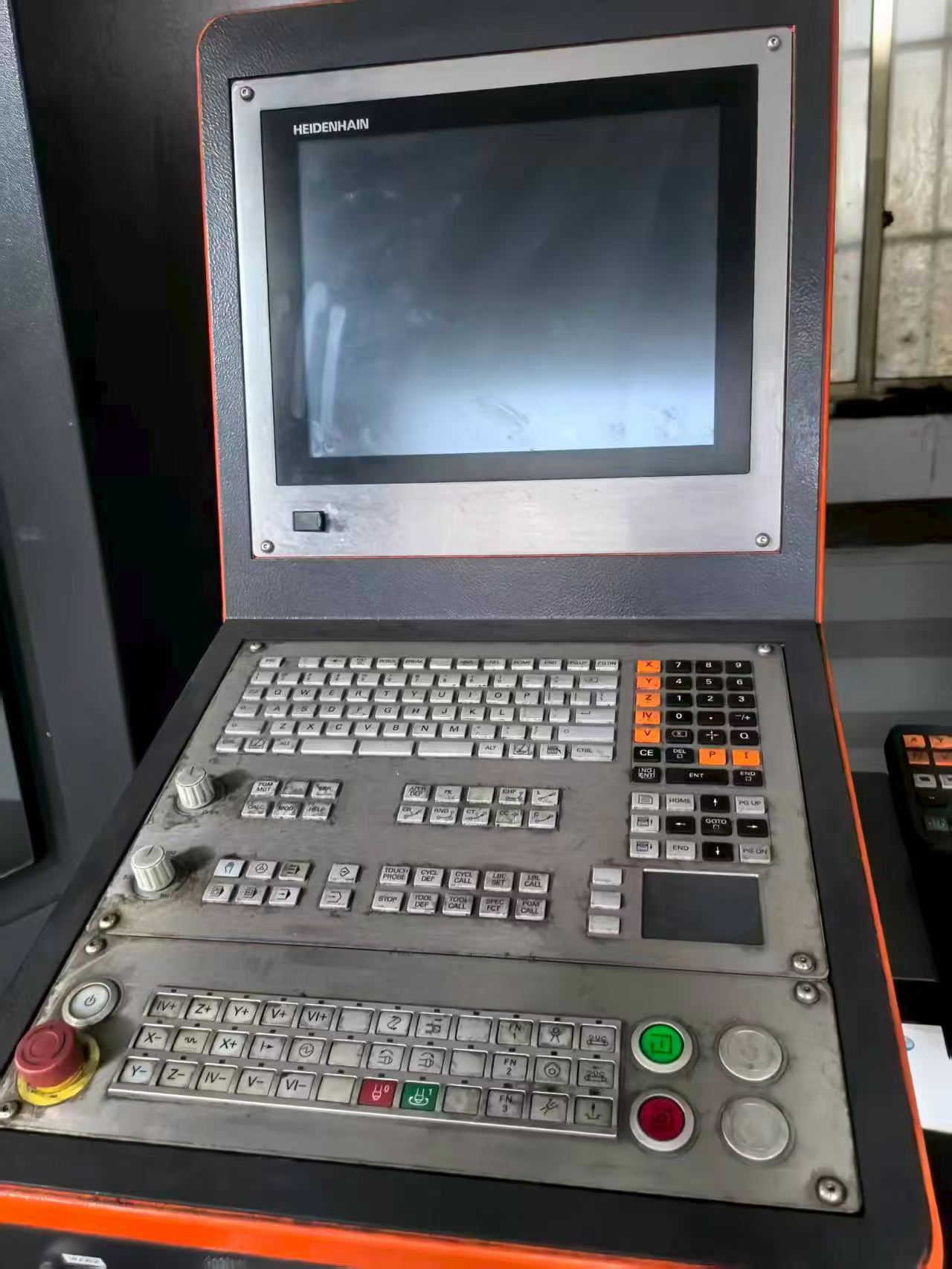

Control system	HEIDENHAIN

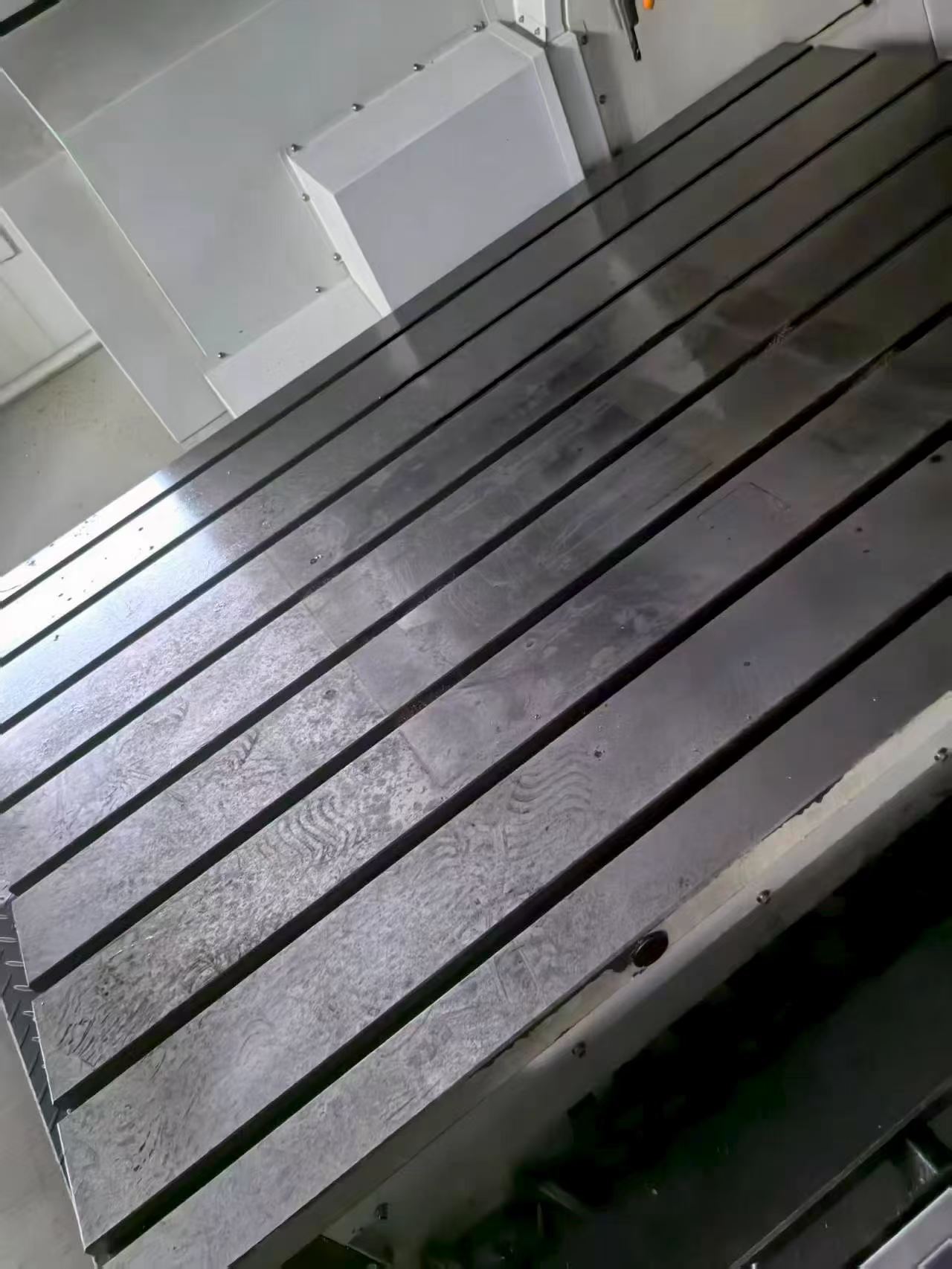

Worktable size	1900 x 1300 mm, T-slot
X/Y/Z travel	1600 / 1300 / 700 mm
Rapid traverse speed	48,000 mm/min (X/Y/Z)
Guideway	Three linear guideways
Spindle taper	HSK63 A
Spindle speed	24,000 rpm

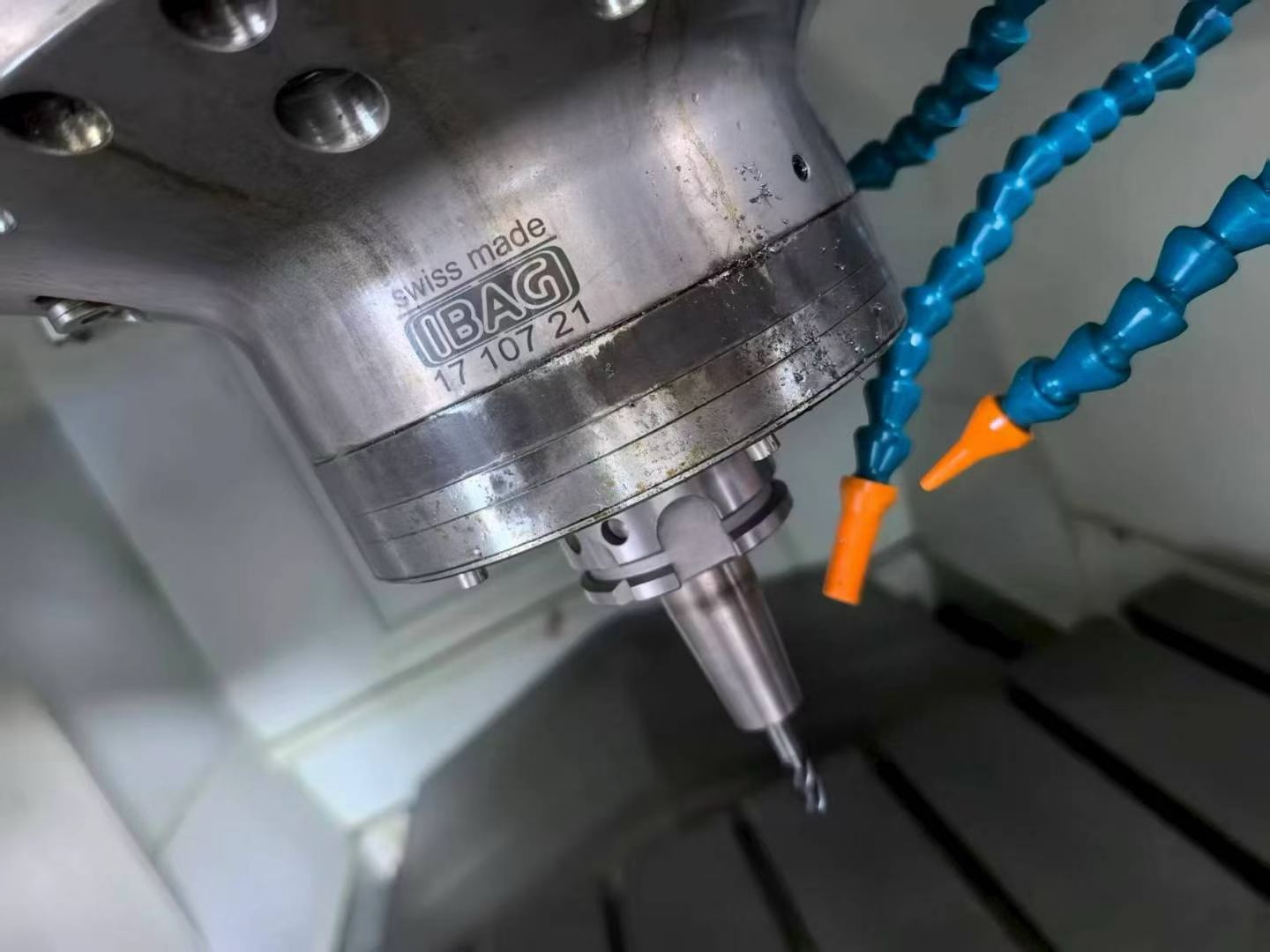

Spindle	IBAG Swiss-made spindle
Spindle power	17.5 kW
Tool magazine capacity	20 tools, built-in
Origin	Taiwan
Year of manufacture	1900
