AvailableVertical Machining Center

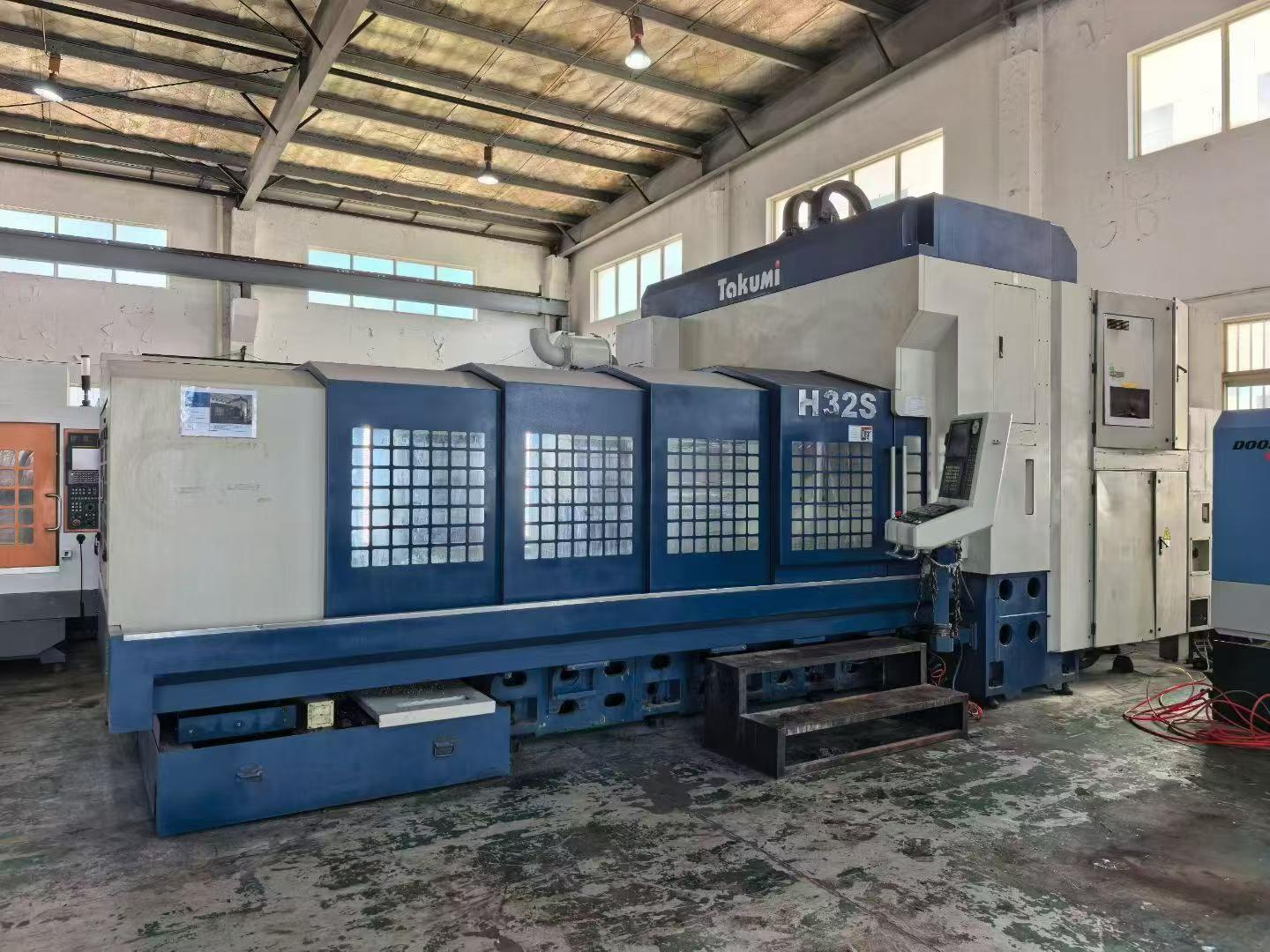

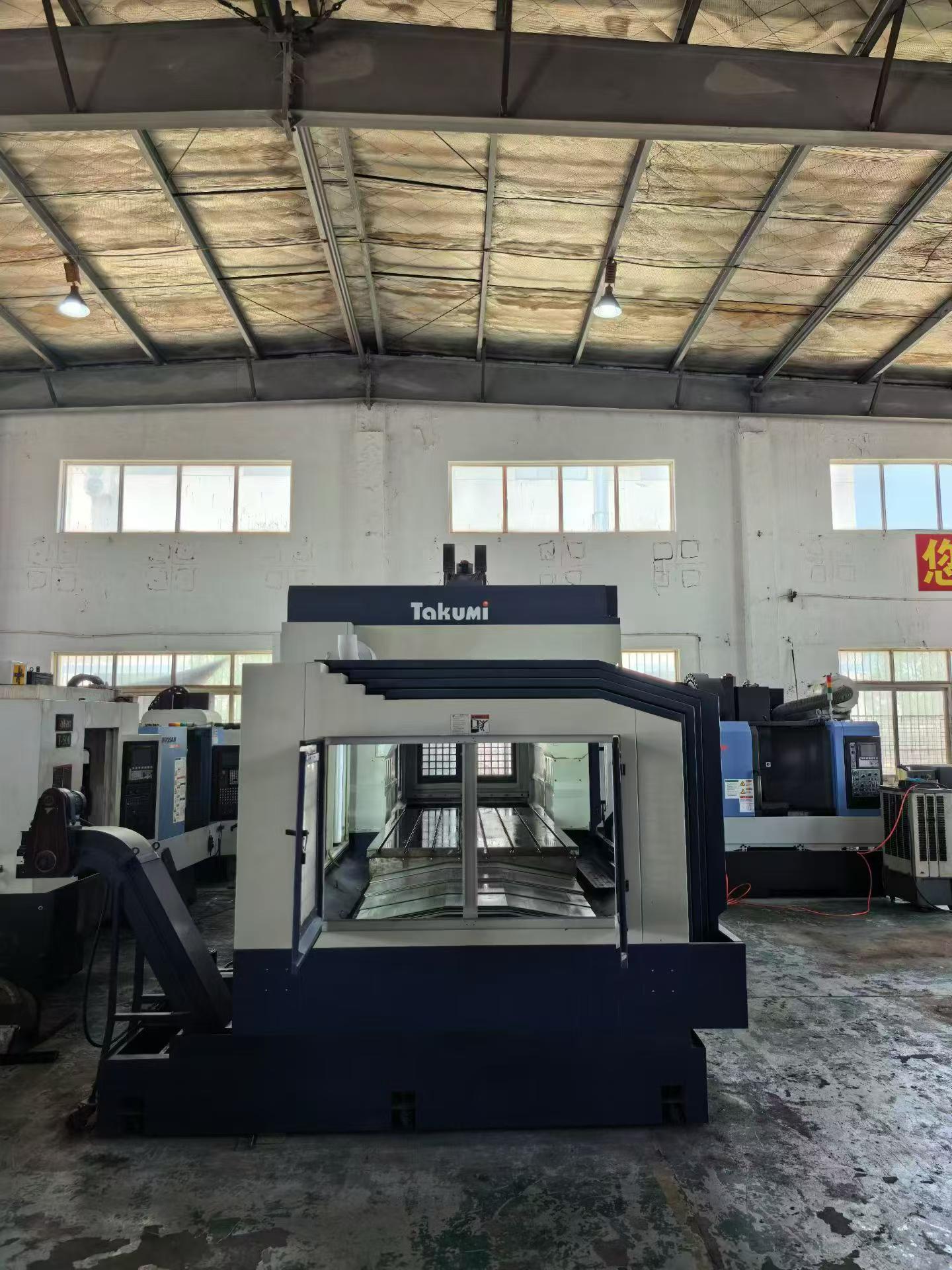

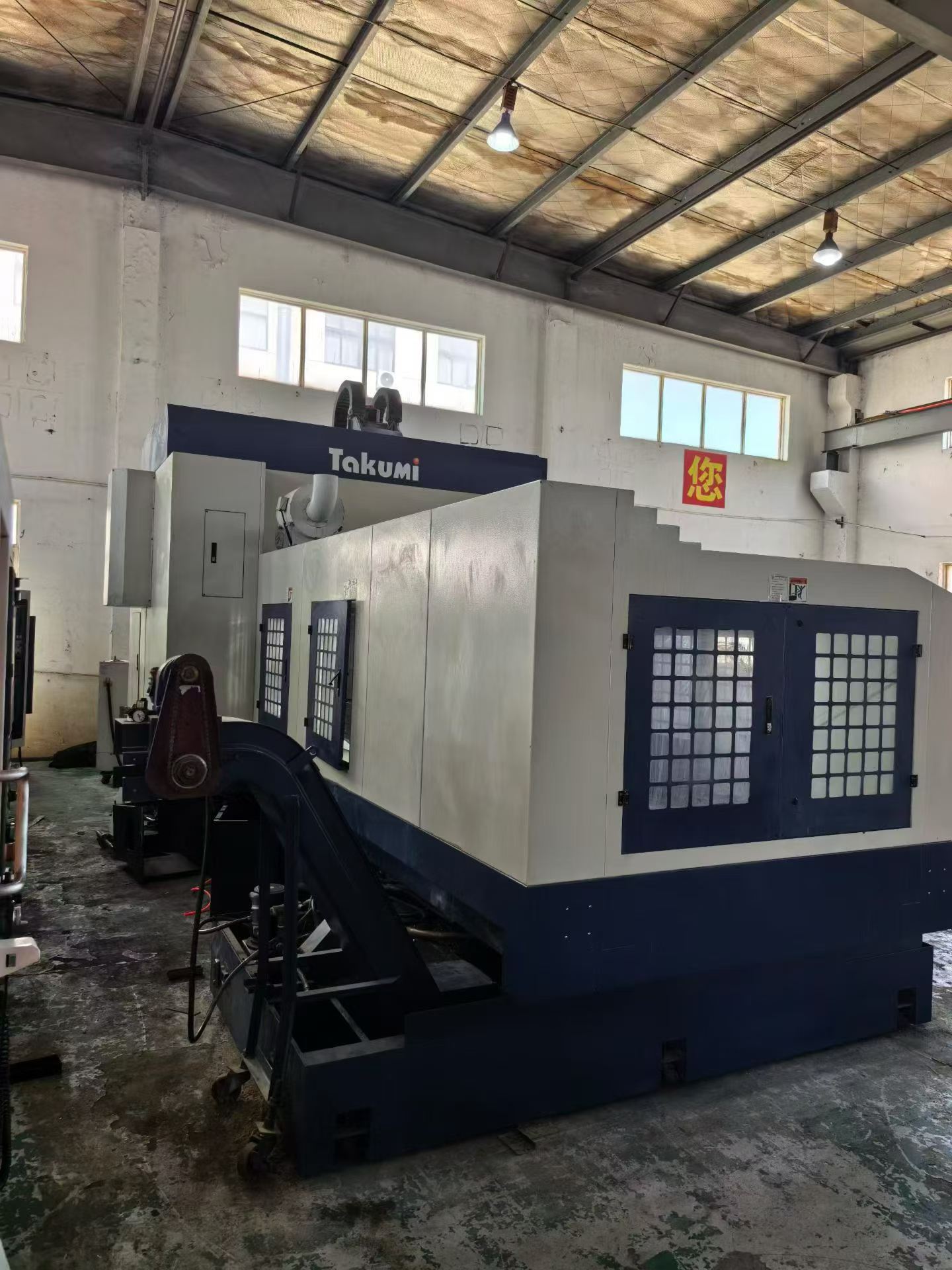

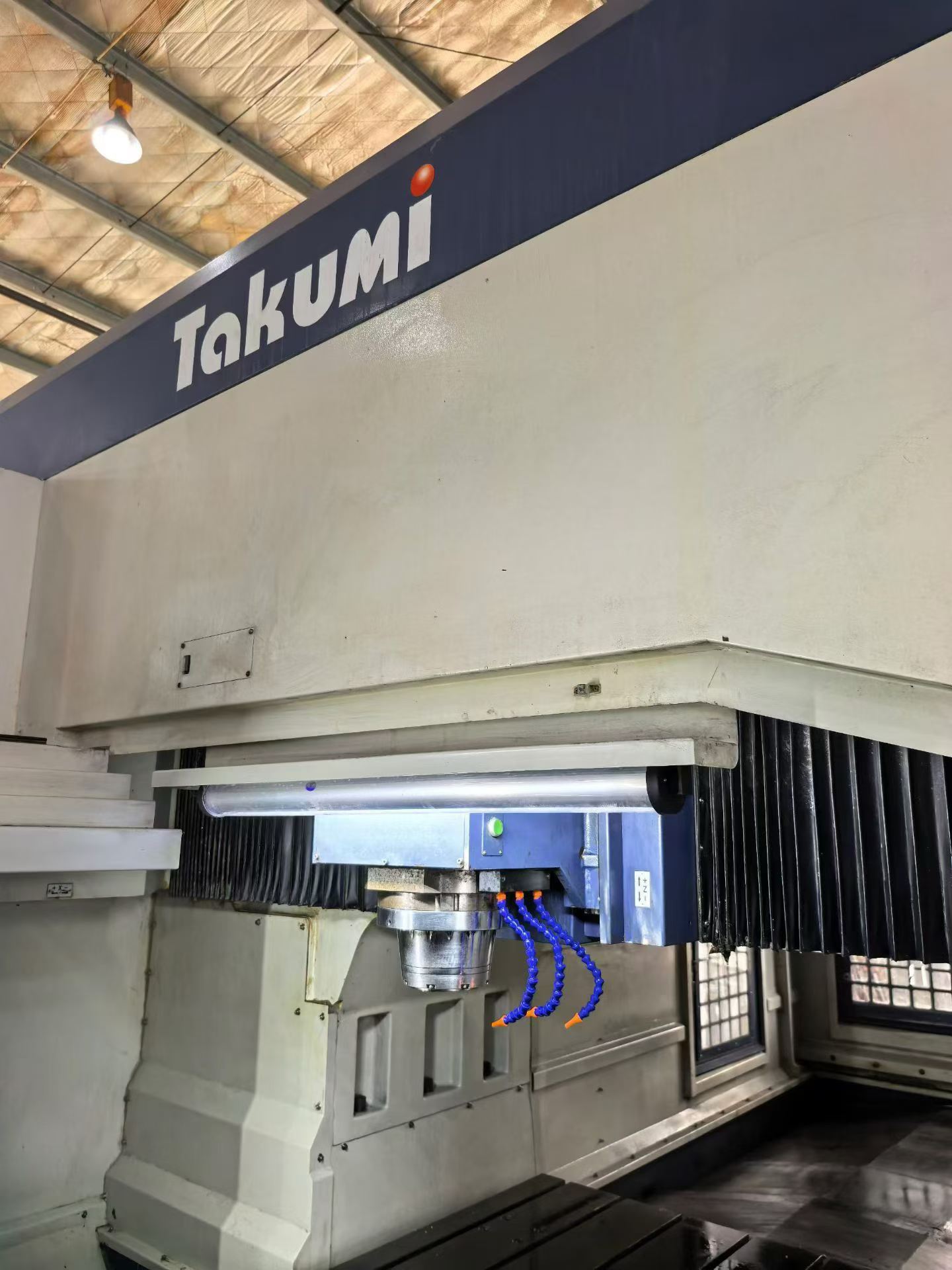

Used Takumi H 32 S High-Speed Gantry Machining Center with FANUC 18 i-MB

Taiwan-origin Takumi H 32 S high-speed gantry machining center. Equipped with a BBT 40 spindle running at 20,000 rpm, FANUC 18 i-MB controller with mold package, and FANUC Alpha motor drives. Worktable size is 3300 x 1600 mm, gantry width 1700 mm, workpiece passage 850 mm, and machining height 850 mm. The machine features full-enclosed sheet metal guarding and includes an oil mist collector, oil cooler, and chain-type chip conveyor.

Machine Code: VMC2609135
Year: 2000
Location: China
Usage Hours: On request

Accessories

Oil mist collector, oil cooler, chain-type chip conveyor

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Spindle taper	BBT 40
Spindle speed	20000 rpm

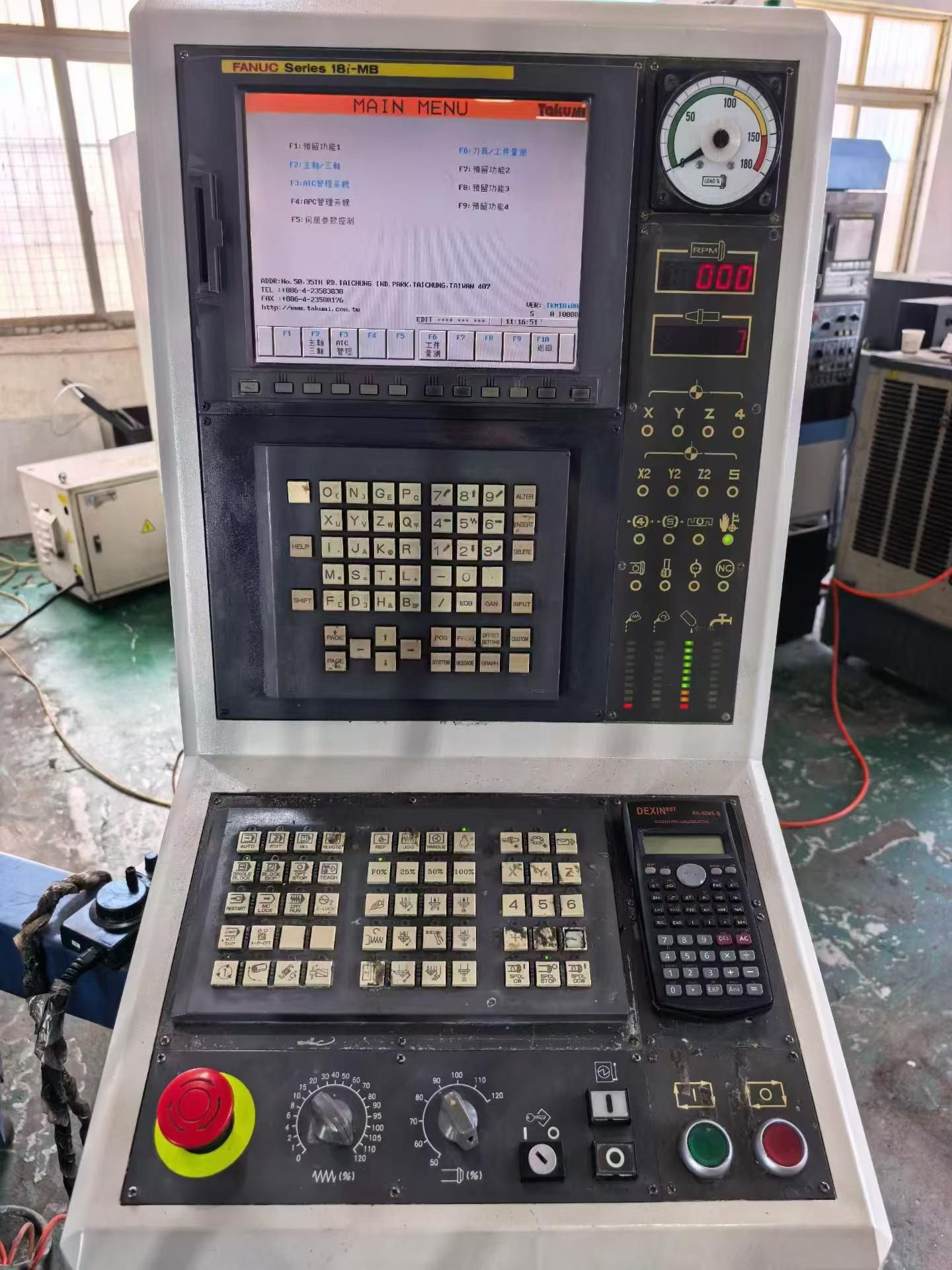

Control system	FANUC 18 i-MB with mold package
Drive motors	FANUC Alpha
Worktable size	3300 x 1600 mm
Gantry width	1700 mm
Workpiece passage	850 mm
Machining height	850 mm
Guarding	Full enclosed sheet metal
Brand	Takumi
Year of manufacture	2000
