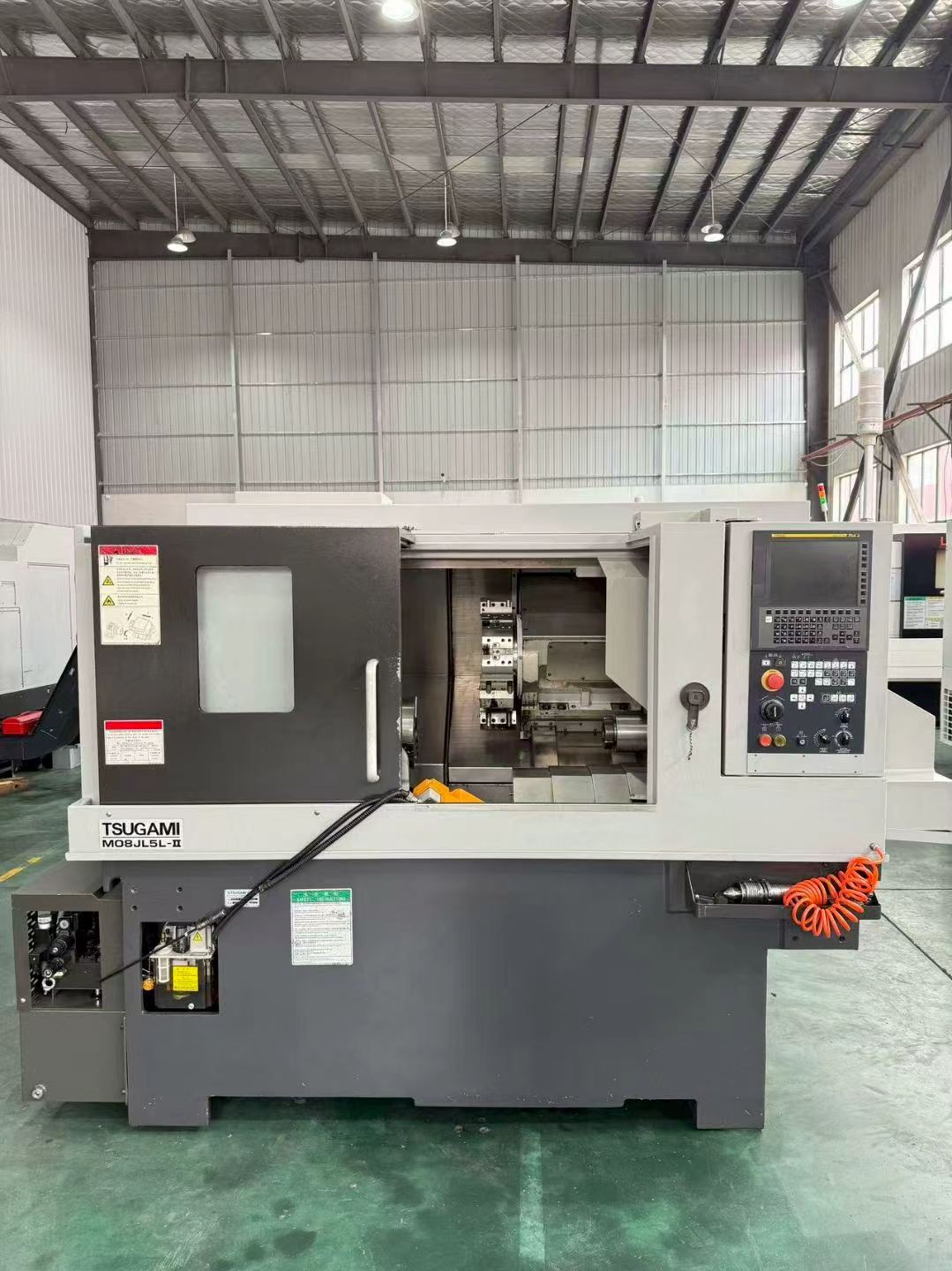

Used Tsugami M 08 JL 5 L-II CNC Lathe with FANUC TF Plus Control

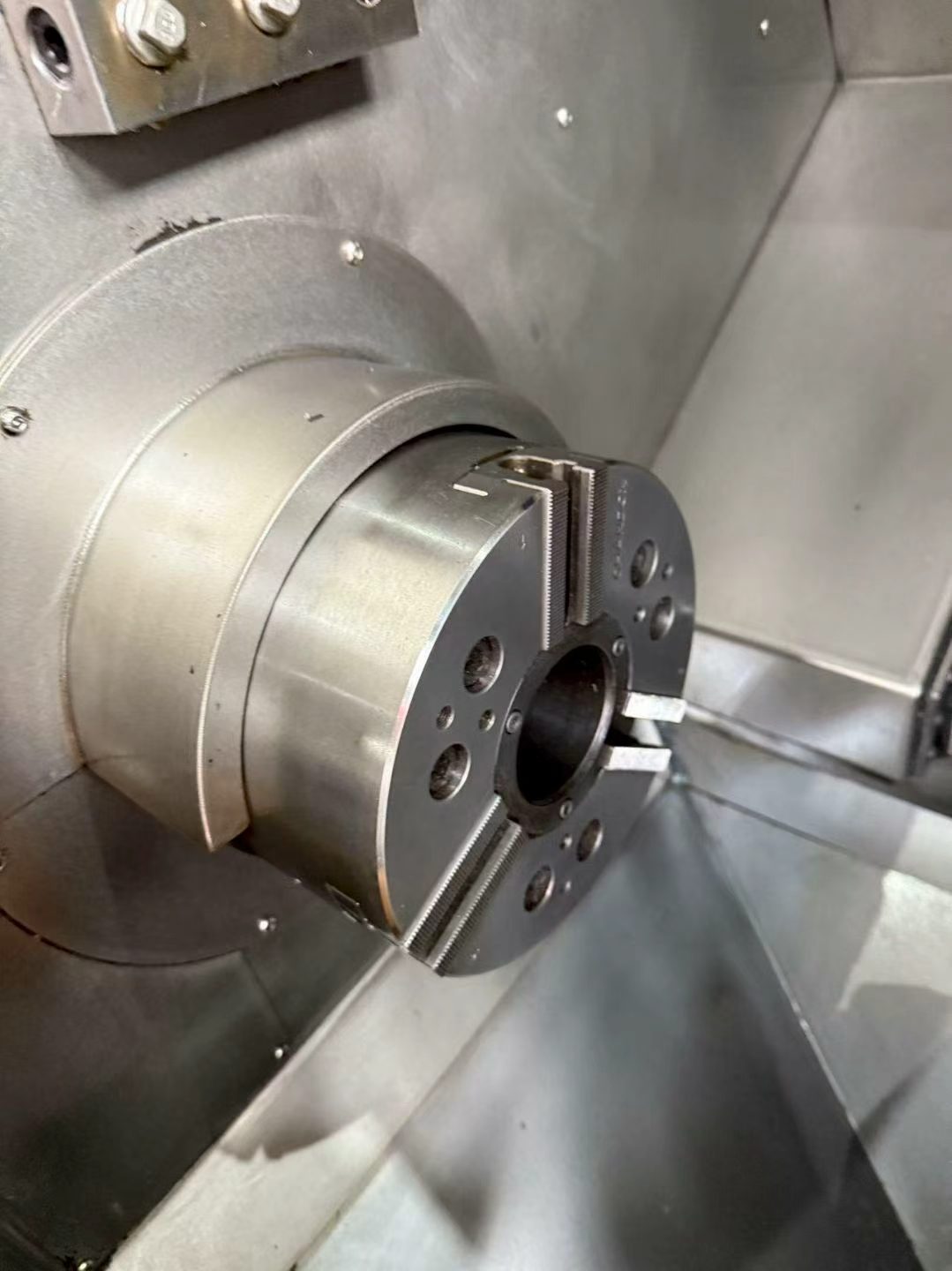

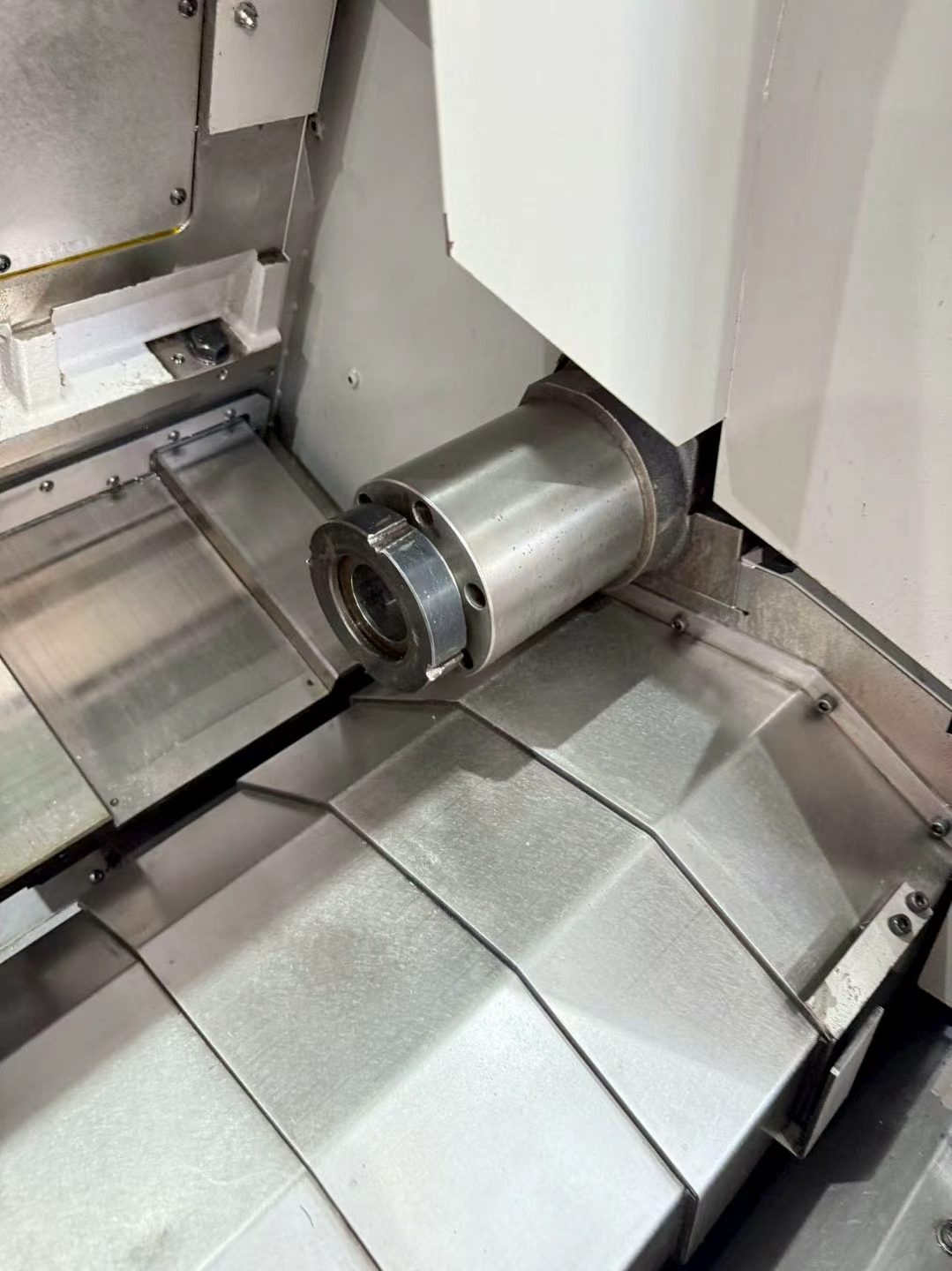

Tsugami M 08 JL 5 L-II CNC lathe, offered as two identical units. The machine is equipped with the FANUC TF Plus CNC control system, an 8-inch chuck, an 8-station tool turret and a servo tailstock. Travels are 160 mm on the X axis and 560 mm on the Z axis. Maximum machining diameter is φ280 mm, bar capacity is φ65 mm, and maximum machining length is 500 mm. The spindle runs from 200 to 4,000 rpm and is driven by an 11/18.5 kW spindle motor. Rapid traverse speeds are 24 m/min in X and 27 m/min in Z. Machine dimensions are 1,970 x 1,778 x 1,600 mm and machine weight is 3,920 kg. Serial number 21383 B; manufactured in October 2023.

Machine Code: CL260993
Year: 2023
Location: China
Usage Hours: On request

Accessories

8-inch chuck 8-station tool turret Servo tailstock

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Model	M 08 JL 5 L-II

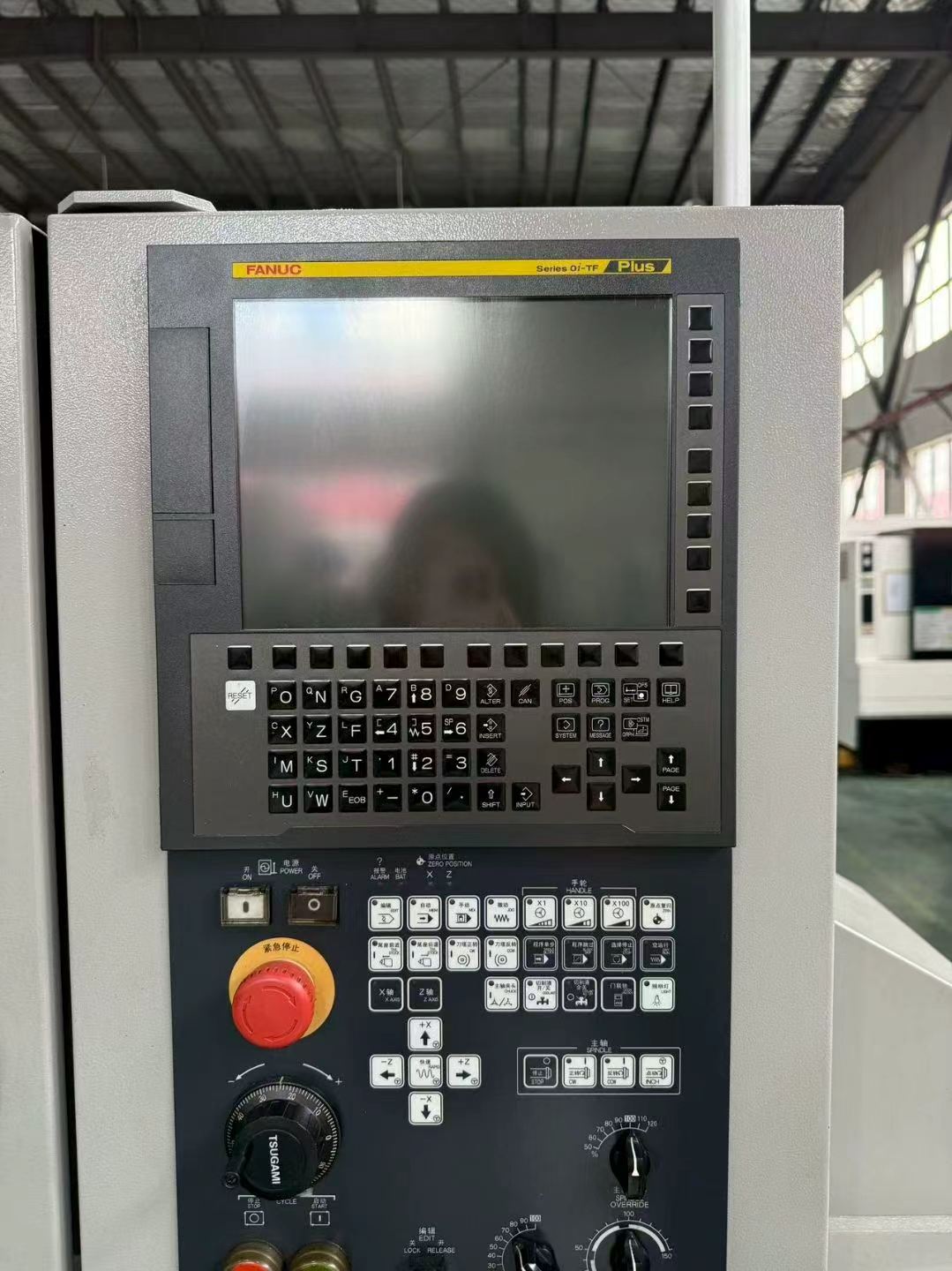

Control system	FANUC TF Plus
Chuck size	8inch

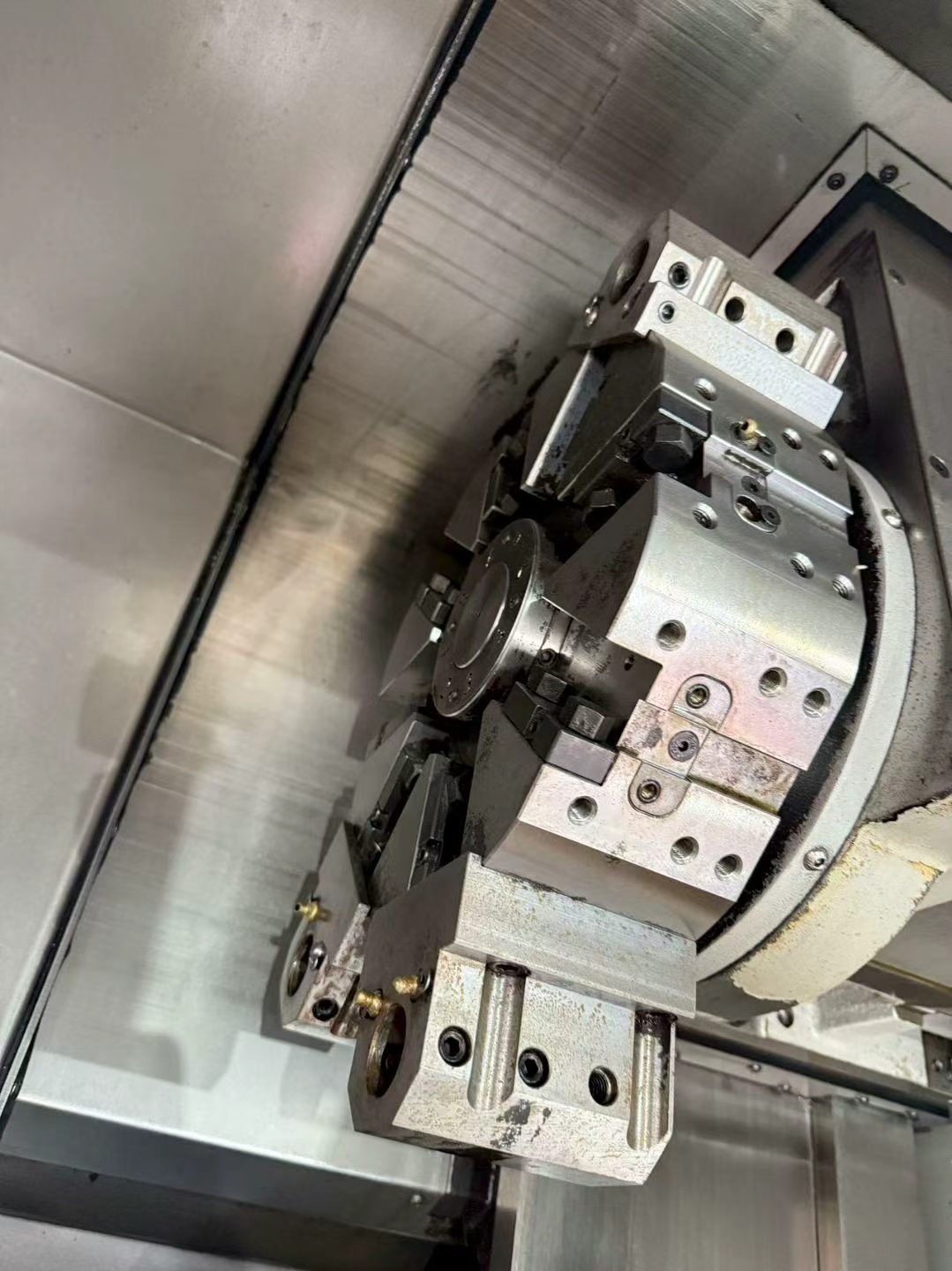

Tool turret	8-station
Tailstock	Servo tailstock
X-axis travel	160 mm
Z-axis travel	560 mm
Maximum machining diameter	φ280 mm / φ65 mm (bar)
Maximum machining length	500 mm
Spindle speed	200–4,000 rpm
Rapid traverse speed (X)	24 m/min
Rapid traverse speed (Z)	27 m/min
Spindle motor power	11/18.5 kW
Machine dimensions (L x W x H)	1,970 x 1,778 x 1,600 mm
Machine weight	3,920 kg

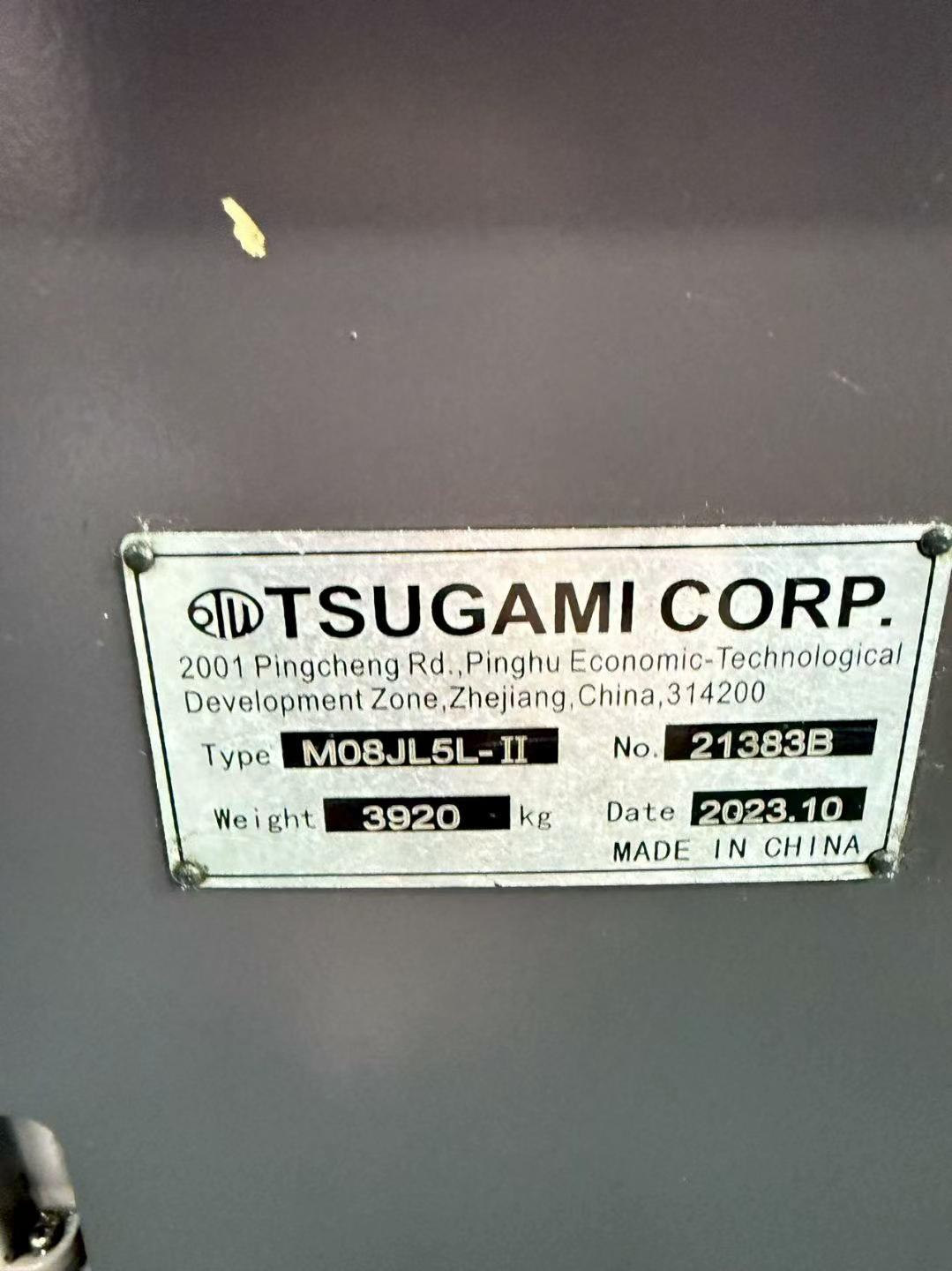

Serial number	21383 B
Manufacturing date	October 2023
Brand	Tsugami
Year of manufacture	2023
