AvailableTurn-Mill CNC Lathe

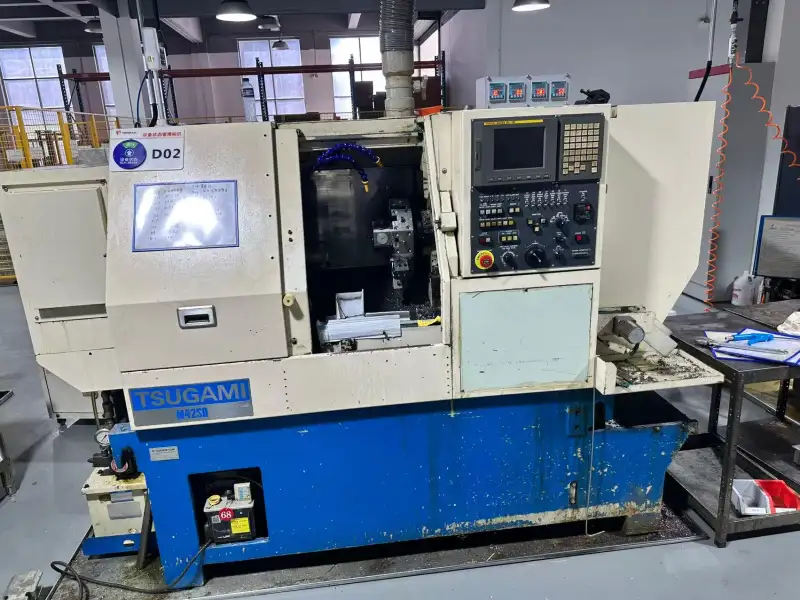

Used Tsugami M 42 SD Turn-Mill CNC Lathe with FANUC 21 i-TB Control

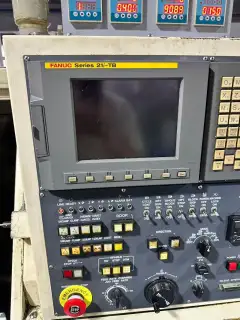

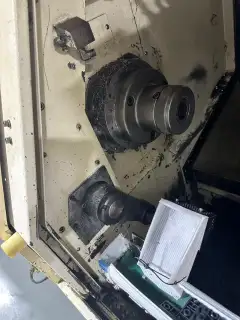

The Tsugami M 42 SD is a turn-mill CNC lathe for combined turning and milling of bar and chucked work. It runs on the FANUC 21 i-TB CNC control system. Maximum machining diameter is 210 mm, and the motorized spindle reaches 6,000 rpm with 5.5/7.5 kW of spindle power. A 42 mm spindle through-hole accommodates bar stock through the spindle. The X and Z axes travel 260 x 300 mm on box guideways, which support heavy, stable cutting on this class of machine. Tool changes are handled by a 12-station servo turret. The machine is equipped with 5-45 precision collets, and a hydraulic chuck can be fitted in place of the collet workholding to suit chucked-part production.

Machine Code: TML261001
Year: On request
Location: China
Usage Hours: On request

Accessories

5-45 precision collet; hydraulic chuck conversion available

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Maximum machining diameter	210 mm
Spindle speed	6,000 rpm
Spindle power	5.5/7.5 kW
Spindle through-hole	42 mm
X/Z travel	260 x 300 mm
X/Z guideway	Box guideway

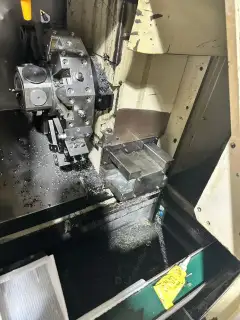

Turret	12-station servo turret
Collet	5-45 precision collet (hydraulic chuck conversion available)
Brand	Tsugami
Control system	FANUC 21 i
