AvailableCNC Drilling Machine

Used Tsugami VA 3 CNC Drilling and Tapping Center with FANUC 0i-MD Control

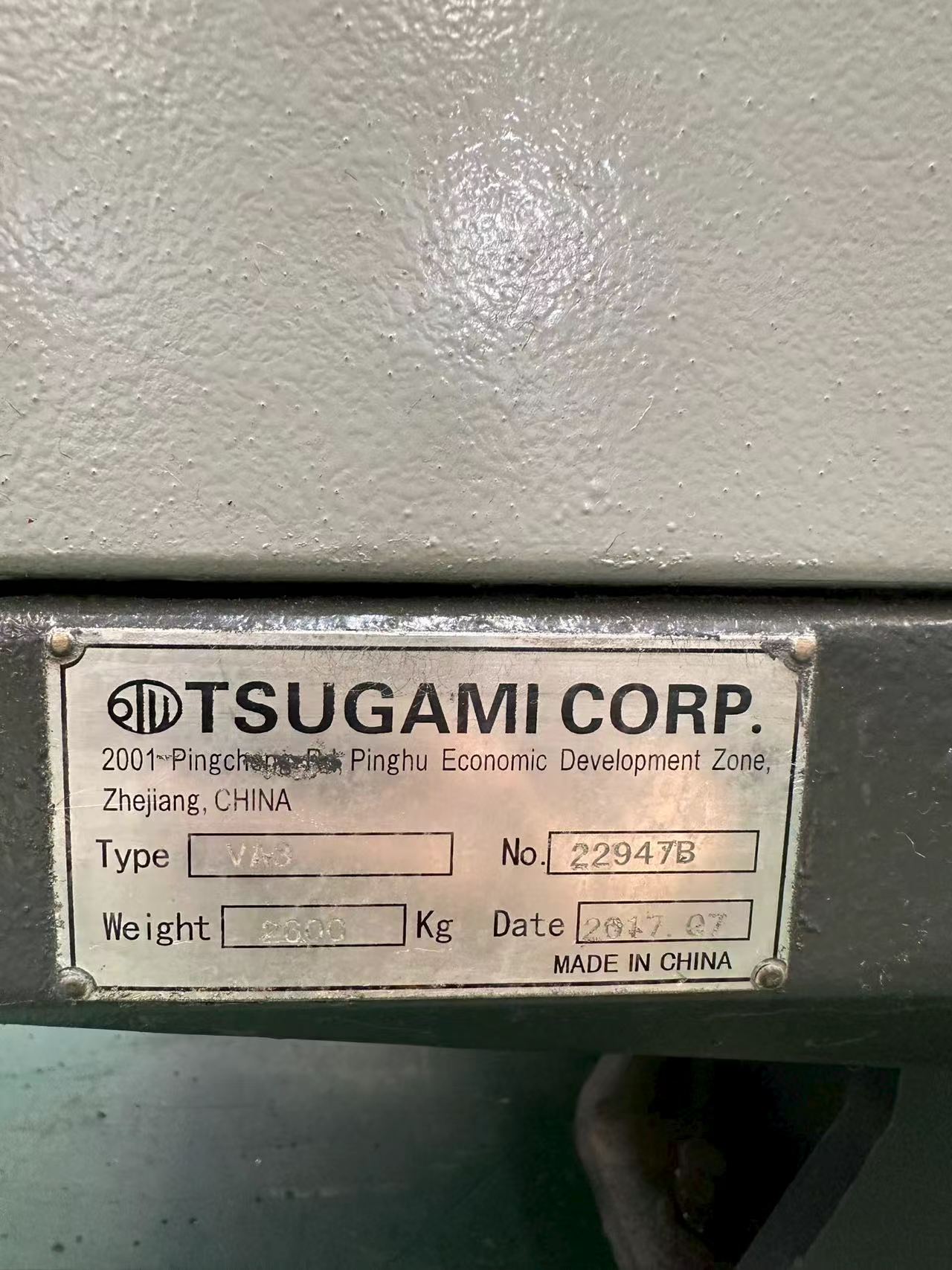

Tsugami VA 3 CNC drilling and tapping center, with two identical units available. The machine is equipped with a FANUC Series 0i-MD CNC control system and FANUC servo drives in the electrical cabinet. The BT30 spindle runs up to 20,000 rpm and is served by a 20-tool magazine. X/Y/Z travel is 500 x 400 x 350 mm, and the worktable measures 650 x 400 mm with T-slots for fixture mounting. The machine is fully enclosed with protective covers and weighs 2,600 kg. Nameplate model: VA 3. Machine number: 22947 B. Year of manufacture: 2017 (July 2017).

Machine Code: DR260941
Year: 2017
Location: China
Usage Hours: On request

Accessories

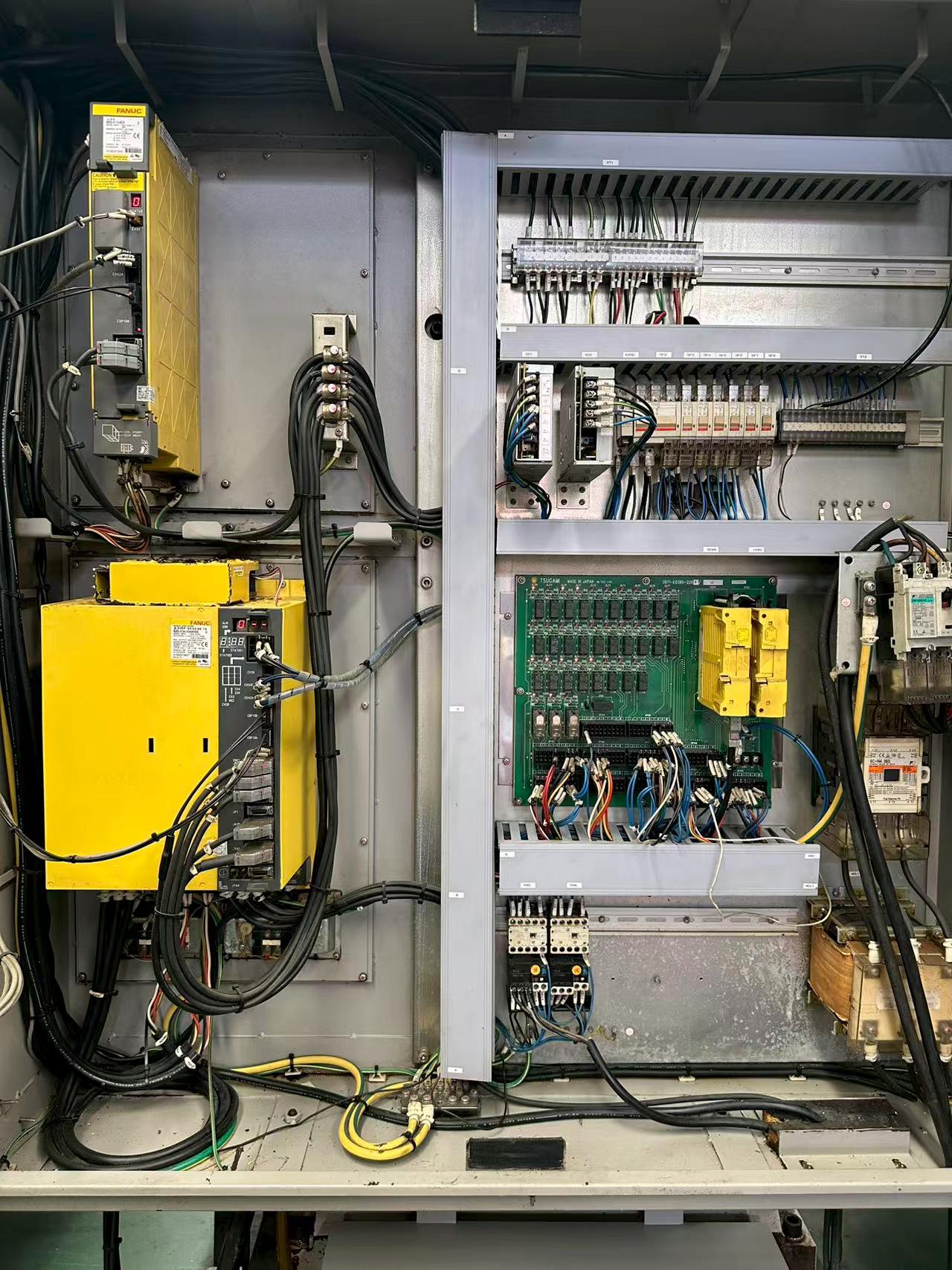

FANUC servo drives in the electrical cabinet T-slotted worktable Full enclosure guarding

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Machine type	CNC Drilling and Tapping Center
Brand	Tsugami
Model	VA 3

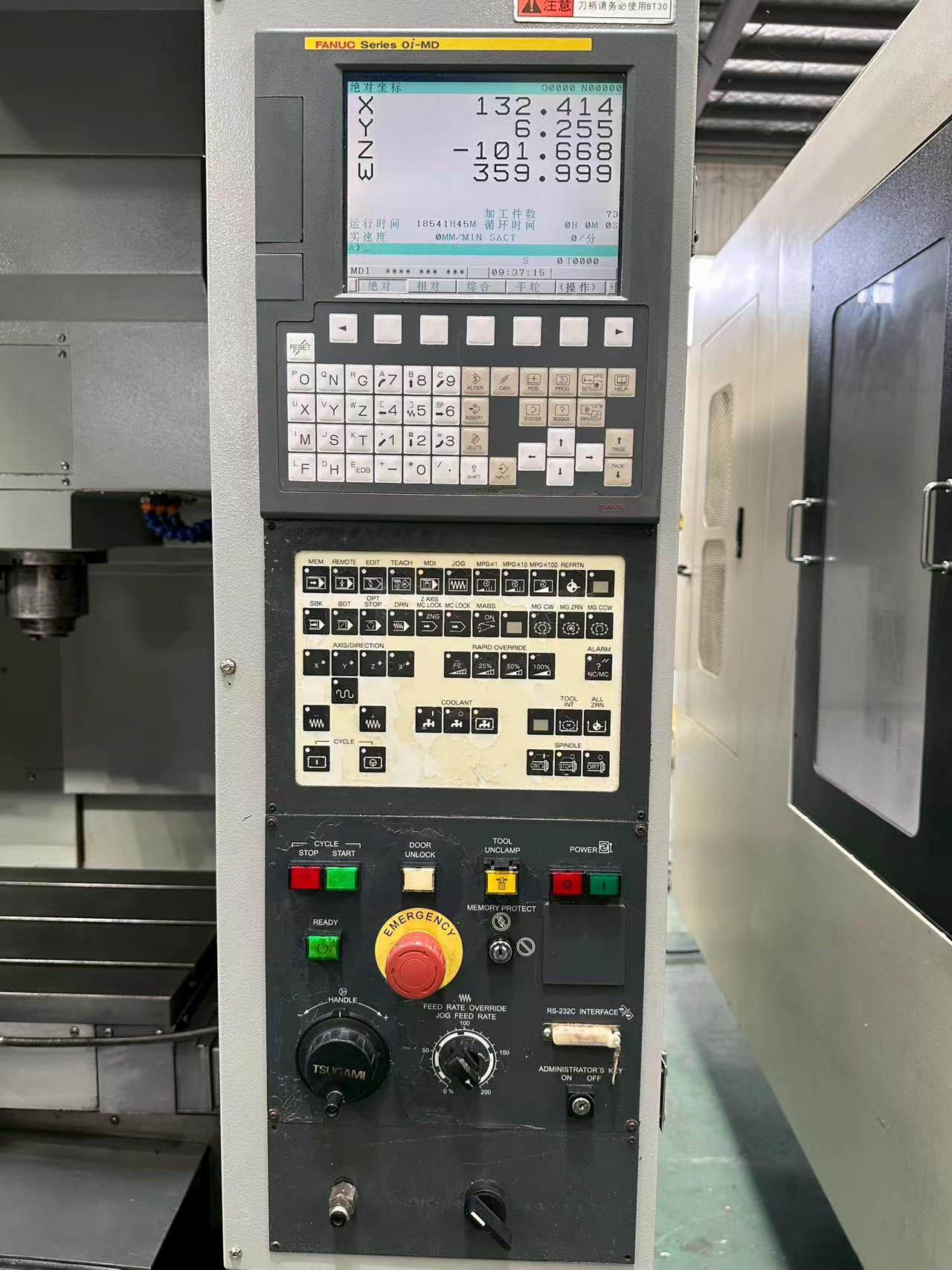

Control system	FANUC Series 0i-MD

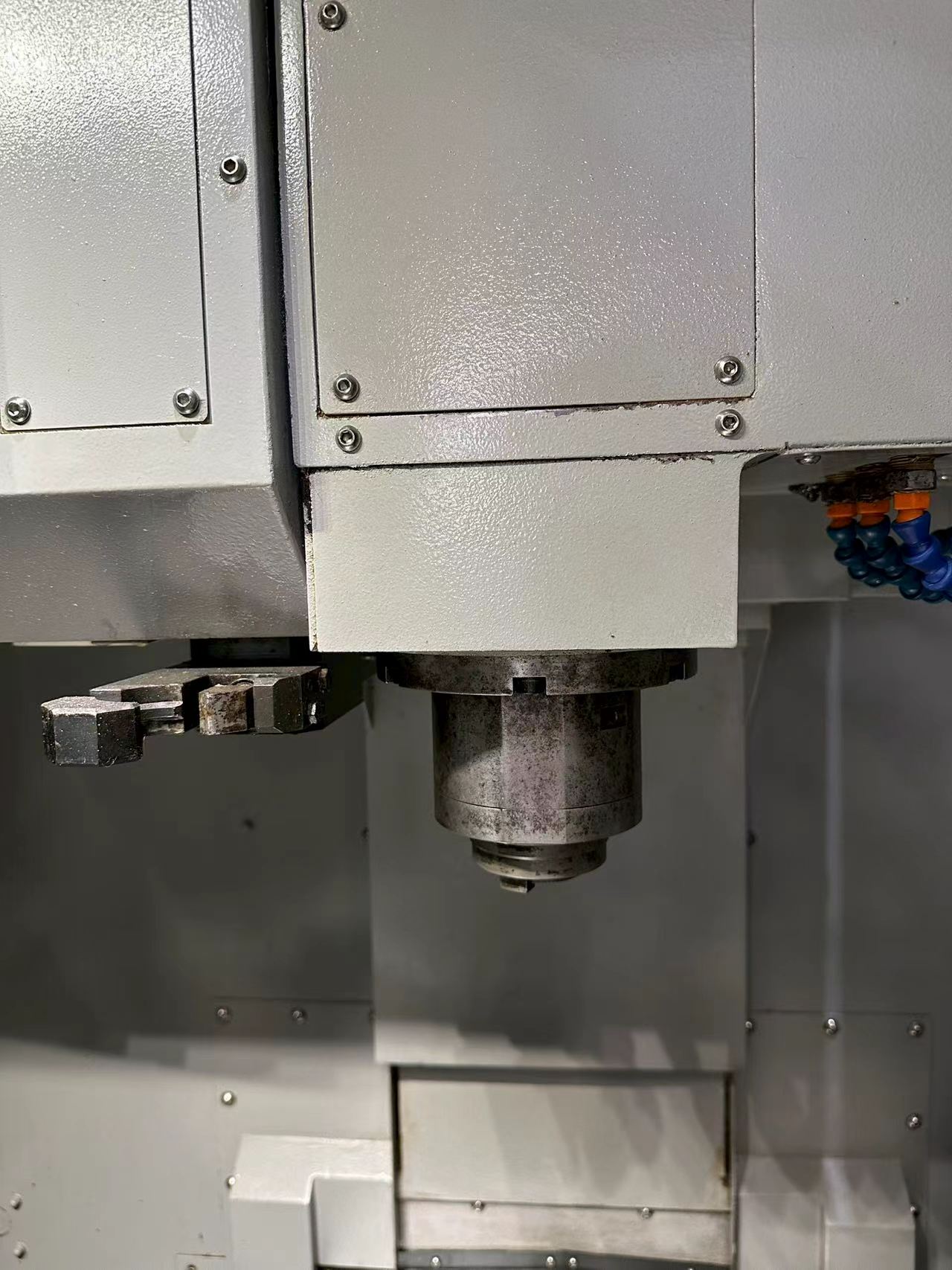

Spindle taper	BT30
Spindle speed	20,000 rpm
Tool magazine capacity	20 tools
X/Y/Z travel	500 x 400 x 350 mm

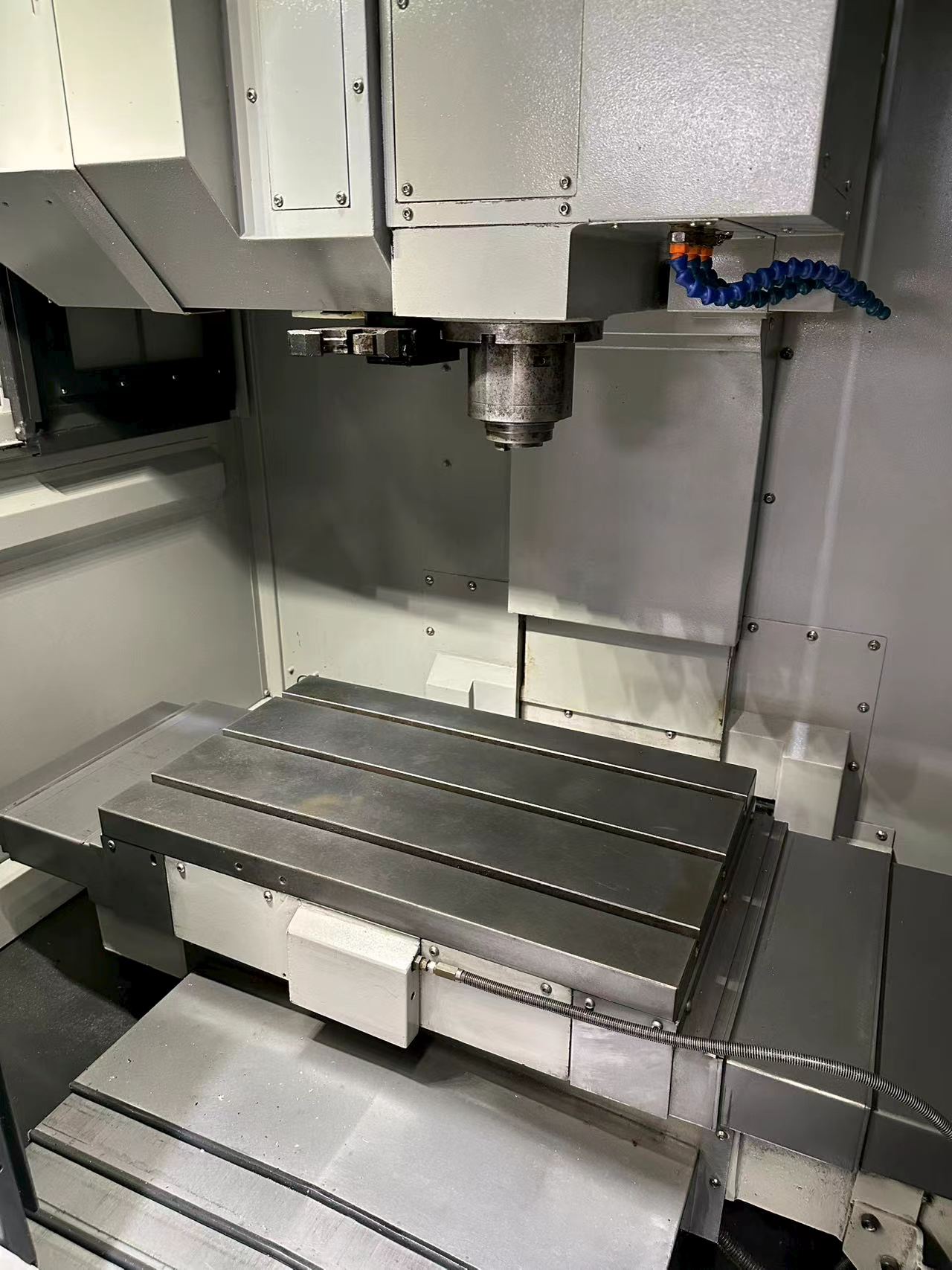

Worktable size	650 x 400 mm
Machine weight	2,600 kg
Machine number	22947 B
Year	2017
Manufacturing date	July 2017
Year of manufacture	2017
