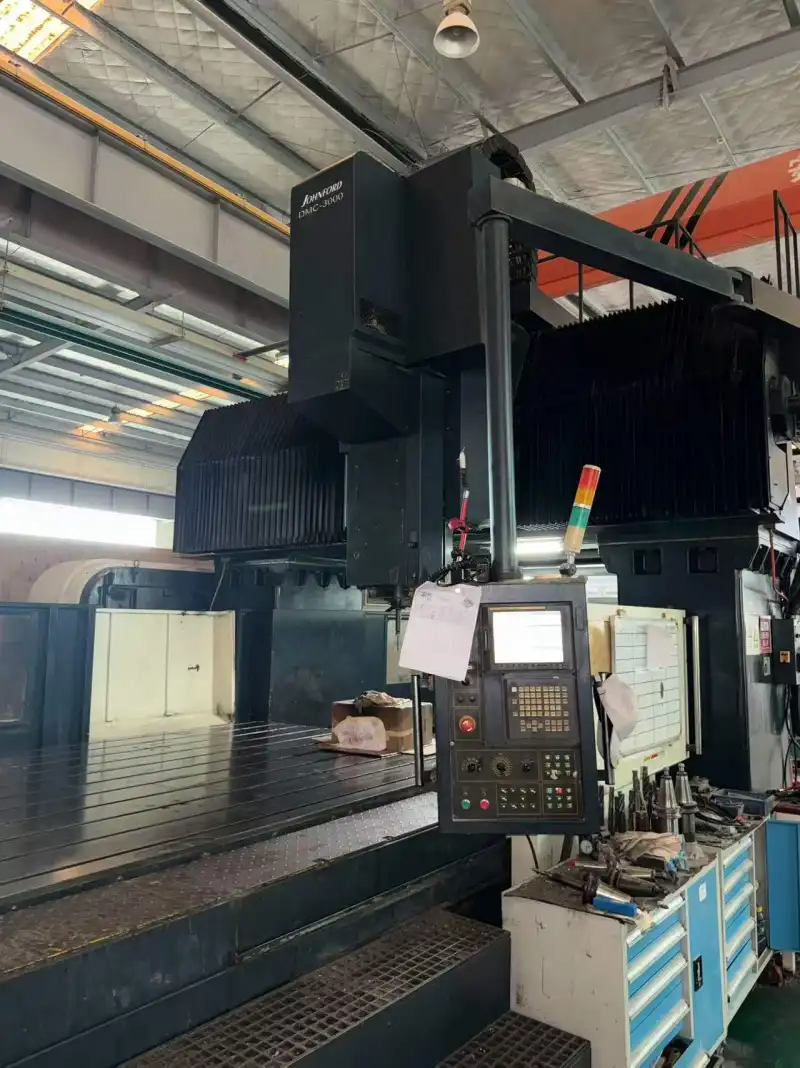

Used 2013 Awea DMC-3000 Moving Beam Gantry Machining Center with FANUC 21 i-MB

Taiwan-original Awea DMC-3000 moving beam gantry machining center manufactured in 2013. Equipped with FANUC 21 i-MB control, BT50 gear-head spindle with 6000 rpm. Guideway system: X-axis linear guideway (size 65), Y- and Z-axis box guideways. All three axes are fitted with HEIDENHAIN linear scales. Includes a 40-tool magazine and dual screw-type chip conveyor. Worktable size: 3200 x 2200 mm. Gantry width: 2800 mm. Overall machine dimensions: 9000 x 5200 mm. Z-axis to worktable height: 120.

Machine Code: MC2608219
Year: 2013
Location: China
Usage Hours: On request

Accessories

Dual screw chip conveyor, 40-station tool magazine, HEIDENHAIN linear scales on all axes

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Spindle taper	BT50
Spindle drive	Gear head
Spindle speed	6000 rpm
X/Y/Z travel	3000 x 2800 x 1066 mm
Guideways	X: linear guideway (size 65); Y/Z: box guideways
Linear scales	HEIDENHAIN on all axes
Tool magazine capacity	40 tools
Chip conveyor	Dual screw type
Worktable size	3200 x 2200 mm
Gantry width	2800 mm
Overall machine dimensions	9000 x 5200 mm
Z-axis to worktable height	120
