2020 Tsugami M 08 J-II CNC Lathe
Tsugami · M08J-II
Used
CNC LatheCL26081632020FANUC TF PlusChina
AvailableCNC Lathe

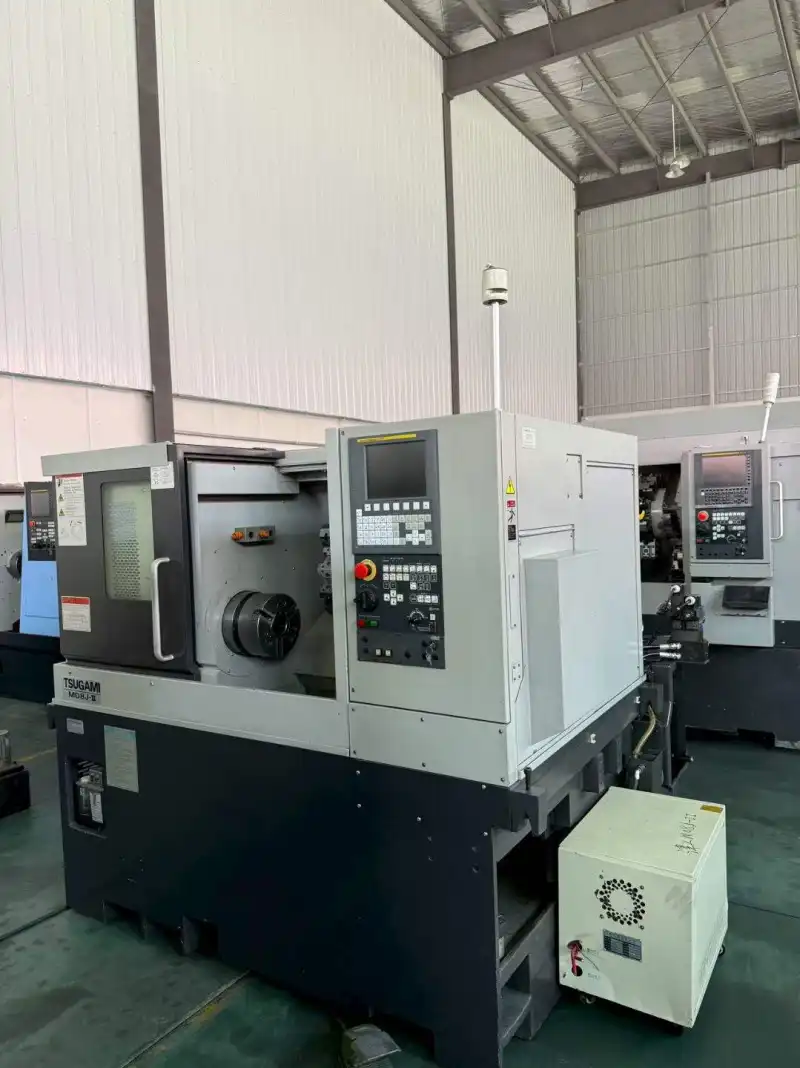

Used 2019 Tsugami M 08 J-II CNC Lathe
Used 2019 Tsugami M 08 J-II CNC lathe. Equipped with FANUC TF control, 8-inch chuck, 8-station tool turret, and tailstock. Maximum spindle speed 4000 rpm. X/Z axis travel 160 x 330 mm, maximum cutting diameter 280 mm, bar capacity 65 mm, maximum machining length 290 mm. Spindle motor 9/11 kW, machine weight 3700 kg.
- Machine Code
- CL2608164
- Year
- 2019
- Location
- China
- Usage Hours
- On request
Main Specifications
| Chuck size | 8inch |
|---|---|
| Number of tool stations | 8 |
| Tailstock | Yes |
| Maximum spindle speed | 4000 rpm |
| X/Z axis travel | 160 x 330 mm |
| Maximum cutting diameter | 280 mm |
| Spindle bar capacity | 65 mm |
| Maximum machining length | 290 mm |
| Spindle motor power | 9/11 kW |
| Machine weight | 3700 kg |
