Back to machines
AvailablePlaner Milling Machine

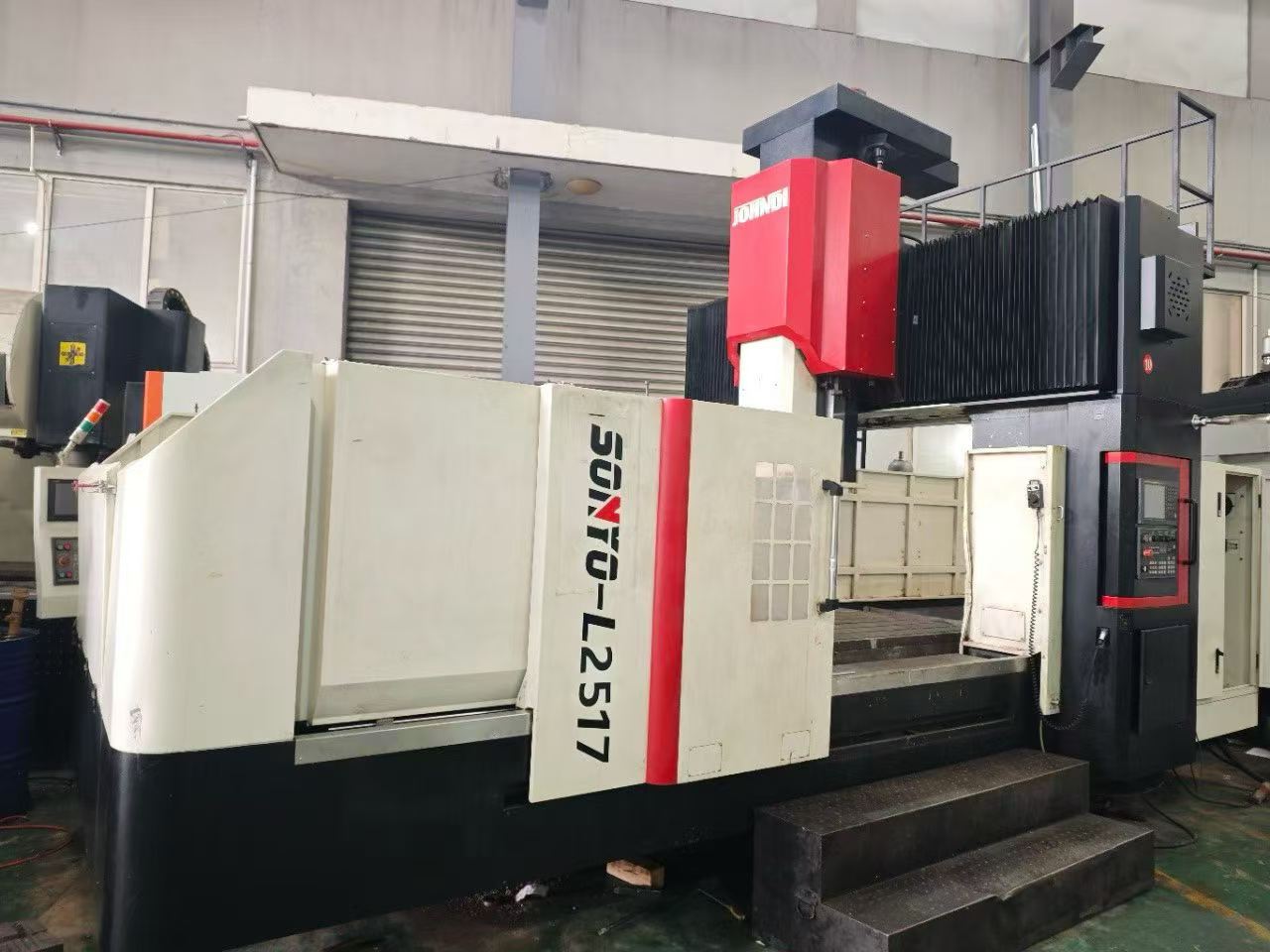

Used 2021 Qiaodi SYU-L 2517 CNC Gantry Milling Machine with Fanuc 0i-MF Plus

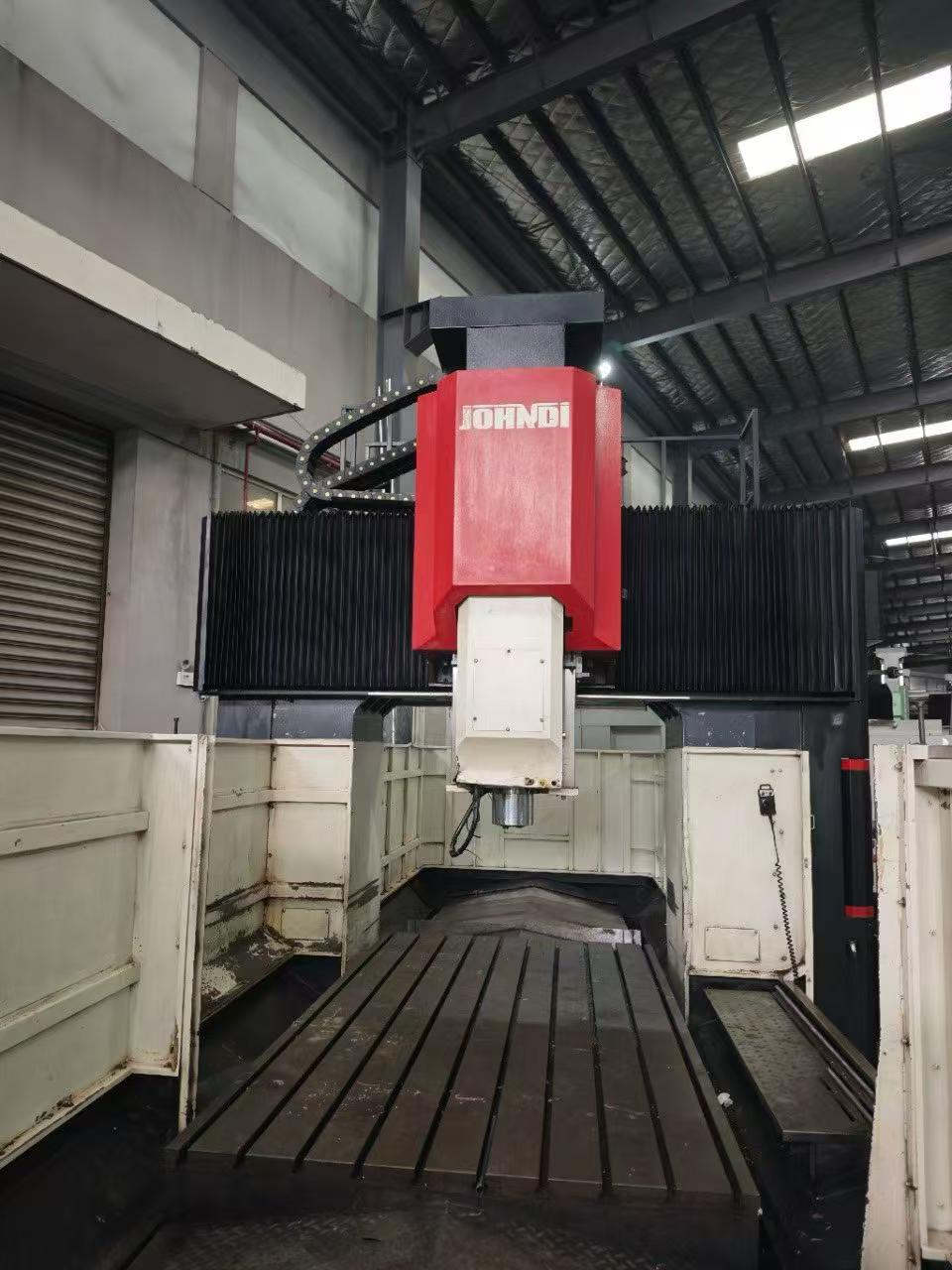

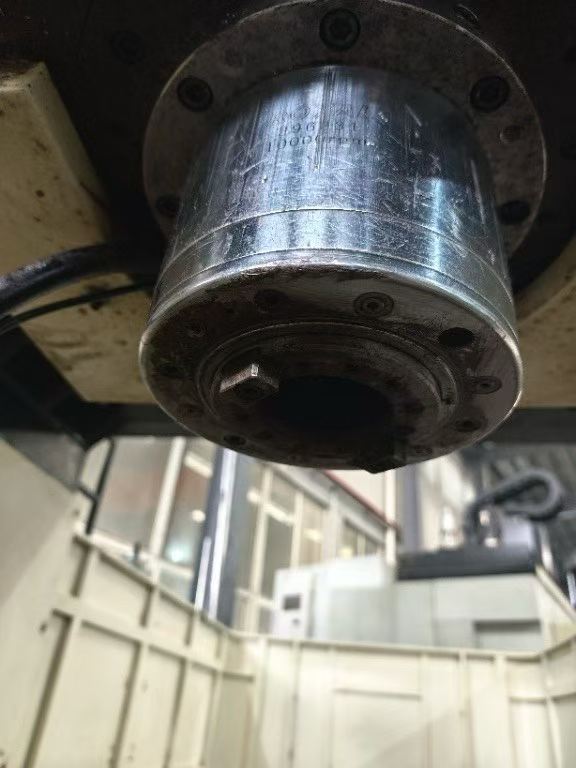

Listed is a 2021 Qiaodi SYU-L 2517 CNC gantry milling machine (planer milling machine) equipped with a Fanuc 0i-MF Plus control. It features separate drive units, a Taiwan Luo Yi BT50 spindle (10,000 rpm, oil-cooled), hydraulic power unit, two linear guideways and one box guideway, and a dual screw + chain chip conveyor. The machine has a worktable of 2700 x 1450 mm, gantry clearance width of 1700 mm, gantry clearance height of 1300 mm, and X/Y/Z travels of 2530/1700/750 mm. Spindle nose to table distance is 1130 mm. The unit is in excellent condition and available for inspection.

Machine Code
PM260816
Year
2021
Location
China
Usage Hours
On request

Accessories

Hydraulic power unit, spindle oil cooler, dual screw and chain chip conveyor

Email Inquiry

Main Specifications

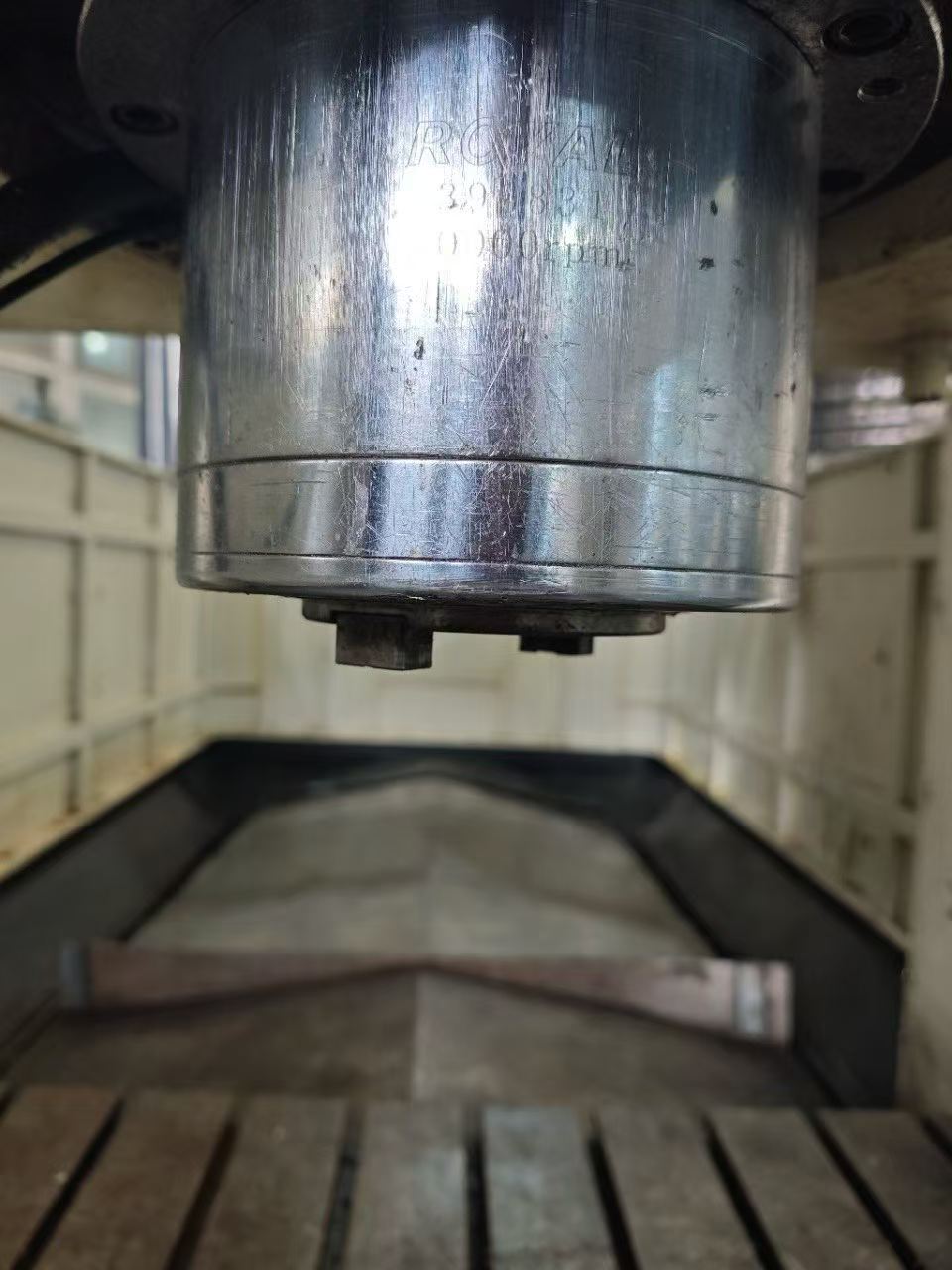

Spindle taperBT50
Spindle max speed10000 rpm
Spindle nose to table distance1130 mm

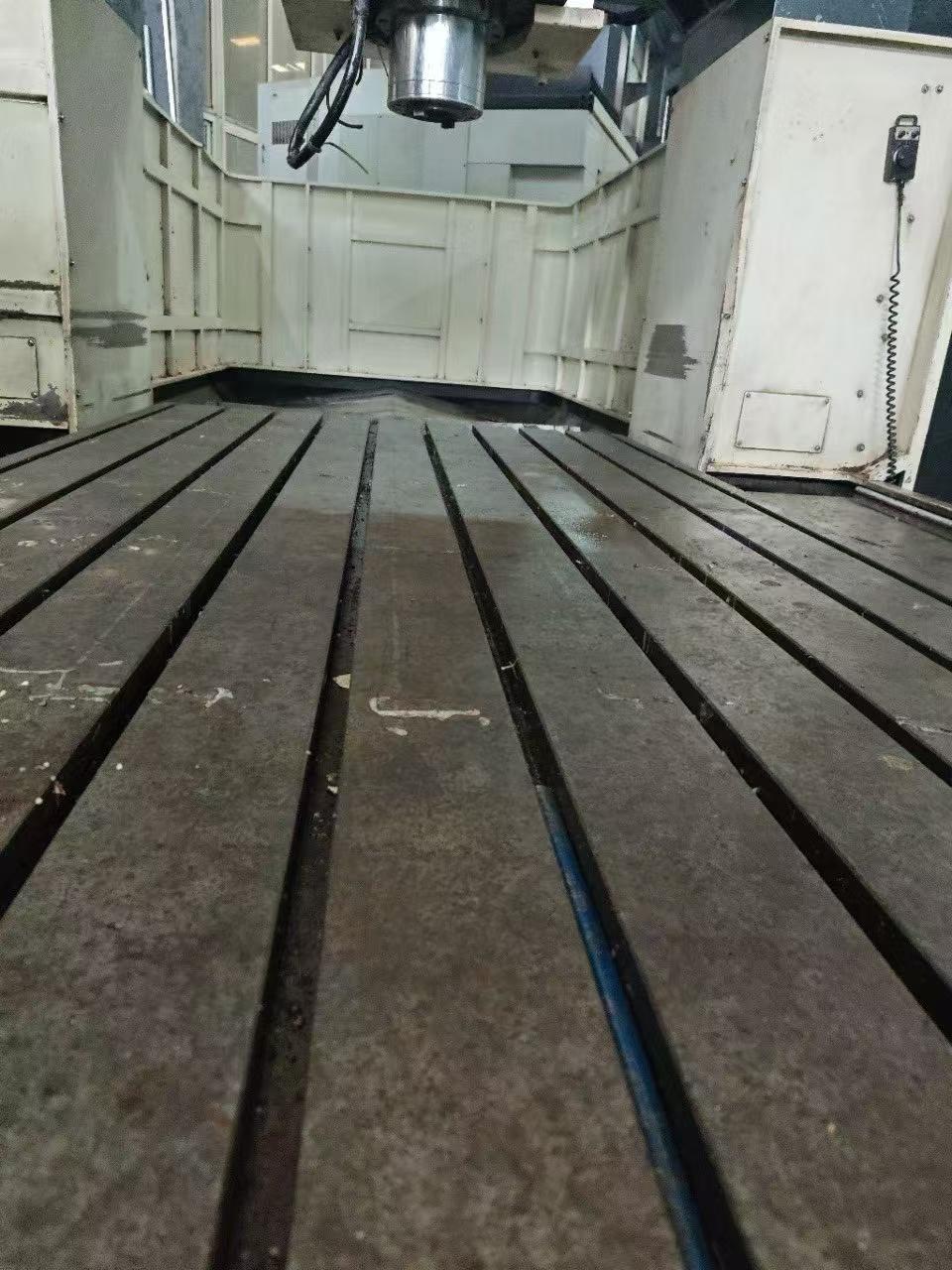

Worktable size (L x W)2700 x 1450 mm
Gantry clearance height1300 mm
Gantry clearance width1700 mm
X/Y/Z travel2530 / 1700 / 750 mm
Guideway typeTwo linear guideways (2 axes) + one box guideway (1 axis)
Chip conveyorDual screw + chain chip conveyor

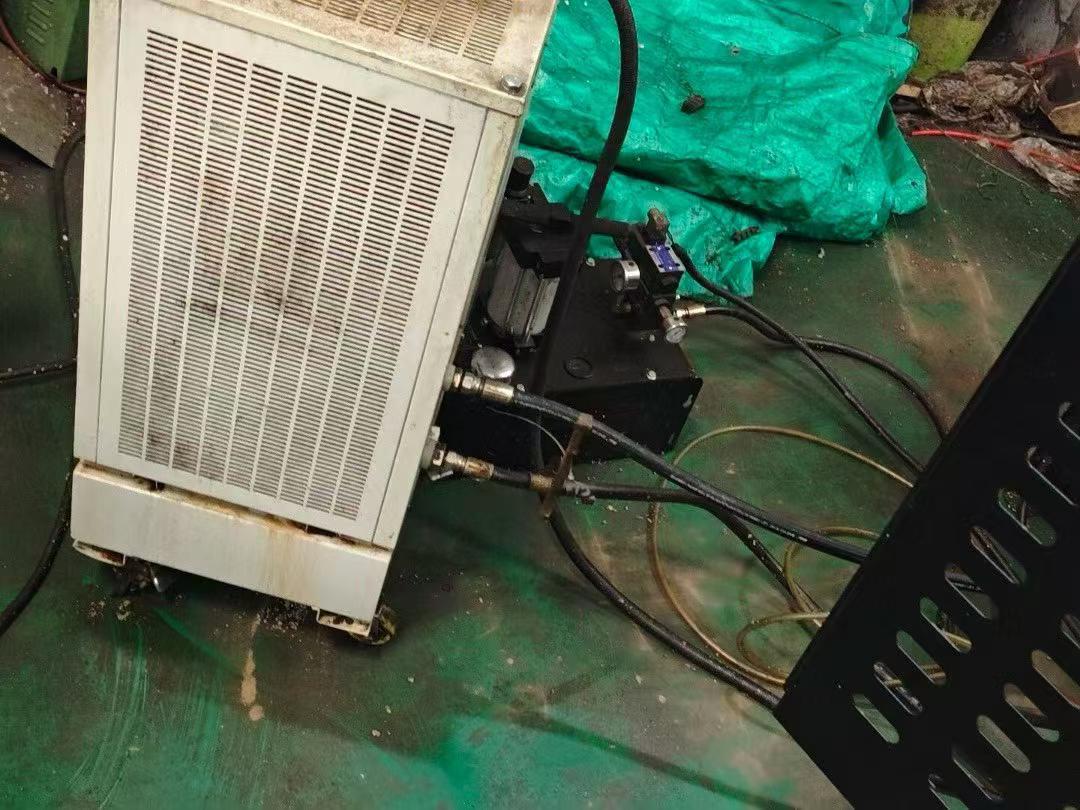

Hydraulic stationIncluded
Machine TypeGantry Milling Machine
BrandQiaodi
ModelSYU-L 2517
Year2021

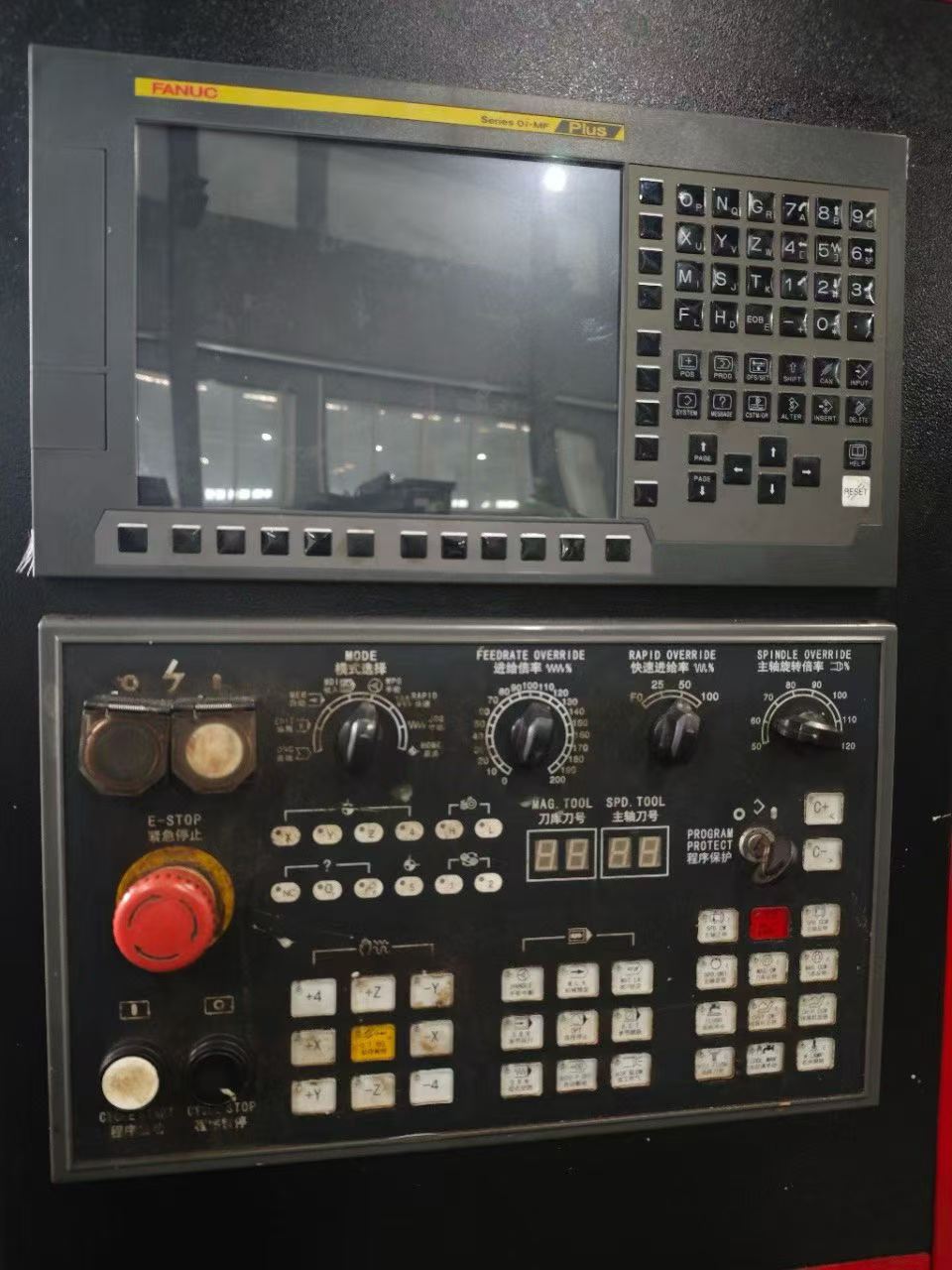

ControllerFanuc oi-MF Plus
Guideway ConfigurationX/Y linear guideways + Z box guideway
Spindle BrandTaiwan Luoyi
Oil CoolerIncluded
Quantity1

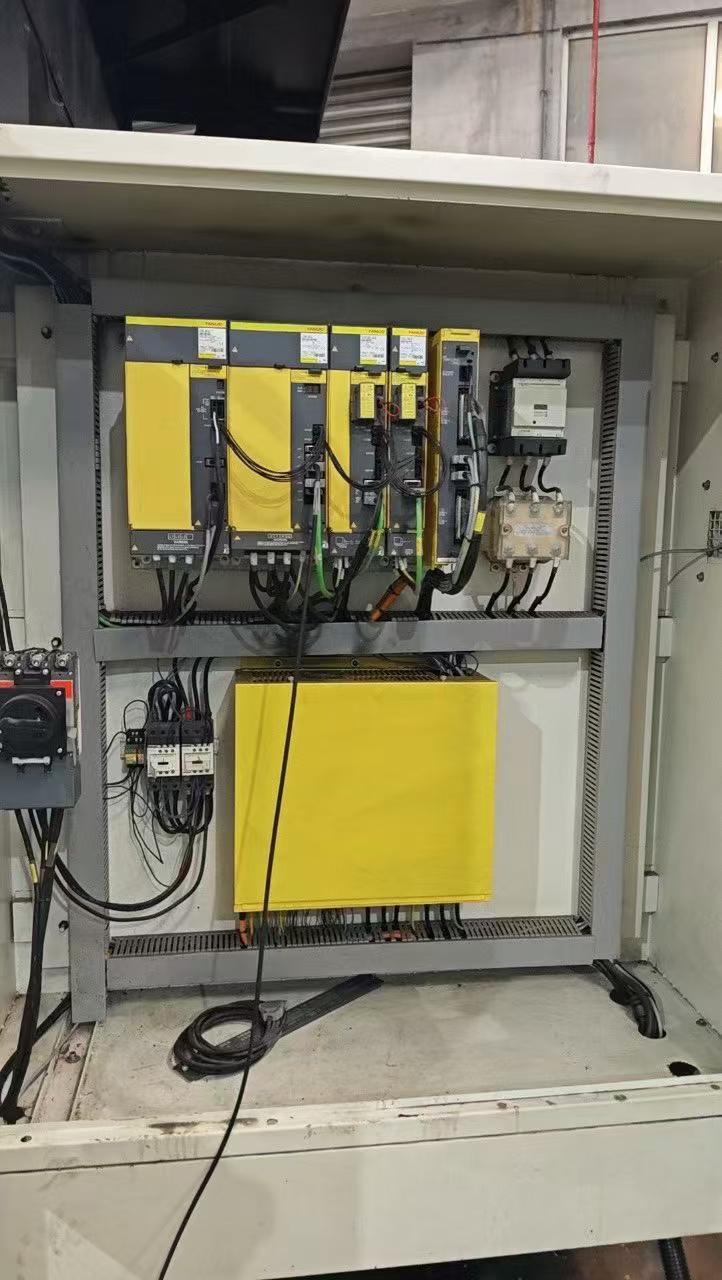

Drive ConfigurationSplit-type drive units
