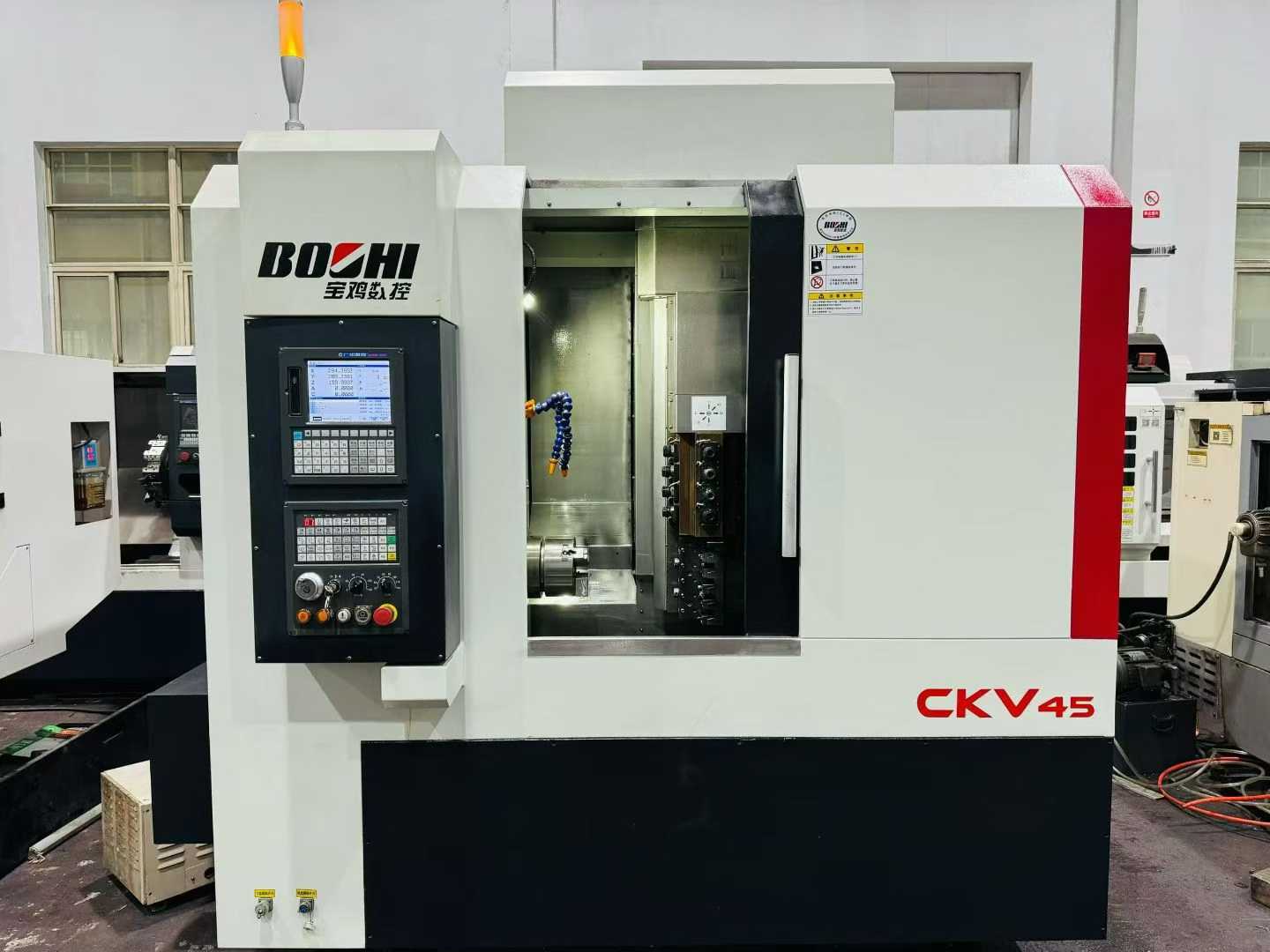

Used Baoji CKV 45 Turn-Mill CNC Lathe

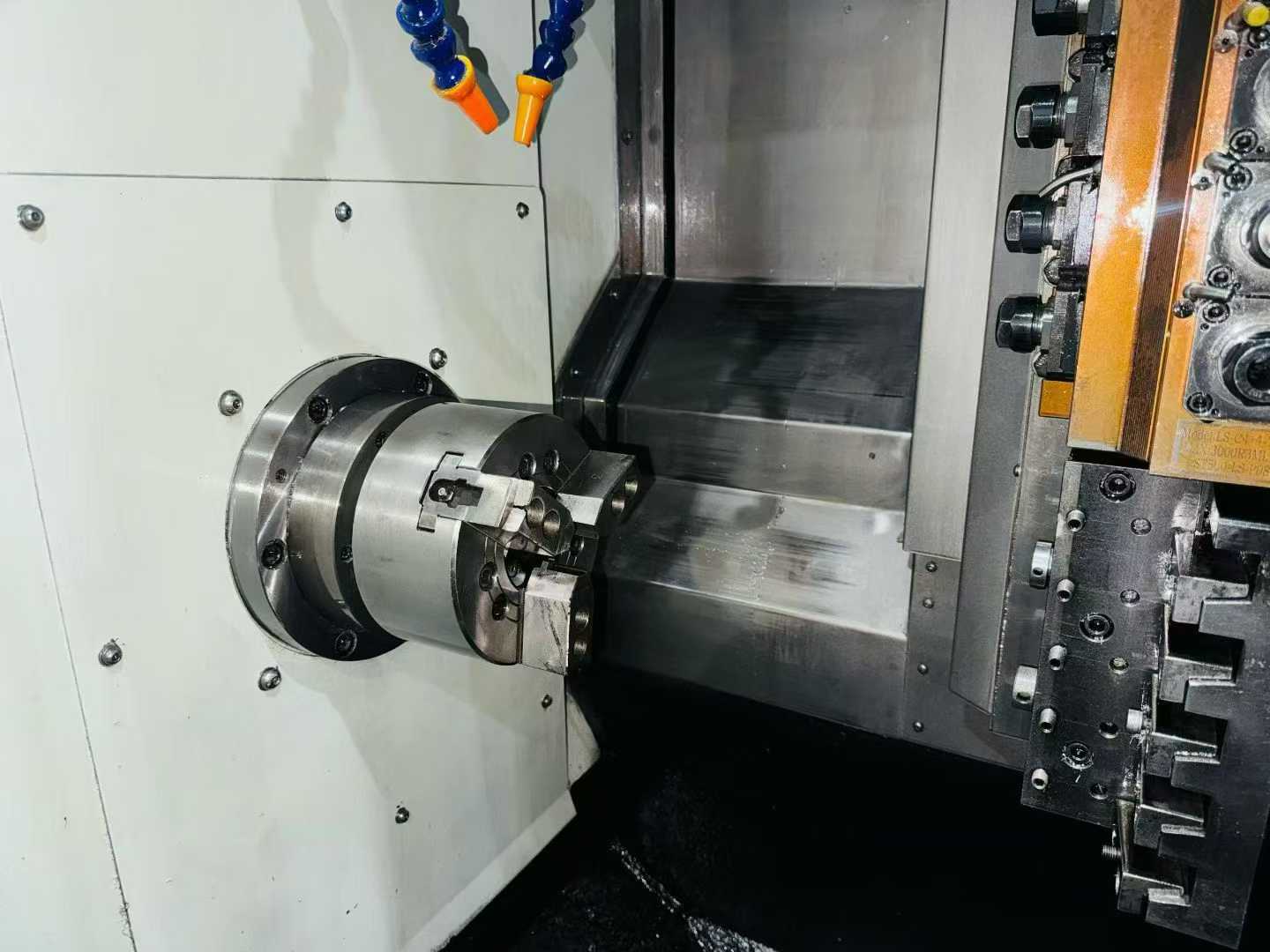

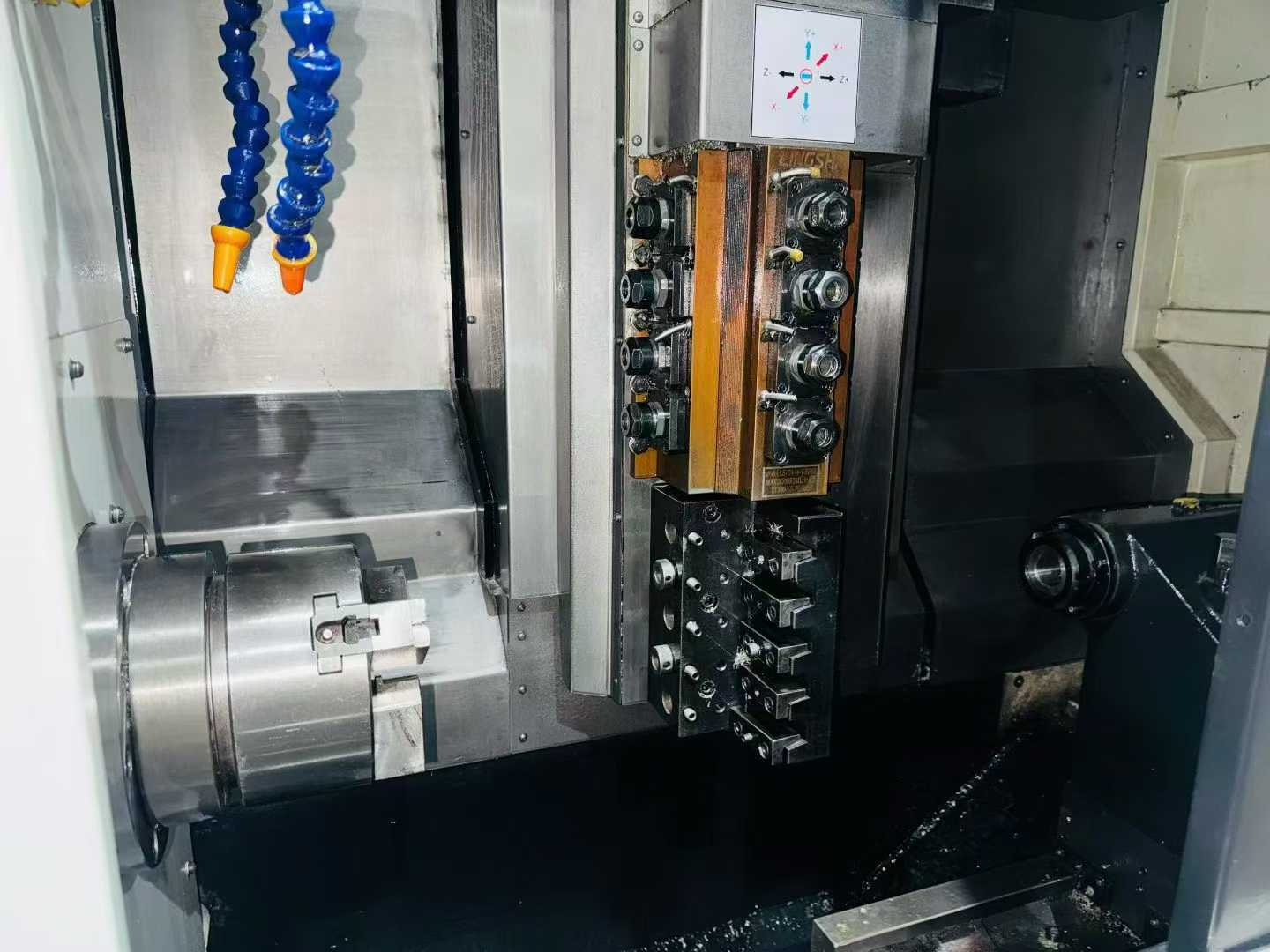

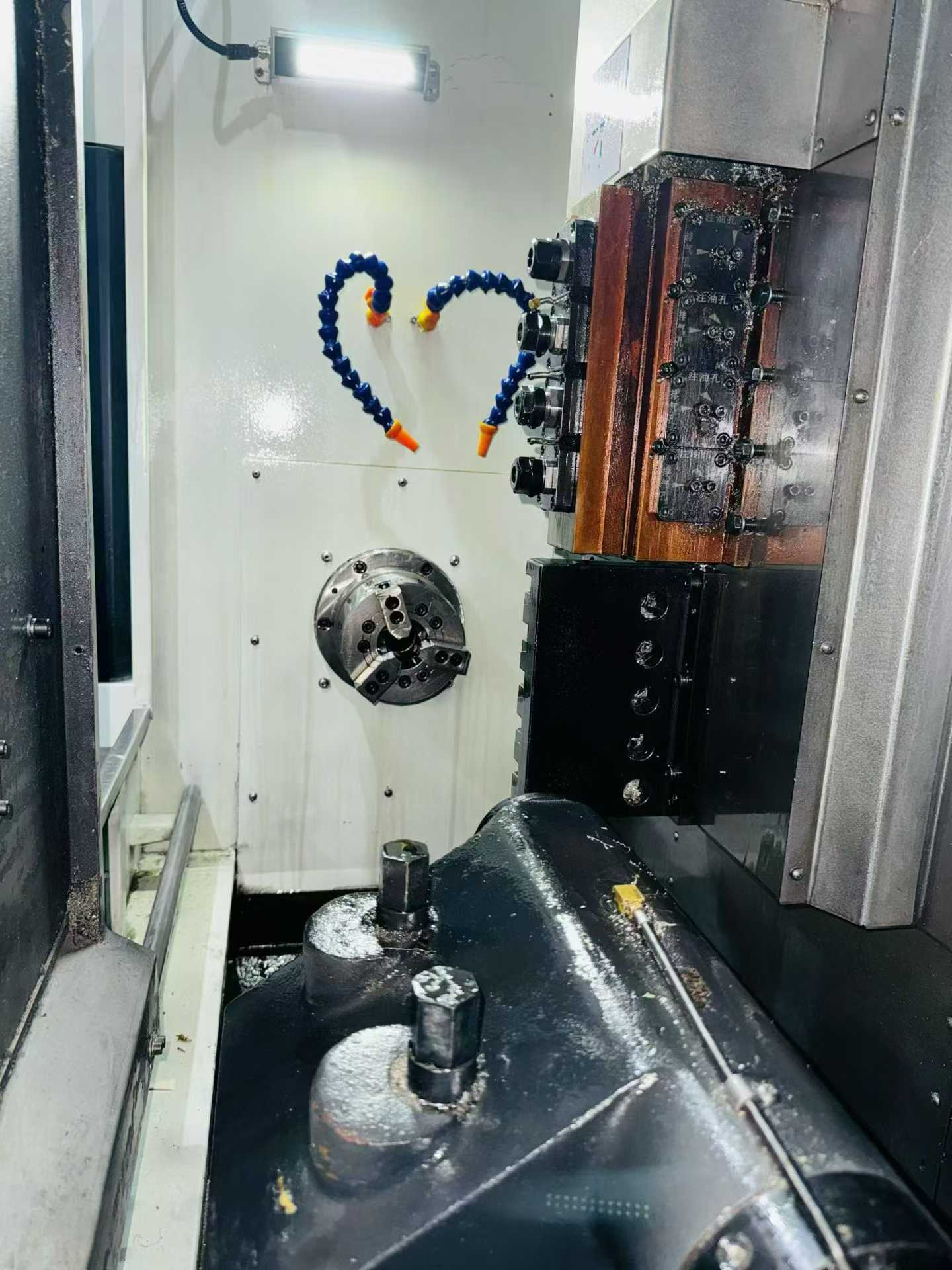

This used Baoji CKV 45 turn-mill CNC lathe is in 9/10 condition. It features X/Y/Z travels of 500/500/320 mm, an A 2-5 spindle nose with a 6-inch hollow hydraulic chuck, 4+4 ER 20 live tool holders, and a 10-station gang tool post. The machine is equipped with a GSK 988 bus absolute control system and a 7.5 kW servo main motor. Its vertical-rail design ensures a compact footprint and efficient chip removal, making it suitable for batch production of small precision parts. The current price is very competitive.

Machine Code: TML260810
Year: On request
Location: China
Usage Hours: On request

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

X/Y/Z travel	500/500/320 mm
Spindle nose	A 2-5
Chuck	6-inch hollow hydraulic chuck

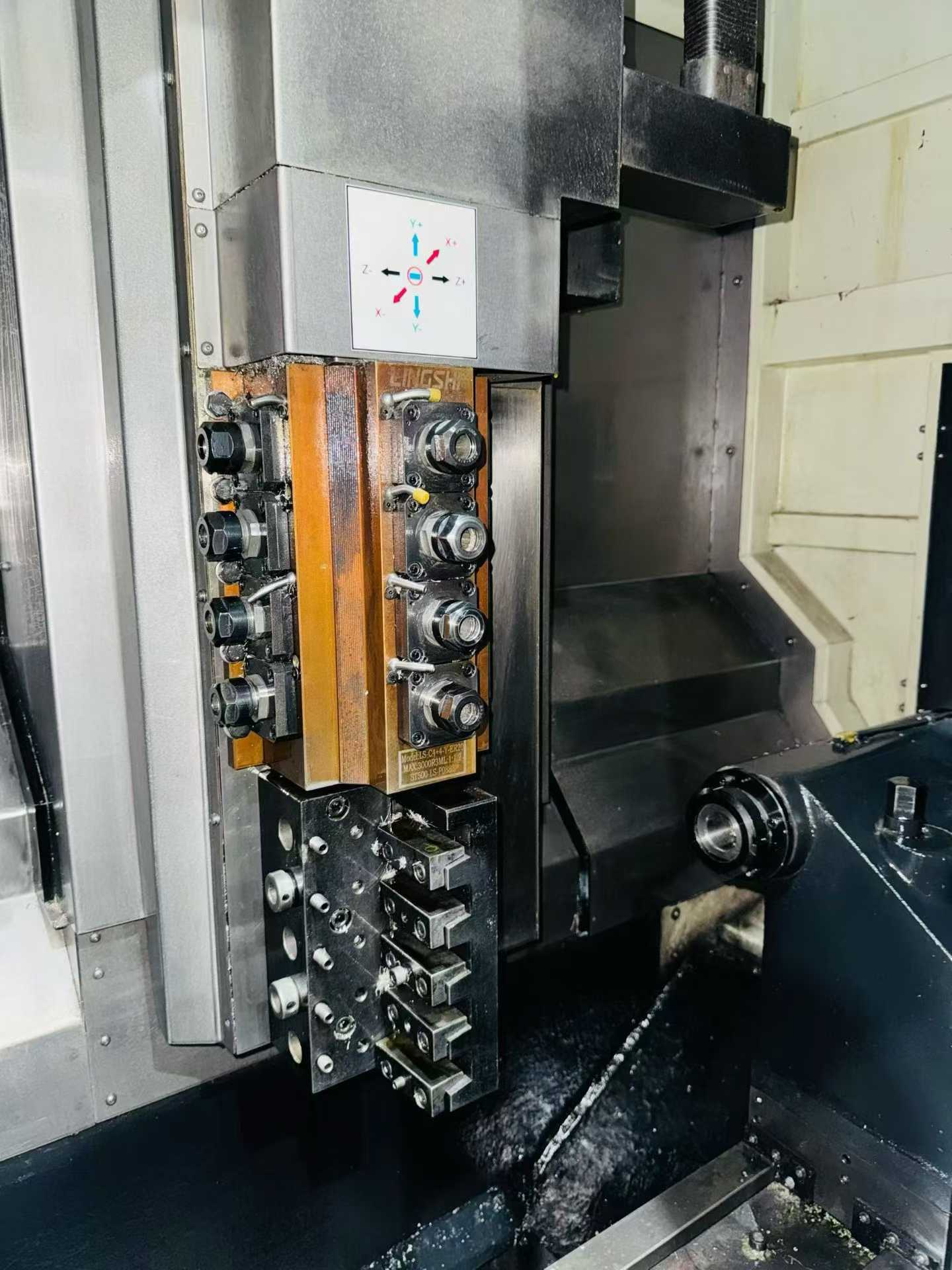

Live tooling	4+4 ER 20 live tool holders

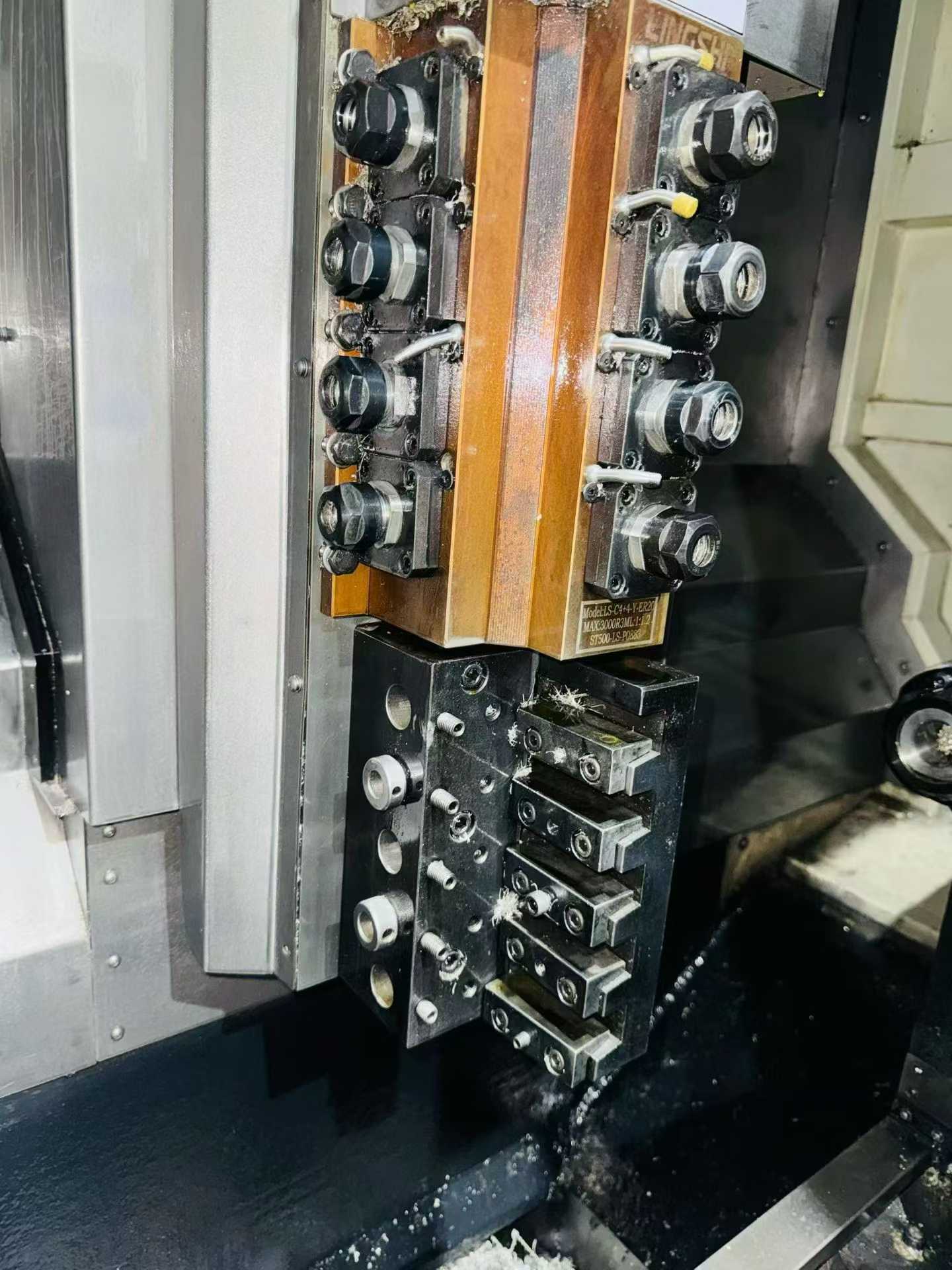

Tool station	10-station gang tooling

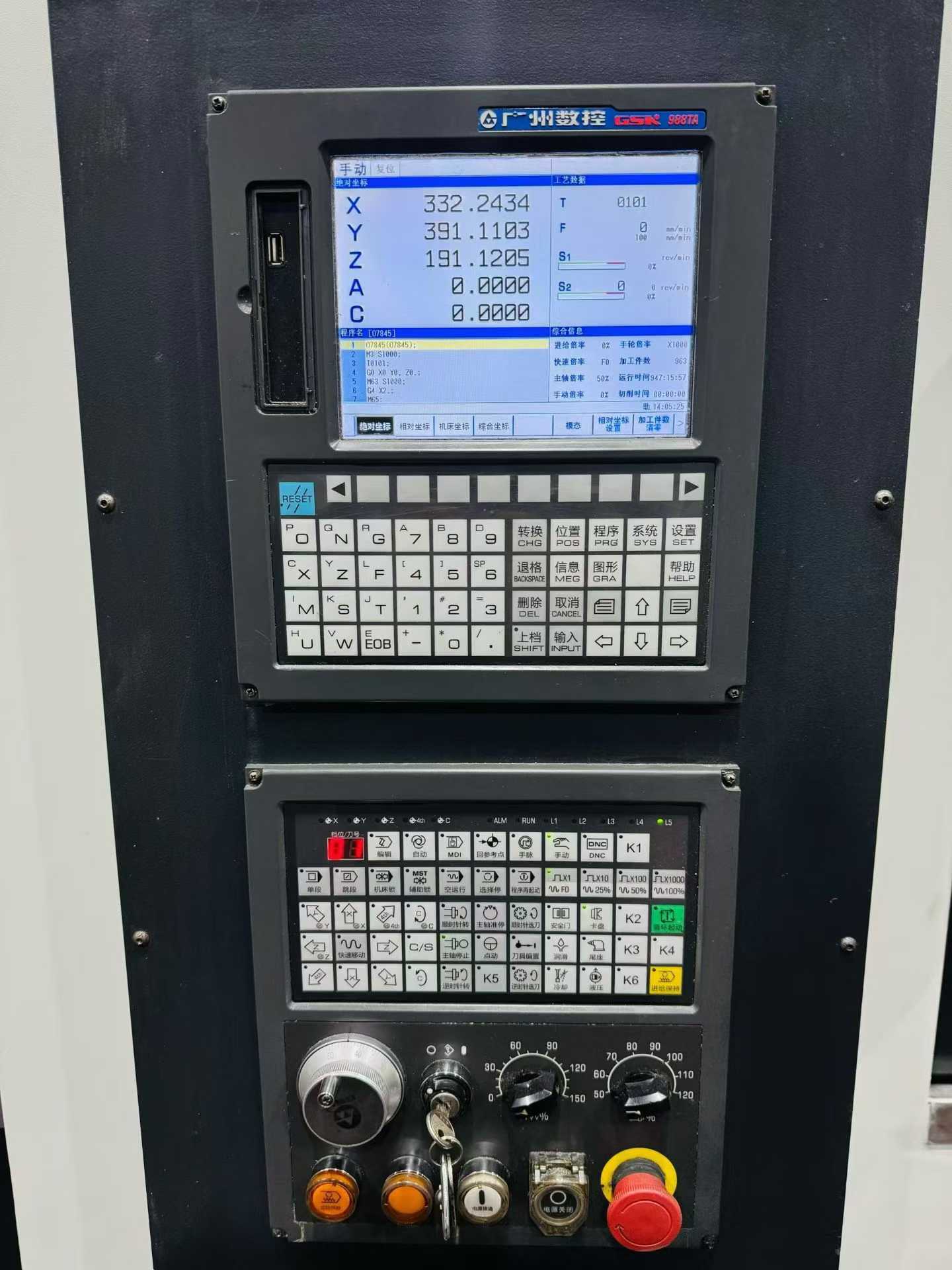

Control system	GSK 988 bus absolute value system
Main motor power	7.5 kW (servo)
Tailstock	MT 4 hydraulic tailstock
Design	Vertical rail, compact space, smooth chip evacuation
Machine Type	Turn-Mill
Brand/Model	Baoji CKV 45
Condition	90% new
Chip Evacuation	Smooth
New Machine Purchase Price	28 w RMB
