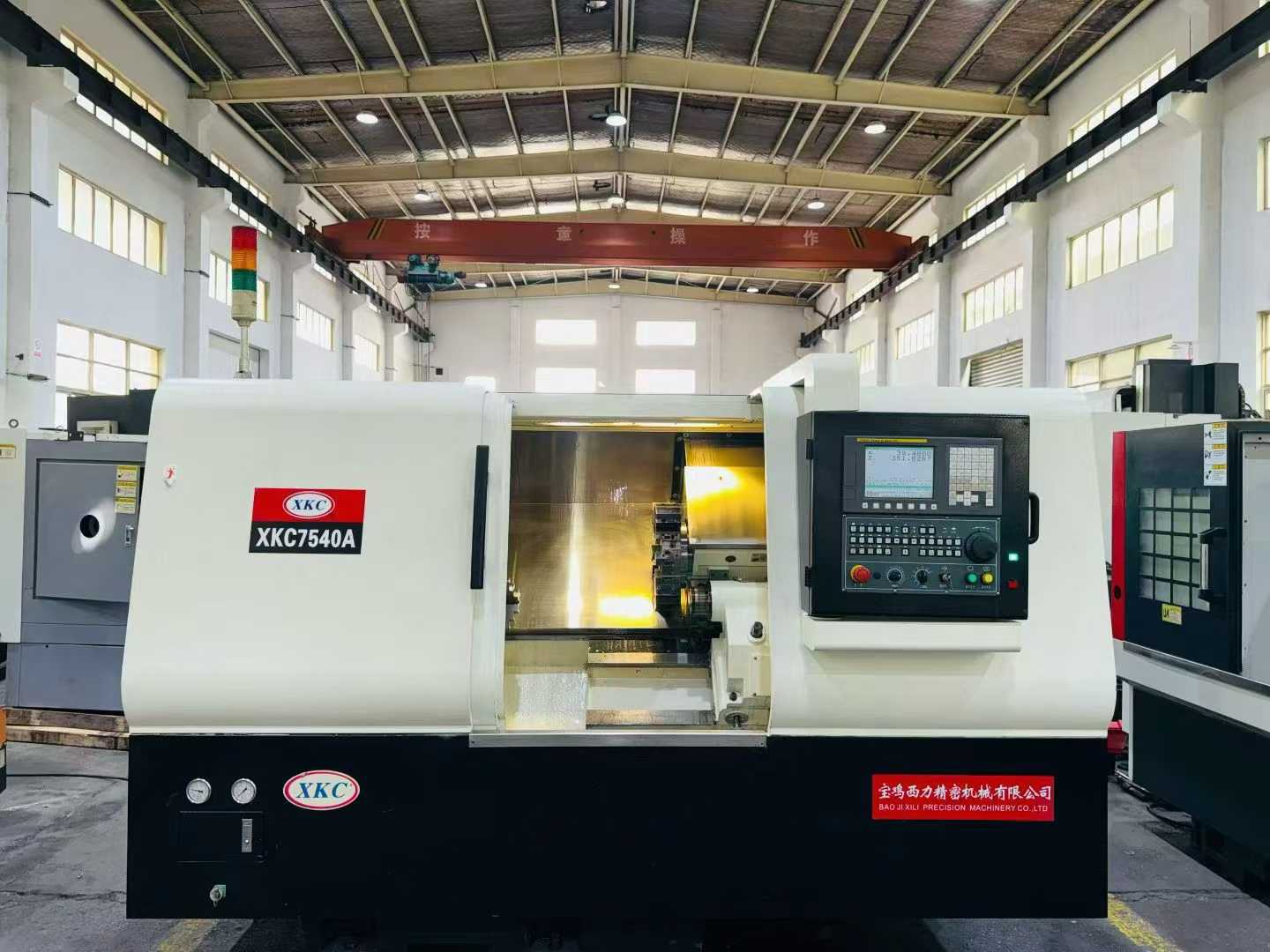

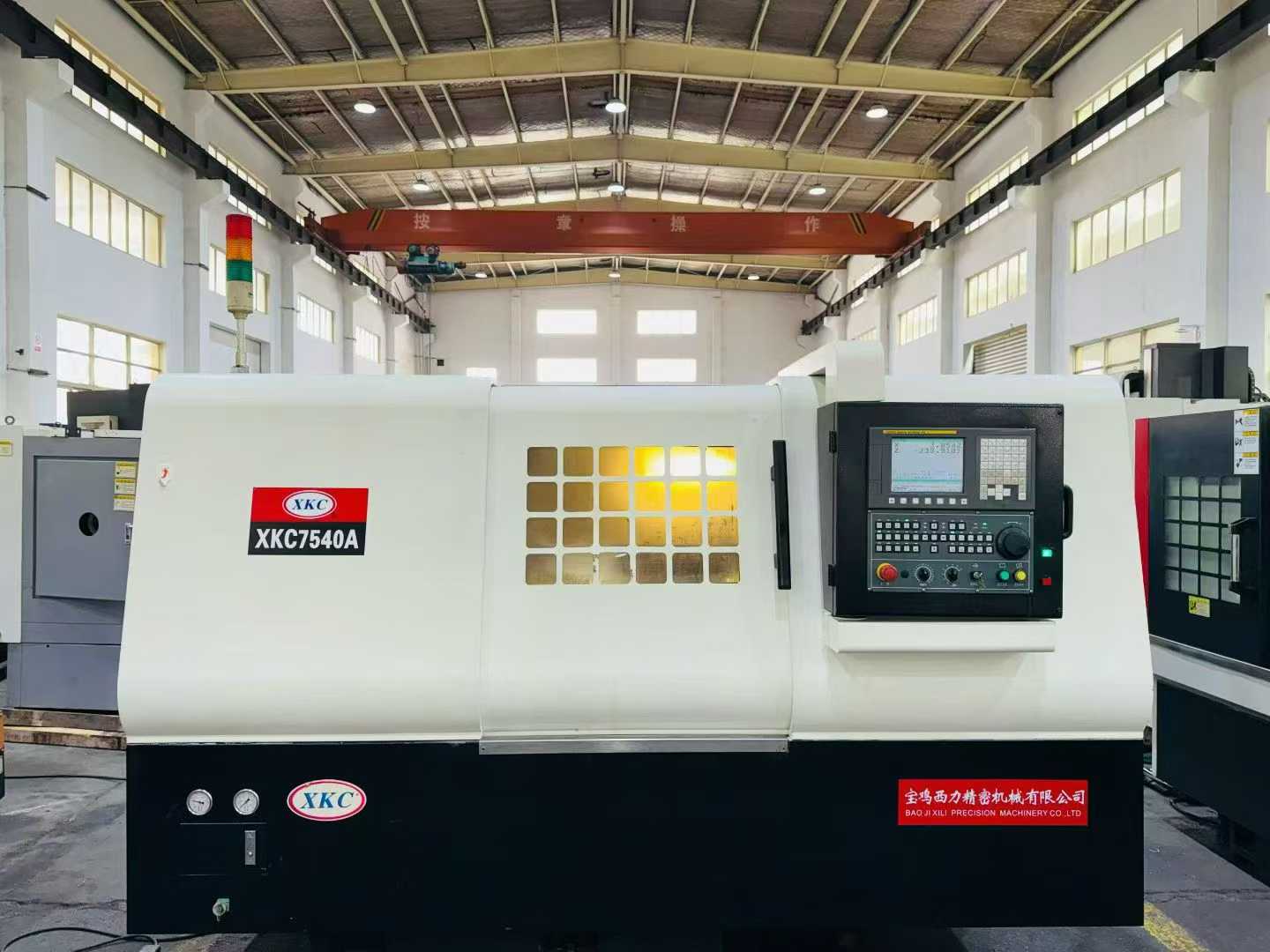

Used Baoji Xili XKC 7540 A High-Precision Slant-Bed Turret-Type CNC Lathe with FANUC TD

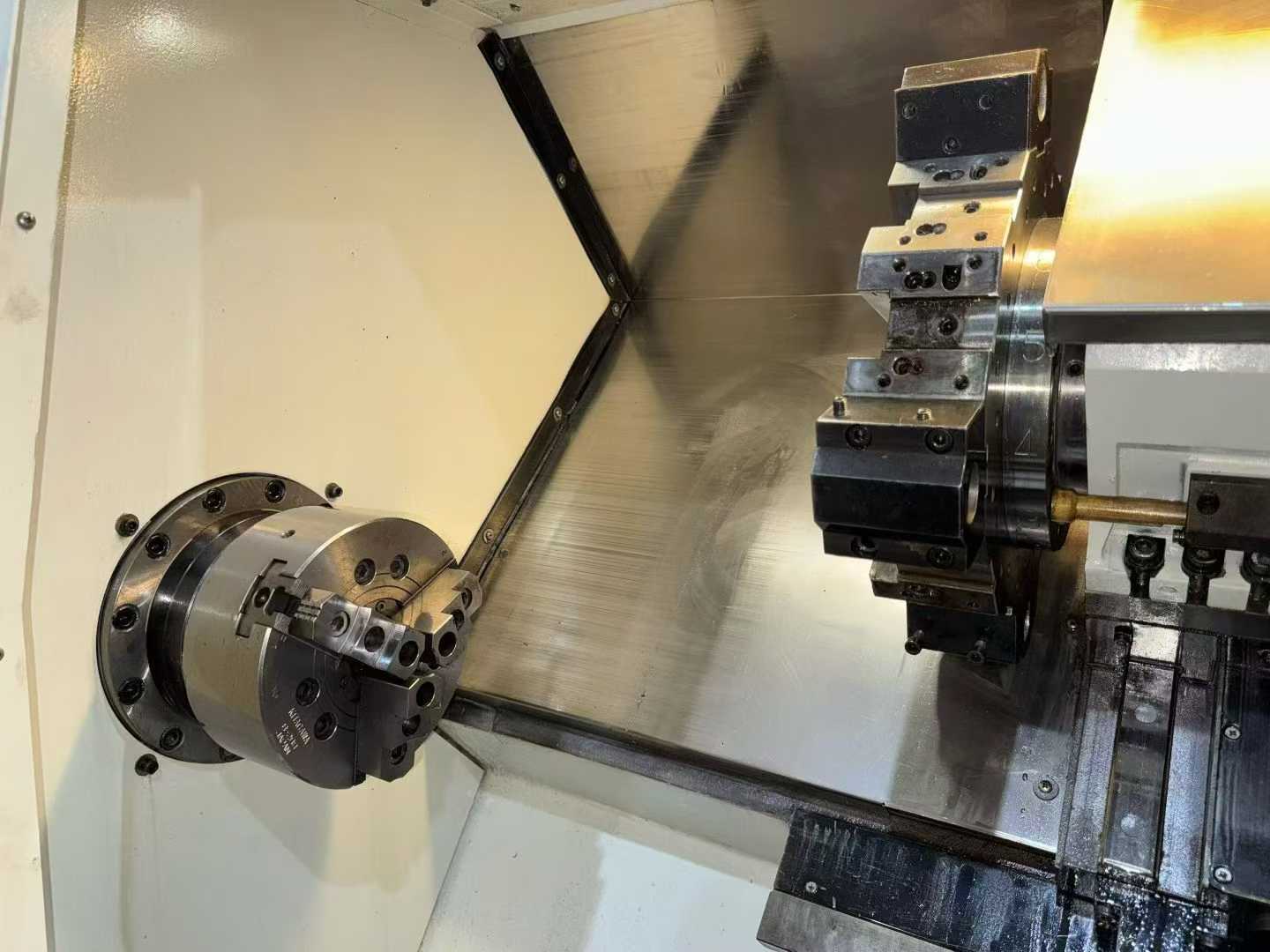

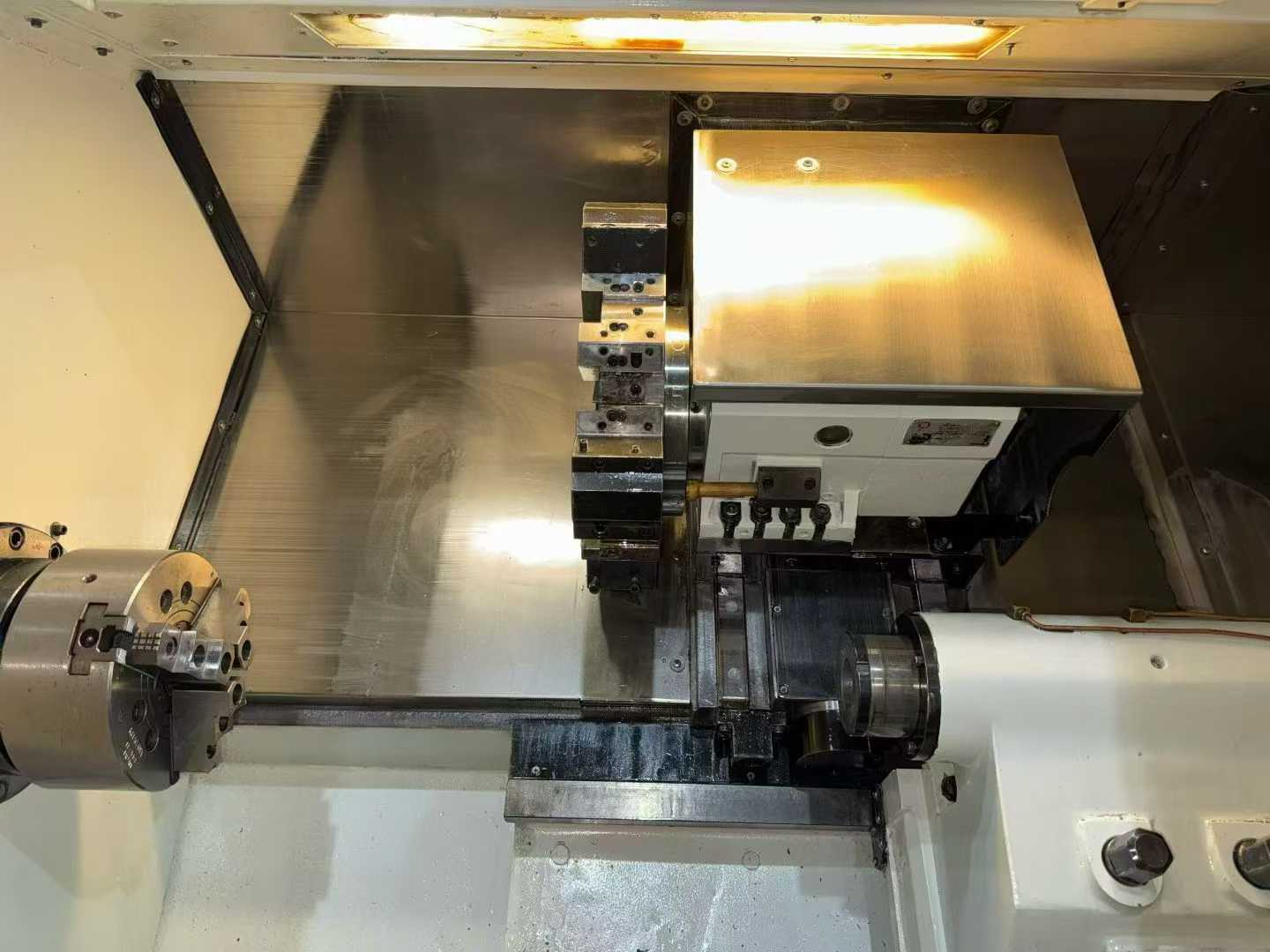

This used Baoji Xili XKC 7540 A high-precision slant-bed turret-type CNC lathe is about 90% new. It features a 45° integral high-rigidity slant bed, THK precision linear guideways, a FANUC TD control system, a Liuxin 12-station hydraulic turret, an 8-inch hollow hydraulic chuck, a Fanuc 11 kW servo spindle motor, and an MT 5 hydraulic tailstock. Machining accuracy is 0.01 mm. The original new machine price was 280,000 RMB per unit; the current price is very competitive. The machine is available for inspection in China.
- Machine Code
- CL260829
- Year
- On request
- Location
- China
- Usage Hours
- On request

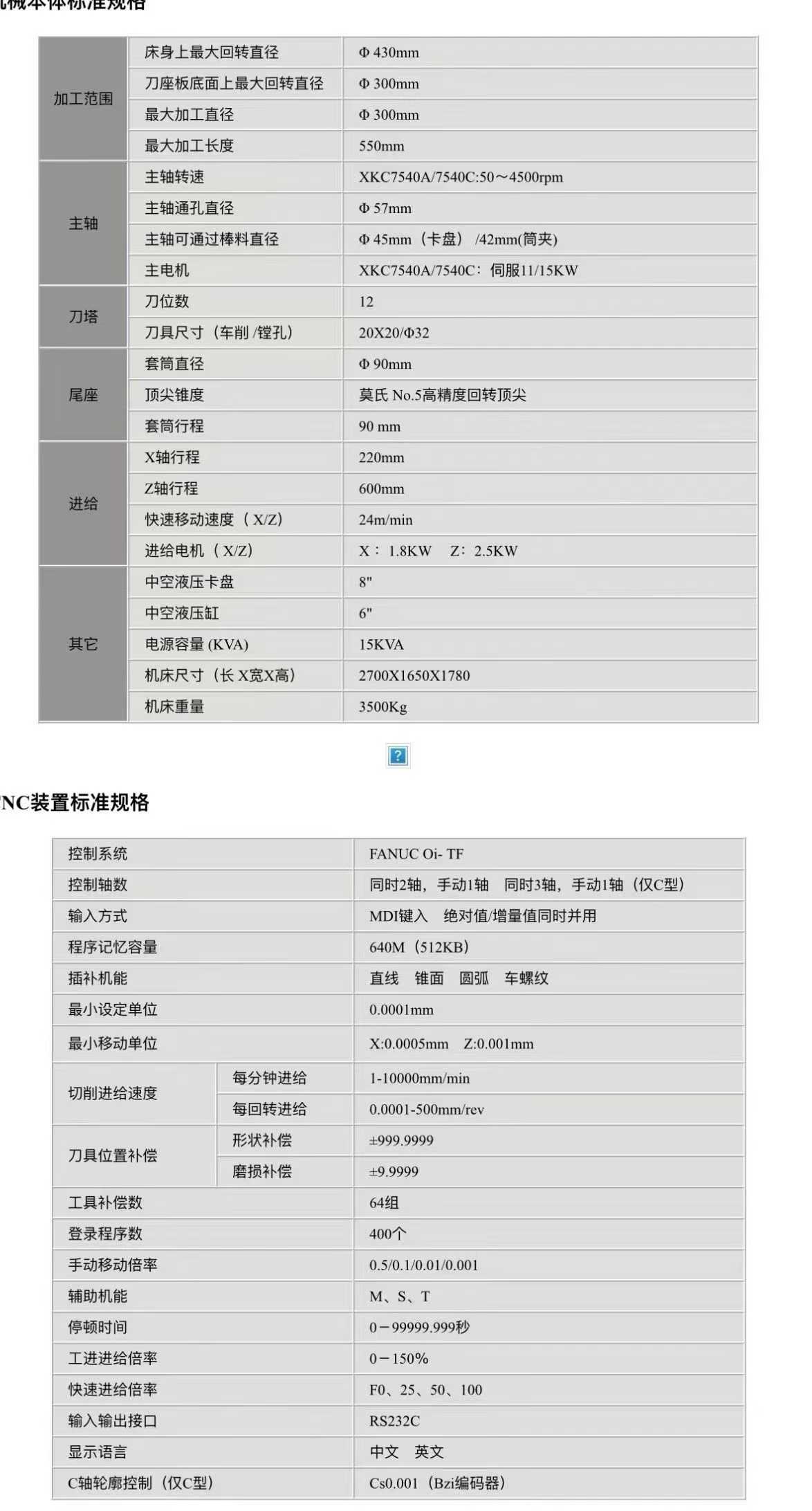

Main Specifications
| Maximum swing diameter | 430 mm |
|---|---|
| Maximum machining length | 550 mm |
| Bed type | 45° integral slant bed |
| Guideways | THK precision linear guideways (X/Z axes) |

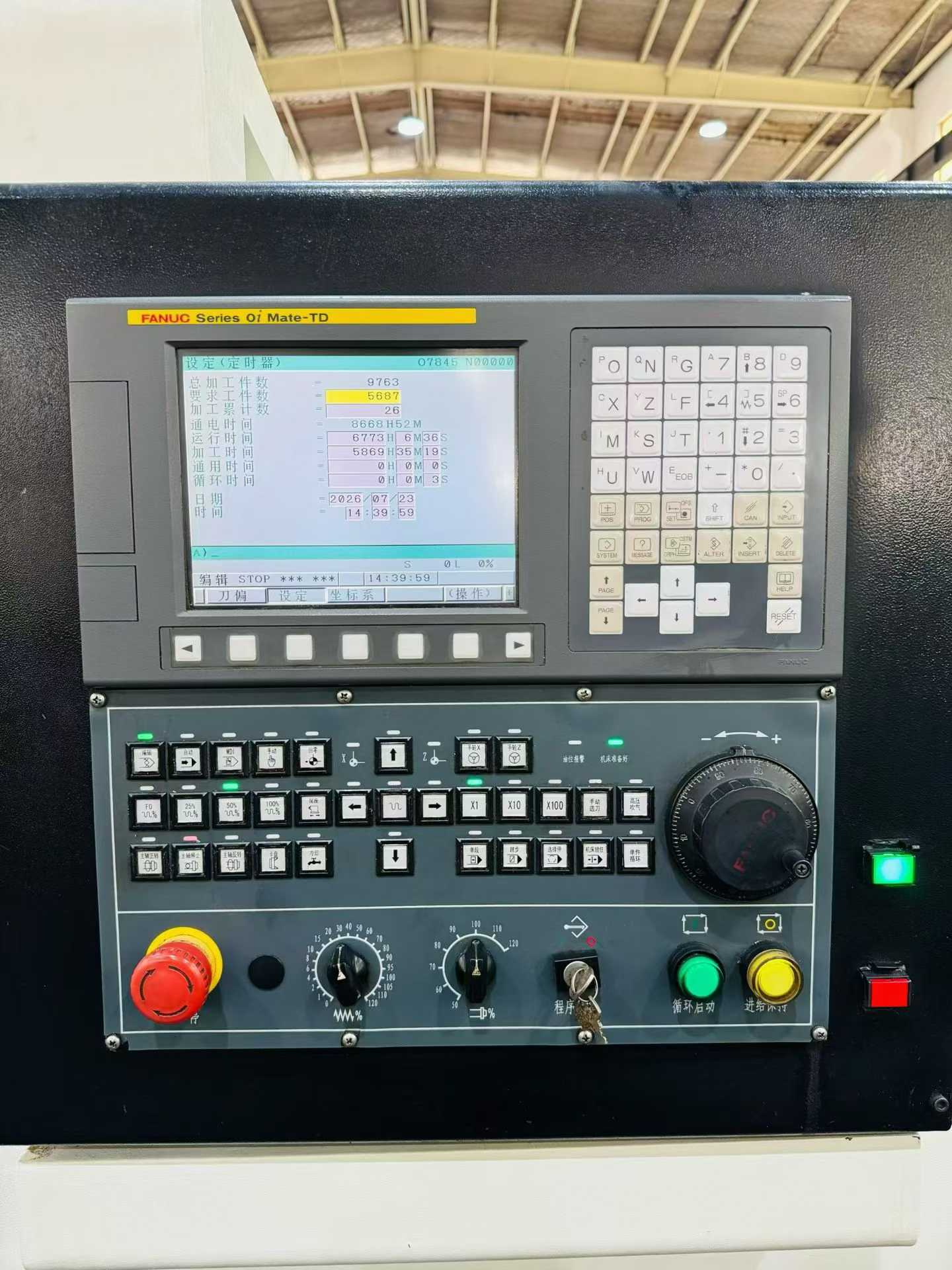

| Control system | FANUC TD |

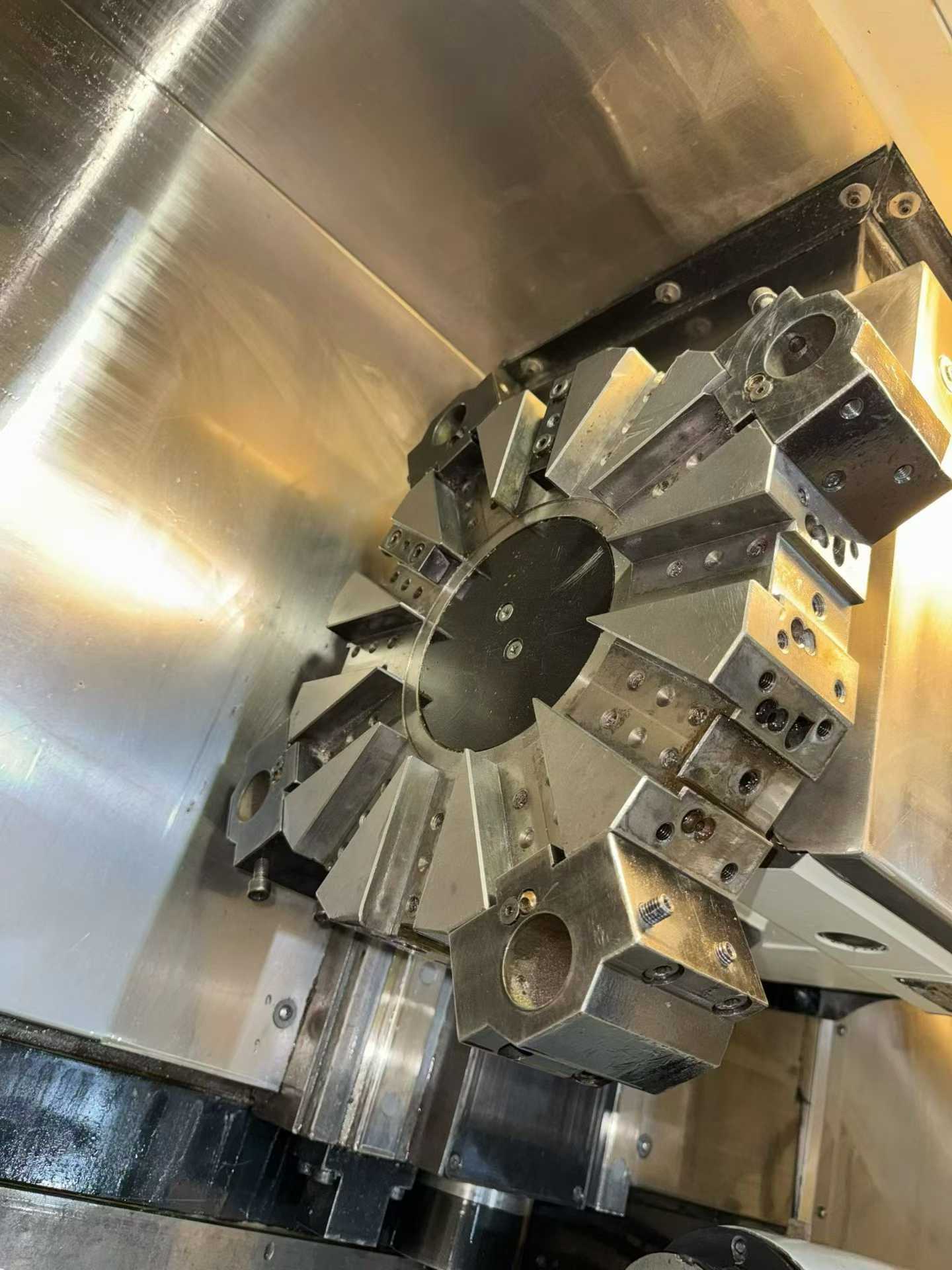

| Turret | Liuxin 12-station hydraulic turret |
| Chuck | 8-inch hollow hydraulic chuck |
| Spindle motor | Fanuc 11 kW servo motor |

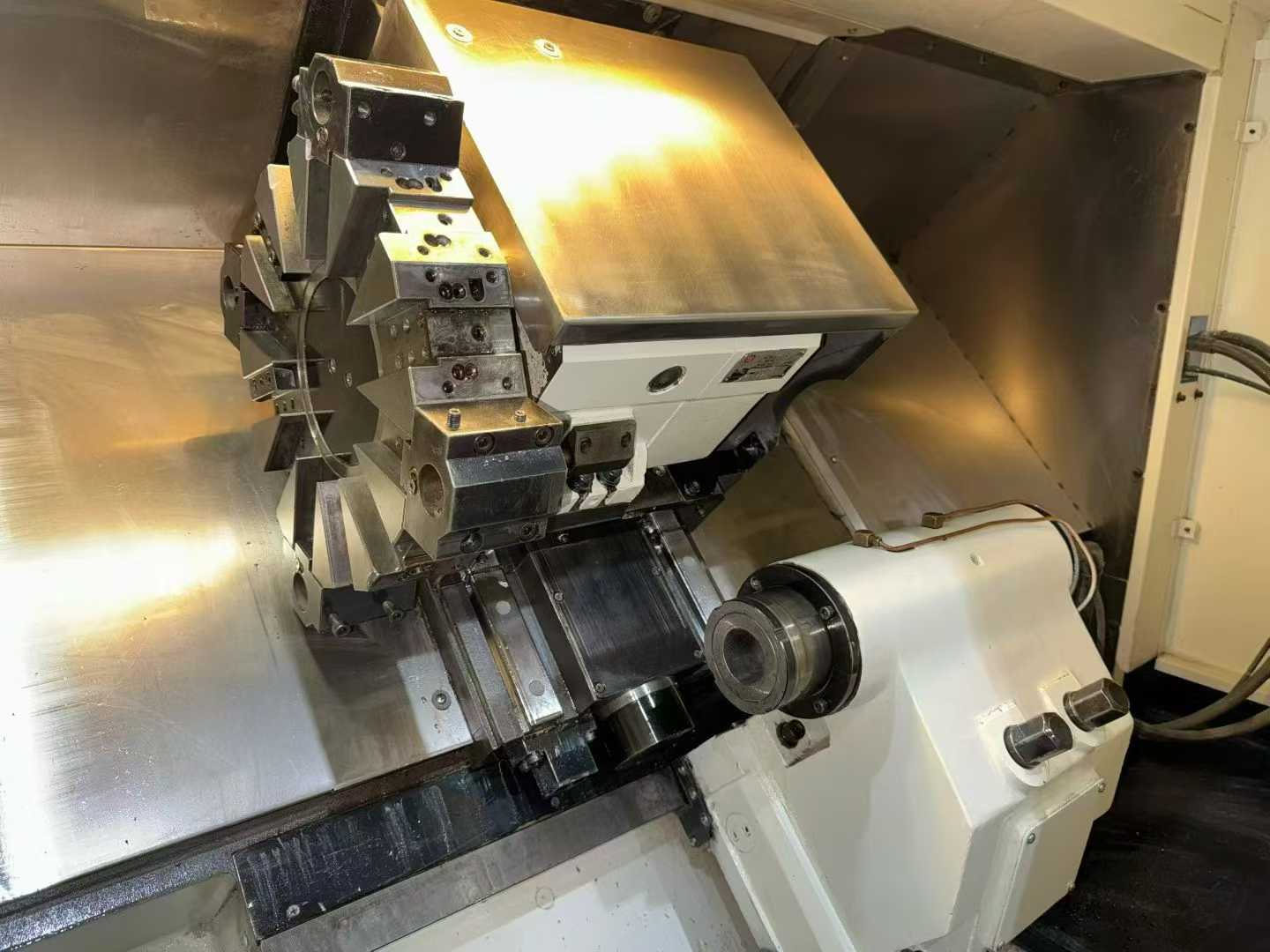

| Tailstock | MT 5 hydraulic tailstock |
| Machining accuracy | 0.01 mm |
| Machine Type | High-precision slant-bed turret-type CNC lathe |
| Chip Evacuation | Smooth chip removal |
| Guideway Configuration | THK precision linear guideways (X/Z axes) |
| New Machine Price | 28 w RMB/unit |
| Controller | FANUC TD |
