Used Yalishi TV 600 Drilling and Tapping Center with Fanuc MF Plus
Yalishi · TV600
Used, 90% new, excellent condition.
Drilling MachineDR2608092000Fanuc MF PlusChina
AvailableDrilling Machine

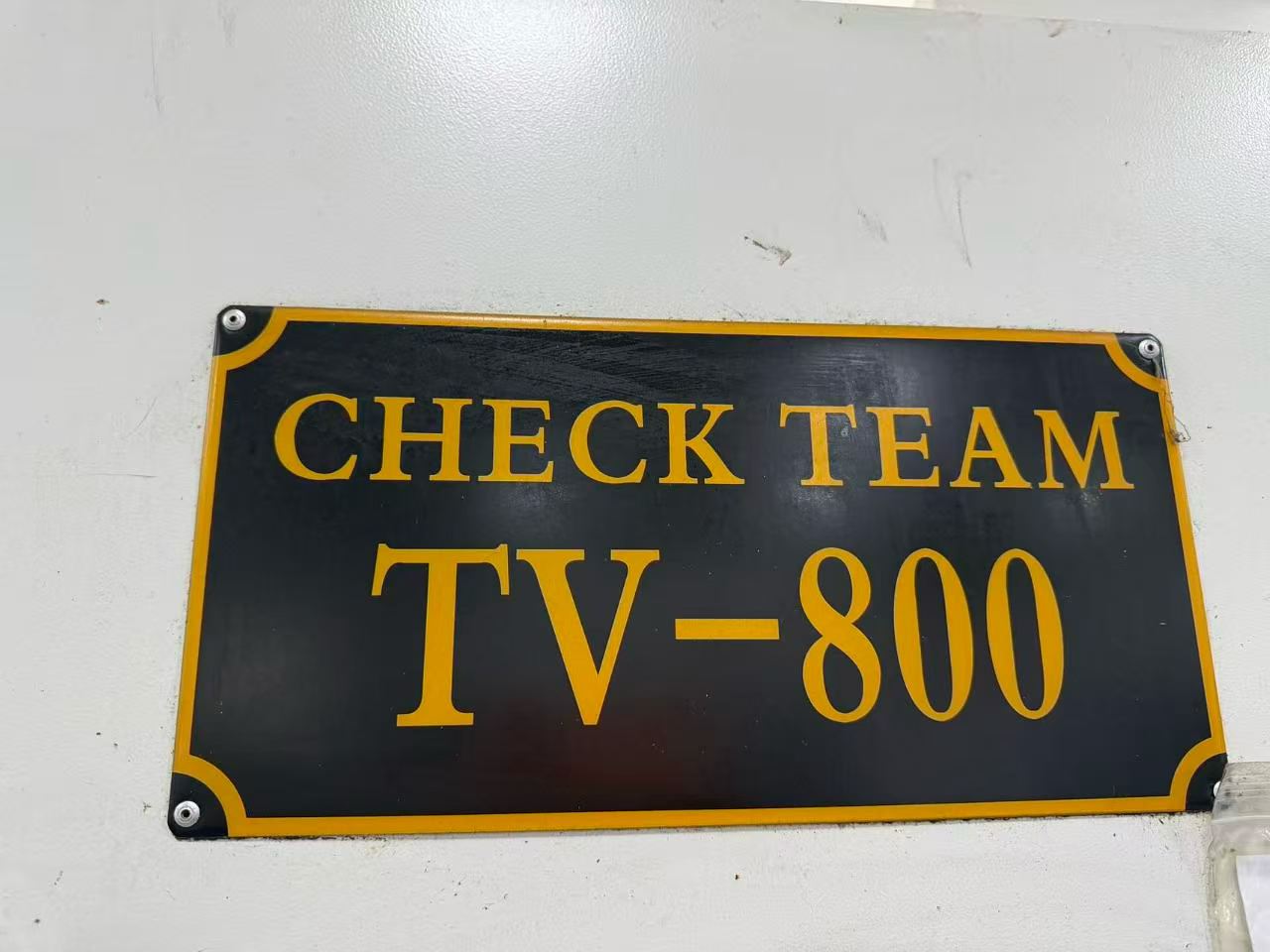

Used CHECK TEAM TV-800 Drilling and Tapping Center with Fanuc MF Plus for Sale

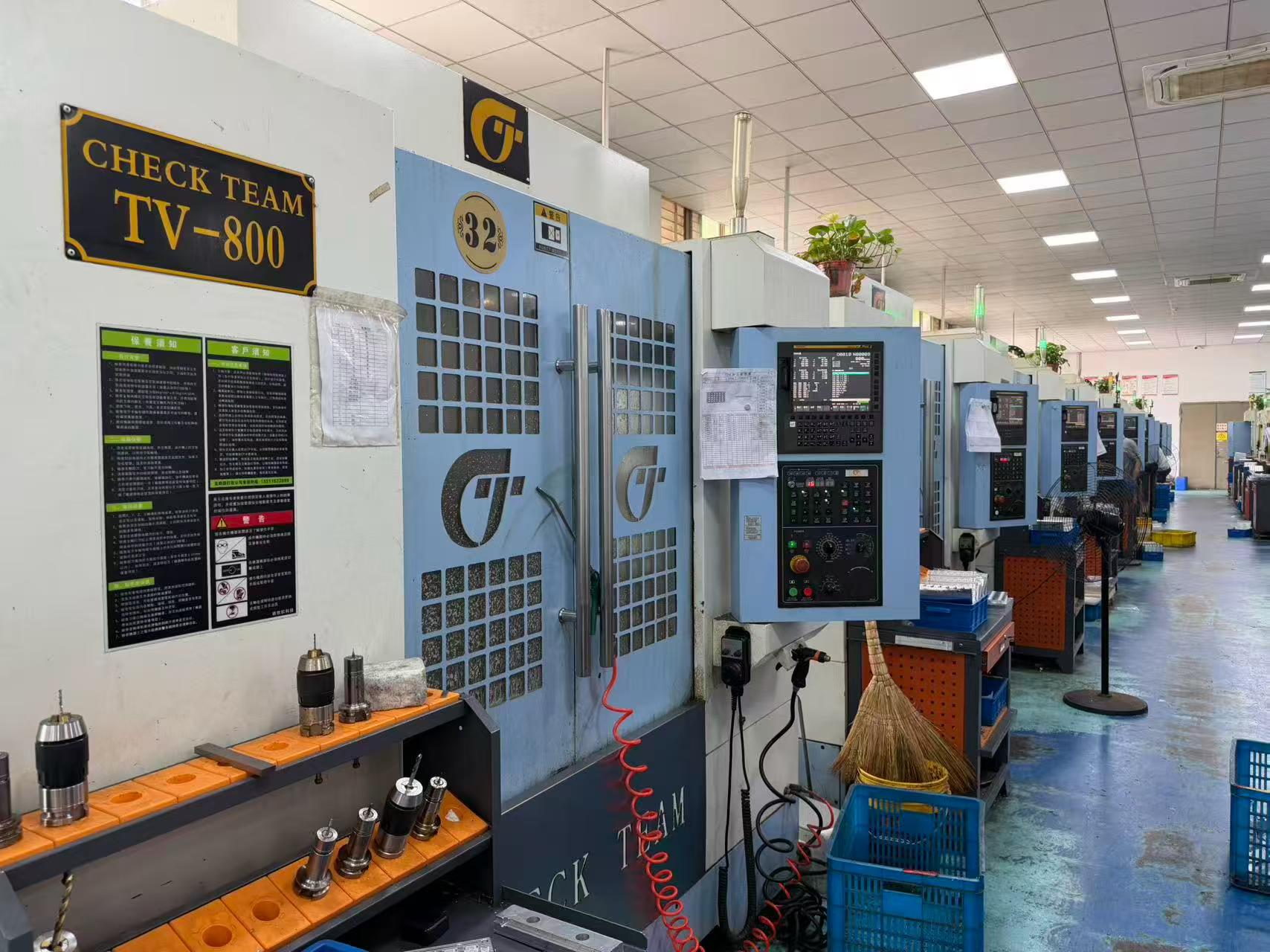

Same model 10 units available. These are Taiwan-made CHECK TEAM TV-800 high-speed drilling and tapping centers. Equipped with Fanuc MF Plus control, BT30 spindle, 21-station servo tool magazine, 20000 rpm spindle speed, X/Y/Z travel 800 x 500 x 300 mm, worktable size 1000 x 500 mm, spindle power 7.5/11 kW, and oil cooler. Accuracy is within 0.01 mm. The machines are installed and have seen minimal use.
- Machine Code
- DR260801
- Year
- 2000
- Location
- China
- Usage Hours
- On request
Accessories
Oil cooler
Main Specifications
| Spindle speed | 20000 rpm |
|---|---|
| Spindle taper | BT30 |

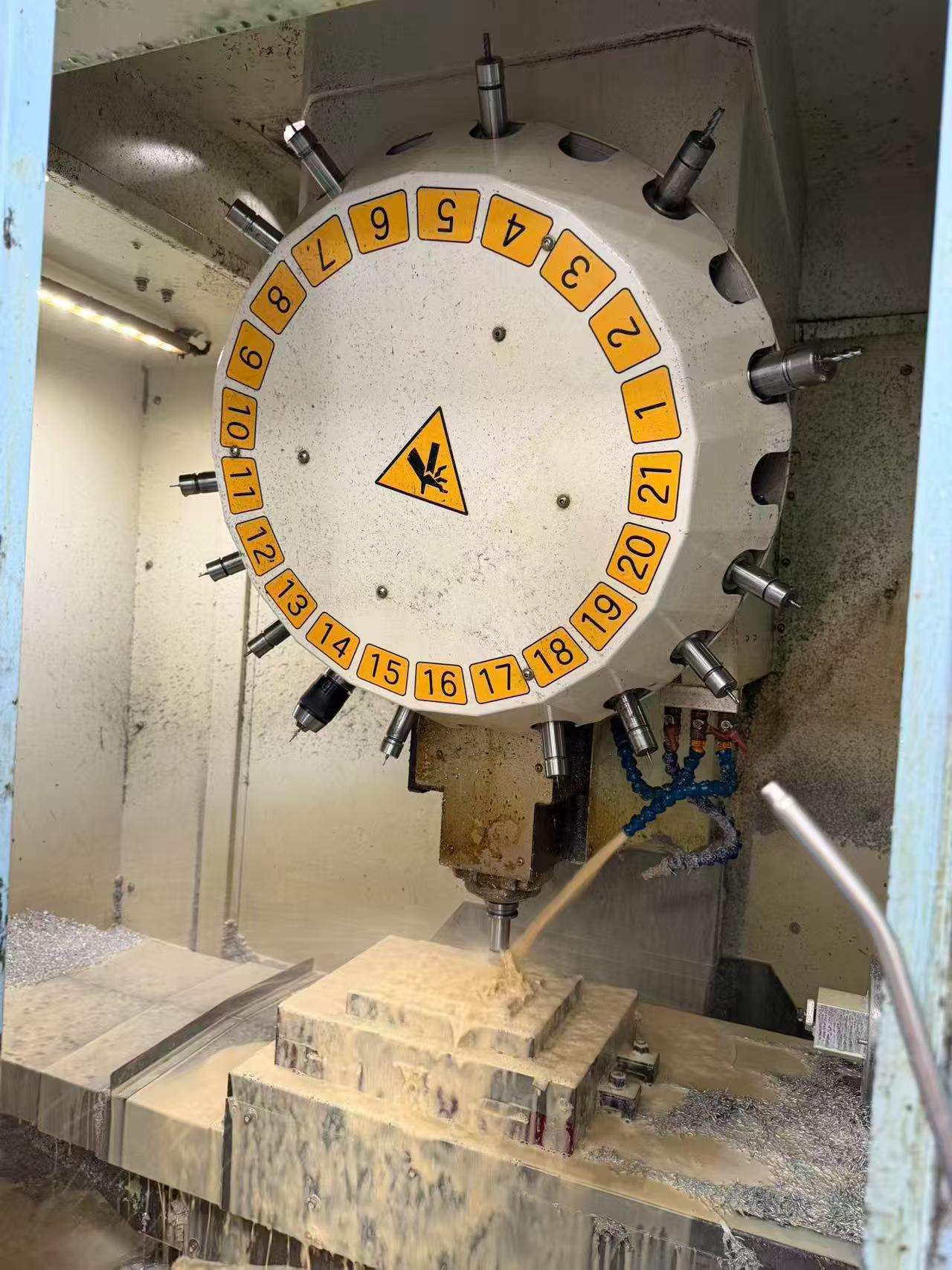

| Tool magazine capacity | 21 |
| X/Y/Z travel | 800 x 500 x 300 mm |
| Worktable size | 1000 x 500 mm |
| Spindle power | 7.5/11 kW |
| Accuracy | 0.01 mm |
| Quantity | 10 |
| Machine Type | Drilling and Tapping Center |
| Brand | CHECK TEAM |
| Model | TV-800 |

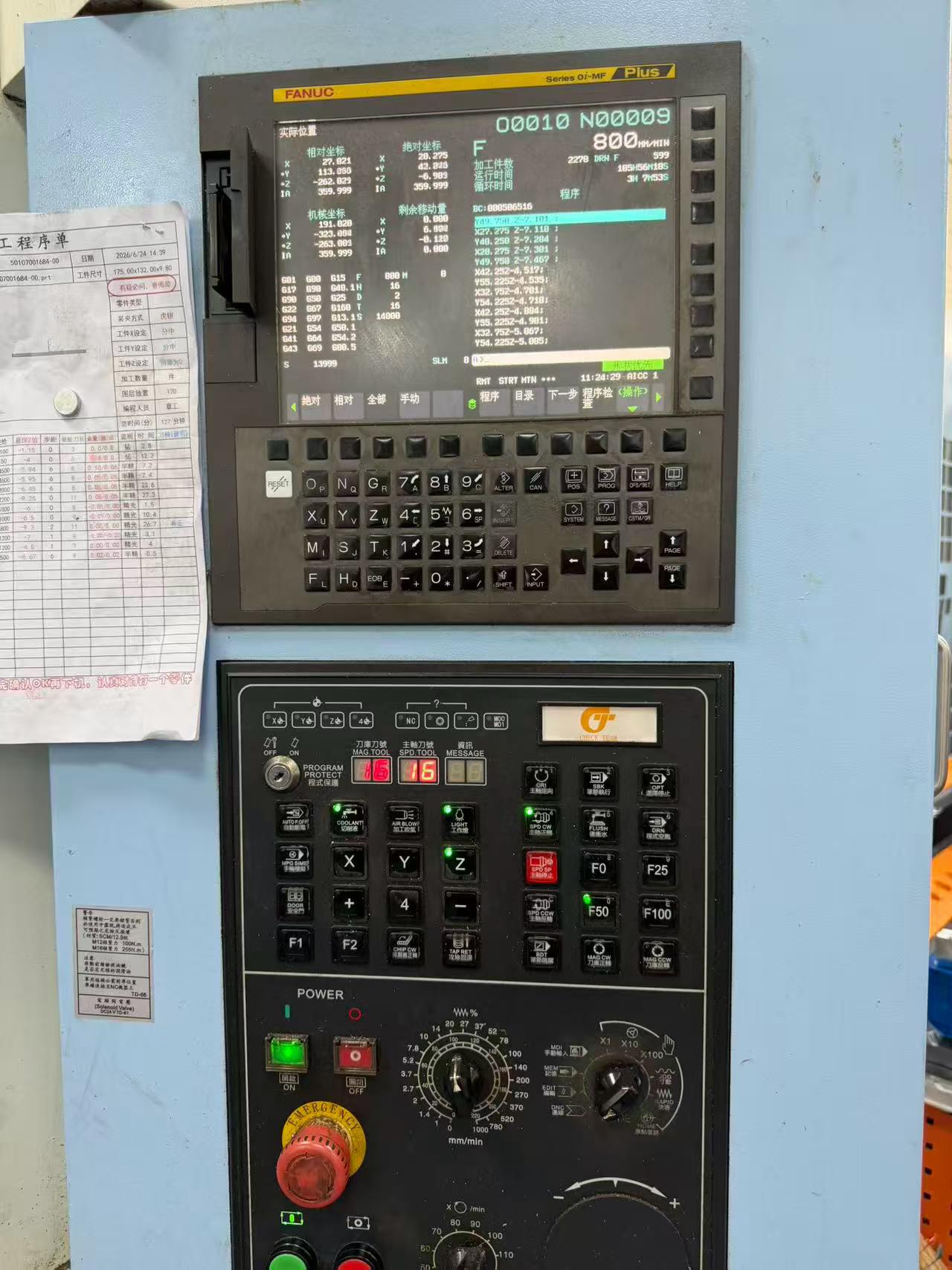

| Controller | Fanuc MF Plus system |
| Oil Cooler | Included |
