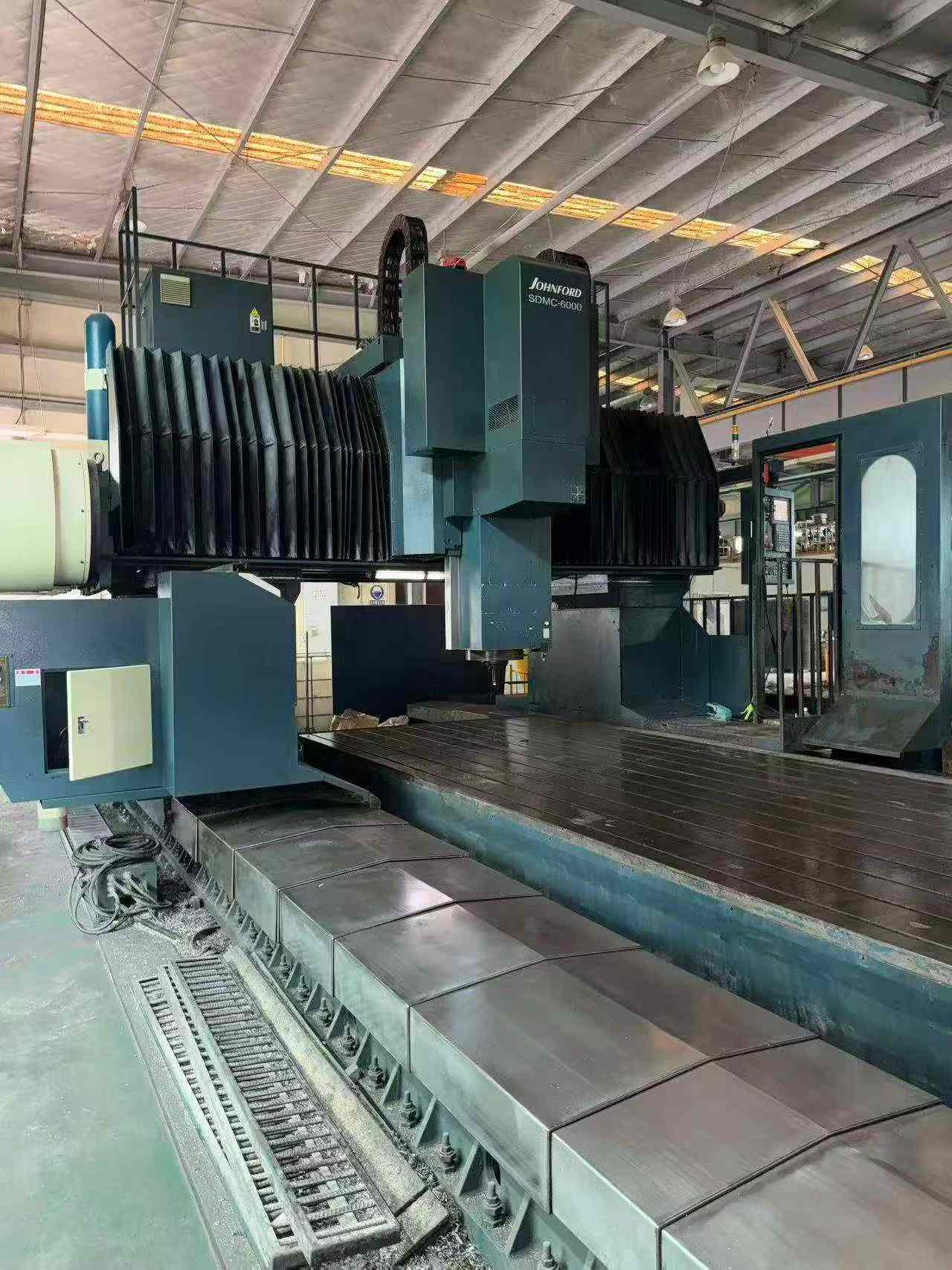

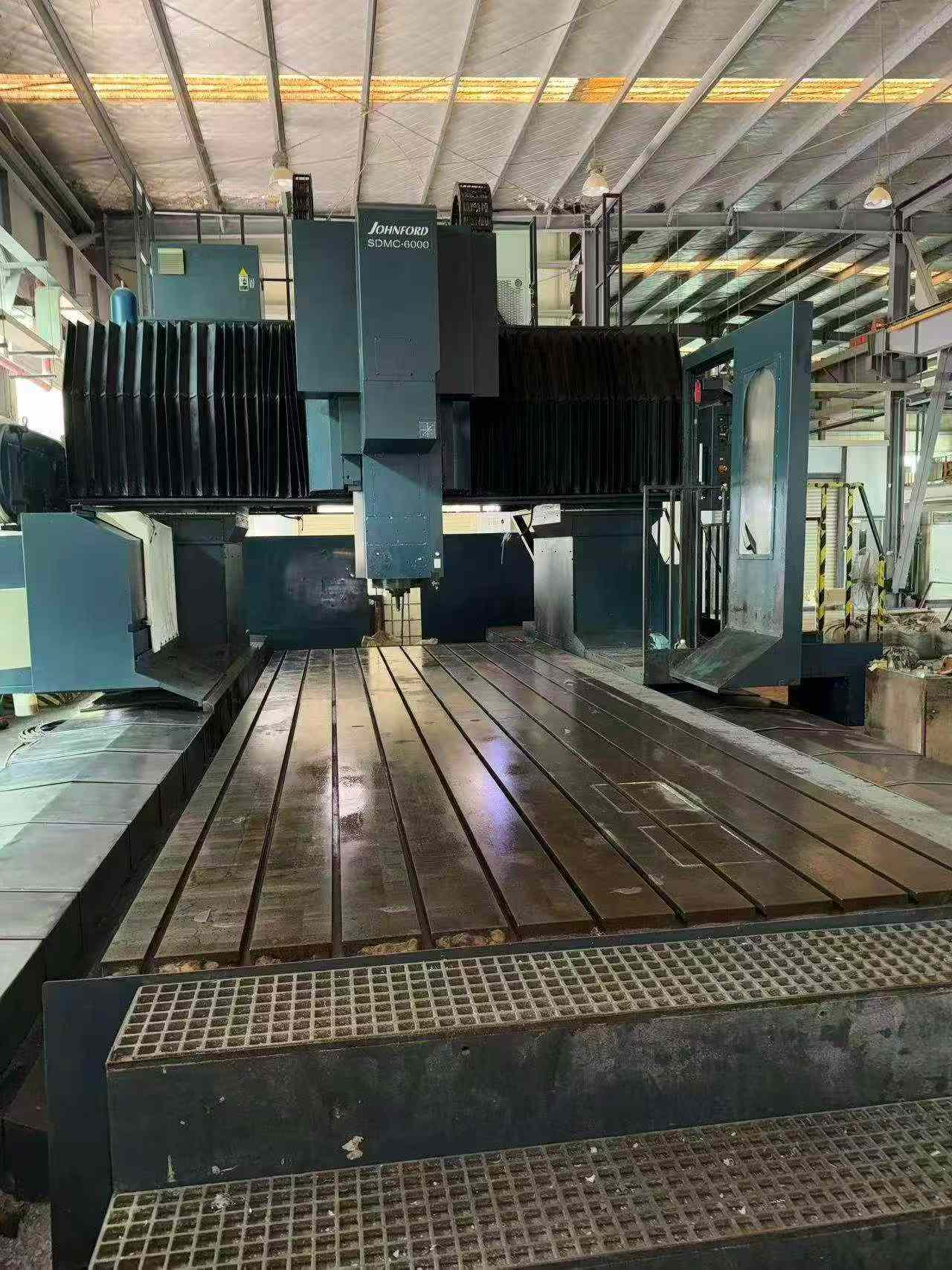

Used CHIAO FU DMC-6000 Gantry Machining Center with FANUC 31i-B

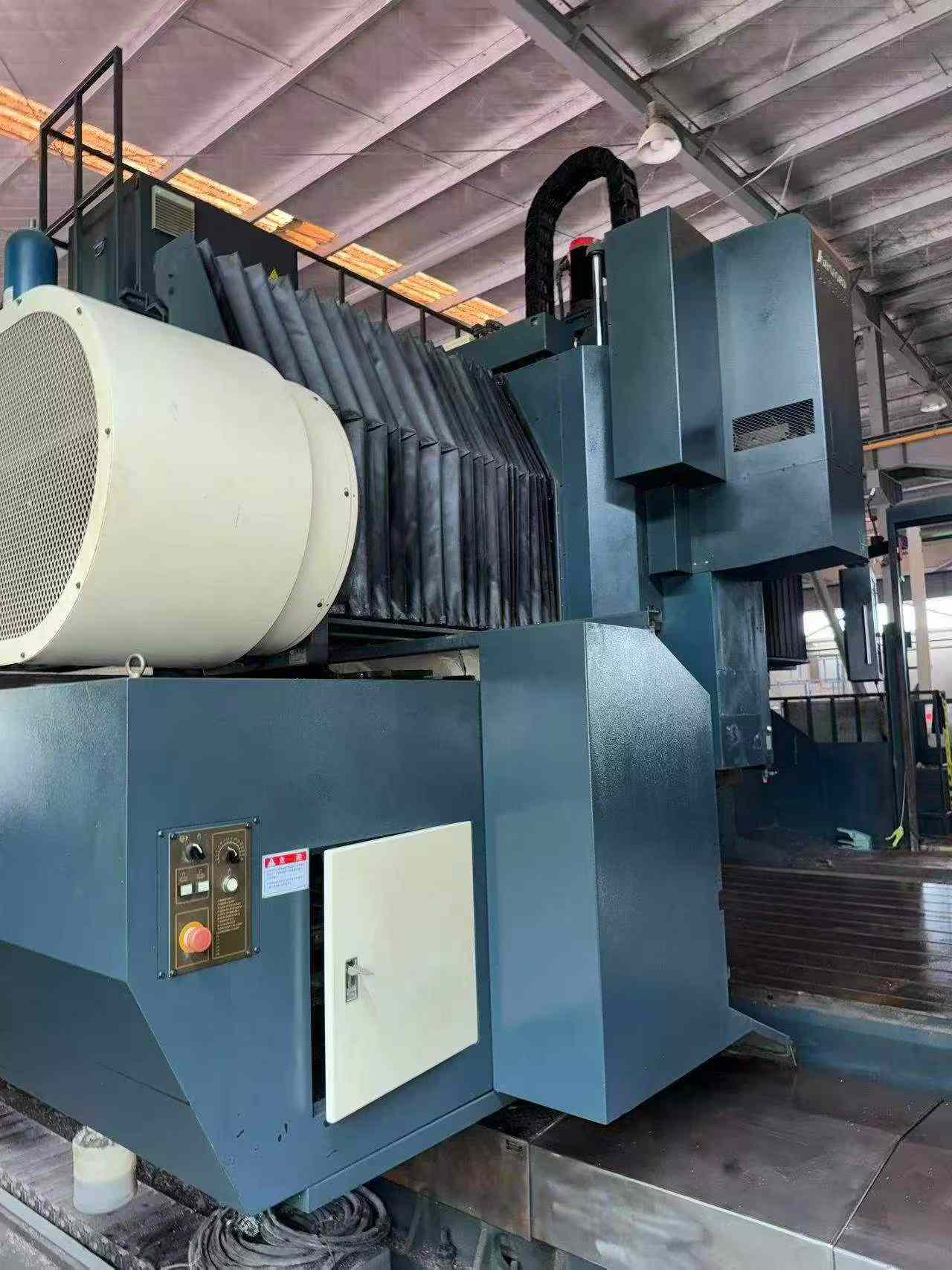

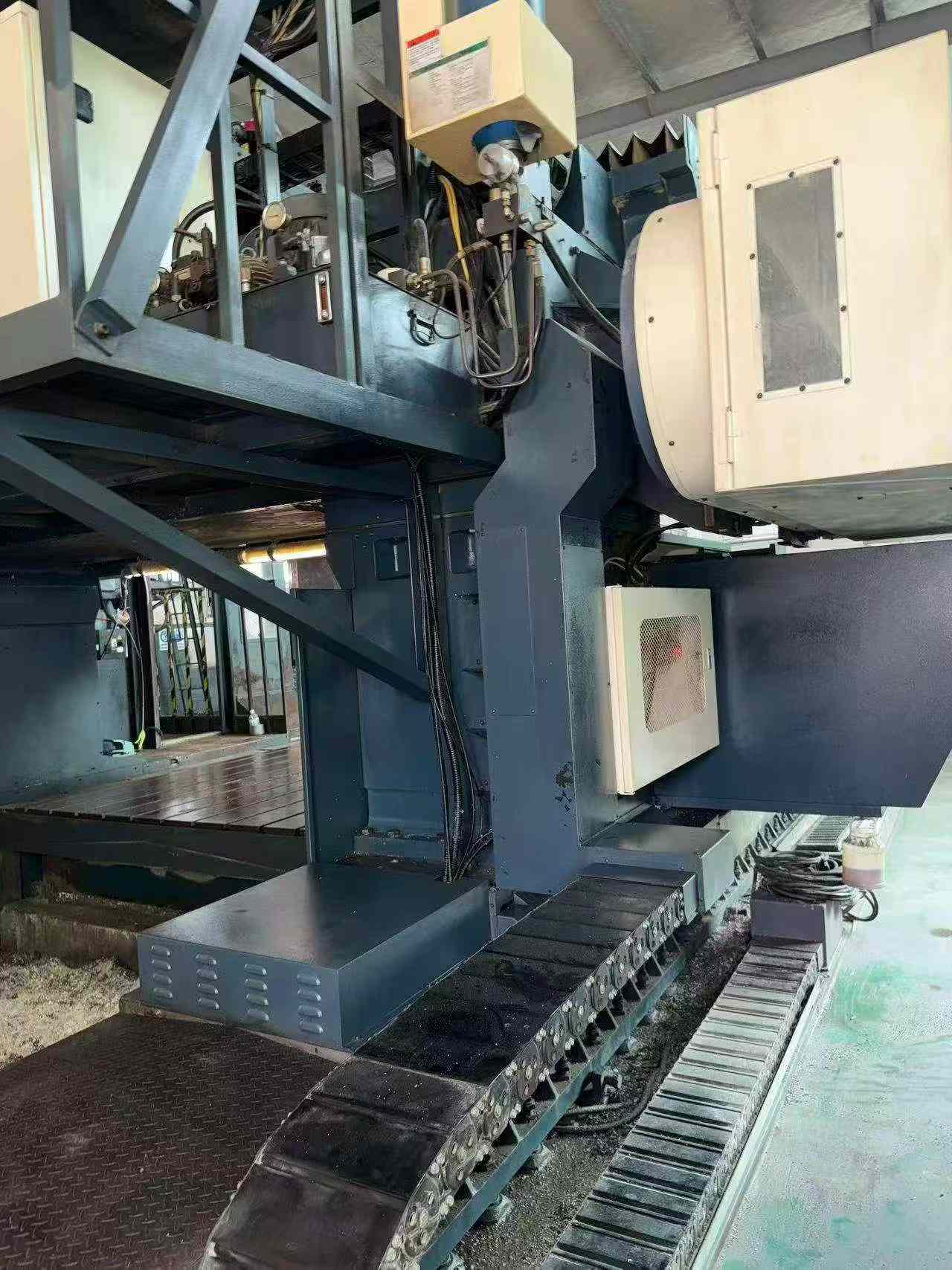

Rare Taiwanese original 6-meter CHIAO FU moving column gantry machining center, model DMC-6000. Features FANUC 31i-B control, Heidenhain linear scales, BT50 spindle with gear head at 6000 rpm, X/Y/Z travel 6000 x 2800 x 1066 mm, X axis linear guideway (55 size), Y and Z box guideways. Worktable 6000 x 2200 mm. Machine dimensions: width 6 m, length 12.3 m. Gantry width 2.8 m. Z axis height 120 cm. Comes with double screw chip conveyor and 40-tool hydraulic arm tool changer. Year 2018. Ideal for large, heavy workpieces, allowing full-length machining in one setup with good dynamic rigidity and stable heavy cutting.

Machine Code: MC260706
Year: 2018
Location: China
Usage Hours: On request

Accessories

Double screw chip conveyor, 40-tool hydraulic arm tool changer, mold package with high speed high precision, Heidenhain linear scales

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Spindle taper	BT50
Spindle speed	6000 rpm
X axis travel	6000 mm
Y axis travel	2800 mm
Z axis travel	1066 mm

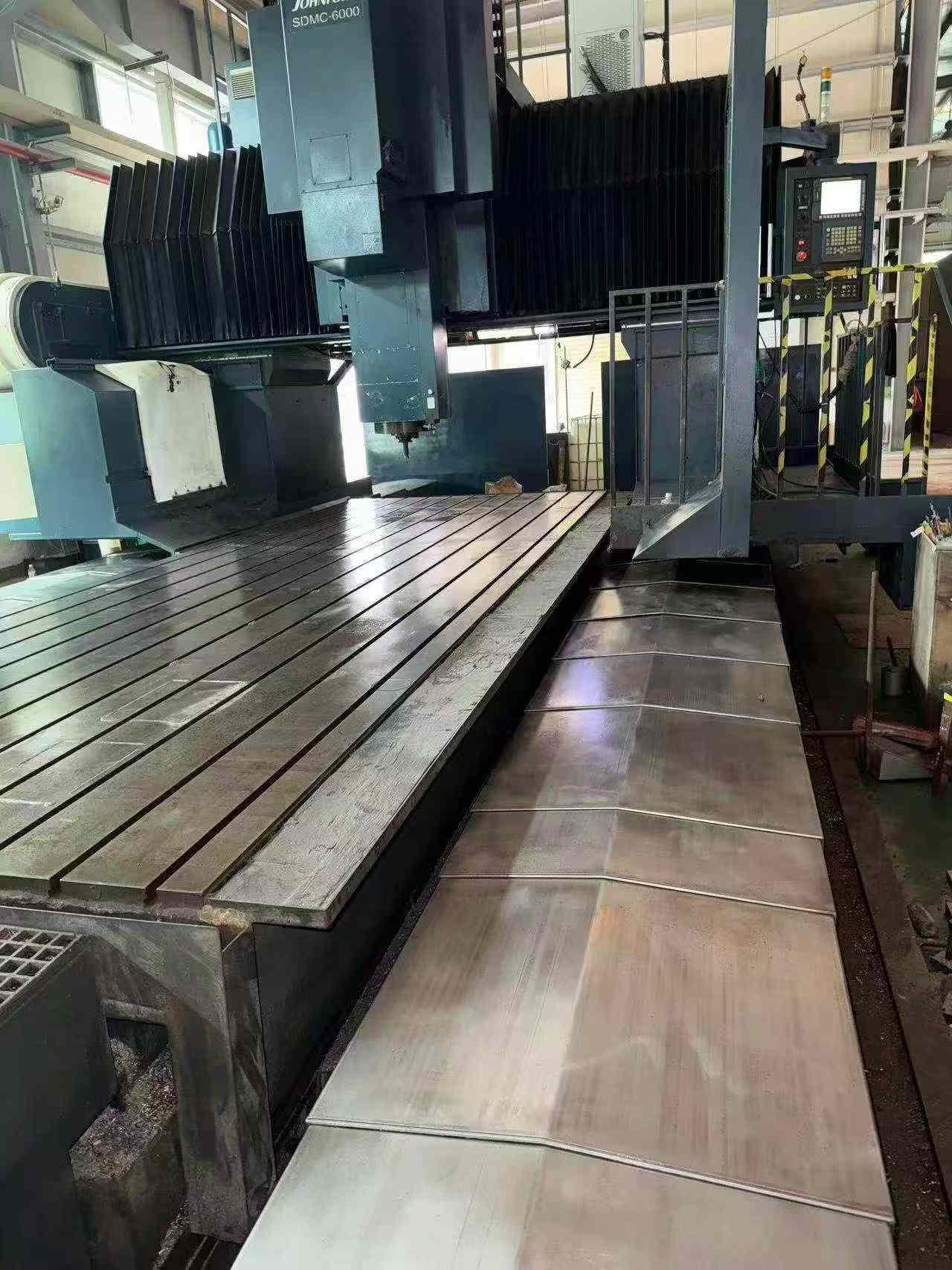

Worktable length	6000 mm
Worktable width	2200 mm
Machine width	6000 mm
Machine length	12300 mm
Gantry width	2800 mm
Tool magazine capacity	40 tools
Machine Type	Moving column gantry machining center
Brand	CHIAO FU
Model	DMC-6000

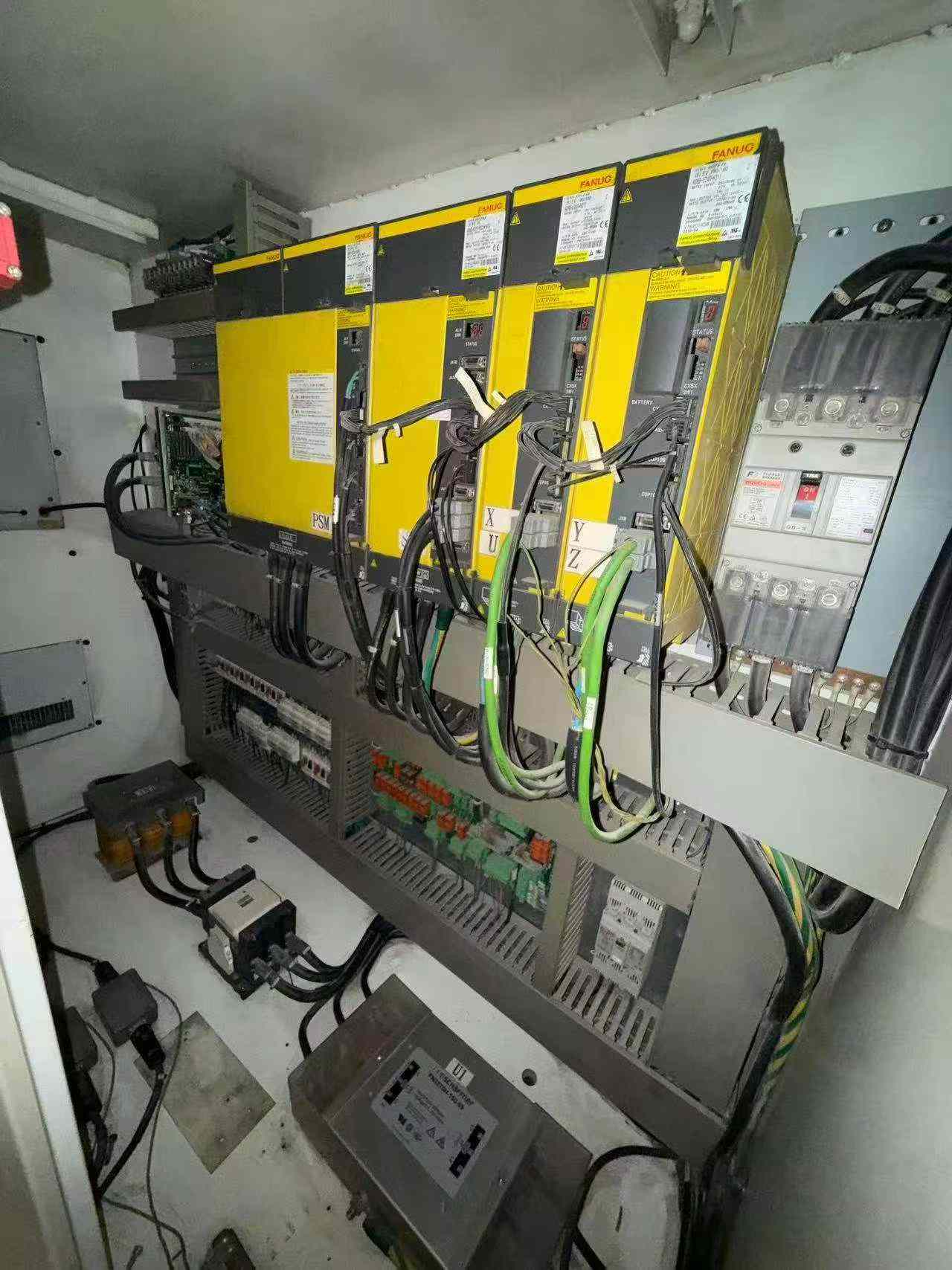

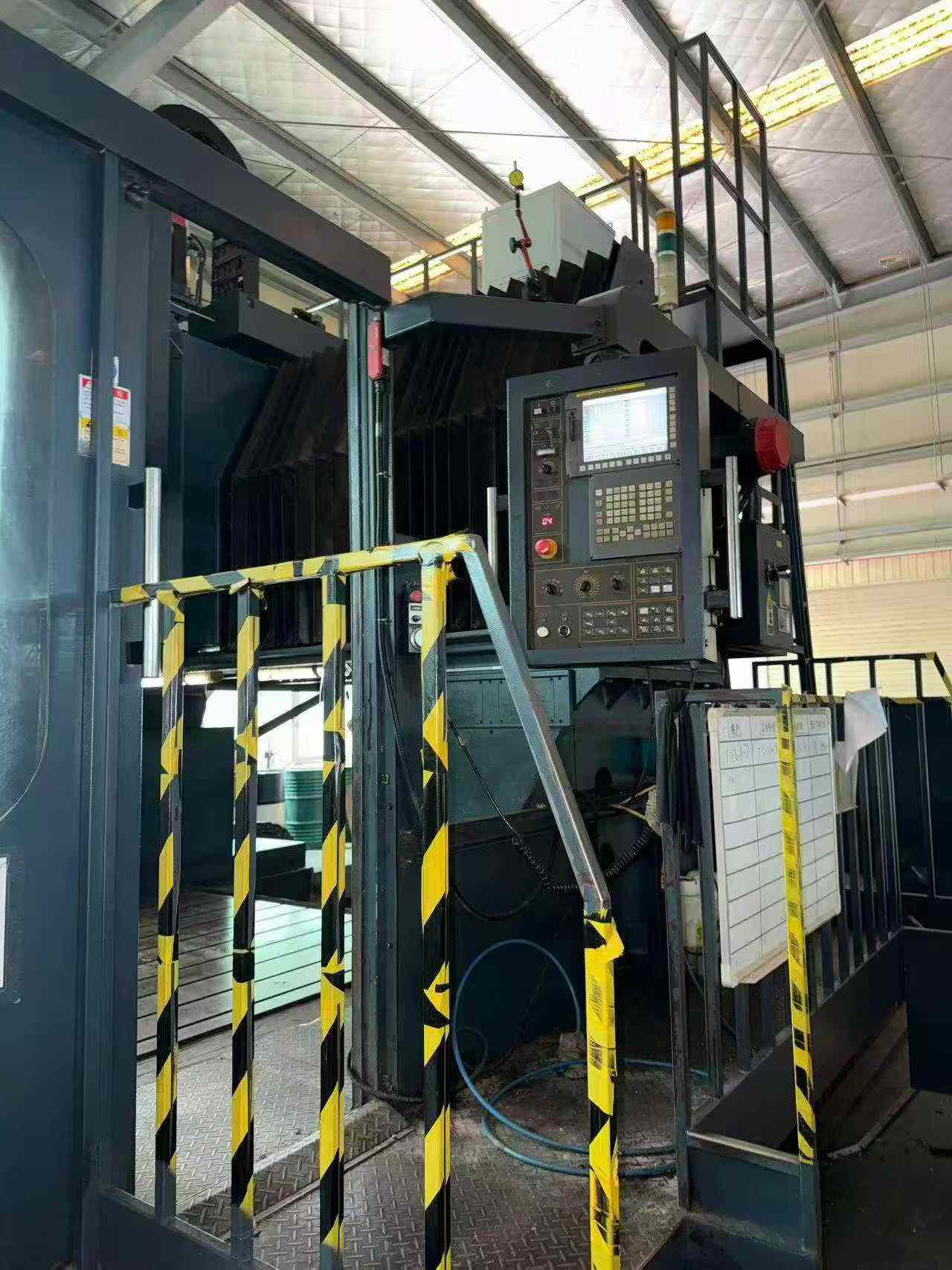

Controller	FANUC 31i-B
Linear Scale	Heidenhain
Accessories	Grinding package
High Speed High Precision	Yes
Spindle Type	Gear head
Guideway Configuration	X: linear guideway (55), Y: box guideway, Z: box guideway
Chip Conveyor	Double screw chip conveyor
Tool Change Mechanism	Hydraulic tool arm
Year	2018
Features	Suitable for extra-long and heavy workpieces, full-length machining in one setup, gantry moving, good dynamic rigidity, stable heavy cutting
X Axis Guideway Size	55 mm
Spindle Nose To Table Distance	120 mm
