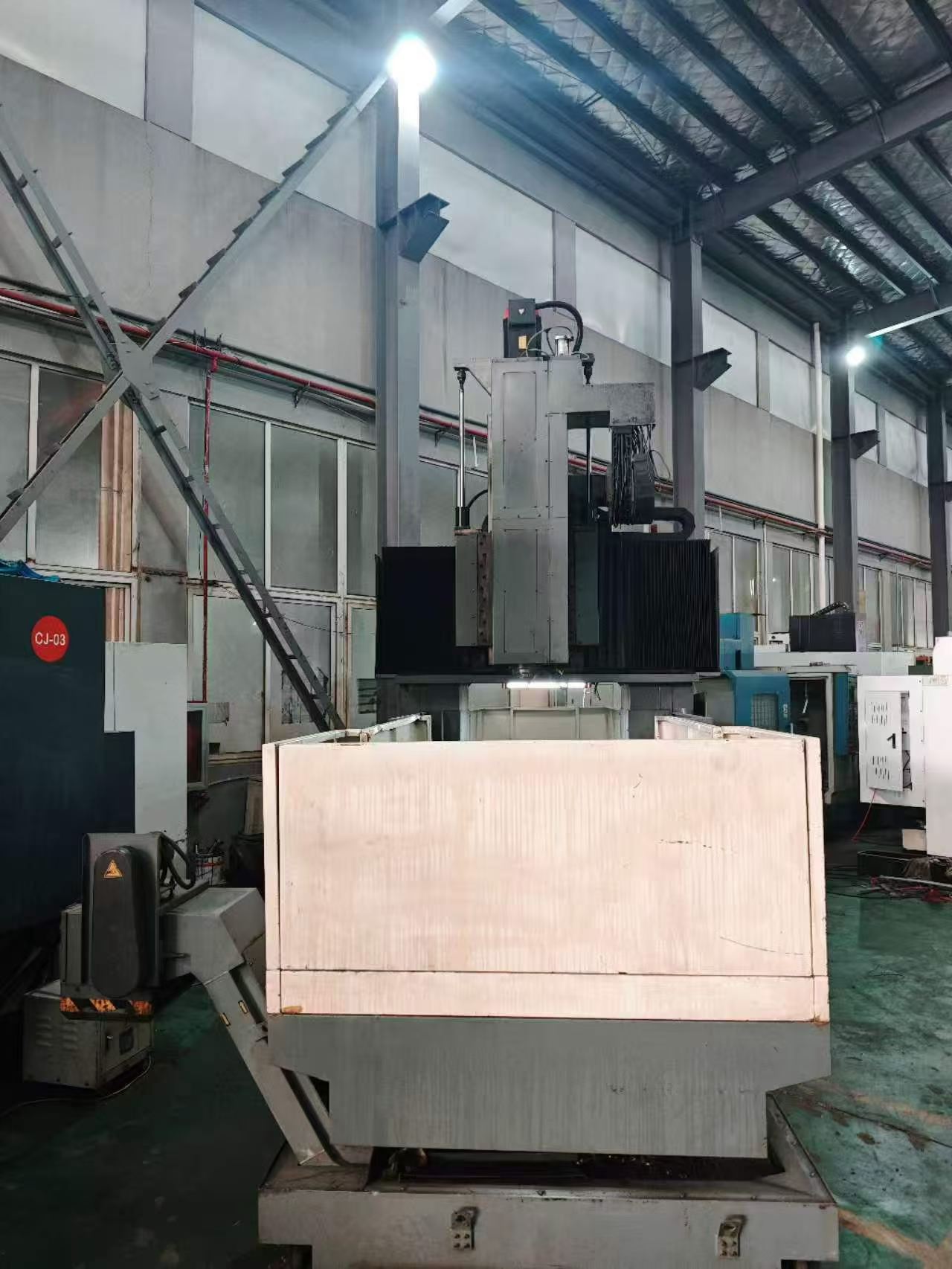

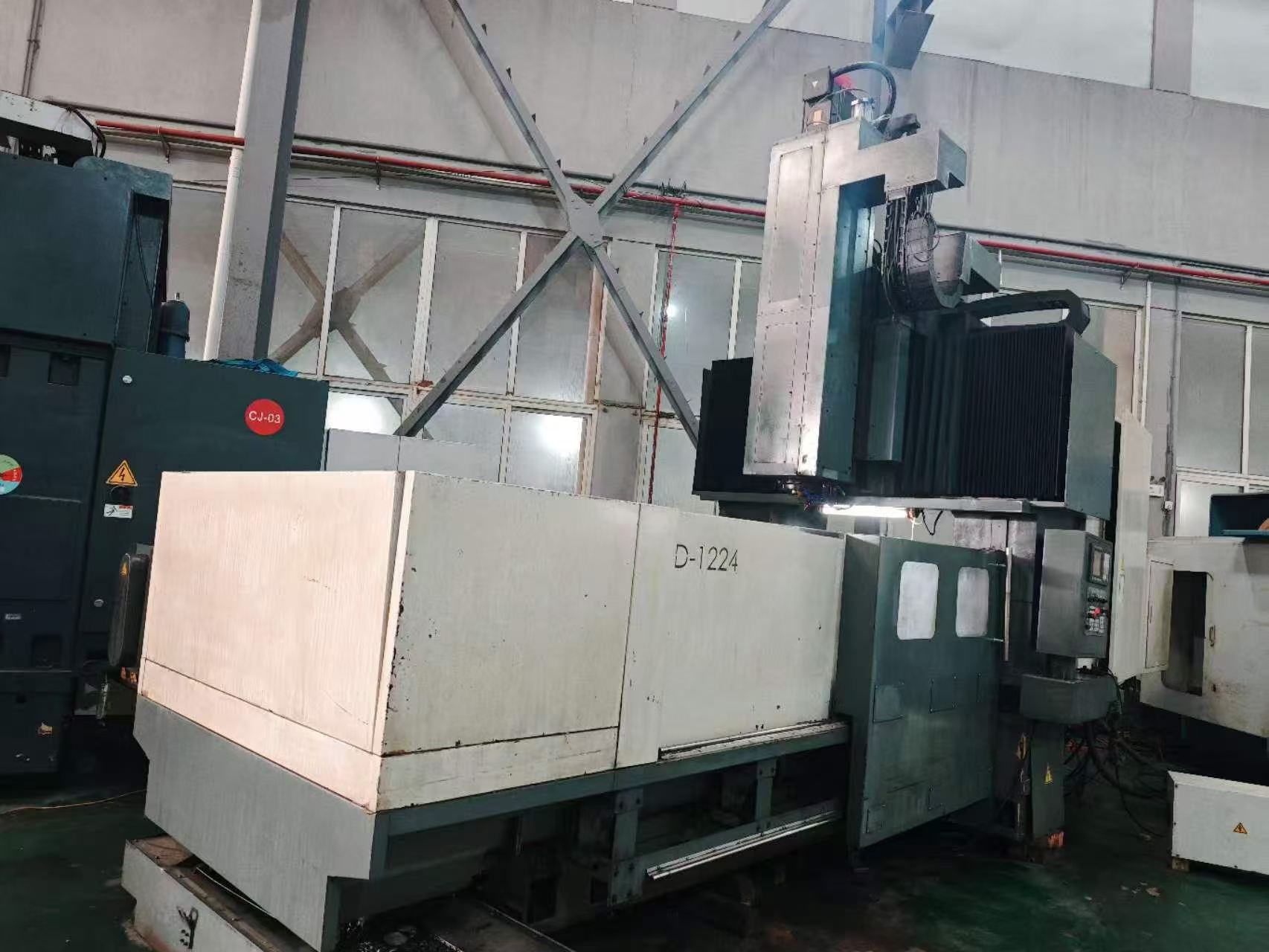

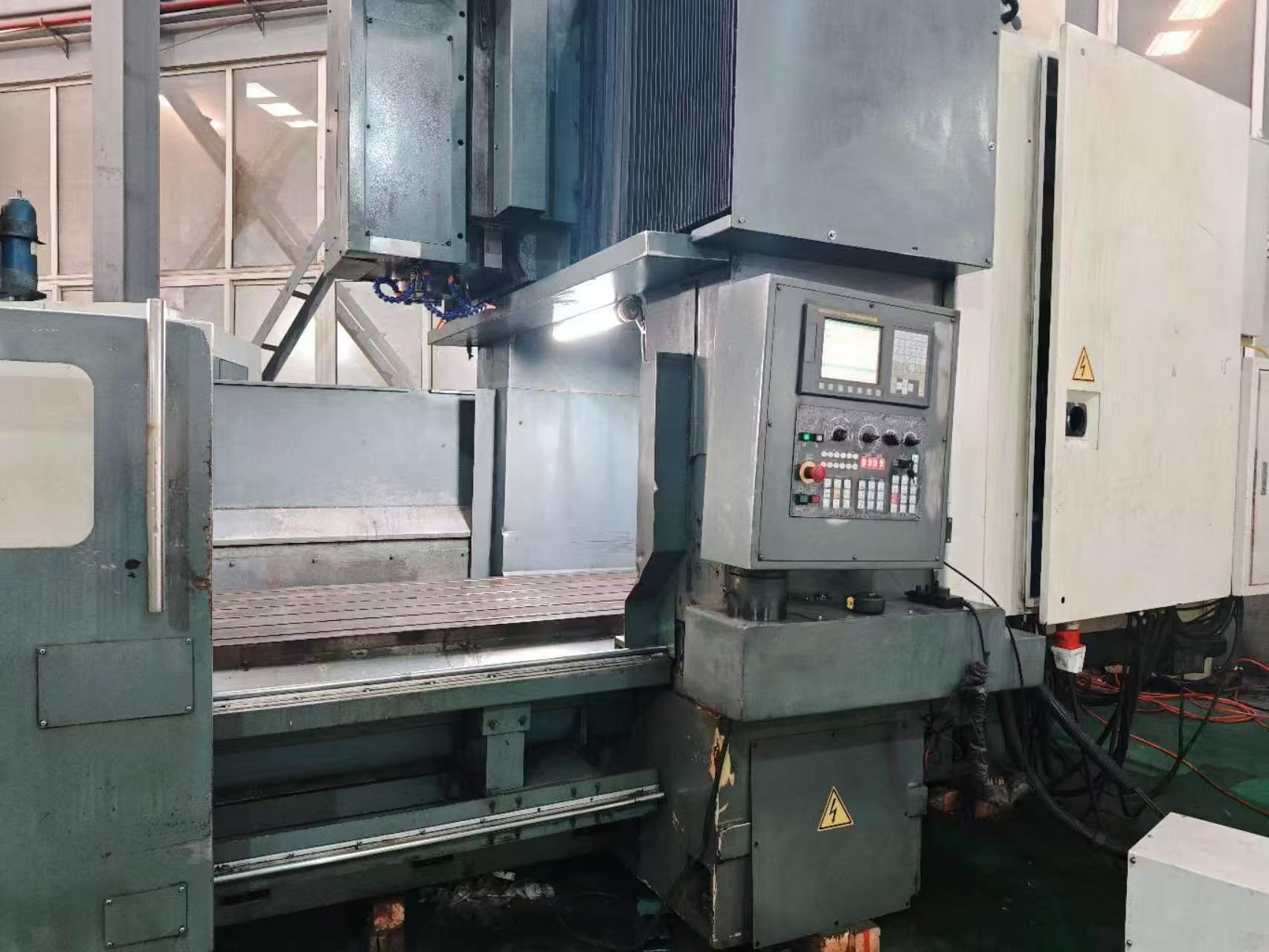

Used Chyou FD-1224 (2412) CNC Gantry Milling Machine with FANUC

This used Chyou FD-1224 gantry milling machine is equipped with two linear guideways and one box guideway. Features include a BT50 gear head spindle with oil cooling, FANUC MD control system, and a dual screw and chain chip conveyor system. The machine is located in China and available for inspection.

Machine Code: MIL260617
Year: 2013
Location: China
Usage Hours: On request

Accessories

Dual screw and chain chip conveyor

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

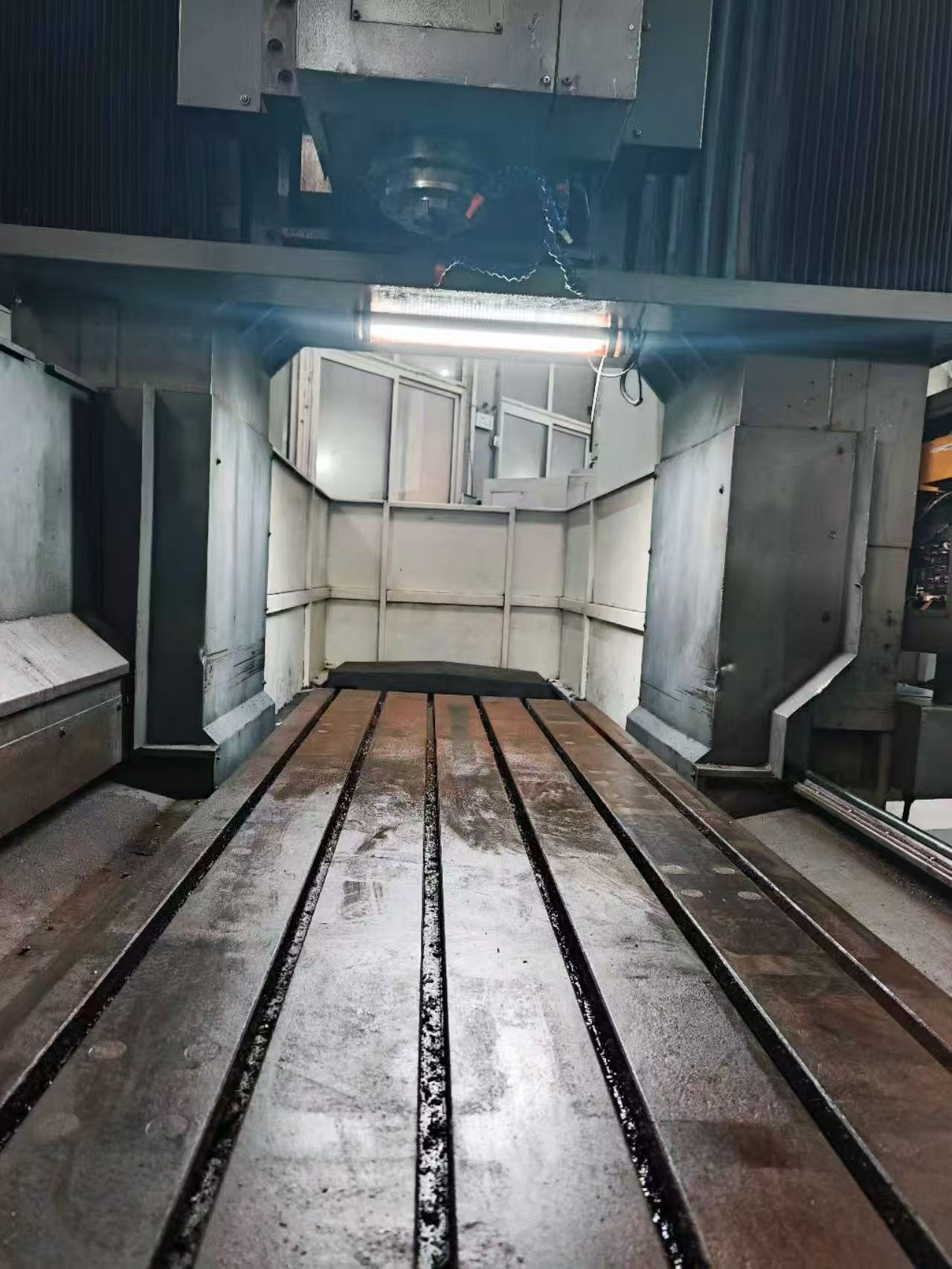

Worktable size	2400 x 900 mm
X-axis travel	2400 mm
Y-axis travel	1200 mm
Z-axis travel	800 mm
Gantry height	1000 mm
Gantry width	1240 mm
Spindle nose to table distance	1000 mm
Spindle taper	BT50
Spindle speed	6000 rpm
Table load capacity	8000 kg
Guideway type	Two linear guideways and one box guideway
Chip conveyor	Dual screw and chain
Machine Type	Gantry Milling Machine
Guideway Configuration	X/Y linear guideways + Z box guideway
Spindle	BT50 gear head with oil cooler
Year	2013
Brand	Qiaoyou
Model	FD-1224 (2412)
X/Y/Z Travel	2400 x 1200 x 800 mm

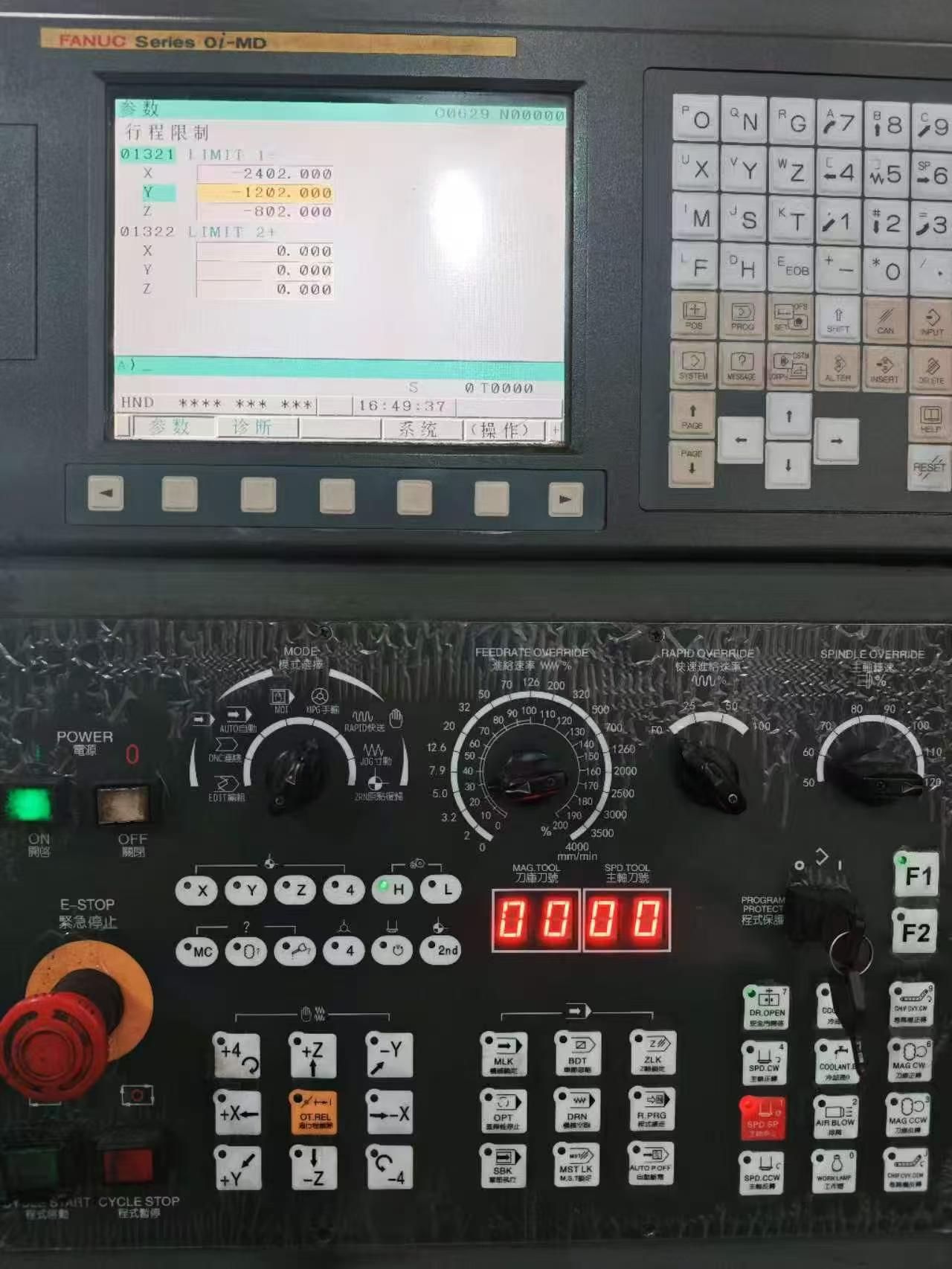

Controller	FANUC MD
