Taiwan Quick AV 63 F-63 Engraving and Milling Machine
Taiwan Quick · AV63F-63
Used machine, available for inspection.
Milling MachineMIL260712Year on requestController on requestChina
AvailableMilling Machine

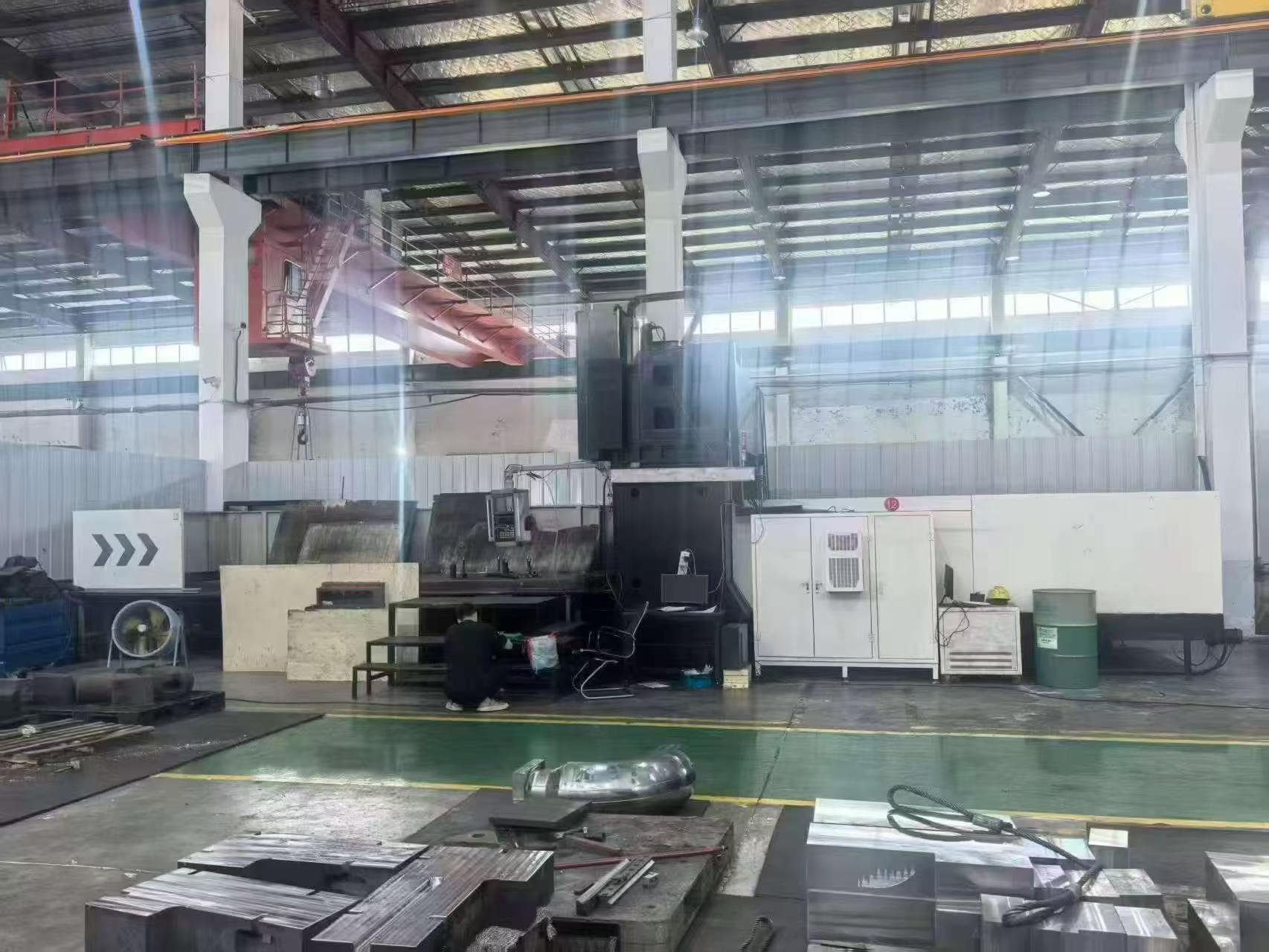

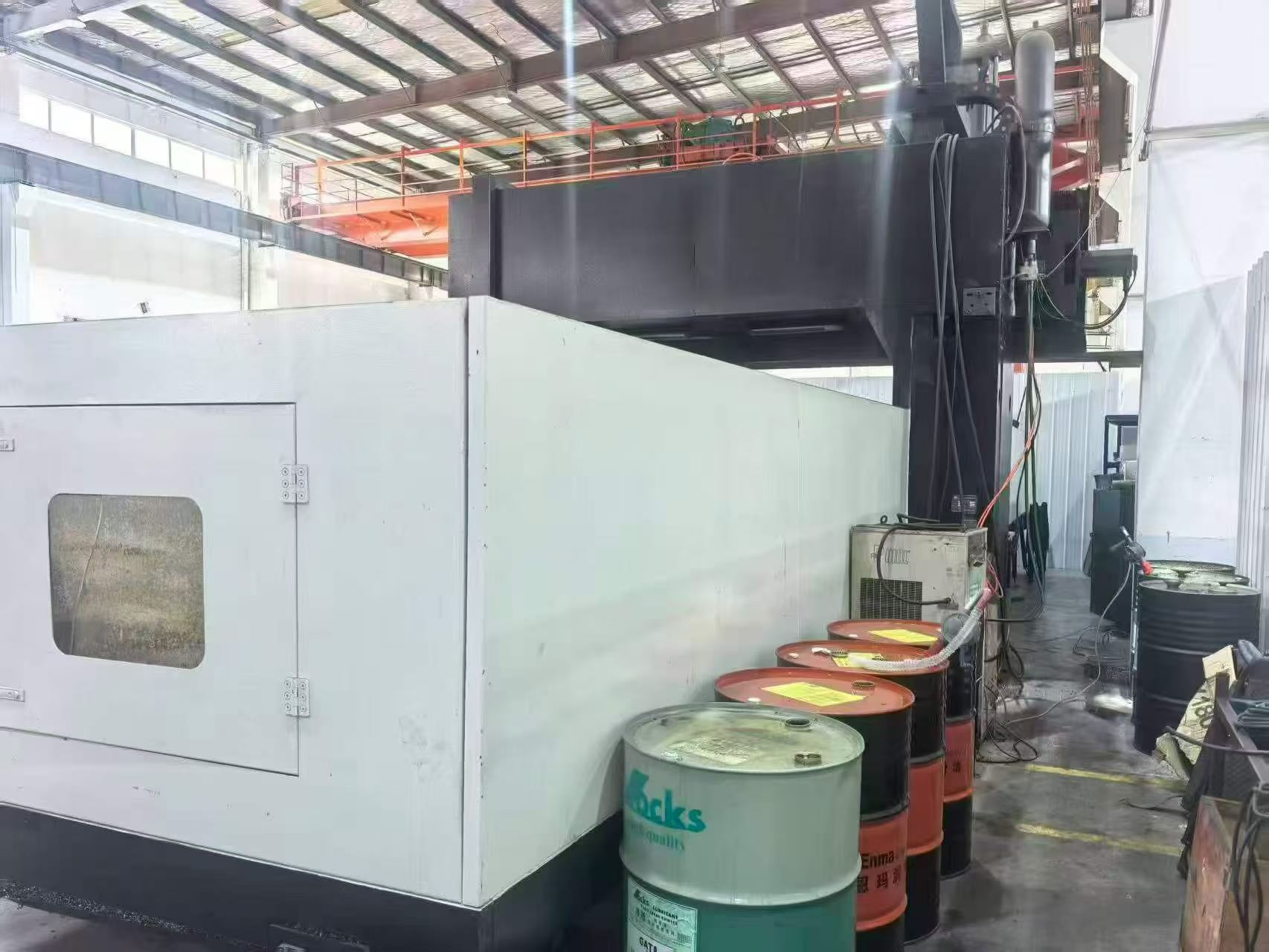

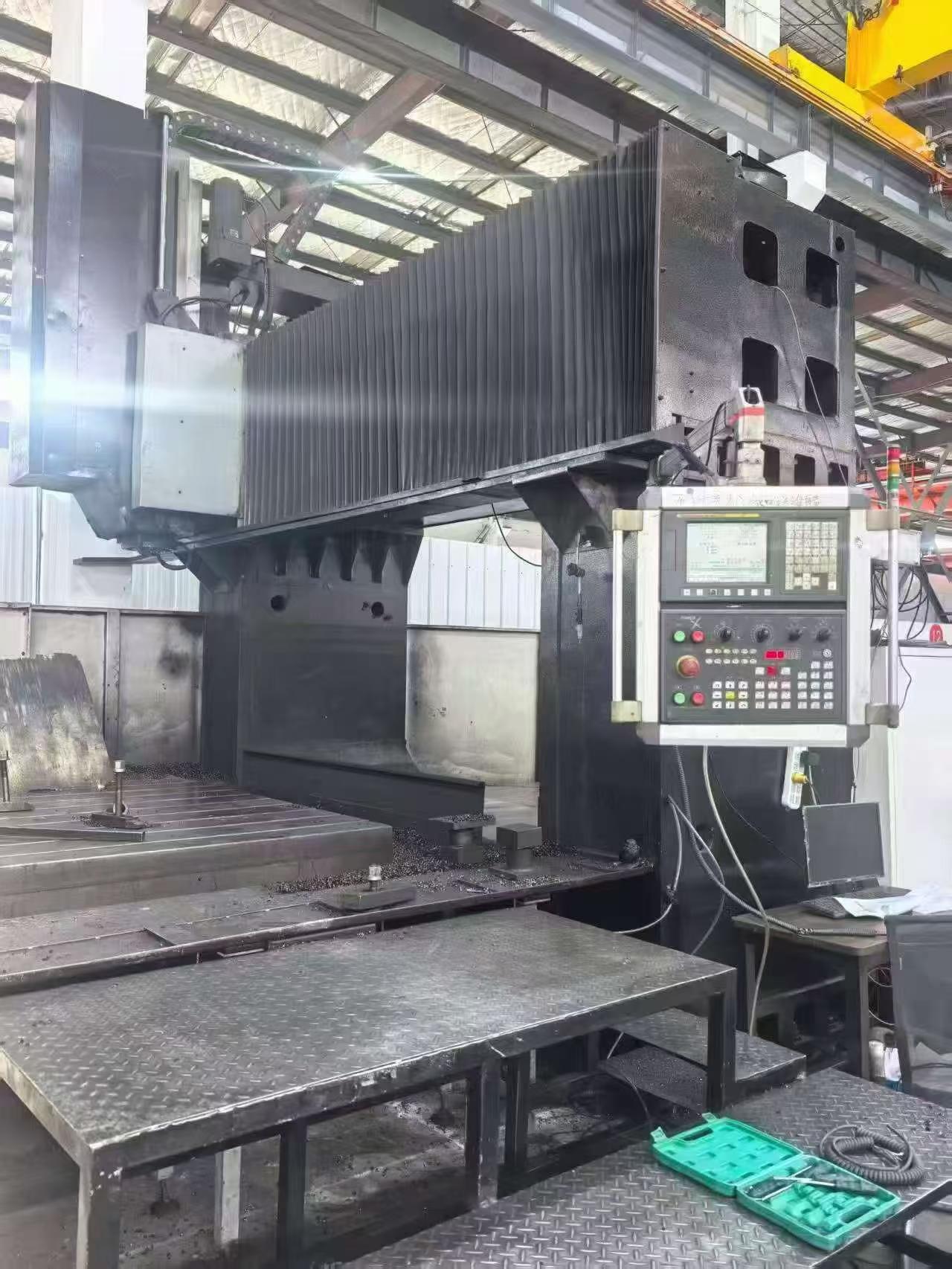

Used Dingtai 5027 CNC Gantry Milling Machine with Fanuc MD Control
Used Dingtai 5027 CNC Gantry Milling Machine with Fanuc MD control system. Machine is located in Shanghai, China and available for inspection. Key specifications include worktable 5000 x 2300 mm, spindle nose to table 1250 mm, door width 2700 mm, door height 1350 mm, BT50 spindle at 6000 rpm with oil cooler. Guideways: two linear and one box. Equipped with dual screw and chain chip conveyor.
- Machine Code
- MIL260705
- Year
- On request
- Location
- Shanghai, China
- Usage Hours
- On request
Accessories
Complete sheet metal, dual screw and chain chip conveyor.
Main Specifications
| Spindle speed | 6000 rpm |
|---|---|
| Spindle taper | BT50 |
| Worktable size | 5000 x 2300 mm |
| Spindle nose to table | 1250 mm |
| Door width | 2700 mm |
| Door height | 1350 mm |
| Guideway type | Two linear guideways and one box guideway |
| Machine Type | Gantry milling machine |
| Guideway Configuration | Two linear guideways and one box guideway |

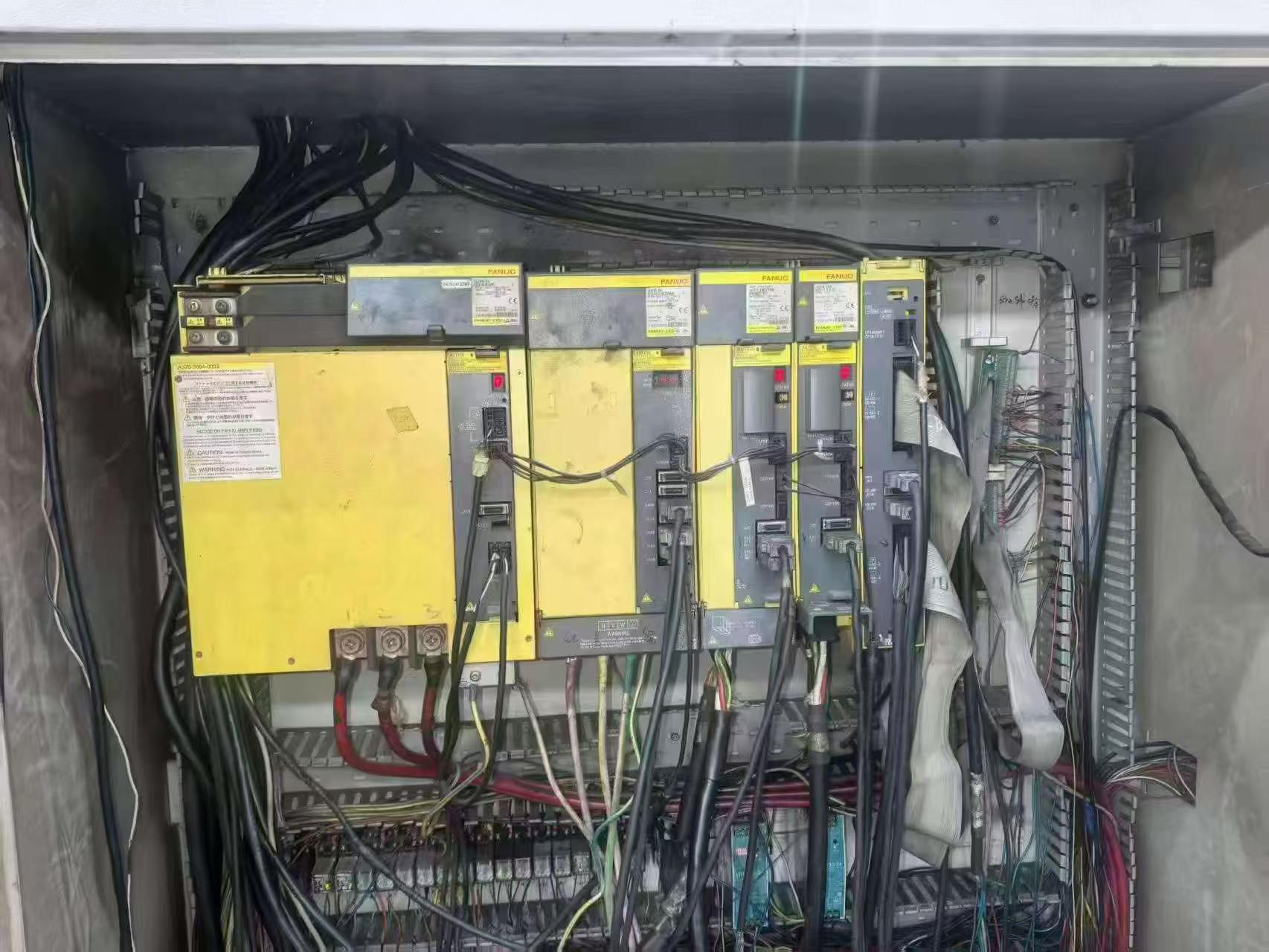

| Controller | Fanuc MD |

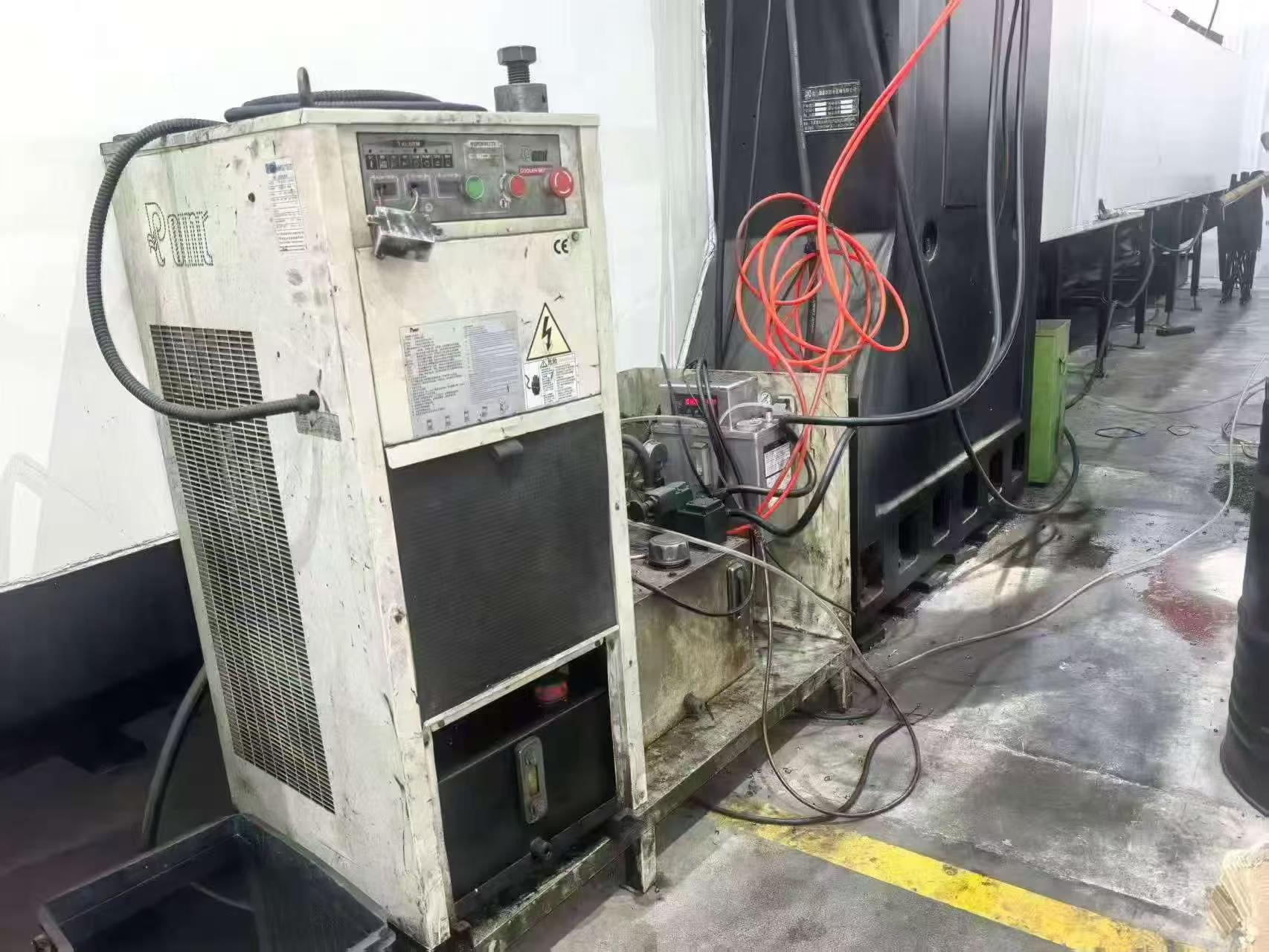

| Spindle Oil Cooler | Yes |
| Sheet Metal | Complete |
| Chip Conveyor | Dual screw and chain chip conveyor |
