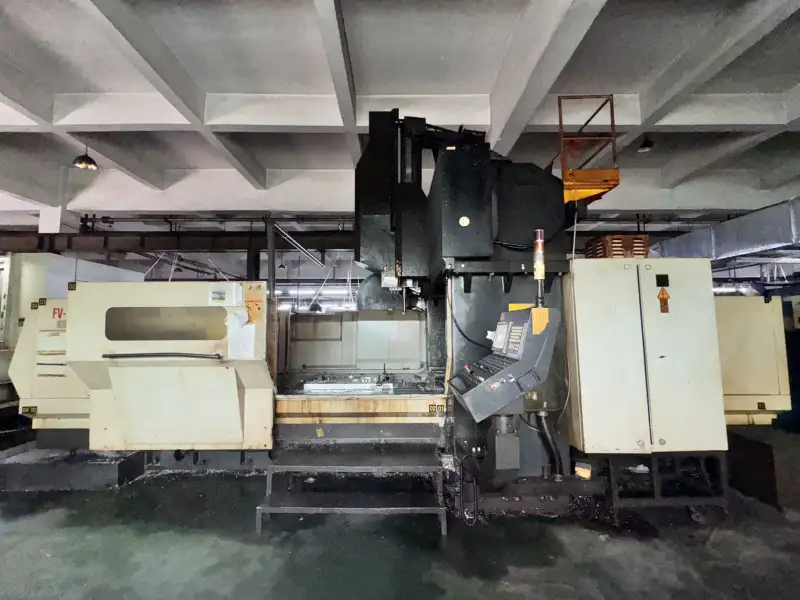

Used Fair Friend FV 3219 Gantry Machining Center

Serial number: 41. This machine is located in a factory in Wuxi, China. It is a gantry machining center with a 3000 x 1700 mm worktable, X/Y/Z travel of 3200 x 1900 x 850 mm, spindle nose to table distance of 270-1470 mm, 2000 mm gantry width, and a load capacity of 8000 kg. Equipped with a BT50 gear-driven spindle head, 24-tool magazine, and FANUC 21 i-MB control system. Manufactured in 2011. The machine features two linear guideways and one box guideway. All parameters are for reference only and subject to the actual machine.

Machine Code: MC2608220
Year: 2011
Location: Wuxi, China
Usage Hours: On request

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Worktable size	3000 x 1700 mm
X/Y/Z travel	3200 x 1900 x 850 mm
Spindle nose to table	270-1470 mm
Gantry width	2000 mm
Table load capacity	8000 kg
Main motor power	22/26 kW

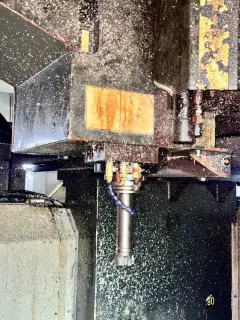

Spindle taper	BT50
Spindle drive	Gear head
Guideway configuration	Two linear guideways and one box guideway
Tool magazine capacity	24 tools
