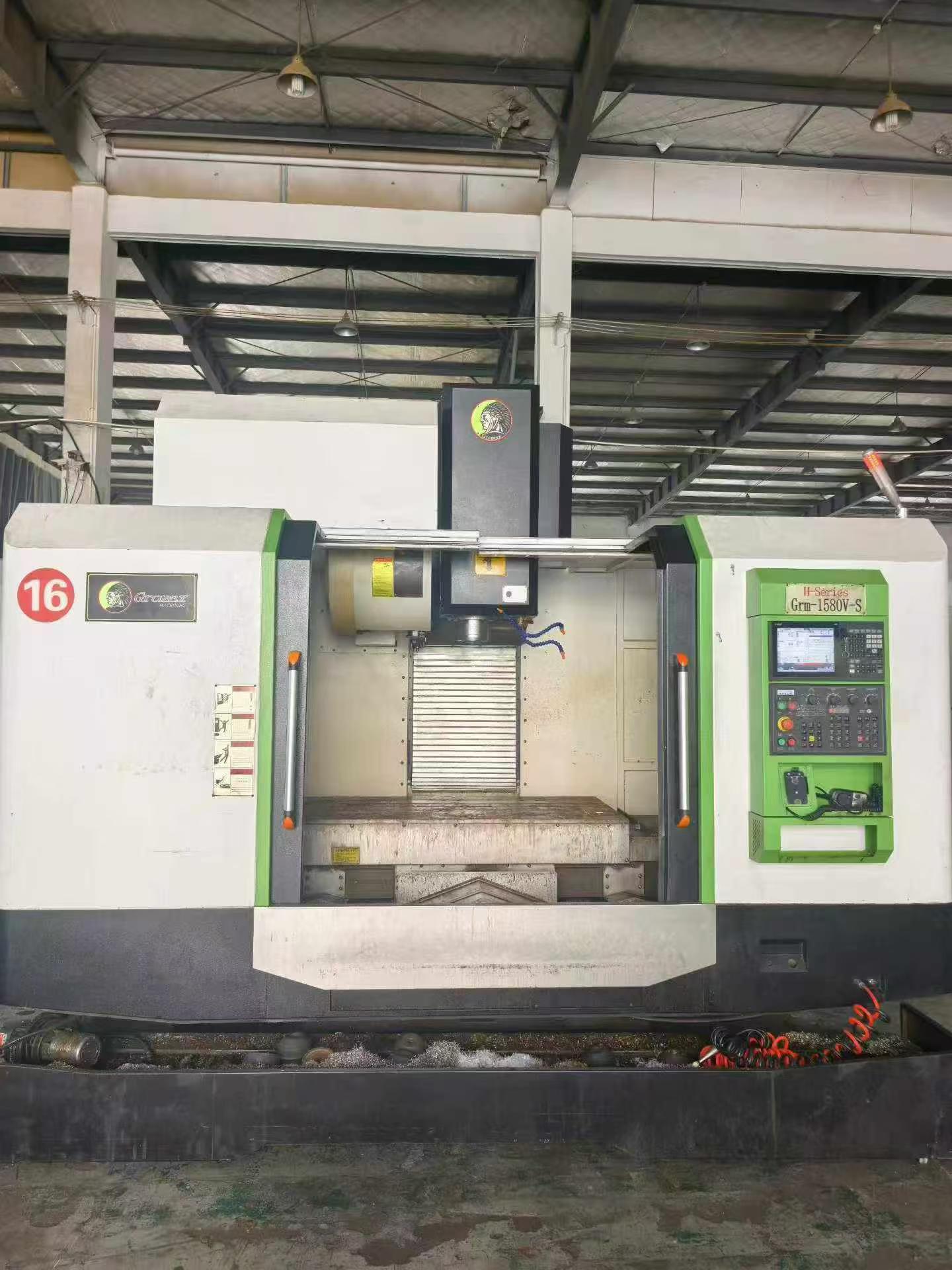

Used Glema 1580 V-S Vertical Machining Center with Mitsubishi M 80

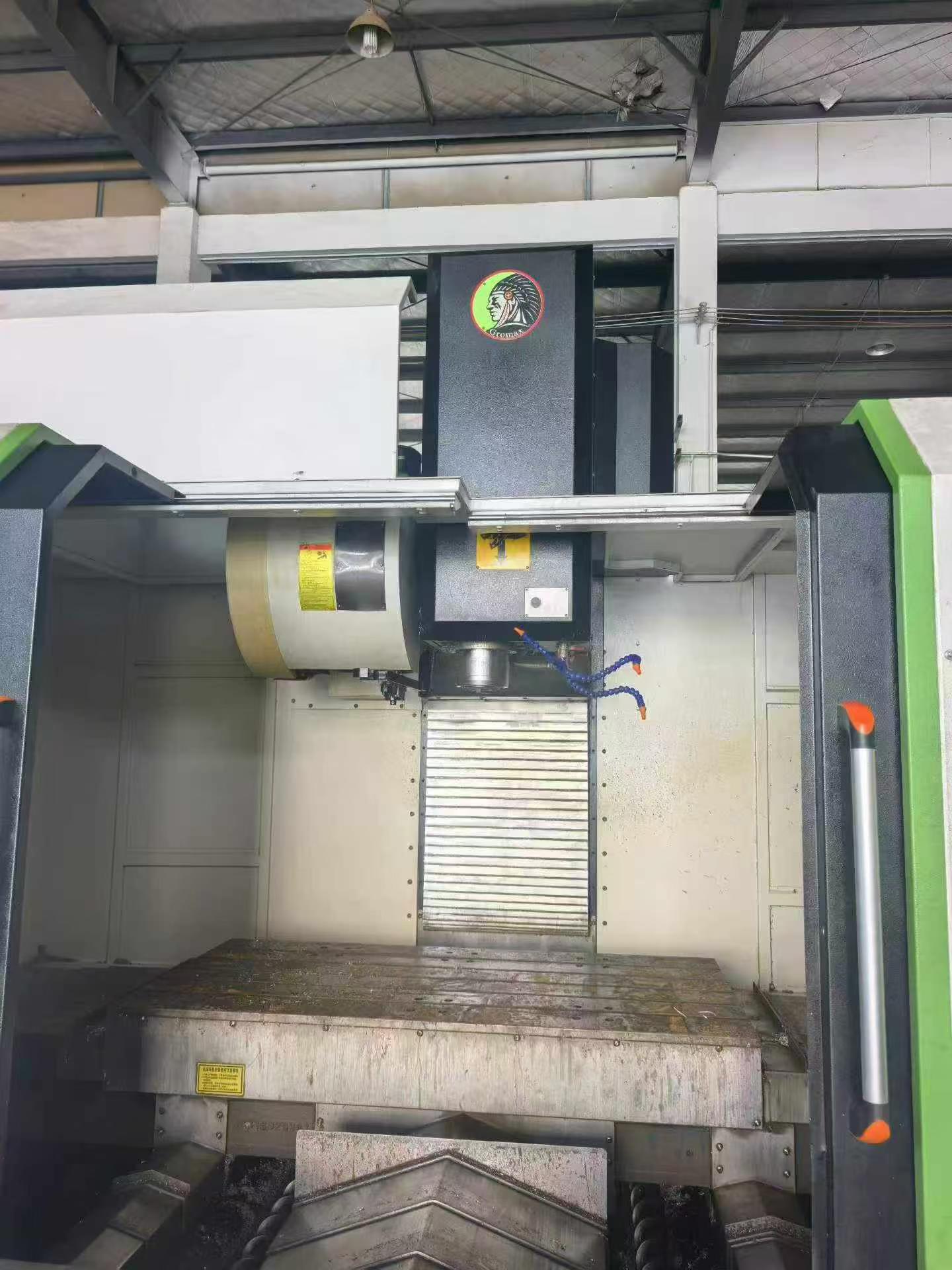

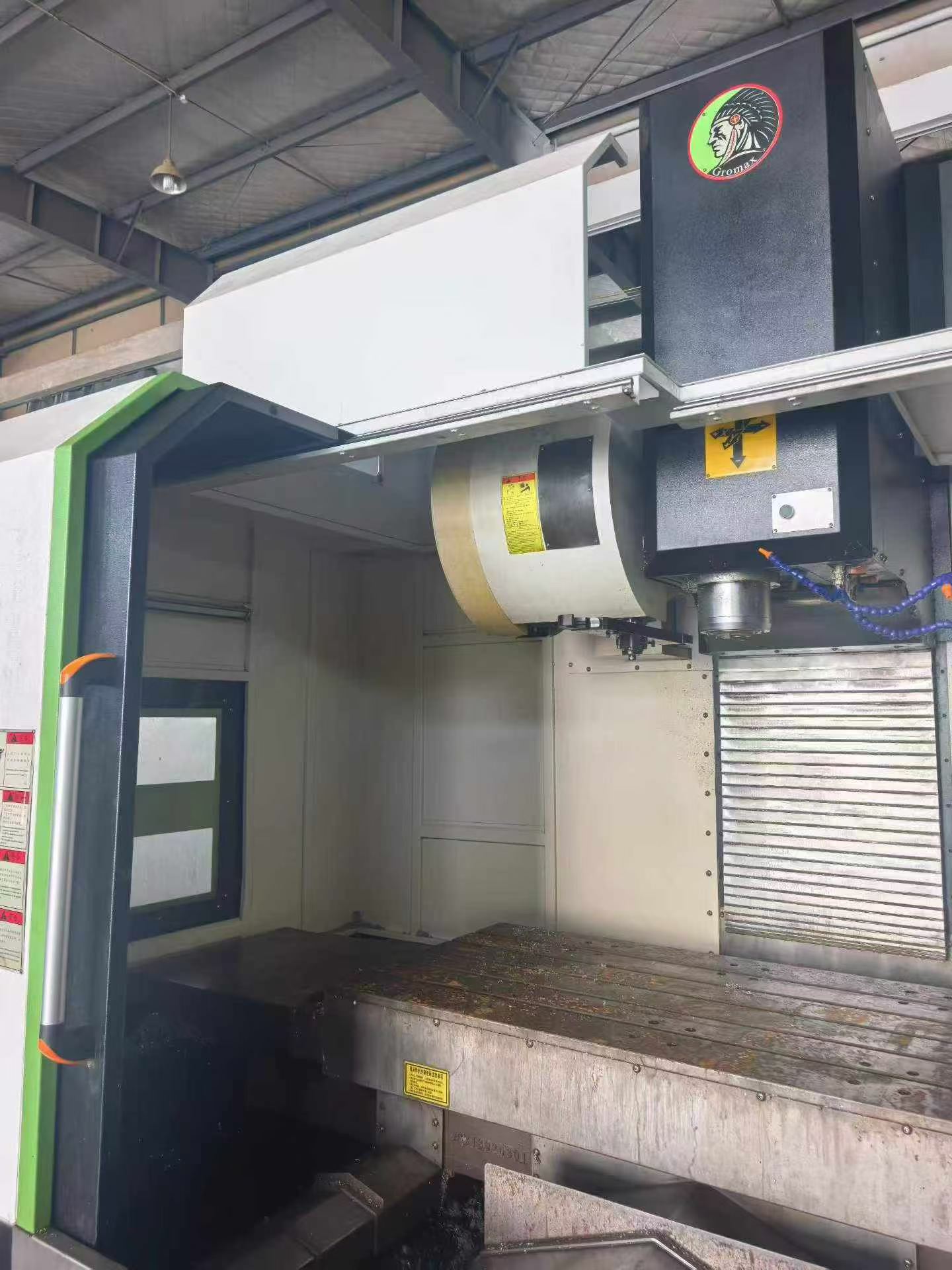

Used Glema 1580 V-S Vertical Machining Center manufactured in November 2023. Equipped with Mitsubishi M 80 control, Taiwan Luo Yi BT40 belt-drive spindle (8000 rpm) with oil cooler, 15 kW spindle motor, 24-tool arm-type tool magazine. X/Y/Z travel: 1500/800/800 mm; worktable size: 1600 x 800 mm; spindle nose to table distance: 900 mm; machine dimensions: 3600 x 2900 x 3200 mm. Comes with oil cooler, internal twin-screw and chip conveyor.

Machine Code: VMC260846
Year: 2023
Location: China
Usage Hours: On request

Accessories

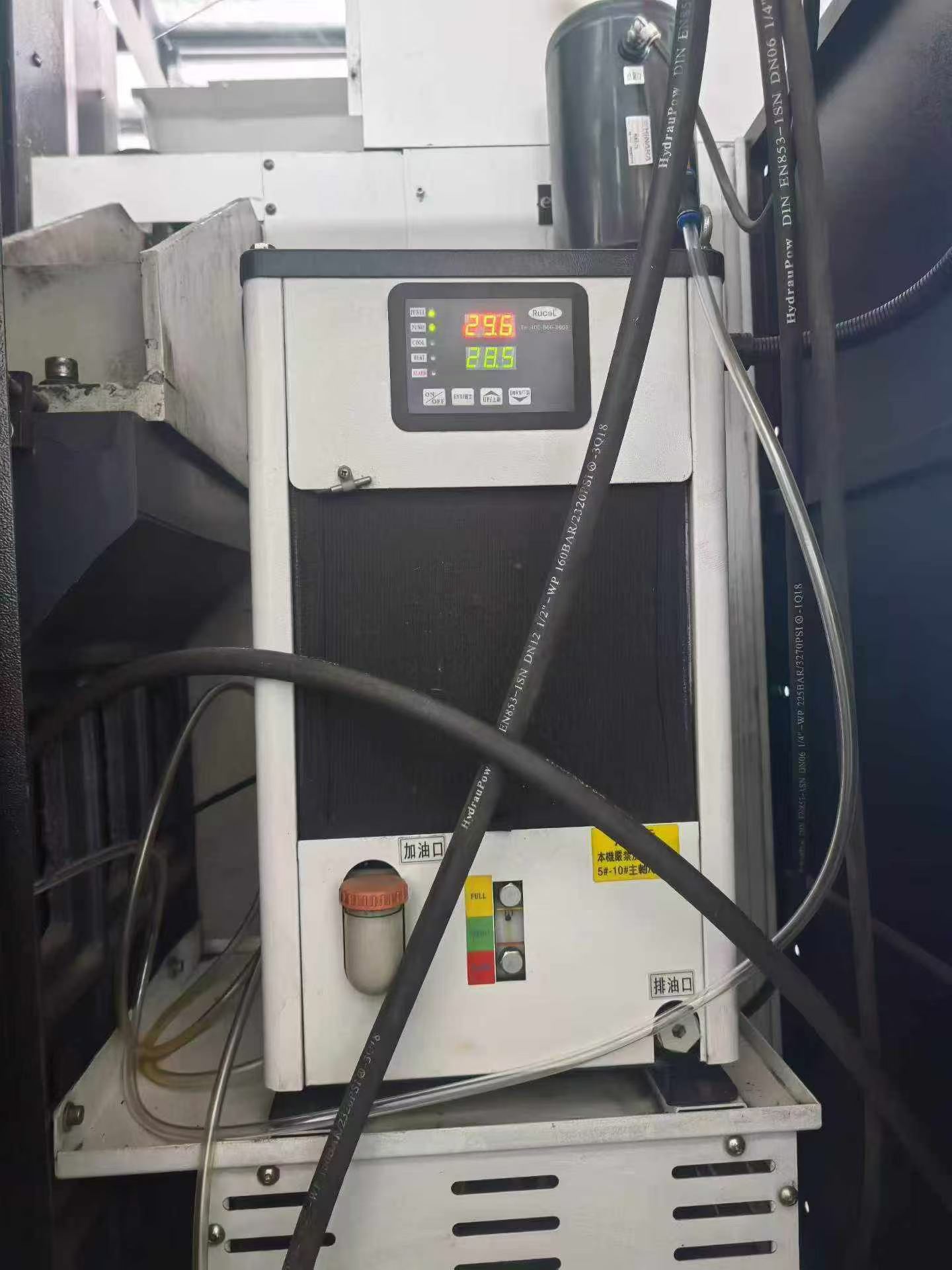

With oil cooler, internal twin-screw and chip conveyor

Email Inquiry

Main Specifications

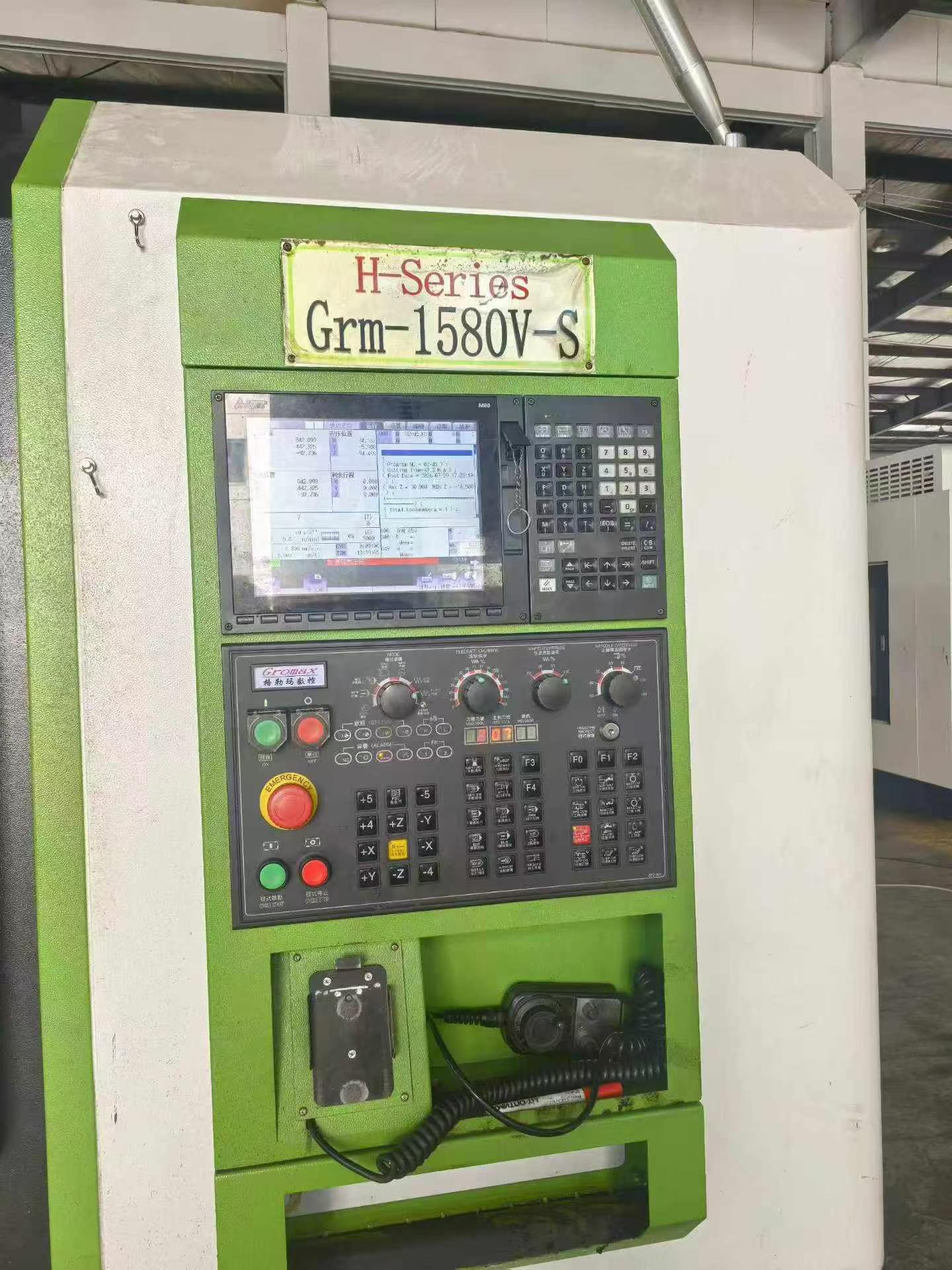

Control system	Mitsubishi M 80
Spindle taper	BT40
Spindle speed	8000 rpm
Spindle motor power	15 kW

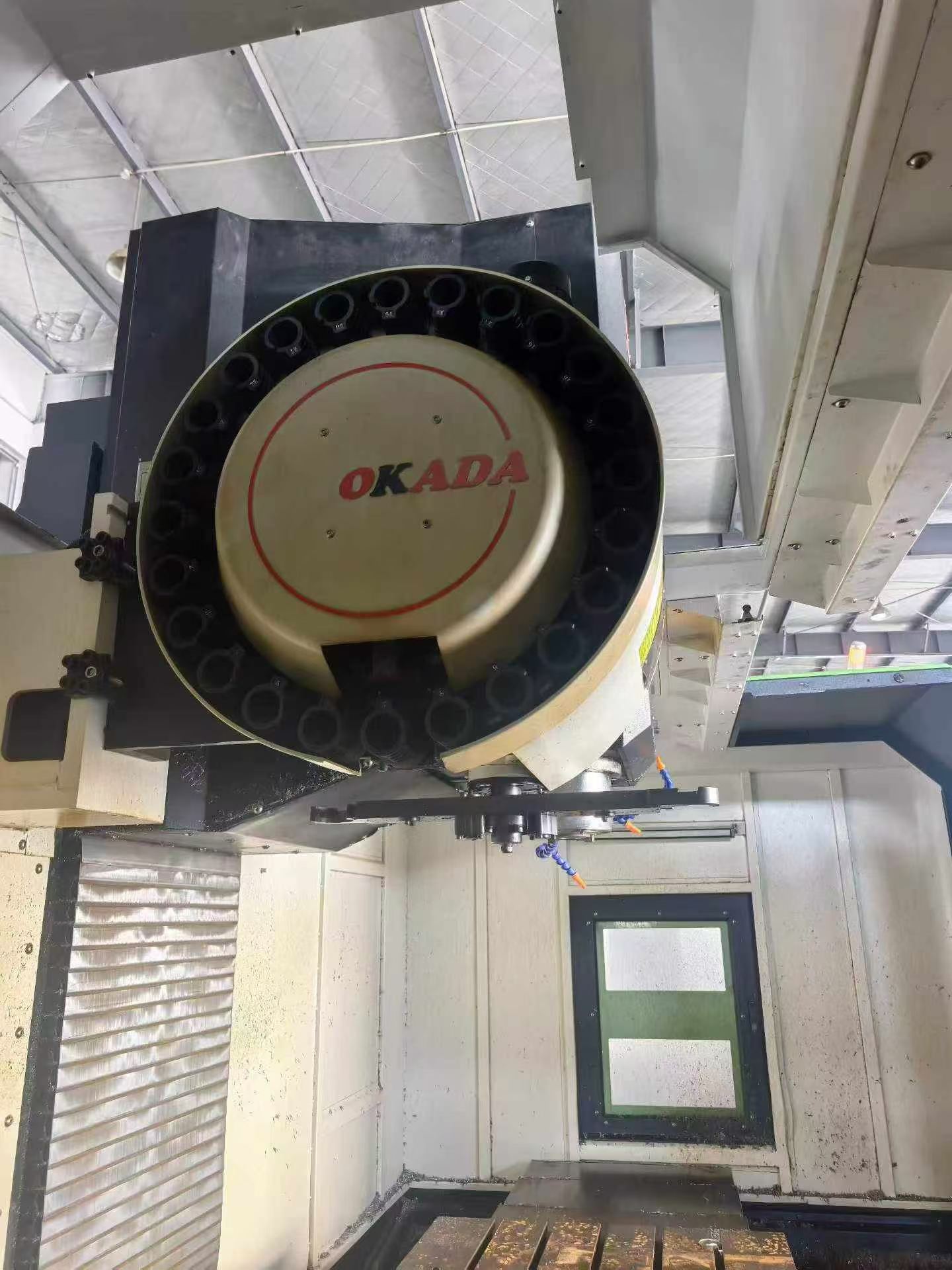

Tool magazine capacity	24 tools
X/Y/Z travel	1500/800/800 mm
Worktable size	1600 x 800 mm
Spindle nose to table distance	900 mm
Machine dimensions	3600 x 2900 x 3200 mm

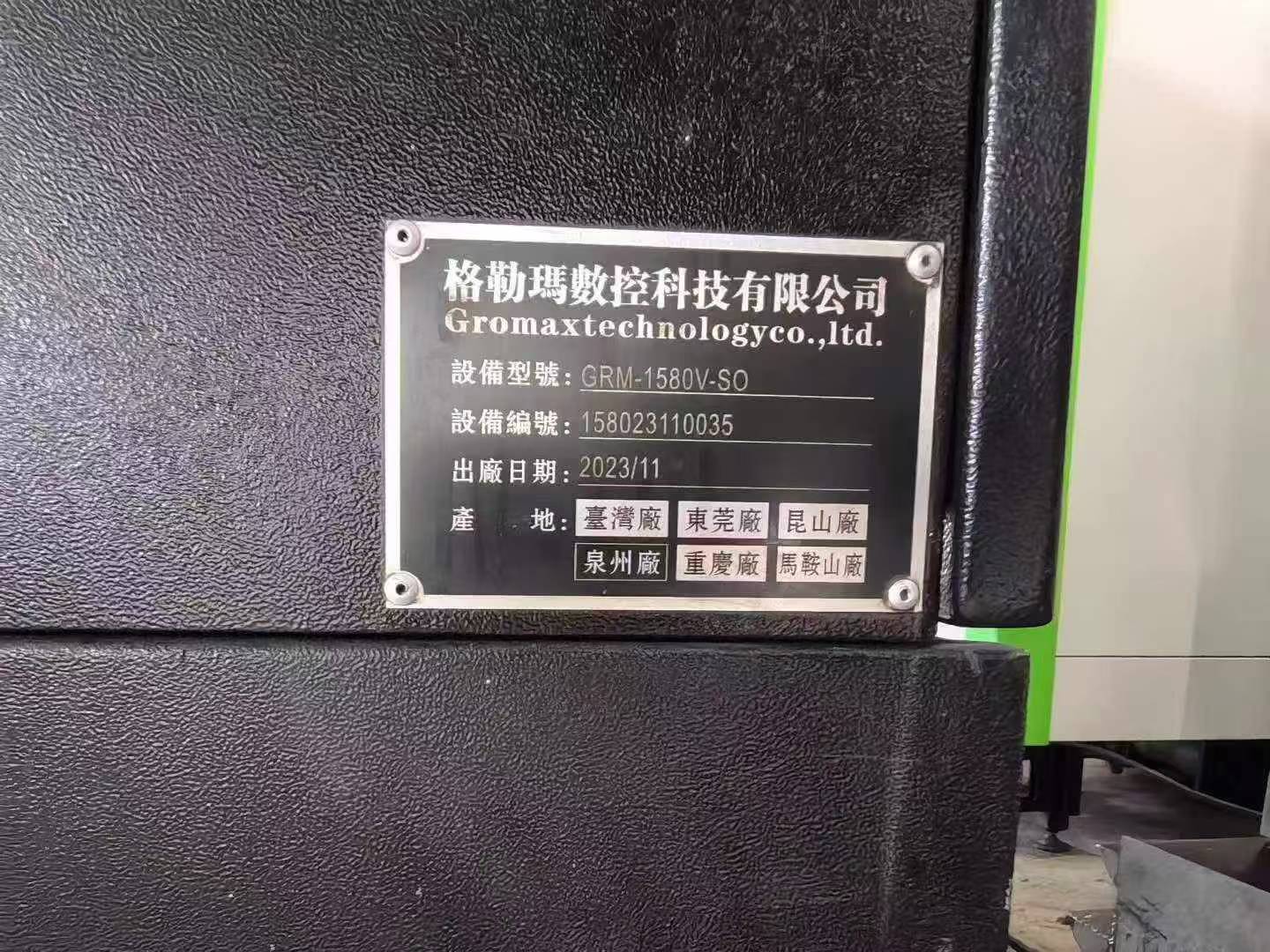

Manufacture date	November 2023
