Used Guangdong Zhengyu TY-45 L Heavy-Duty Slant-Bed Turret CNC Lathe with FANUC TF

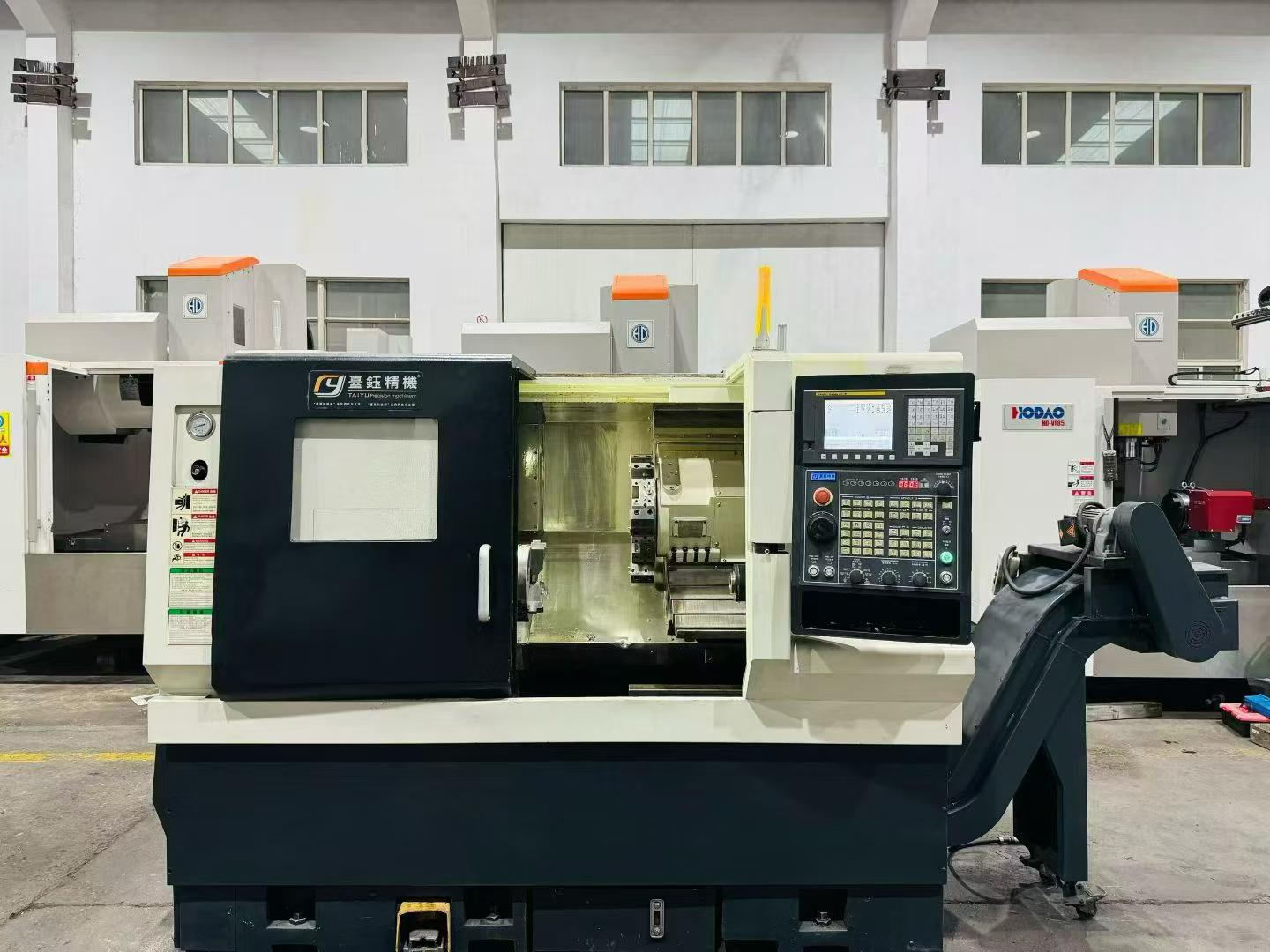

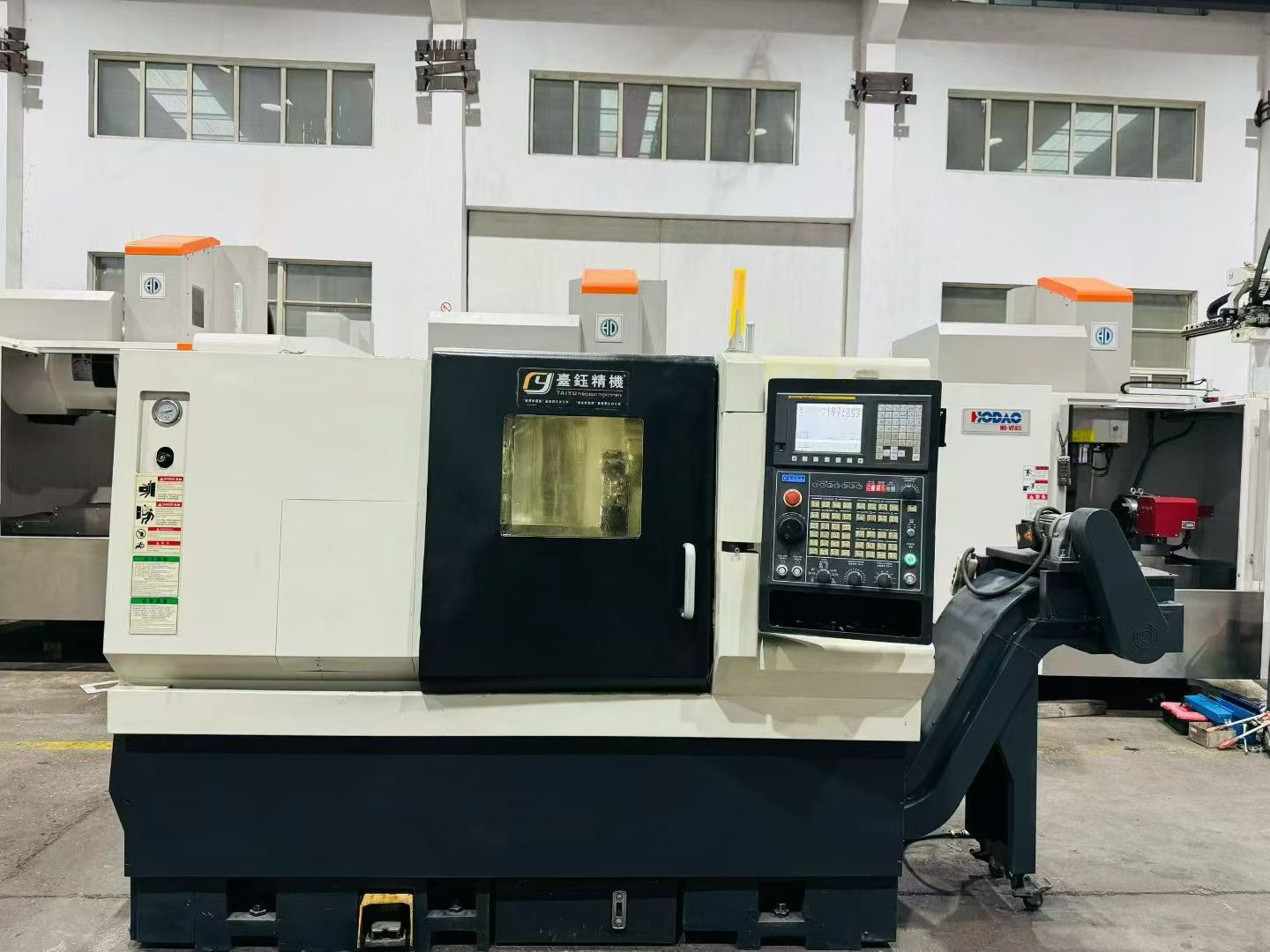

Used Guangdong Zhengyu TY-45 L (52-Type) heavy-duty slant-bed turret-type CNC lathe. Fitted with a 10-inch hollow hydraulic chuck, A 2-6 high-speed spindle unit (52 type), 12-station large-diameter servo turret, 11 kW spindle servo motor, FANUC TF control system, and a genuine Taizheng bed. Net weight 4.2 tons, equipped with chain-type chip conveyor. New machine purchase price was RMB 240,000 per unit; current price is very favorable. Machine is located in Guangdong, China and is available for inspection.
- Machine Code
- CL260855
- Year
- On request
- Location
- Guangdong, China
- Usage Hours
- On request
Accessories
Chain-type chip conveyor
Main Specifications
| Machine type | Slant-bed turret-type CNC lathe |
|---|---|

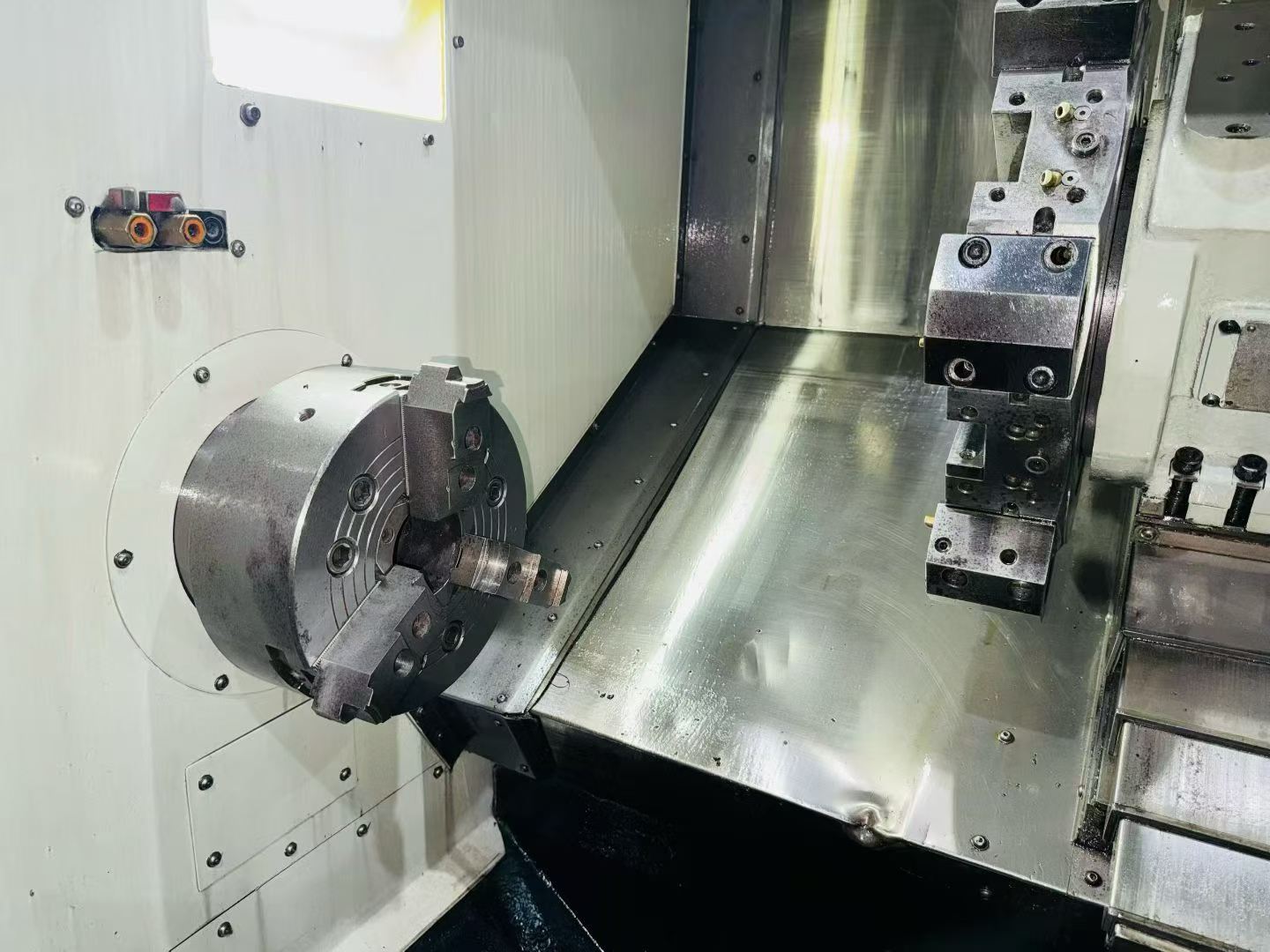

| Chuck size | 10 inches |
| Chuck type | Hollow hydraulic chuck |
| Spindle nose taper | A 2-6 |
| Spindle unit | High-speed spindle unit (52 type) |

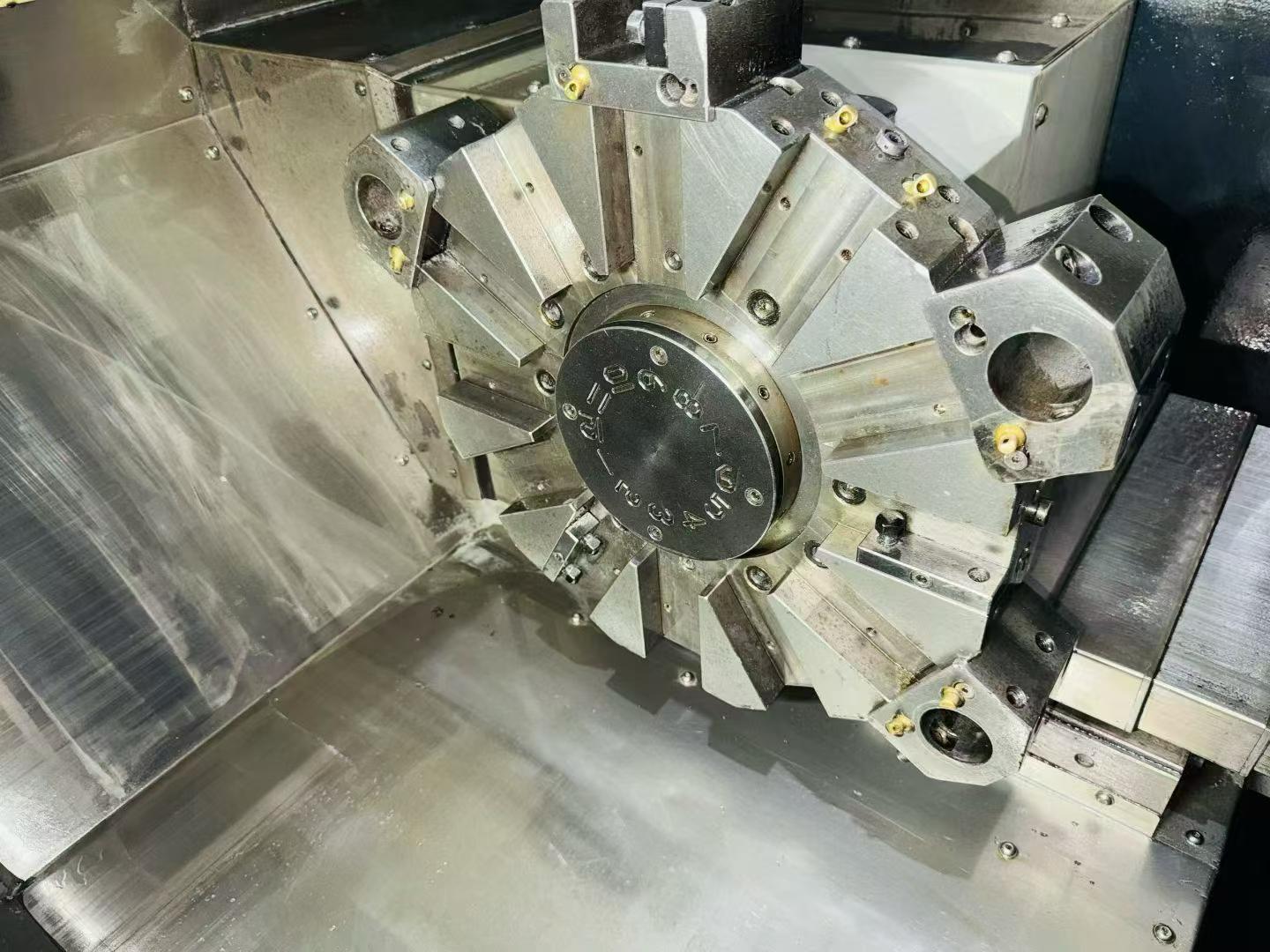

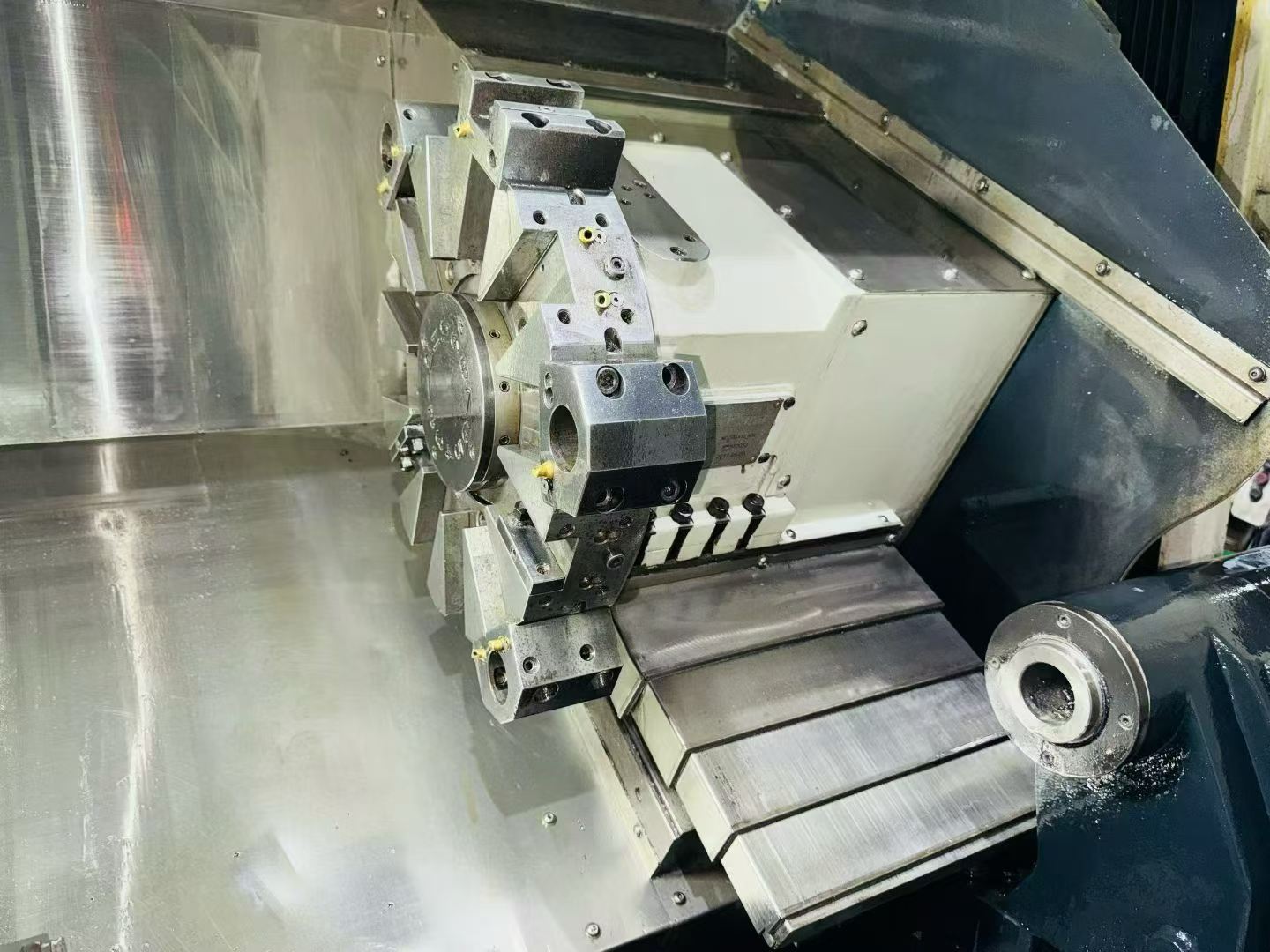

| Turret stations | 12 |
| Turret type | Large-diameter servo turret |
| Spindle motor power | 11 kW |

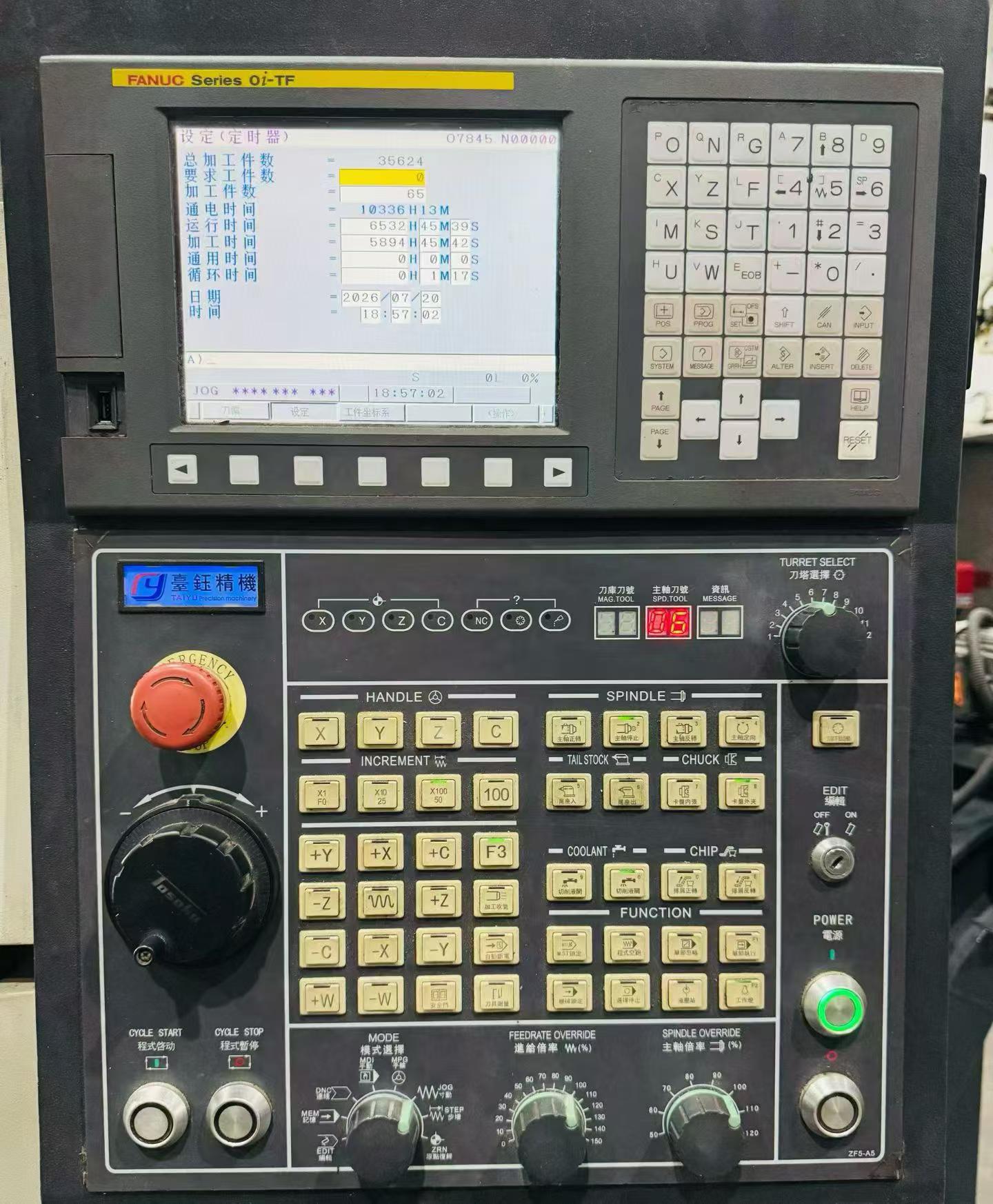

| Controller | FANUC TF |
| Machine bed | Genuine Taizheng slant bed |
| Net weight | 4.2 t |
| Chip conveyor | Chain-type chip conveyor |
