AvailablePlaner Milling Machine

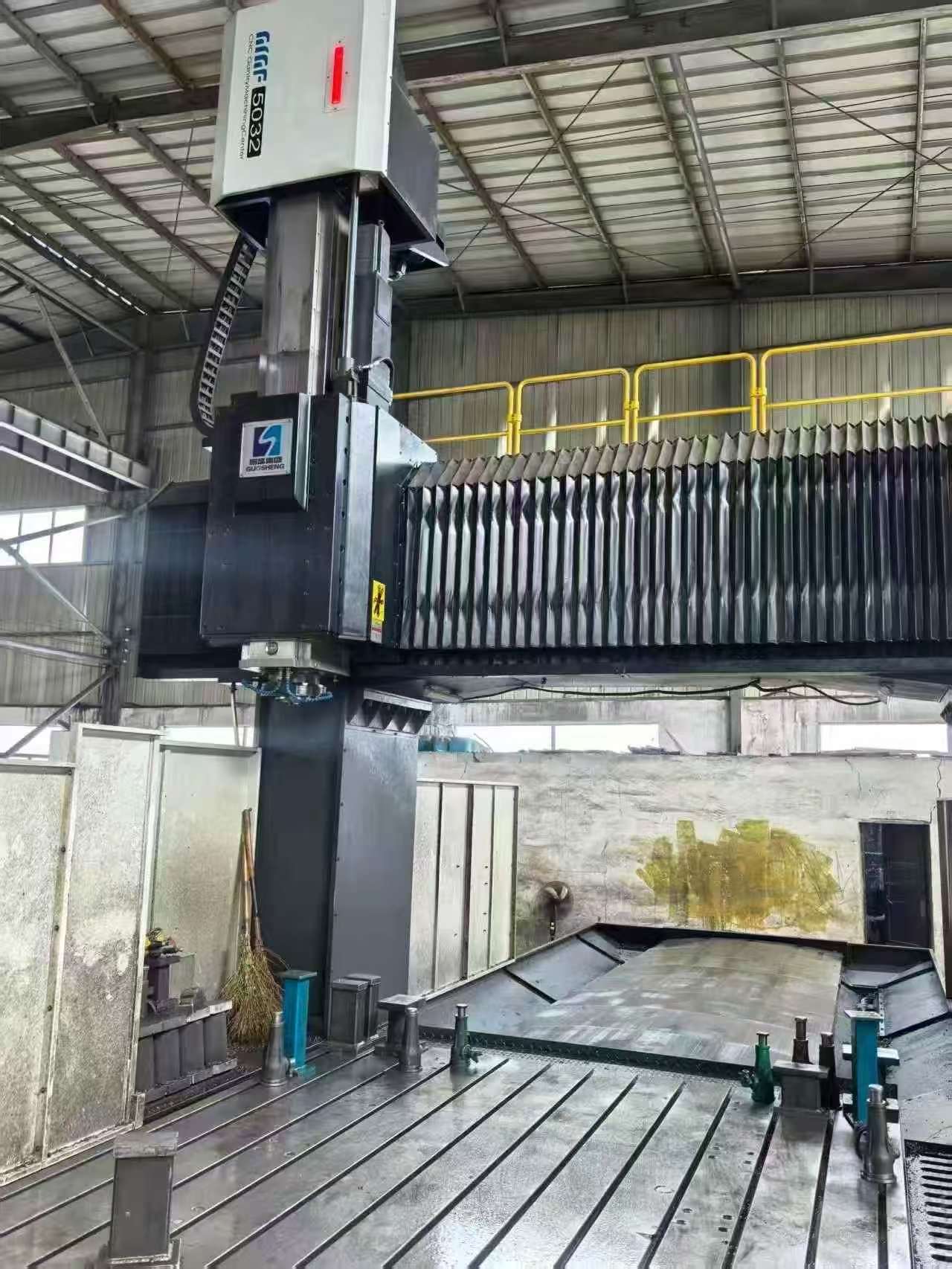

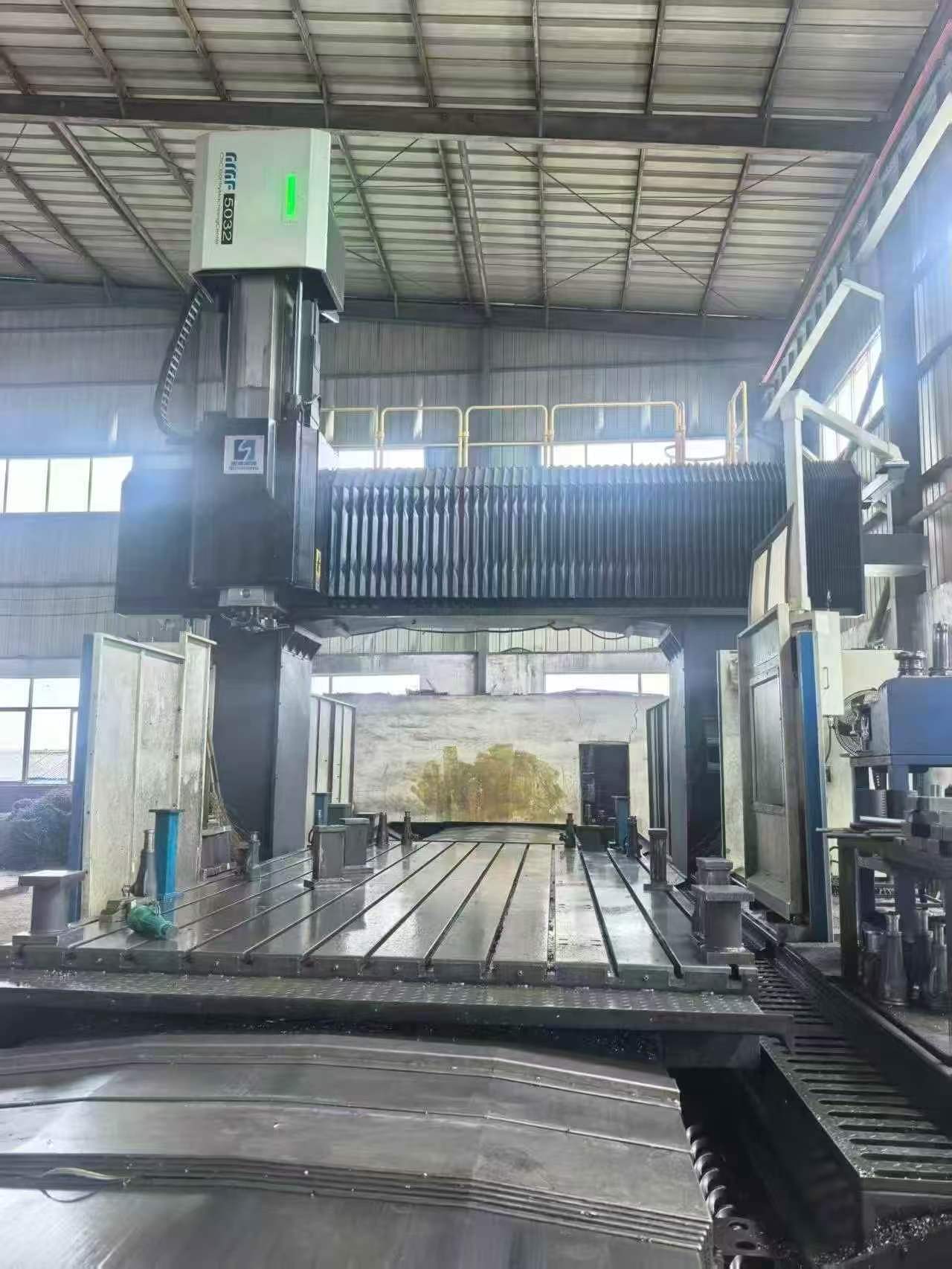

Used Guosheng GMF 5032 R CNC Gantry Milling Machine with Siemens 828 D

Factory in place. Guosheng GMF 5032 R CNC gantry milling machine manufactured in 2022, equipped with Siemens 828 D control, 26 kW servo spindle motor, two linear guideways and one box guideway square ram, BT50 gear head with 5000 rpm, original dual-speed gearbox, semi-automatic universal side milling head, oil cooler, hydraulic unit, worktable 2500 x 5000 mm, door height 1850 mm, door width 3200 mm, travels 5200 x 3200 x 1250 mm, built-in dual screw and chain chip conveyor.

Machine Code
PM260717
Year
2022
Location
China
Usage Hours
On request

Accessories

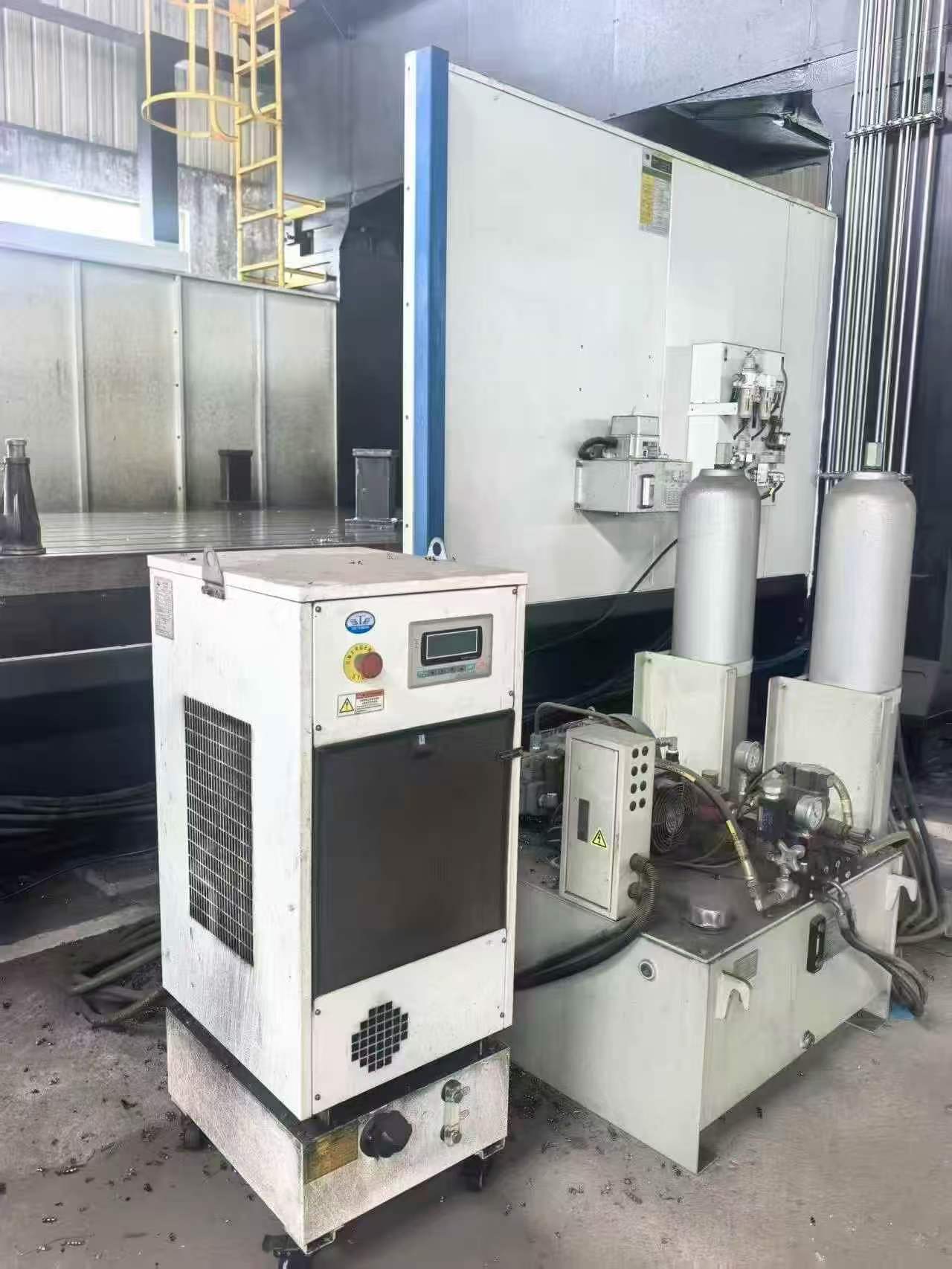

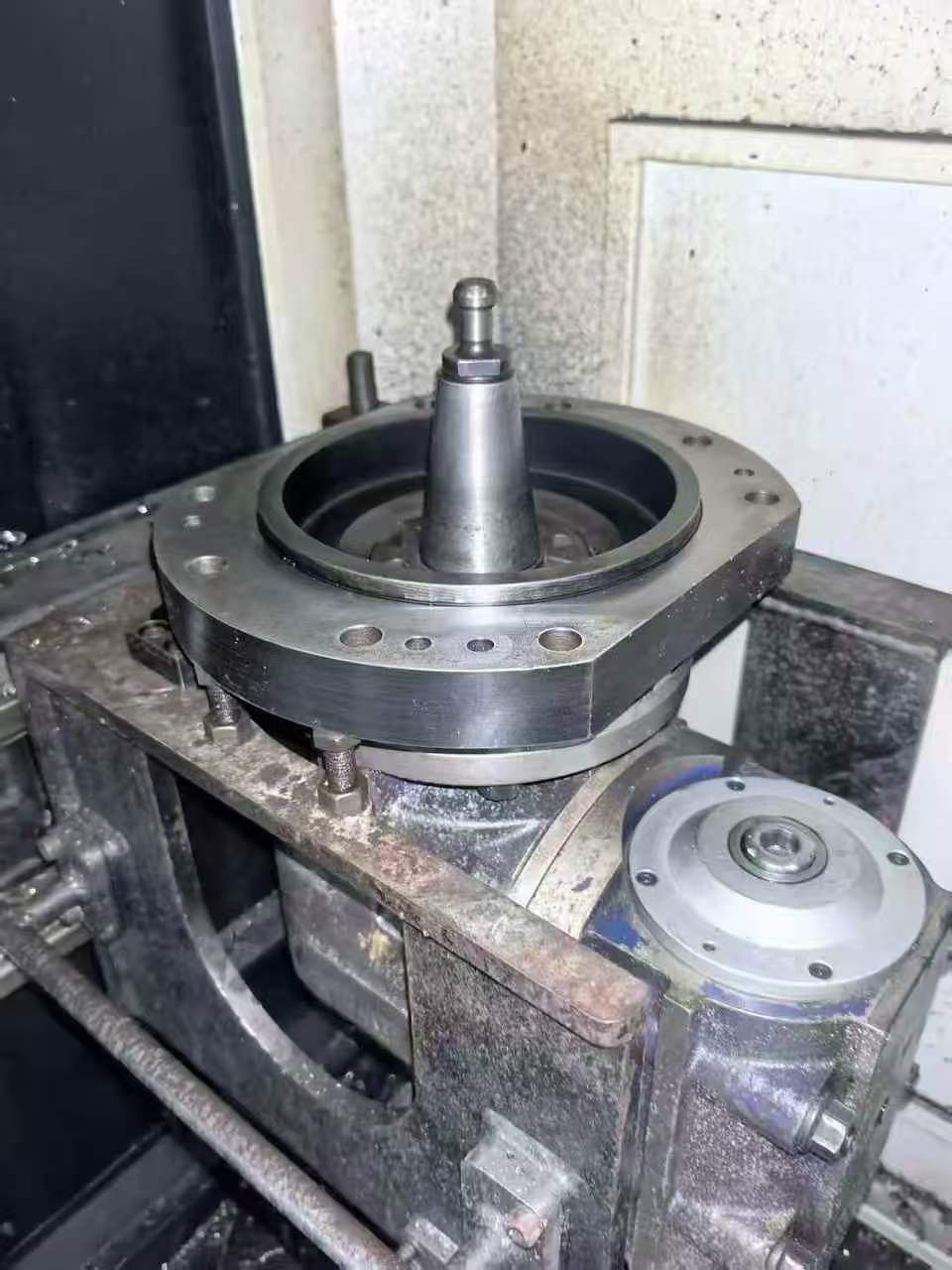

Semi-automatic universal side milling head, oil cooler, hydraulic unit, dual screw and chain chip conveyor, original dual-speed gearbox

Email Inquiry

Main Specifications

Spindle taperBT50
Spindle speed5000 rpm
Spindle motor power26 kW
Worktable size2500 x 5000 mm
Door height1850 mm
Door width3200 mm
X travel5200 mm
Y travel3200 mm
Z travel1250 mm
Guideway typeTwo linear + one box
Machine TypeGantry Milling Machine (Guosheng GMF 5032 R)
Year Of Manufacture2022

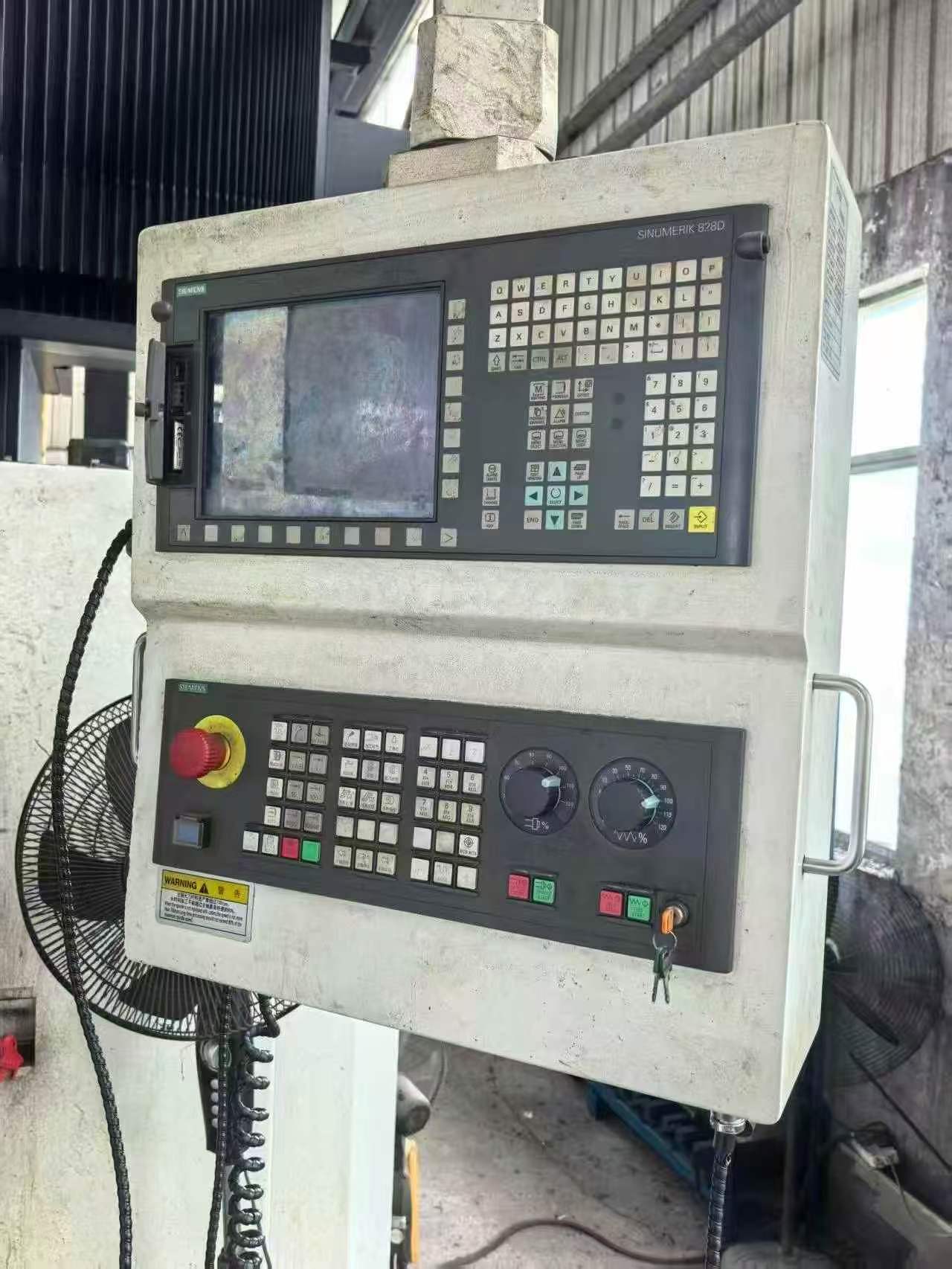

ControllerSiemens 828 D
Guideway ConfigurationTwo linear guideways and one box guideway
Ram TypeSquare ram
Ram Cross-section420 x 420 mm
Oil CoolerIncluded
Hydraulic UnitIncluded
Chip ConveyorDual screw and chain chip conveyor
SpindleBT50, 5000 rpm, geared head
X/Y/Z Travel5200/3200/1250 mm
