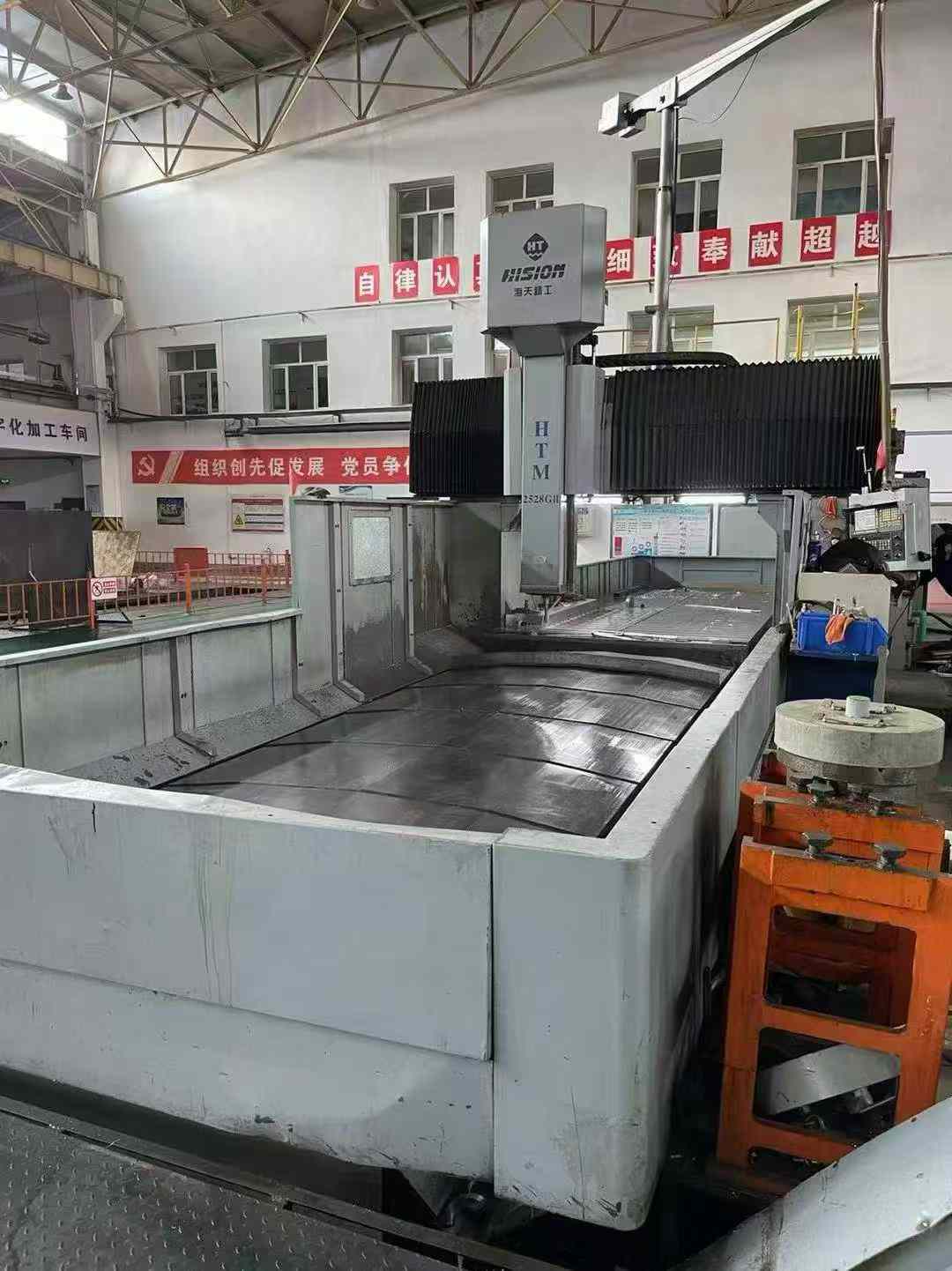

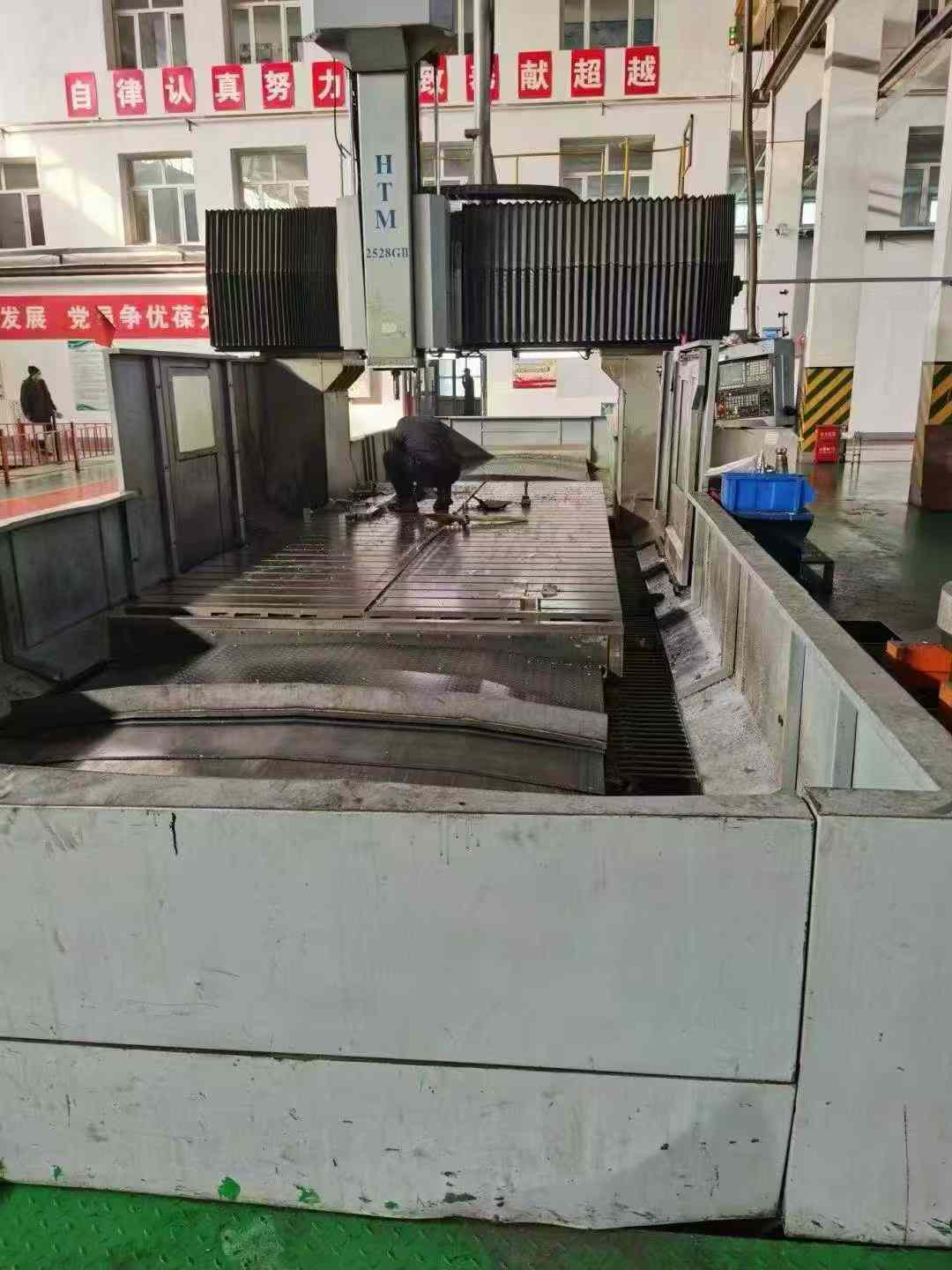

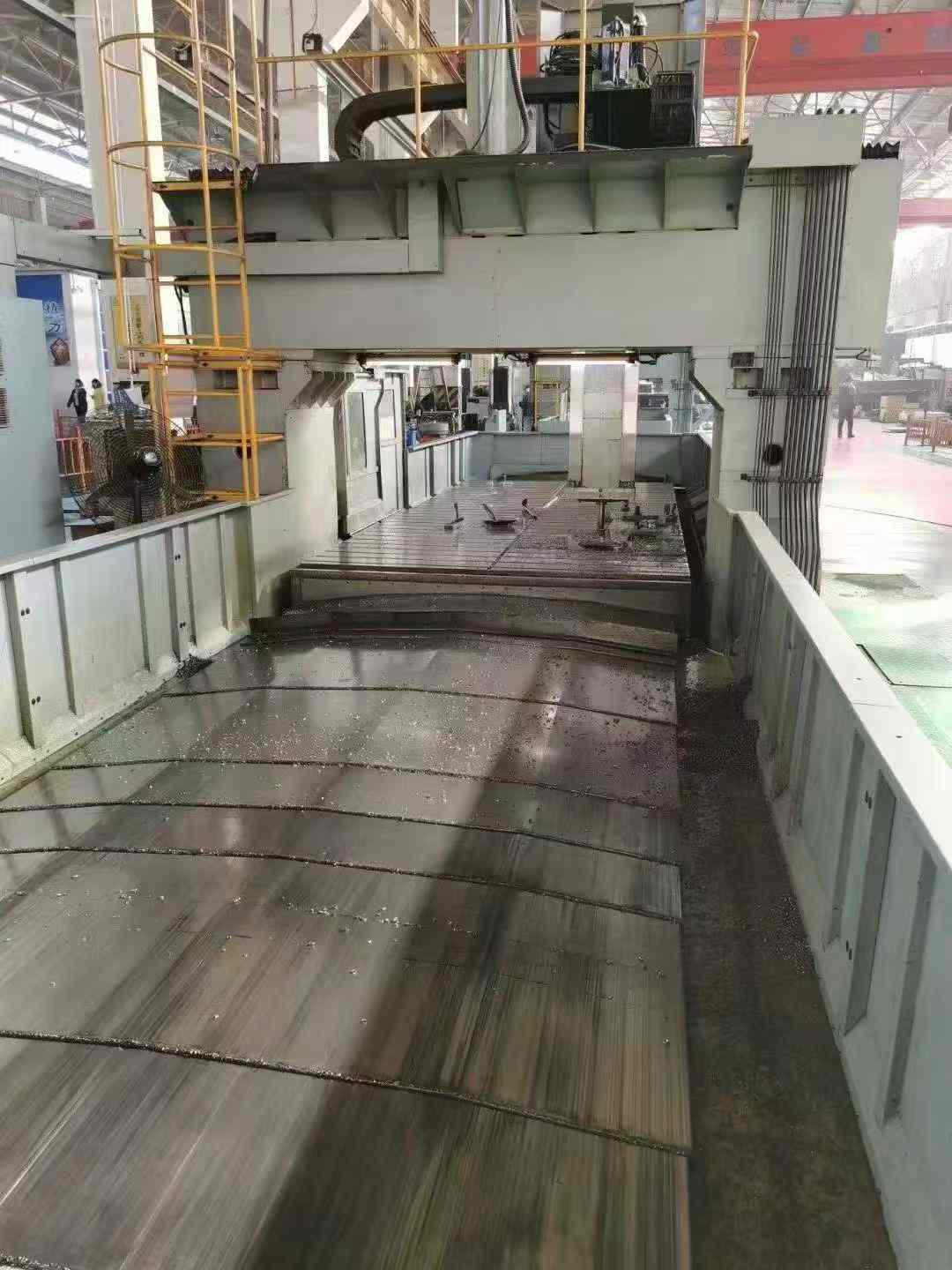

Used Haitian 6228 Gantry Milling Machine with FANUC 31i Control
Used Haitian 6228 gantry milling machine from 2013, equipped with FANUC 31i control. Machine features a 2.5 m x 6 m worktable, BT50 geared spindle head, and semi-automatic milling head. Guideways: two linear guideways and one box guideway. Available for inspection in China.
- Machine Code
- PM260655
- Year
- 2013
- Location
- China
- Usage Hours
- On request
Accessories
Semi-automatic milling head
Contact access
Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.
Loading…

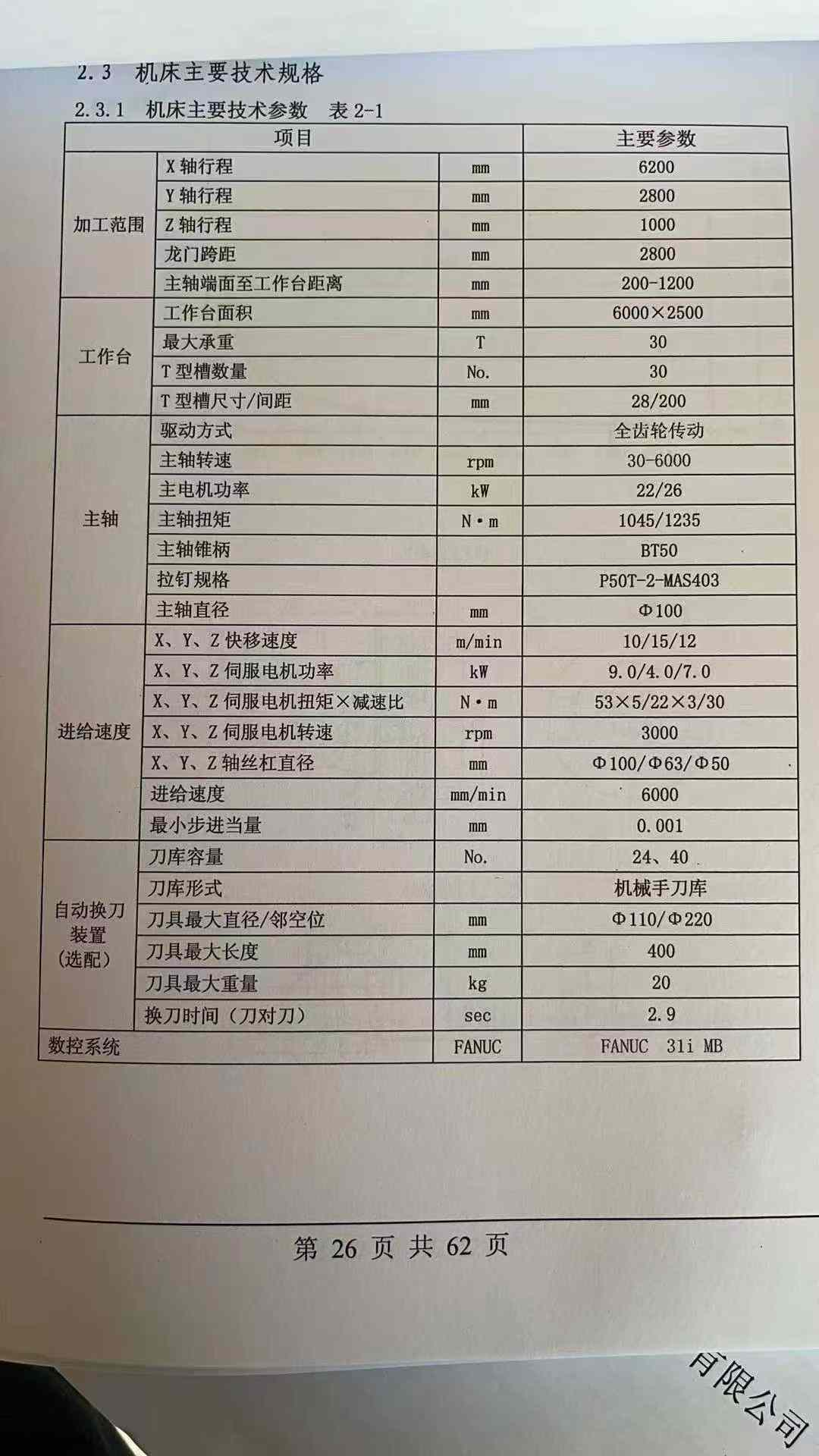

Main Specifications
| Table size | 2500 x 6000 mm |
|---|---|
| Door width | 2800 mm |
| Spindle taper | BT50 |
| X travel | 6200 mm |
| Y travel | 2800 mm |
| Z travel | 1000 mm |
| Guideways | Two linear, one box |

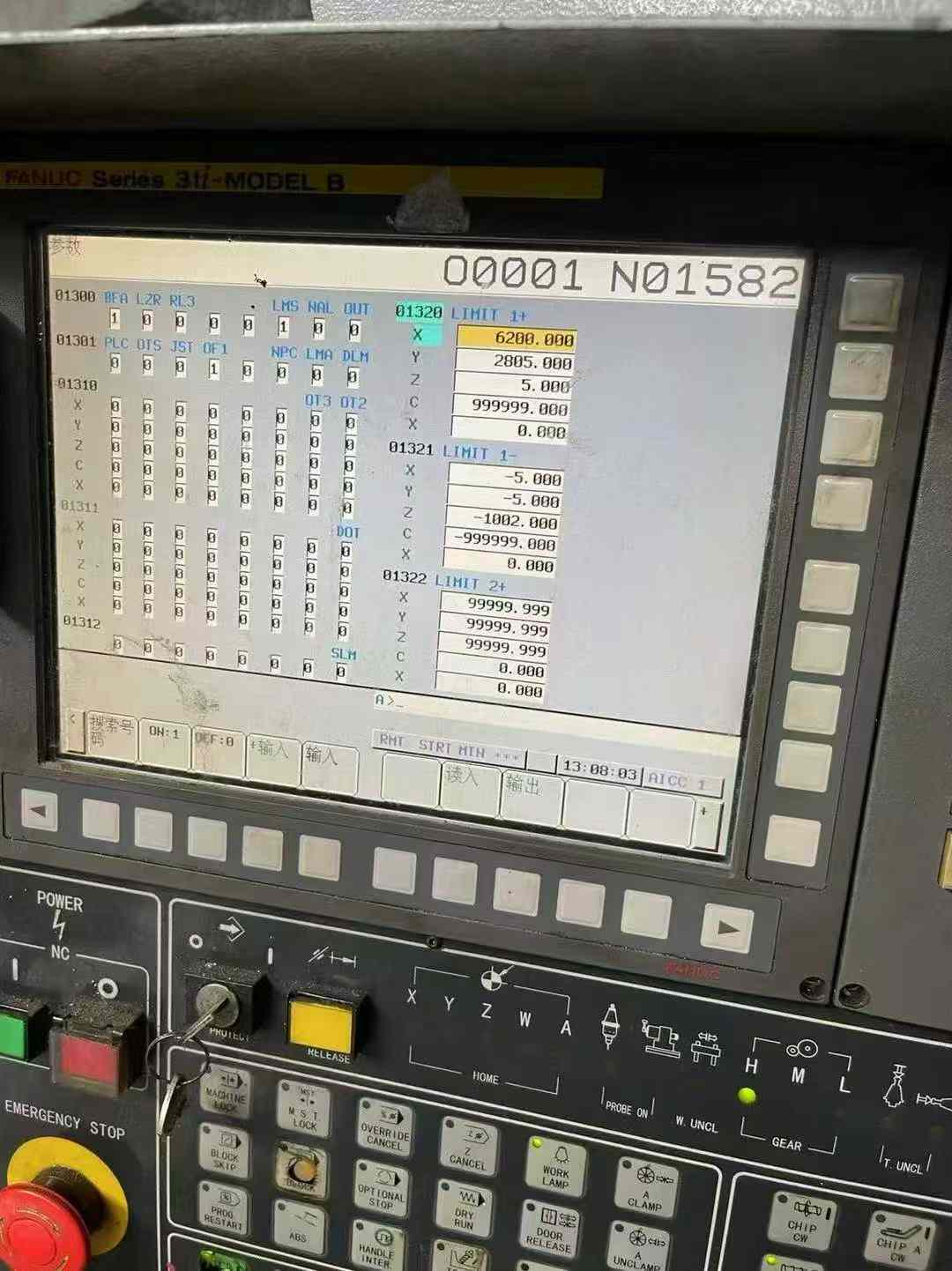

| Control system | Fanuc 31i |
| Year | 2013 |
| Machine Model | Haitian 6228 gantry |
| Guideway Configuration | Two linear guideways and one box guideway |
| Spindle Type | Gear-driven |
| Milling Head | Semi-automatic |
| X/Y/Z Travel | X: 6200 mm, Y: 2800 mm, Z: 1000 mm |
