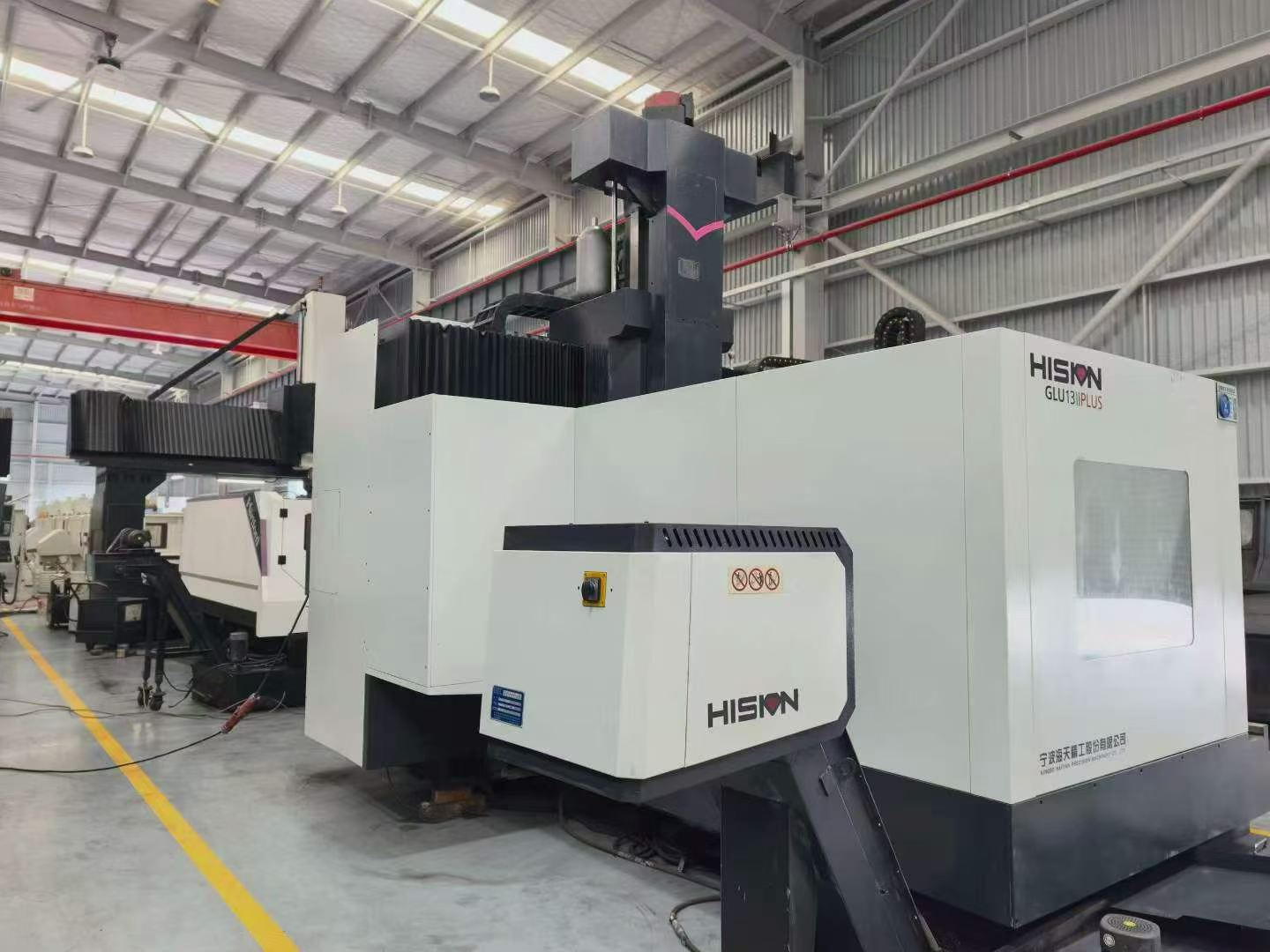

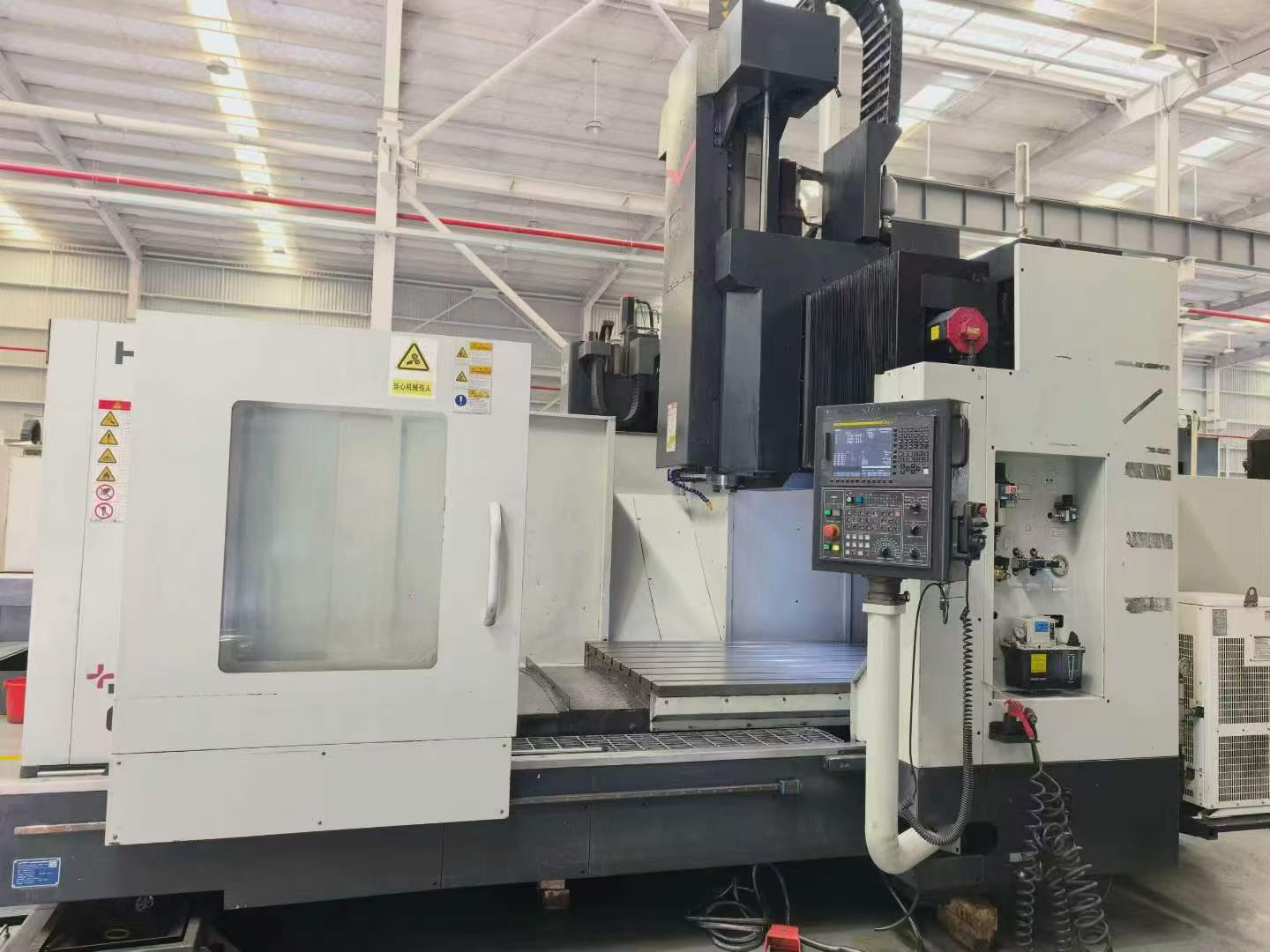

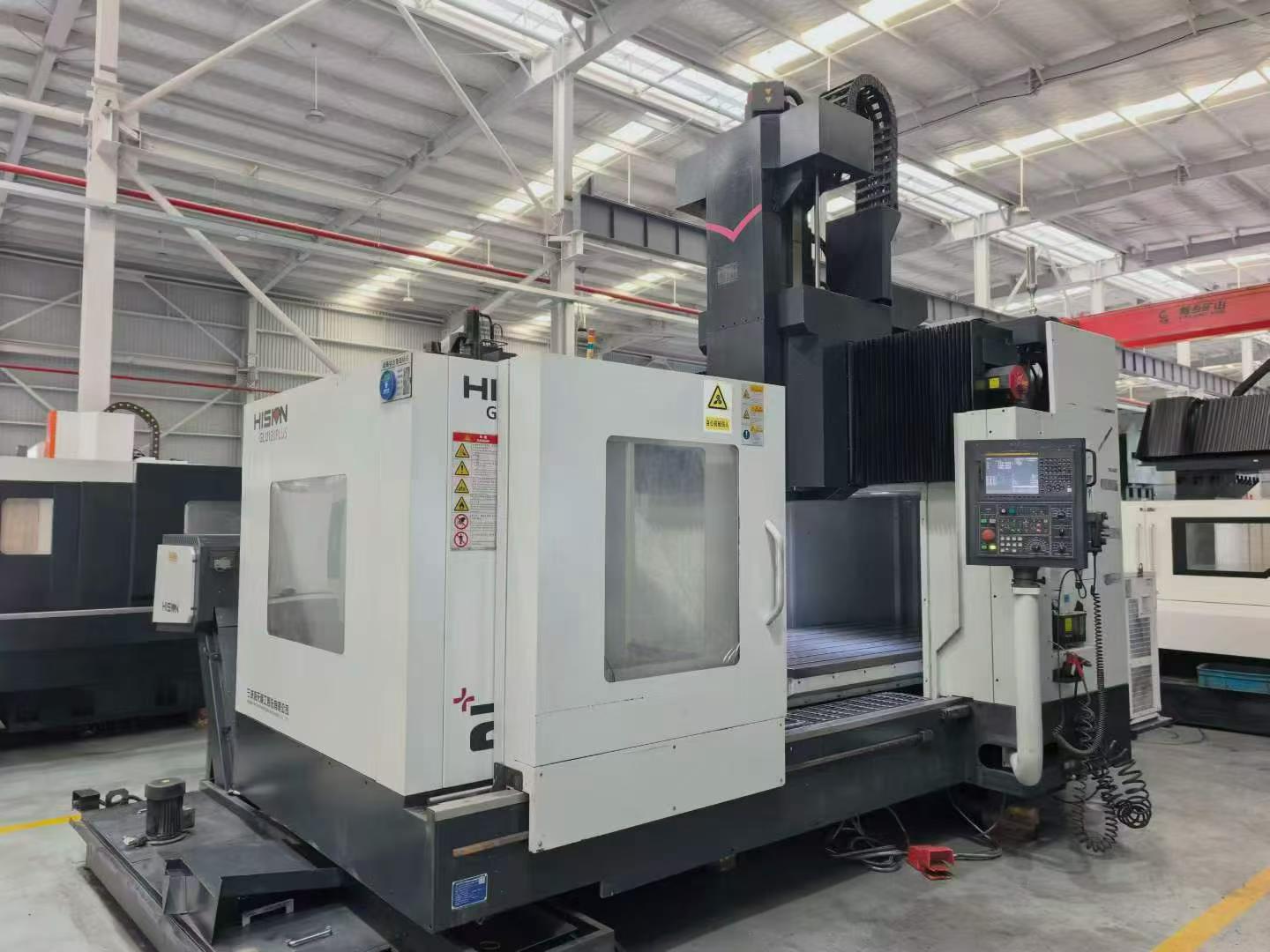

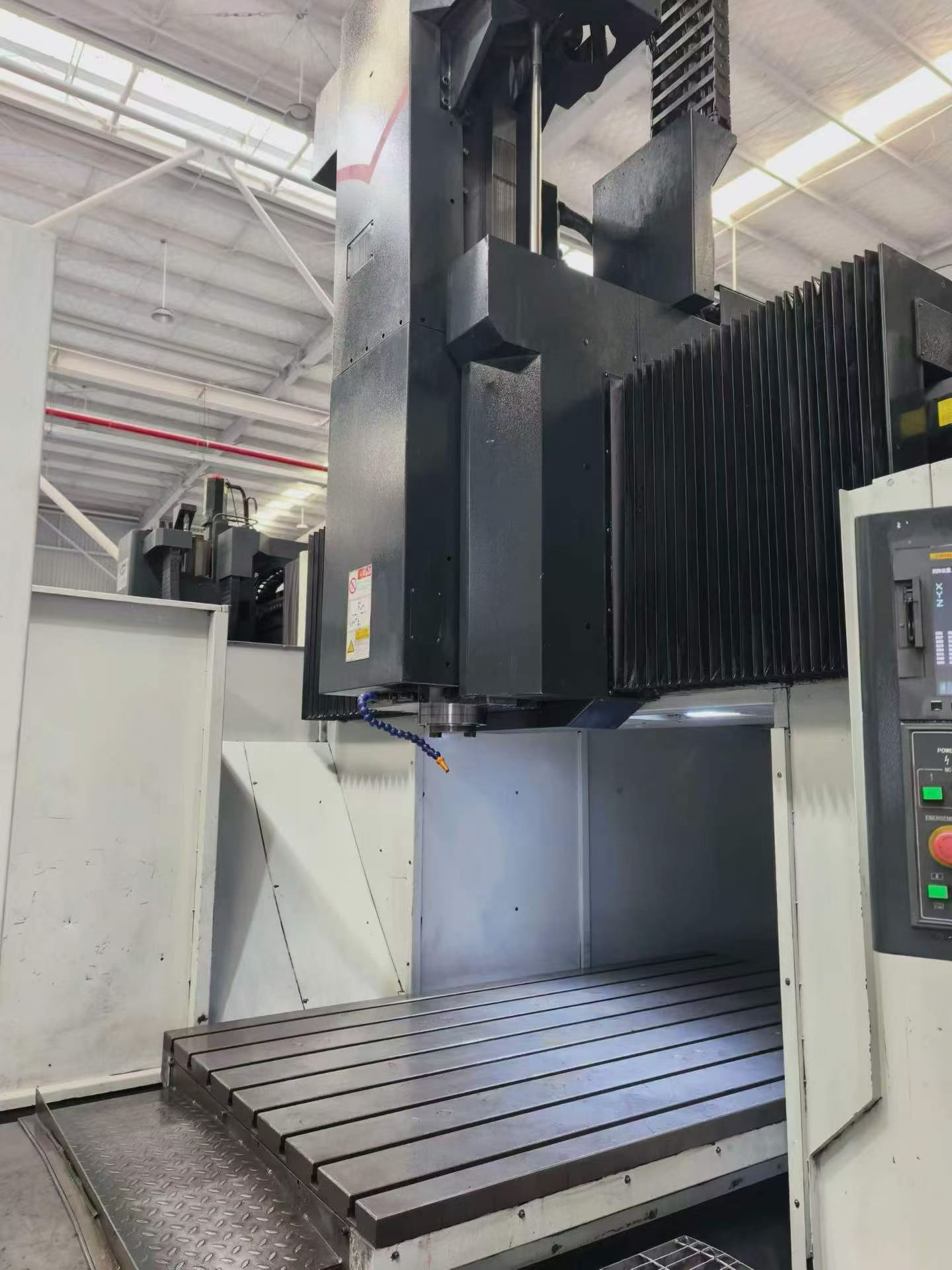

Used Haitian GLU 13ⅡX 21 PLUS Gantry Milling Machine (2022)

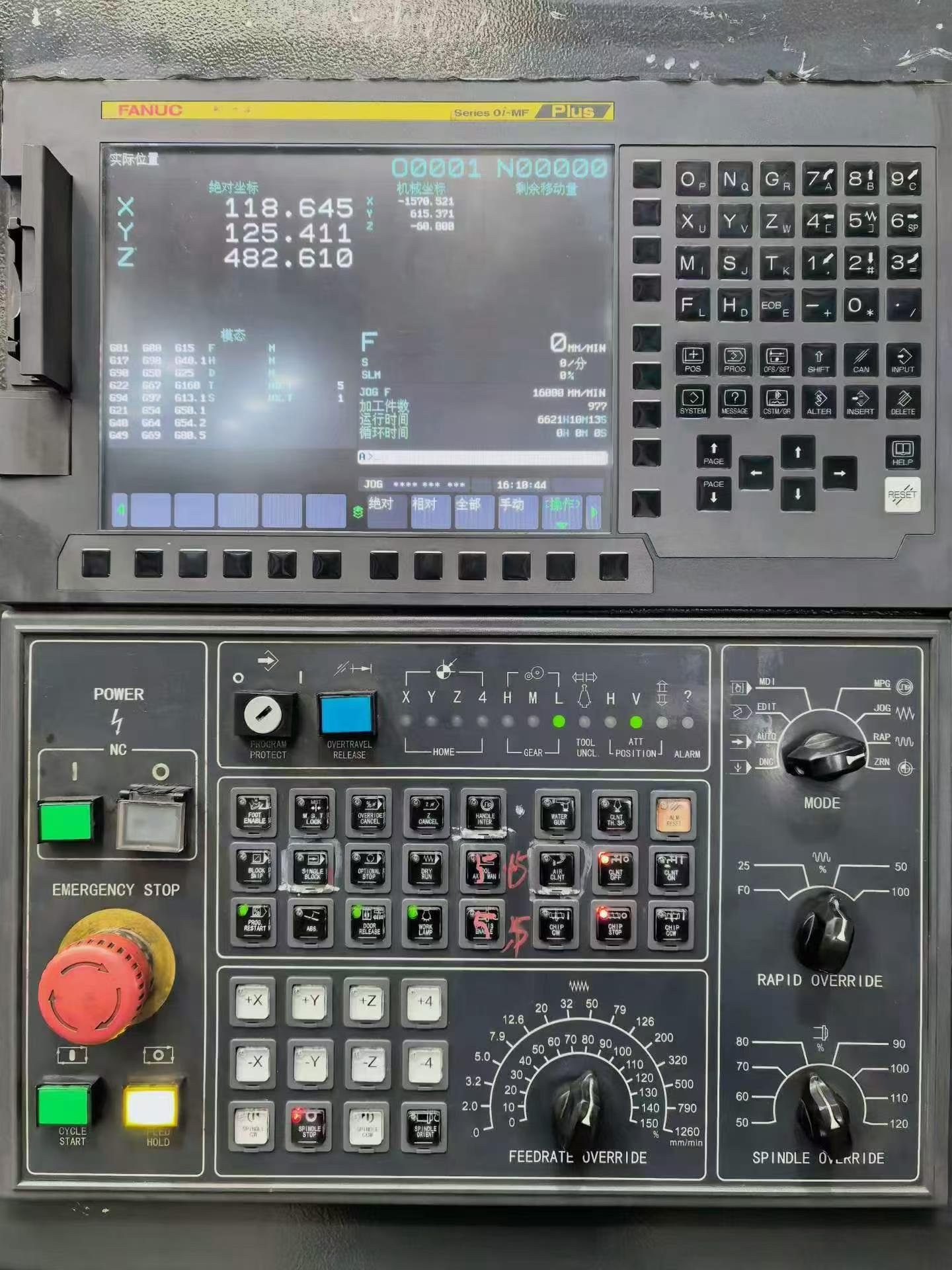

A used Ningbo Haitian GLU 13ⅡX 21 PLUS CNC gantry milling machine (2022) with FANUC 0i-MF Plus control. Features include BT50 gear spindle at 6000 rpm, two linear guideways and one box guideway, working travel 2000 x 1500 x 700 mm, worktable 2200 x 1300 mm, and door height 900 mm, width 1600 mm. Equipped with chain chip conveyor, oil cooler, and nitrogen balance cylinder.
- Machine Code
- PM260731
- Year
- 2022
- Location
- China
- Usage Hours
- On request
Accessories

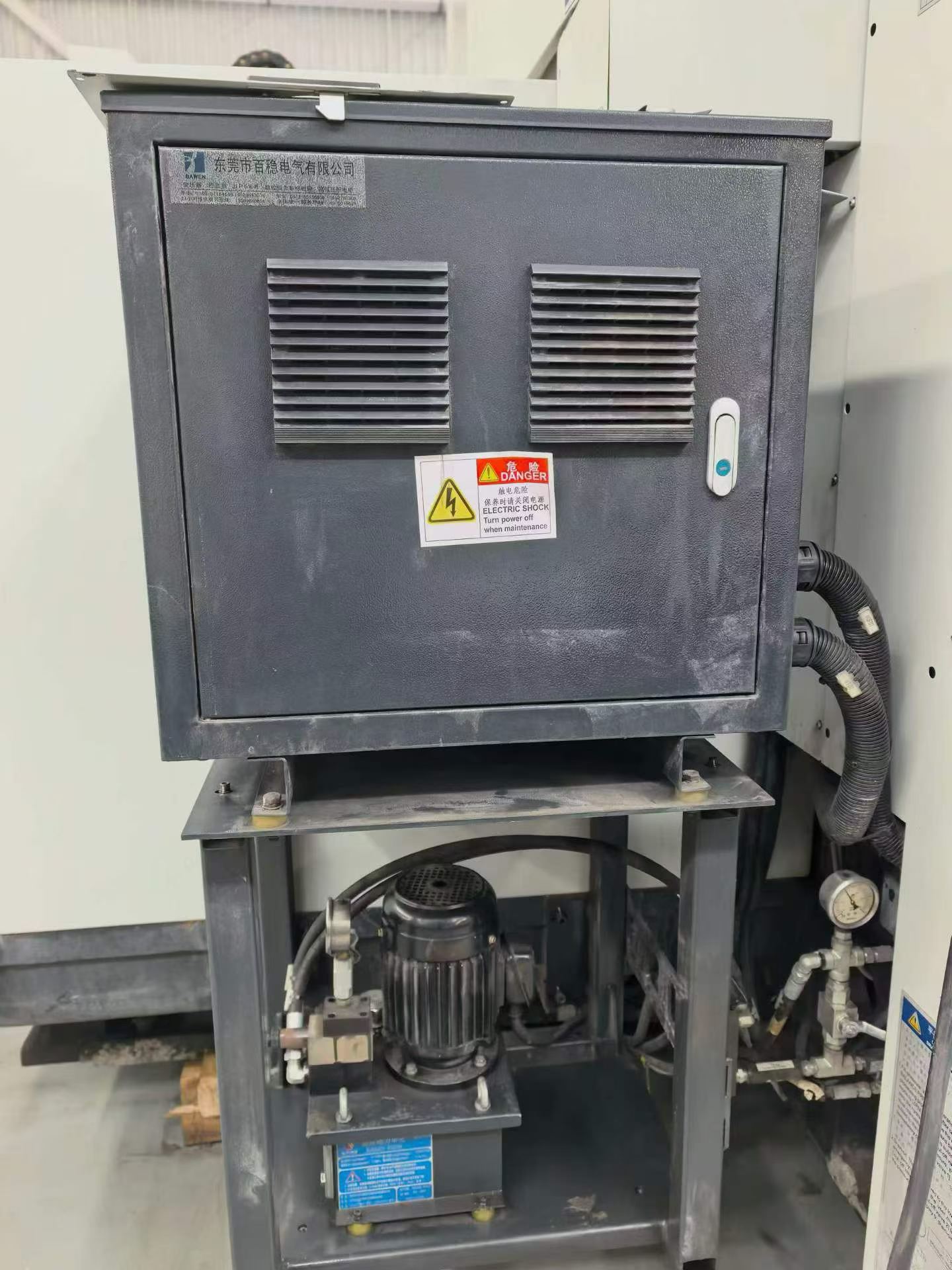

Chain chip conveyor, oil cooler, nitrogen balance cylinder
Contact access
Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.
Loading…
Main Specifications
| Spindle speed | 6000 rpm |
|---|---|
| X/Y/Z travel | 2000 x 1500 x 700 mm |

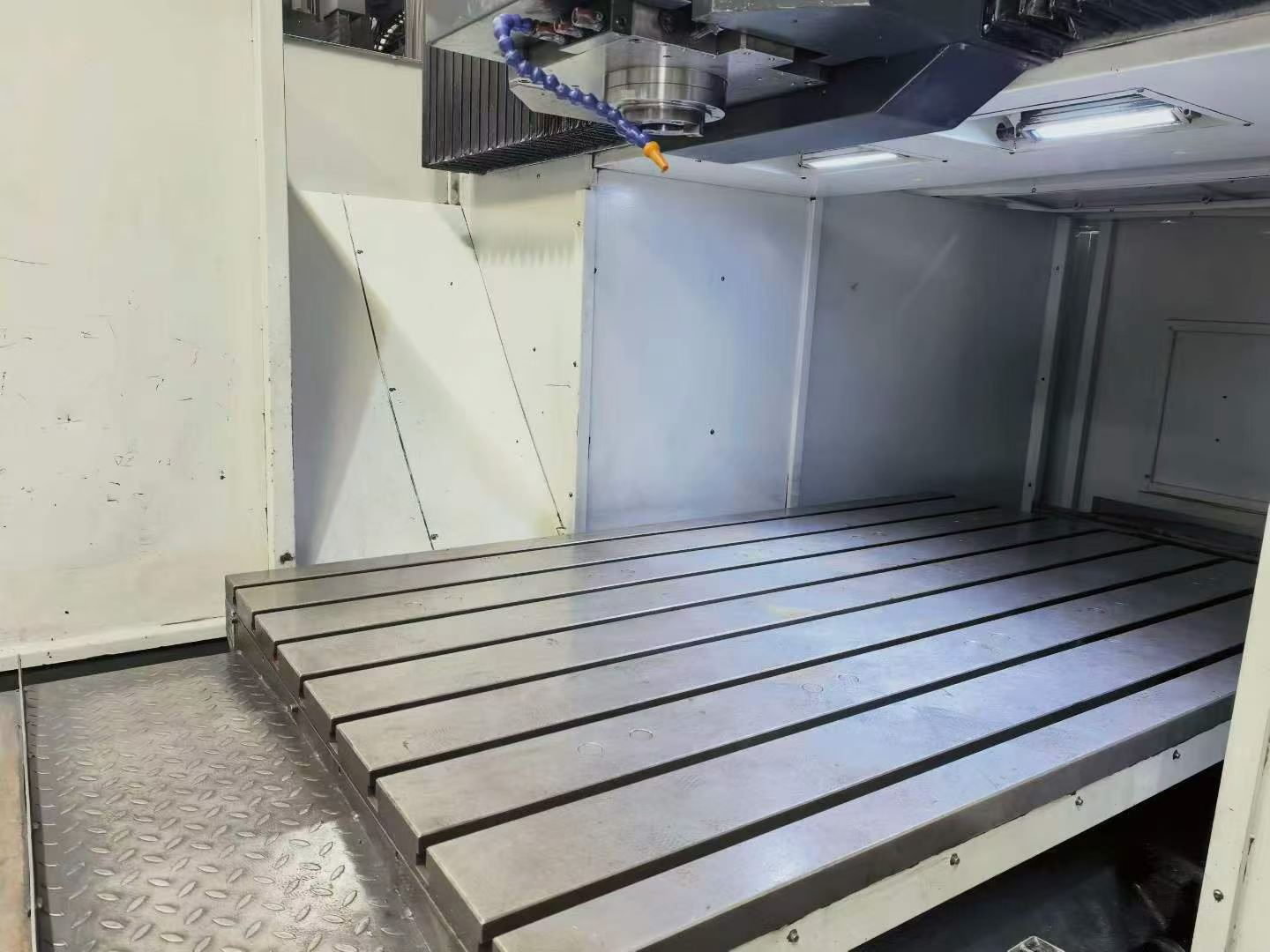

| Worktable size | 2200 x 1300 mm |
| Door height | 900 mm |
| Door width | 1600 mm |
| Spindle nose to table distance | 900 mm |
