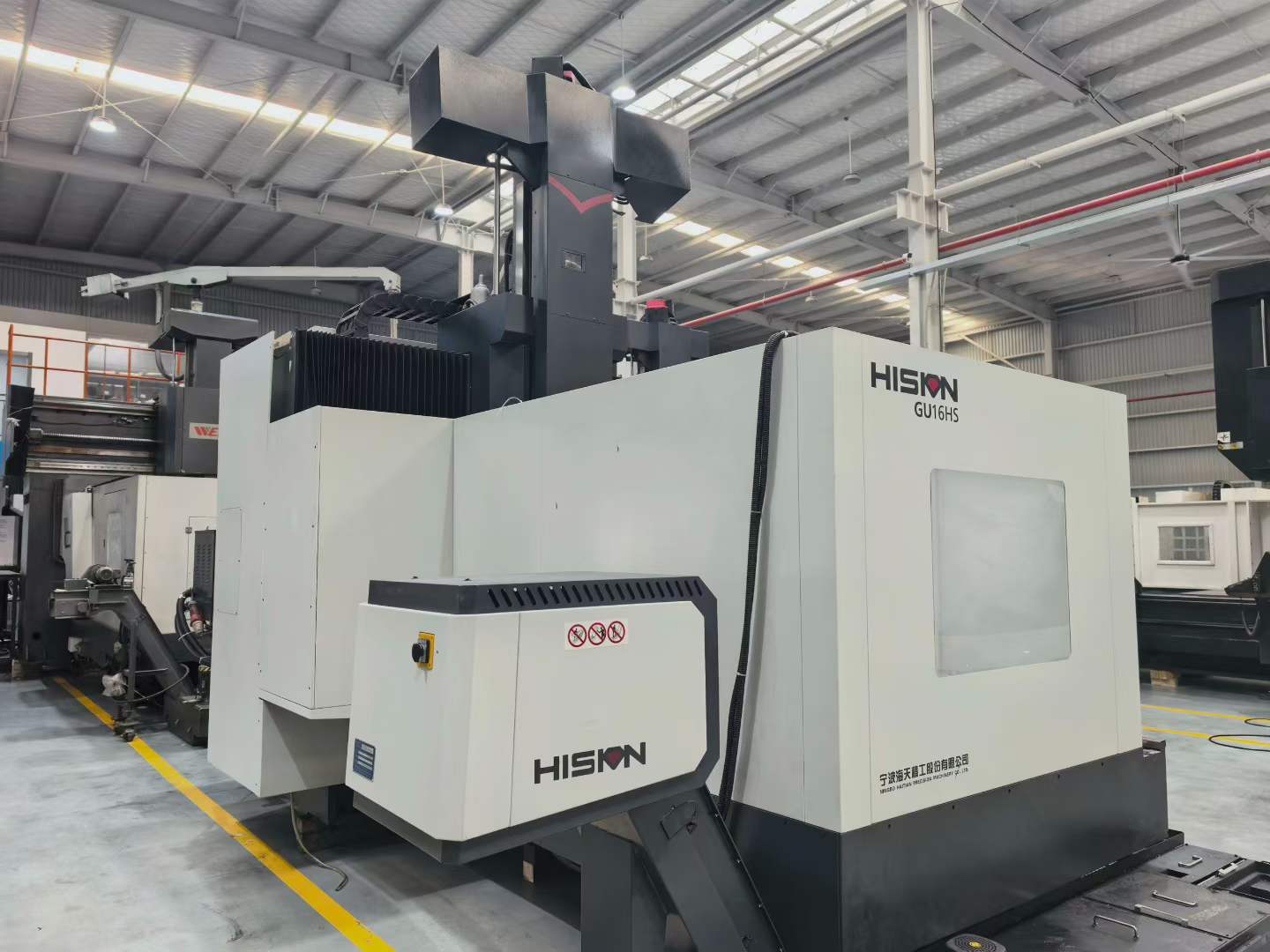

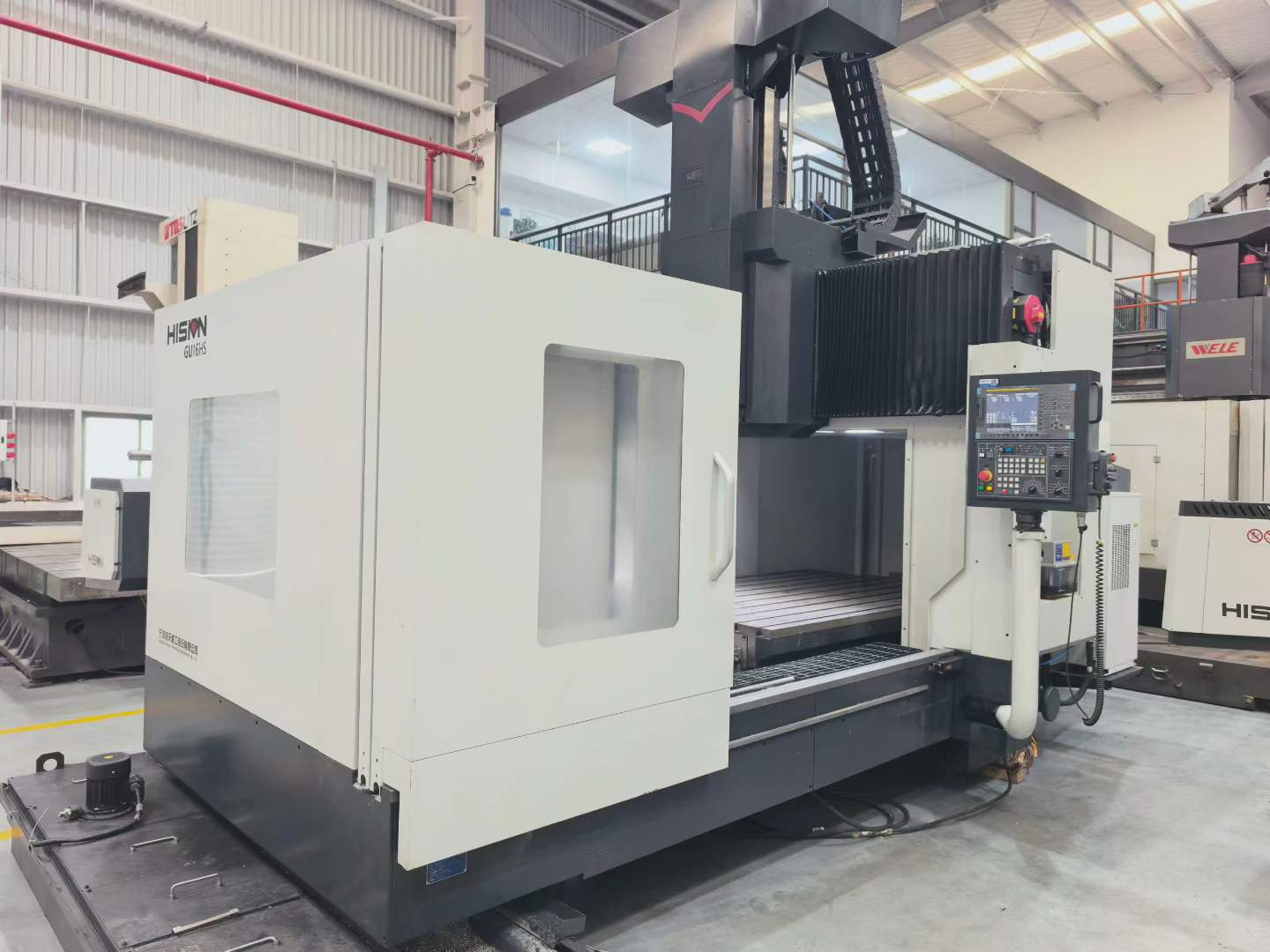

Used Haitian GU 16 X 20 HS CNC Gantry Machining Center with Fanuc

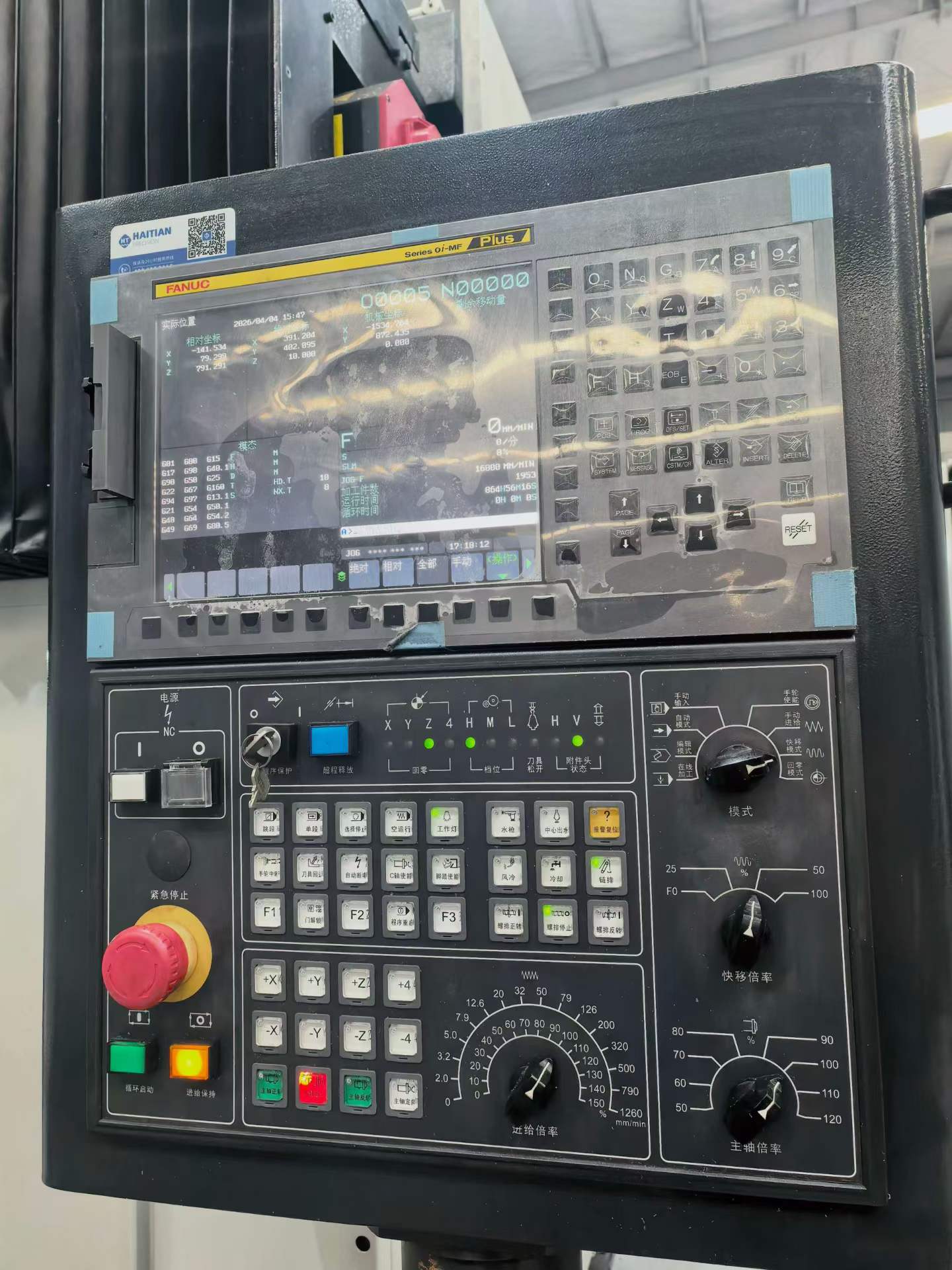

Near-new 2024 installed, lightly used Ningbo Haitian GU 16 X 20 HS CNC gantry machine, only about 1000 hours. Brand: Haitian GU 16 X 20 HS. System: FANUC 0i-MF Plus. BT50 tool holder gear drive 6000 rpm. Worktable size: 2200 x 1400 mm. Two linear guideways and one box guideway. X/Y/Z travel: 2000 x 1600 x 800 mm. Door height 950 mm, door width 1620 mm. Spindle nose to table distance: 950 mm. With hinged belt chip conveyor and oil cooler.

Machine Code: MC260763
Year: 2024
Location: Ningbo, China
Usage Hours: On request

Accessories

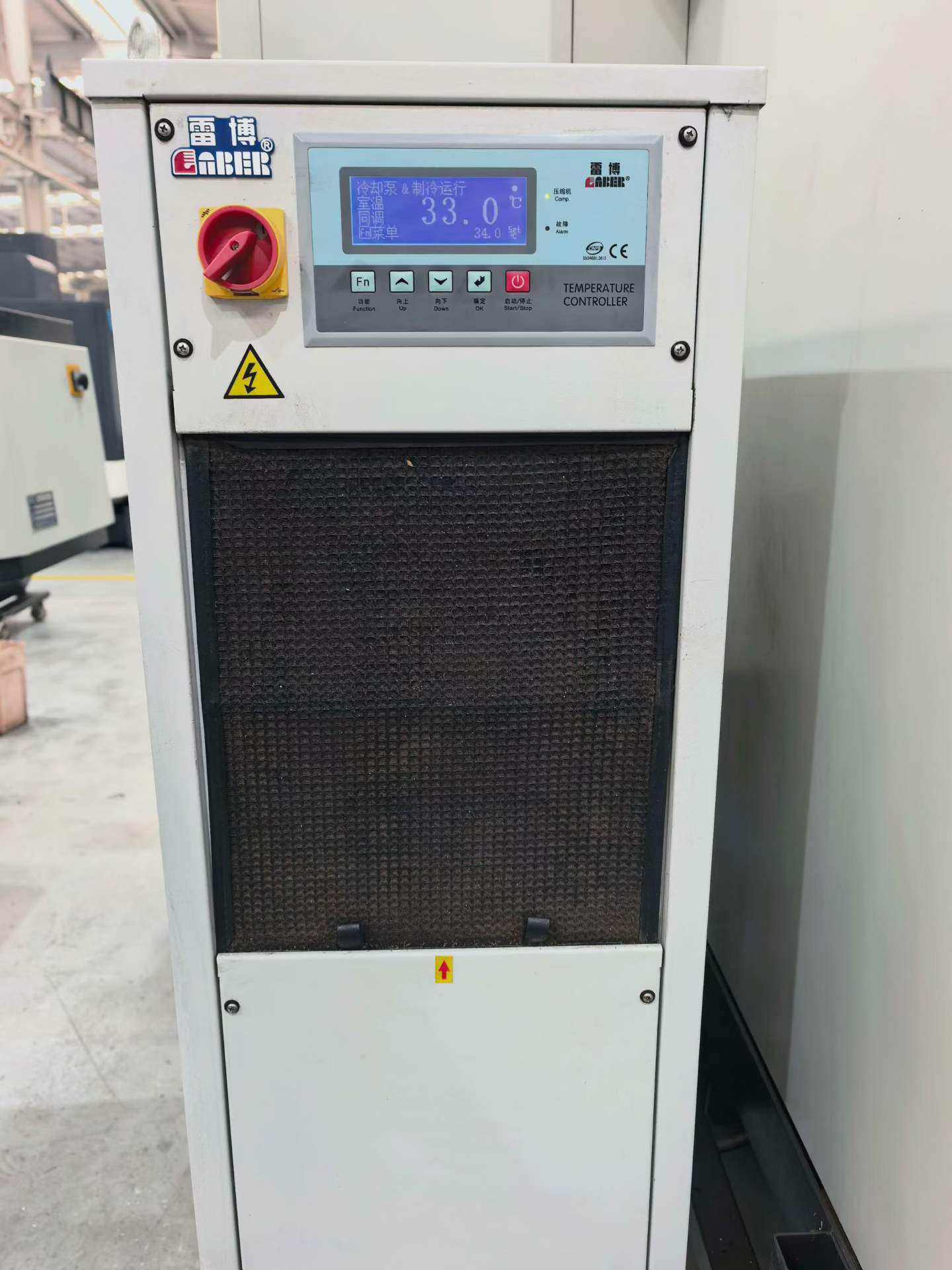

Hinged belt chip conveyor, oil cooler

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Spindle speed	6000 rpm
X/Y/Z travel	2000 x 1600 x 800 mm

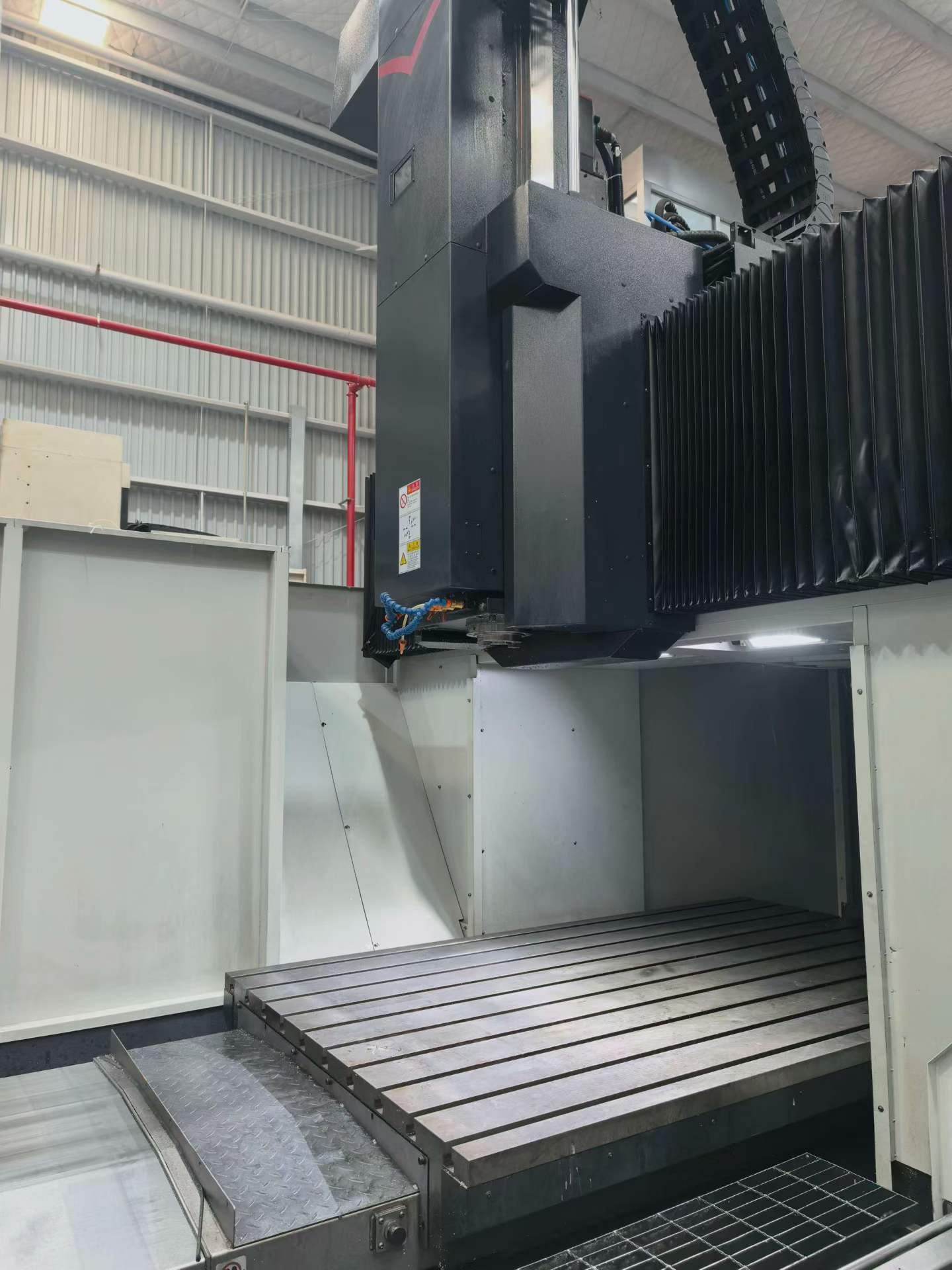

Worktable size	2200 x 1400 mm
Spindle nose to table distance	950 mm
Door height	950 mm
Door width	1620 mm
Guideway	Two linear guideways and one box guideway
