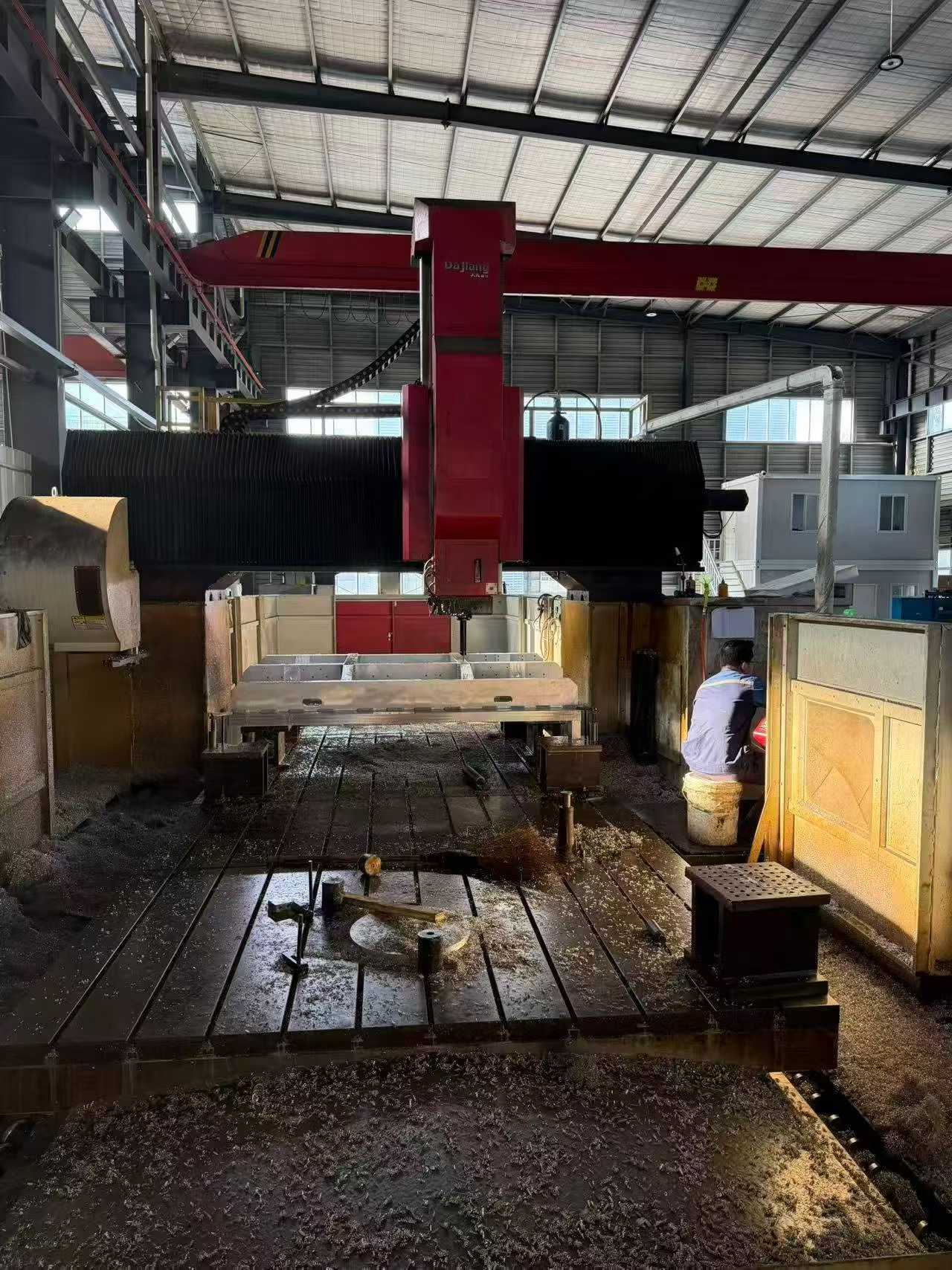

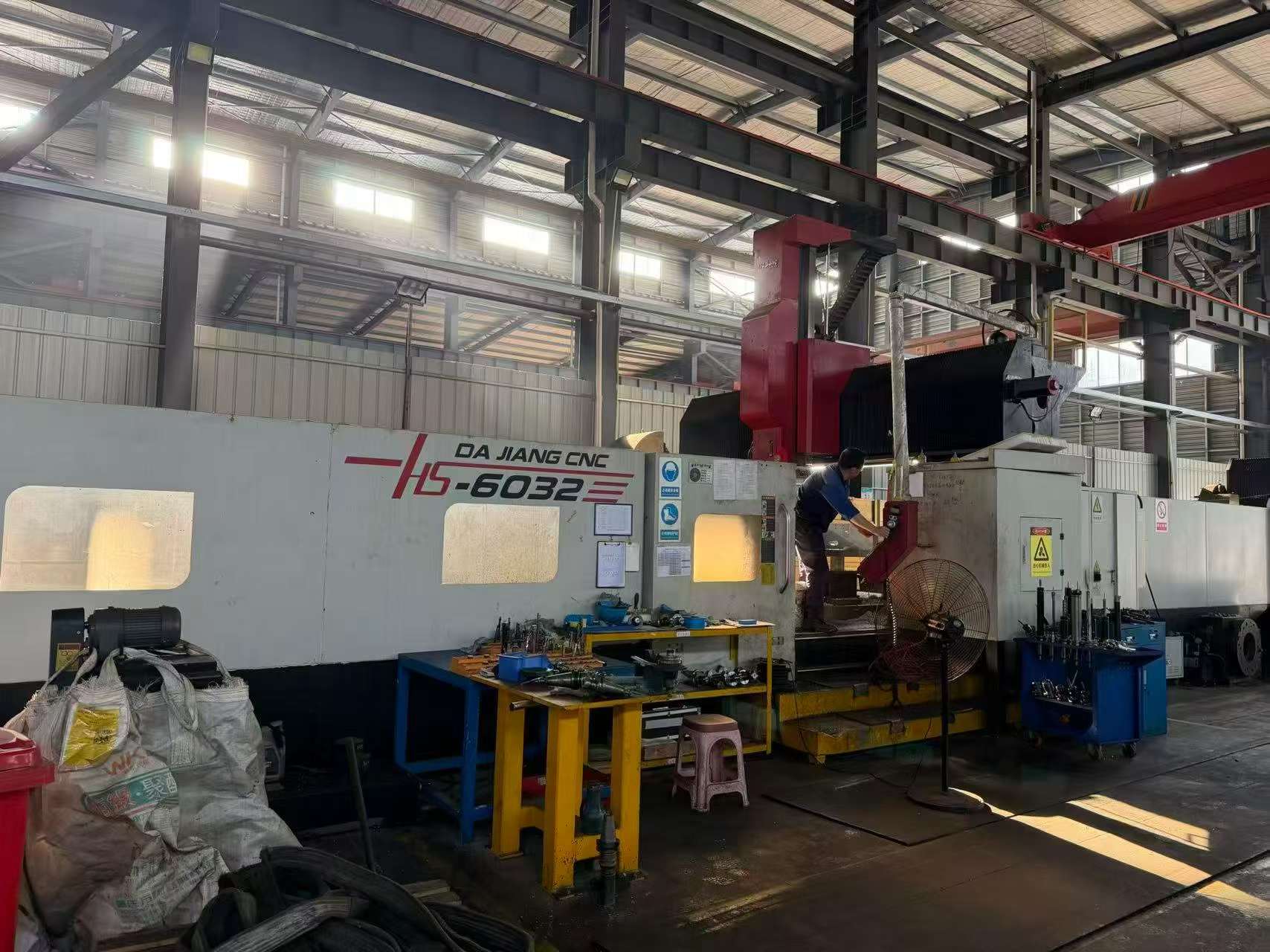

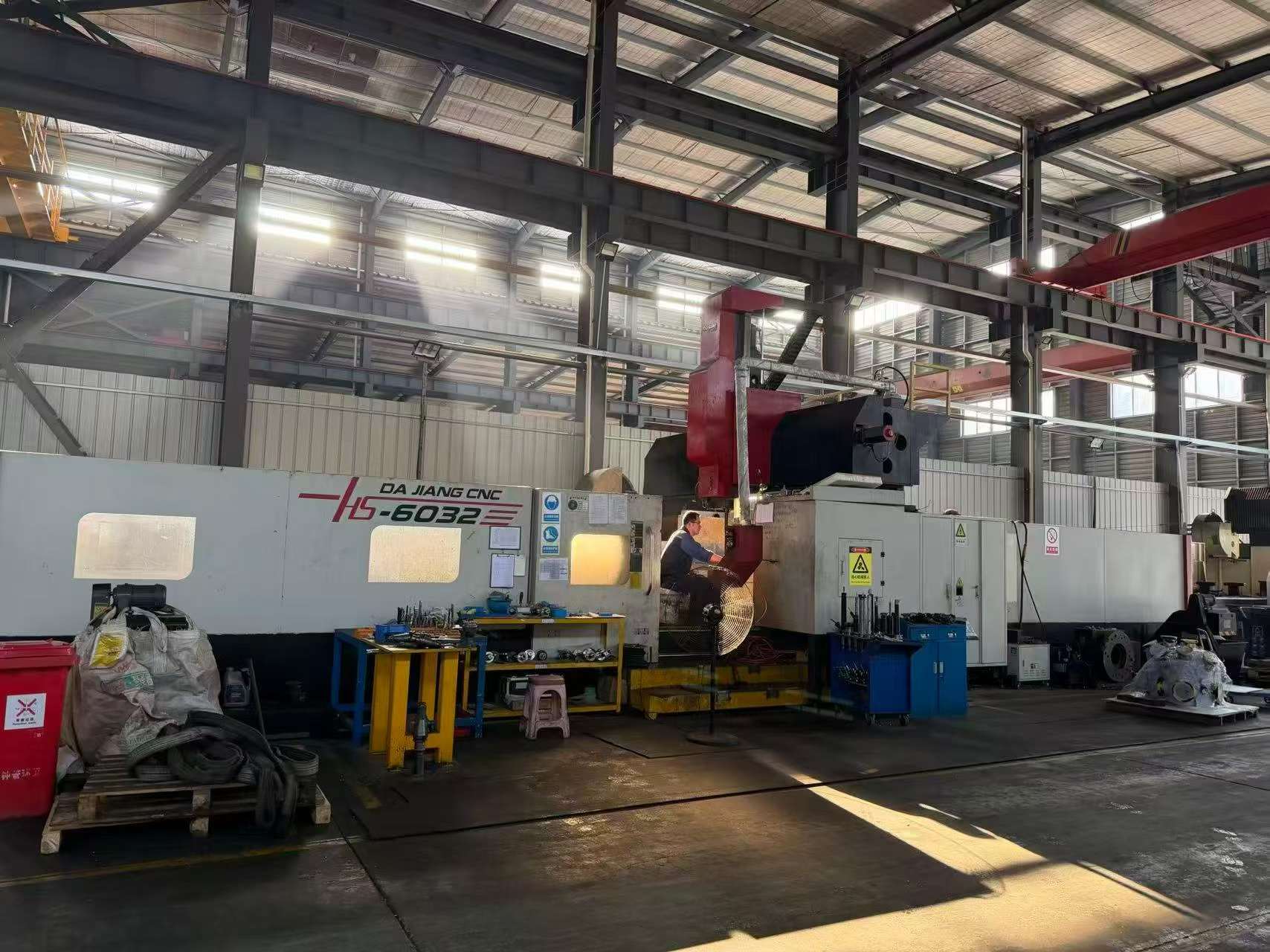

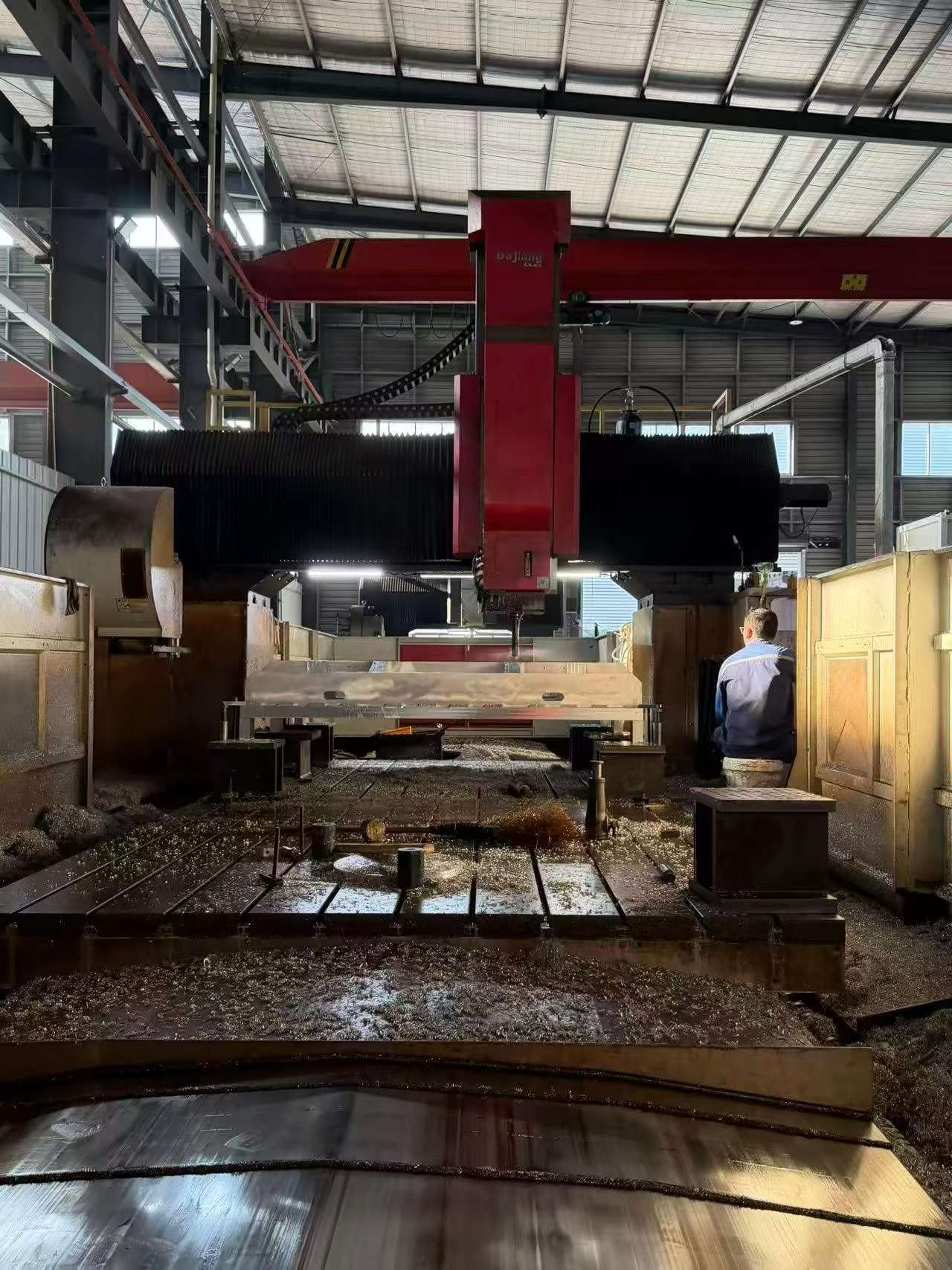

Used Hangzhou Dajiang 6032 5-Sided Gantry Machining Center with Fanuc

Used Hangzhou Dajiang 6032 5-Sided Gantry Machining Center with FANUC MF Plus control system, available from stock in Huzhou, Zhejiang, China. The machine is currently under power and can be inspected.

Machine Code: MC2606119
Year: On request
Location: Huzhou, Zhejiang, China
Usage Hours: On request

Accessories

Automatic milling head, dual screw and chain chip conveyor

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Worktable size	6000 x 2500 mm
X/Y/Z travel	6000/3200/1100 mm
Closed height	1550 mm
Gantry width	3200 mm
Spindle to table distance	250-1450 mm
Spindle taper	BT50
Tool magazine capacity	24
Guideway type	Two linear guideways + one box guideway
Machine Type	Five-sided gantry machining center (Hangzhou Dajiang 6032)
Guideway Configuration	X/Y linear guideways + Z box guideway
Spindle	BT50, full gear head
Tool Magazine	24-station mechanical tool magazine

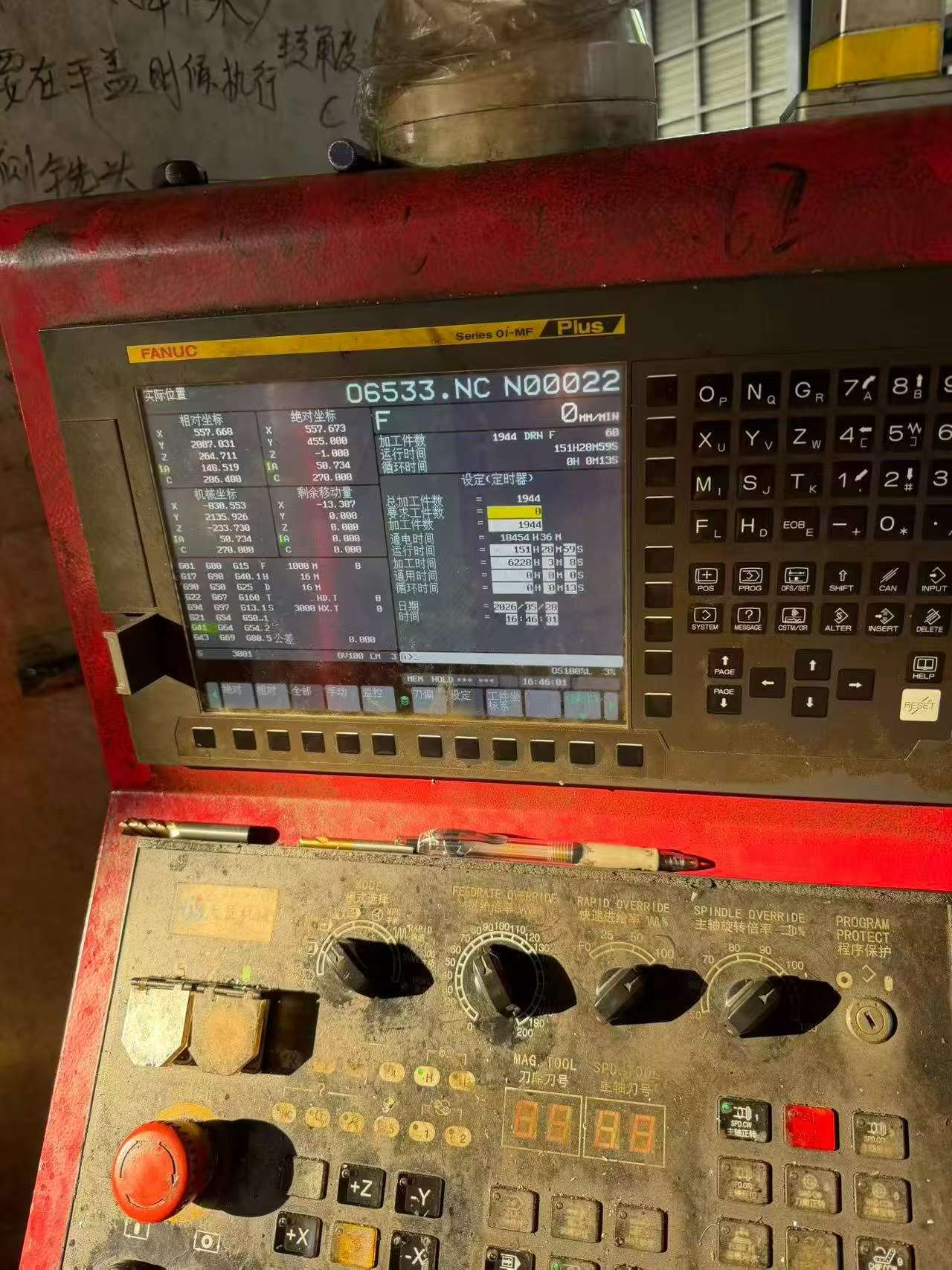

Controller	FANUC MF Plus

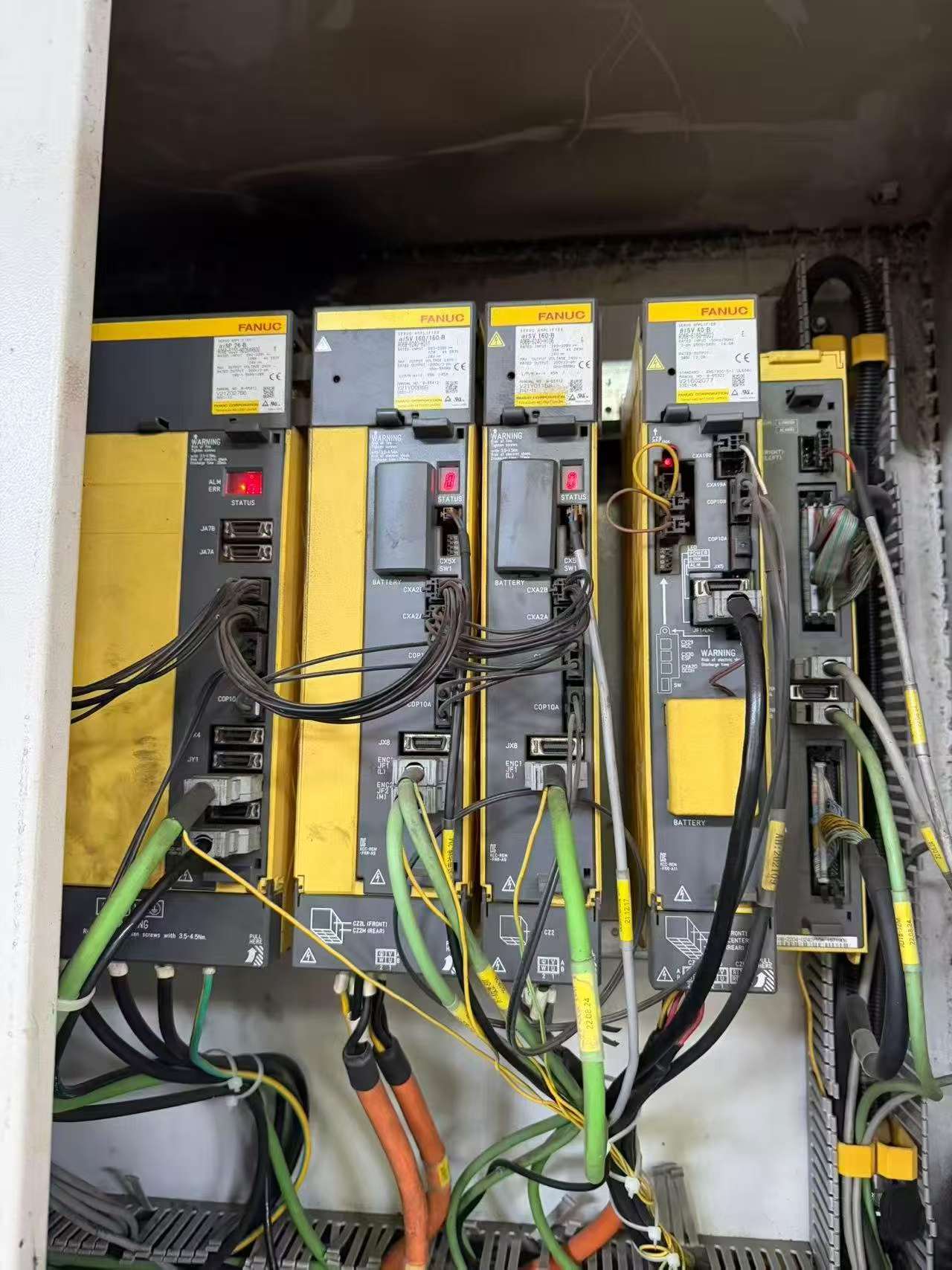

Drive System	Separate drives (distributed)
Software Options	High-speed high-precision mold package enabled

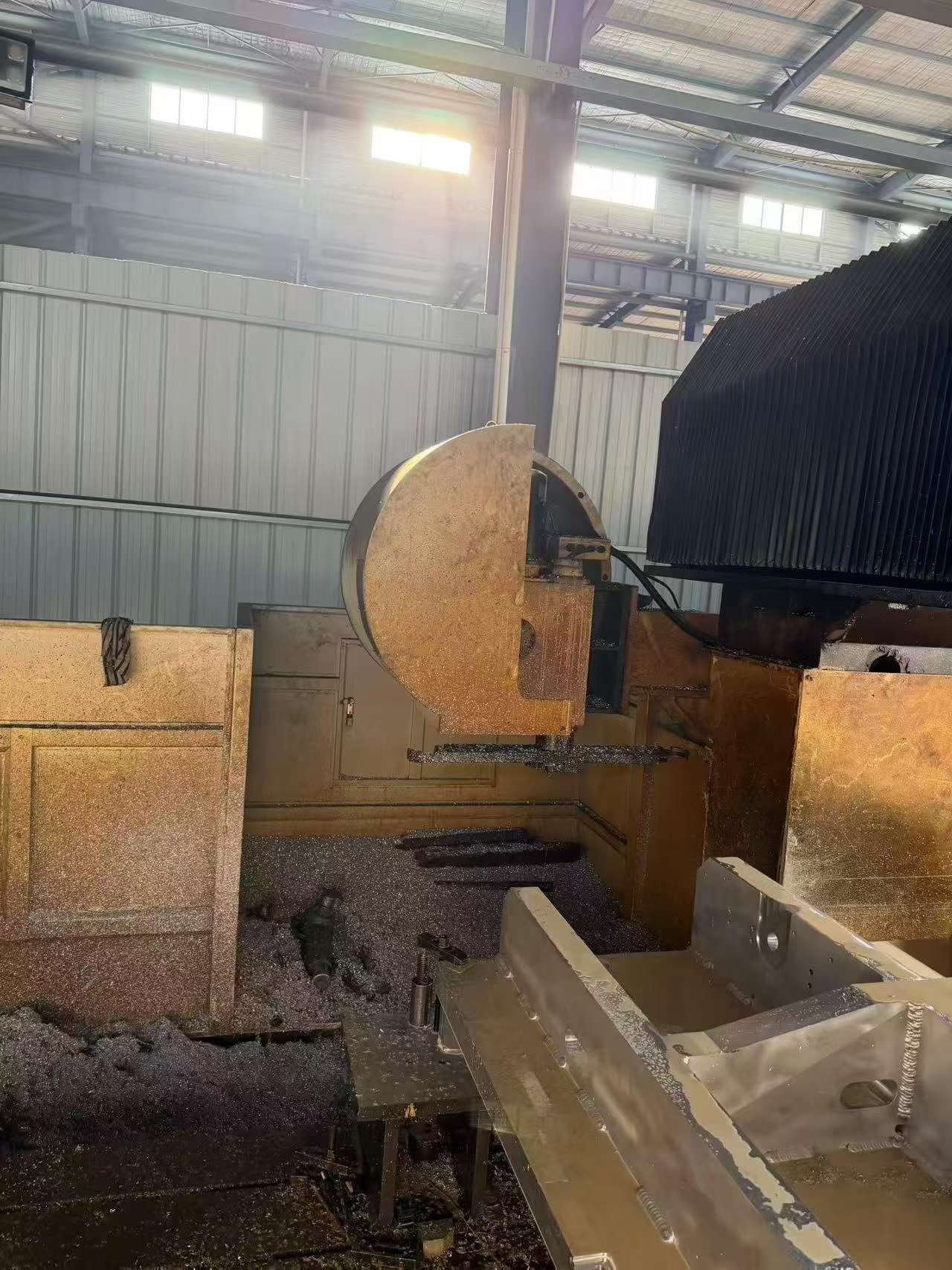

Attachment	Automatic milling head
Worktable Guideways	Three 55 heavy roller linear guideways
Y-axis Guideway	65 heavy roller linear guideway
Chip Conveyor	Dual screw and chain chip conveyor
