AvailableVertical Machining Center

Used Hite HVC-850 F 5 5-Axis Machining Center with FANUC 0i-MF Plus for Sale

In stock and available for sale. This Hite HVC-850 F 5 5-axis machining center features a FANUC 0i-MF Plus control, BT40 belt-driven spindle at 8000 rpm, 24-tool arm-type ATC, and a 3+2 five-axis configuration with Taiwan Tanjia 255 CL rotary table. It is equipped with 45 mm roller linear guideways. Accuracy inspection results: spindle runout 0.006 mm, front generatrix 0.02 mm, side generatrix 0.01 mm, three-axis repeatability 0.003 mm. Machine was manufactured in 2023 and has seen little use.

Machine Code
VMC2608116
Year
2023
Location
China
Usage Hours
On request
Email Inquiry

Main Specifications

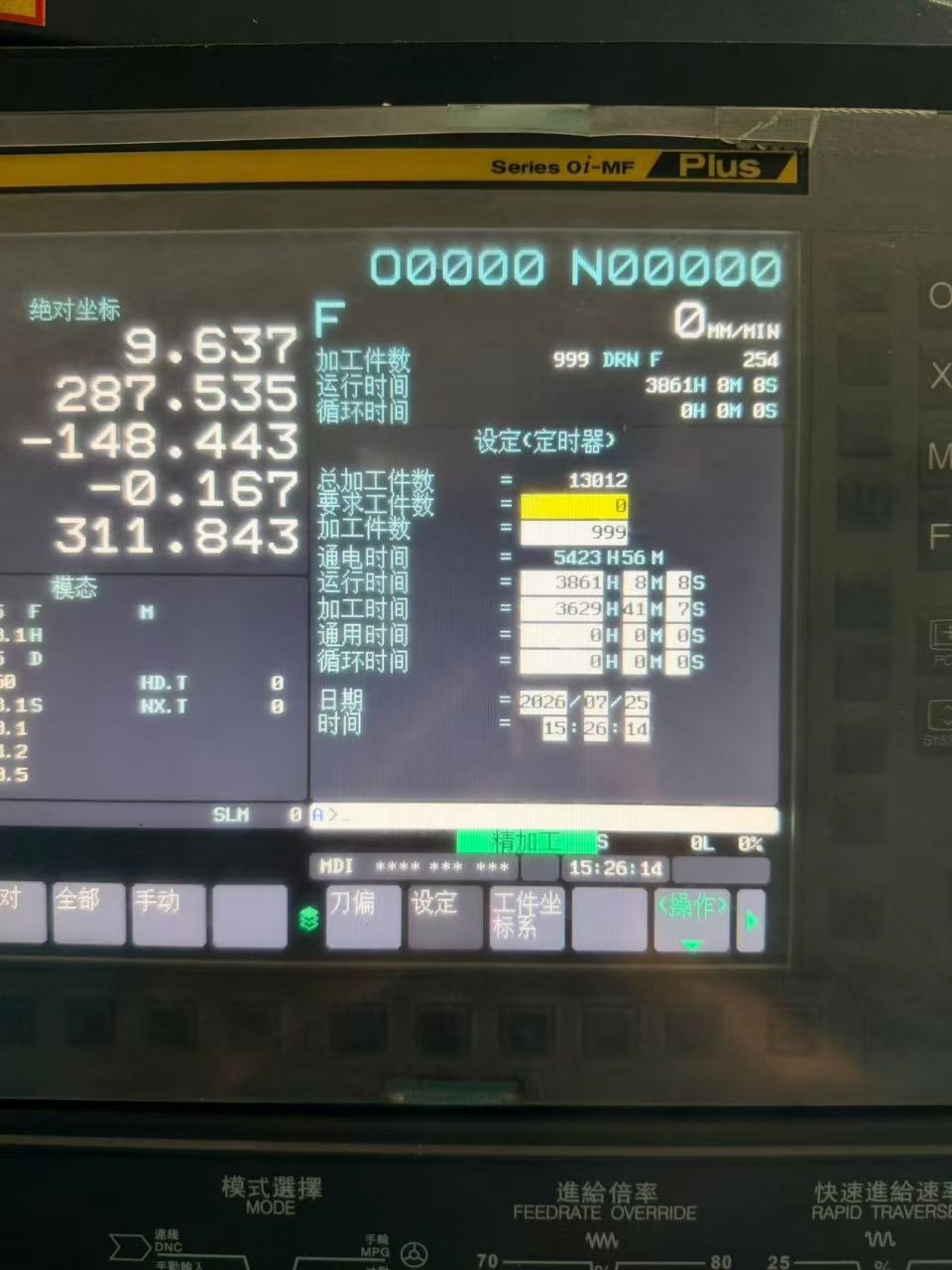

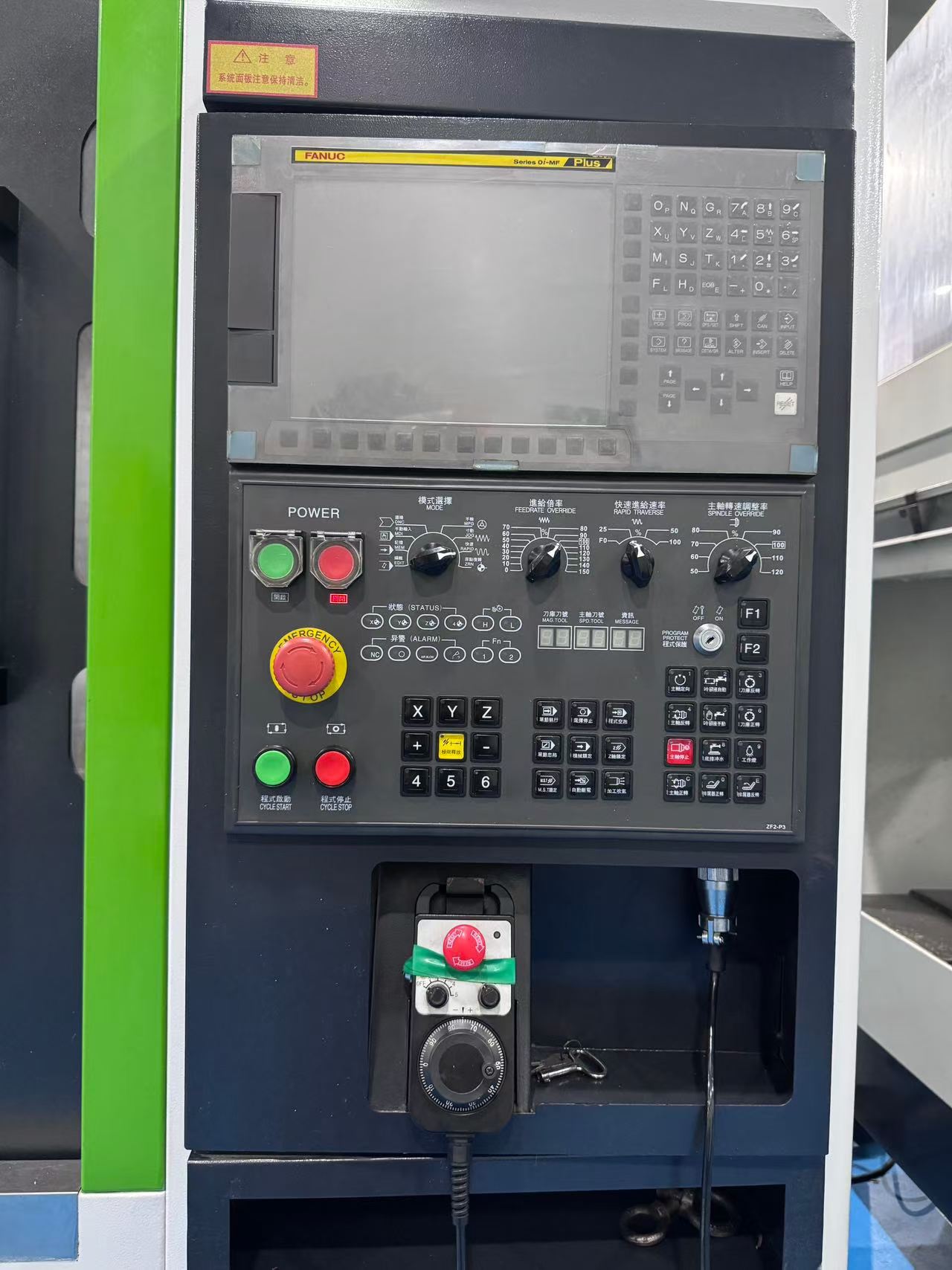

ControllerFANUC 0i-MF Plus
Spindle taperBT40
Spindle typeBelt-driven
Spindle speed8000 rpm
Spindle motor power7.5 kW
Tool magazine capacity24 tools
Tool magazine typeArm-type

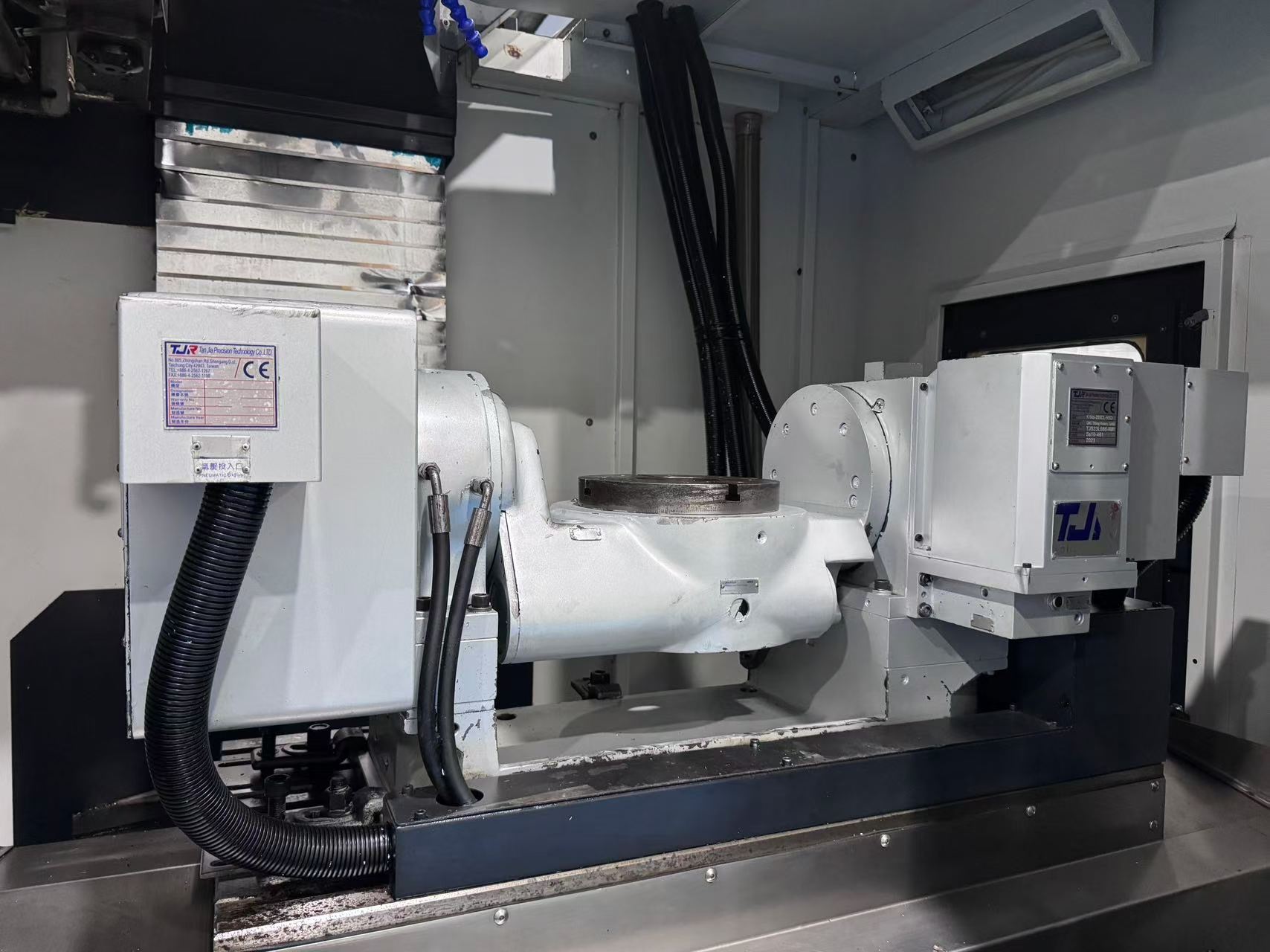

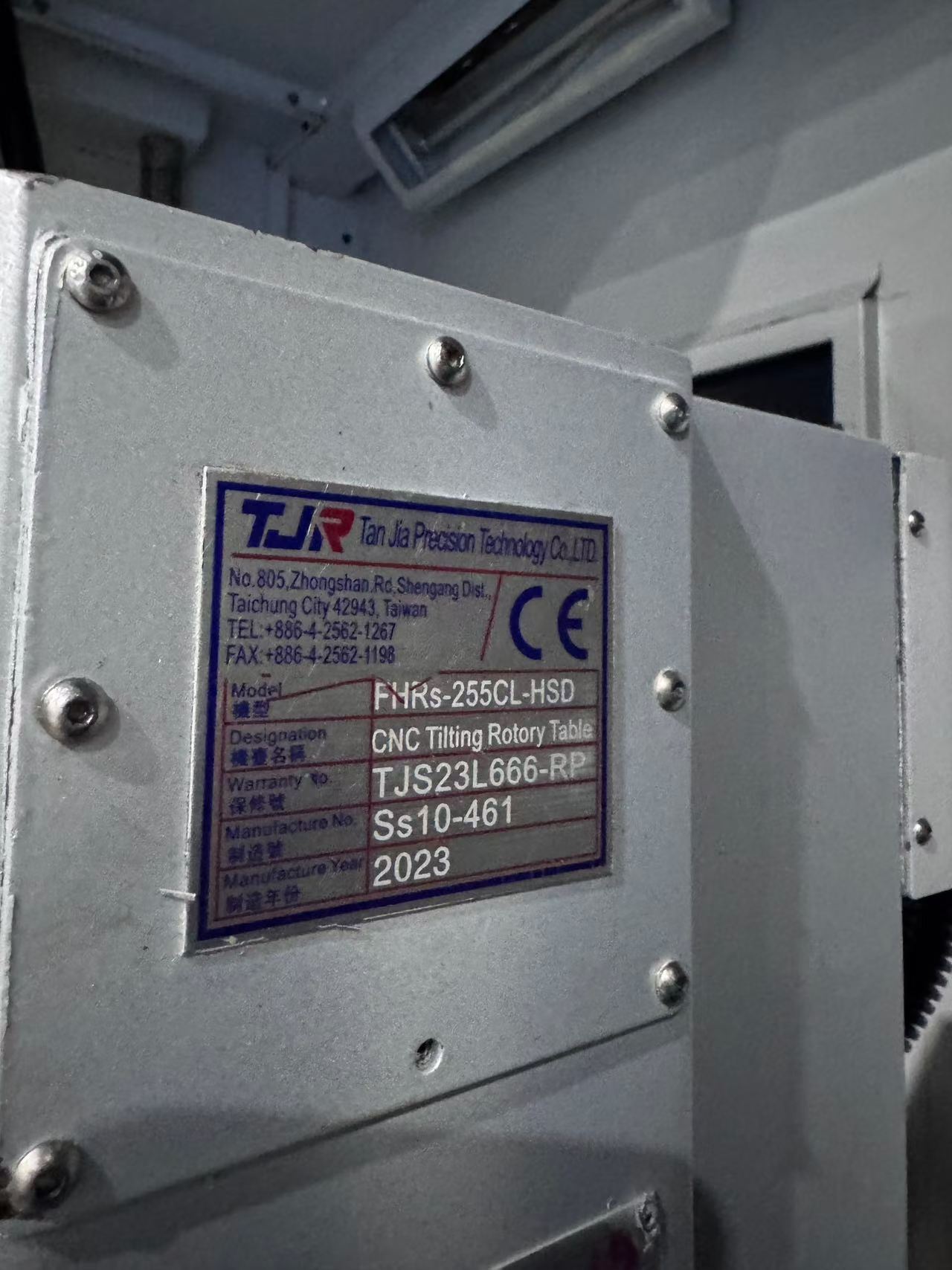

Fifth-axis configuration3+2 five-axis with Taiwan Tanjia 255 CL rotary table
Guideway45 mm roller linear guideway
X/Y/Z travel900 x 600 x 750 mm
Rapid traverse speed24 m/min
Worktable size1100 x 500 mm
Spindle nose to table distance1000 mm
Spindle runout0.006 mm
Spindle parallelism (front generatrix)0.02 mm
Spindle parallelism (side generatrix)0.01 mm
Three-axis repeatability0.003 mm
Year of manufacture2023
