SoldCNC Lathe

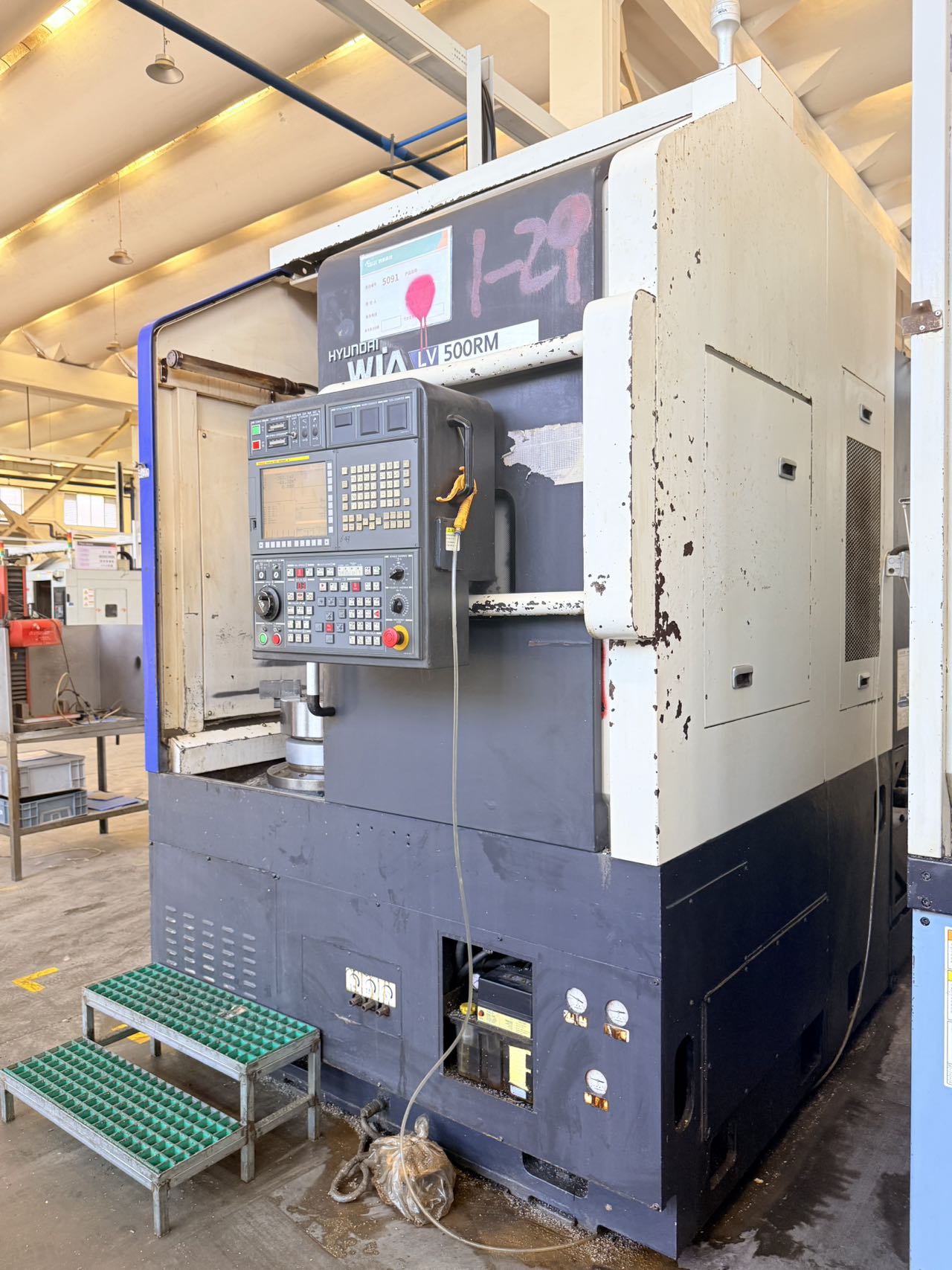

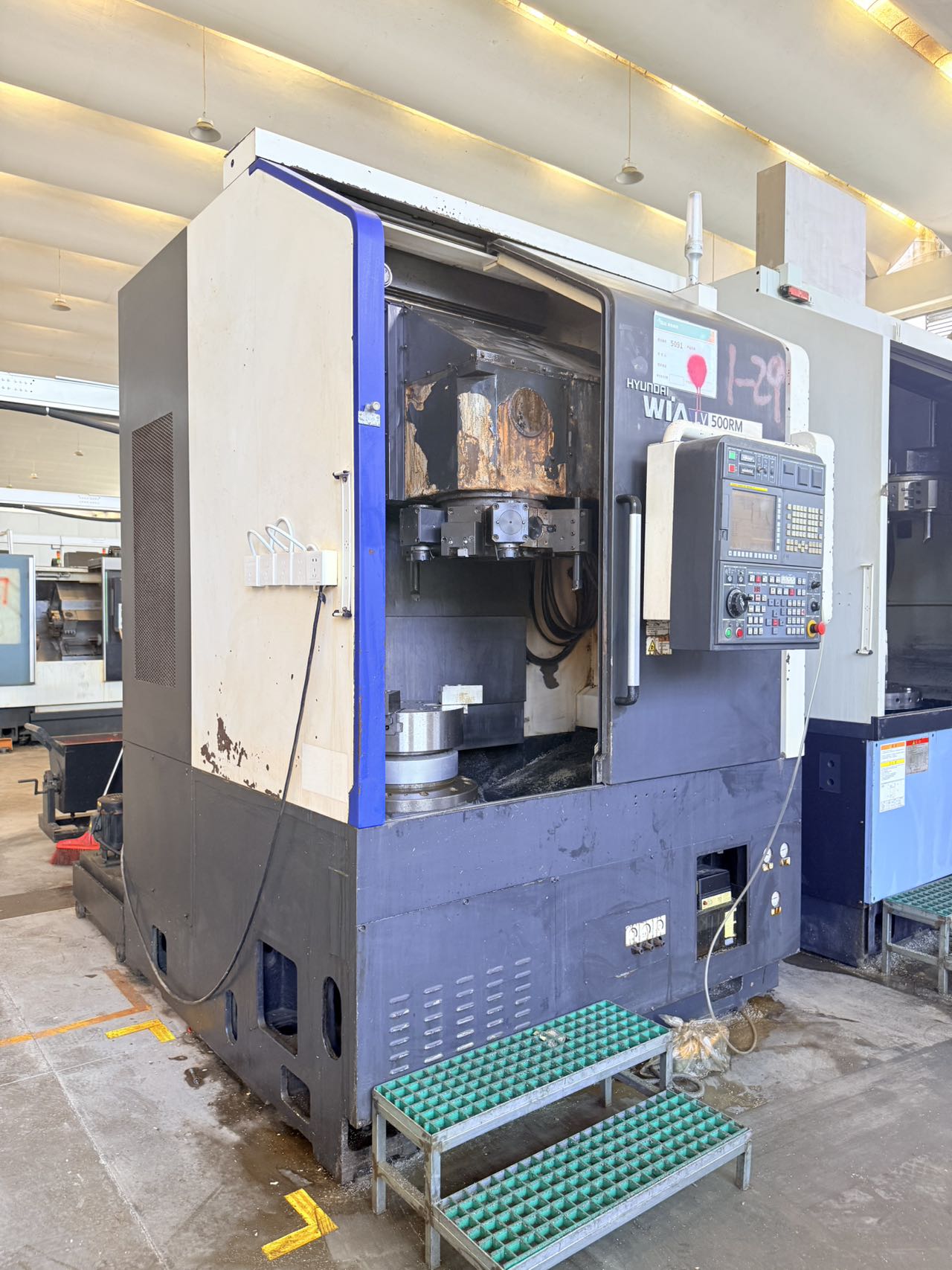

Used Hyundai WIA LV 500 RM CNC Vertical Lathe

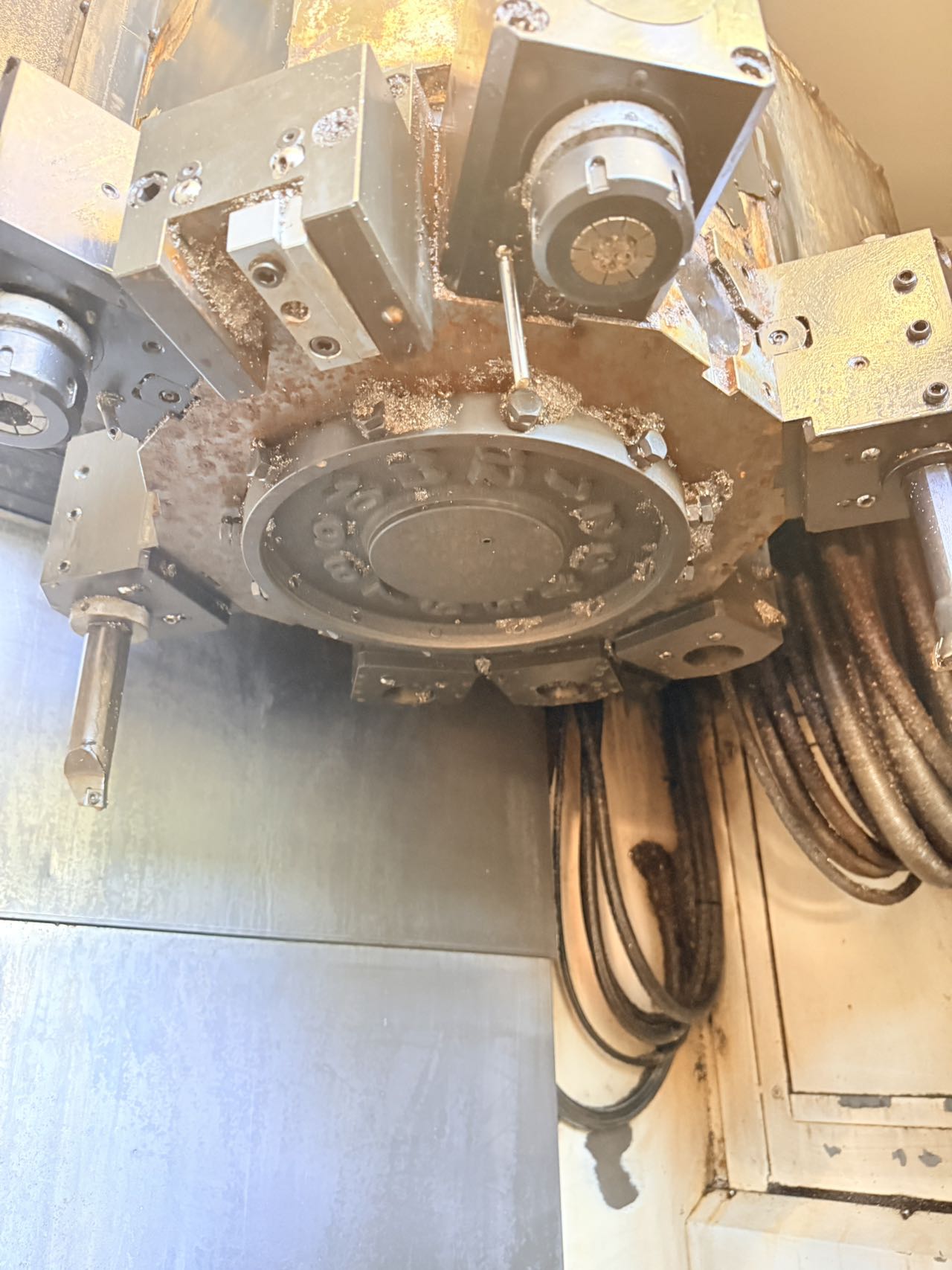

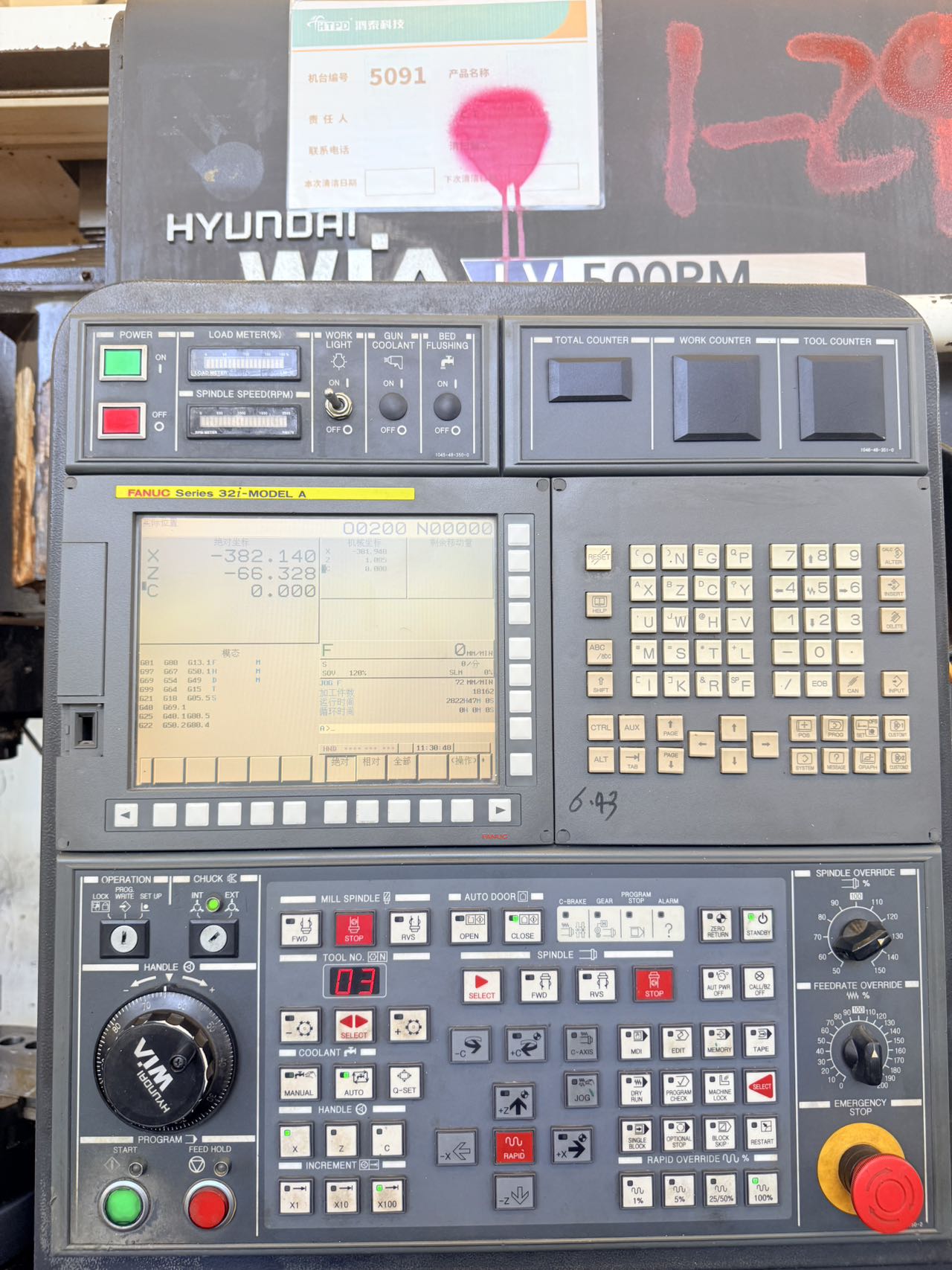

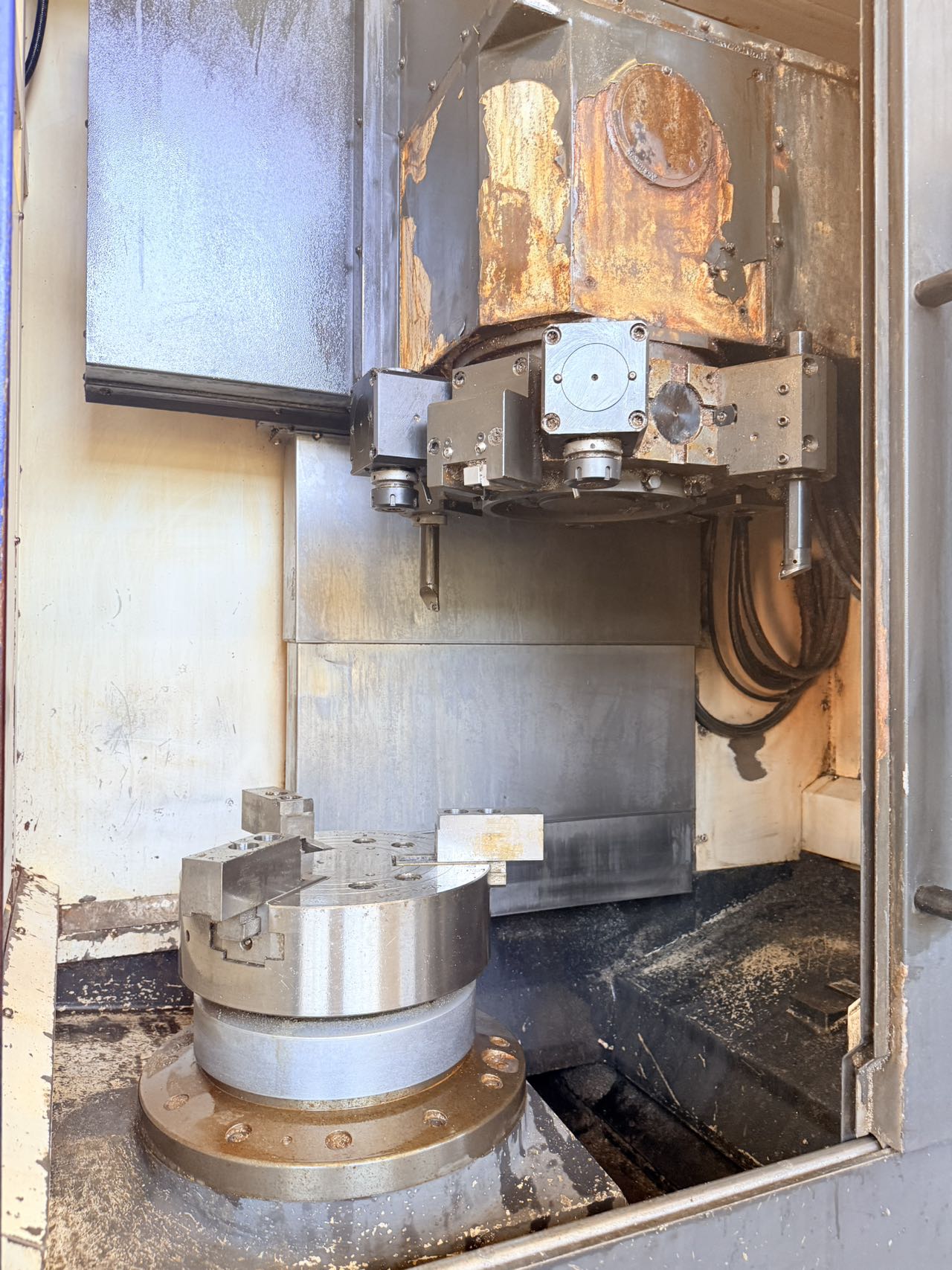

Used Hyundai WIA LV 500 RM CNC vertical lathe with FANUC 32 i control. Spindle speed: 2000 rpm low gear, 4000 rpm high gear. Maximum swing diameter: 960 mm. Maximum workpiece height: 550 mm. 12-station tool turret. 380 mm 3-jaw chuck. X-axis travel: 650 mm. Z-axis travel: 620 mm. Manufactured in December 2015.
- Machine Code
- CL2608171
- Year
- 2015
- Location
- China
- Usage Hours
- On request
Main Specifications
| Controller | FANUC 32 i |
|---|---|
| Spindle speed | 2000 rpm (low gear), 4000 rpm (high gear) |
| Maximum swing diameter | 960 mm |
| Maximum workpiece height | 550 mm |
| Tool turret stations | 12 |
| Chuck | 380 mm 3-jaw |
| X-axis travel | 650 mm |
| Z-axis travel | 620 mm |
