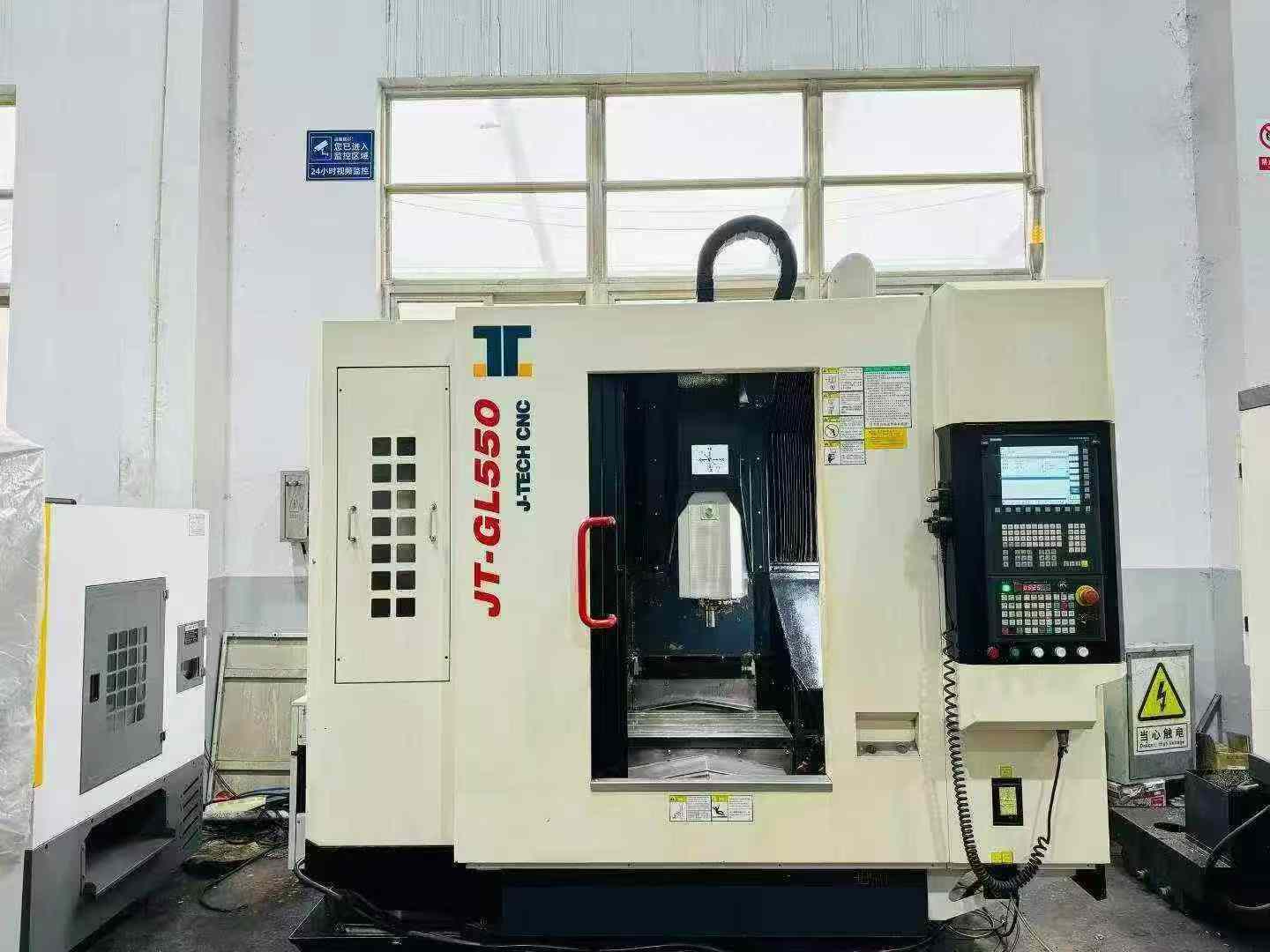

Used Jiatai JT-GL 550 High-Speed Machining Center with Siemens 828D

One unit of Jiatai JT-GL 550 high-speed machining center, 90% new, sourced from Quanzhou, China. Suitable for mold high gloss finishing, copper electrode machining, and precision small parts. Original purchase price nearly 300,000 RMB, now at a very affordable price.

Machine Code: MC260604
Year: On request
Location: China
Usage Hours: On request

Accessories

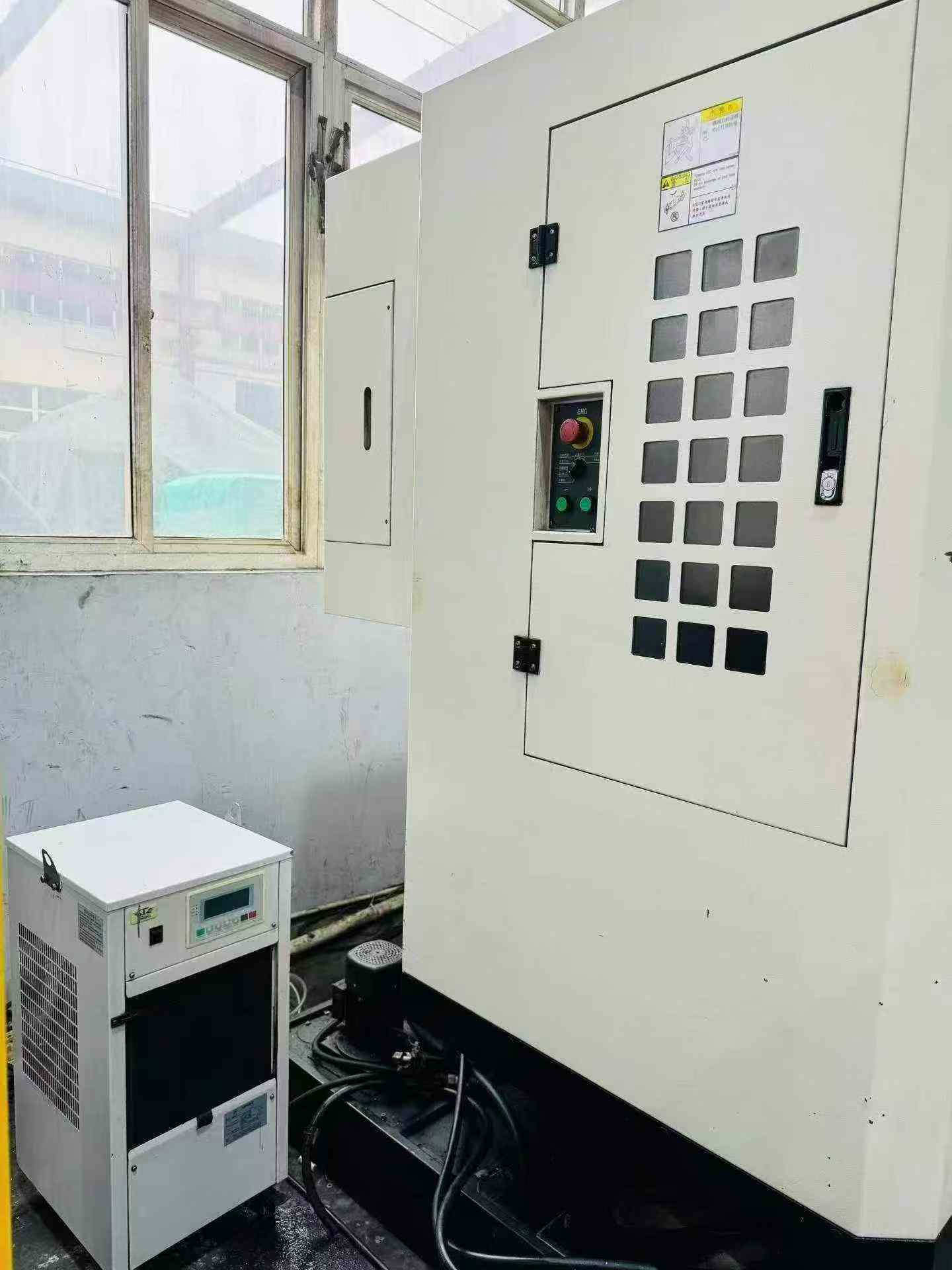

Tool setter, oil cooler

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Worktable size	600 x 440 mm

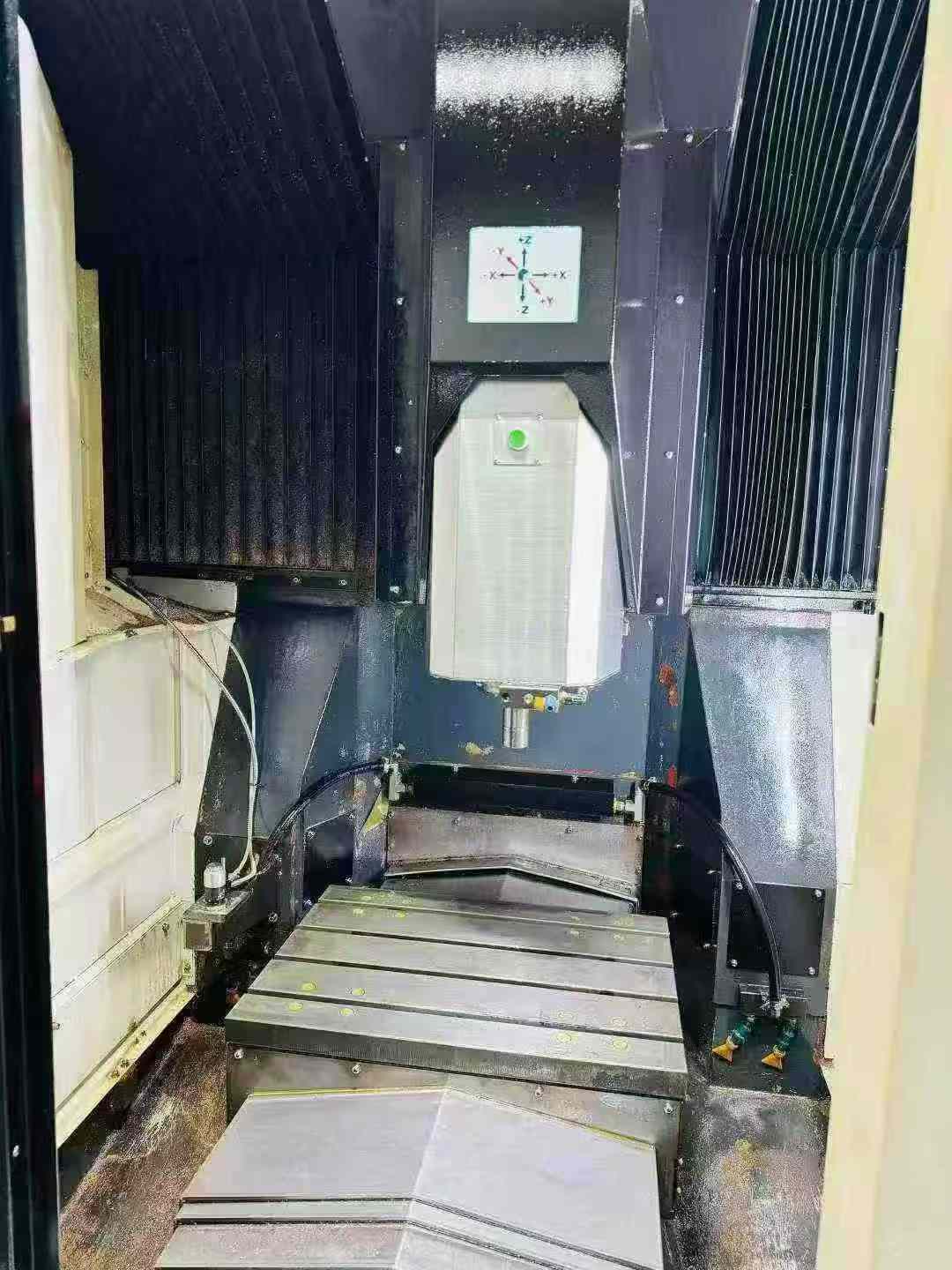

X/Y/Z travel	550/400/350 mm
Spindle speed	30000 rpm
Spindle taper	HSK40
Spindle power	7.5 kW
Tool magazine capacity	32 tools
Brand and model	Jiatai JT-GL 550

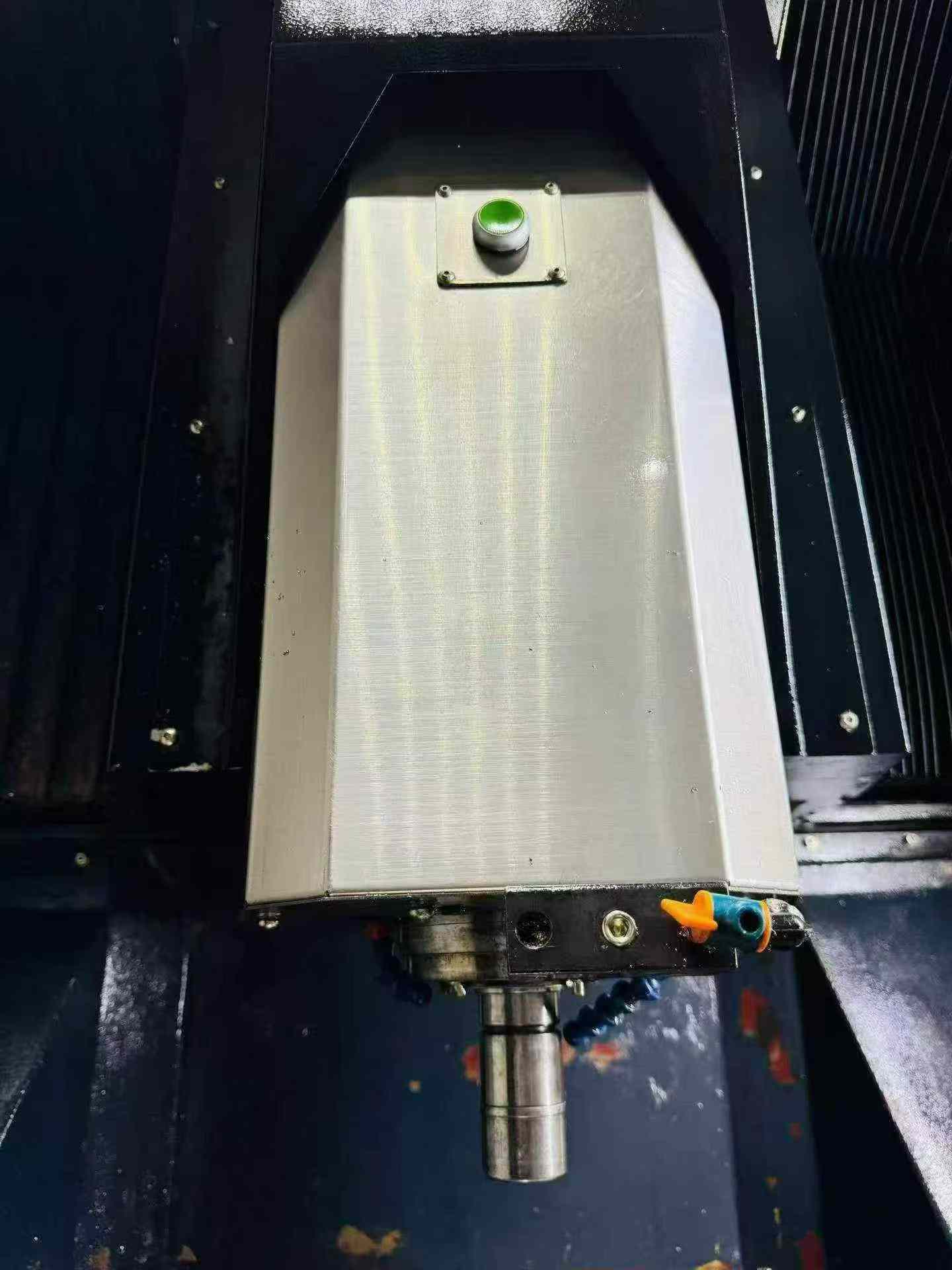

Spindle specification	30000 rpm, HSK40, 7.5 kW

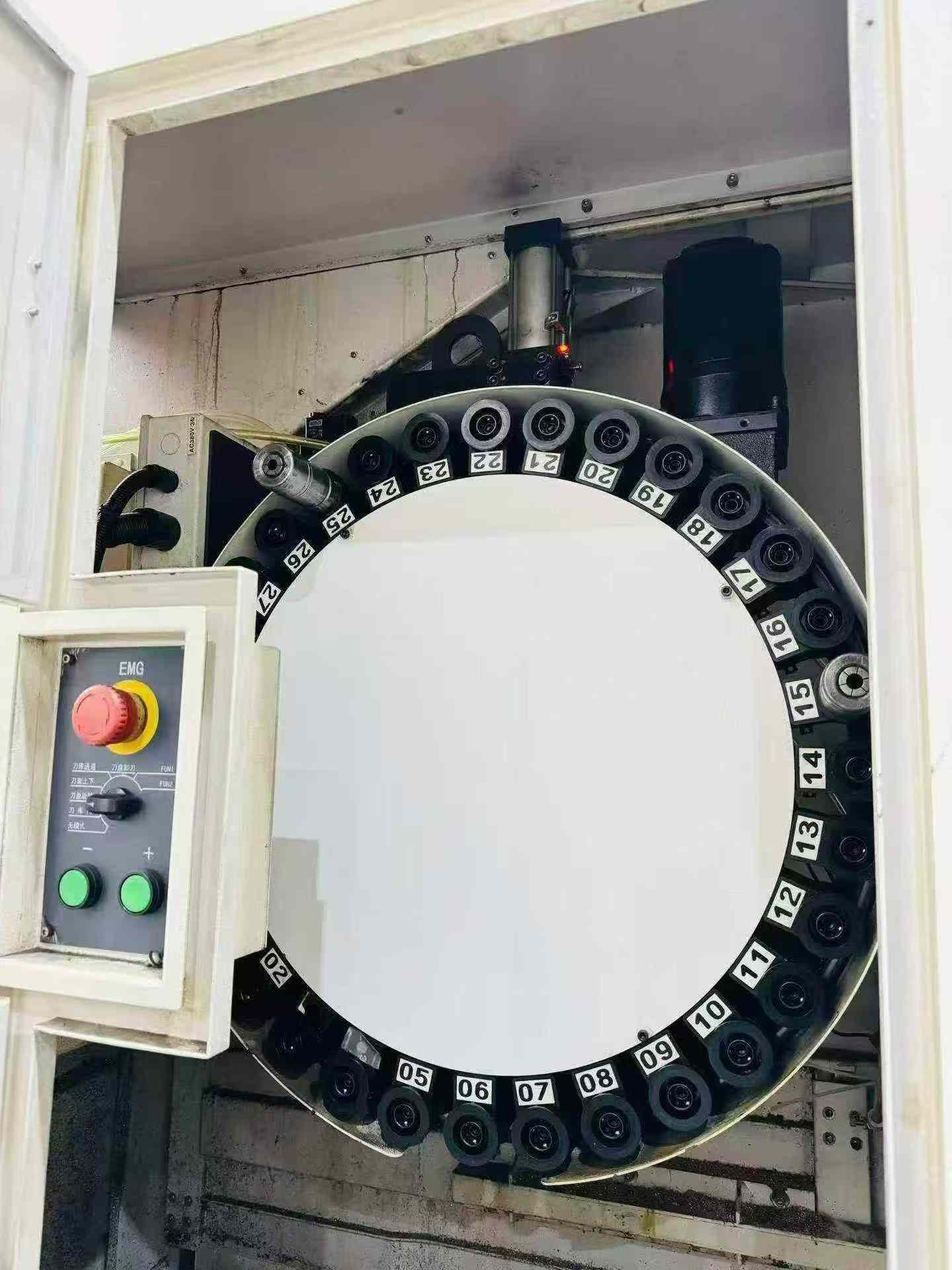

Tool magazine	32 tools, disc-type

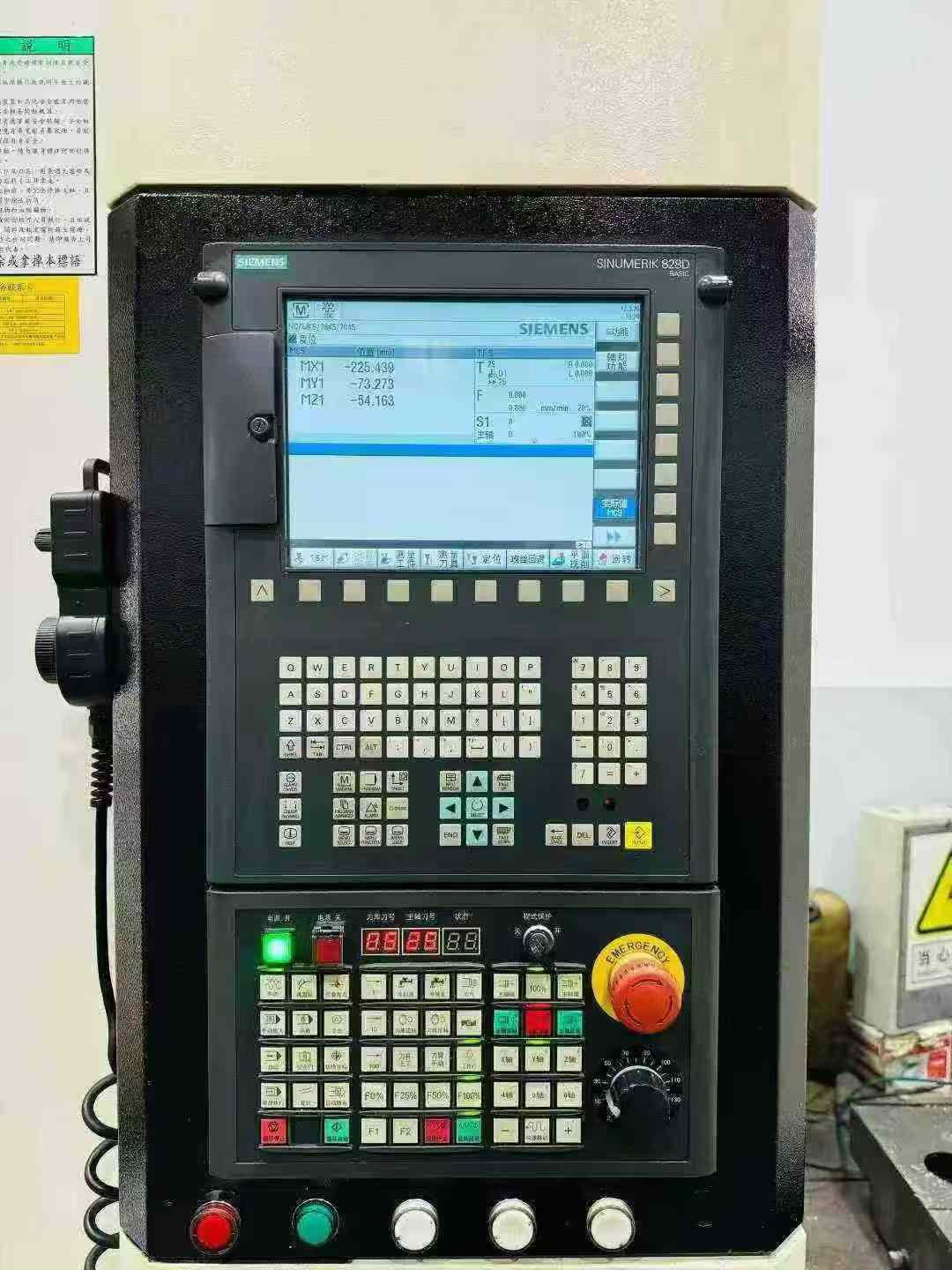

Controller	Siemens 828D
Oil cooler	Included
