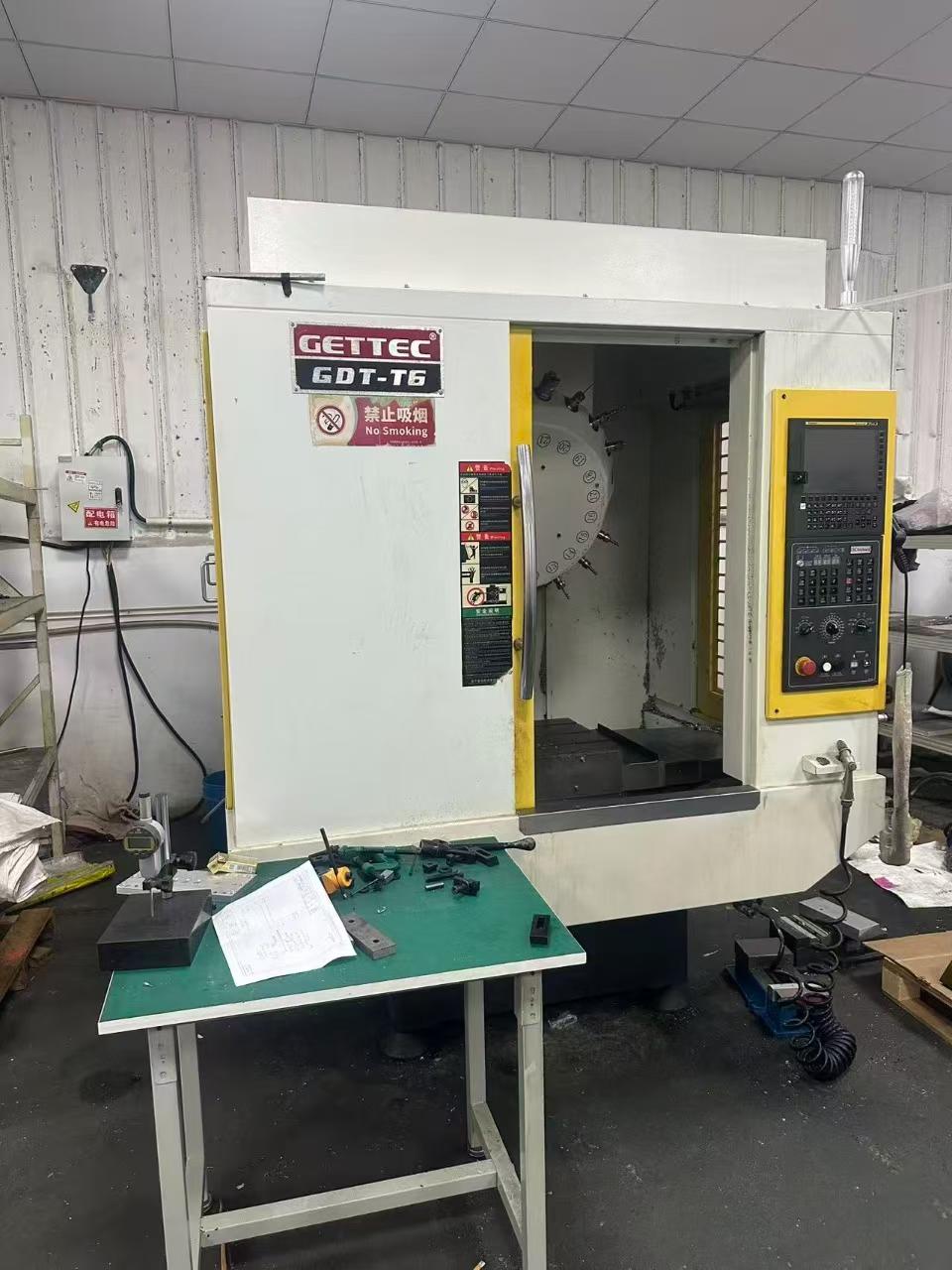

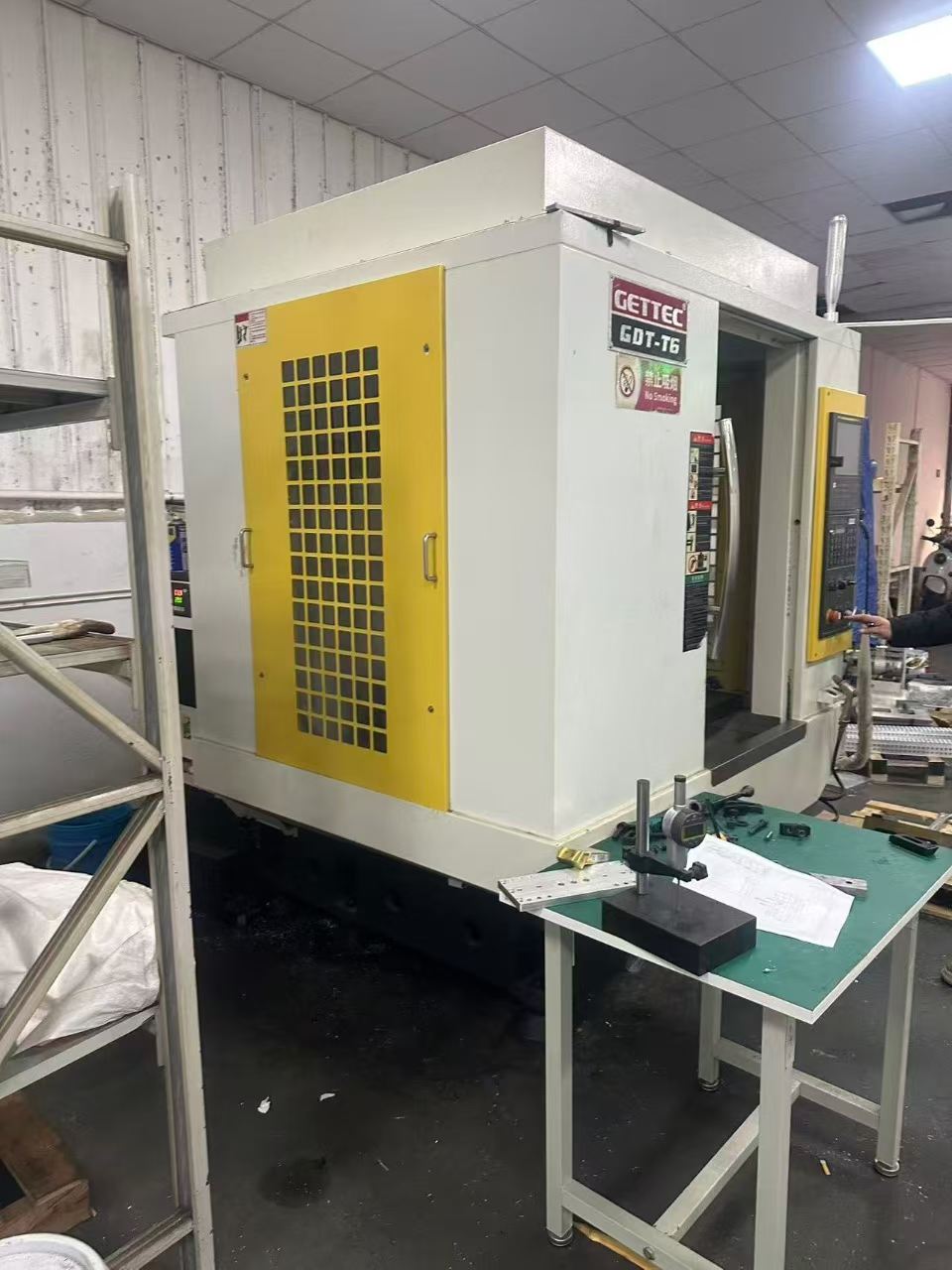

Used Jidete T 600 Drilling and Tapping Center with FANUC
Suzhou Jidete T 600 Drilling and Tapping Center. Key parameters: FANUC 0i-MF/plus control system. Manufacture date: 2024.
- Machine Code
- VMC260612
- Year
- 2024
- Location
- China
- Usage Hours
- On request
Contact access
Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.
Loading…
Main Specifications
| Spindle speed | 20000 rpm |
|---|---|
| Travel X/Y/Z | 600/400/300 mm |
| Rapid traverse | 48 m/min |
| Tool magazine capacity | 21 tools |
| Year of manufacture | 2024 |
| X/Y/Z Travel | 600/400/300 mm |
| Spindle Nose To Table Distance | 150-450 mm |
| Spindle Center To Column Distance | 410 mm |
| Worktable Size | 700 x 400 mm |
| T-slot | 3 x 14 x 100 mm |
| Table Load Capacity | 300 kg |
| Spindle Type | BT30 direct-drive |
| Spindle Power | 3.7 kW |
| Spindle Taper | BT30 |
| Rapid Traverse Speed | 48 m/min |
| Cutting Feed Rate | 10 m/min |
| Tool Magazine Type | servo tool magazine |
| Tool Change Time | 1.5 s |
| Tool Holder Type | BT30 |
| Maximum Tool Diameter | φ65 mm (full) / φ80 mm (adjacent empty) |
| Maximum Tool Length | 200 mm |
| Maximum Tool Weight | 3 kg |

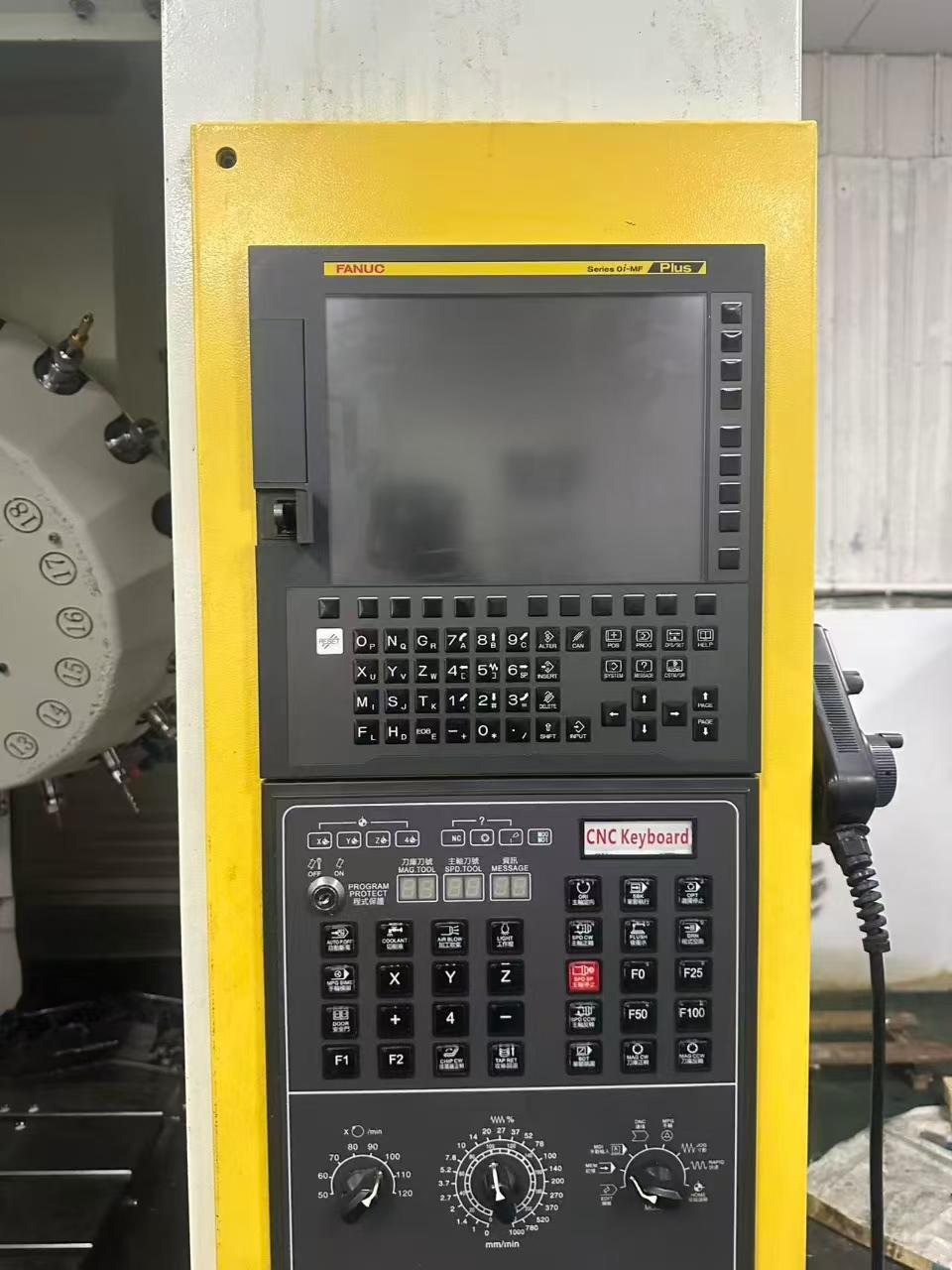

| Controller | FANUC 0i-MF/plus |
| Machine Weight | 2800 kg |
| Machine Dimensions | 1700 x 2400 x 2600 mm |
