AvailableCNC Drilling Machine

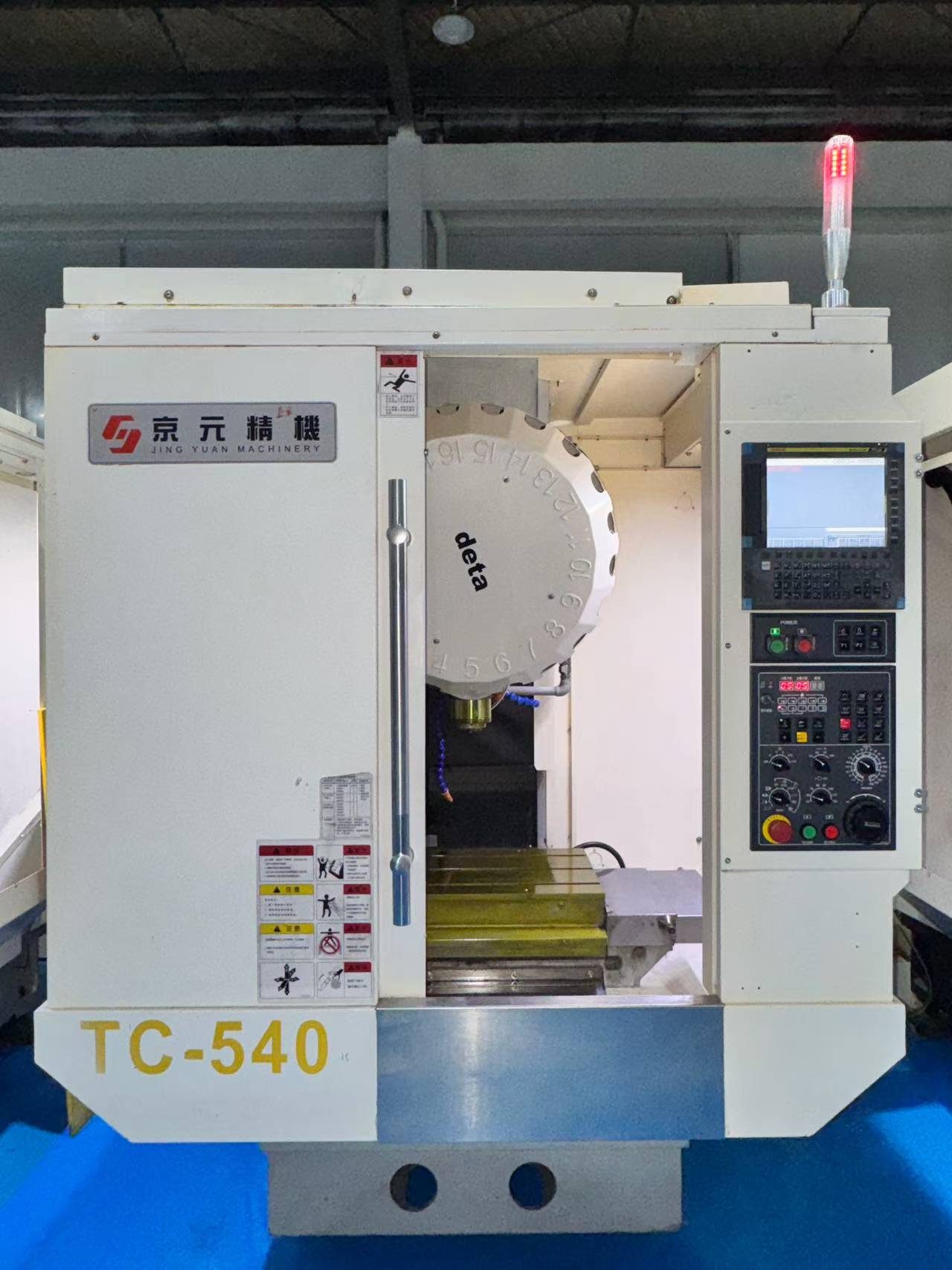

Used Jingyuan TC-540 Drilling and Tapping Center with FANUC 0i-MF Plus

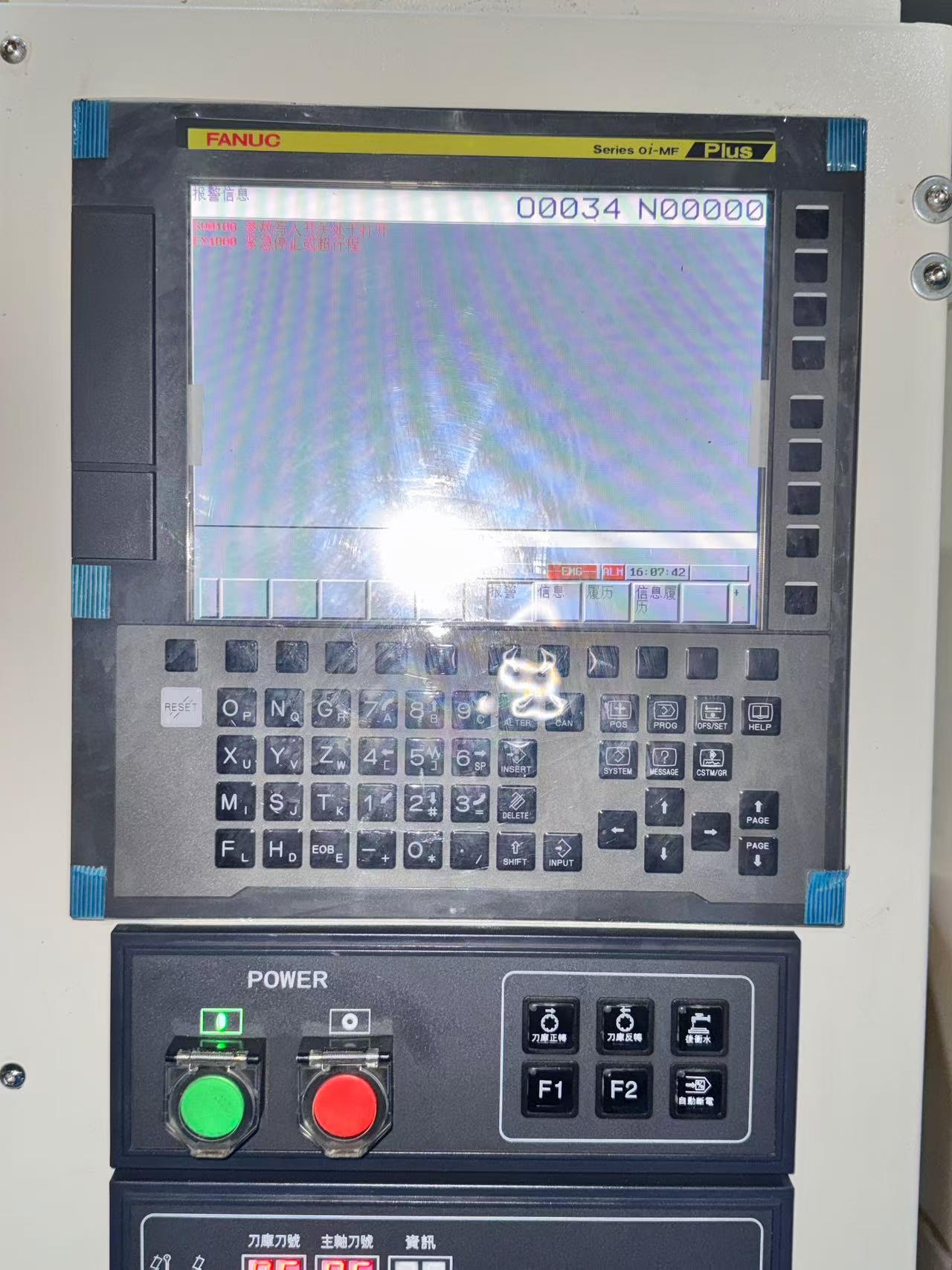

Jingyuan TC-540 Drilling and Tapping Center, 2022, with FANUC 0i-MF Plus control. X/Y/Z travel: 500/400/300 mm. Rapid traverse: 36 m/min. Linear guideways on all axes. 20,000 rpm spindle, 21-tool BT30 servo tool magazine, 5.5 kW spindle motor. Repeatability: 0.01 mm. Spindle alignment: 0.02 mm front and side.

Machine Code: VMC2608129
Year: 2022
Location: China
Usage Hours: On request

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

X/Y/Z travel	500/400/300 mm
Rapid traverse speed	36 m/min
Guideways	Linear guideways on all axes

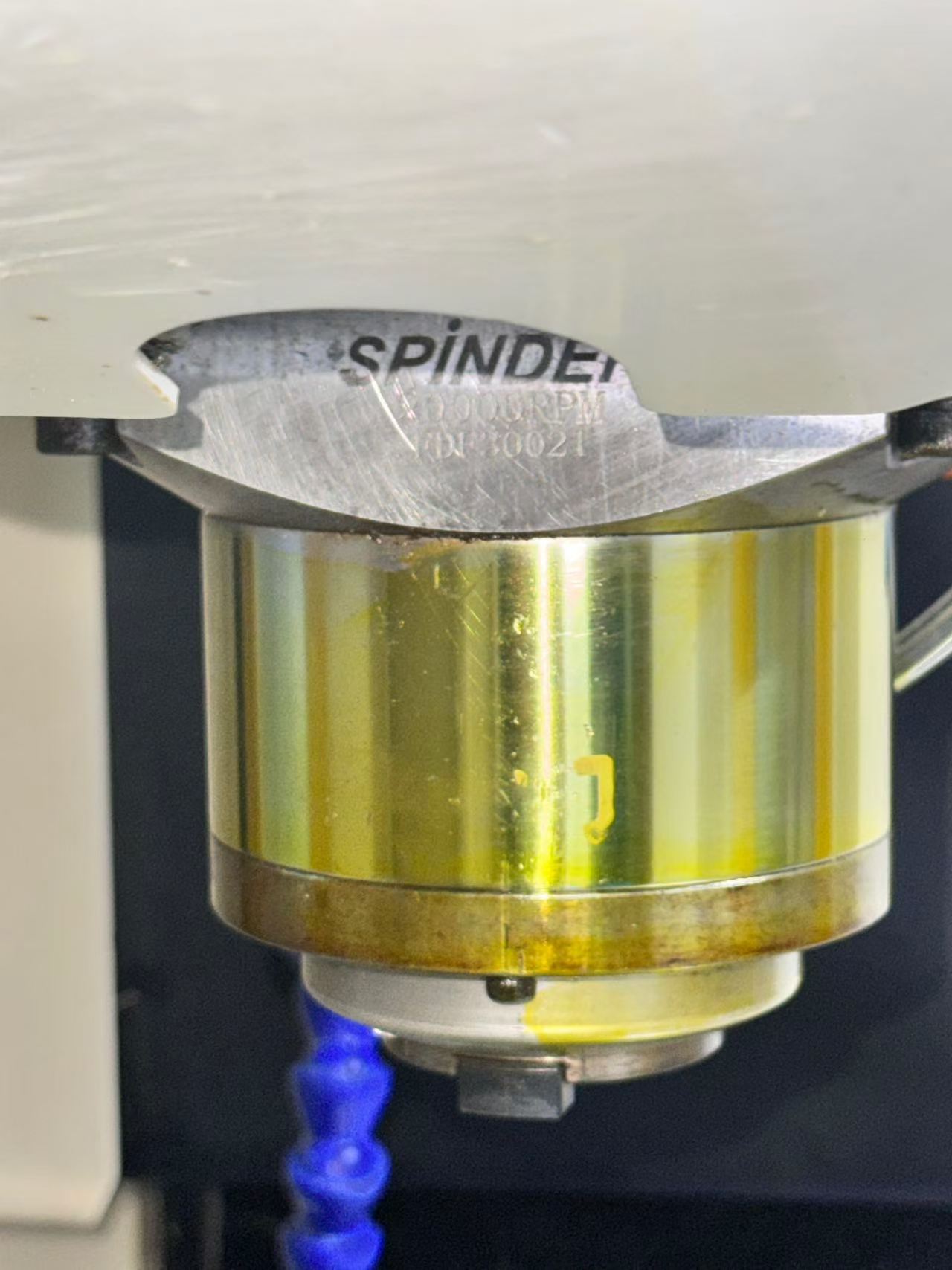

Spindle speed	20,000 rpm

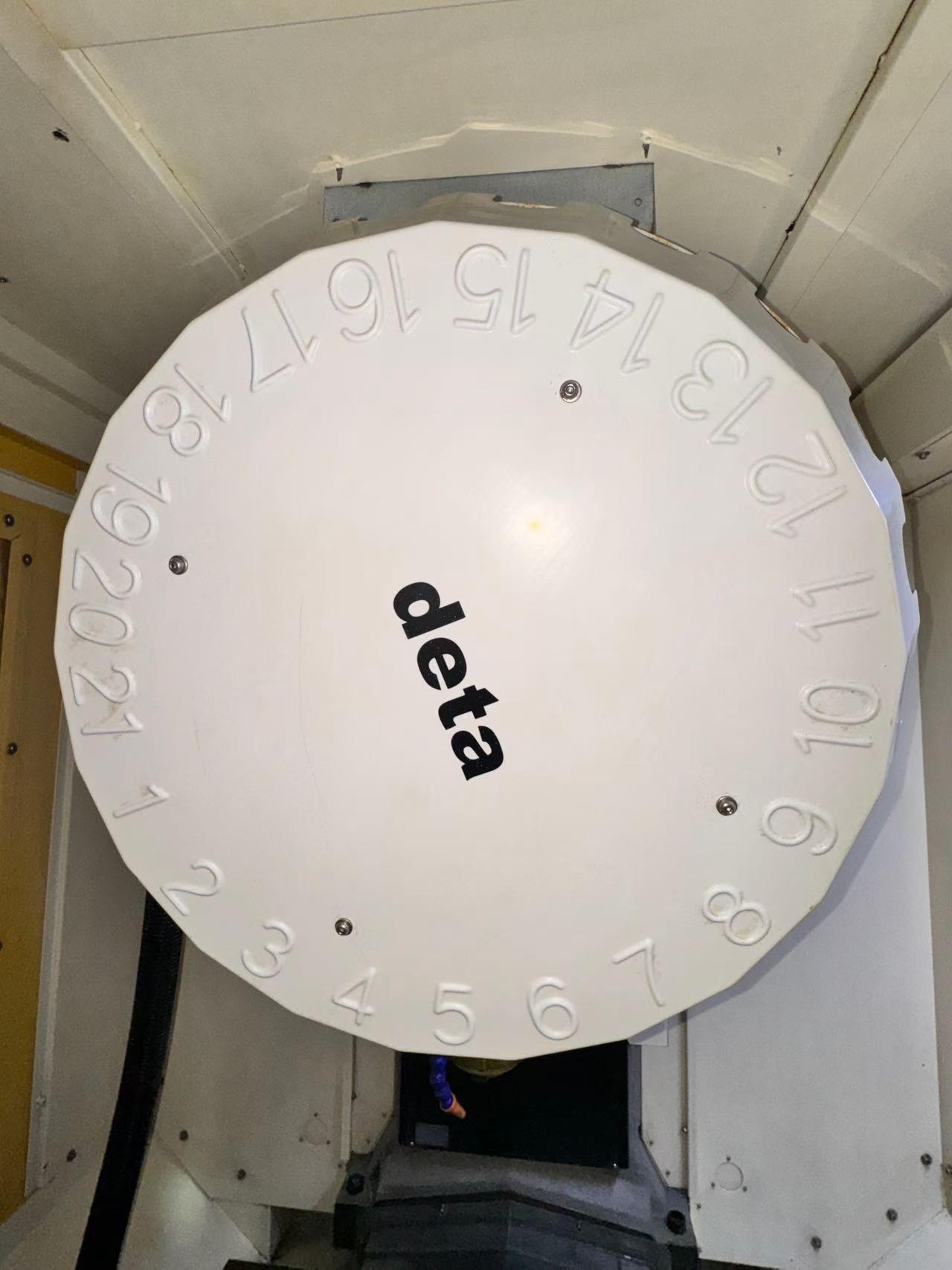

Tool magazine	21 tools, BT30, servo drive
Spindle power	5.5 kW
3-axis repeatability	0.01 mm
Spindle alignment (front/side)	0.02 mm
