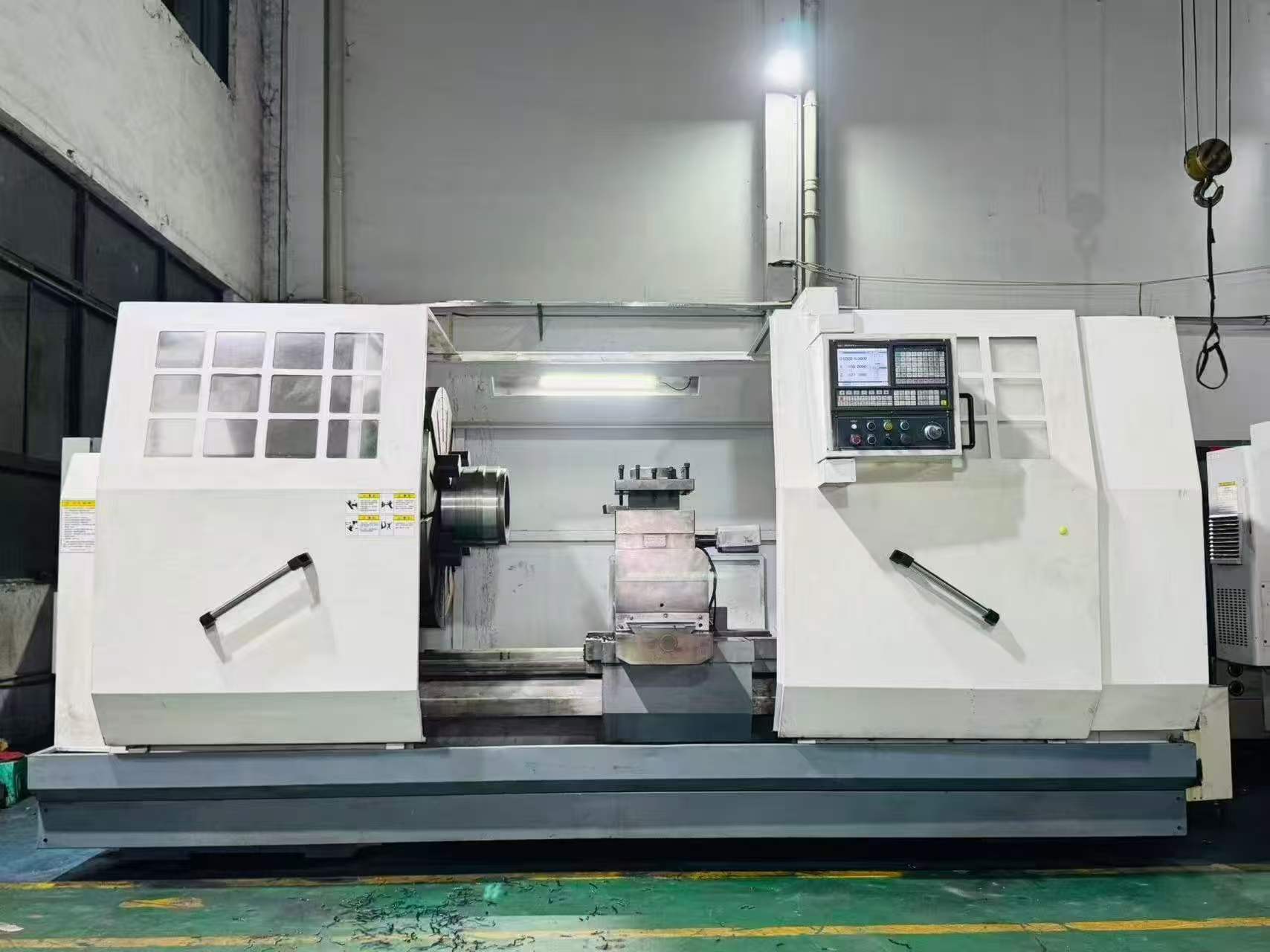

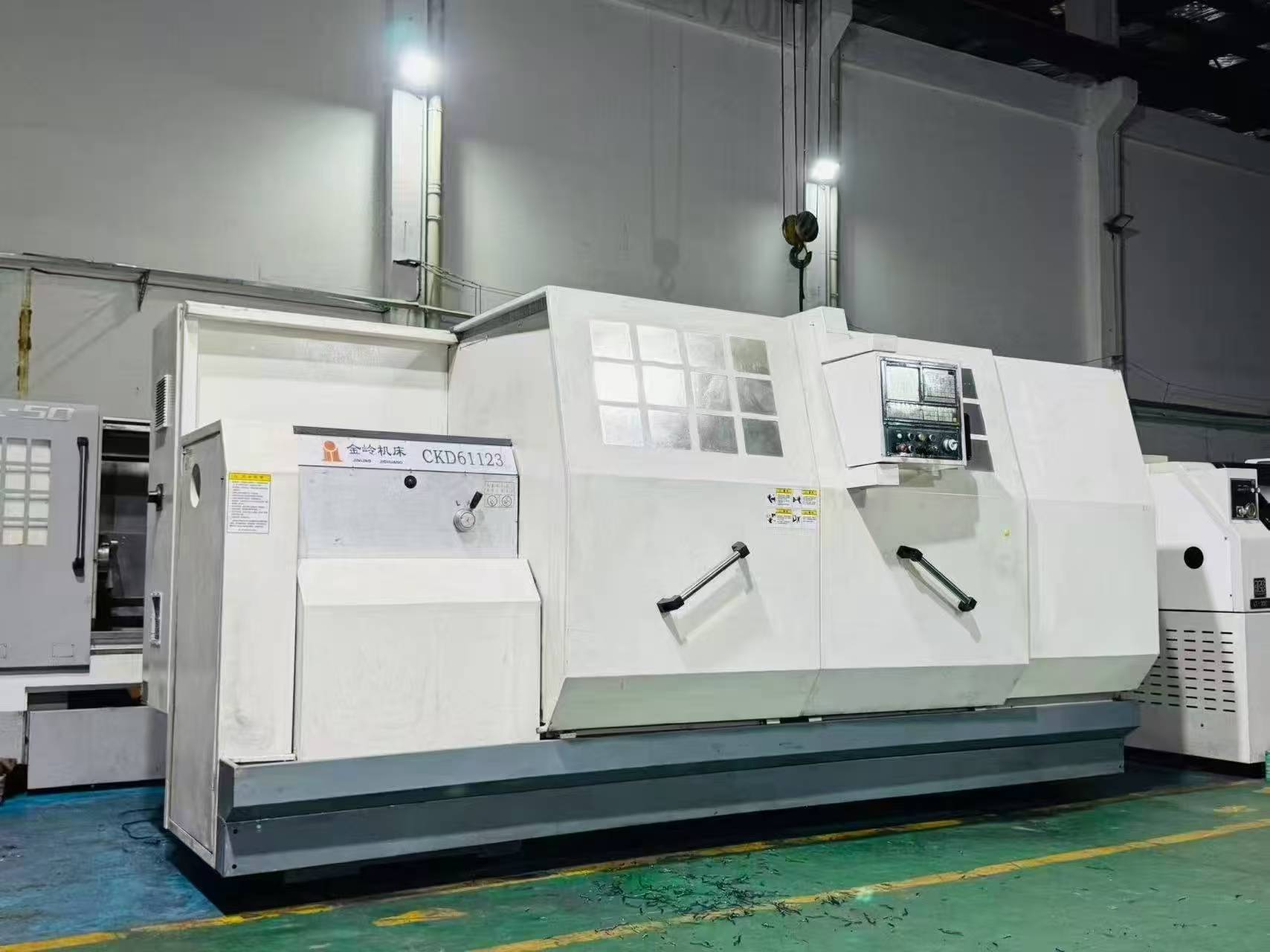

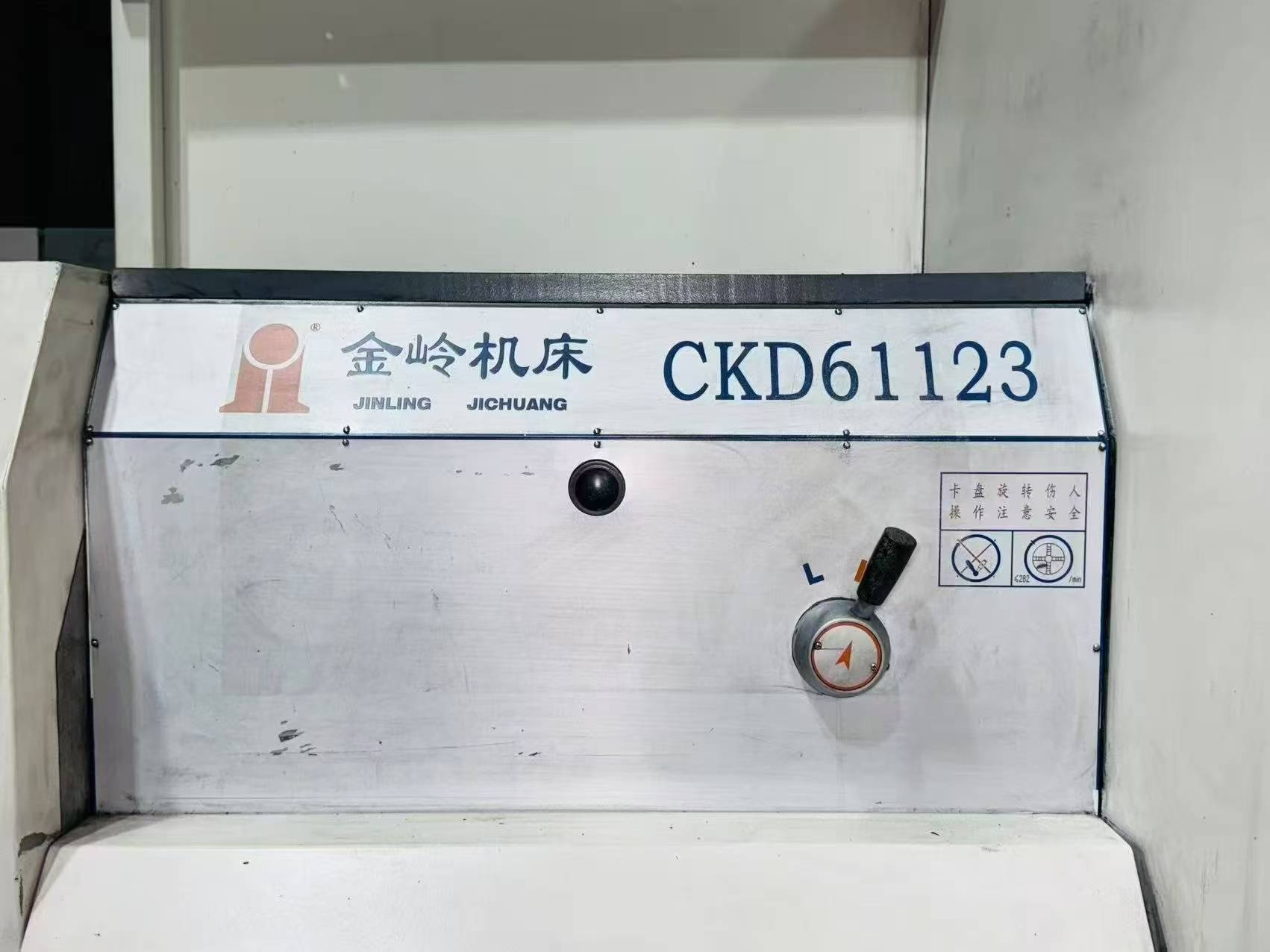

Used Jinling CKD 61123 CNC Lathe

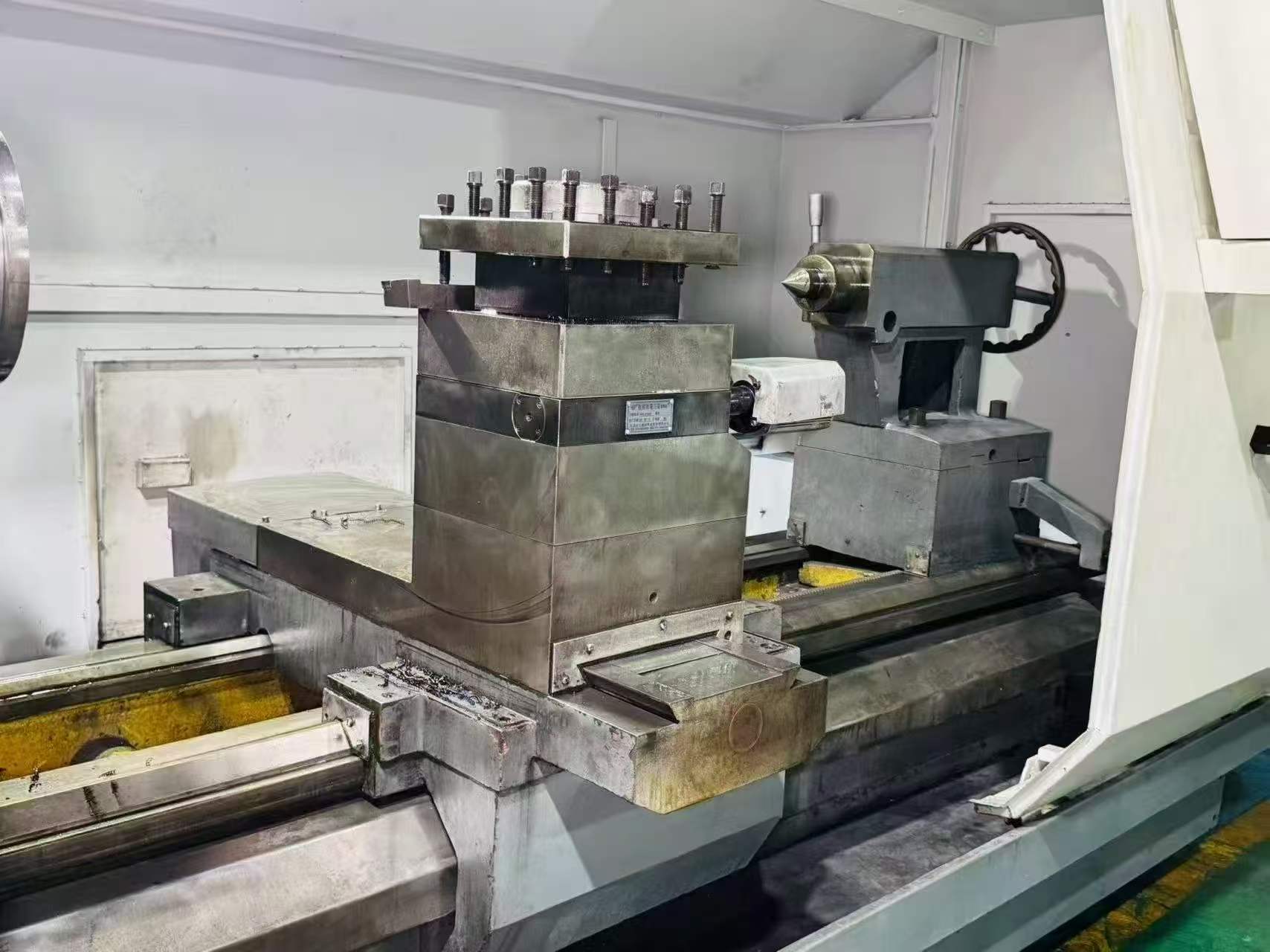

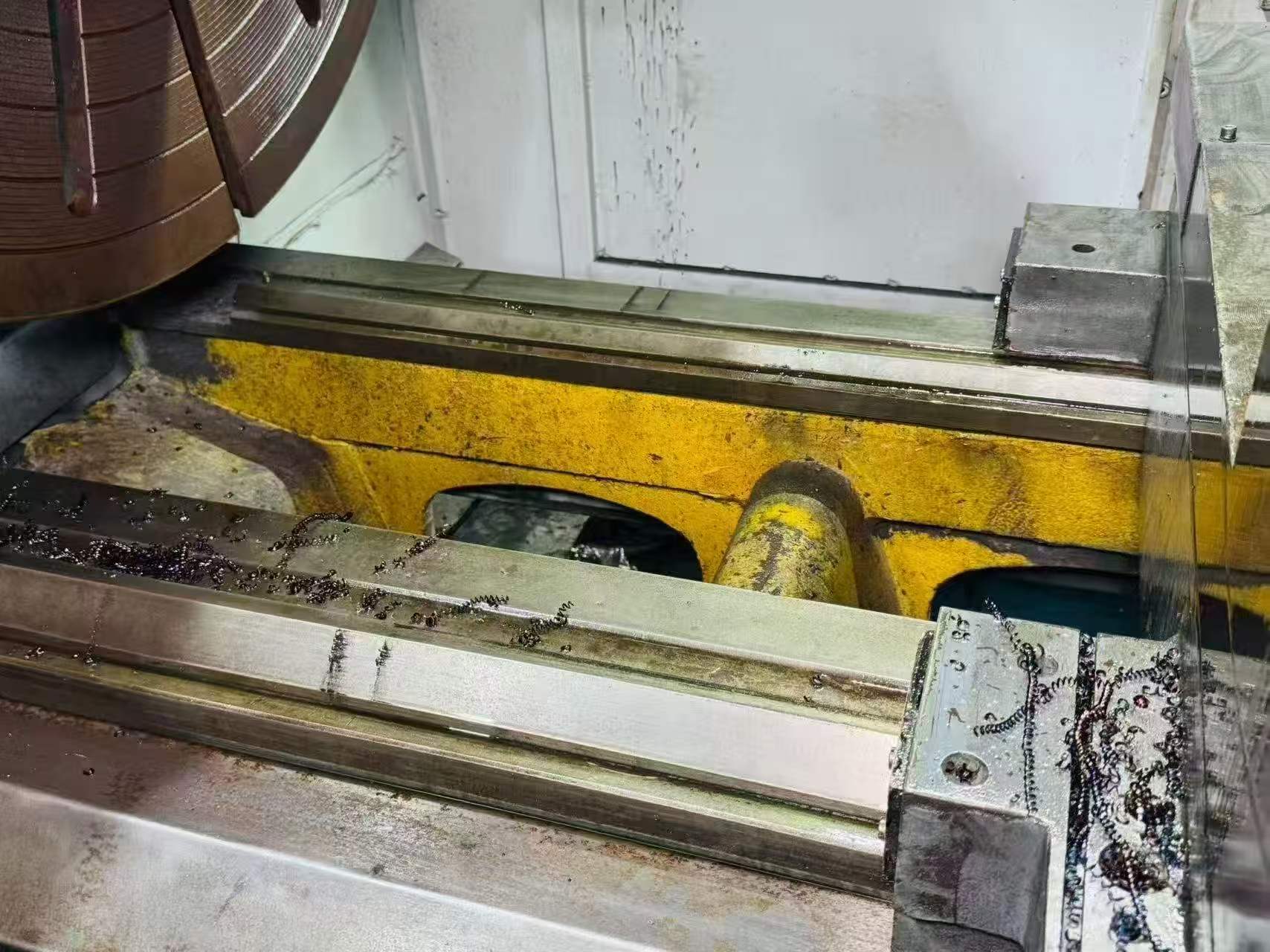

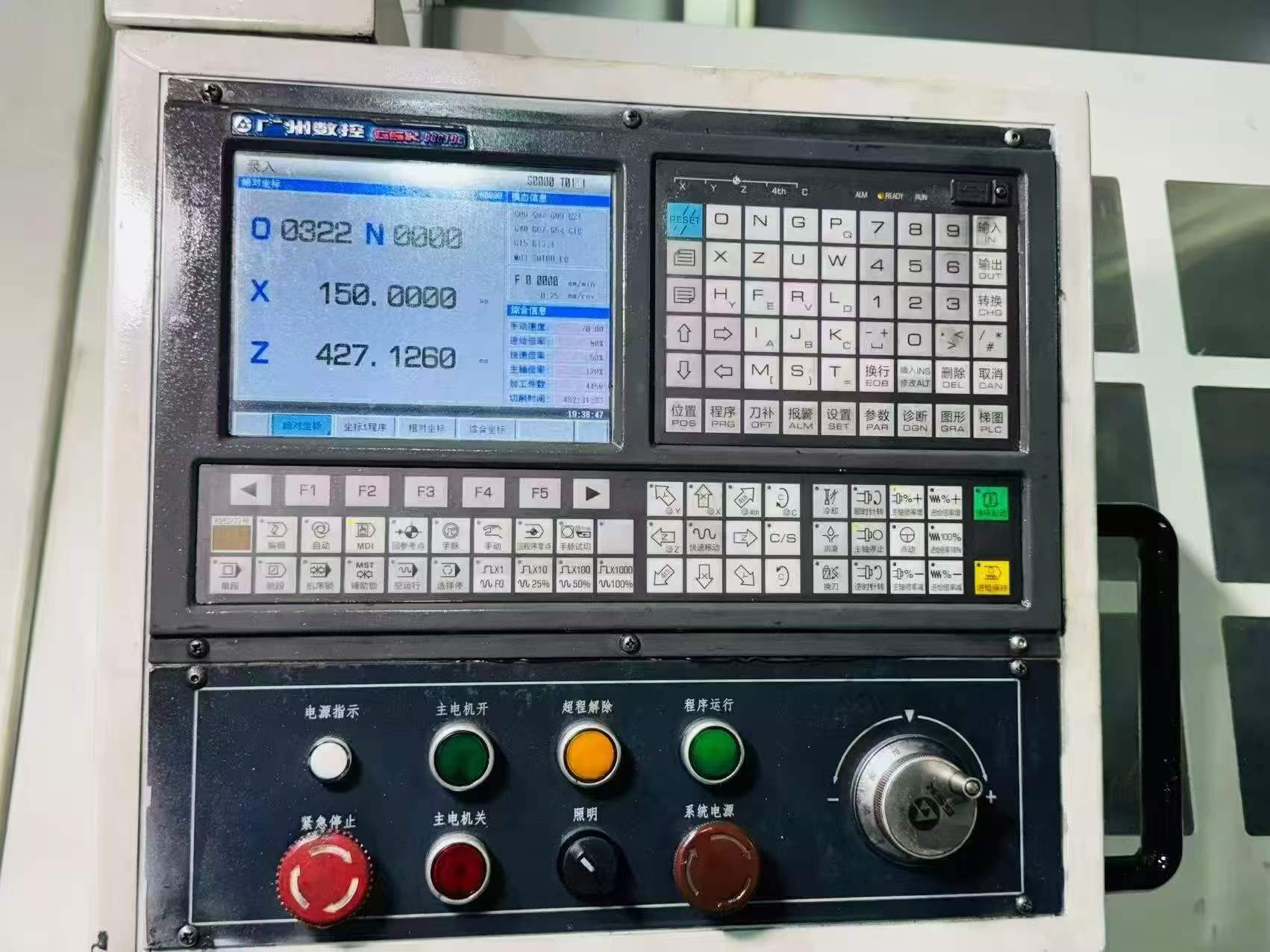

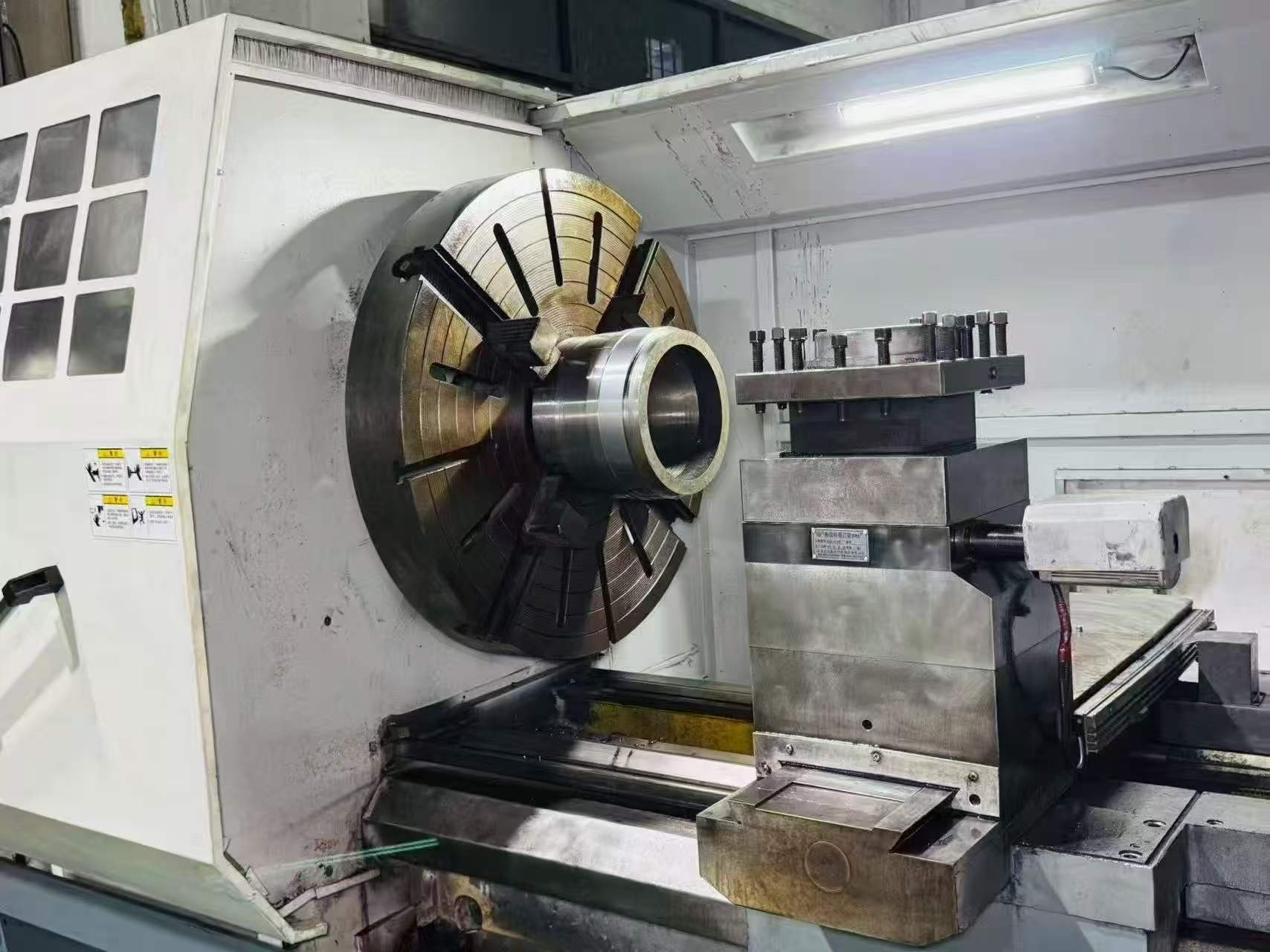

High cost-performance heavy-duty CNC lathe by Changsha Jinling, model CKD 61123 x 2000, with GSK 980TDc control system. Two-speed gearbox, 11/15 kW servo spindle motor, strong power. Spindle bore 105 mm, swing over bed 1230 mm, 1000 mm 4-jaw chuck, 300 mm heavy-duty square tool post, 610 mm wide guideways. No abnormal noise on all axes, guideways in good condition. Everything works normally. Excellent cost-performance.
- Machine Code
- CL260786
- Year
- 2000
- Location
- China
- Usage Hours
- On request
Contact access
Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.
Loading…
Main Specifications
| Swing over bed | 1230 mm |
|---|---|
| Spindle bore diameter | 105 mm |
| Chuck size | 1000 mm 4-jaw chuck |
| Tool post | 300 mm heavy-duty square tool post |
| Guideway width | 610 mm |
| Spindle motor power | 11/15 kW |
| Gearbox | 2-speed gearbox |
