AvailableCNC Milling Machine

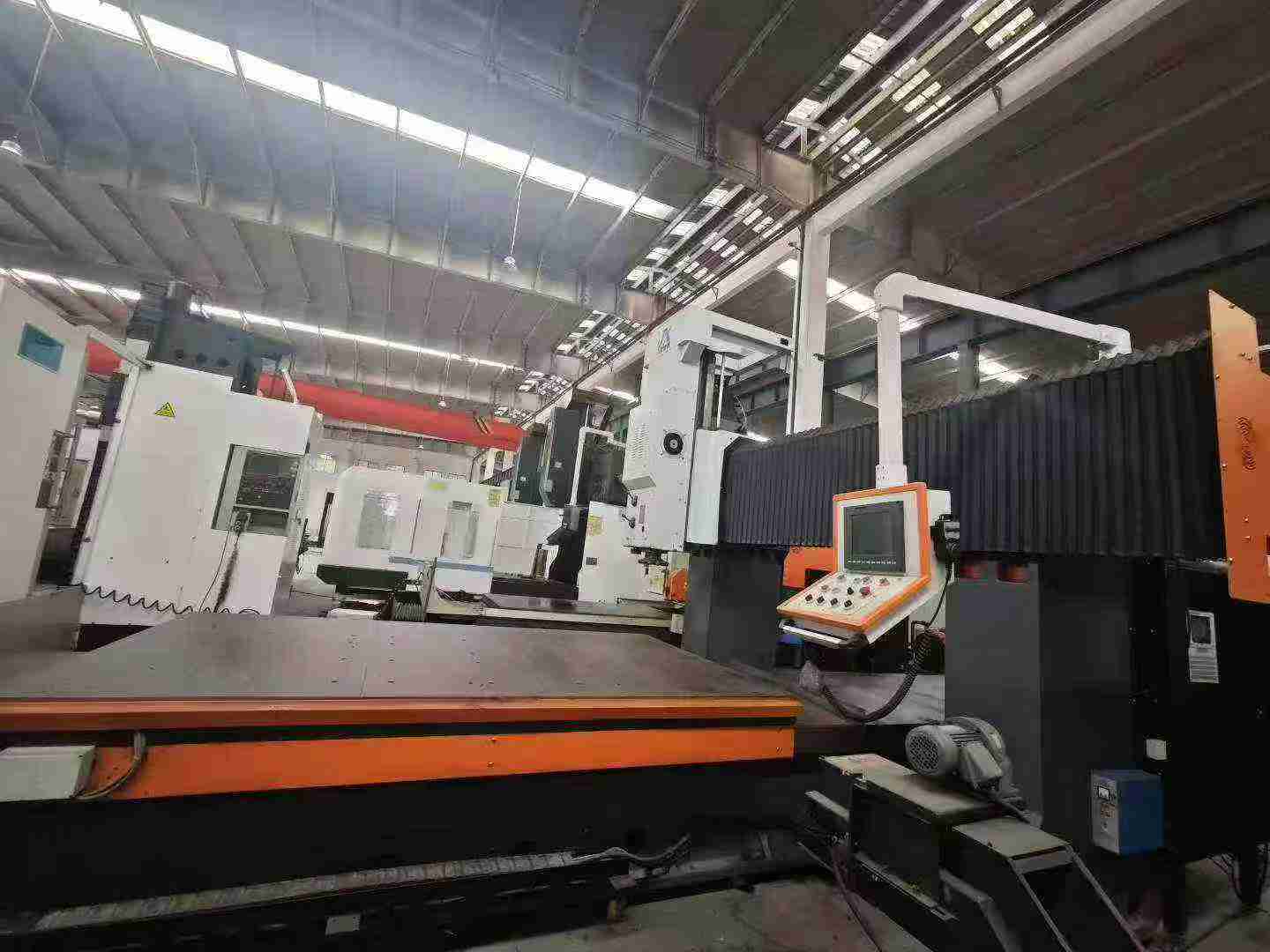

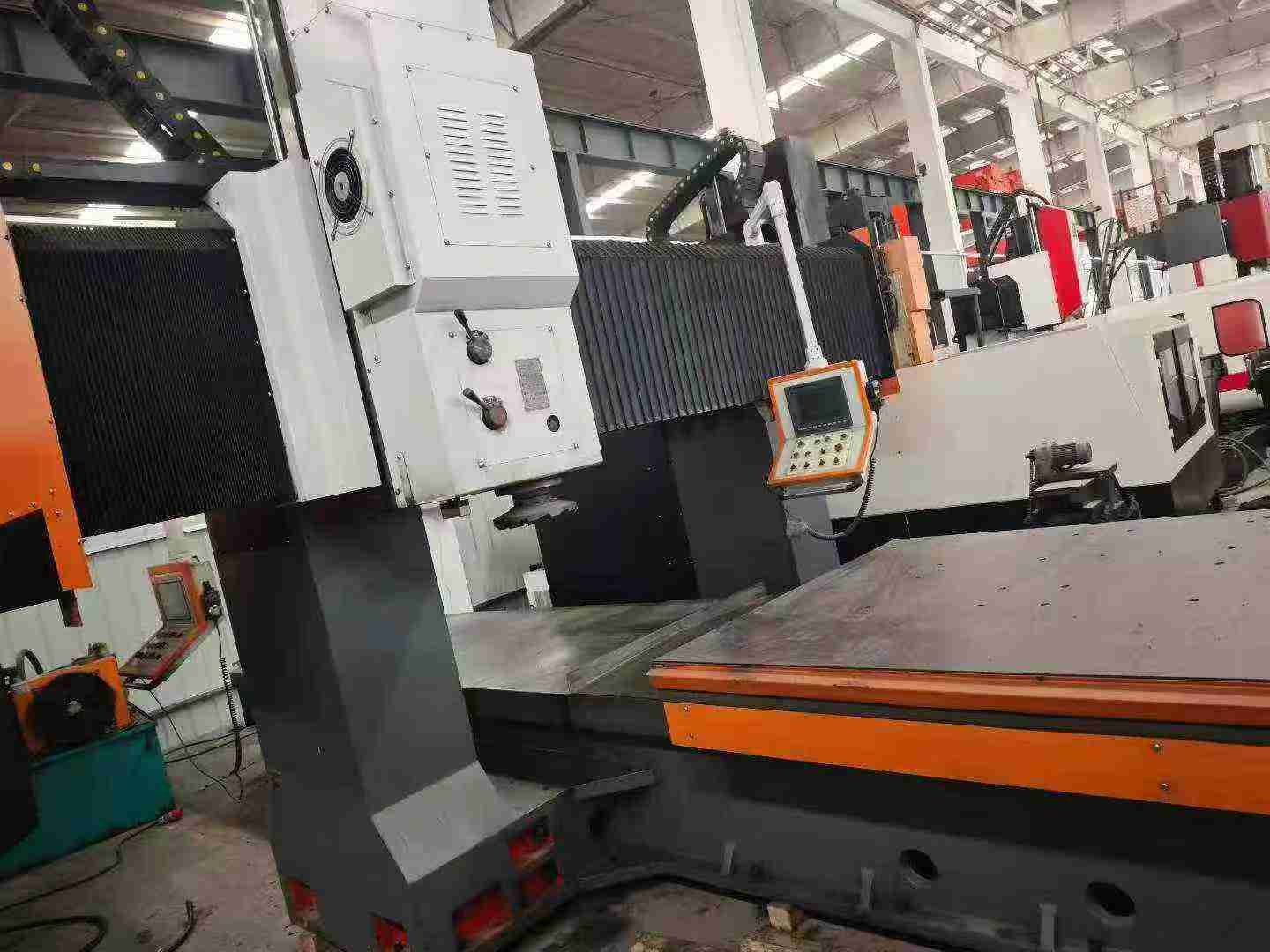

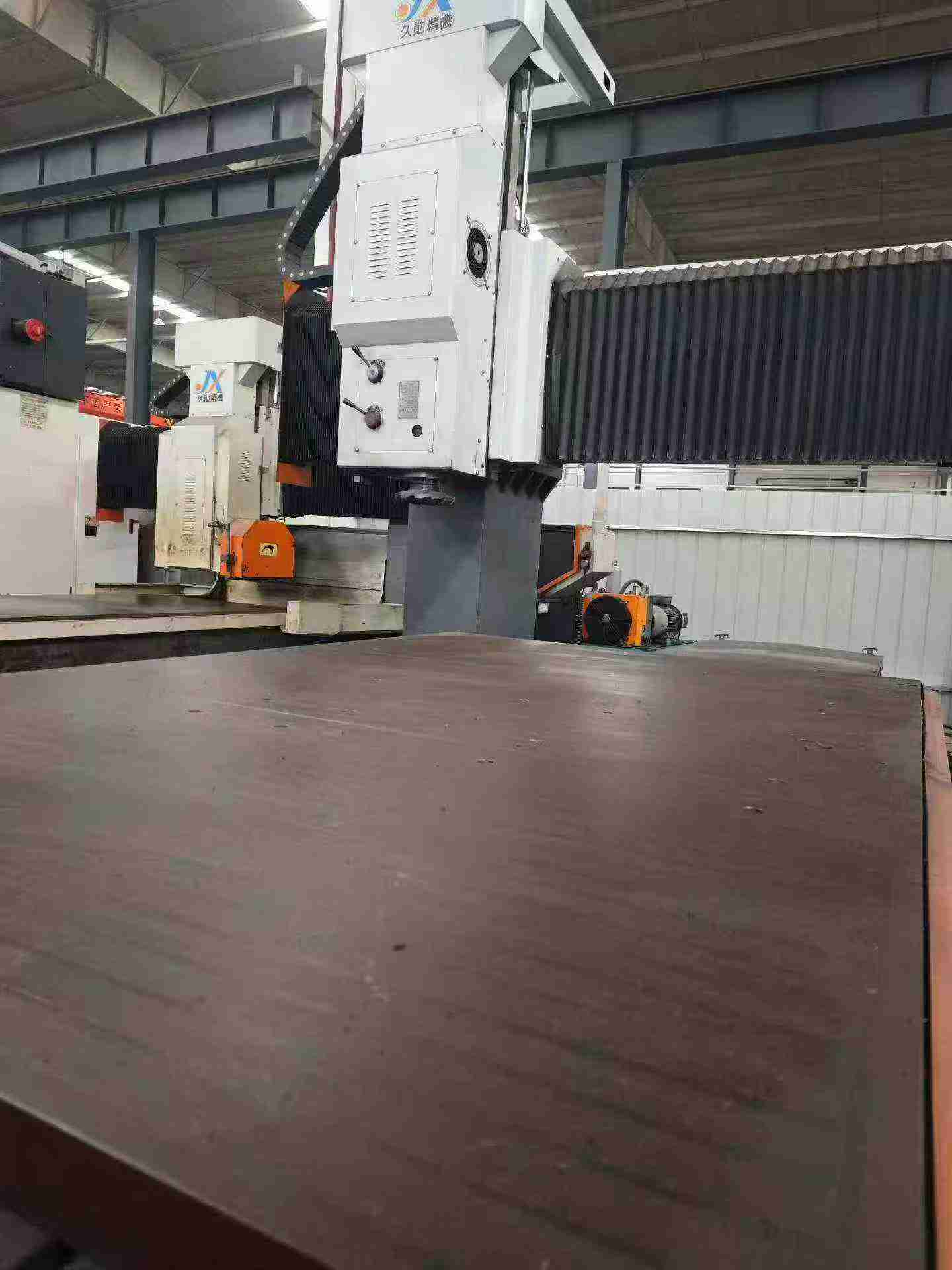

Used Jiuxun XK-3022 CNC Gantry Precision Milling Machine

Just arrived, quasi-new Jiuxun XK-3022 CNC gantry precision milling machine (sealed equipment). Manufactured in 2023, with Taiwan SYNTEC control system. Worktable size: 3000 x 1800 mm. Gantry width: 2300 mm. Gantry height: 1025 mm. Distance from worktable surface to spindle nose: 750 mm. Equipped with electric control permanent magnetic chuck 3000/1800 mm, Taiwan Yi Rong milling head. Good accuracy and rigidity. Comes with a 300 mm diameter cutter head. Installed but rarely used. Welcome to purchase!

Machine Code: OE260624
Year: 2023
Location: China
Usage Hours: On request

Accessories

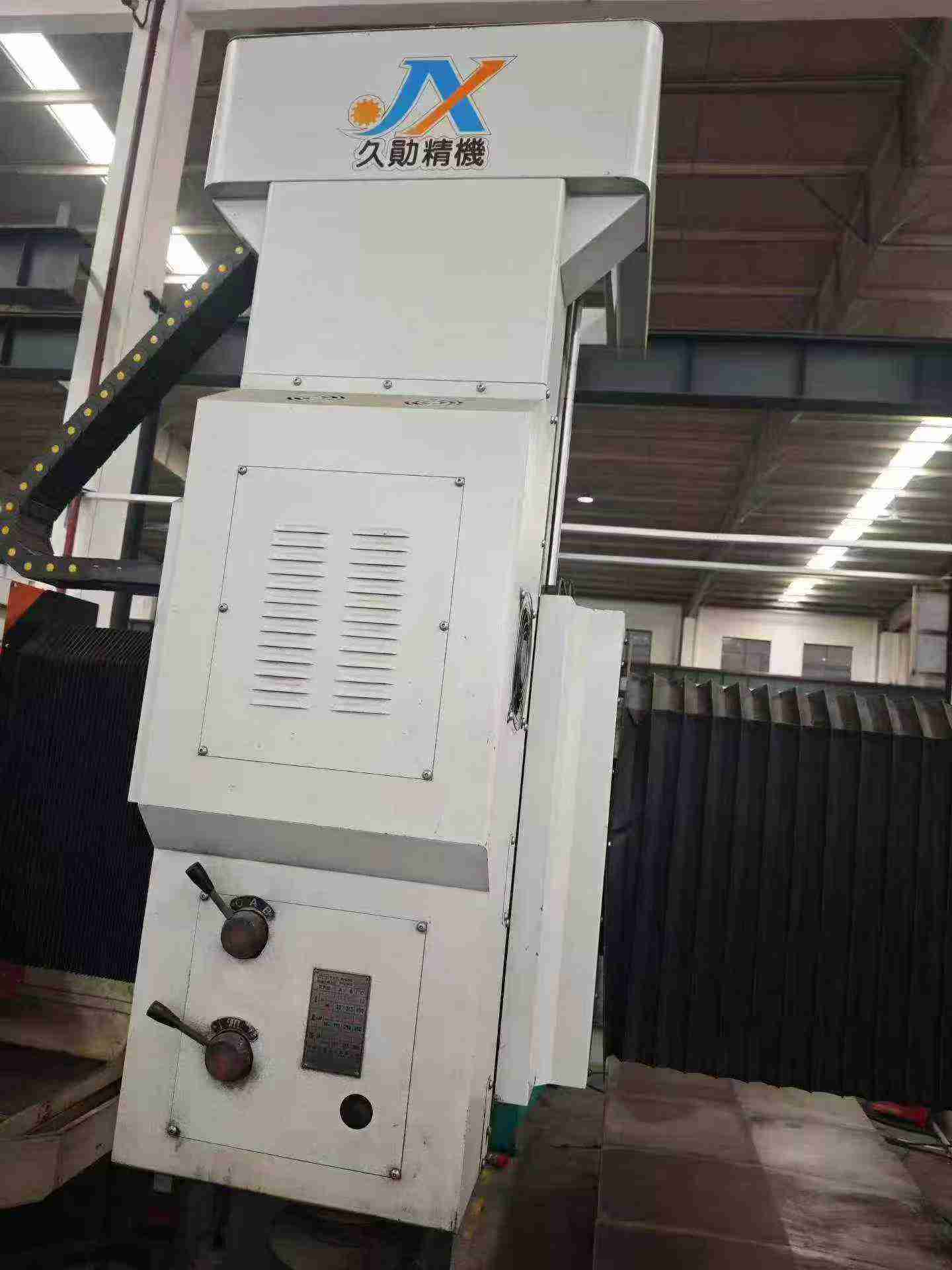

Electromagnetic chuck 3000 x 1800 mm, Taiwan Yi Rong milling head, 300 mm cutter head.

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Worktable size	3000x1800 mm
Door width	2300 mm
Door height	1025 mm
Spindle nose to table distance	750 mm
Electromagnetic chuck size	3000/1800 mm
Milling head brand	Taiwan Yi Rong

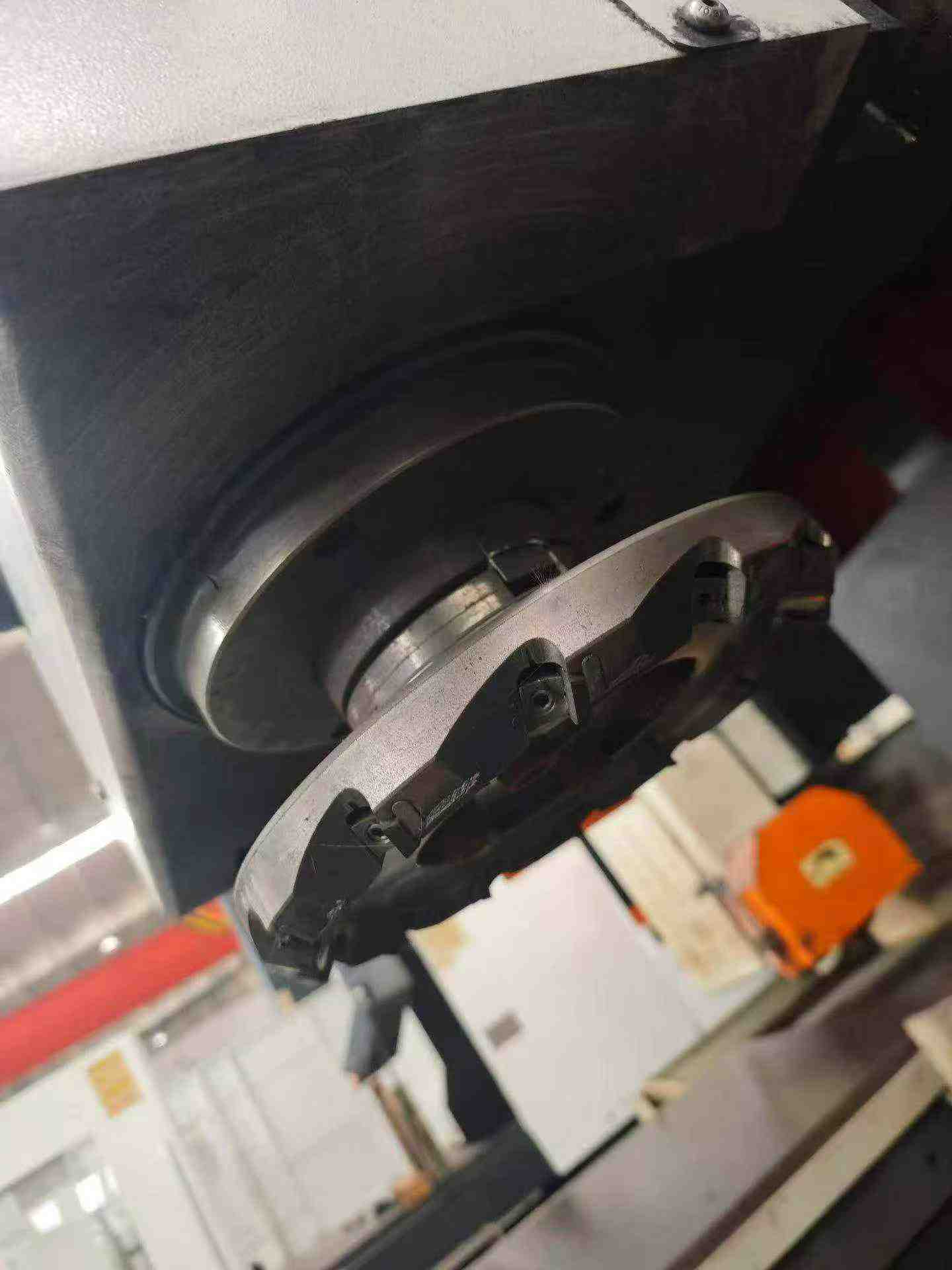

Cutter head diameter	300 mm
Machine Type	CNC Gantry Milling Machine
Brand	Jiuxun
Model	XK-3022
Manufacturing Year	2023
Condition	Nearly new, stored equipment

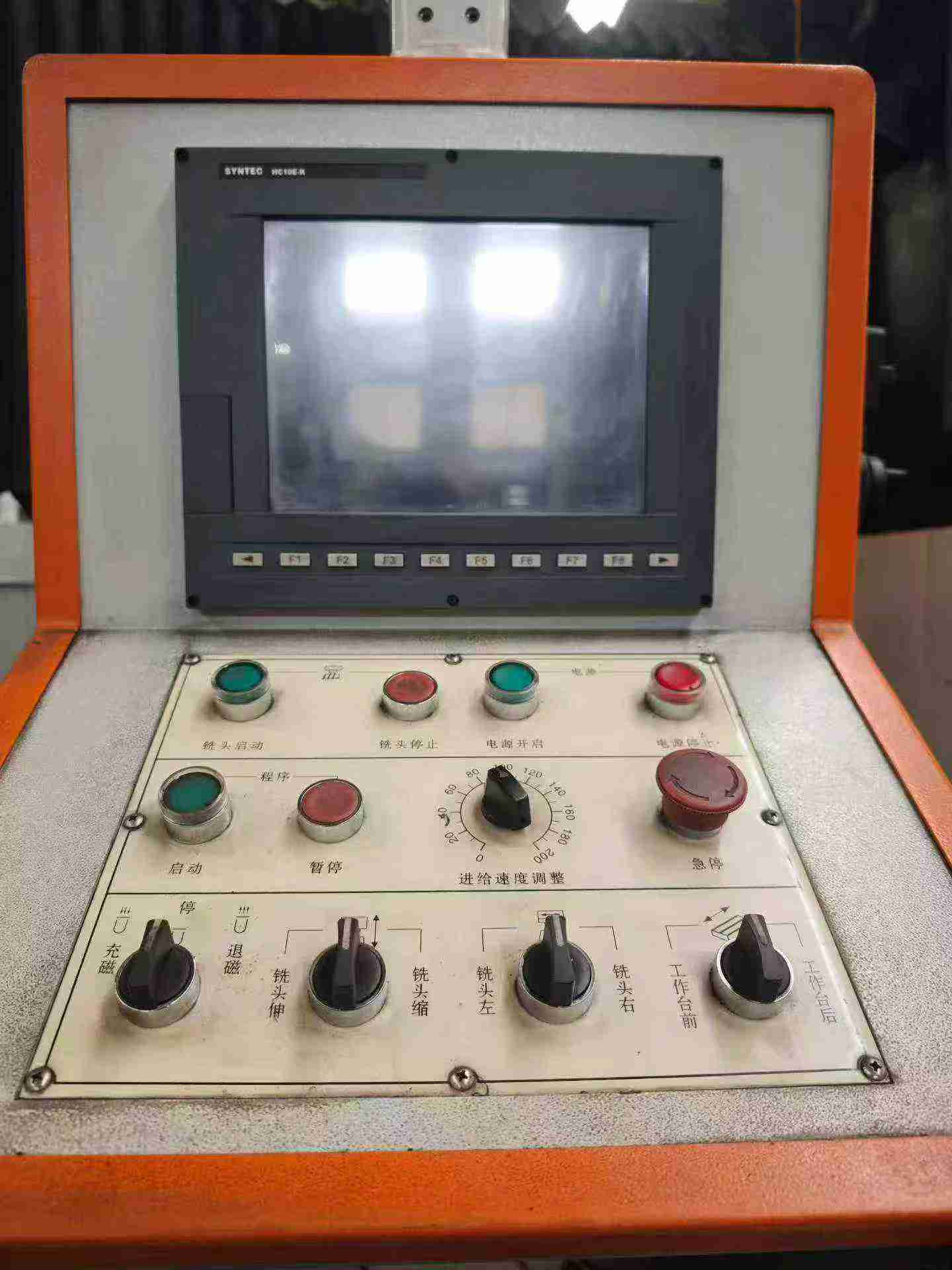

Controller	Syntec (Taiwan)
Gantry Width (door Width)	2300 mm
Gantry Width	2300 mm
