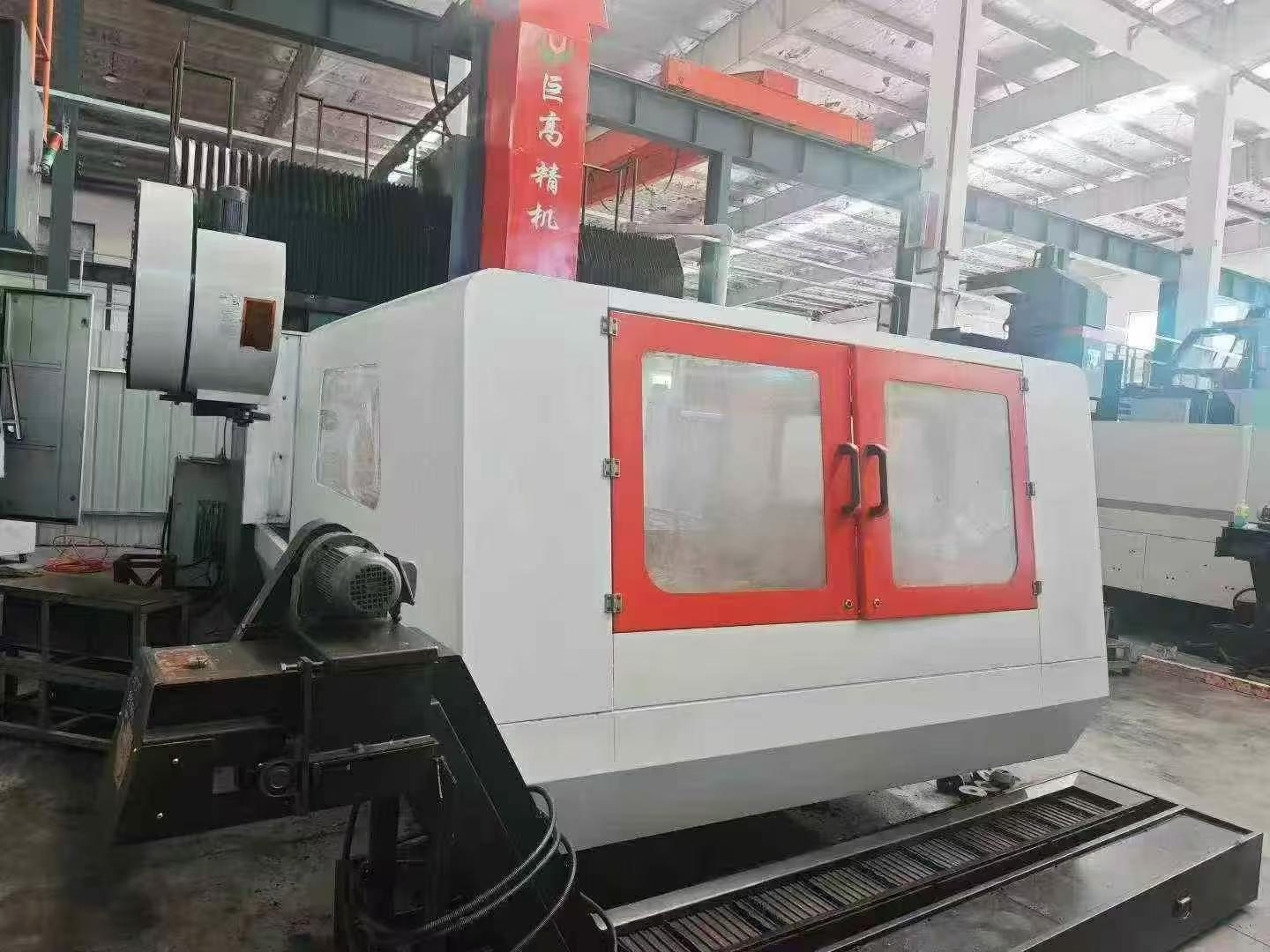

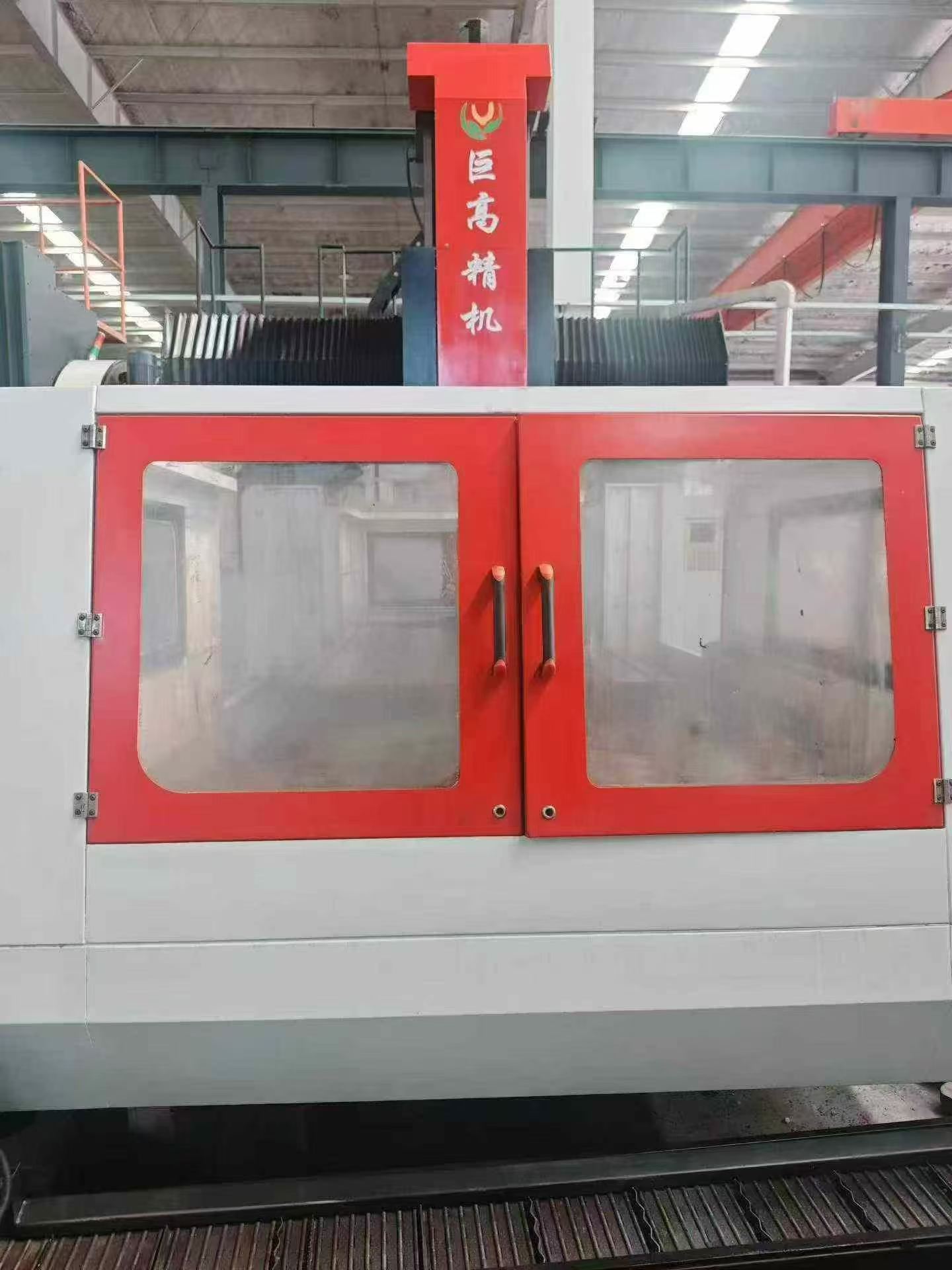

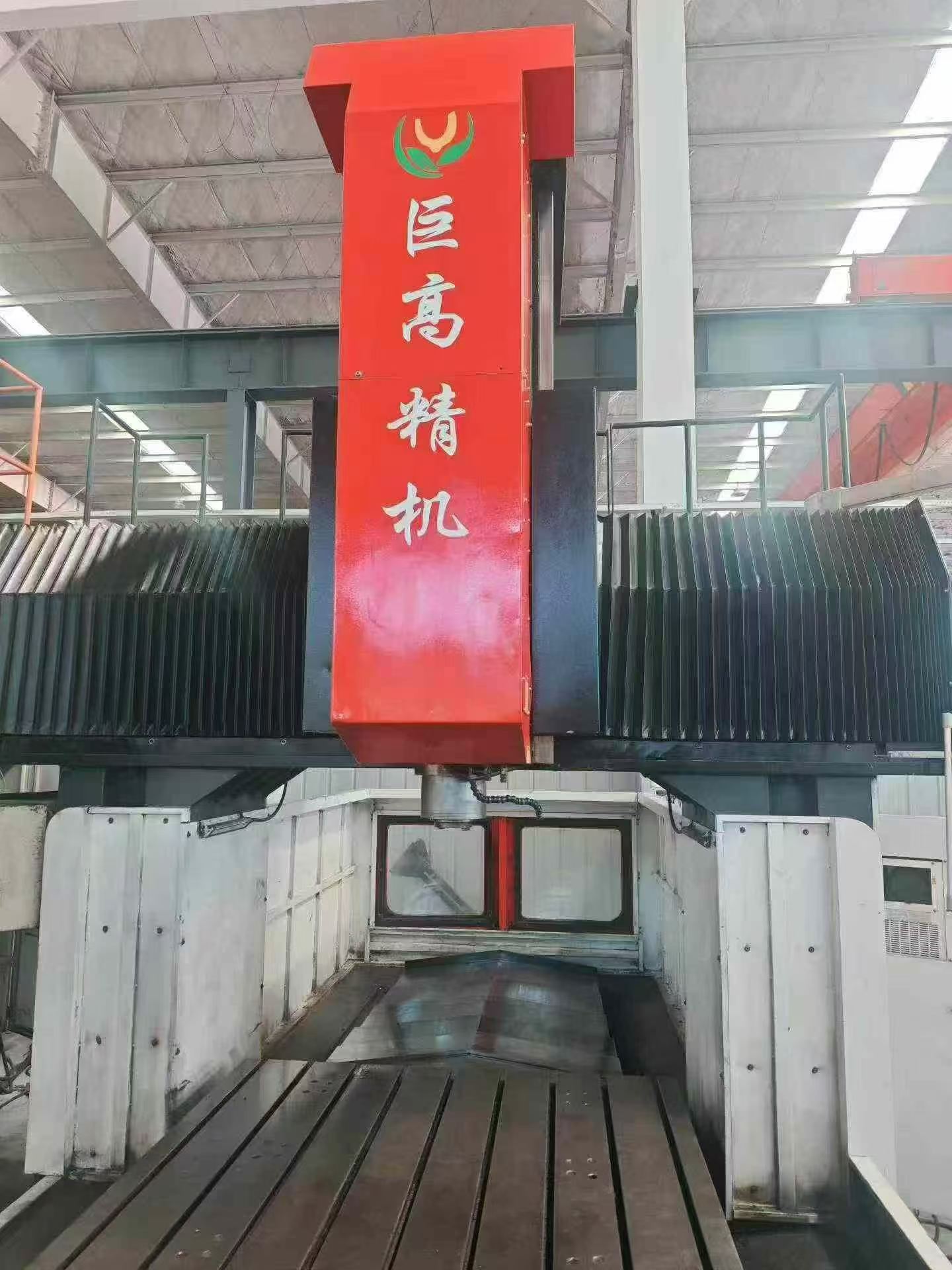

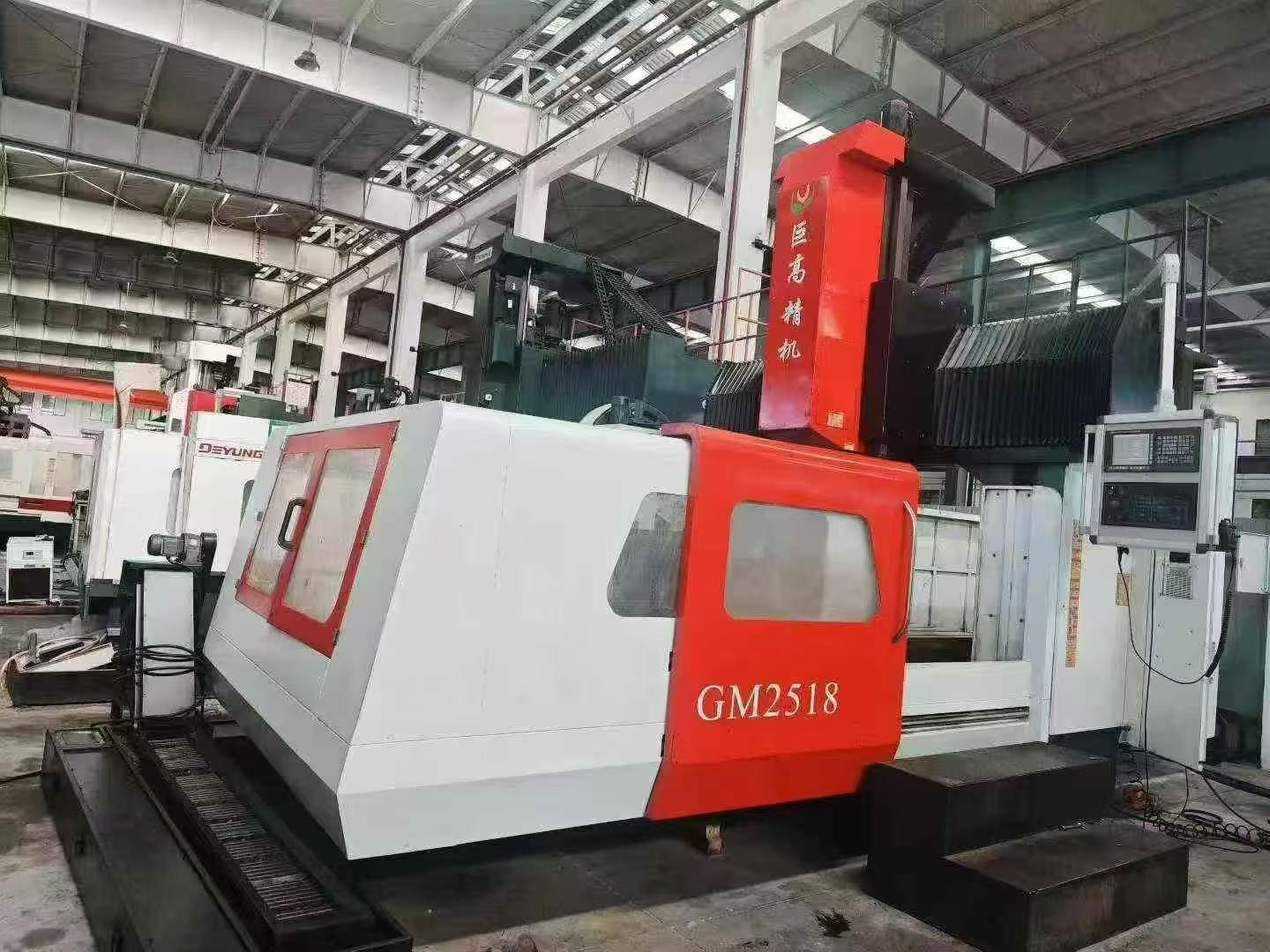

Used Jugao GM-2518 CNC Gantry Machining Center

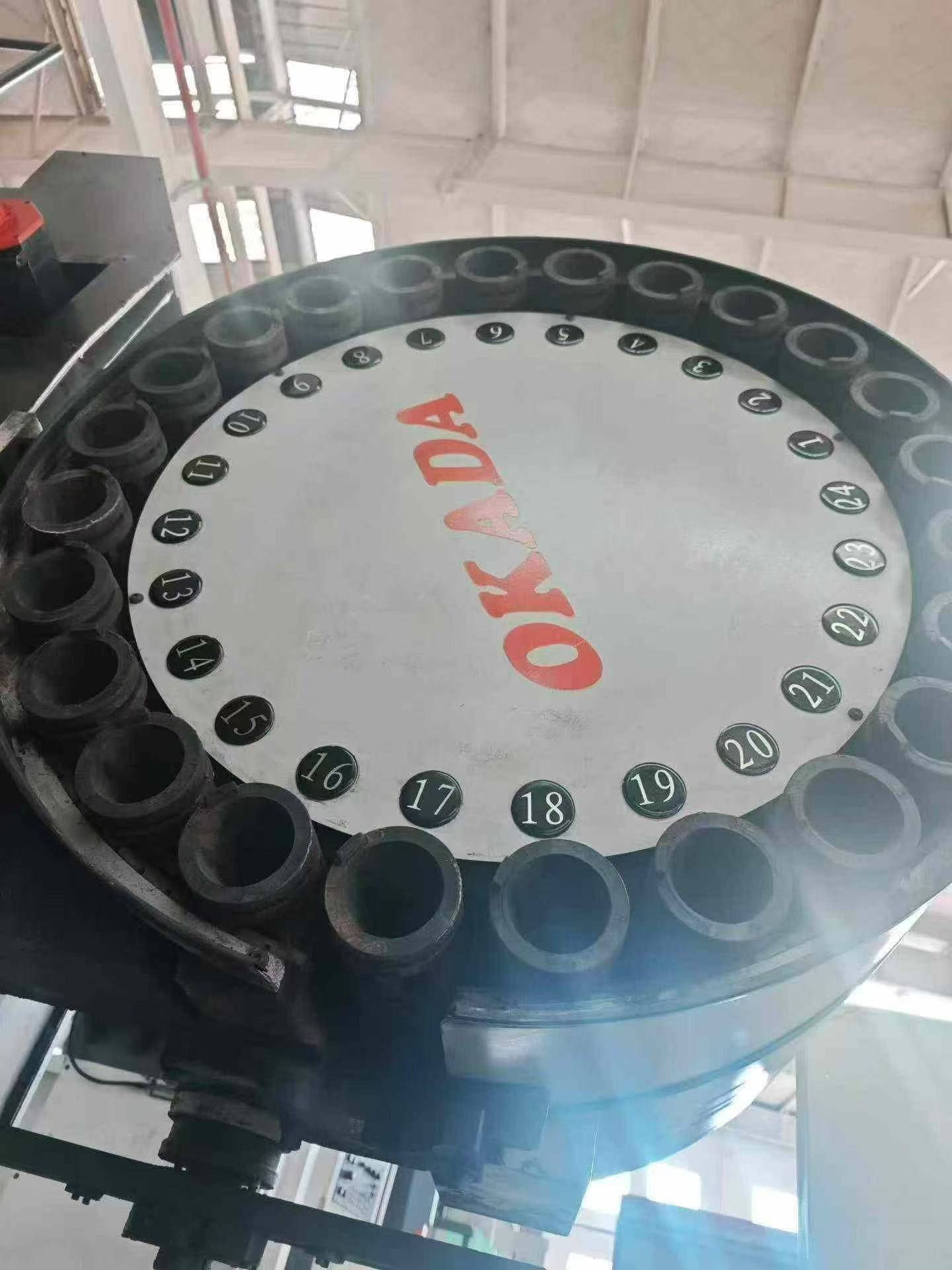

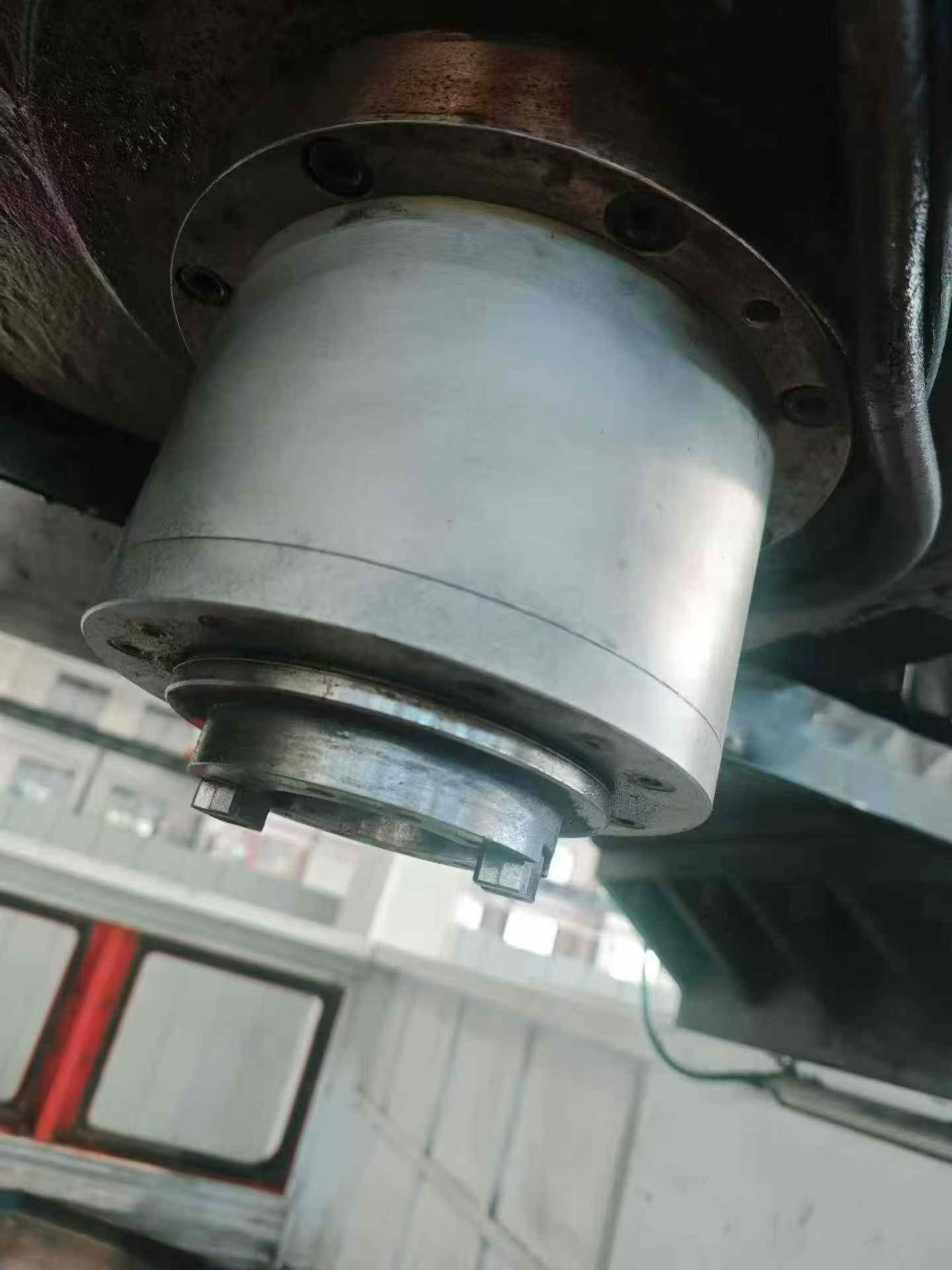

Just arrived Guangdong Jugao GM-2518 CNC gantry machining center, manufactured end of 2019. Features FANUC MF control system with separate drives, two linear guideways and one box guideway, BT50 spindle 6000 rpm gear head with oil cooler, Taiwan Okada 24-station mechanical tool magazine. Worktable size 1600 x 2500 mm, door width 1800 mm, door height 1100 mm, X/Y/Z travel 2500/2100/800 mm, spindle nose to table distance 1000 mm. Equipped with built-in dual screw and long chain chip conveyor. Machine in good condition, welcome to test and purchase.

Machine Code: MC260619
Year: 2019
Location: China
Usage Hours: On request

Accessories

Tool magazine, chip conveyor, oil cooler

Email Inquiry

Main Specifications

Spindle speed	6000 rpm
Spindle taper	BT50
X/Y/Z travel	2500/2100/800 mm

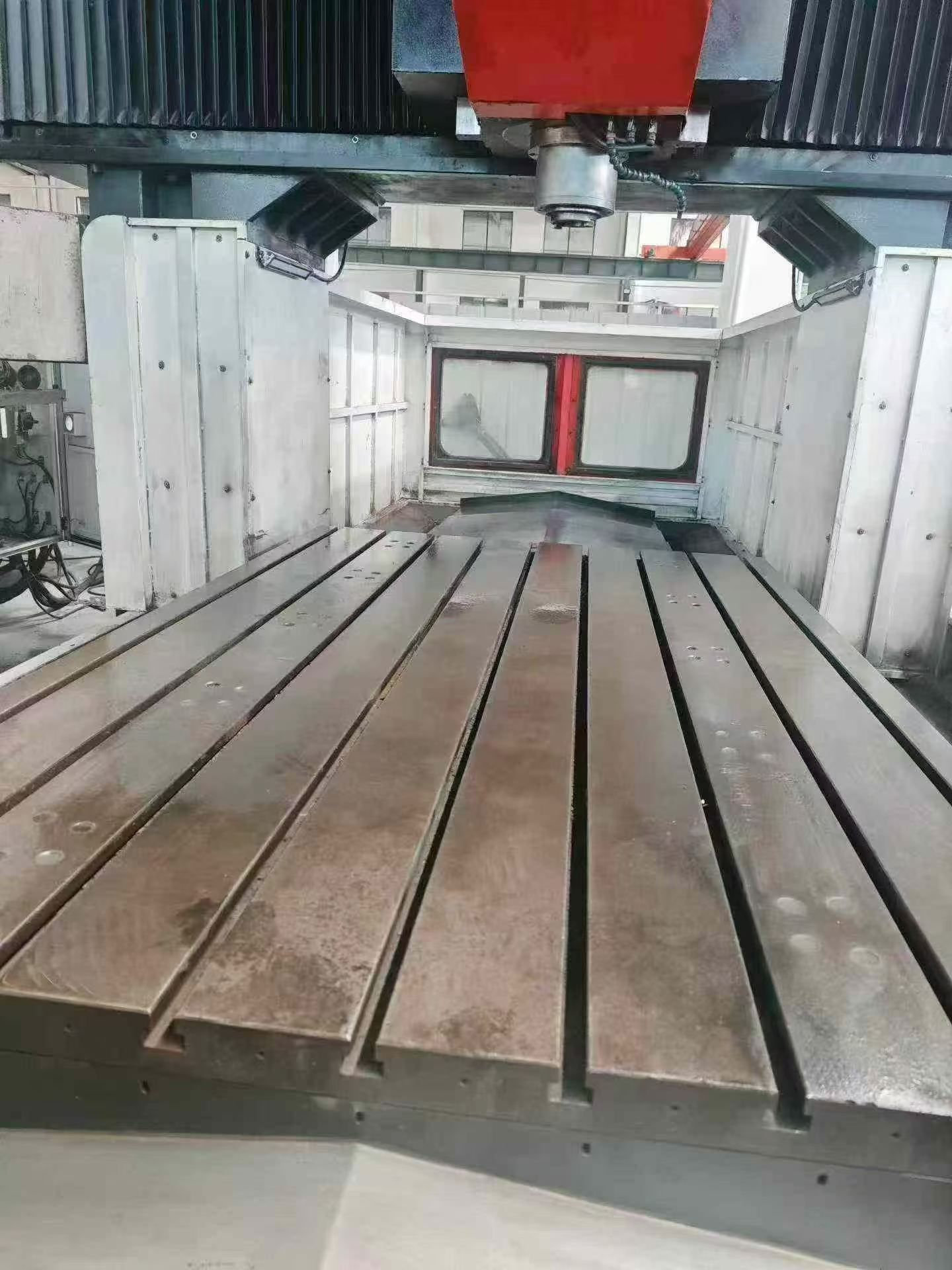

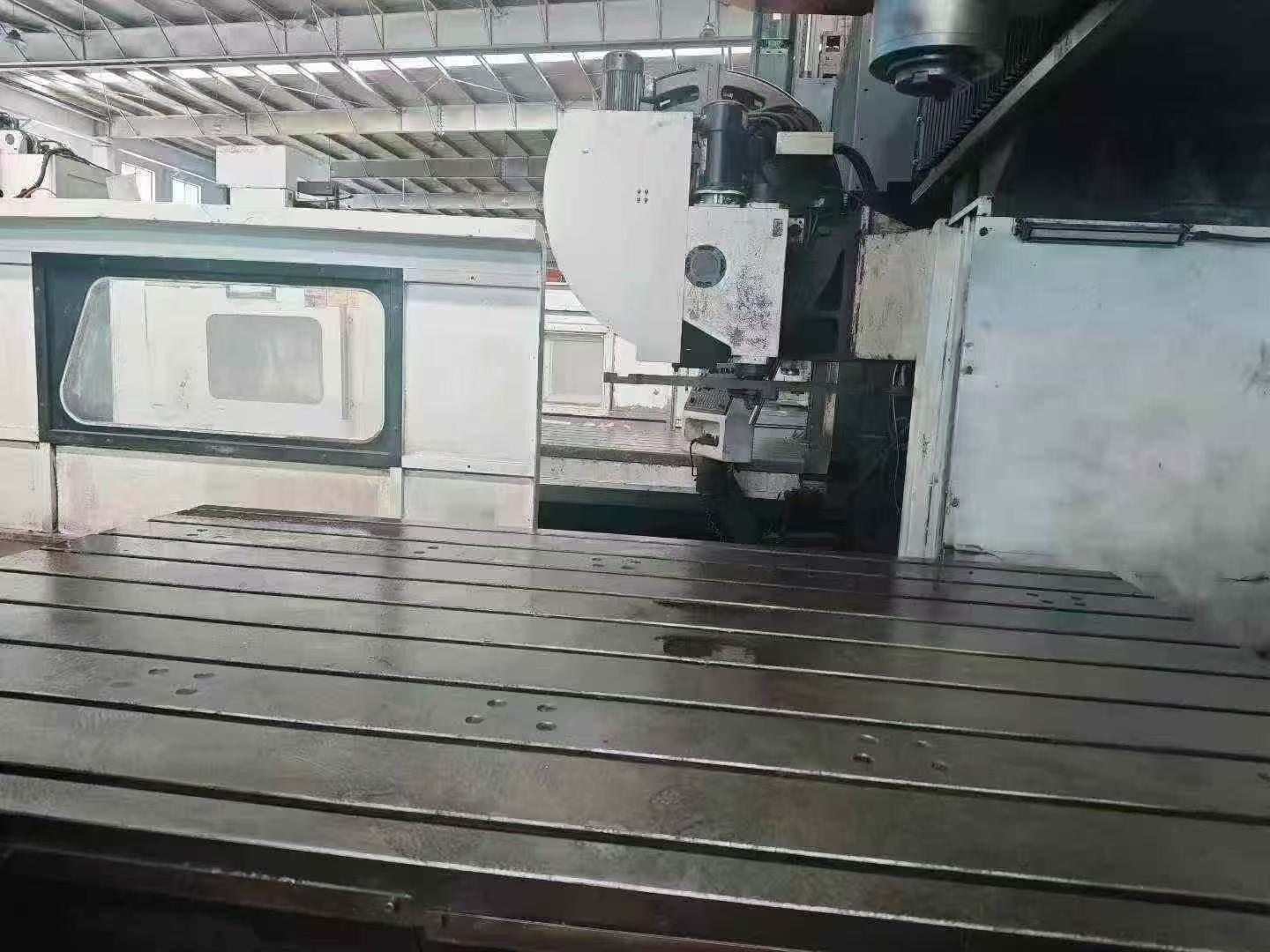

Worktable size	1600x2500 mm
Door width	1800 mm
Door height	1100 mm
Spindle nose to table	1000 mm
Tool magazine capacity	24
Guideway type	Two linear guideways, one box guideway
Year Of Manufacture	2019
Guideway Configuration	Two linear guideways and one box guideway

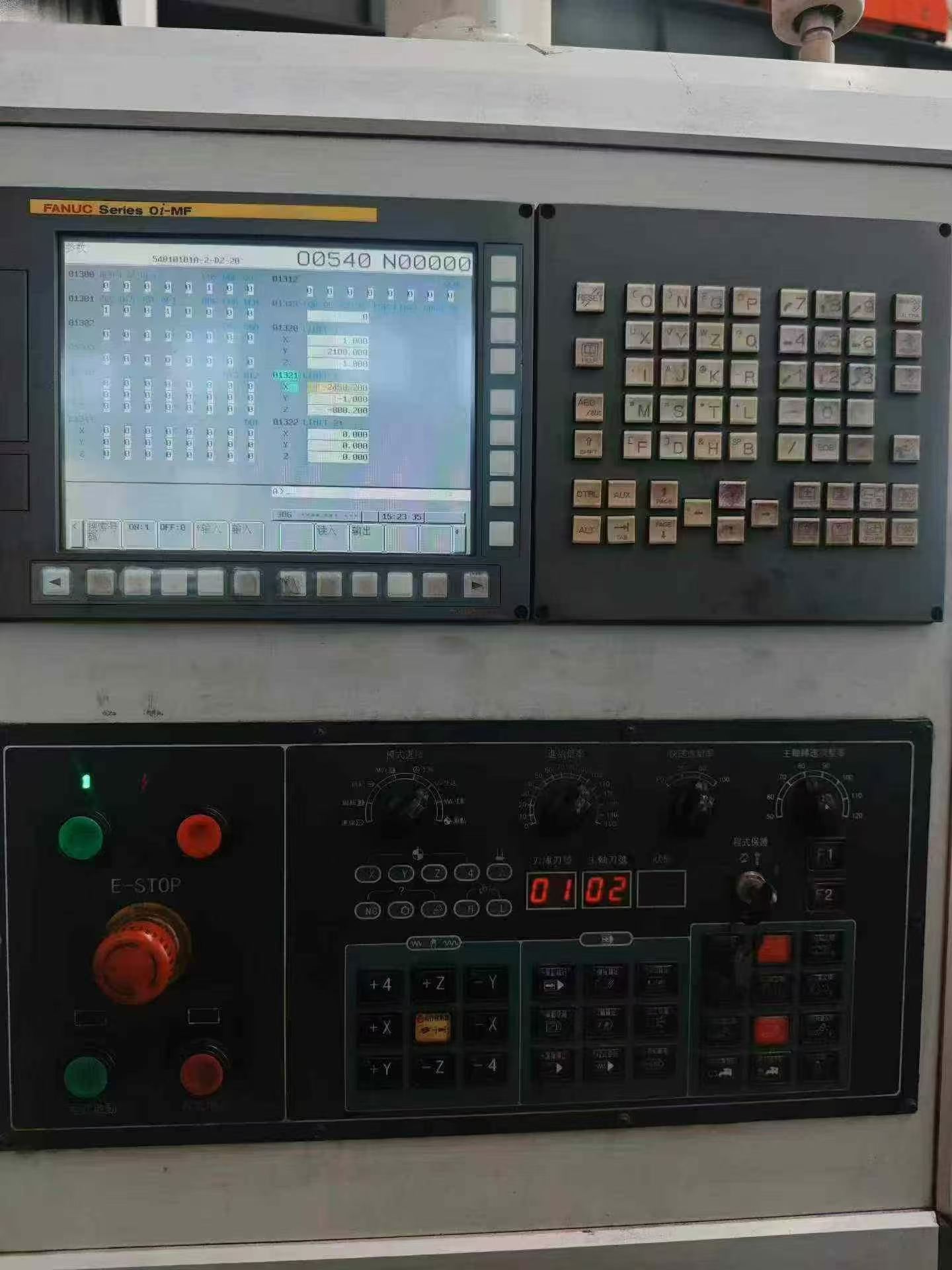

Controller	Fanuc MF series
Oil Cooler	Yes
Tool Magazine Type	Mechanical
Tool Magazine Brand	Okada (Taiwan)
Chip Conveyor	Dual screw and chain chip conveyor
Machine Type	Gantry Machining Center
Brand	Guangdong Jugao
Model	GM-2518
Drive Configuration	Separate drive units
Spindle Drive	Gear-driven
