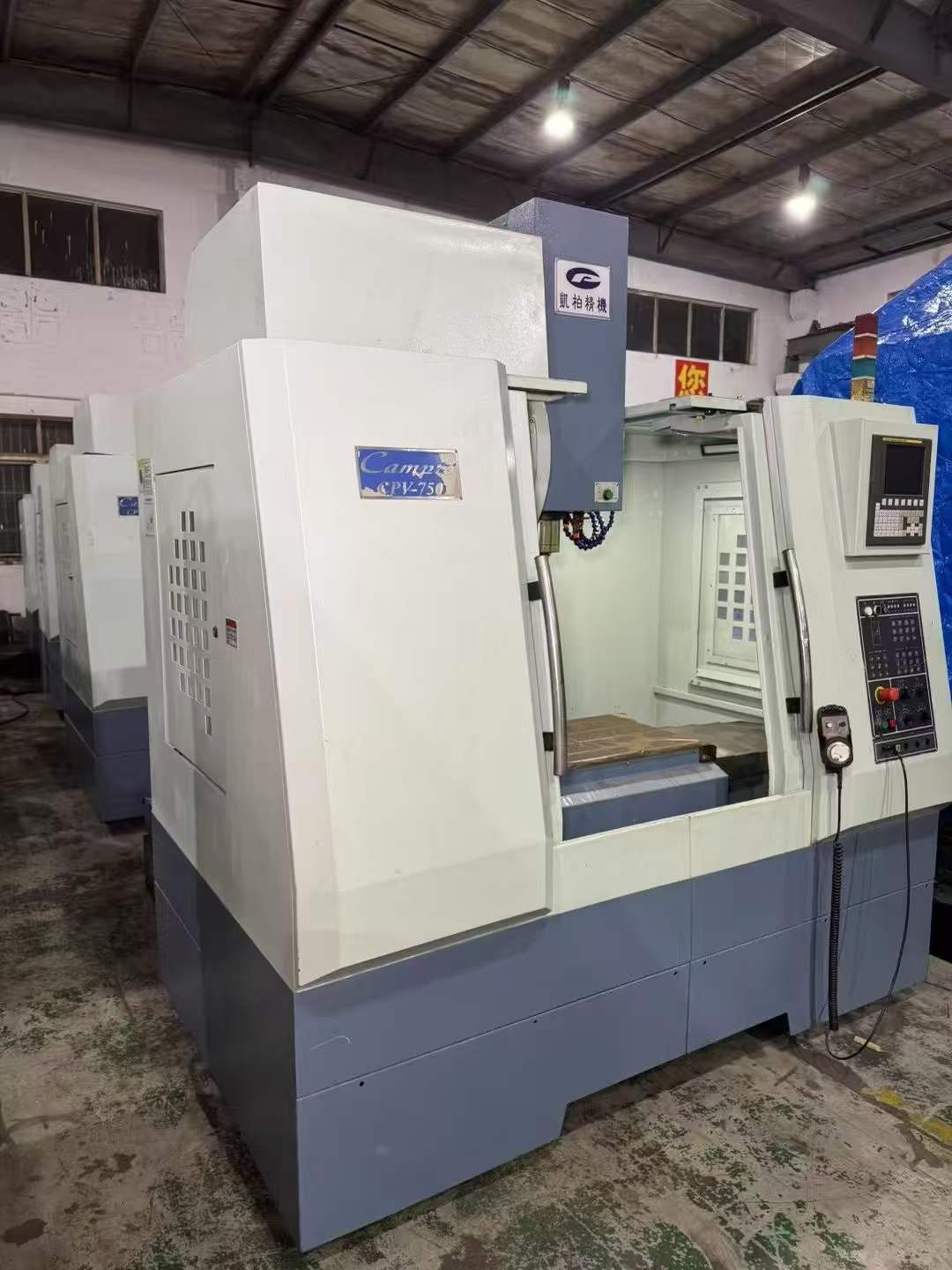

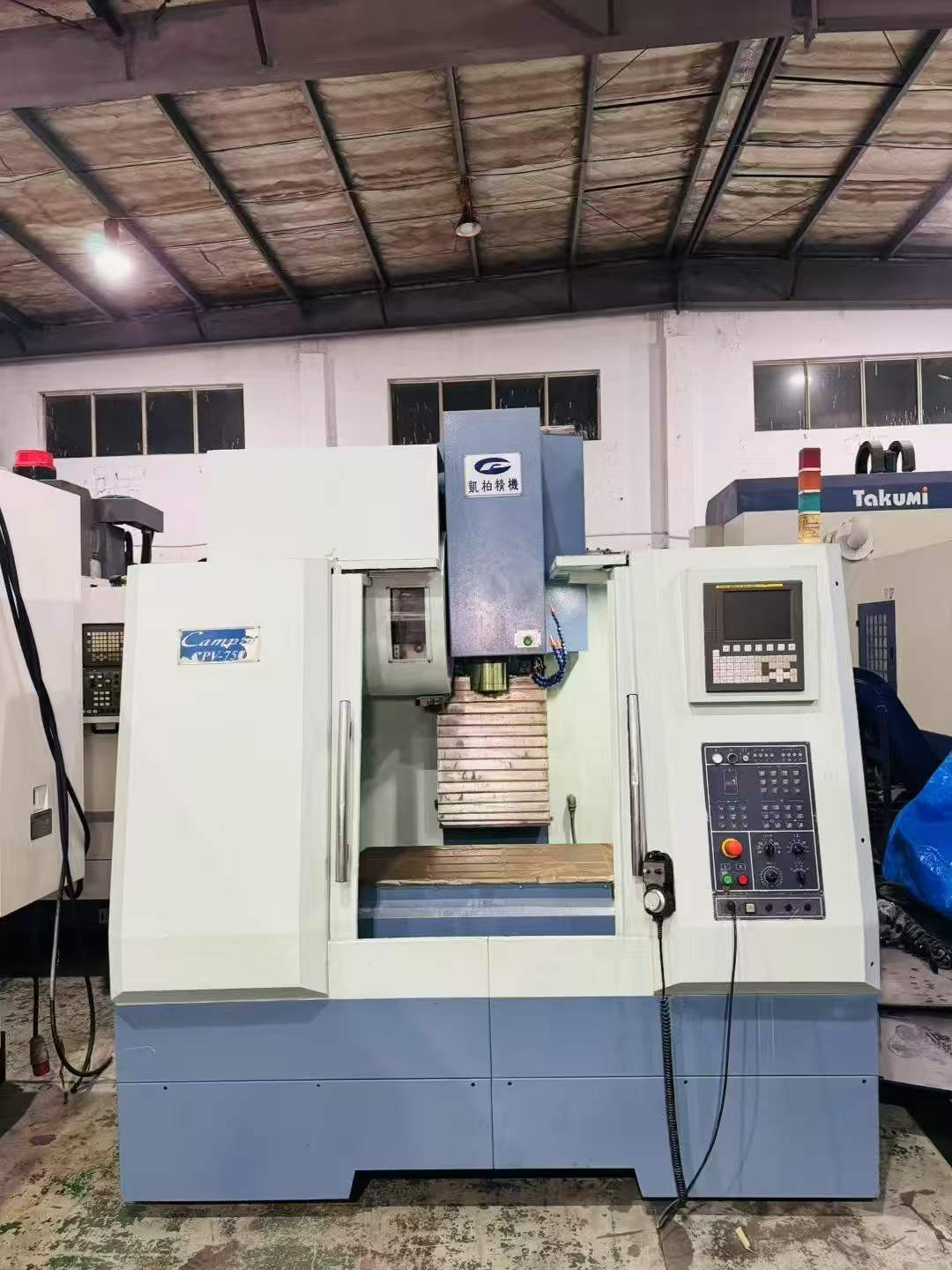

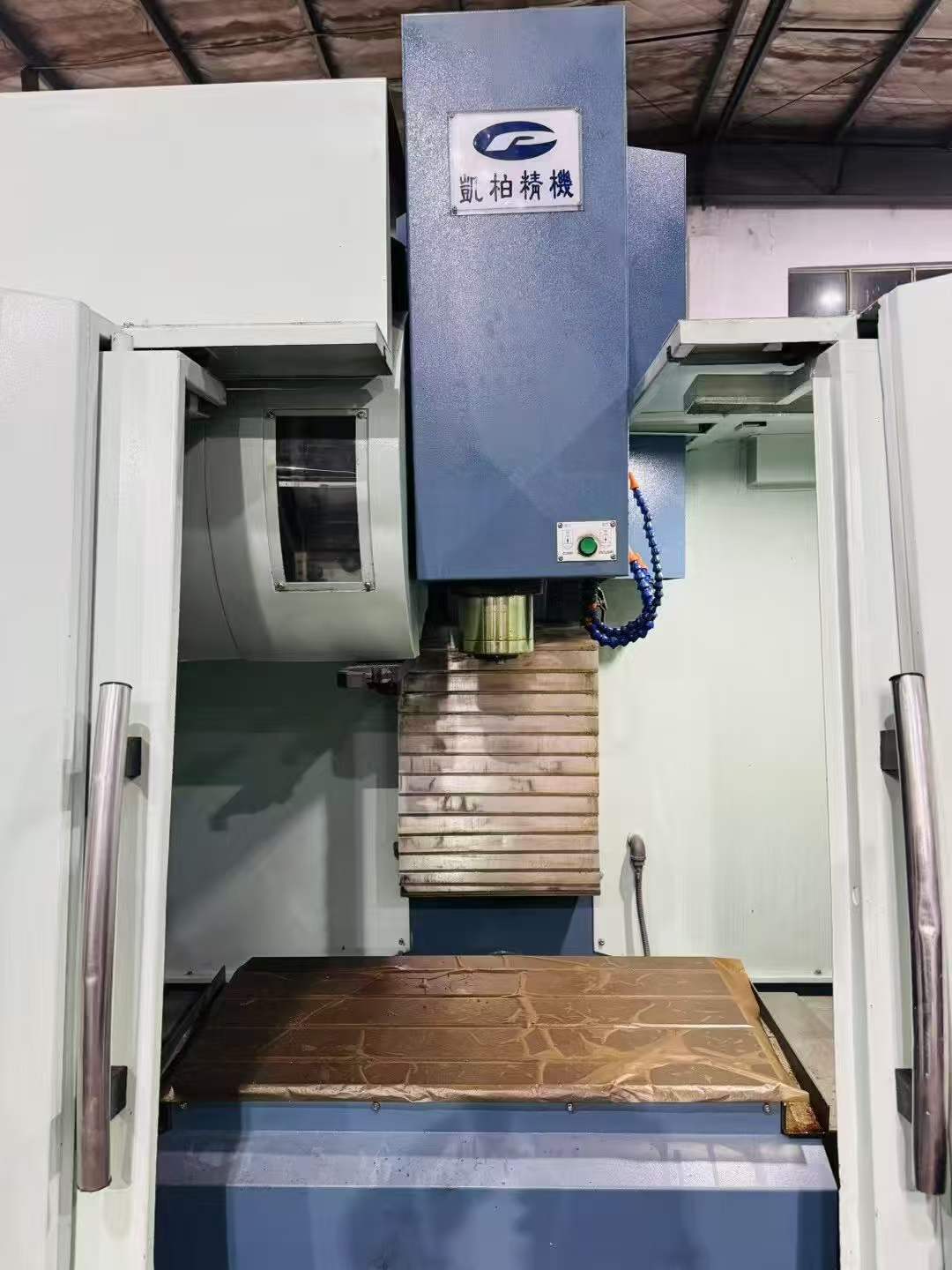

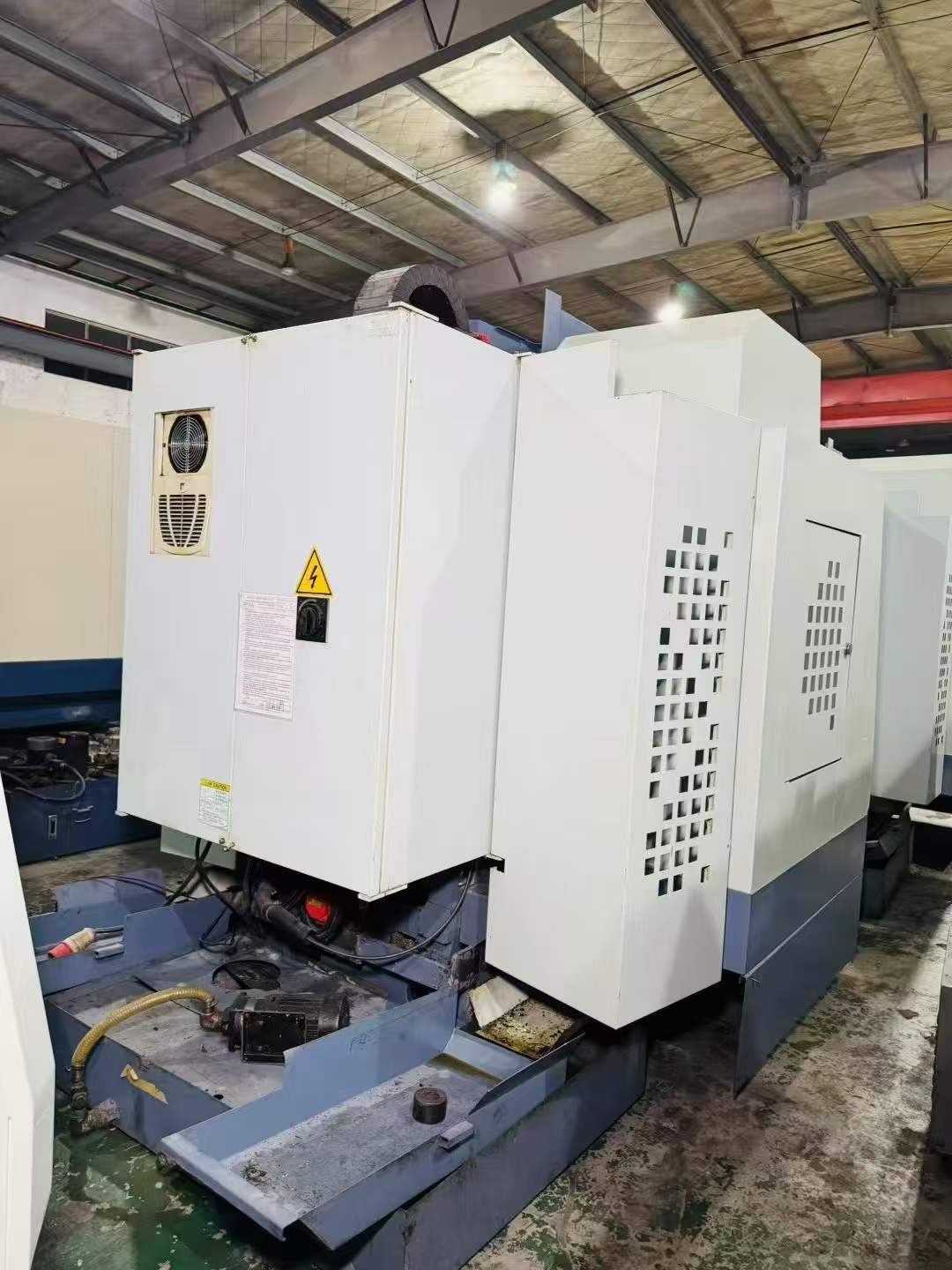

Used Kaibo CPV-750 Vertical Machining Center with FANUC MD

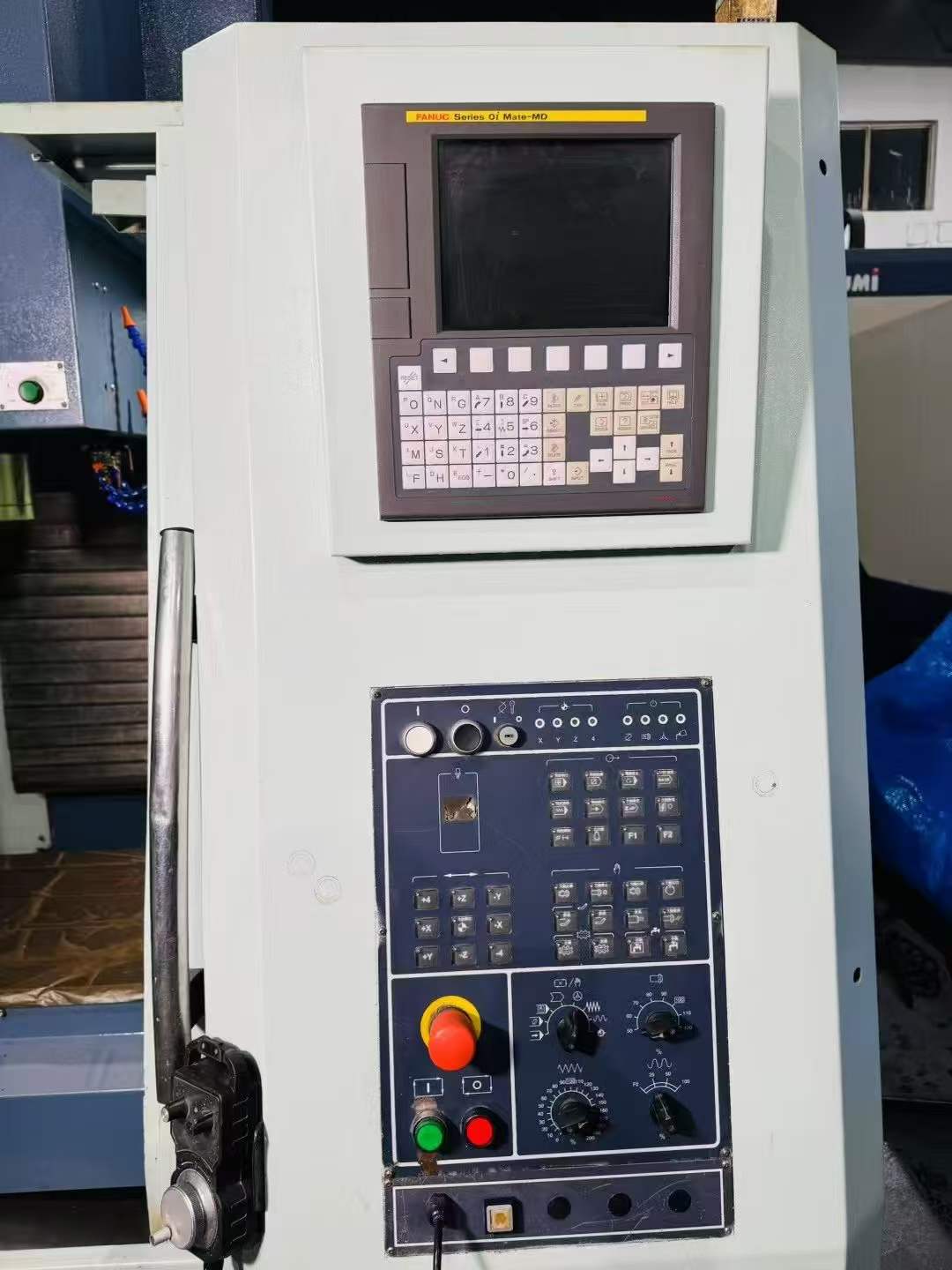

Taiwan Kaibo CPV-750 vertical machining center, FANUC MD control. Multiple units, lightly used. All in good condition, strong performance. Price: a few 10 K RMB. Contact for details.
- Machine Code
- VMC260792
- Year
- On request
- Location
- China
- Usage Hours
- On request
Accessories

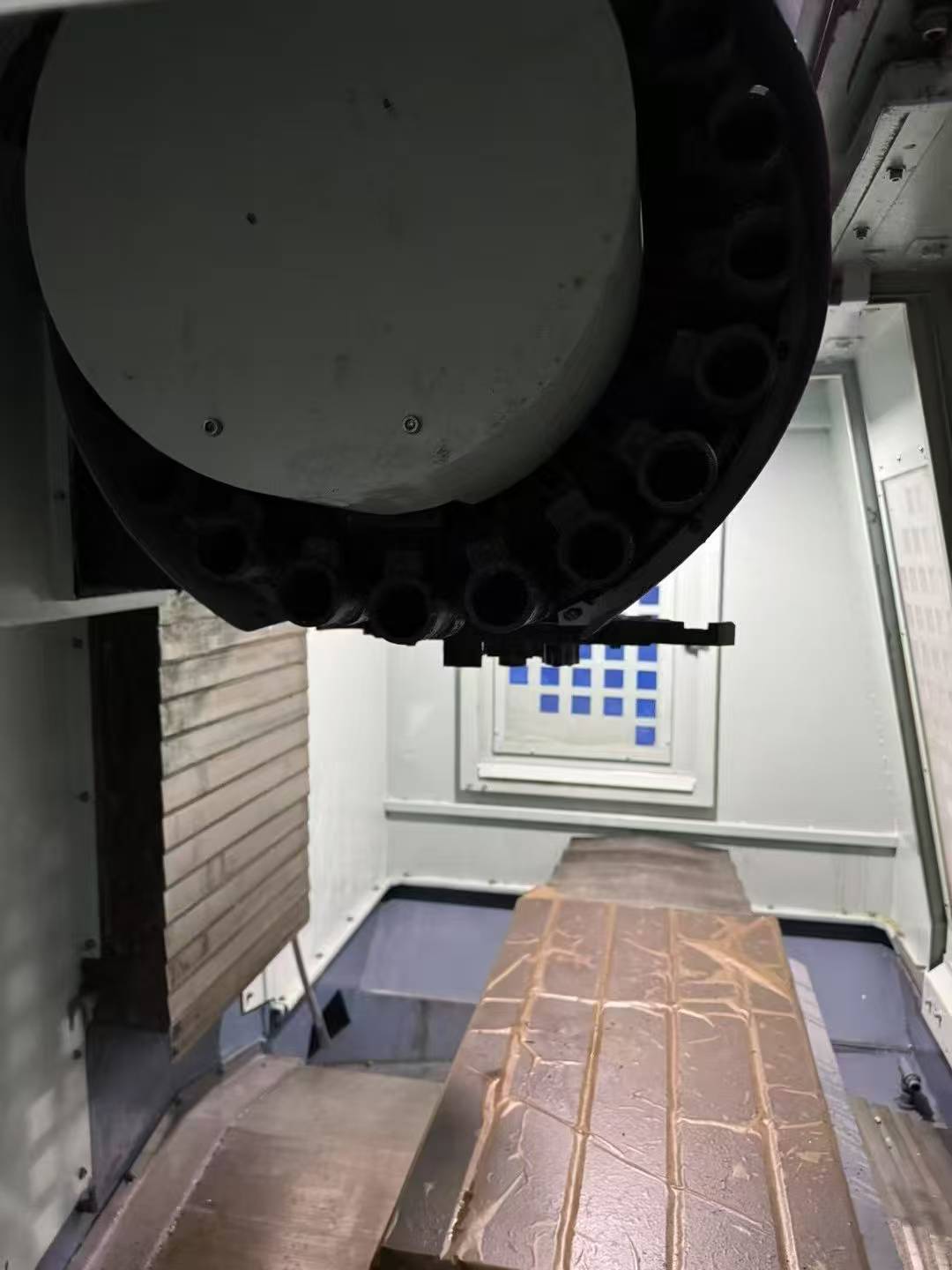

20-tool arm-type ATC
Contact access
Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.
Loading…
Main Specifications
| Spindle speed | 10000 rpm |
|---|---|
| Spindle motor power | 7.5/11 kW |
| Spindle taper | BT40 |
| Worktable size | 850 x 430 mm |
| X travel | 750 mm |
| Y travel | 430 mm |
| Z travel | 480 mm |
| Tool magazine capacity | 20 |
| Guideway type | Linear guideway (heavy-duty) |
