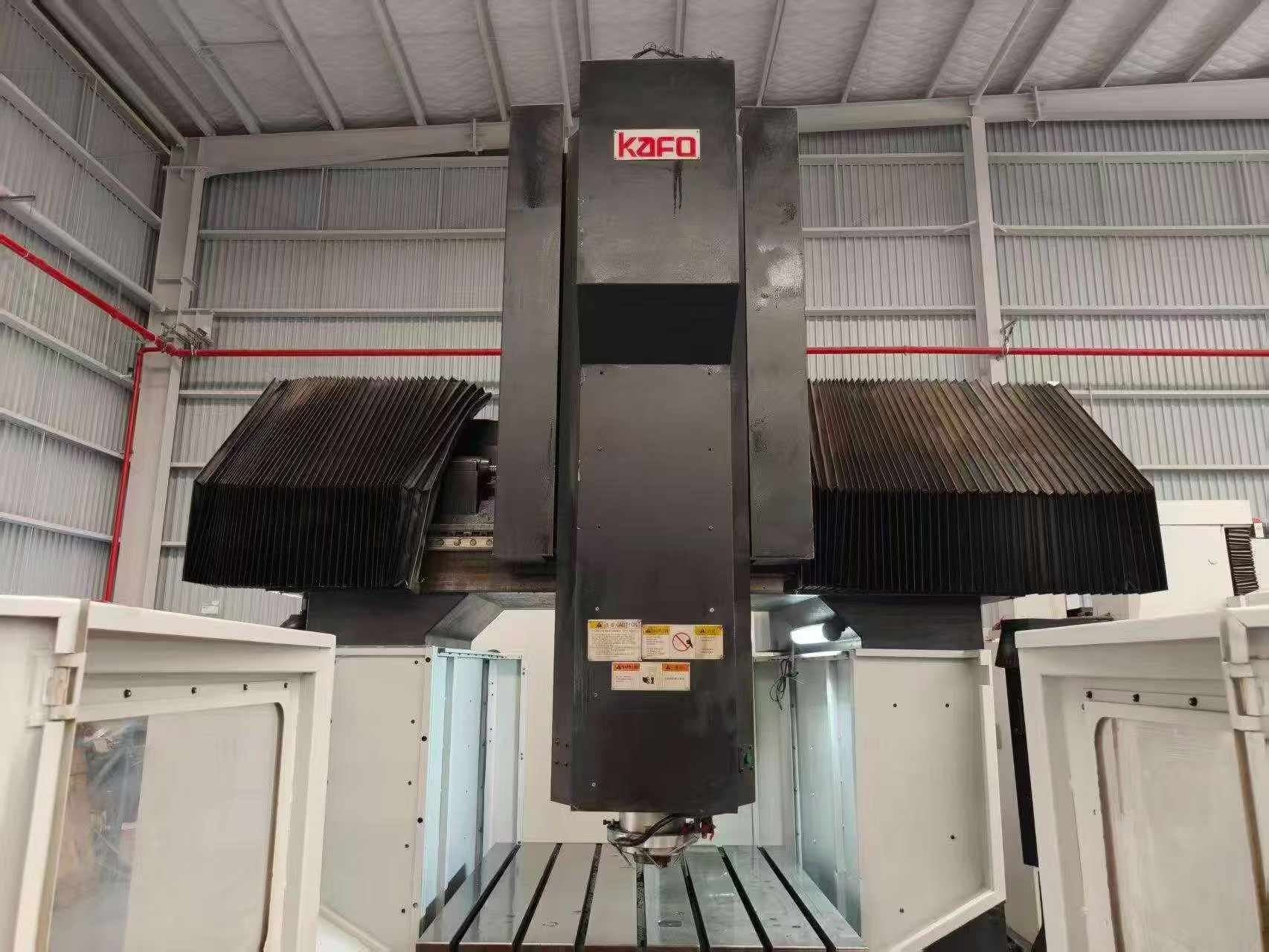

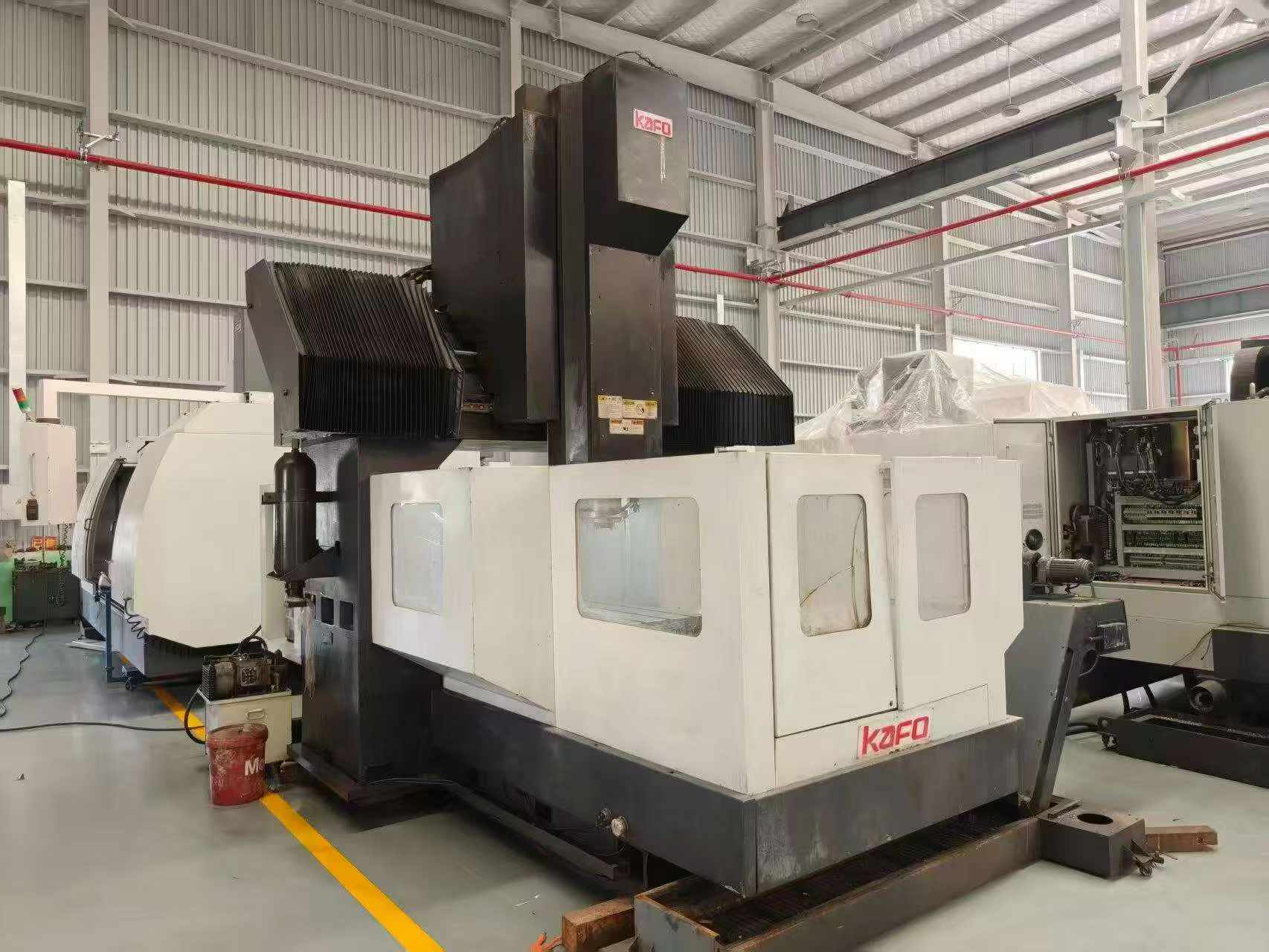

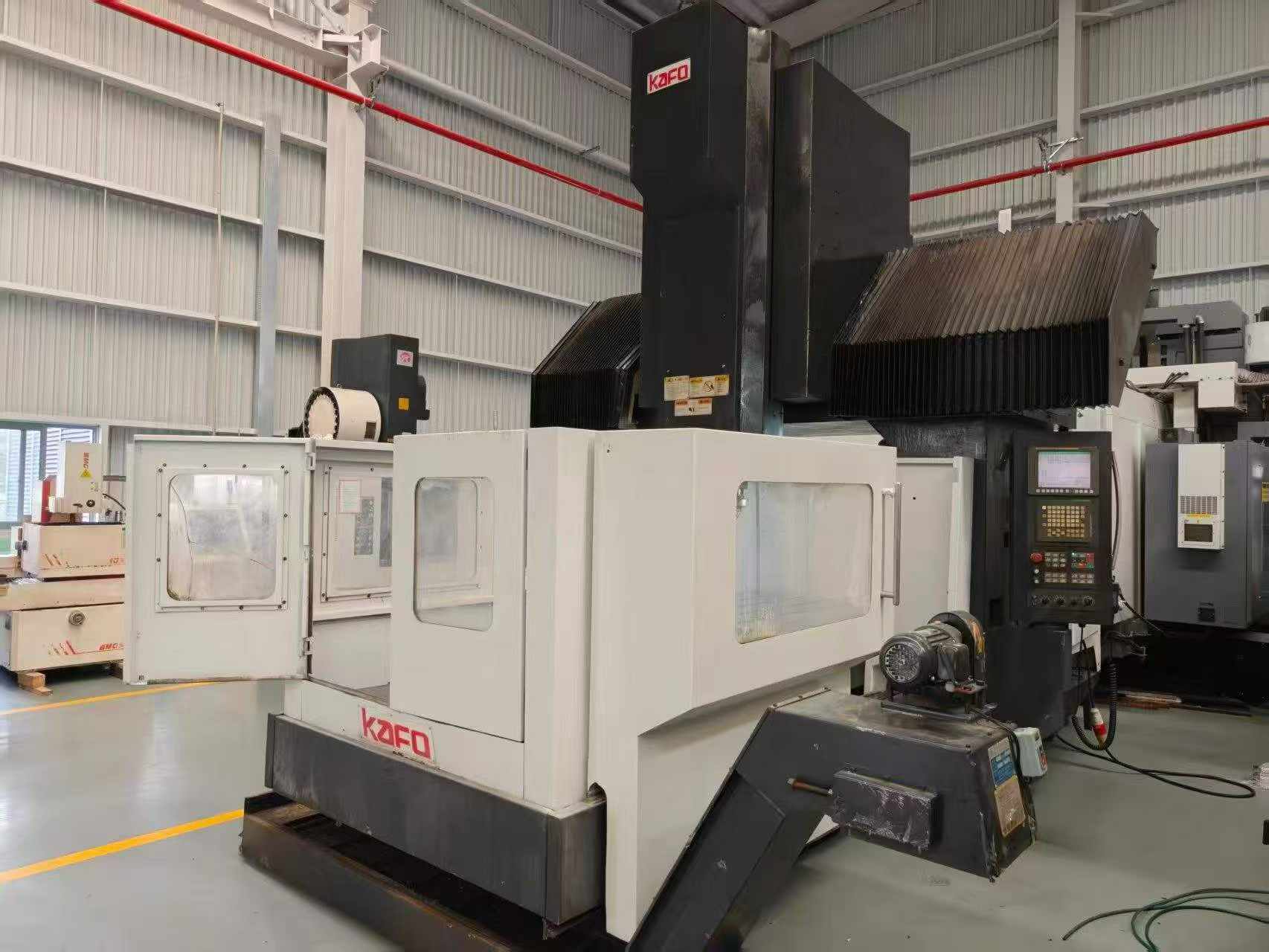

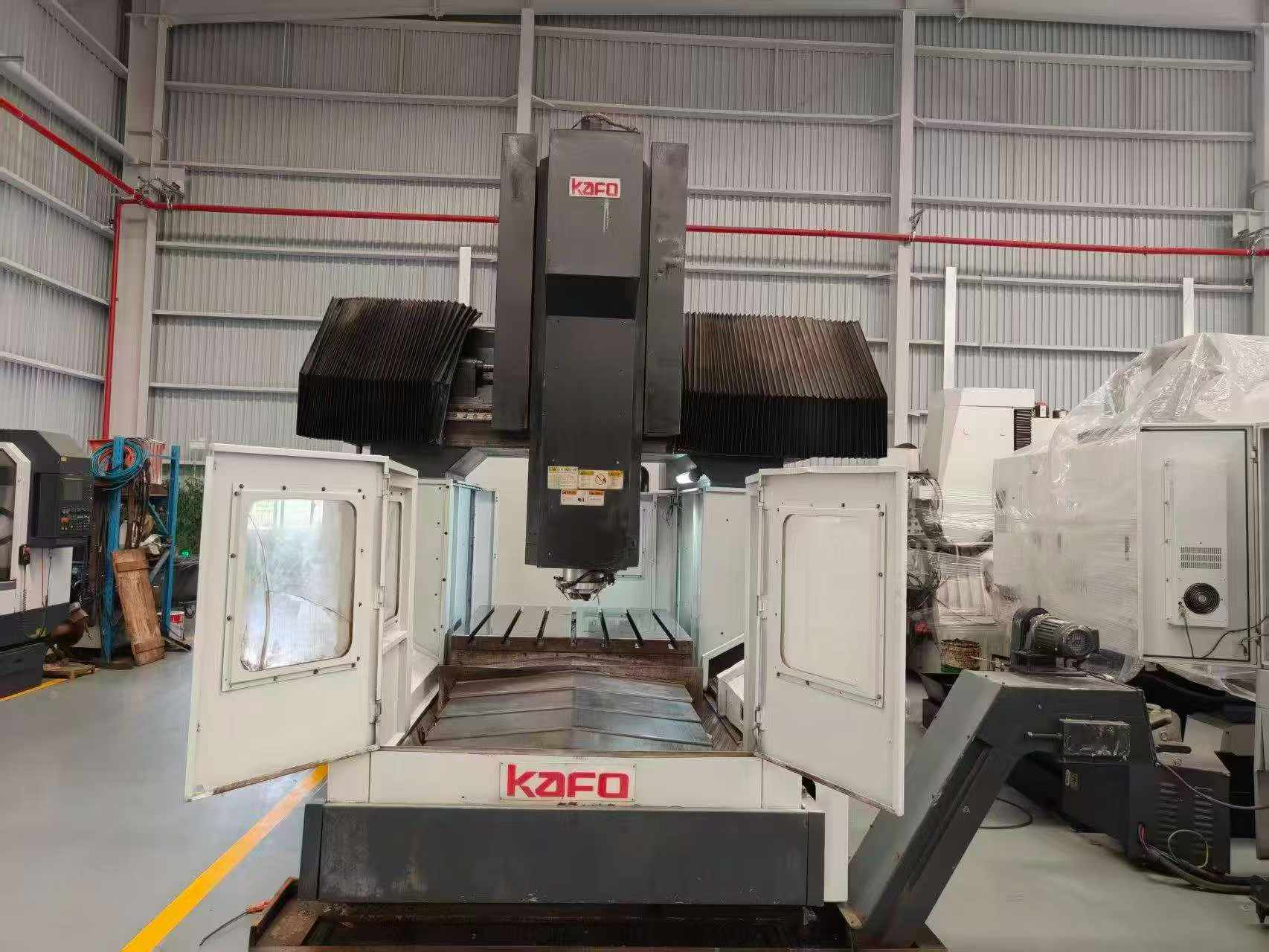

Used Kao Feng 1513 Small Gantry Machining Center with FANUC 0i-MD
Used Kao Feng 1513 small gantry machining center from Taiwan stock. Available for inspection and video verification.
- Machine Code
- MC260703
- Year
- 2014
- Location
- China
- Usage Hours
- On request
Accessories
Three chip conveyors
Contact access
Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.
Loading…
Main Specifications
| Spindle speed | 5000 rpm |
|---|---|
| Spindle taper | BT50 |
| X travel | 1500 mm |
| Y travel | 1400 mm |
| Z travel | 700 mm |

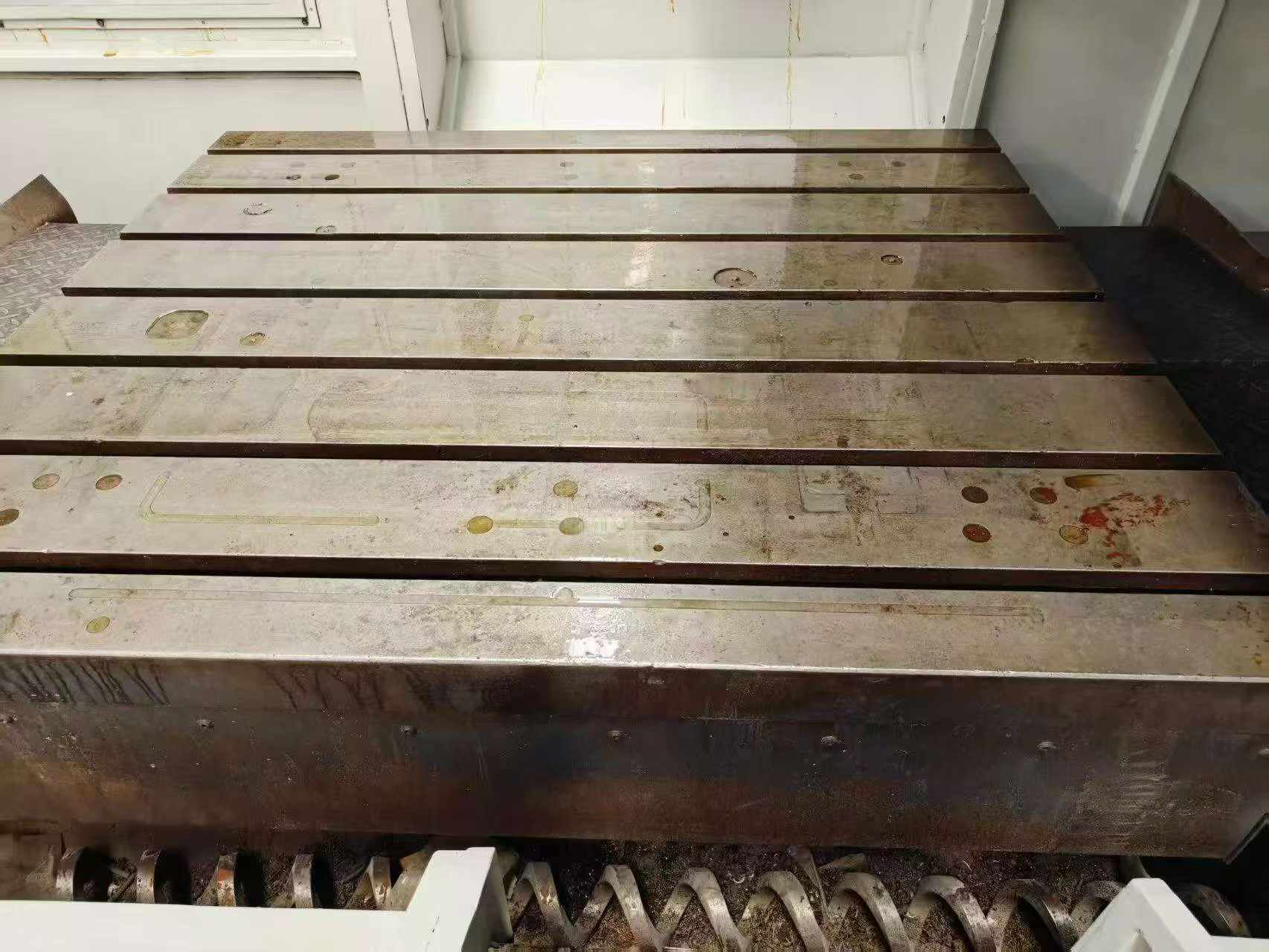

| Worktable size | 1500 x 1300 mm |
| Gantry width | 1500 mm |
| Gantry height | 1030 mm |
| Machine Type | Gantry Machining Center |
| Year | 2014 |
| Brand | Taiwan Kaofong |
| Model | 1513 |

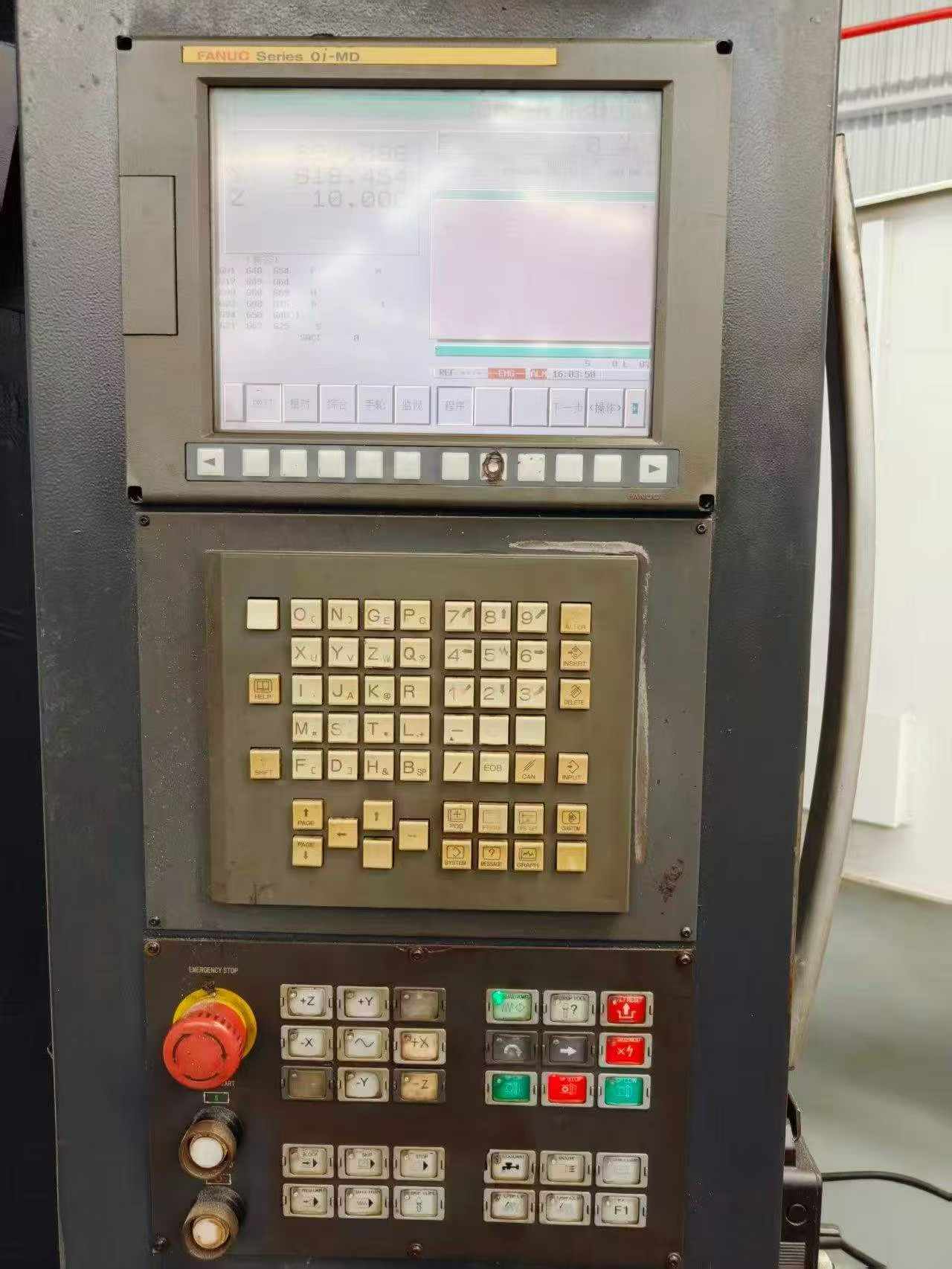

| Controller | Fanuc OI-MD |

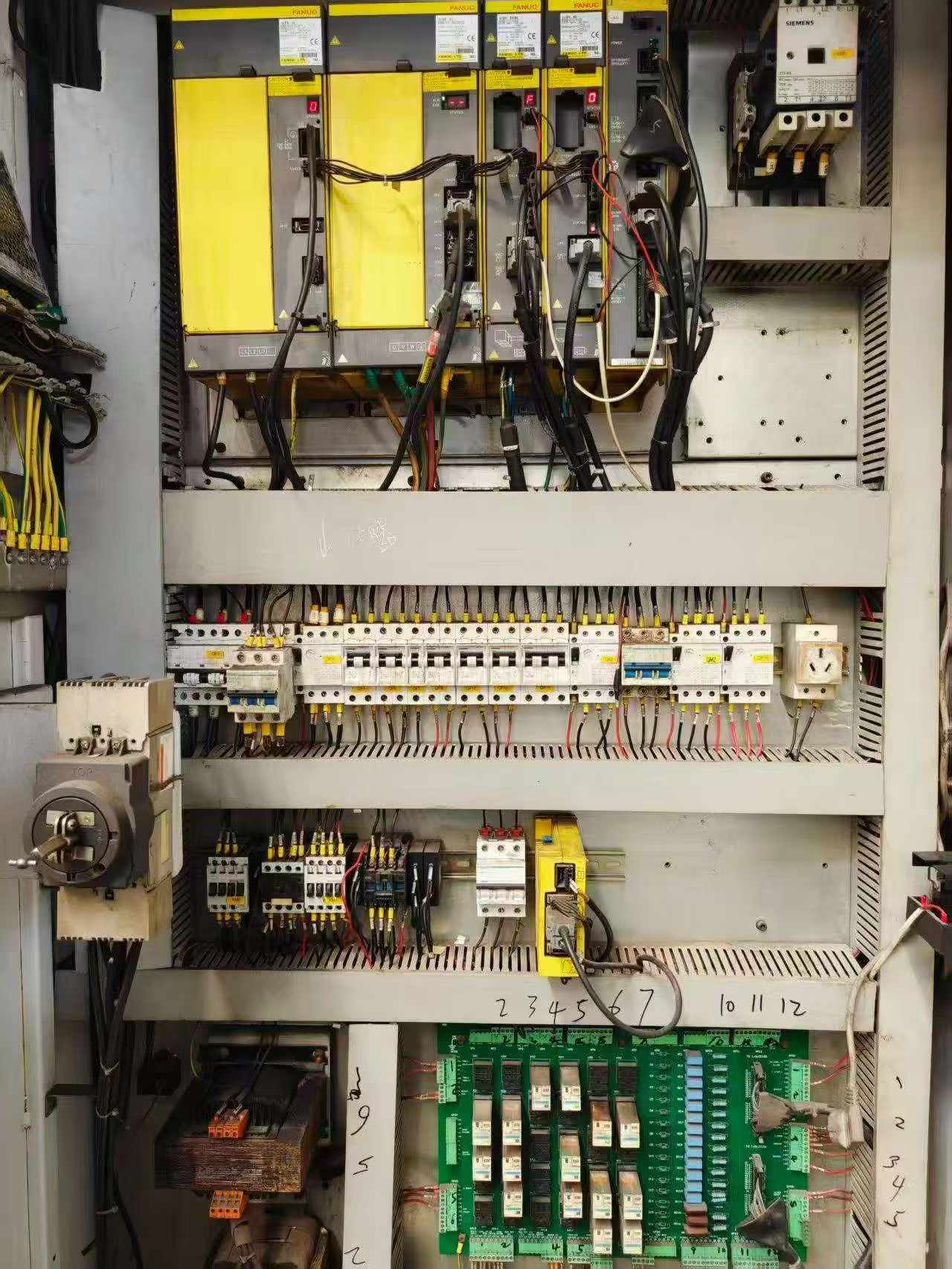

| Drive System | Alpha motor drive |
| Linear Scale | Three axes with linear scales |
| Guideway Configuration | X/Y/Z roller linear guideways |
| Chip Conveyor | Three chip conveyors |
