Used Kraft VM 2018 A Gantry CNC Milling Machine

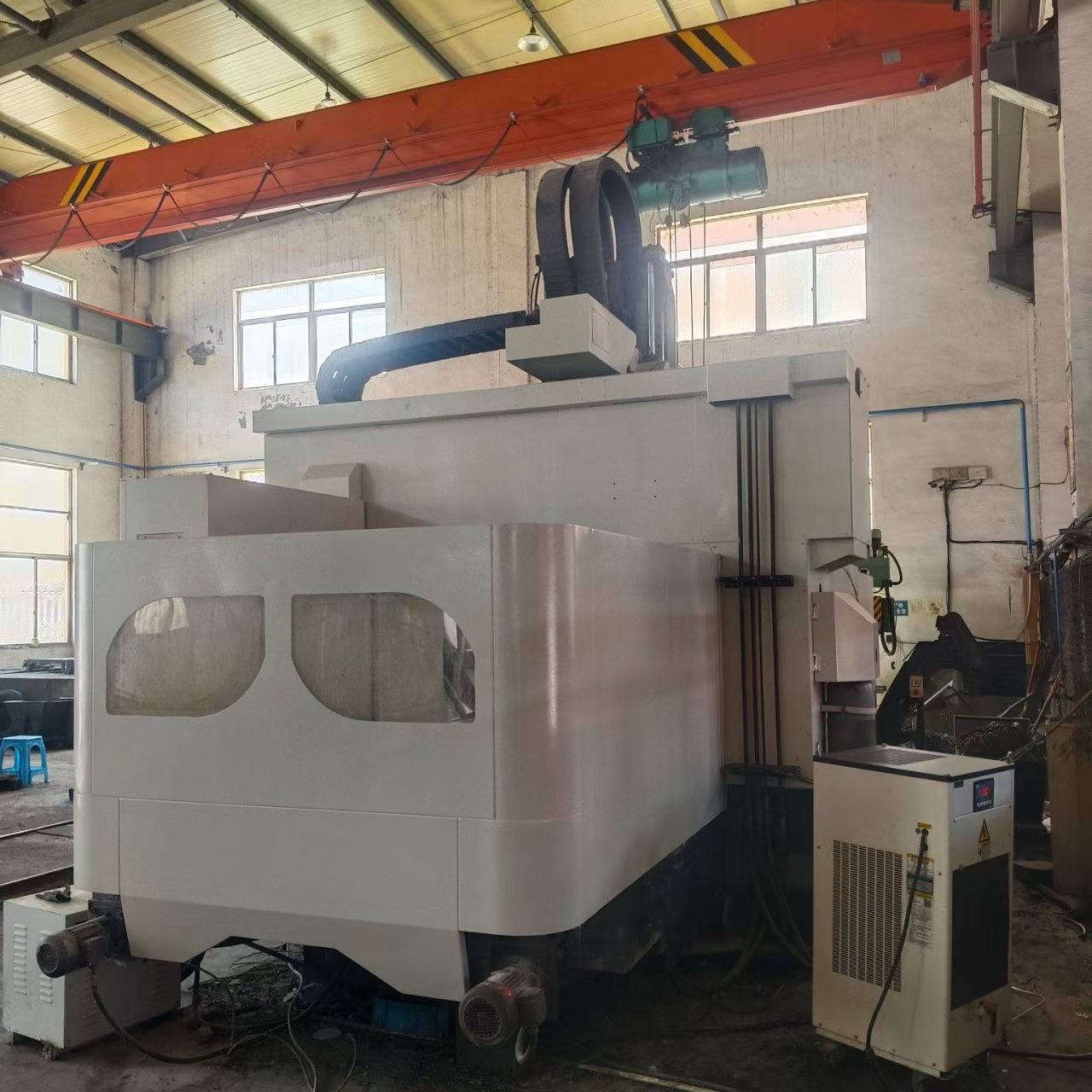

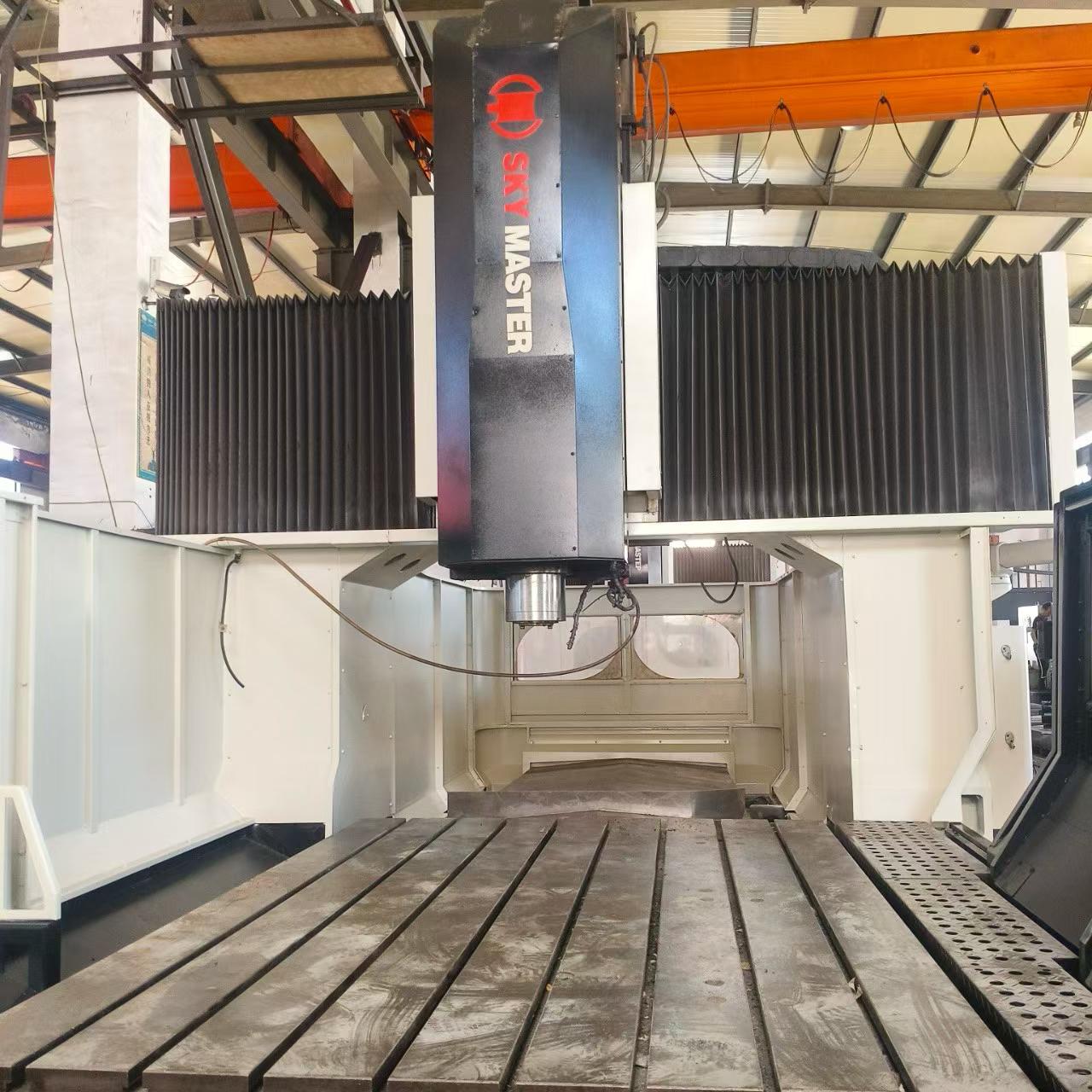

Used Kraft VM 2018 A gantry CNC milling machine, made by Ningbo Tianrui Precision (Kraft). Equipped with FANUC 0i-MD control, three-axis linear guideways, BT50 gear-head spindle at 6000 rpm with oil cooler, and dual screw and chain chip conveyor. Machine is located at the Ningbo factory and can be inspected on-site. Contact us for more details.

Machine Code: PM260801
Year: 2018
Location: Ningbo, China
Usage Hours: On request

Accessories

Dual screw and chain chip conveyor; spindle oil cooler

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Machine type	Gantry CNC milling machine

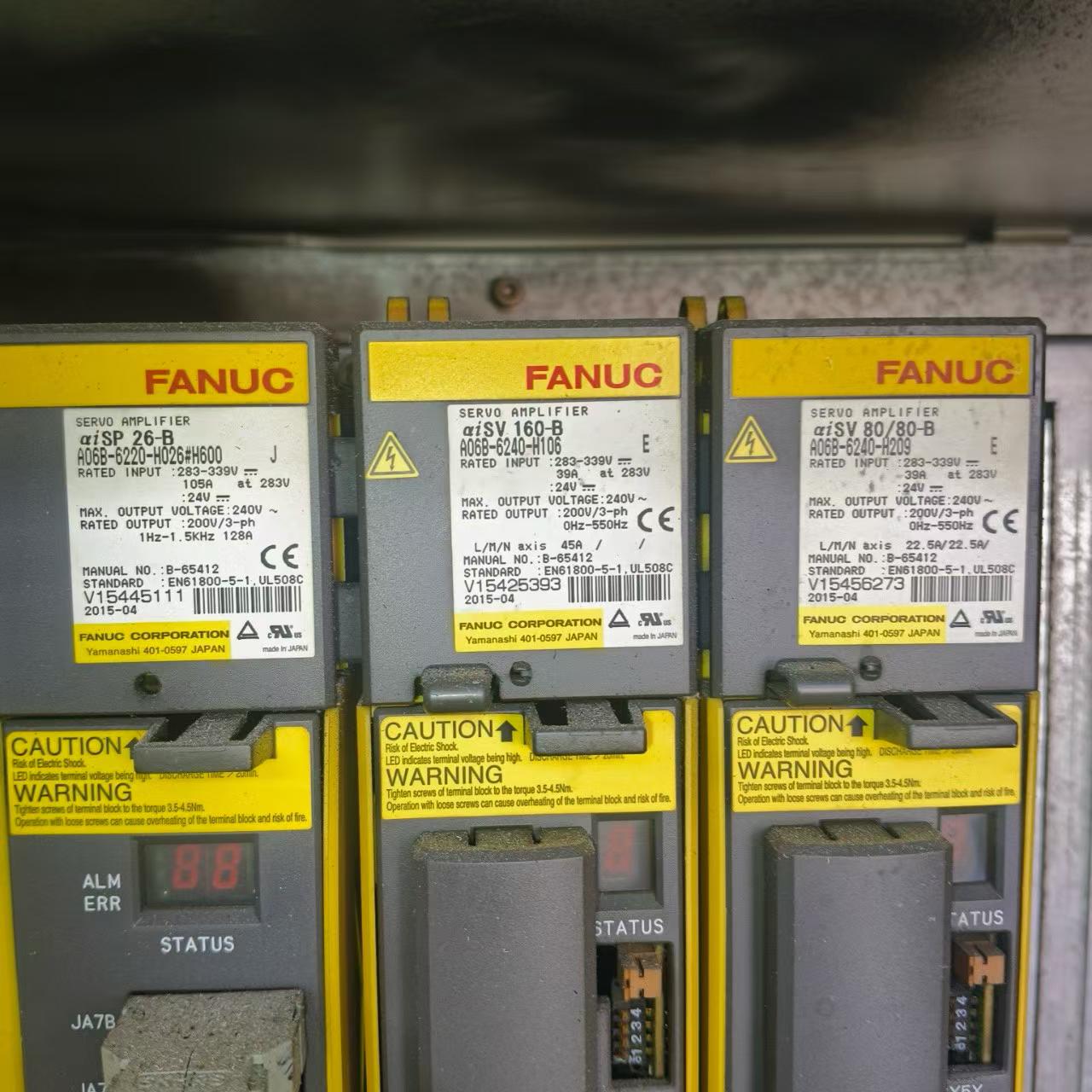

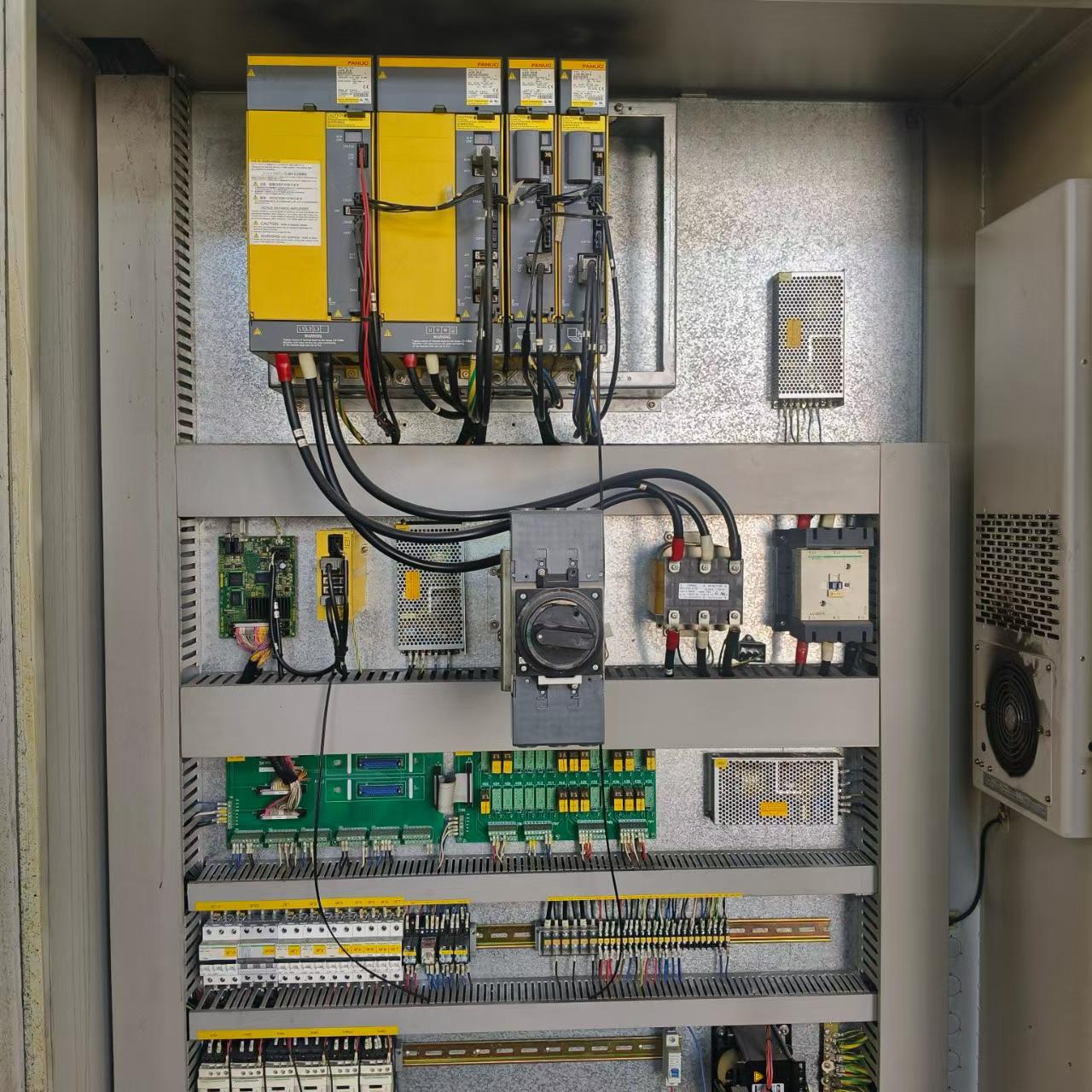

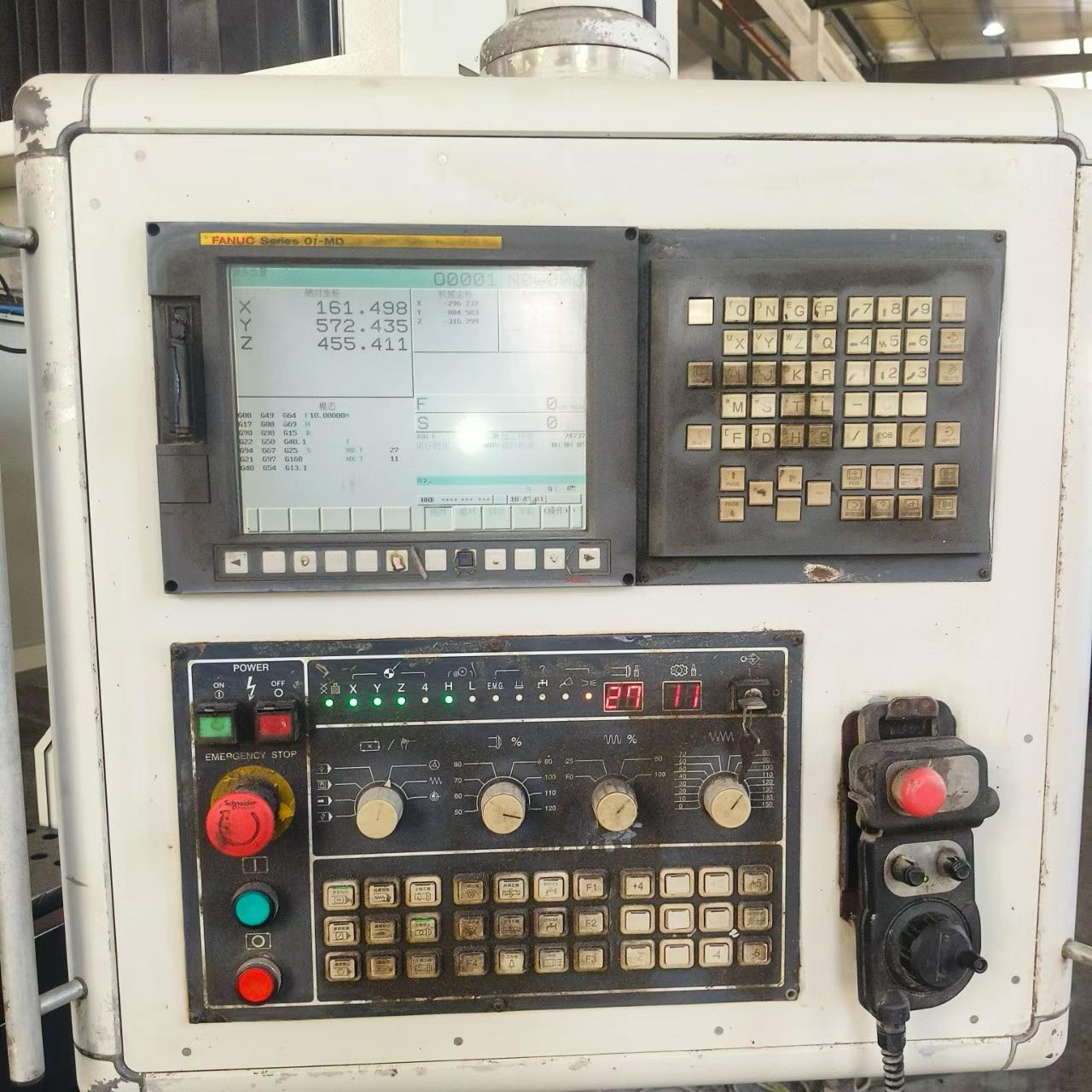

Control system	FANUC 0i-MD
Guideway type	Linear guideway on all three axes

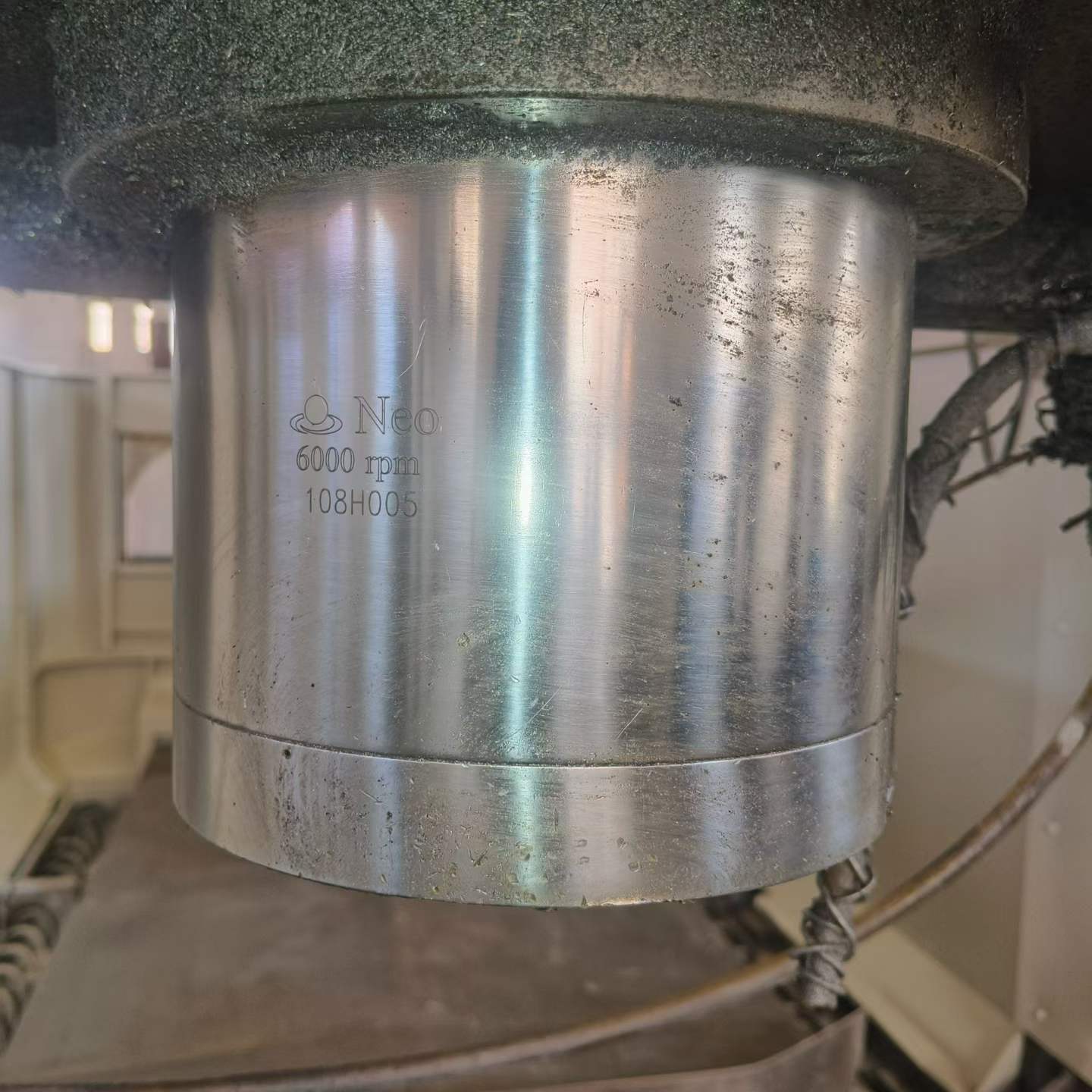

Spindle taper	BT50
Spindle speed	6000 rpm
Spindle drive	Gear head with oil cooler
Chip conveyor	Dual screw and chain type
Worktable size	2000 x 1600 mm
X-axis travel	2300 mm
Y-axis travel	1950 mm
Z-axis travel	800 mm
Gantry clearance height	1020 mm
Gantry clearance width	1840 mm
Spindle nose to table distance	1010 mm
Component origin	Taiwan, Germany, Japan
