AvailableCNC Boring Machine

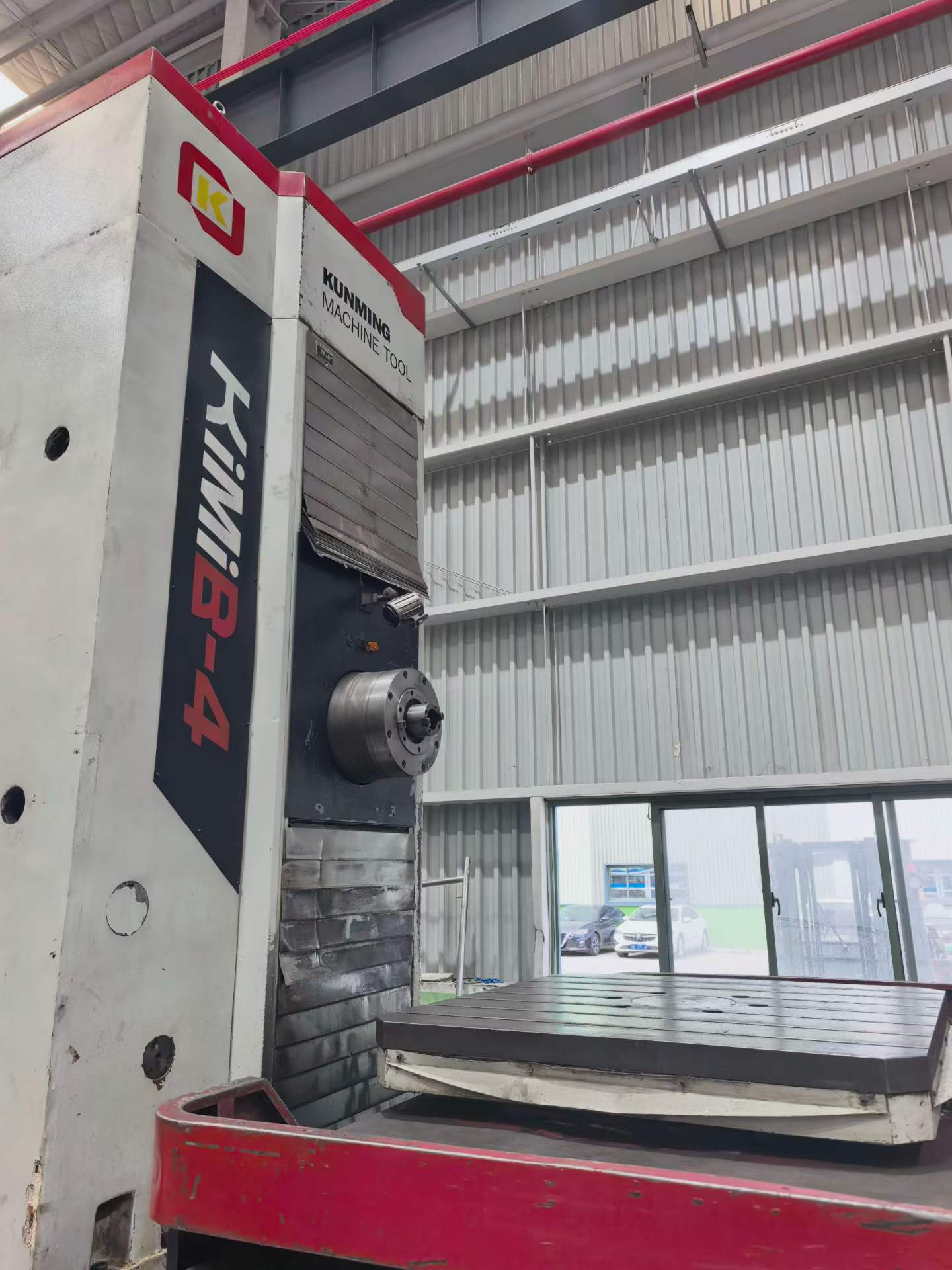

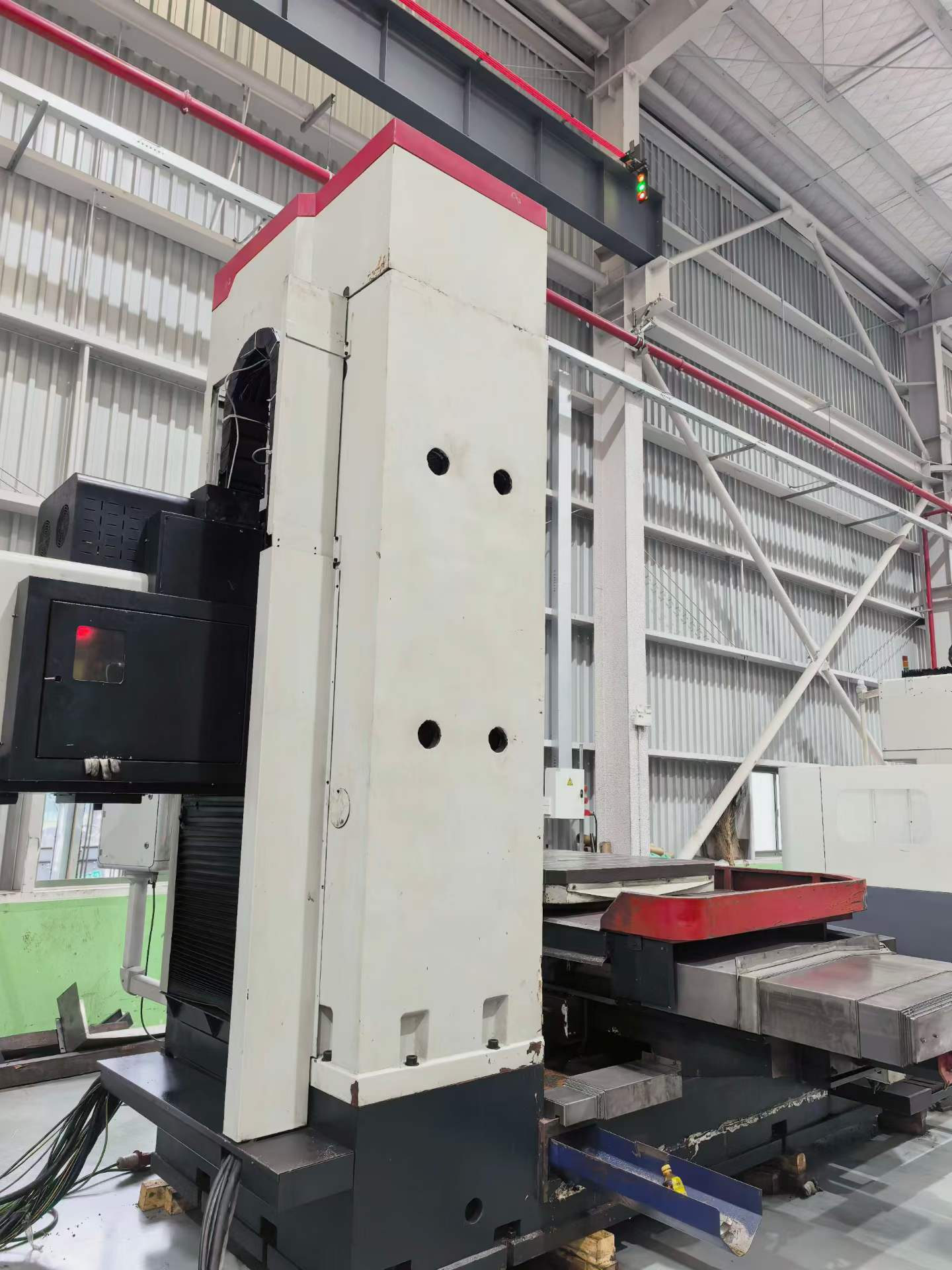

Used Kunming KiMiB-4 CNC Boring Machine with Fanuc 32 i-B Control

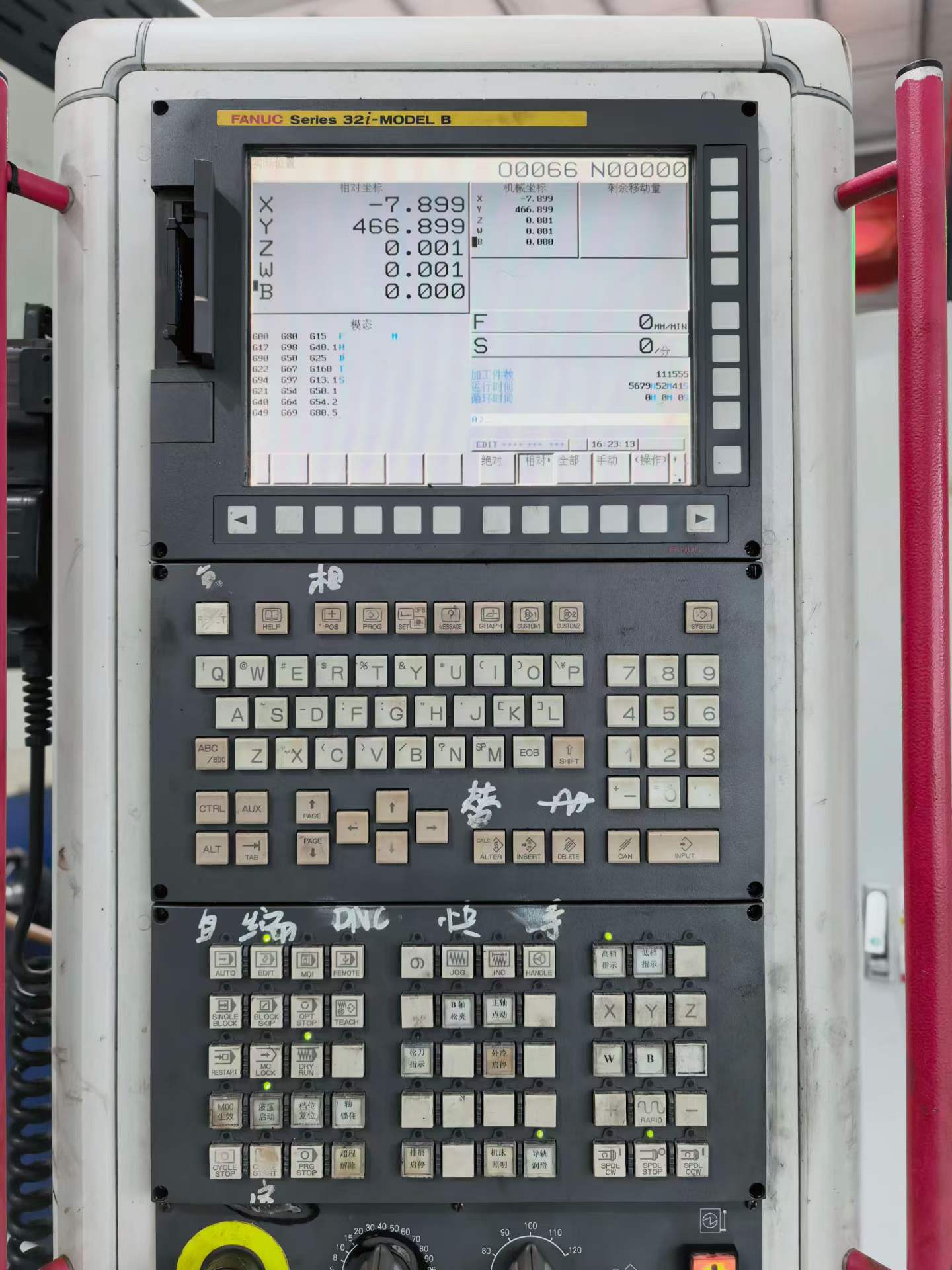

Excellent Kunming Machine Tool KiMiB-4 CNC boring machine. Equipped with FANUC 32i-B control. Travels: 1800 x 1400 x 1400 x 600 mm. Worktable: 1250 x 1250 mm. BT50 spindle taper with gear drive, three axes on box guideways. B axis with 0.001° indexing. Spindle with through-tool coolant. Four axes with full closed-loop linear scale feedback. Year of manufacture: 2021. Comes with chain chip conveyor and hydraulic power unit.

Machine Code: BOR260802
Year: 2021
Location: China
Usage Hours: On request

Accessories

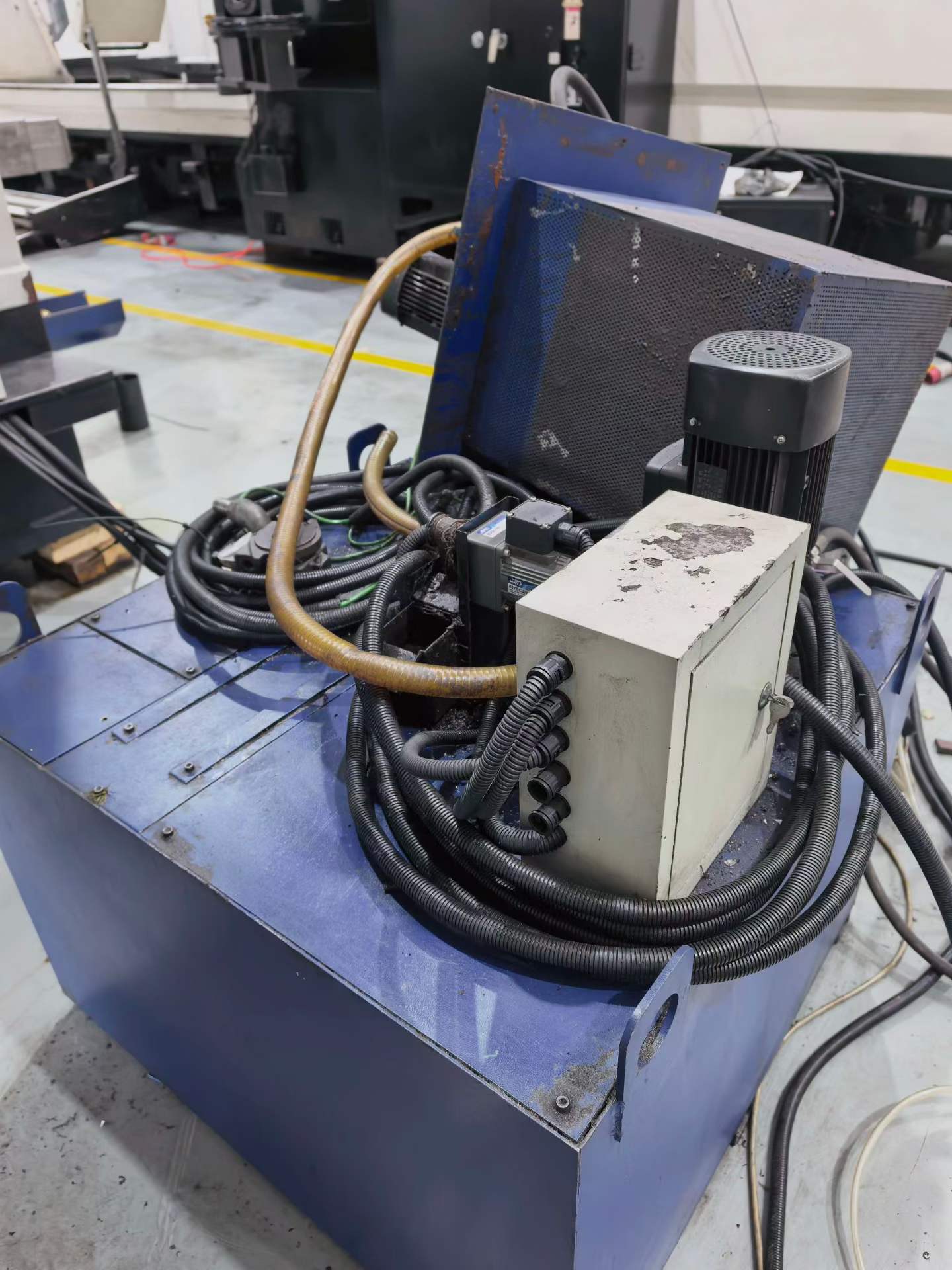

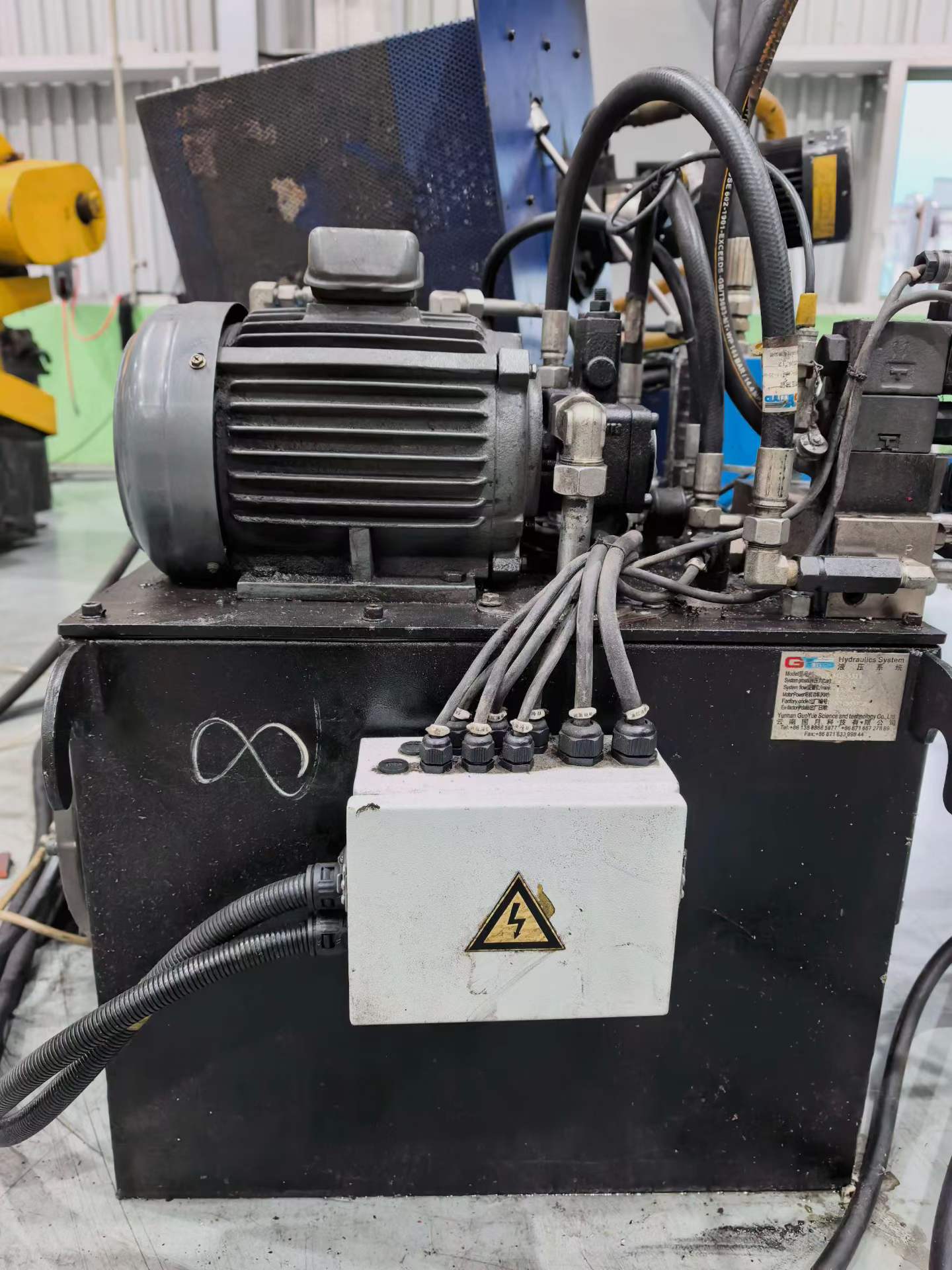

Chain chip conveyor Hydraulic power unit

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

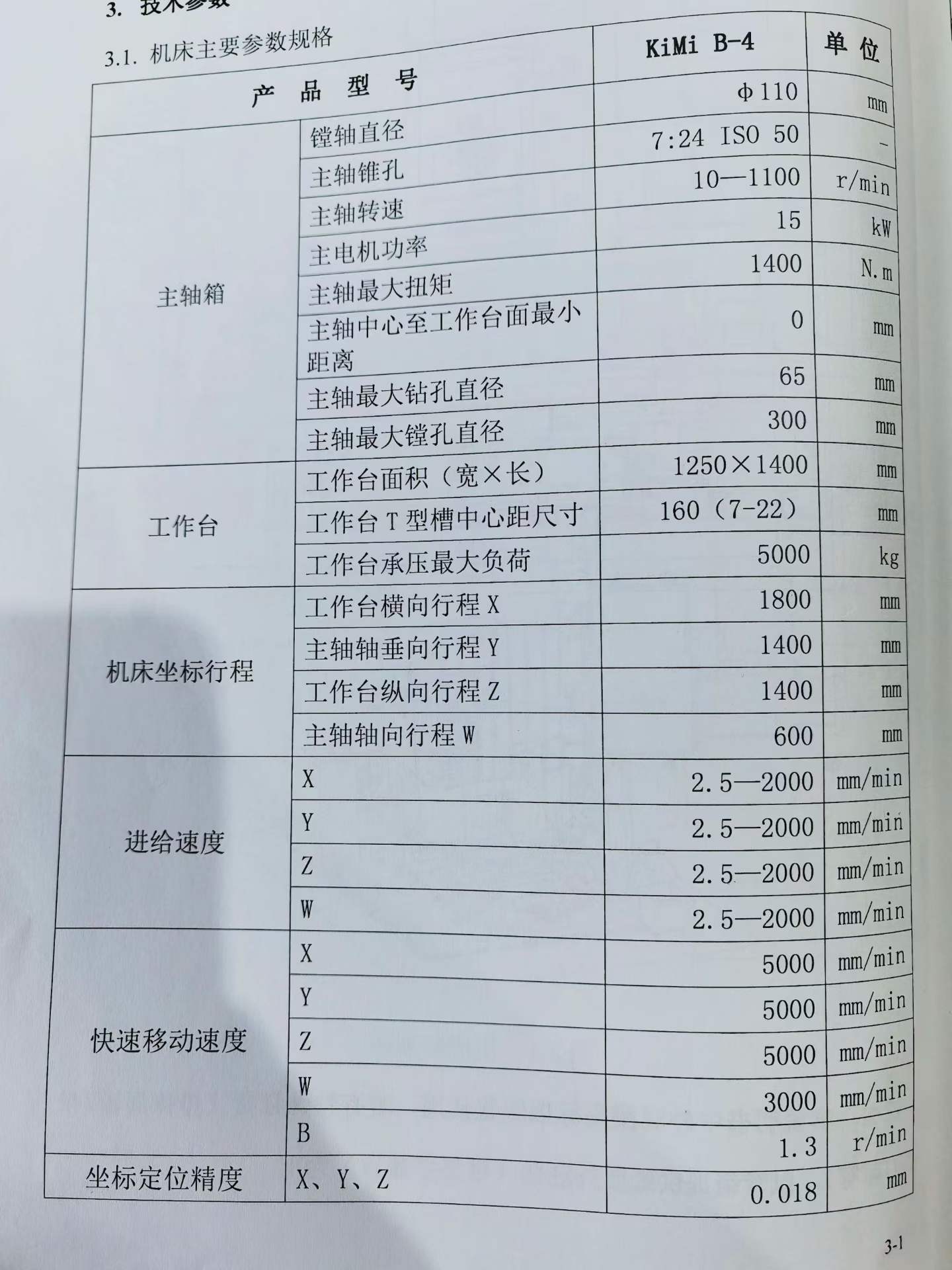

Main Specifications

Travel	1800 x 1400 x 1400 x 600 mm

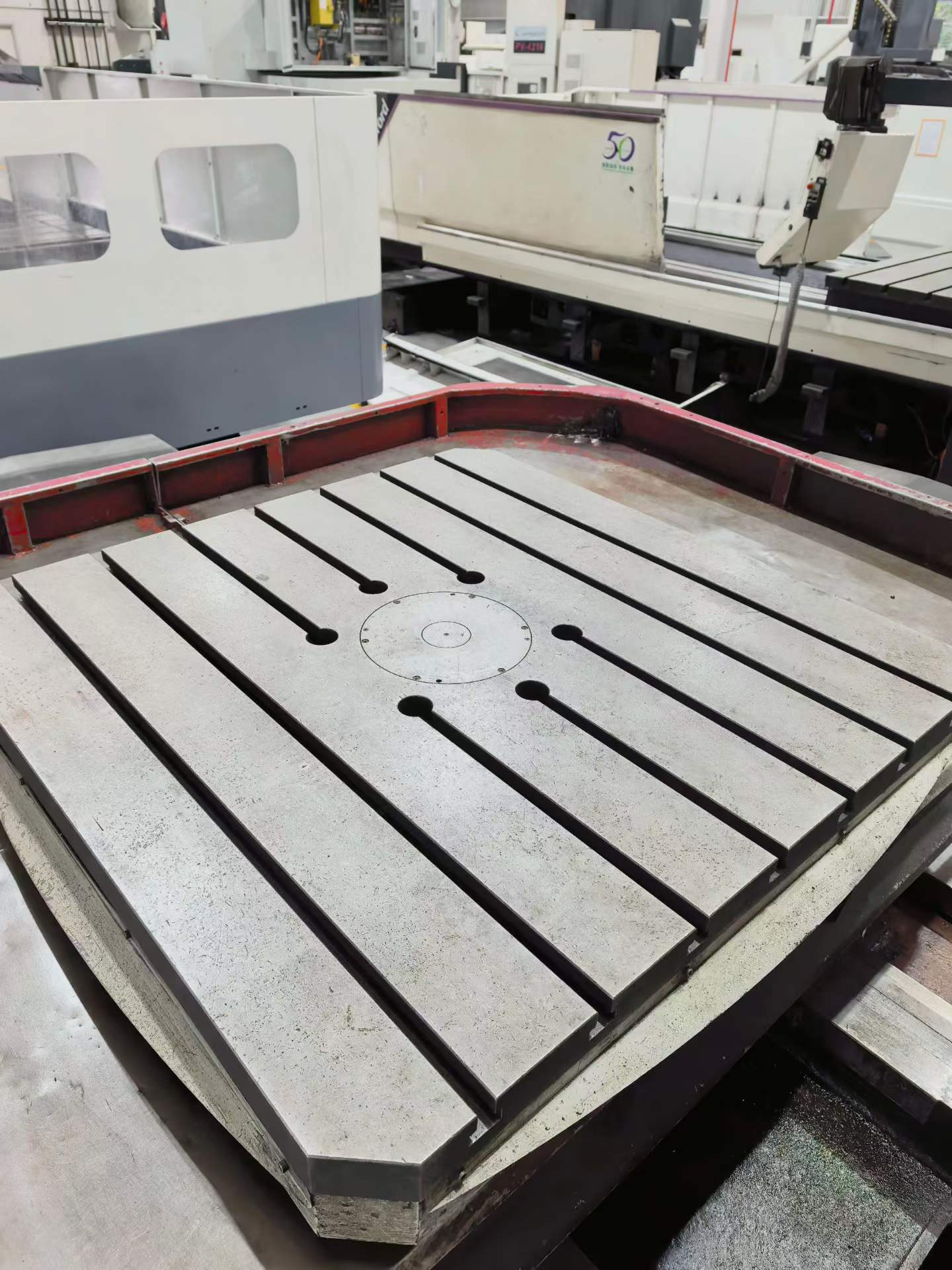

Worktable size	1250 x 1250 mm

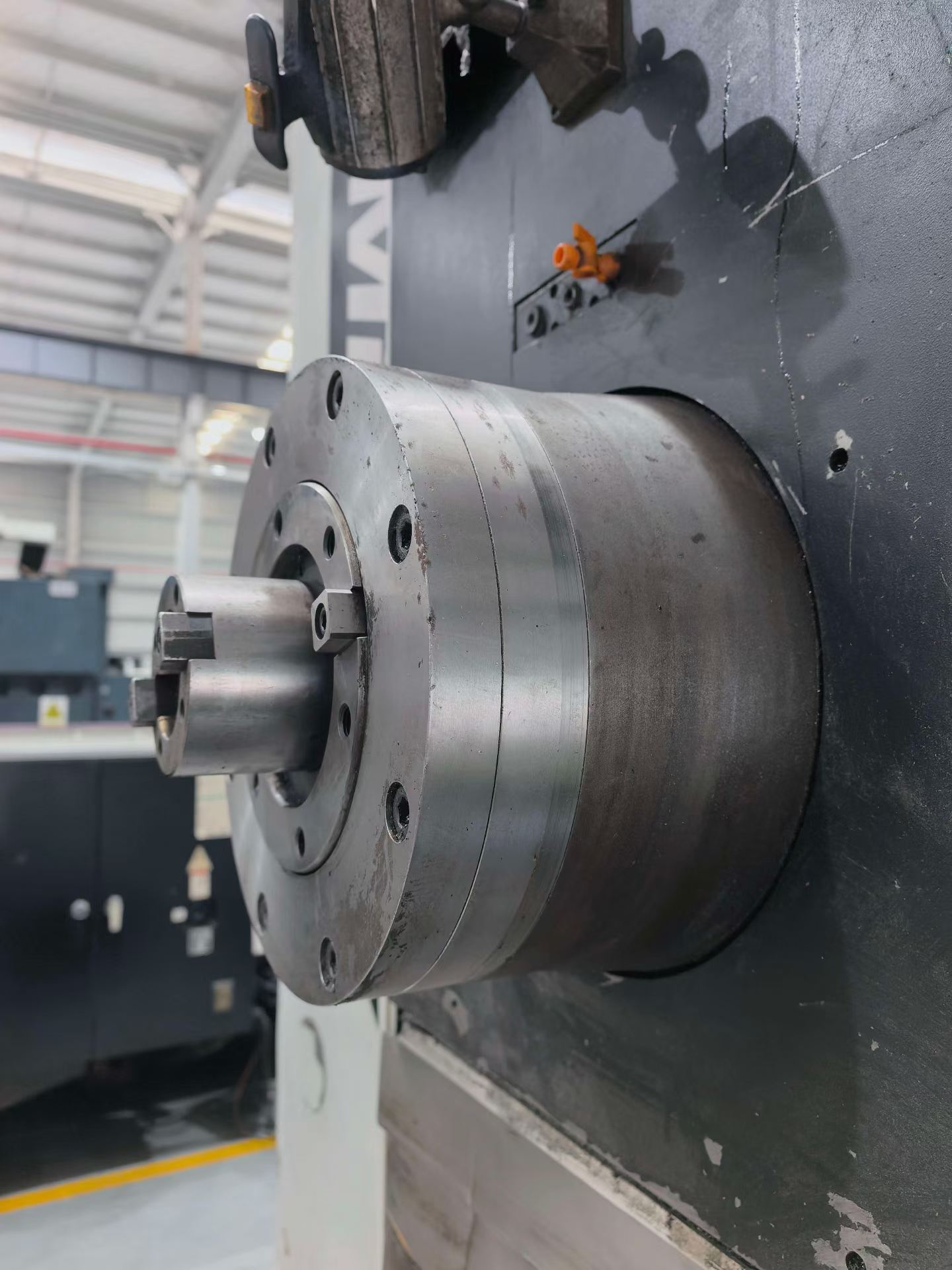

Spindle taper	BT50
Spindle drive	Gear drive
Guideway type	Box guideways (3 axes)
B axis indexing	0.001°
Through-spindle coolant	Yes
Axis feedback	4-axis full closed loop with linear scales
Year of manufacture	2021
