AvailableCNC Boring Machine

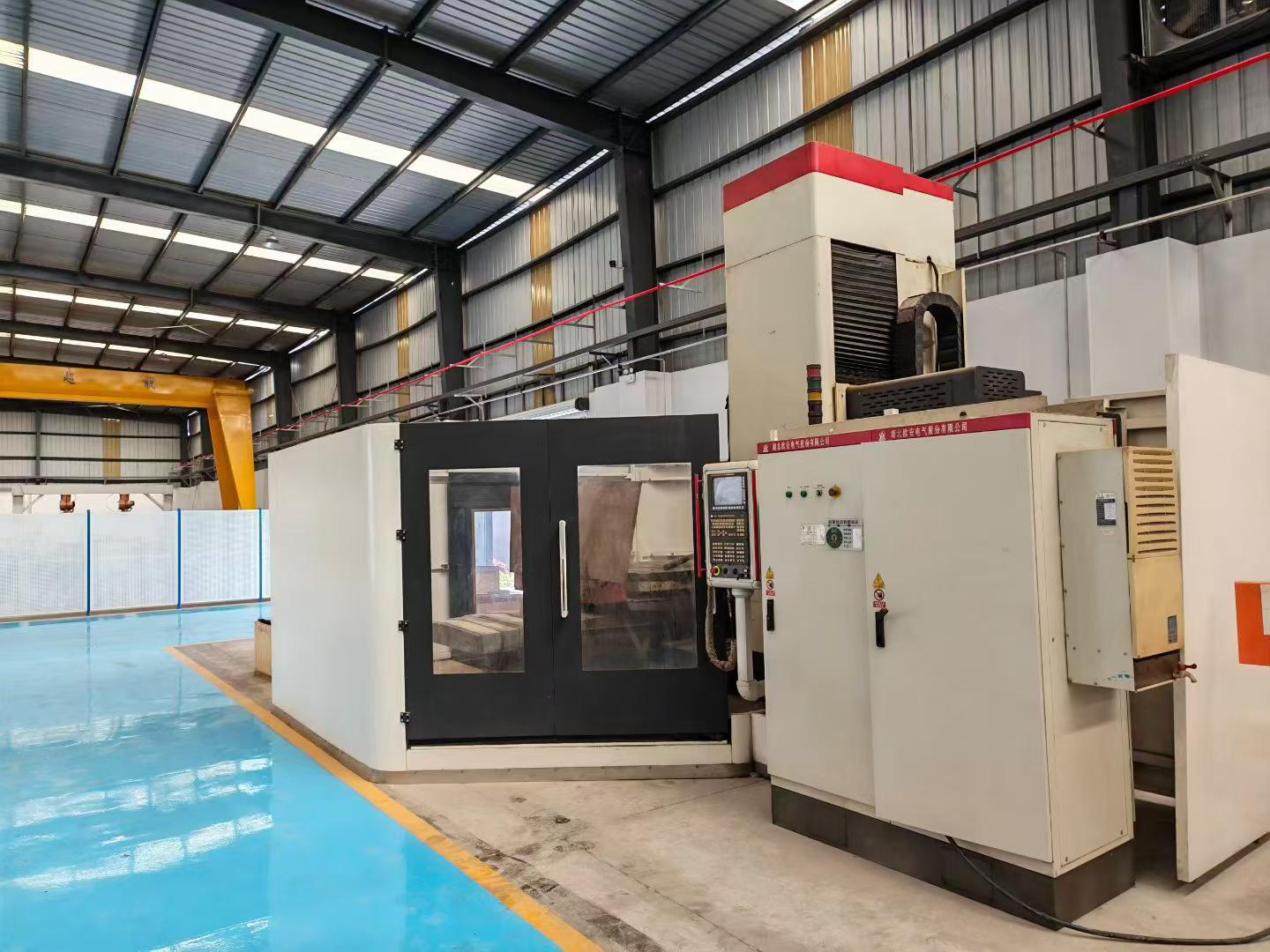

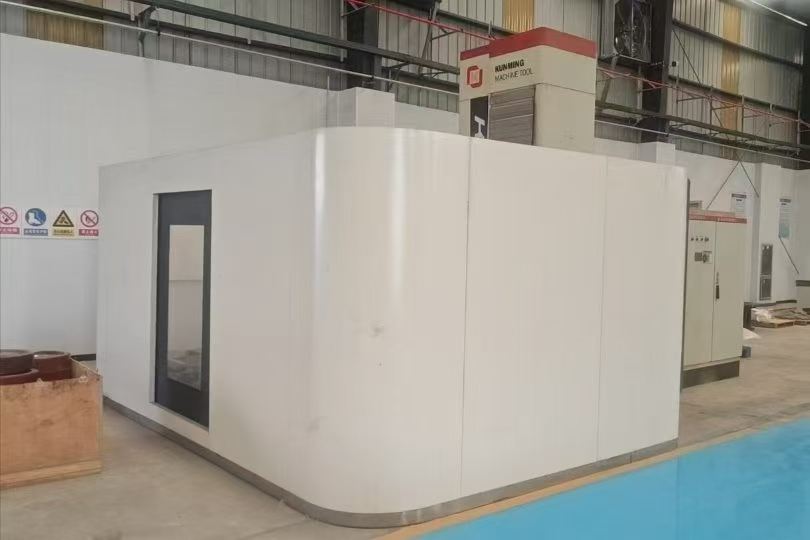

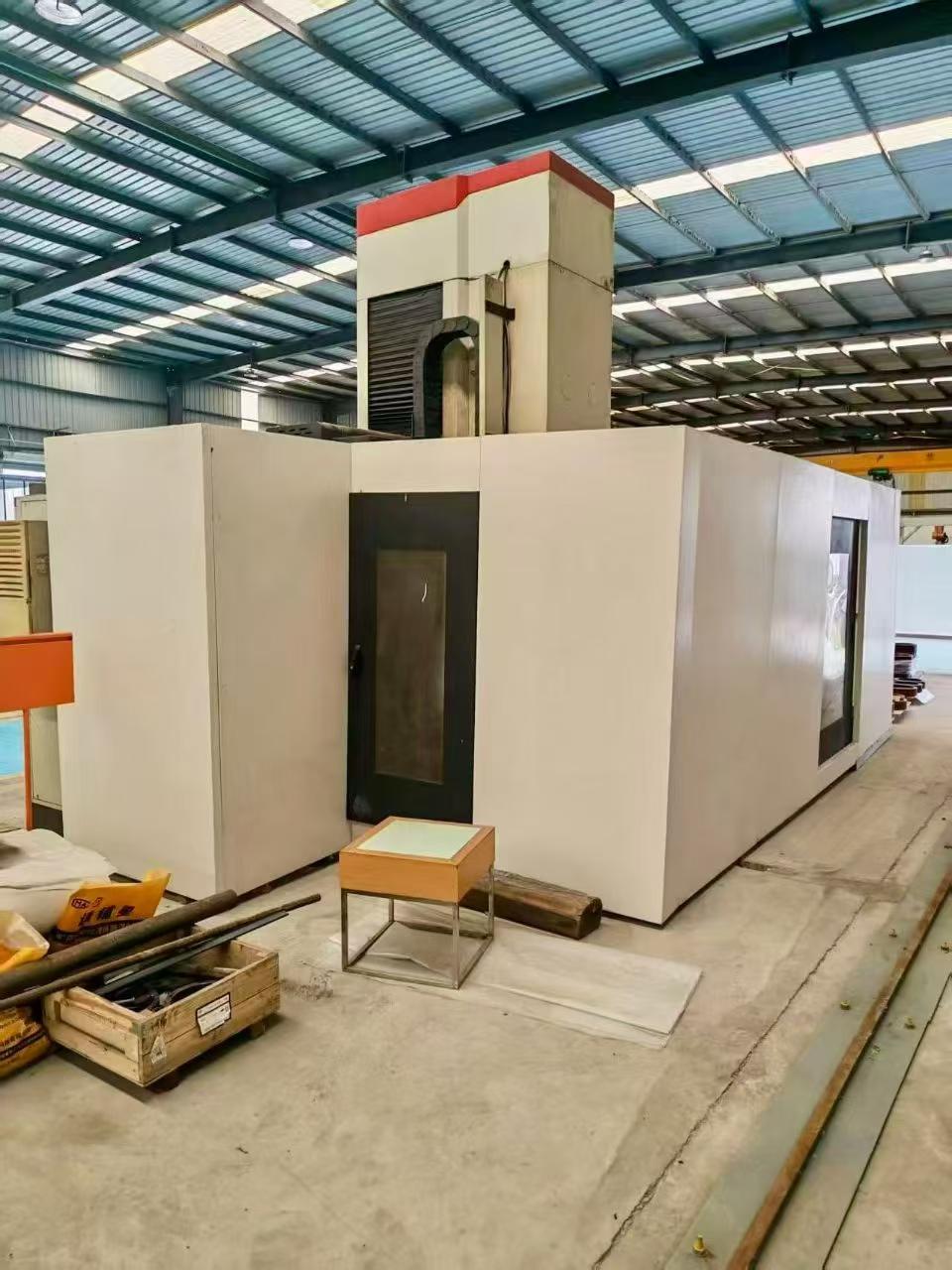

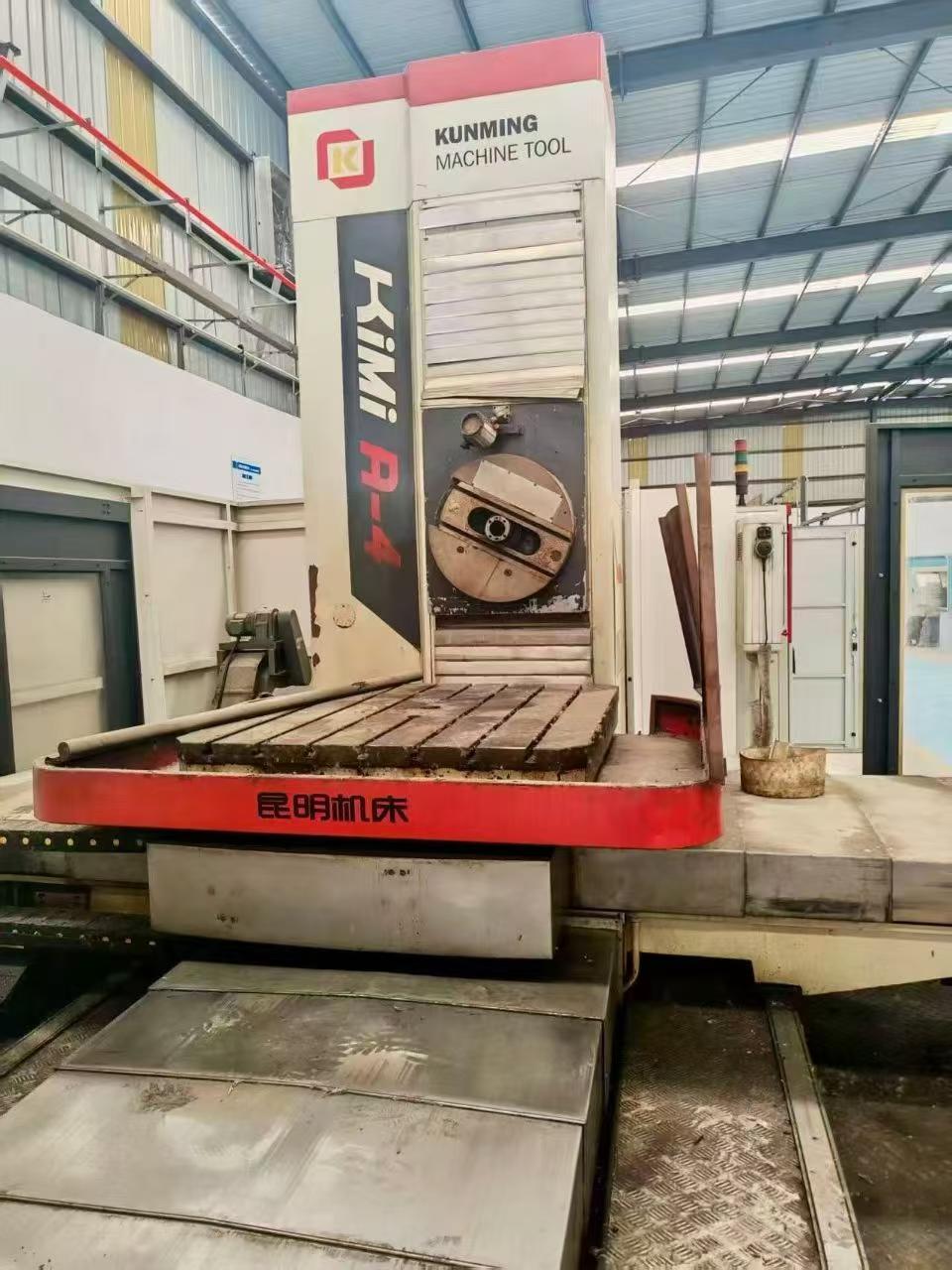

Used Kunming KiMiB-4 CNC Horizontal Boring and Milling Machine

Kunming KiMiB-4 CNC horizontal boring and milling machine with FANUC 32i control. 110 mm boring bar, facing head, auxiliary guideway, full enclosure. Travel 1800 x 1400 x 1400 x 600 mm, worktable 1250 x 1250 mm, B axis 0.001°, 4-axis full closed loop linear scales.

Machine Code: BOR260701
Year: On request
Location: China
Usage Hours: On request

Accessories

Facing head (平旋盘), auxiliary guideway, full enclosure

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Travel (X/Y/Z/W)	1800 / 1400 / 1400 / 600 mm
Worktable Size	1250 x 1250 mm
B-Axis Indexing	0.001°
Machine Type	CNC Horizontal Boring and Milling Machine
Brand	Kunming Machine Tool

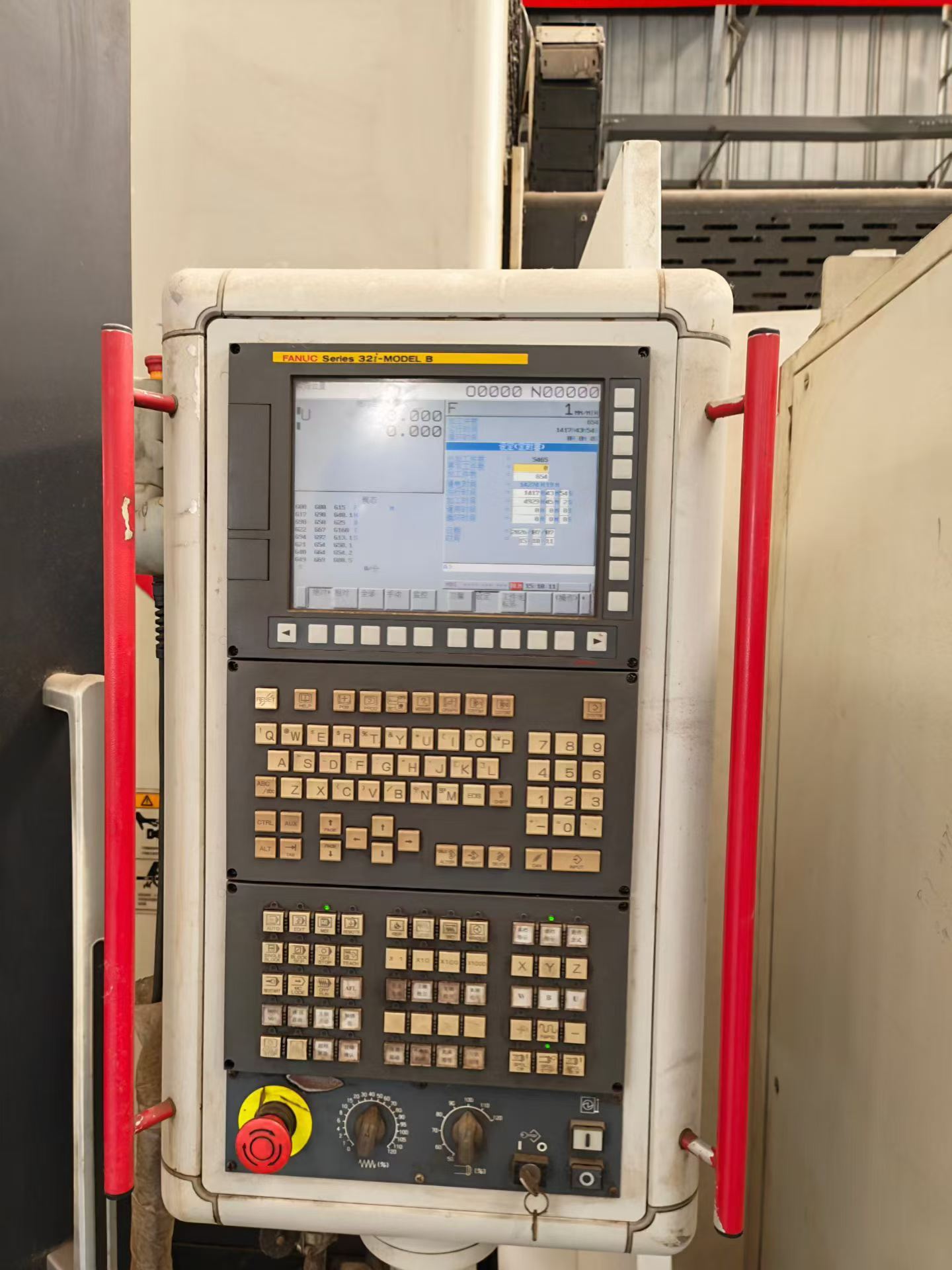

Controller	FANUC 32i CNC Control System
Boring Bar Diameter	110 mm
Guideway Configuration	With Auxiliary Guideway
Enclosure	Full Enclosure
Linear Scales	Four-Axis Full Closed Loop Linear Scales
Model	KiMiB-4
