AvailableHorizontal Machining Center

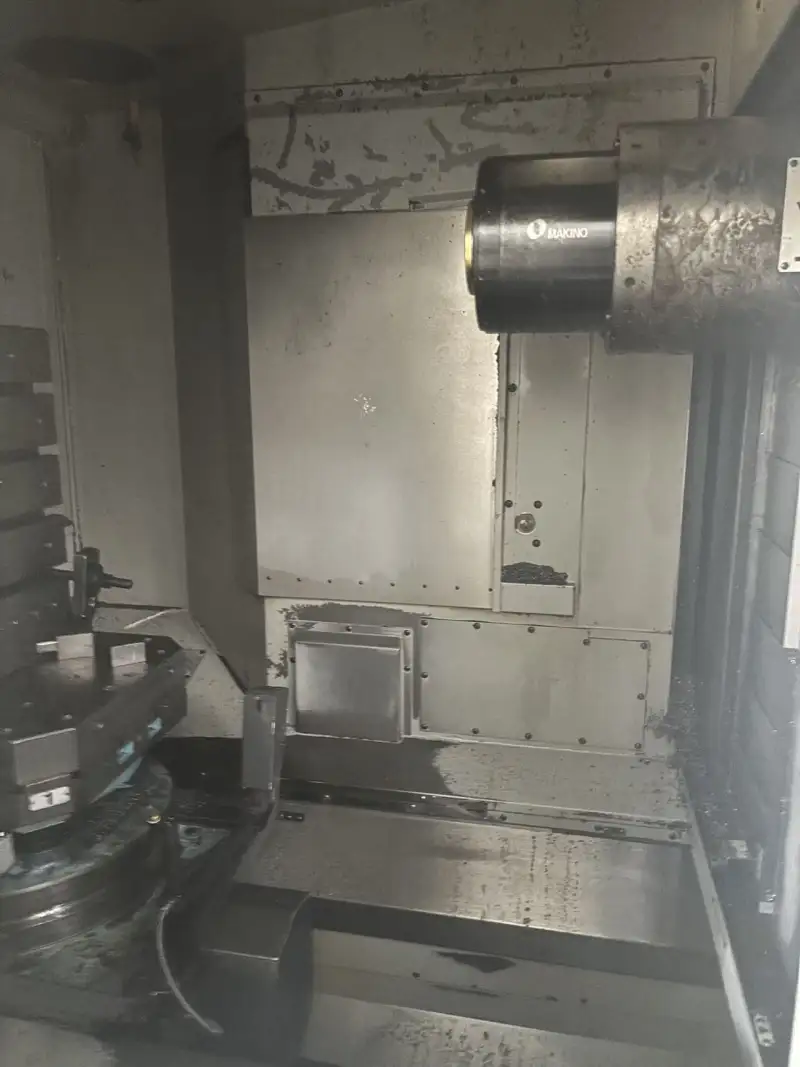

Used Makino A 51 Horizontal Machining Center

Japanese Makino A 51 horizontal machining center with Pro 5 control. Travel 560 x 560 x 600 mm, worktable size 400 x 400 mm, B-axis 1-degree indexing, HSK-A 63 spindle taper, spindle speed 50 - 12,000 rpm, max. worktable load 400 kg, rapid traverse 50,000 mm/min, 40-tool magazine, pallet change time 7.0 sec. Equipped with linear scale full closed loop and through-spindle coolant. The above data is for reference only; the actual machine shall prevail.

Machine Code: HMC260820
Year: 2000
Location: China
Usage Hours: On request

Accessories

With linear scale full closed-loop system, through-spindle coolant

Email Inquiry

Main Specifications

Travel (X/Y/Z)	560 x 560 x 600 mm
Worktable size	400 x 400 mm
B-axis indexing	1-degree increments
Spindle taper	HSK-A 63
Spindle speed	50 - 12,000 rpm
Max. worktable load	400 kg
Rapid traverse speed	50,000 mm/min
Tool magazine capacity	40 tools
Pallet change time	7.0 sec
