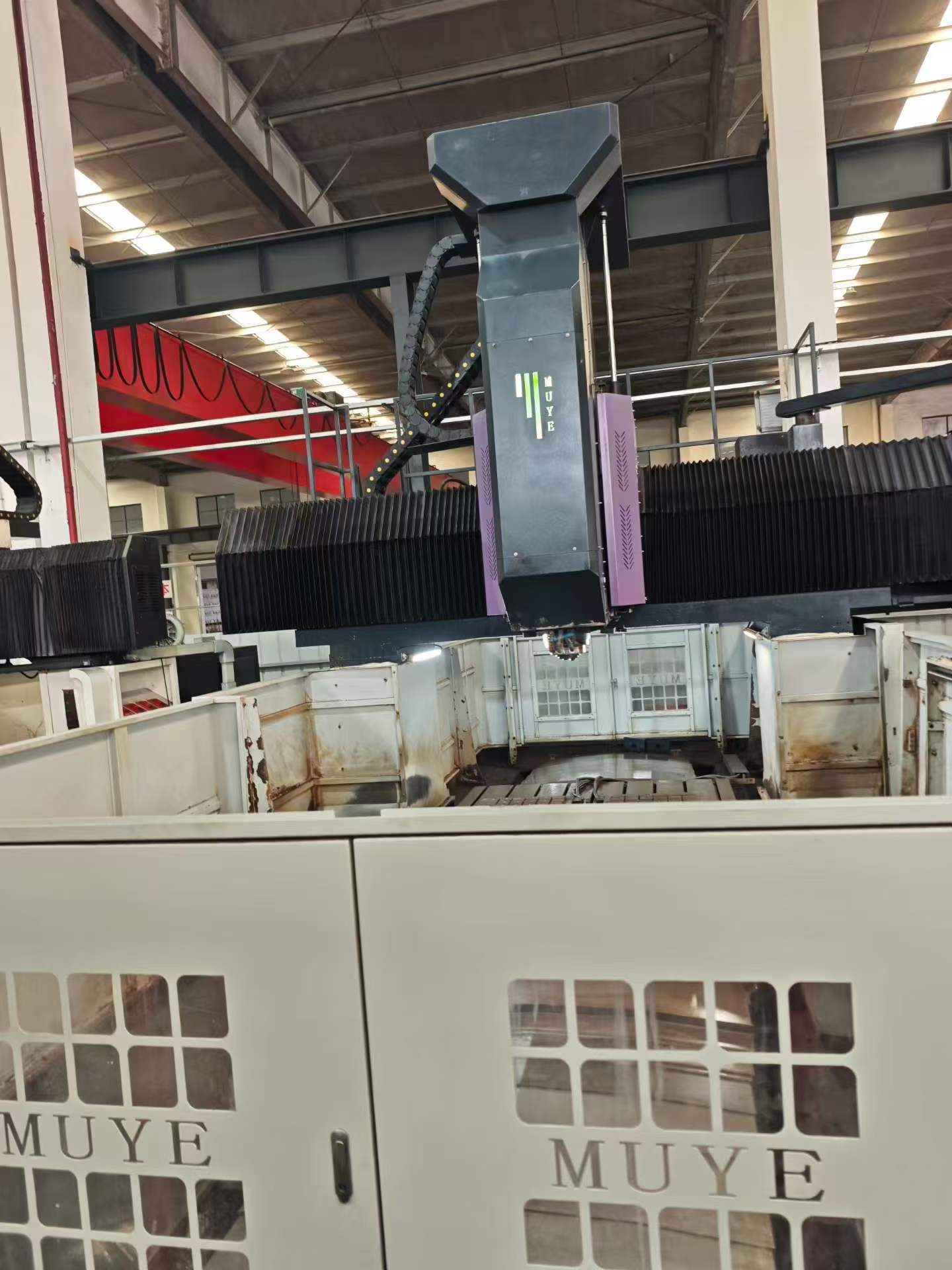

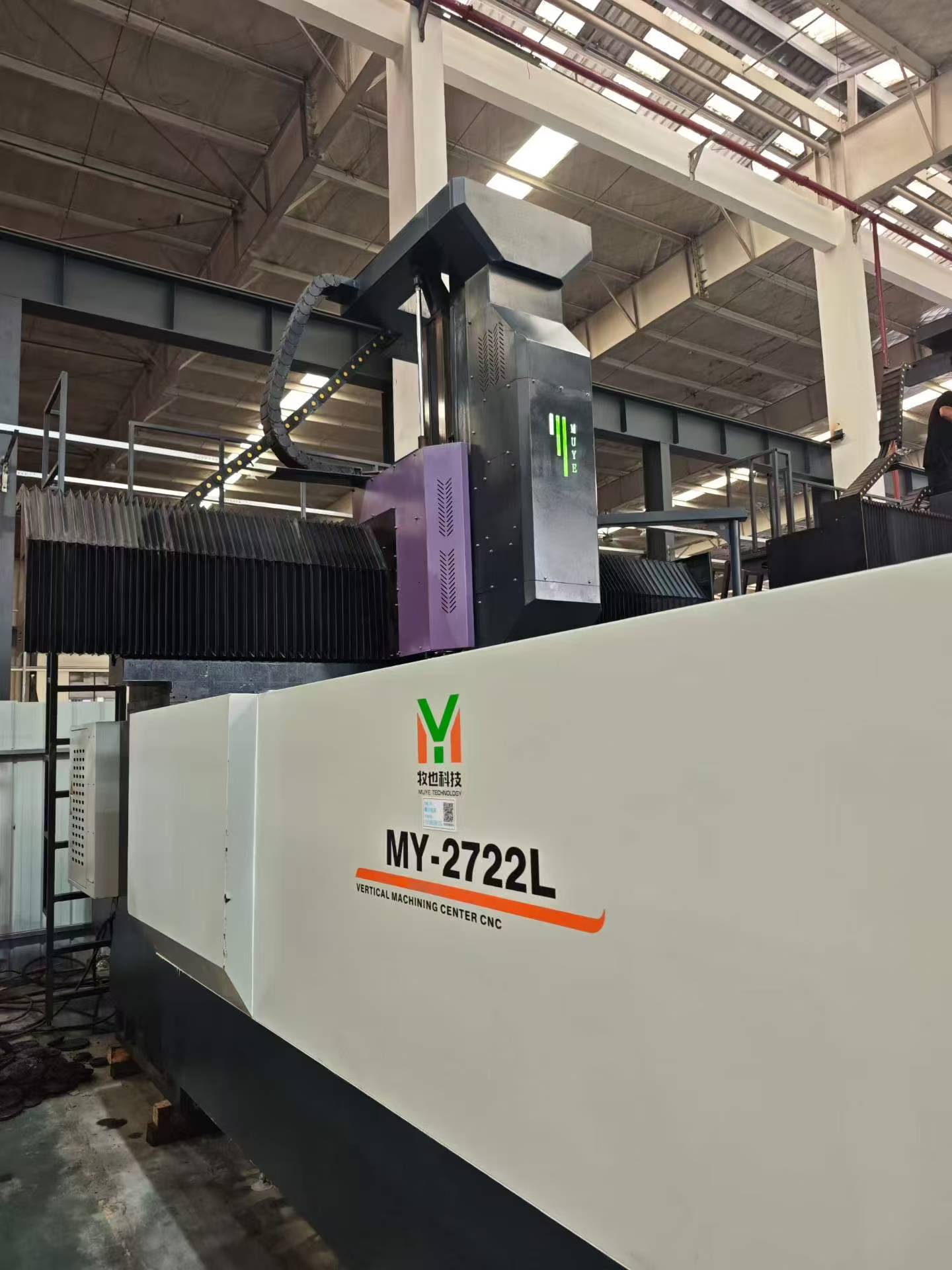

Used MY-2722 L CNC Gantry Milling Machine

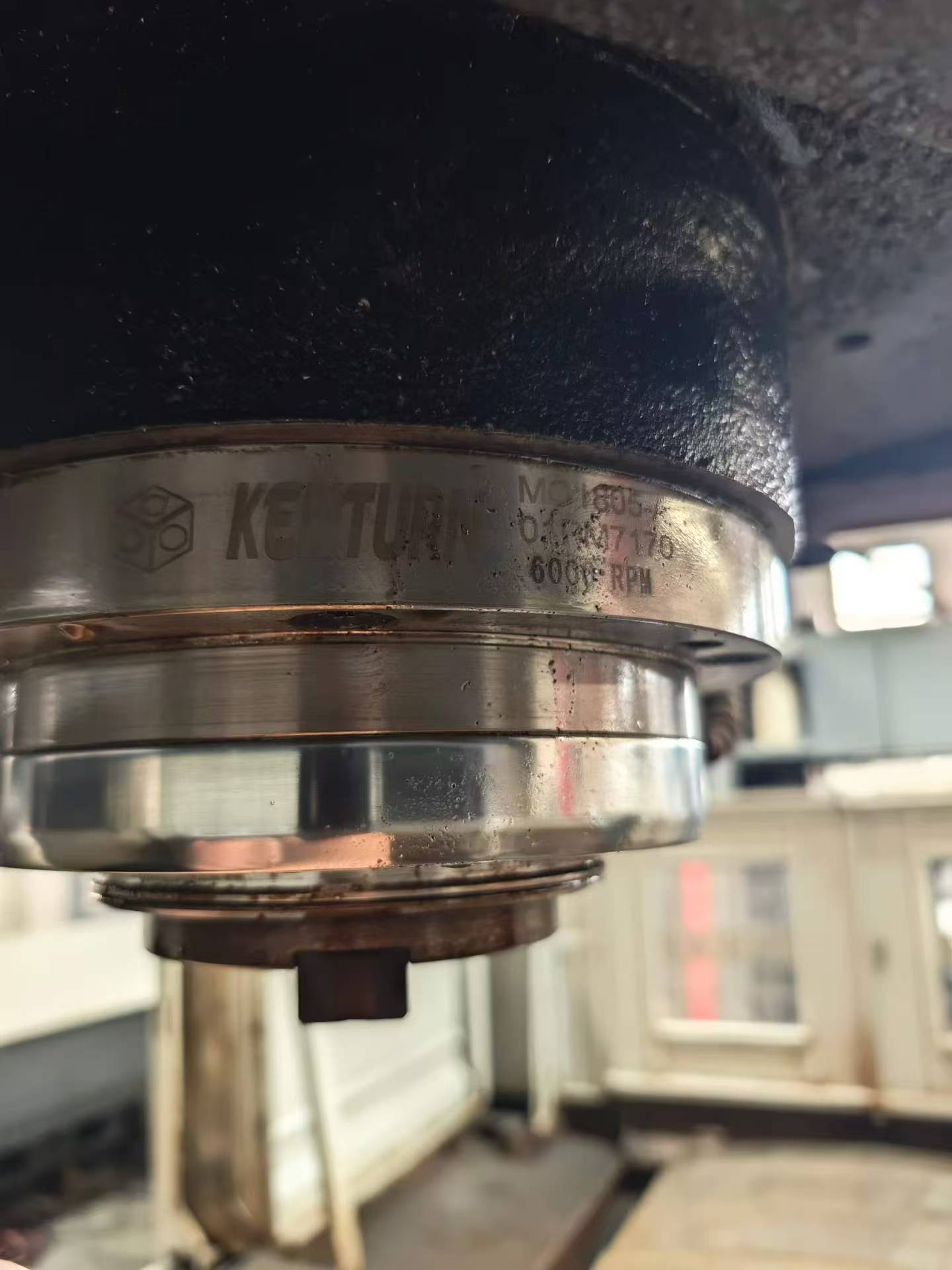

Almost new Muye MY-2722 L CNC gantry milling machine, Huazhong CNC system, two linear guideways and one box guideway, Taiwan Jianchun BT50/6000 rpm spindle with oil cooler, worktable 2800 x 1800, door width 2260, door height 1130, spindle nose to table distance 990, X/Y/Z travel 2700 x 2250 x 775, built-in dual screw and chain chip conveyor, with four powerful electromagnetic chucks (600 x 600), installed and used little, excellent condition.

Machine Code: PM260736
Year: On request
Location: China
Usage Hours: On request

Accessories

Taiwan Jianchun BT50/6000 rpm spindle with oil cooler; built-in dual screw and chain chip conveyor; four powerful electromagnetic chucks (600 x 600 mm)

Email Inquiry

Main Specifications

Worktable size	2800 x 1800 mm
Door width	2260 mm
Door height	1130 mm
Spindle nose to table distance	990 mm
X-axis travel	2700 mm
Y-axis travel	2250 mm
Z-axis travel	775 mm
Spindle speed	6000 rpm
Spindle taper	BT50
Guideway type	Two linear guideways and one box guideway
Chip conveyor	Built-in dual screw and chain type

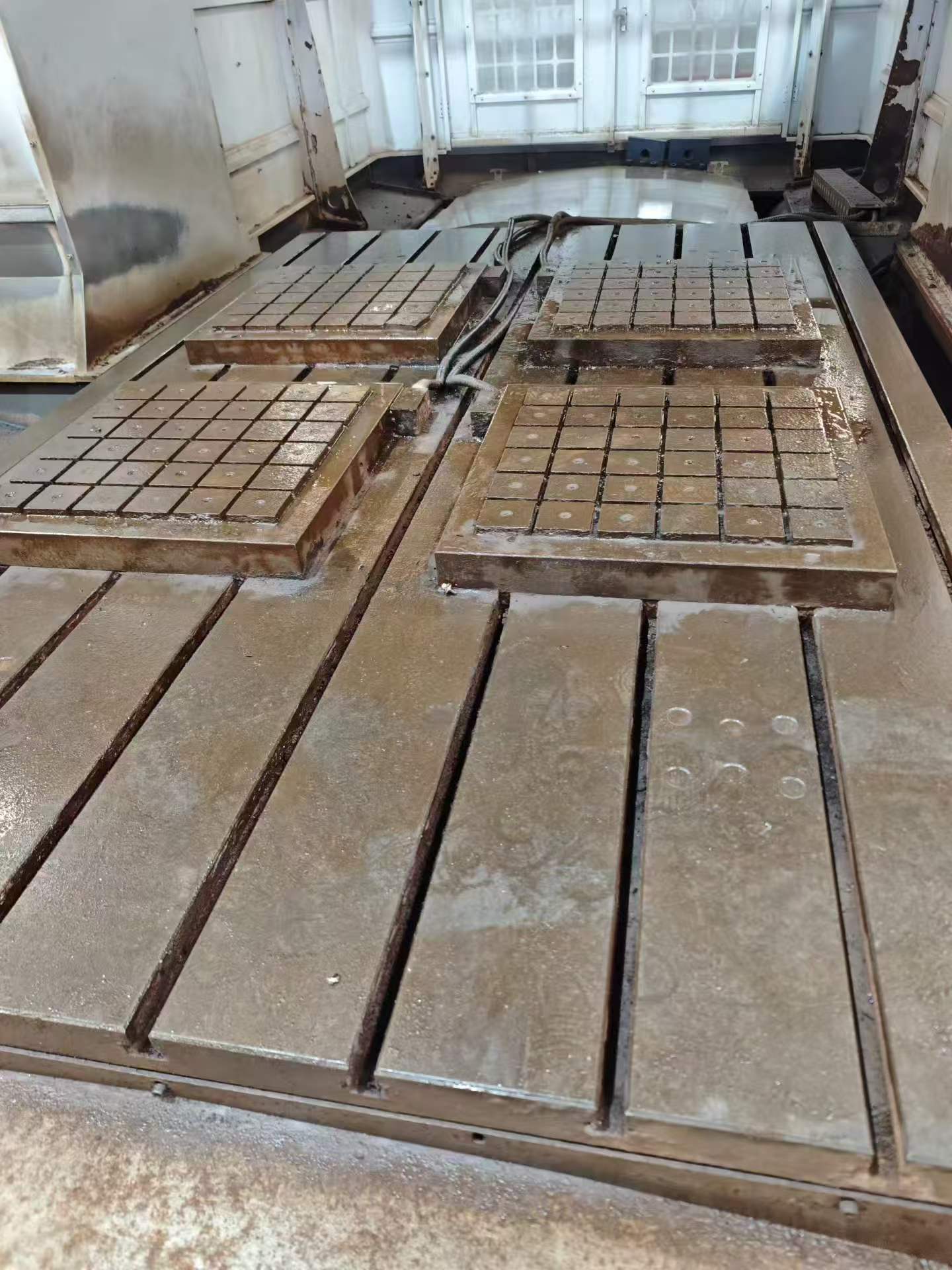

Electromagnetic chuck quantity	4
Electromagnetic chuck size	600 x 600 mm
Machine Type	Gantry milling machine
Brand	Muye
Condition	Almost new

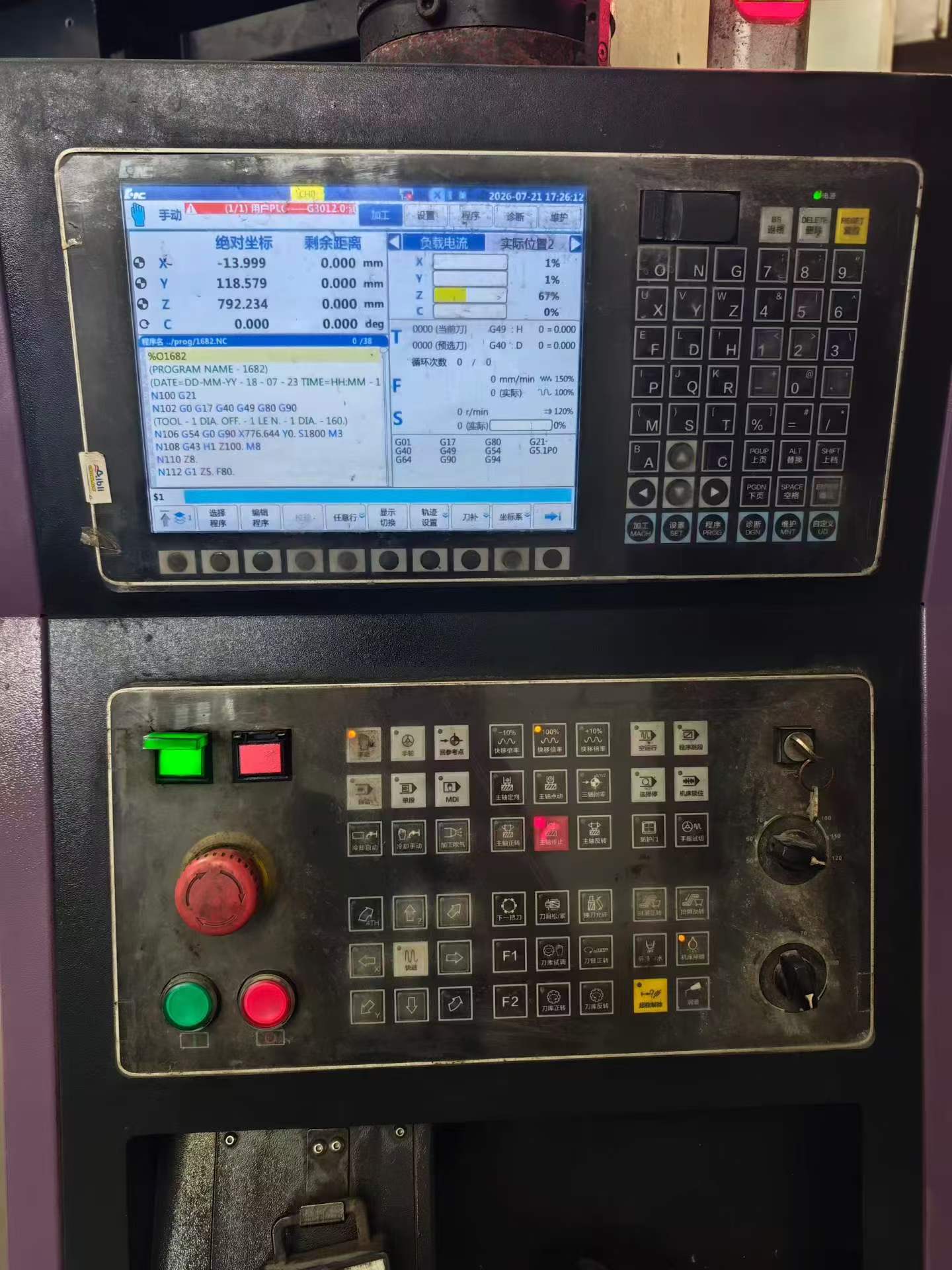

Controller	Huazhong
Guideway Configuration	Two linear guideways and one box guideway
Spindle	BT50, 6000 rpm, with oil cooler
Spindle Taper	BT50
Spindle Speed	6000 rpm

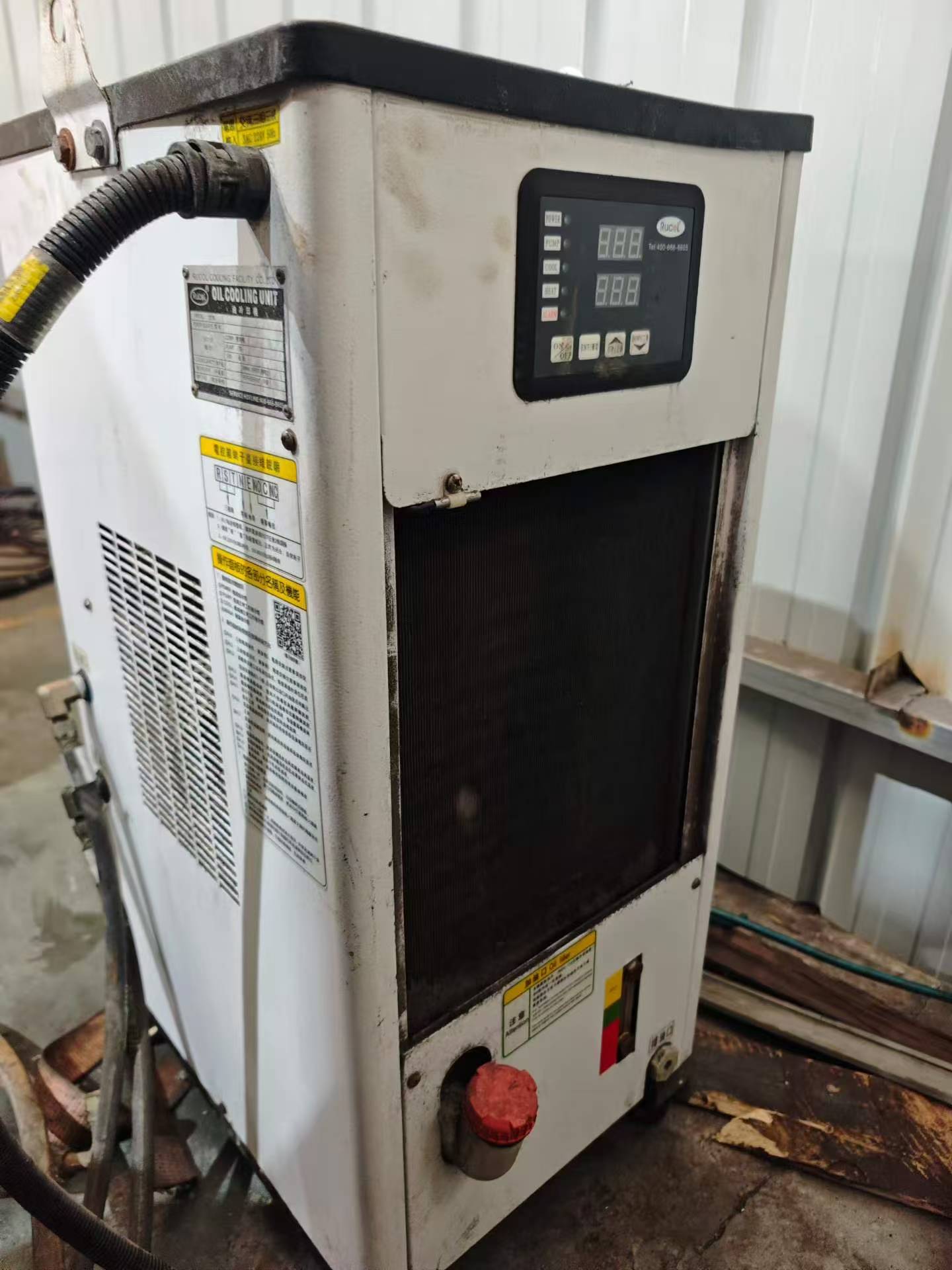

Spindle Oil Cooler	Yes
Worktable Size	2800 x 1800 mm
Door Width	2260 mm
Door Height	1130 mm
Spindle Nose To Table Distance	990 mm
X/Y/Z Travel	2700 x 2250 x 775 mm
Chip Conveyor	Dual screw and chain chip conveyor
Electromagnetic Chuck Quantity	4
Electromagnetic Chuck Size	600 x 600 mm
