AvailablePlaner Milling Machine

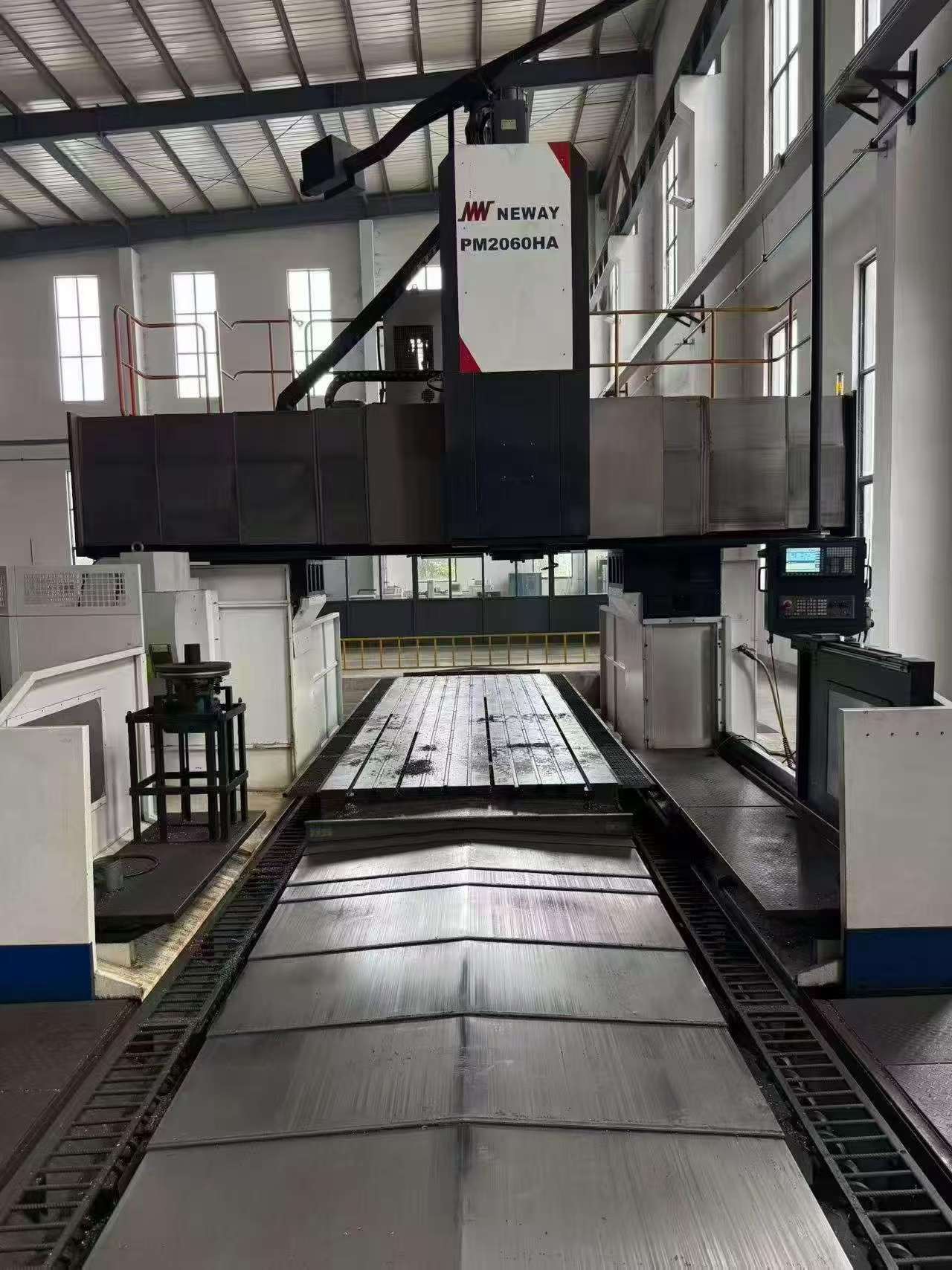

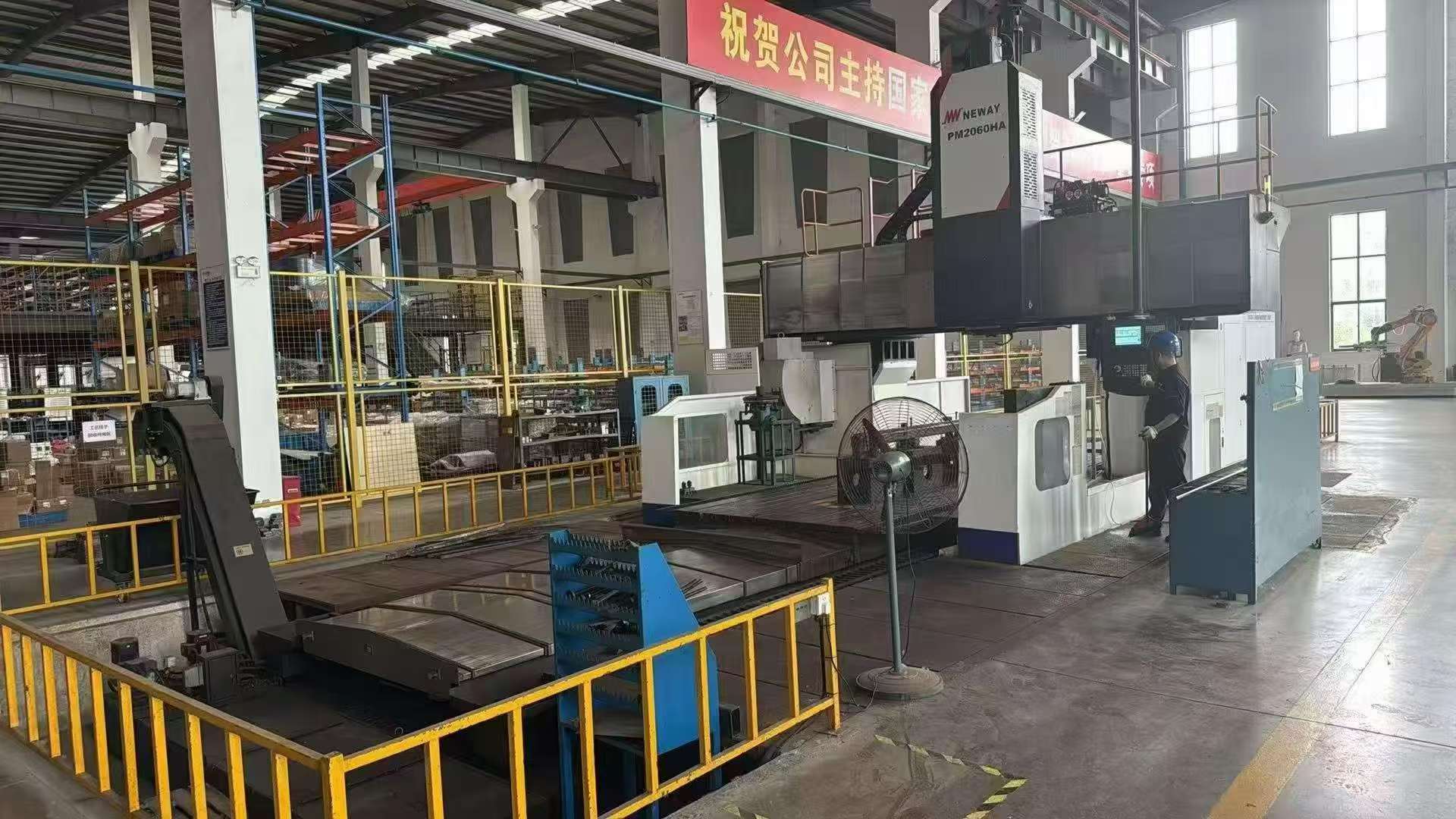

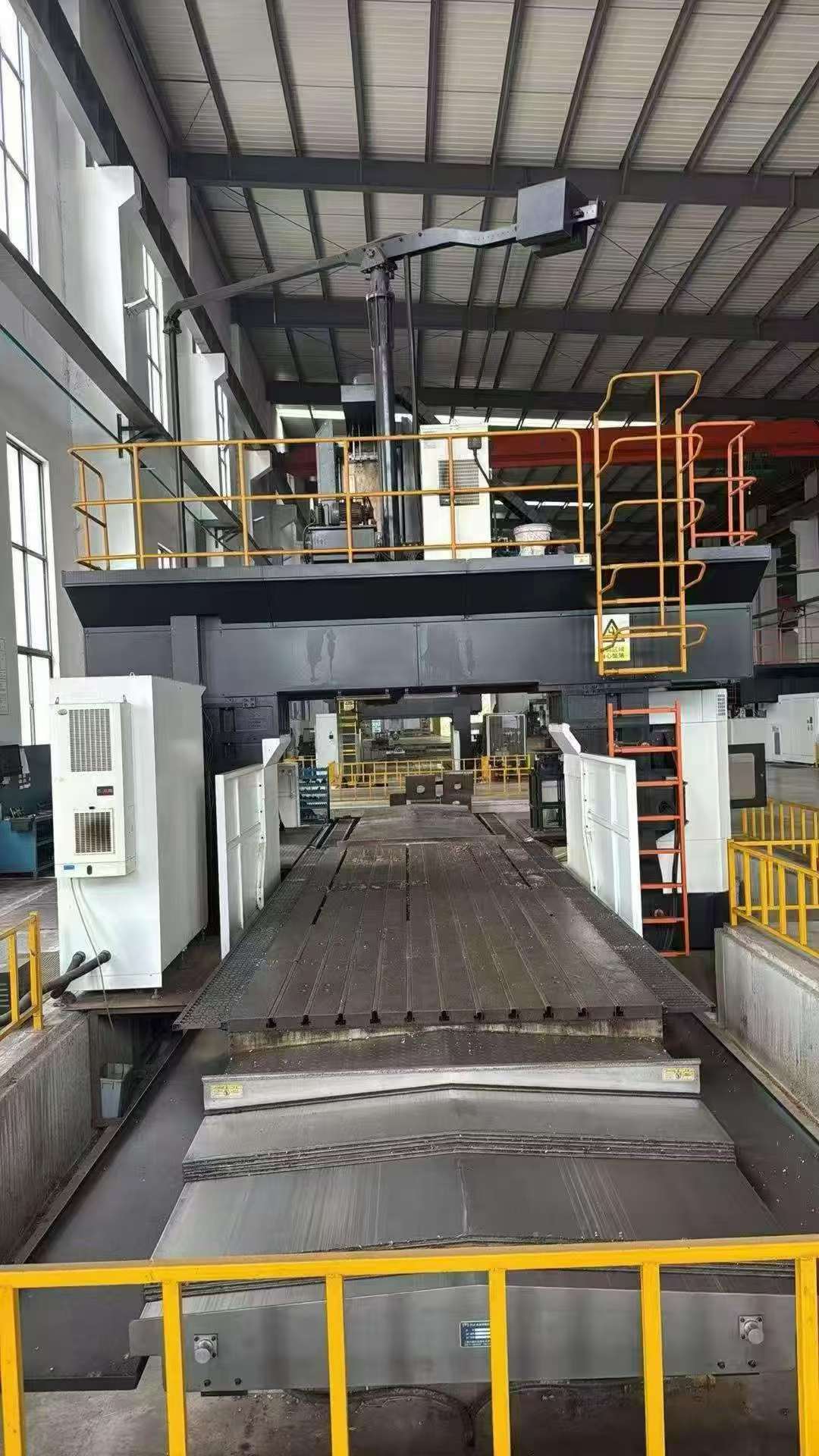

Used Neway 2060 HA Gantry Machining Center

Two identical Neway 2060 HA Gantry Machining Centers available. Equipped with Siemens 828D control, 24-position arm-type tool magazine, and manual side milling head. Worktable size 2000 x 6000 mm, X/Y/Z travel 6200 x 3200 x 1000 mm, door width 2800 mm, door height 1500 mm, square ram size 400 x 400 mm.

Machine Code: MC260748
Year: 2019
Location: China
Usage Hours: On request

Accessories

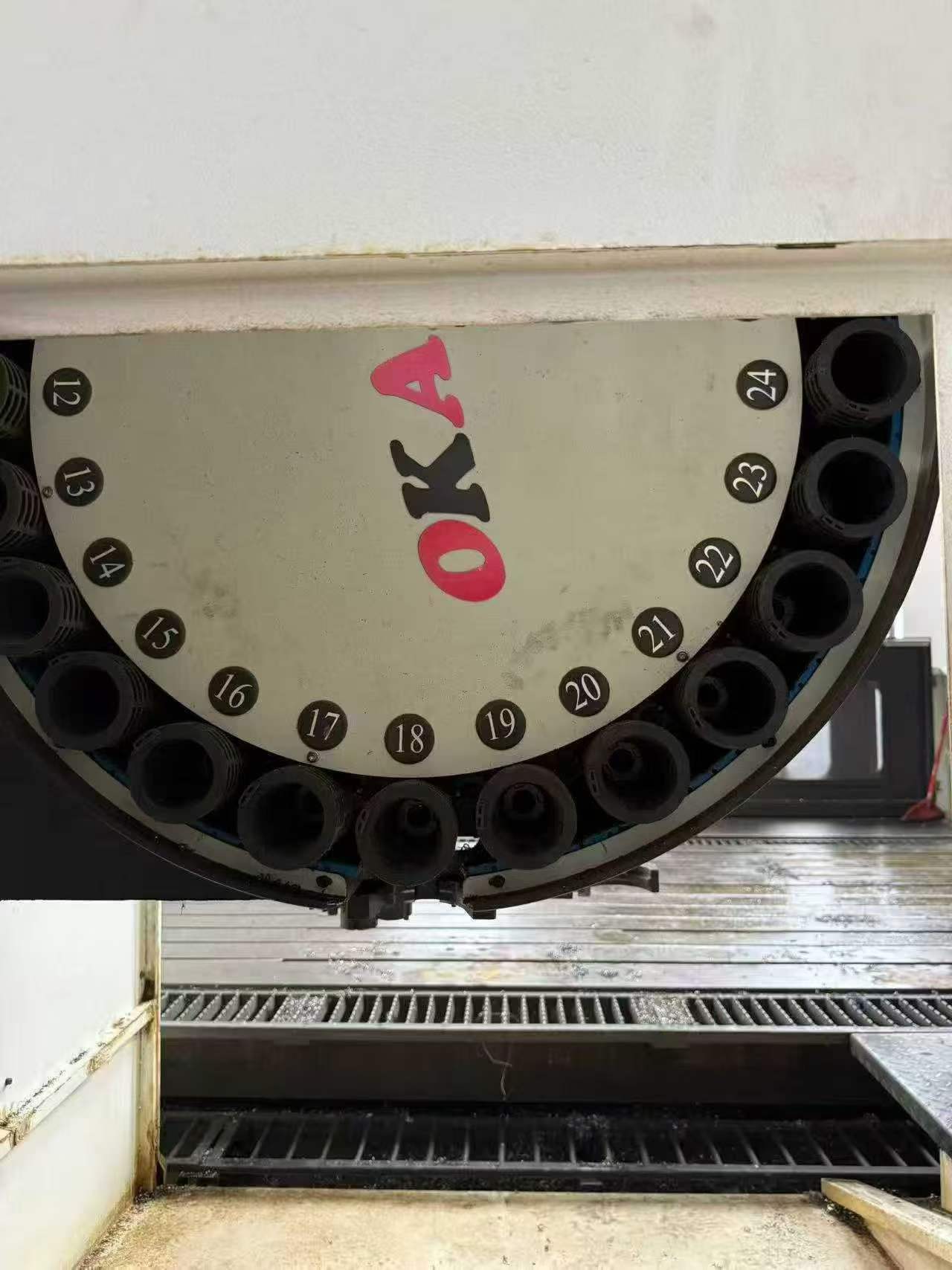

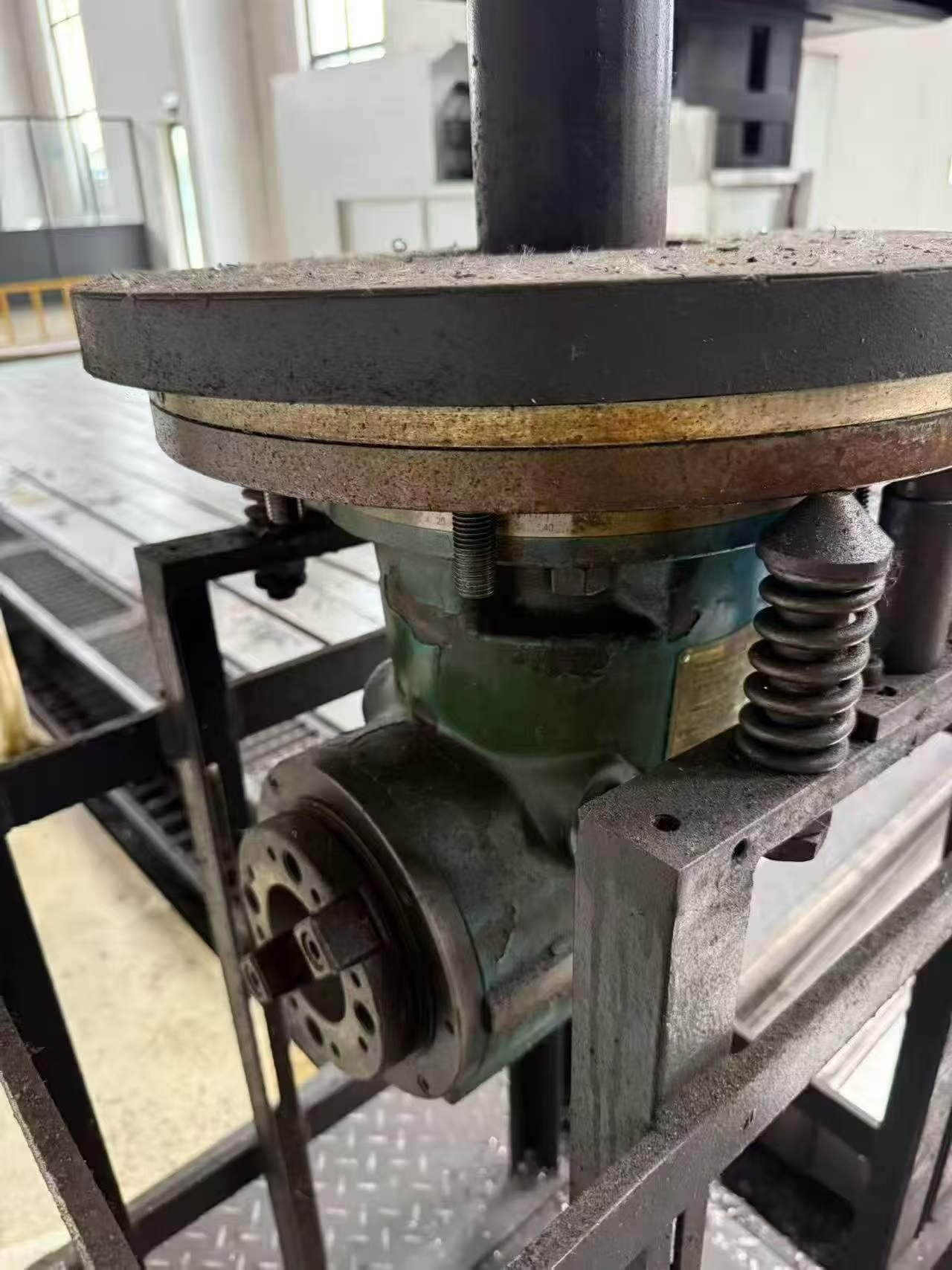

24-position arm-type tool magazine, manual side milling head

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Worktable Size	2000 x 6000 mm X/Y/Z travel: 6200 x 3200 x 1000 mm Door width: 2800 mm
Door Height	1500 mm Square ram size: 400 x 400 mm
Brand And Model	Neway 2060 HA Gantry Machining Center, 2 units
X/Y/Z Travel	6200 x 3200 x 1000 mm
Door Width	2800 mm
Square Ram Size	400 x 400 mm

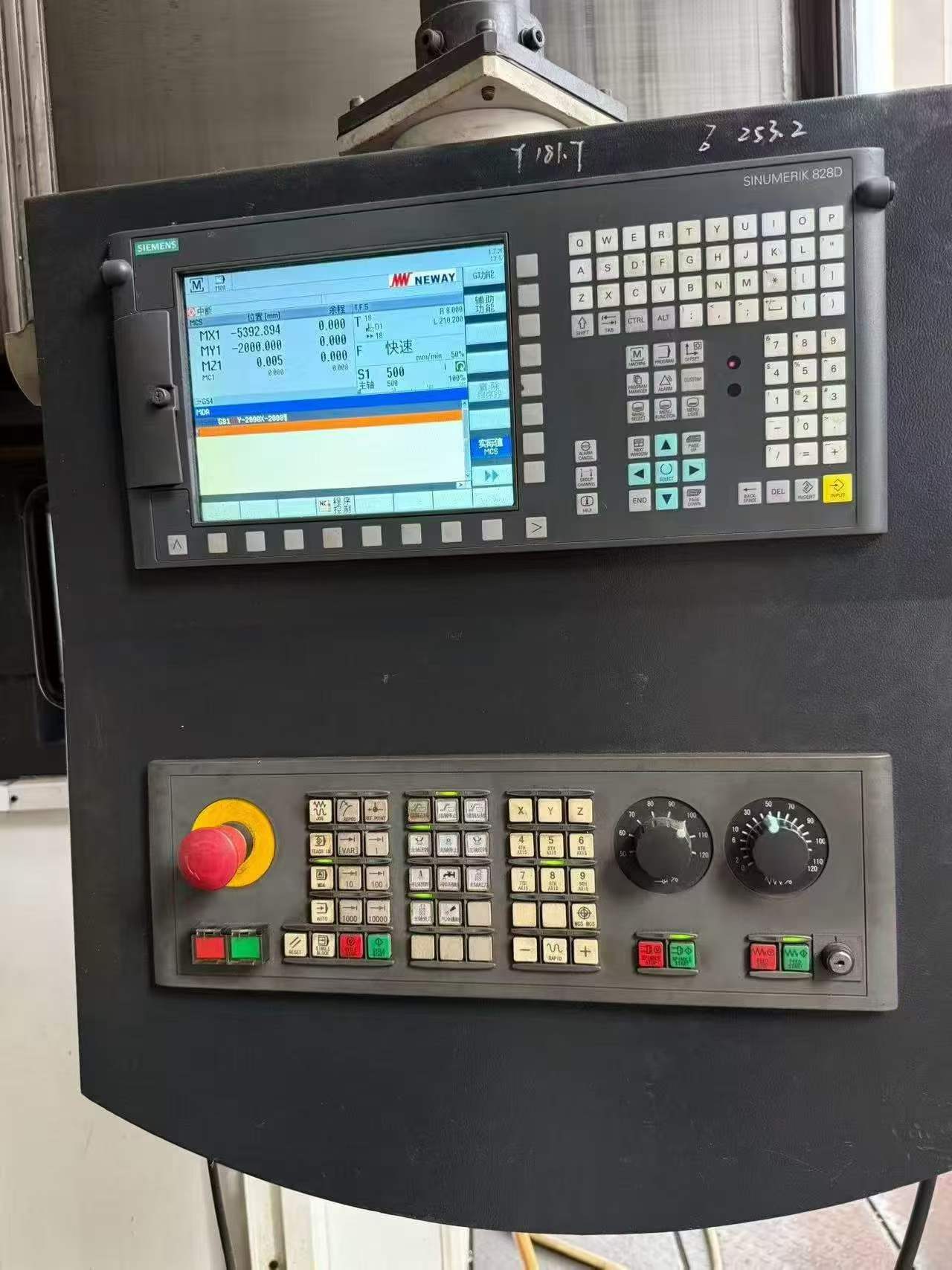

Controller	Siemens 828D
Tool Magazine	24-tool arm-type tool magazine
