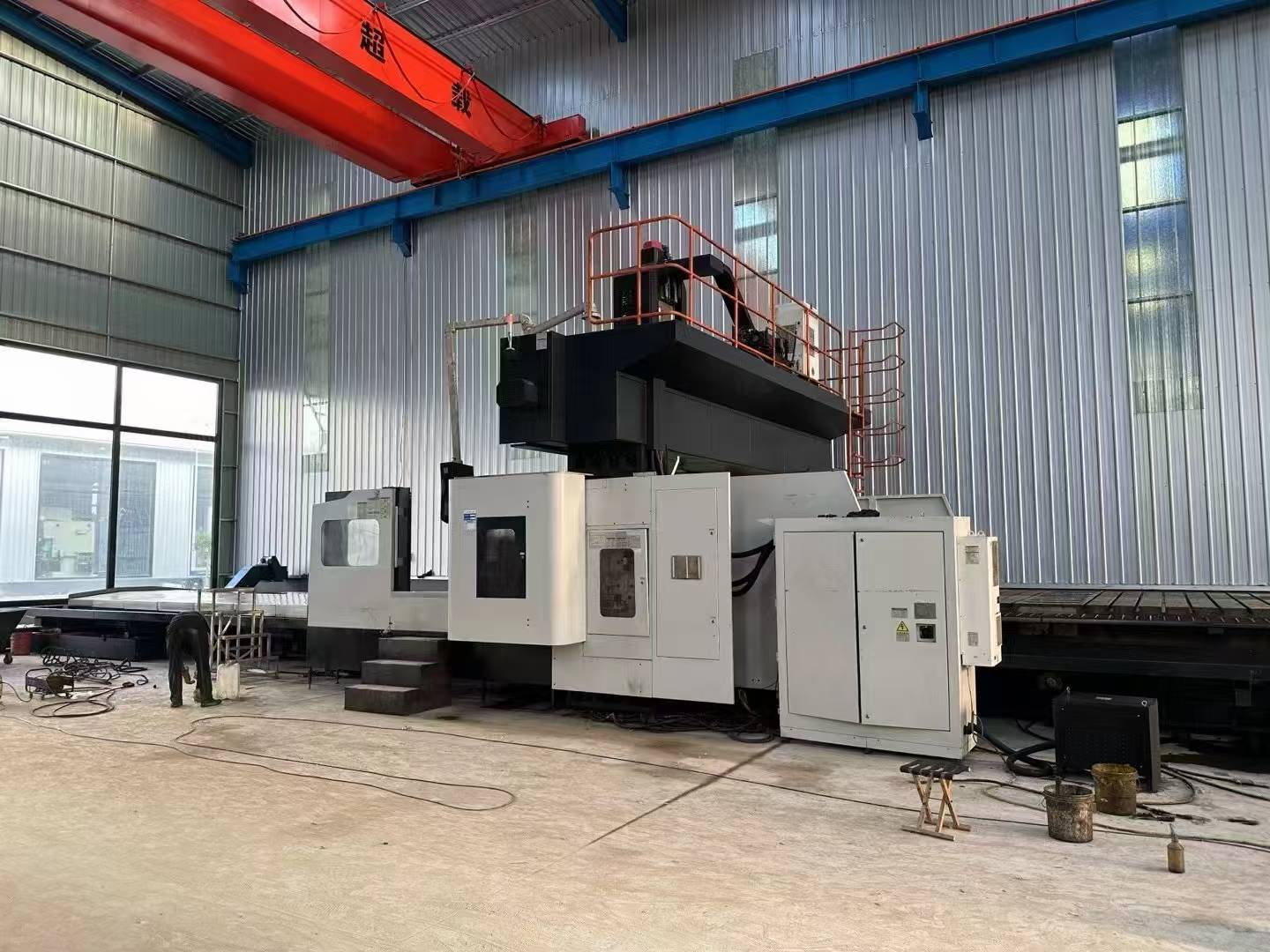

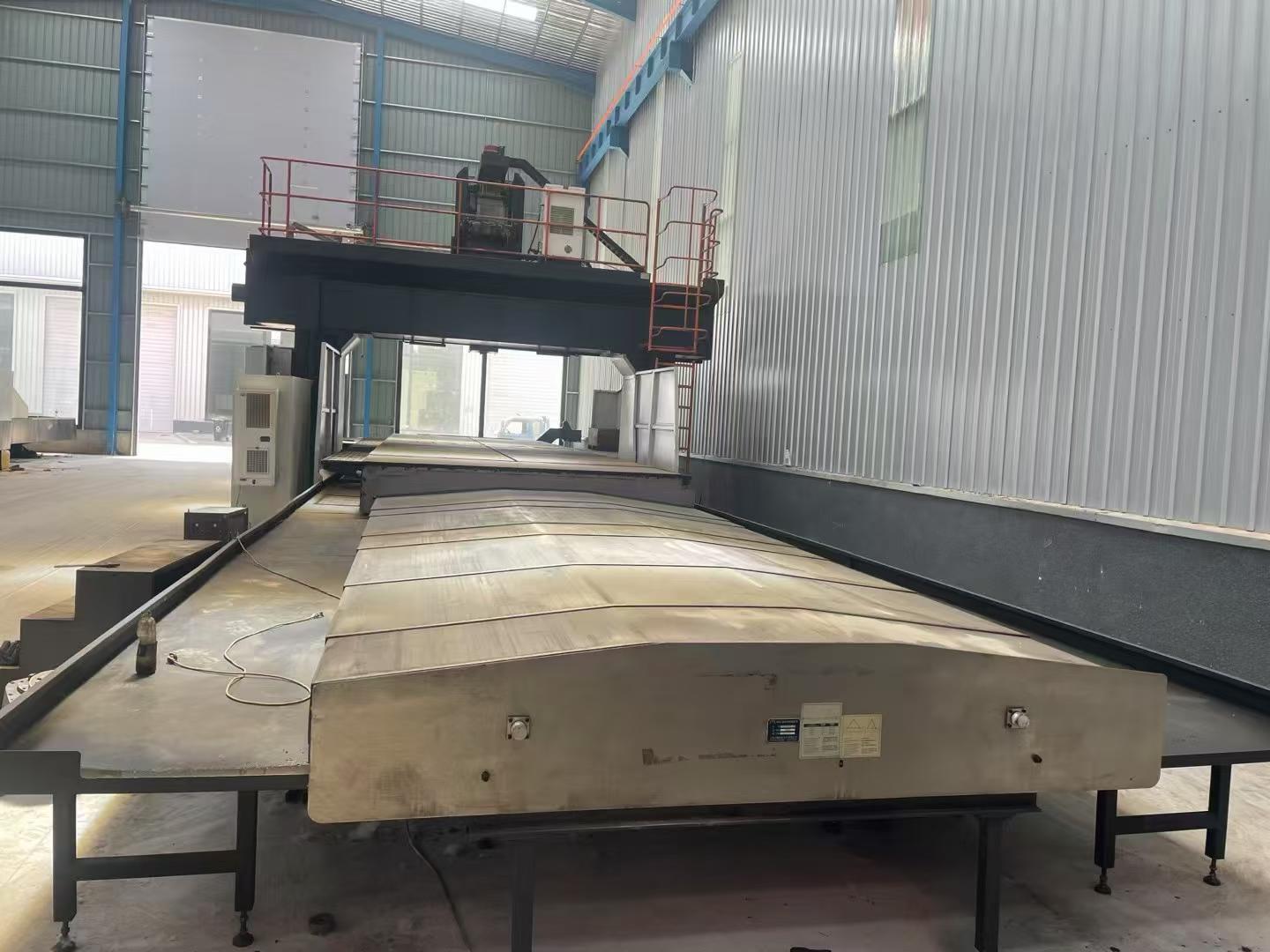

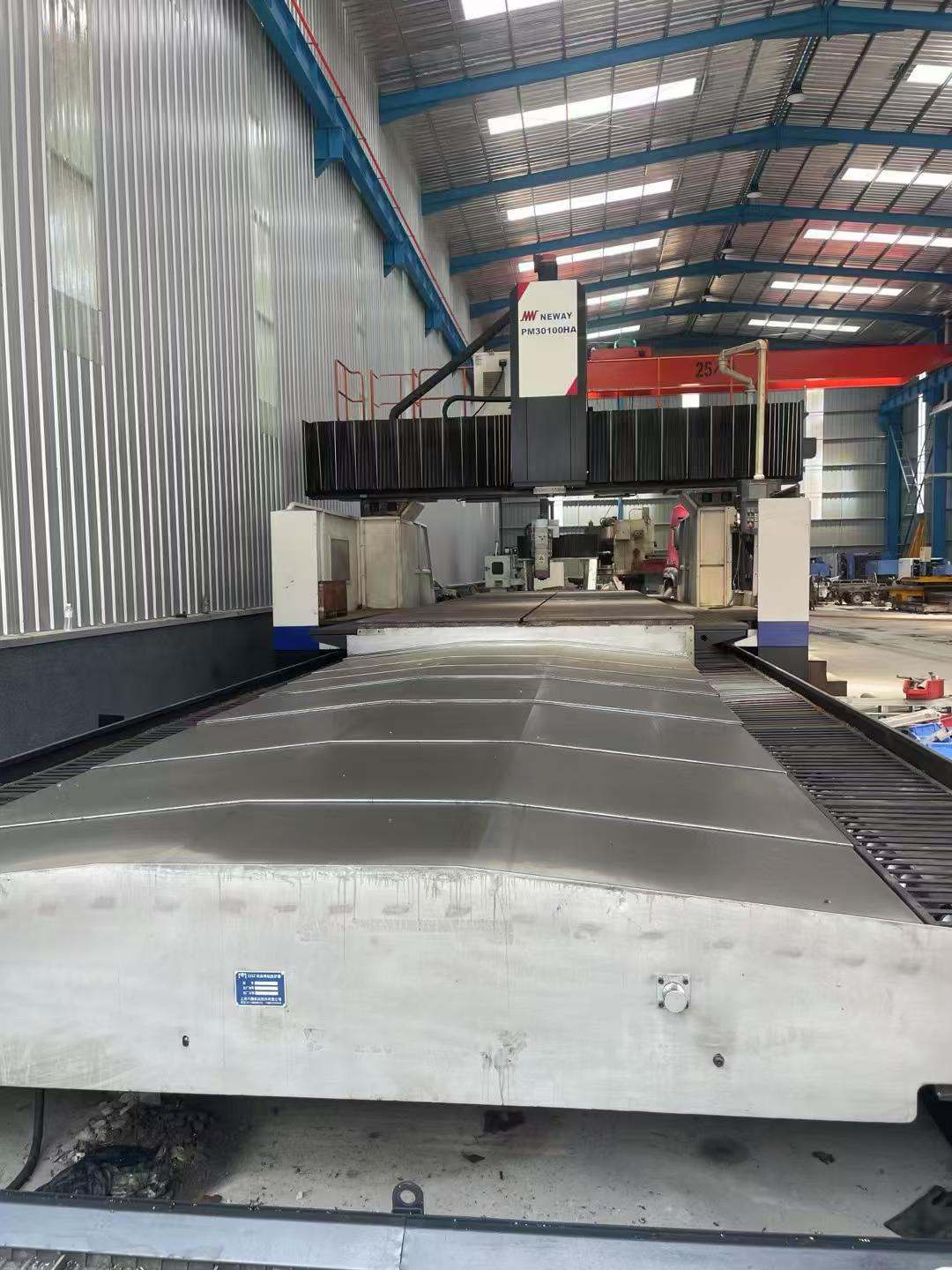

Used Niuwei 4.2 m x 10 m CNC Gantry Milling Machine with FANUC Control, 2020
Used Niuwei CNC gantry milling machine, 4.2 m x 10 m, manufactured in 2020, with FANUC control system. Machine is lightly used and available for inspection. Specifications: worktable size 3000 x 10000 mm, X travel 10500 mm, Y travel 4600 mm, Z travel 1000 mm, gantry pass-through width 4200 mm, pass-through height 1500 mm.
- Machine Code
- PM260626
- Year
- 2020
- Location
- China
- Usage Hours
- On request
Contact access
Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.
Loading…
Main Specifications
| Worktable size | 3000 x 10000 mm |
|---|---|
| X-axis travel | 10500 mm |
| Y-axis travel | 4600 mm |
| Z-axis travel | 1000 mm |
| Gantry width | 4200 mm |
| Gantry height | 1500 mm |
| Machine_type | Gantry Machining Center |
| Brand | Neway |
| Manufacturing_date | 2020-04 |

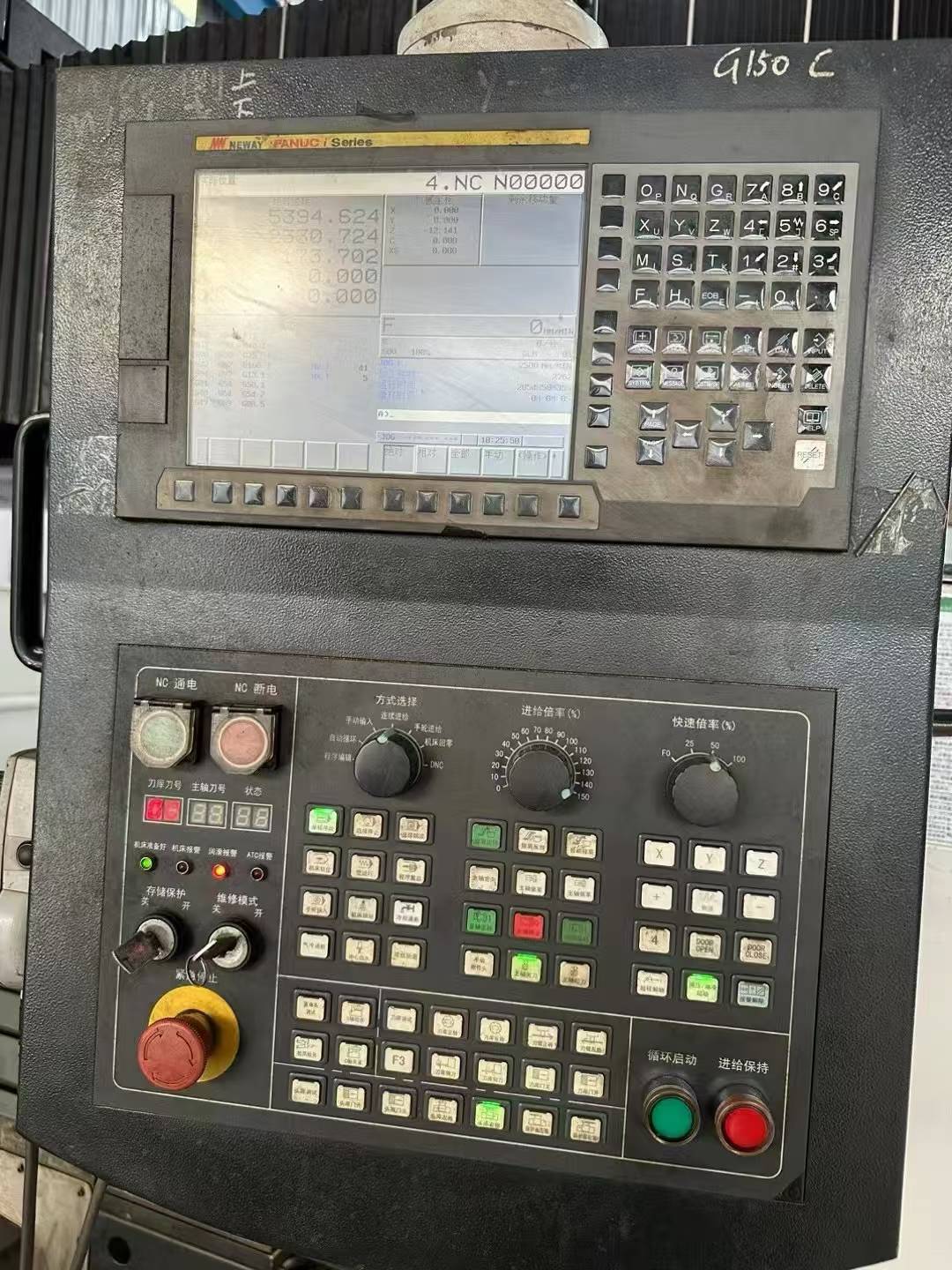

| Controller | FANUC |
| Machine Type | Gantry Machining Center |
| Manufacturing Date | 2020-04 |
