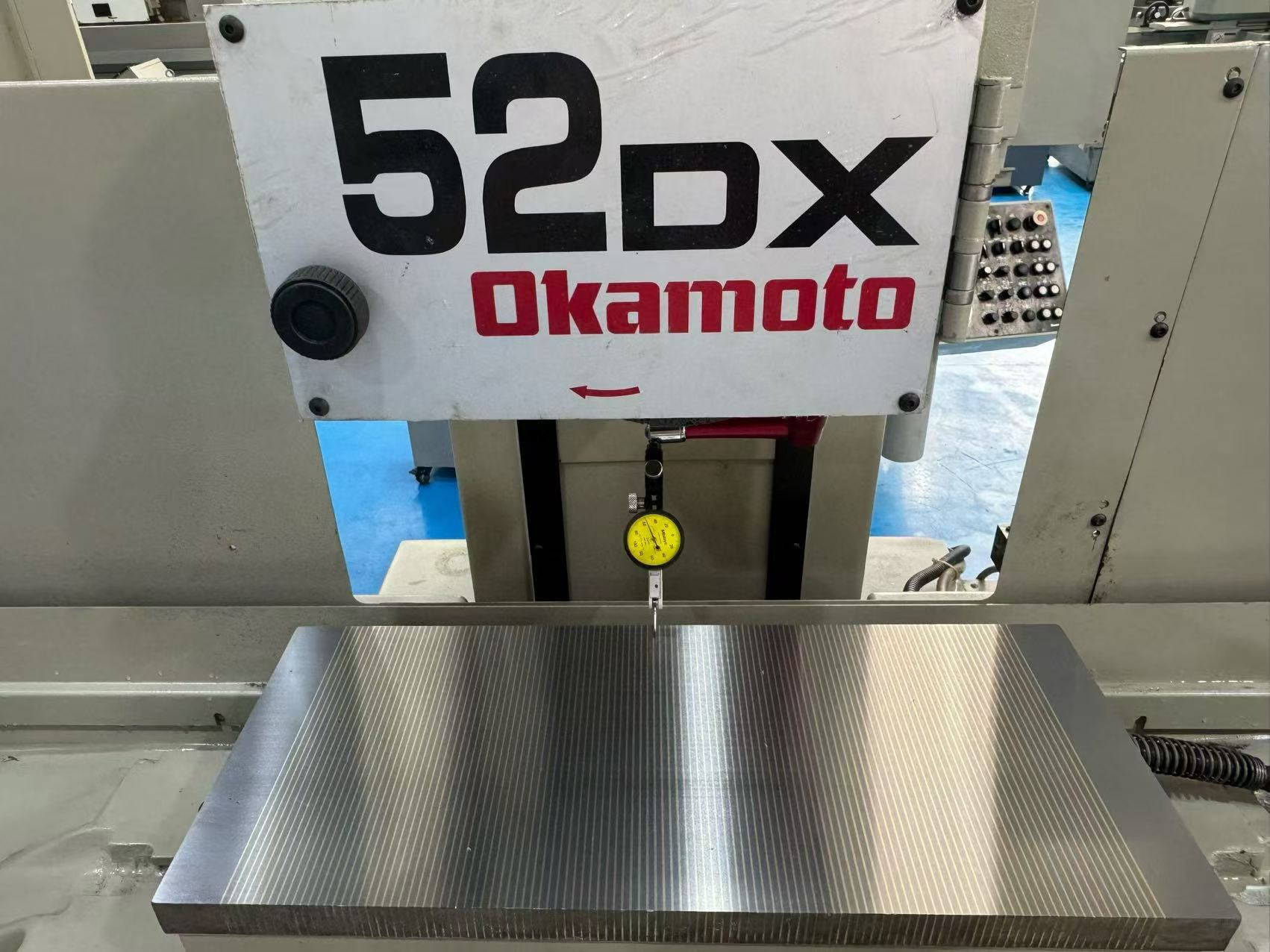

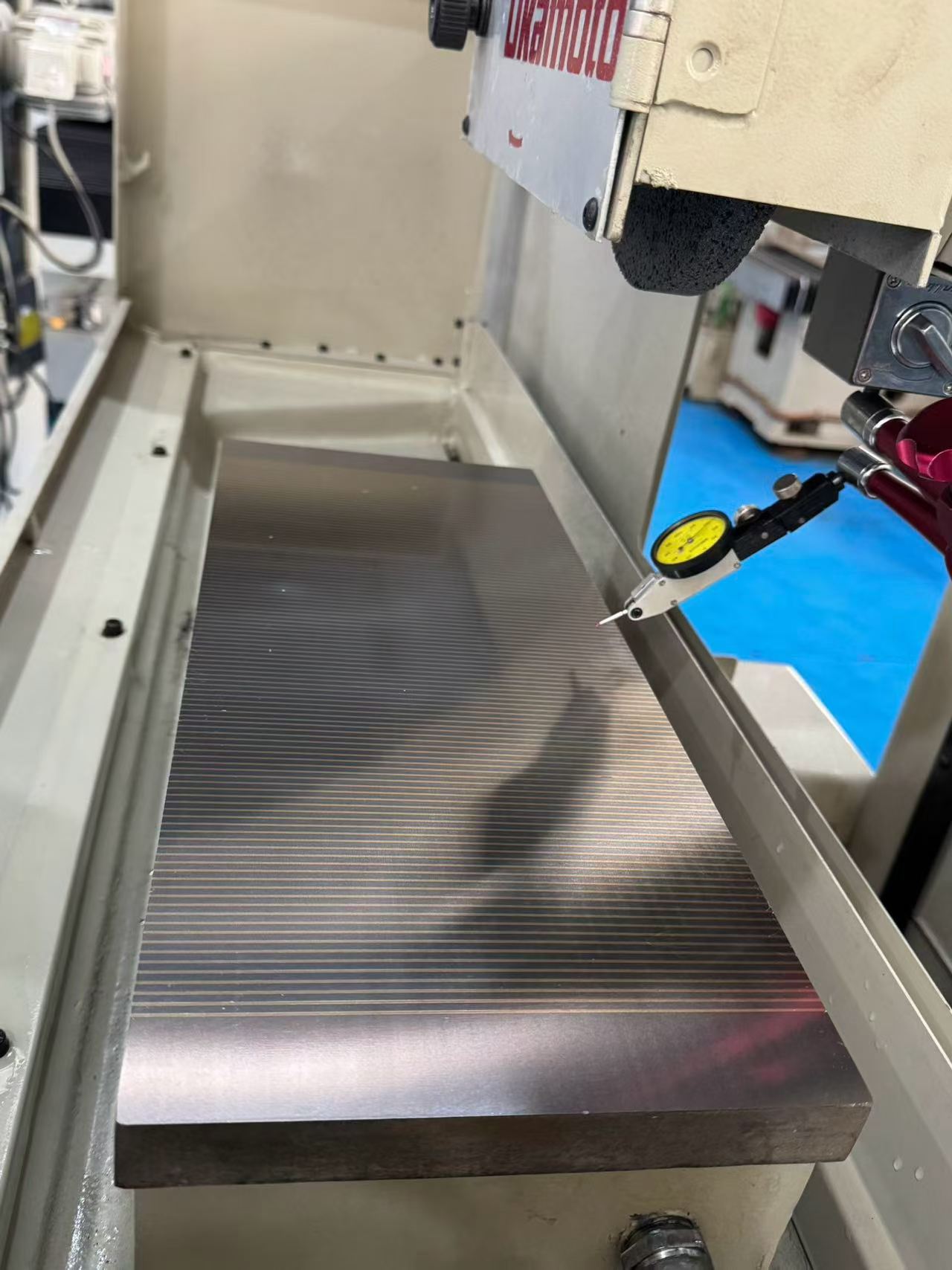

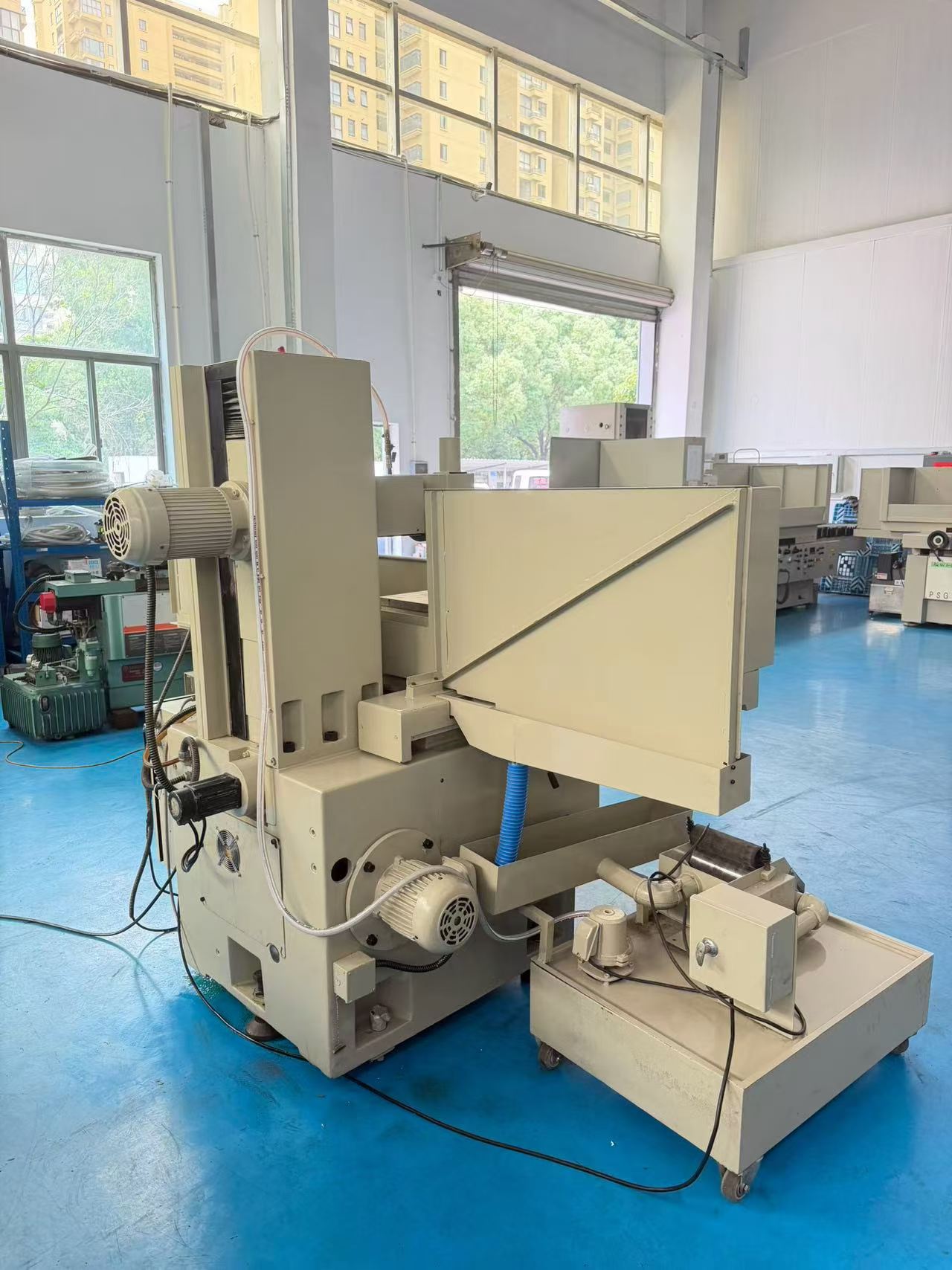

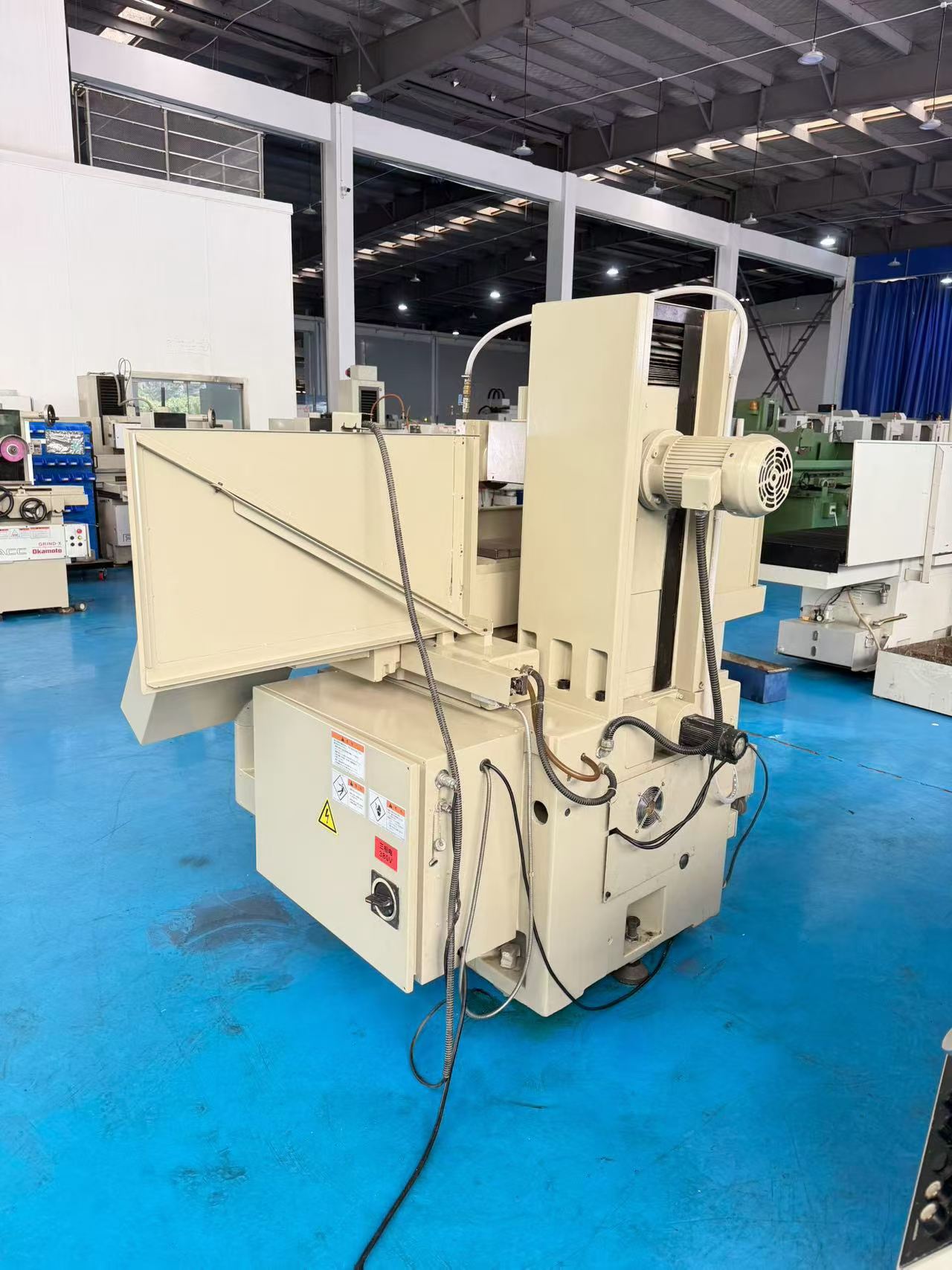

Used Okamoto ACC-52 DX High Precision Surface Grinding Machine
Newly arrived Okamoto ACC-52 DX high precision surface grinding machine from Japan. Equipped with coolant tank and magnetic separator, electromagnetic chuck. Precision of 0.002 mm.
- Machine Code
- GR260707
- Year
- On request
- Location
- China
- Usage Hours
- On request
Accessories
Coolant tank with magnetic separator Electromagnetic chuck
Main Specifications
| Spindle speed | 3000 rpm (50 Hz) / 3600 rpm (60 Hz) |
|---|---|
| Table travel | 500 x 200 mm |
| Distance from table to grinding wheel | 47.5 - 397.5 mm |
| Max workpiece weight | 200 kg |
| Grinding wheel size | 205 x 19 x 50.8 mm |
| Machine weight | 1800 kg |
| Precision | 0.002 mm |
| Coolant System | Water tank with magnetic separator |
| Workholding | Electromagnetic chuck |
