AvailableVertical Machining Center

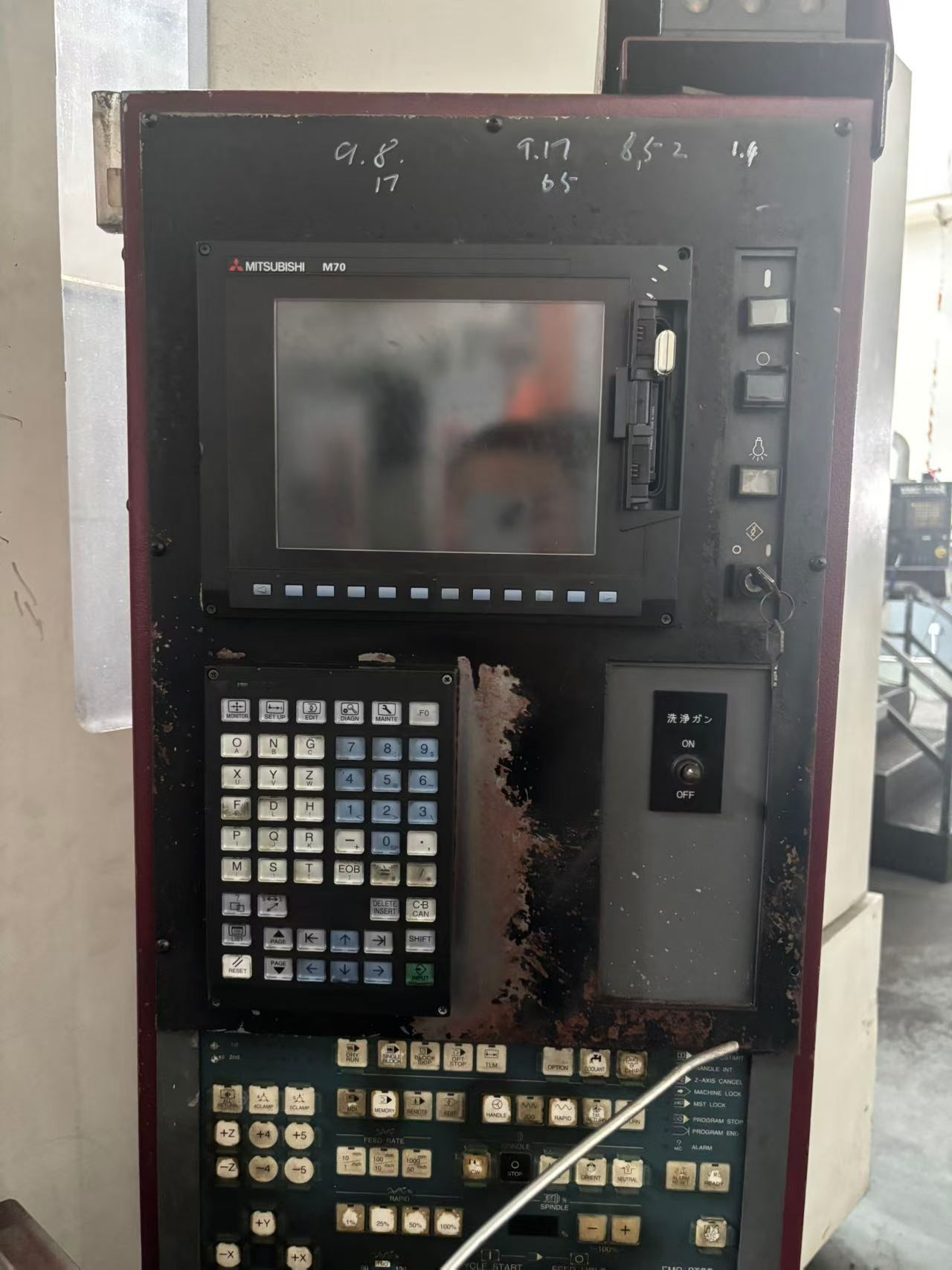

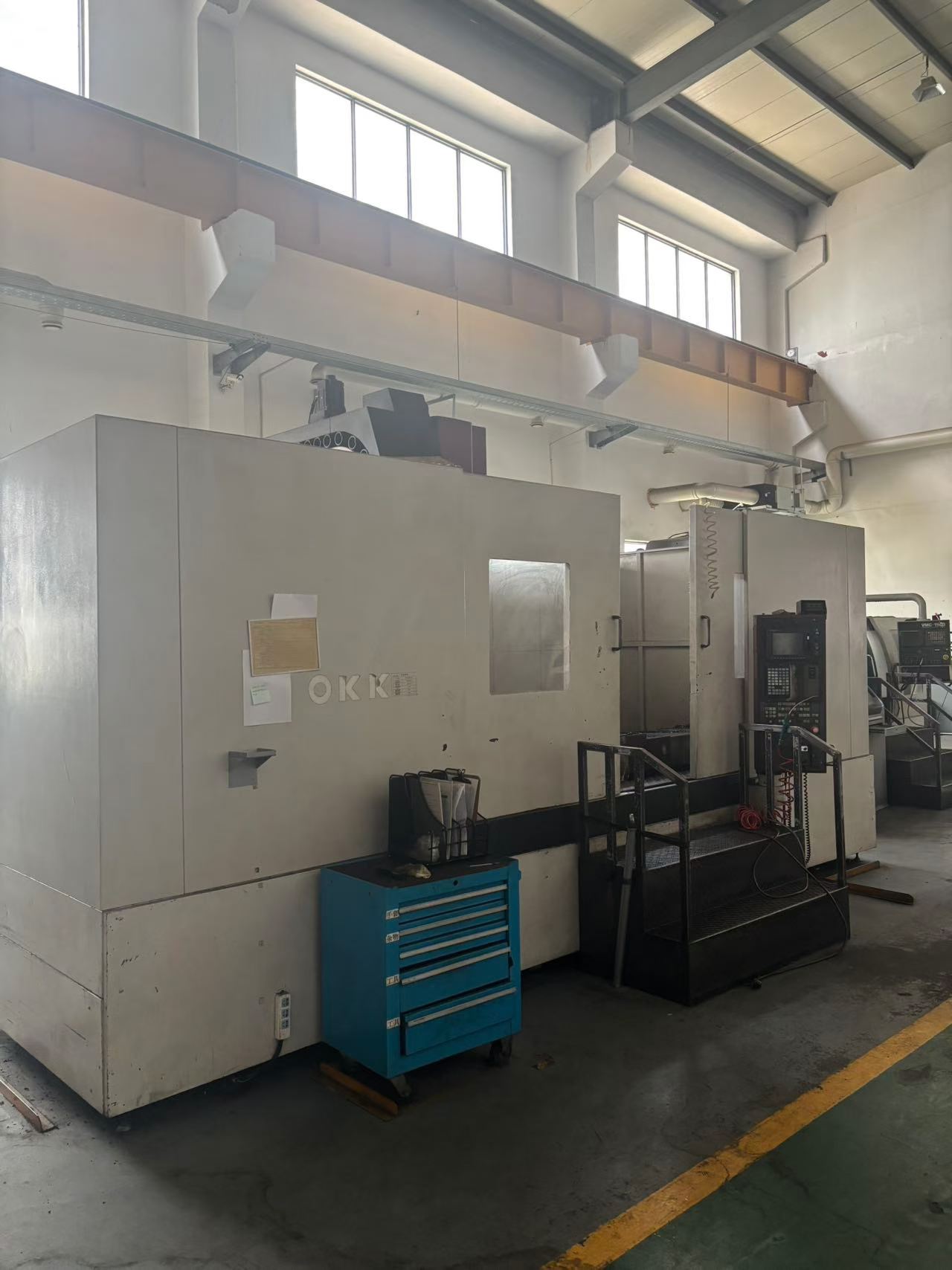

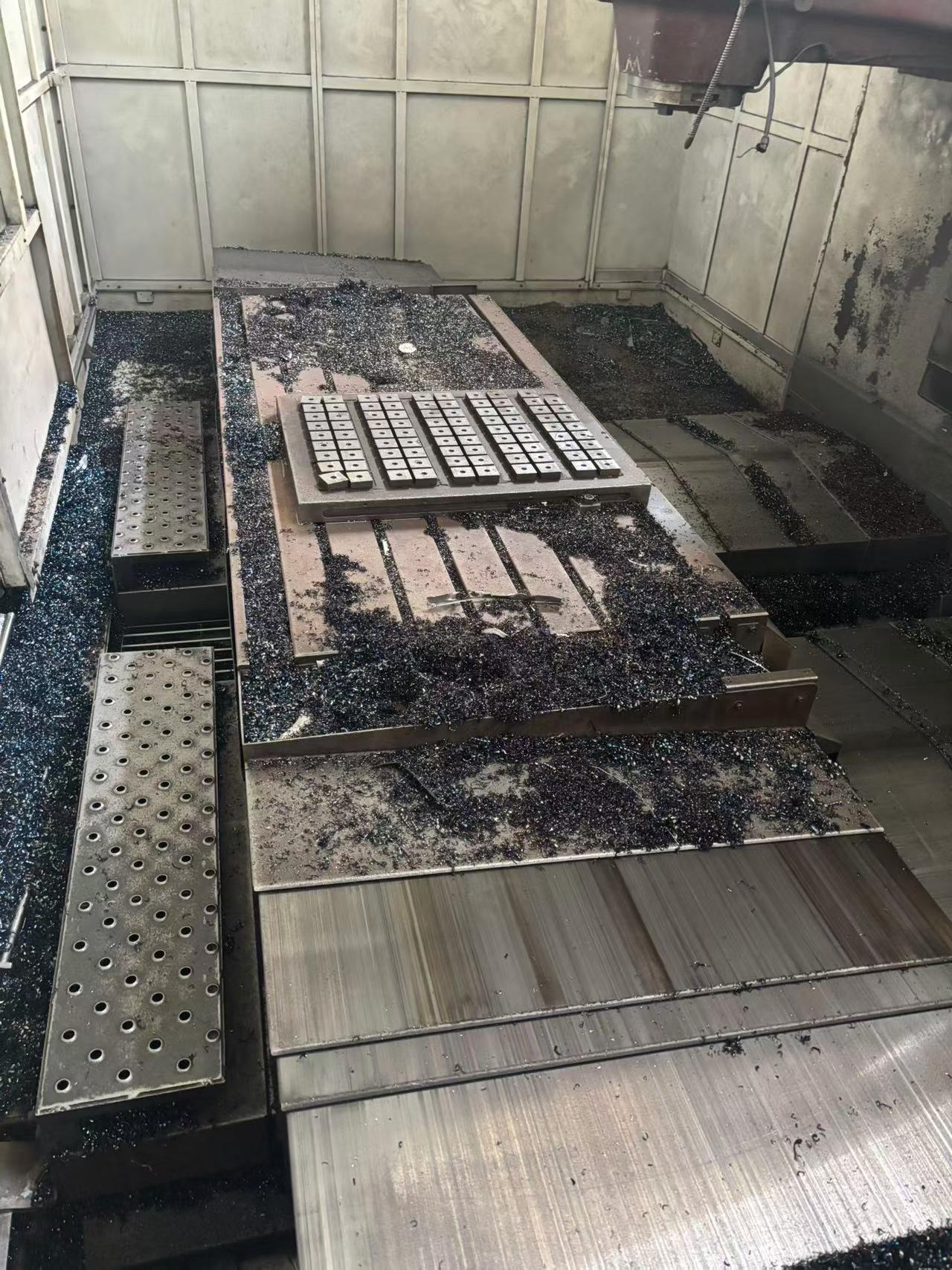

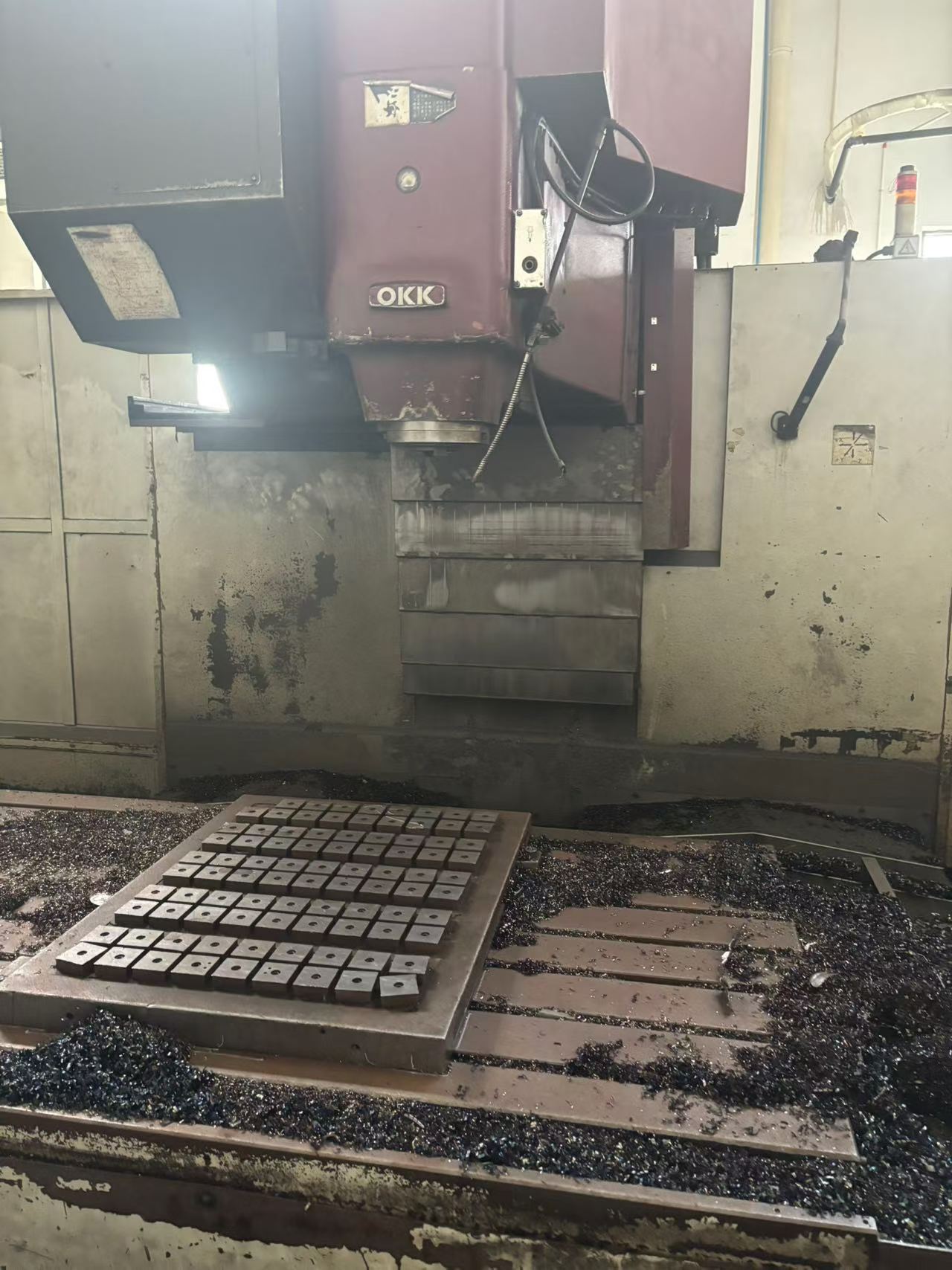

Used OKK VM 900 Vertical Machining Center with Mitsubishi M 70
Original Japanese OKK VM 900 vertical machining center. Controller: Mitsubishi M 70. Spindle: BT50, 8000 rpm. Tool magazine: 40-station disc-type. X/Y/Z travel: 2060 x 940 x 820 mm. Worktable size: 2300 x 940 mm. Maximum workpiece load: 3000 kg. Worktable height from floor: 1100 mm. All three axes feature heavy-duty rectangular box guideways with robust castings, designed for heavy milling of mold steel and forgings. Large table and long travels suit large plastic molds, die-casting molds, and engineering machinery parts. The above data are for reference only; the actual machine shall prevail.
- Machine Code
- VMC2608126
- Year
- 2013
- Location
- China
- Usage Hours
- On request
Main Specifications
| Spindle taper | BT50 |
|---|---|
| Spindle speed | 8000 rpm |
| Tool magazine capacity | 40 tools (disc-type) |
| X/Y/Z travel | 2060 x 940 x 820 mm |
| Worktable size | 2300 x 940 mm |
| Maximum workpiece load | 3000 kg |
| Worktable height above floor | 1100 mm |
| Guideway type | Box guideway on all three axes |
