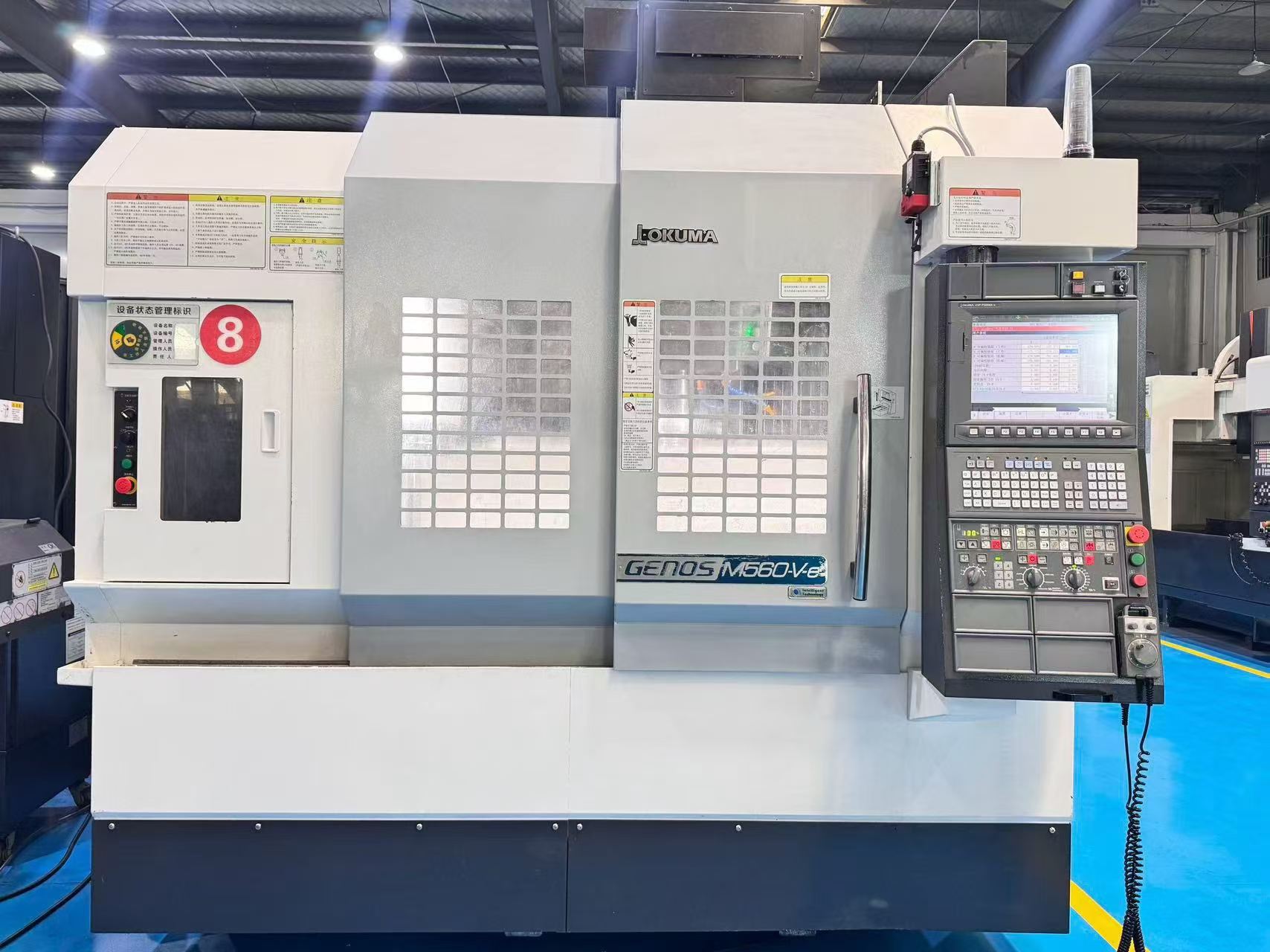

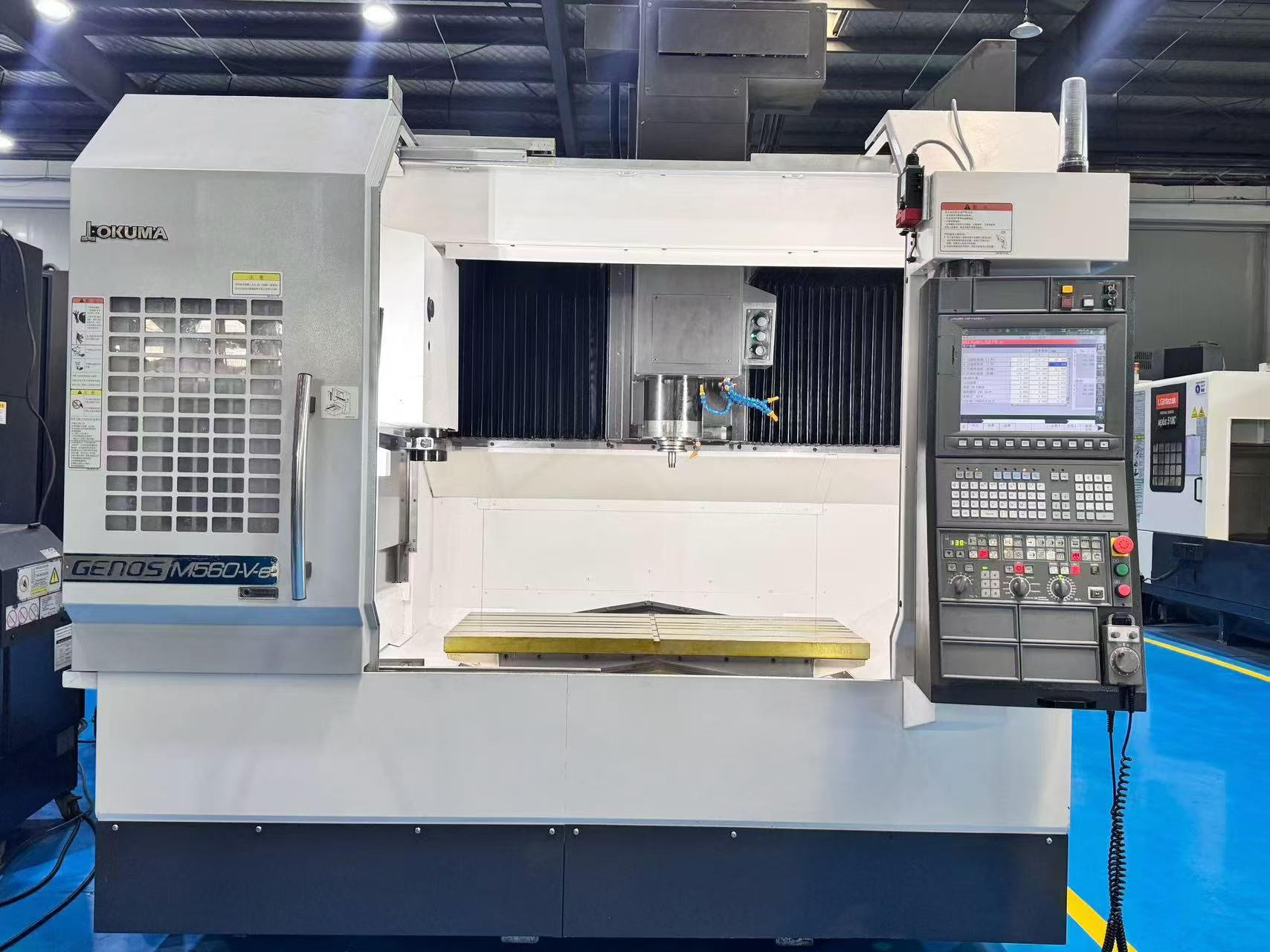

Used Okuma GENOS M 560-V-e Vertical Machining Center

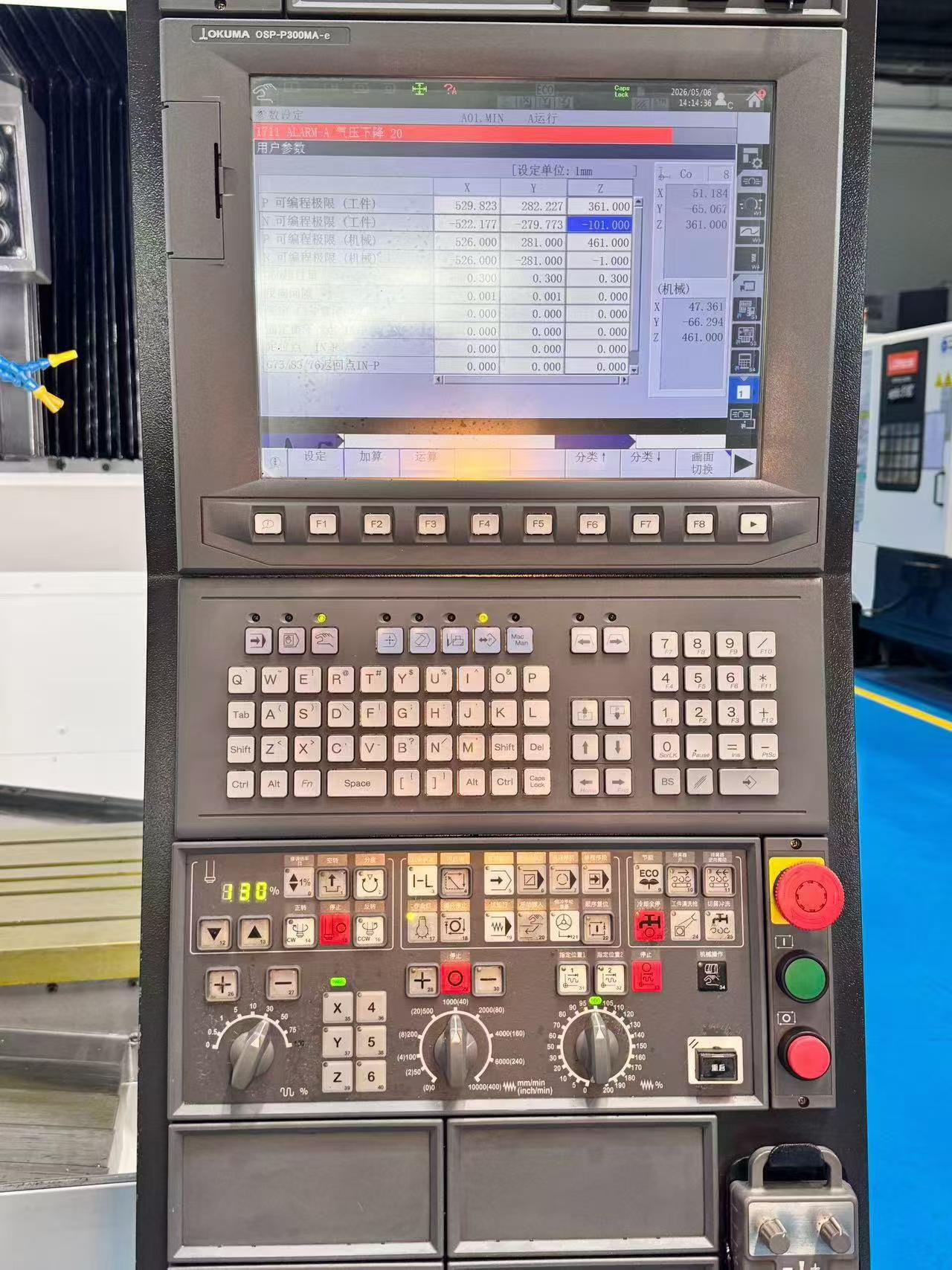

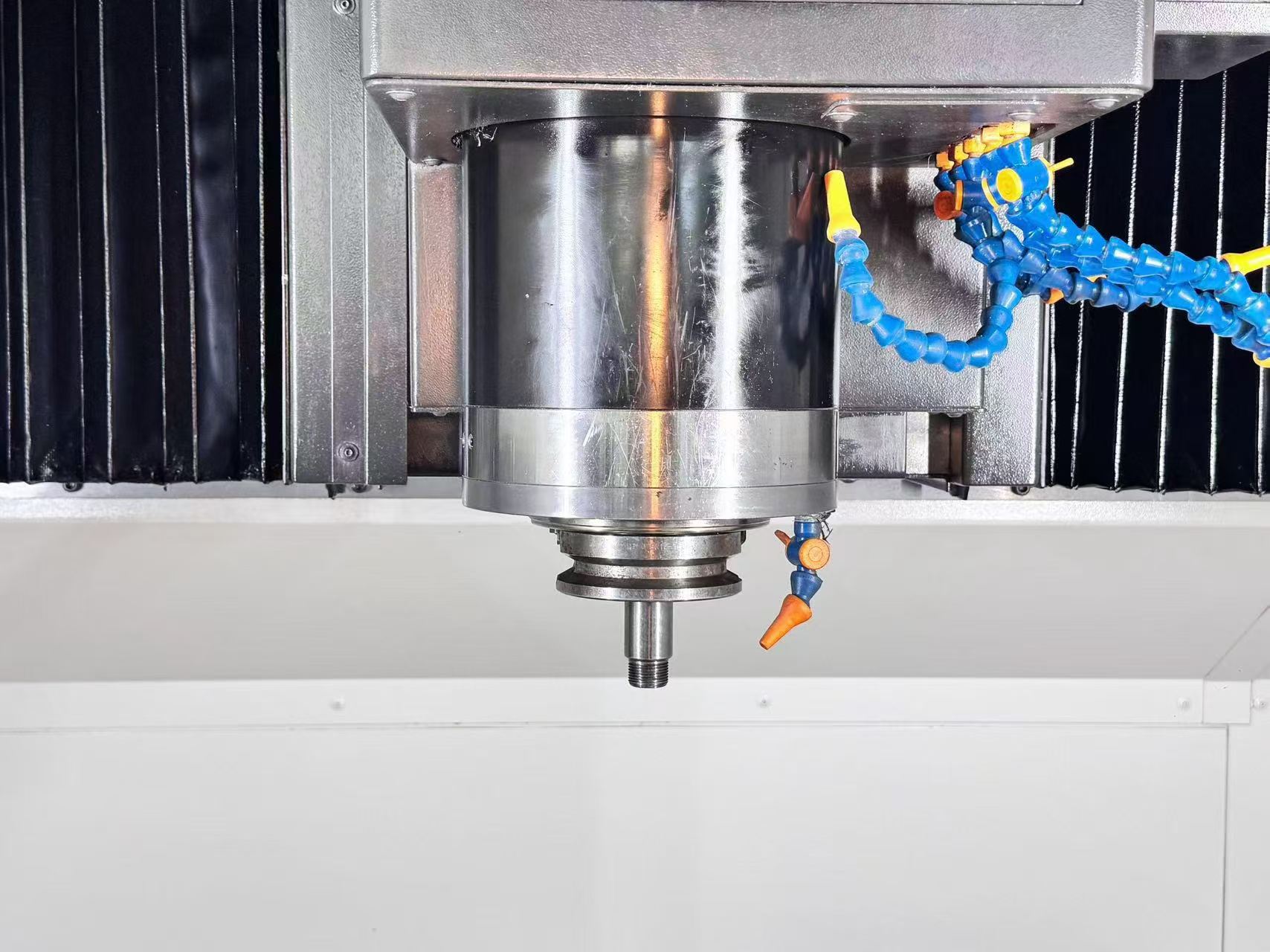

This listing is for a used Okuma GENOS M 560-V-e vertical machining center, originally imported from Taiwan. The machine is equipped with an OSP-P 300 MA-e control, a BT50 motorized spindle with a maximum speed of 12,000 rpm, a 32-tool automatic tool changer, and 45 roller linear guideways on all three axes. Travel is X: 1050 mm, Y: 560 mm, Z: 460 mm; worktable is 1300 x 560 mm; spindle nose to table distance is 140-600 mm. The machine includes a spindle oil cooler. Dial indicator verification shows spindle axis runout <0.015 mm and spindle test bar front/side generatrix <0.01 mm. Year of manufacture: 2023. Purchased new for 950,000.

Machine Code: VMC2608115

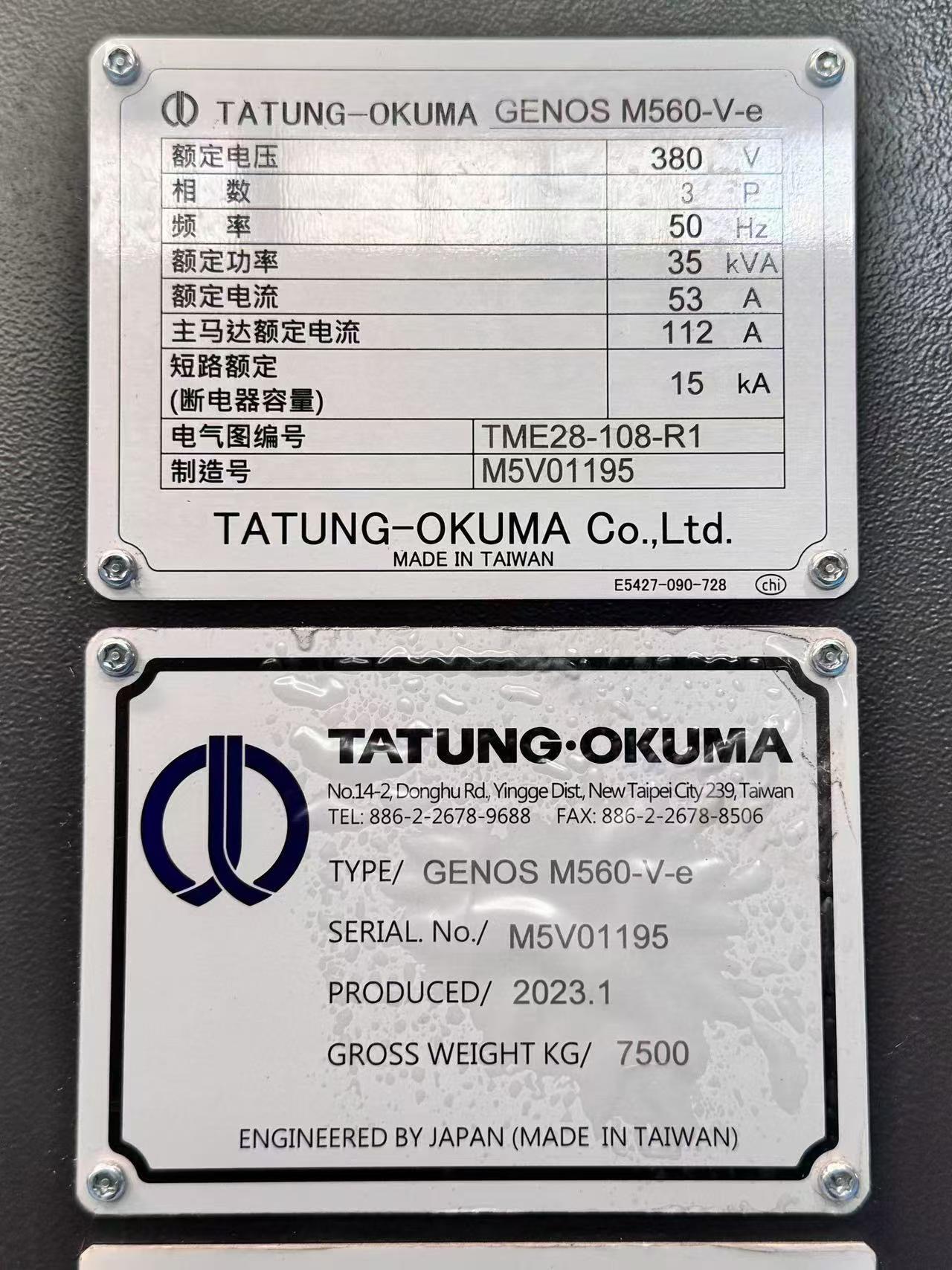

Year: 2023
Location: China
Usage Hours: On request

Accessories

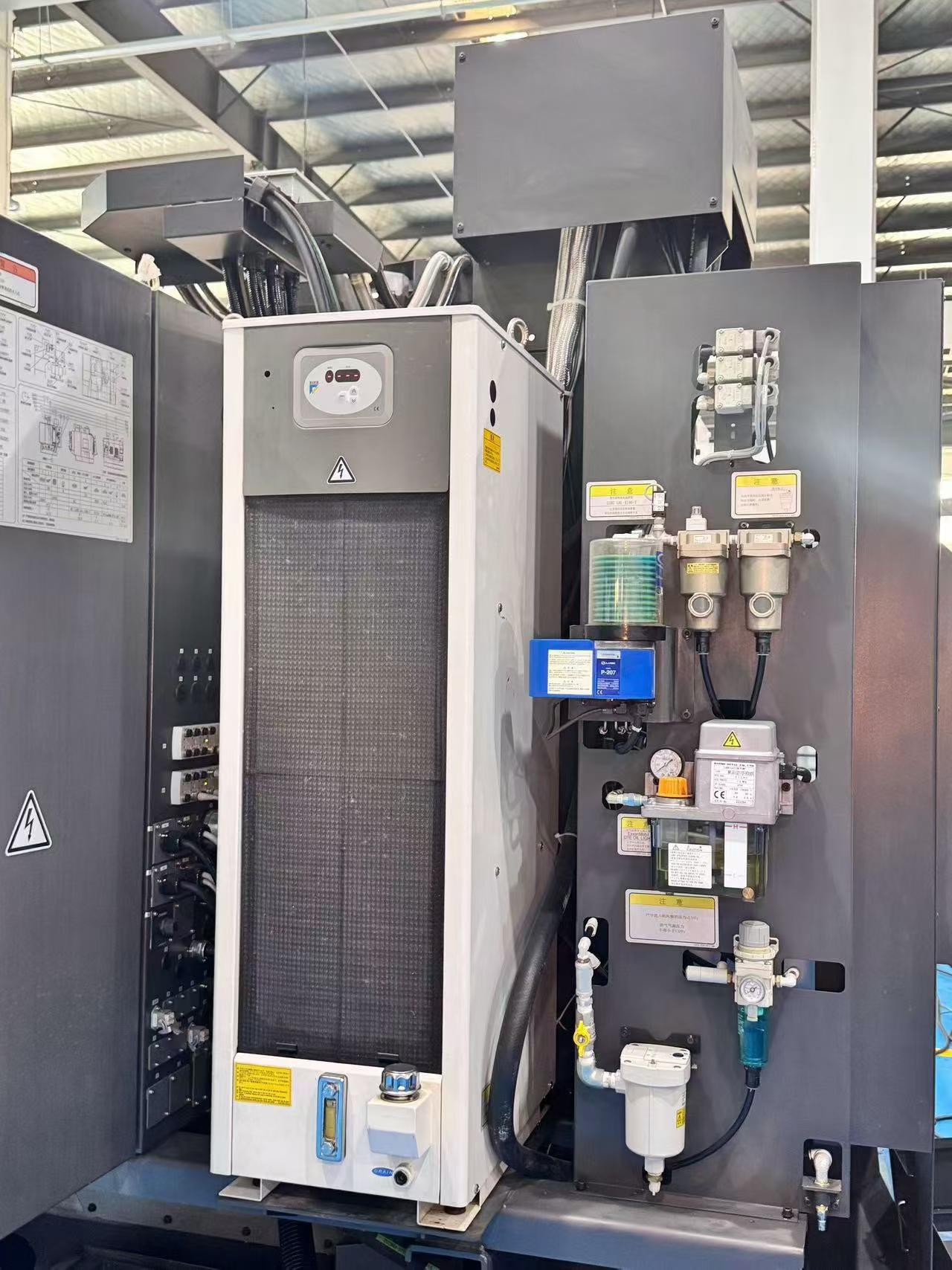

Spindle oil cooler

Email Inquiry

Main Specifications

Spindle speed	12000 rpm
Spindle taper	BT50

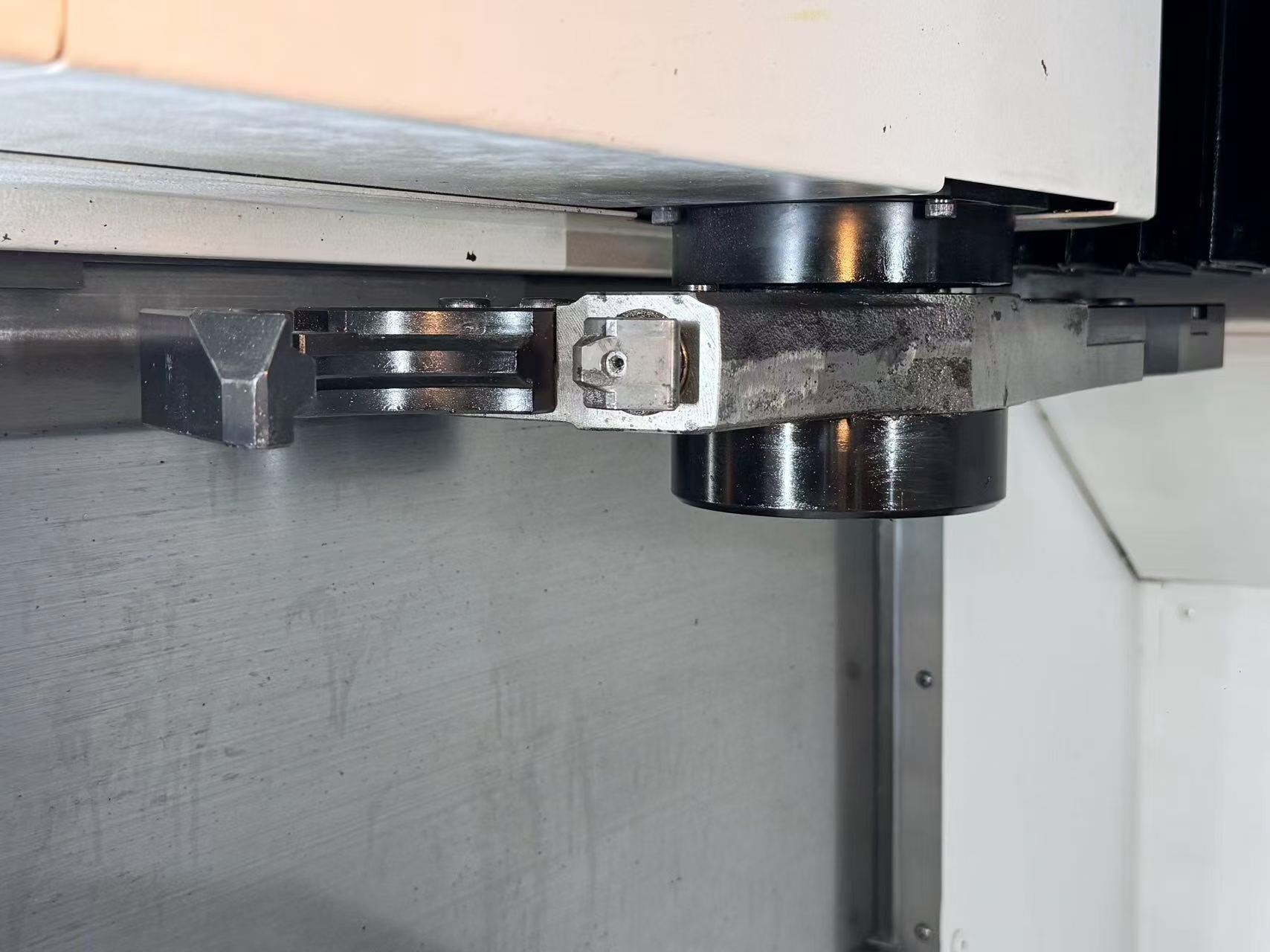

Tool magazine capacity	32 tools
Guideway type	45 roller linear guideways on all axes
Travel (X/Y/Z)	1050 x 560 x 460 mm

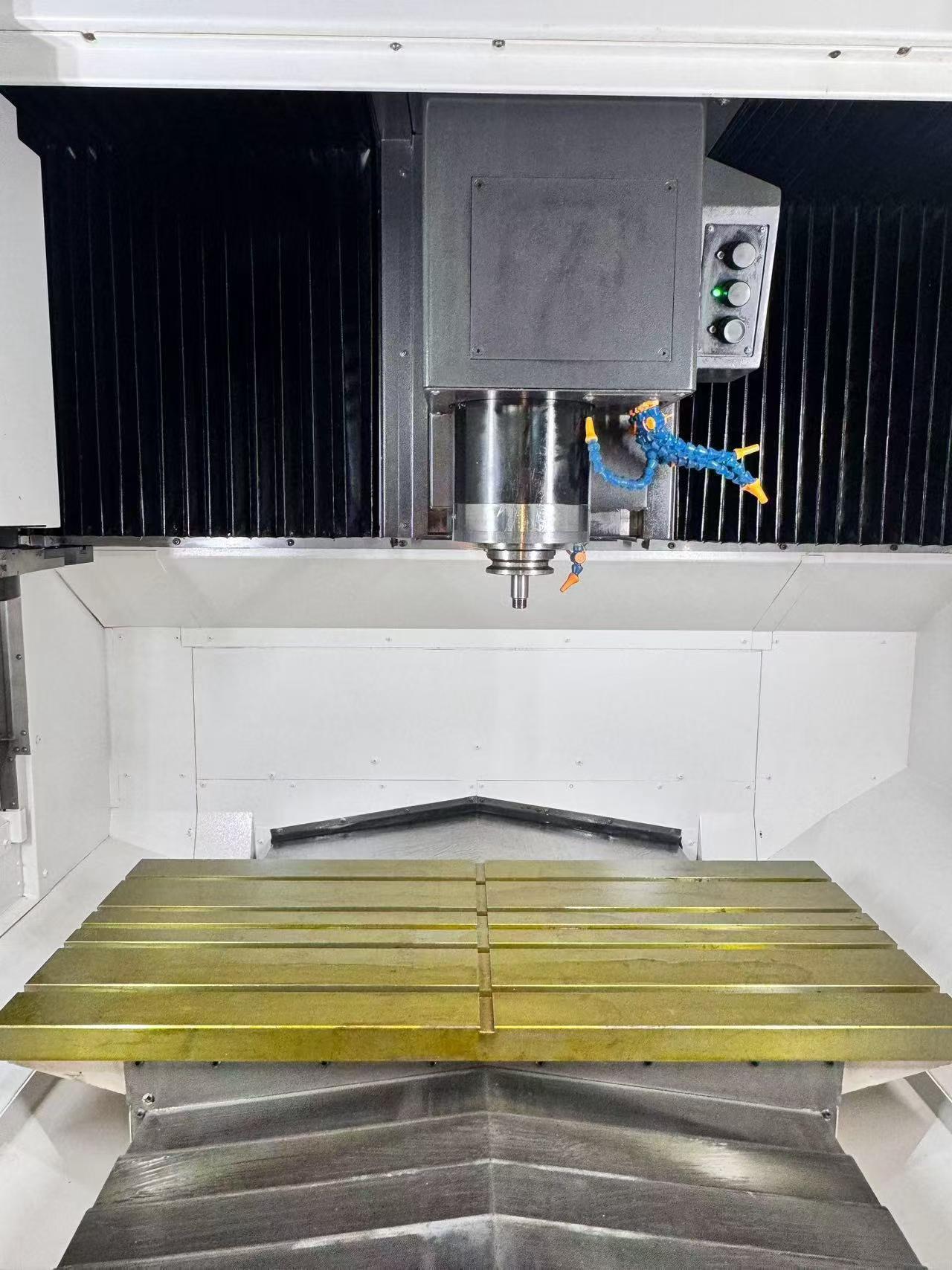

Worktable size	1300 x 560 mm
Spindle nose to table distance	140-600 mm
Spindle oil cooler	Included
Spindle axis runout	<0.015 mm
Spindle test bar front/side generatrix	<0.01 mm
